1 功能
提升性能，通过使用虚拟dom【虚拟dom其实就是数据(把dom数据化)】
2 主流：snabbdom、virtual-dom
snabbdom/README-zh_CN.md at b301a9220918254aa9c79ad91012780ff8c55862 · snabbdom/snabbdom · GitHub
3 搭建环境
npm init -y
npm install webpack@5 webpack-cli@3 webpack-dev-server@3 -S
npm install snabbdom -S
3.1 修改package.json运行命令
【"dev": "webpack-dev-server --open"】
{
"name": "diff",
"version": "1.0.0",
"description": "",
"main": "index.js",
"scripts": {
"dev": "webpack-dev-server --open"
},
"keywords": [],
"author": "",
"license": "ISC",
"dependencies": {
"snabbdom": "^3.6.2",
"webpack": "^5.95.0",
"webpack-cli": "^3.3.12",
"webpack-dev-server": "^3.11.3"
}
}
3.2 新建配置webpack.config.js
module.exports = {
entry: {
index: './src/index.js'
},
output: {
path: __dirname + '/public',
filename: './js/[name].js'
},
devServer: {
contentBase: './public',
inline: true
}
}3.3 新建入口文件和出口文件
html：public/index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
</head>
<body>
<h1>11111111111</h1>
<script type="text/javascript" src="/js/index.js"></script>
</body>
</html>js：src/index.js
alert(123)3.4 检查运行环境
npm run dev
4 使用snabbdom示例
4.1 找到示例覆盖index.js
import {
init,
classModule,
propsModule,
styleModule,
eventListenersModule,
h
} from "snabbdom";
const patch = init([
// 通过传入模块初始化 patch 函数
classModule, // 开启 classes 功能
propsModule, // 支持传入 props
styleModule, // 支持内联样式同时支持动画
eventListenersModule // 添加事件监听
]);
const container = document.getElementById("container");
const vnode = h("div#container.two.classes", { on: { click: someFn } }, [
h("span", { style: { fontWeight: "bold" } }, "This is bold"),
" and this is just normal text",
h("a", { props: { href: "/foo" } }, "I'll take you places!")
]);
// 传入一个空的元素节点 - 将产生副作用（修改该节点）
patch(container, vnode);
const newVnode = h(
"div#container.two.classes",
{ on: { click: anotherEventHandler } },
[
h(
"span",
{ style: { fontWeight: "normal", fontStyle: "italic" } },
"This is now italic type"
),
" and this is still just normal text",
h("a", { props: { href: "/bar" } }, "I'll take you places!")
]
);
// 再次调用 `patch`
patch(vnode, newVnode); // 将旧节点更新为新节点4.2 示例报错
- Uncaught ReferenceError: someFn is not defined
// 将 someFn 替换成 function(){}
const vnode = h("div#container.two.classes", { on: { click: function(){} } }, [
h("span", { style: { fontWeight: "bold" } }, "This is bold"),
" and this is just normal text",
h("a", { props: { href: "/foo" } }, "I'll take you places!")
]);- Uncaught TypeError: Cannot read properties of null (reading 'nodeType')
<body>
// 在 public/index.html 中增加 id 为 container 的元素
<div id="container"></div>
<script type="text/javascript" src="/js/index.js"></script>
</body>- Uncaught ReferenceError: anotherEventHandler is not defined
const newVnode = h(
"div#container.two.classes",
// 将 anotherEventHandler 替换成 function(){}
{ on: { click: function(){} } },
[
h(
"span",
{ style: { fontWeight: "normal", fontStyle: "italic" } },
"This is now italic type"
),
" and this is still just normal text",
h("a", { props: { href: "/bar" } }, "I'll take you places!")
]

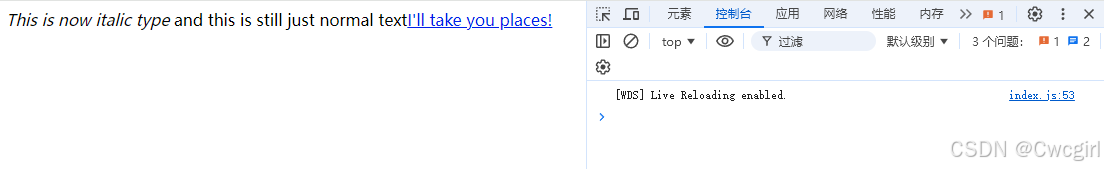

);4.3 成功
5 虚拟节点 和 真实节点
- 虚拟节点
{
children: undefined
data:{}
elm: undefined
key: undefined
sel: "h2"
text: "你好"
}- 真实节点
<h1>你好</h1>6 新老节点替换规则
1、如果新老节点不是同一个节点名称，那么就暴力删除旧的节点，创建插入新的节点。
2、只能同级比较，不能跨层比较。如果跨层那么就暴力删除旧的节点，创建插入新的节点。
3、注意！！！ 如果要提升性能，一定要加入key，key是唯一标识，在更改前后，判断是不是同一个节点。
