前言：
本文的目的是将传入的富文本内容(html标签，图片)并且分页导出为word文档。
所使用的为docx4j
一、依赖导入
<!-- 富文本转word -->
<dependency>
<groupId>org.docx4j</groupId>
<artifactId>docx4j</artifactId>
<version>6.1.2</version>
<exclusions>
<exclusion>
<artifactId>slf4j-log4j12</artifactId>
<groupId>org.slf4j</groupId>
</exclusion>
<exclusion>
<artifactId>log4j</artifactId>
<groupId>log4j</groupId>
</exclusion>
<exclusion>
<artifactId>commons-io</artifactId>
<groupId>commons-io</groupId>
</exclusion>
<exclusion>
<artifactId>commons-compress</artifactId>
<groupId>org.apache.commons</groupId>
</exclusion>
<exclusion>
<artifactId>guava</artifactId>
<groupId>com.google.guava</groupId>
</exclusion>
<exclusion>
<artifactId>mbassador</artifactId>
<groupId>net.engio</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.docx4j</groupId>
<artifactId>docx4j-ImportXHTML</artifactId>
<version>8.0.0</version>
</dependency>
<dependency>
<groupId>org.docx4j</groupId>
<artifactId>docx4j-JAXB-ReferenceImpl</artifactId>
<version>8.1.0</version>
<exclusions>
<exclusion>
<artifactId>docx4j-core</artifactId>
<groupId>org.docx4j</groupId>
</exclusion>
</exclusions>
</dependency>二、字体文件
将字体文件上传到子项目resources的static.fonts目录中
三、工具类
import org.apache.commons.codec.binary.Base64;
import org.apache.commons.lang3.StringUtils;
import sun.misc.BASE64Decoder;
import javax.crypto.Cipher;
import javax.crypto.KeyGenerator;
import javax.crypto.spec.SecretKeySpec;
import java.math.BigInteger;
/**
* 编码工具类
* 实现aes加密、解密
*/
public class AESEncryptUtils {
public static final String aesKey = "this-is-aescrypt";
private AESEncryptUtils(){
throw new AssertionError();
}
/**
* 算法
*/
private static final String ALGORITHMSTR = "AES/ECB/PKCS5Padding";
public static void main(String[] args) throws Exception {
System.out.println(AESEncryptUtils.aesEncrypt("html2Pdf", "this-is-aescrypt"));
}
public static String aesEncryptToString(String content) throws Exception {
return aesEncrypt(content, aesKey);
}
public static String aesDecryptToString(String content) throws Exception {
return aesDecrypt(content, aesKey);
}
/**
* 将byte[]转为各种进制的字符串
* @param bytes byte[]
* @param radix 可以转换进制的范围，从Character.MIN_RADIX到Character.MAX_RADIX，超出范围后变为10进制
* @return 转换后的字符串
*/
public static String binary(byte[] bytes, int radix){
return new BigInteger(1, bytes).toString(radix);// 这里的1代表正数
}
/**
* base 64 encode
* @param bytes 待编码的byte[]
* @return 编码后的base 64 code
*/
public static String base64Encode(byte[] bytes){
return Base64.encodeBase64String(bytes);
}
/**
* base 64 decode
* @param base64Code 待解码的base 64 code
* @return 解码后的byte[]
* @throws Exception
*/
public static byte[] base64Decode(String base64Code) throws Exception{
return StringUtils.isEmpty(base64Code) ? null : new BASE64Decoder().decodeBuffer(base64Code);
}
/**
* AES加密
* @param content 待加密的内容
* @param encryptKey 加密密钥
* @return 加密后的byte[]
* @throws Exception
*/
public static byte[] aesEncryptToBytes(String content, String encryptKey) throws Exception {
KeyGenerator kgen = KeyGenerator.getInstance("AES");
kgen.init(128);
Cipher cipher = Cipher.getInstance(ALGORITHMSTR);
cipher.init(Cipher.ENCRYPT_MODE, new SecretKeySpec(encryptKey.getBytes(), "AES"));
return cipher.doFinal(content.getBytes("utf-8"));
}
/**
* AES加密为base 64 code
* @param content 待加密的内容
* @param encryptKey 加密密钥
* @return 加密后的base 64 code
* @throws Exception
*/
public static String aesEncrypt(String content, String encryptKey) throws Exception {
return base64Encode(aesEncryptToBytes(content, encryptKey));
}
/**
* AES解密
* @param encryptBytes 待解密的byte[]
* @param decryptKey 解密密钥
* @return 解密后的String
* @throws Exception
*/
public static String aesDecryptByBytes(byte[] encryptBytes, String decryptKey) throws Exception {
KeyGenerator kgen = KeyGenerator.getInstance("AES");
kgen.init(128);
Cipher cipher = Cipher.getInstance(ALGORITHMSTR);
cipher.init(Cipher.DECRYPT_MODE, new SecretKeySpec(decryptKey.getBytes(), "AES"));
byte[] decryptBytes = cipher.doFinal(encryptBytes);
return new String(decryptBytes);
}
/**
* 将base 64 code AES解密
* @param encryptStr 待解密的base 64 code
* @param decryptKey 解密密钥
* @return 解密后的string
* @throws Exception
*/
public static String aesDecrypt(String encryptStr, String decryptKey) throws Exception {
return StringUtils.isEmpty(encryptStr) ? null : aesDecryptByBytes(base64Decode(encryptStr), decryptKey);
}
}import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;
@Data
@Configuration
@ConfigurationProperties(prefix = "html.convert")
public class HtmlConvertproperties {
/** 生成的文件保存路径 */
private String fileSavePath;
/** echarts转换后的图片保存路径 */
private String echartsImgSavePath;
}
package cn.aotu.sss.module.sss.util.text.word;
import com.aliyuncs.utils.StringUtils;
import org.docx4j.Docx4J;
import org.docx4j.XmlUtils;
import org.docx4j.convert.in.xhtml.XHTMLImporterImpl;
import org.docx4j.fonts.IdentityPlusMapper;
import org.docx4j.fonts.Mapper;
import org.docx4j.fonts.PhysicalFont;
import org.docx4j.fonts.PhysicalFonts;
import org.docx4j.jaxb.Context;
import org.docx4j.model.structure.DocumentModel;
import org.docx4j.model.structure.PageSizePaper;
import org.docx4j.openpackaging.packages.WordprocessingMLPackage;
import org.docx4j.openpackaging.parts.PartName;
import org.docx4j.openpackaging.parts.WordprocessingML.*;
import org.docx4j.openpackaging.parts.relationships.RelationshipsPart;
import org.docx4j.relationships.Relationship;
import org.docx4j.wml.Color;
import org.docx4j.wml.*;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.nodes.Entities;
import org.jsoup.select.Elements;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.awt.*;
import java.awt.font.FontRenderContext;
import java.awt.geom.Rectangle2D;
import java.awt.image.BufferedImage;
import java.io.*;
import java.math.BigInteger;
import java.net.URL;
import java.net.URLEncoder;
import static cn.aotu.sss.module.sss.util.text.word.HtmlConverter.RemoveTag.*;
/**
* html转换工具类
*
* 图片长宽乘积不能太大，不然会导致内存溢出
*
* HtmlConverter
* @author: huangbing
* @date: 2020/8/7 2:32 下午
*/
public class HtmlConverter {
private static final ObjectFactory factory = Context.getWmlObjectFactory();
/**
* 页面大小
*/
public enum PageSize {
/** 大小*/
LETTER("letter"),
LEGAL("legal"),
A3("A3"),
A4("A4"),
A5("A5"),
B4JIS("B4JIS");
PageSize(String code){
this.code = code;
}
private String code;
public String getCode() {
return code;
}
}
/**
* 移除的标签
*/
enum RemoveTag {
/** 移除的标签*/
SCRIPT("script"), A("a"), LINK("link"), HREF("href");
RemoveTag(String code){
this.code = code;
}
private String code;
public String getCode() {
return code;
}
}
/**
* 参数类
*/
private static class Params {
/** 默认字体库*/
private final static String DEFAULT_FONT_FAMILY = "STSongStd-Light";
/** 默认字体库路径*/
private final static String DEFAULT_FONT_PATH = "/static/fonts/STSongStd-Light.ttf";
/** 默认是否横版*/
private final static boolean DEFAULT_LAND_SCAPE = false;
/** 默认页面尺寸*/
private final static String DEFAULT_PAGE_SIZE = PageSize.A4.getCode();
/** 字体库*/
private String fontFamily = DEFAULT_FONT_FAMILY;
/** 字体库路径*/
private String fontPath = DEFAULT_FONT_PATH;
/** 页面尺寸*/
private String pageSize = DEFAULT_PAGE_SIZE;
/** 是否横版*/
private boolean isLandScape = DEFAULT_LAND_SCAPE;
/** 保存的文件的路径 */
private String saveFilePath = HtmlConverter.class.getResource("/").getPath() + "output/";
}
private final Logger logger = LoggerFactory.getLogger(HtmlConverter.class);
private Builder builder;
public HtmlConverter(Builder builder) {
this.builder = builder;
}
/**
* 构建类
*/
public static class Builder {
private Params params;
public Builder() {
this.params = new Params();
this.params.fontFamily = Params.DEFAULT_FONT_FAMILY;
this.params.fontPath = Params.DEFAULT_FONT_PATH;
this.params.pageSize = Params.DEFAULT_PAGE_SIZE;
this.params.isLandScape = Params.DEFAULT_LAND_SCAPE;
}
public Builder fontFamily(String fontFamily) {
this.params.fontFamily = fontFamily;
return this;
}
public Builder fontPath(String fontPath) {
this.params.fontPath = fontPath;
return this;
}
public Builder pageSize(String pageSize) {
this.params.pageSize = pageSize;
return this;
}
public Builder isLandScape(boolean isLandScape) {
this.params.isLandScape = isLandScape;
return this;
}
public Builder saveFilePath(String saveFilePath) {
this.params.saveFilePath = saveFilePath;
return this;
}
/**
* 数据处理完毕之后处理逻辑放在构造函数里面
*
* @return
*/
public HtmlConverter builder() {
return new HtmlConverter(this);
}
}
/**
* 将页面保存为 docx
*
* @param url
* @param fileName
* @return
* @throws Exception
*/
public File saveUrlToDocx(String url, String fileName) throws Exception {
return saveDocx(url2word(url), fileName);
}
/**
* 将页面保存为 pdf
*
* @param url
* @param fileName
* @return
* @throws Exception
*/
public File saveUrlToPdf(String url, String fileName) throws Exception {
return savePdf(url2word(url), fileName);
}
/**
* 将页面转为 {@link WordprocessingMLPackage}
*
* @param url
* @return
* @throws Exception
*/
public WordprocessingMLPackage url2word(String url) throws Exception {
return xhtml2word(url2xhtml(url), null);
}
/**
* 将 {@link WordprocessingMLPackage} 存为 docx
*
* @param wordMLPackage
* @param fileName
* @return
* @throws Exception
*/
public File saveDocx(WordprocessingMLPackage wordMLPackage, String fileName) throws Exception {
File file = new File(genFilePath(fileName) + ".docx");
//保存到 docx 文件
wordMLPackage.save(file);
if (logger.isDebugEnabled()) {
logger.debug("Save to [.docx]: {}", file.getAbsolutePath());
}
return file;
}
/**
* 将 {@link WordprocessingMLPackage} 存为 pdf
*
* @param wordMLPackage
* @param fileName
* @return
* @throws Exception
*/
public File savePdf(WordprocessingMLPackage wordMLPackage, String fileName) throws Exception {
File file = new File(genFilePath(fileName) + ".pdf");
OutputStream os = new FileOutputStream(file);
Docx4J.toPDF(wordMLPackage, os);
os.flush();
os.close();
if (logger.isDebugEnabled()) {
// logger.debug("Save to [.pdf]: {}", file.getAbsolutePath());
}
return file;
}
/**
* 将 {@link Document} 对象转为 {@link WordprocessingMLPackage}
* xhtml to word
*
* @param doc
* @return
* @throws Exception
*/
protected WordprocessingMLPackage xhtml2word(Document doc, String watermarkText) throws Exception {
//A4纸，//横版:true
WordprocessingMLPackage wordMLPackage = WordprocessingMLPackage.createPackage(PageSizePaper.valueOf(this.builder.params.pageSize), this.builder.params.isLandScape);
//配置中文字体
configSimSunFont(wordMLPackage);
if (!StringUtils.isEmpty(watermarkText)) {
addWatermarkToWord(wordMLPackage, watermarkText);
}
XHTMLImporterImpl xhtmlImporter = new XHTMLImporterImpl(wordMLPackage);
//导入 xhtml
wordMLPackage.getMainDocumentPart().getContent().addAll(
xhtmlImporter.convert(doc.html(), doc.baseUri()));
return wordMLPackage;
}
/**
* 将页面转为{@link Document}对象，xhtml 格式
*
* @param url
* @return
* @throws Exception
*/
protected Document url2xhtml(String url) throws Exception {
// 添加头部授权参数防止被过滤
String token = AESEncryptUtils.aesEncryptToString("html2File");
Document doc = Jsoup.connect(url).header("Authorization", token).get();
if (logger.isDebugEnabled()) {
// logger.debug("baseUri: {}", doc.baseUri());
}
//除去所有 script
for (Element script : doc.getElementsByTag(SCRIPT.getCode())) {
script.remove();
}
//除去 a 的 onclick，href 属性
for (Element a : doc.getElementsByTag(A.getCode())) {
a.removeAttr("onclick");
// a.removeAttr("href");
}
//将link中的地址替换为绝对地址
Elements links = doc.getElementsByTag(LINK.getCode());
for (Element element : links) {
String href = element.absUrl(HREF.getCode());
if (logger.isDebugEnabled()) {
// logger.debug("href: {} -> {}", element.attr(HREF.getCode()), href);
}
element.attr(HREF.getCode(), href);
}
//转为 xhtml 格式
doc.outputSettings()
.syntax(Document.OutputSettings.Syntax.xml)
.escapeMode(Entities.EscapeMode.xhtml);
if (logger.isDebugEnabled()) {
String[] split = doc.html().split("\n");
for (int c = 0; c < split.length; c++) {
// logger.debug("line {}:\t{}", c + 1, split[c]);
}
}
return doc;
}
/**
* 为 {@link WordprocessingMLPackage} 配置中文字体
*
* @param wordMLPackage
* @throws Exception
*/
protected void configSimSunFont(WordprocessingMLPackage wordMLPackage) throws Exception {
Mapper fontMapper = new IdentityPlusMapper();
wordMLPackage.setFontMapper(fontMapper);
//加载字体文件（解决linux环境下无中文字体问题）
URL simsunUrl = this.getClass().getResource(this.builder.params.fontPath);
PhysicalFonts.addPhysicalFont(simsunUrl);
PhysicalFont simsunFont = PhysicalFonts.get(this.builder.params.fontFamily);
fontMapper.put(this.builder.params.fontFamily, simsunFont);
//设置文件默认字体
RFonts rfonts = Context.getWmlObjectFactory().createRFonts();
rfonts.setAsciiTheme(null);
rfonts.setAscii(this.builder.params.fontFamily);
wordMLPackage.getMainDocumentPart().getPropertyResolver()
.getDocumentDefaultRPr().setRFonts(rfonts);
}
/**
* 直接通过HTML字符串生成Word处理包（核心修改点）
*/

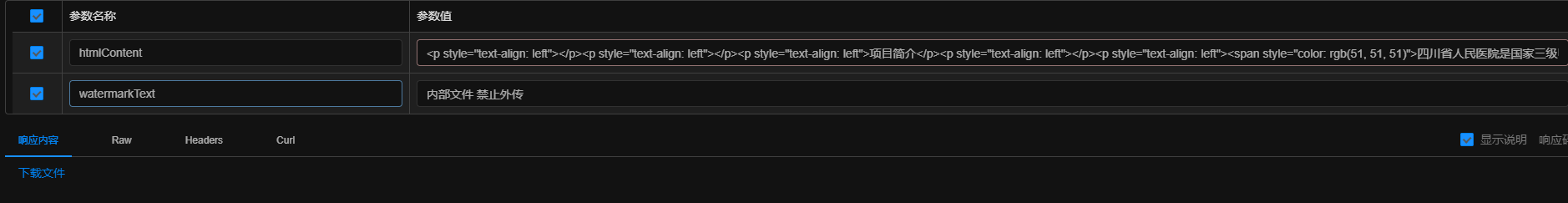

public WordprocessingMLPackage htmlString2word(String htmlContent, String watermarkText) throws Exception {
// 解析 HTML 字符串为 Document 对象
Document doc = Jsoup.parse(htmlContent);
// 配置输出设置（修正后的关键步骤）
doc.outputSettings()
.syntax(Document.OutputSettings.Syntax.xml)
.escapeMode(Entities.EscapeMode.xhtml);
// 清理不安全标签（复用原有逻辑）
cleanHtml(doc);
// 转换为 Word 处理包
return xhtml2word(doc, watermarkText);
}
/**
* 清理HTML标签（提取公共方法）
*/
private void cleanHtml(Document doc) {
// 移除script标签
doc.getElementsByTag(RemoveTag.SCRIPT.getCode()).remove();
// 移除a标签的事件和链接属性
doc.getElementsByTag(RemoveTag.A.getCode()).forEach(a -> {
a.removeAttr("onclick");
// a.removeAttr("href");
});
// 处理link标签的绝对路径（如需加载外部资源，可保留此逻辑）
doc.getElementsByTag(RemoveTag.LINK.getCode()).forEach(link -> {
String href = link.absUrl(RemoveTag.HREF.getCode());
link.attr(RemoveTag.HREF.getCode(), href);
});
}
/**
* 公共文件下载处理方法
*/
public void handleFileDownload(
File file,
String displayFileName,
HttpServletRequest request,
HttpServletResponse response
) throws Exception {
// 文件名编码处理
String encodedFileName = URLEncoder.encode(displayFileName, "UTF-8")
.replaceAll("\\+", "%20"); // 处理空格问题
// 设置响应头
response.setContentType("application/vnd.openxmlformats-officedocument.wordprocessingml.document");
response.setHeader("Content-Disposition", "attachment; filename*=UTF-8''" + encodedFileName);
response.setHeader("Content-Length", String.valueOf(file.length()));
// 流传输
try (BufferedInputStream bis = new BufferedInputStream(new FileInputStream(file));
BufferedOutputStream bos = new BufferedOutputStream(response.getOutputStream())) {
byte[] buffer = new byte[1024 * 8];
int bytesRead;
while ((bytesRead = bis.read(buffer)) != -1) {
bos.write(buffer, 0, bytesRead);
}
bos.flush();
}
}
/**
* 生成文件位置
*
* @return
*/
protected String genFilePath(String fileName) {
return this.builder.params.saveFilePath + fileName;
}
/**

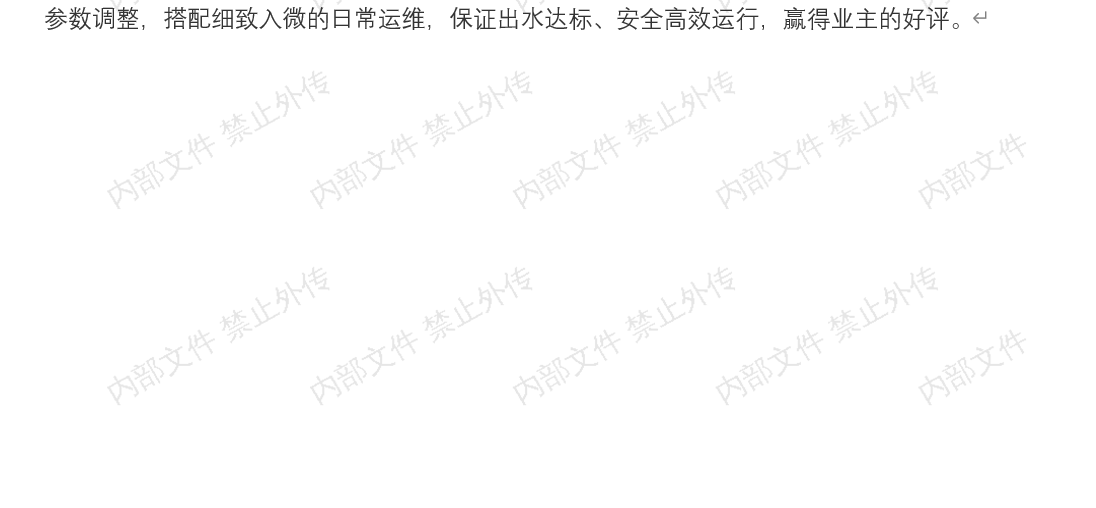

* 在 Word 文档中添加多水印
*/
private void addWatermarkToWord(WordprocessingMLPackage wordprocessingMLPackage, String watermarkText) throws Exception {
MainDocumentPart mainDocumentPart = wordprocessingMLPackage.getMainDocumentPart();
DocumentModel documentModel = wordprocessingMLPackage.getDocumentModel();
SectPr sectPr = wordprocessingMLPackage.getDocumentModel().getSections().get(wordprocessingMLPackage.getDocumentModel().getSections().size() - 1).getSectPr();
if (sectPr == null) {
sectPr = factory.createSectPr();
mainDocumentPart.addObject(sectPr);
documentModel.getSections().get(documentModel.getSections().size() - 1).setSectPr(sectPr);
}
// 修改值为 first even default 测试
String hdrFtrRef = "even";
// header footer 判断规则 规则为： first even default
if (hdrFtrRef.equals("first")) {
// first：设置 first、default两个header
createHeader(sectPr, "first", watermarkText, mainDocumentPart);
createFooter(sectPr, "first", mainDocumentPart, wordprocessingMLPackage);
//首页不同时
sectPr.setTitlePg(new BooleanDefaultTrue());
} else if (hdrFtrRef.equals("even")) {
// even: 设置even default 两个header 并在 setting.xml 设置 evenAndOddHeaders
createHeader(sectPr, "even", watermarkText, mainDocumentPart);
createFooter(sectPr, "even", mainDocumentPart, wordprocessingMLPackage);
DocumentSettingsPart documentSettingsPart = mainDocumentPart.getDocumentSettingsPart();
CTSettings contents = documentSettingsPart.getContents();
//奇偶不同时设置
contents.setEvenAndOddHeaders(new BooleanDefaultTrue());
}
// default，增加一个header footer 设置为rels为default
createHeader(sectPr, "default", watermarkText, mainDocumentPart);
createFooter(sectPr, "default", mainDocumentPart, wordprocessingMLPackage);
// 设置首页空白页demo，不用可以屏蔽
// mainDocumentPart.addObject(makePageBr());
// mainDocumentPart.addStyledParagraphOfText("Heading1", "页面内容");
// mainDocumentPart.addObject(makePageBr());
// mainDocumentPart.addStyledParagraphOfText("Normal", "页面内容11111");
// mainDocumentPart.addObject(makePageBr());
}
private void createFooter(SectPr sectPr, String type, MainDocumentPart mainDocumentPart, WordprocessingMLPackage wordprocessingMLPackage) throws Exception {
FooterPart footerPart = new FooterPart(new PartName("/word/footer-" + type + ".xml"));
Ftr ftr = factory.createFtr();
// Bind the header JAXB elements as representing their header parts
footerPart.setJaxbElement(ftr);
Relationship relationship = mainDocumentPart.addTargetPart(footerPart);
wordprocessingMLPackage.getParts().put(footerPart);
FooterReference footerReference = factory.createFooterReference();
footerReference.setType(HdrFtrRef.fromValue(type));
footerReference.setId(relationship.getId());
P paragraph = factory.createP();
if ("first".equals(type)) {
createHeaderFooterThreePart1(paragraph);
} else {
createHeaderFooterThreePart(paragraph);
}
ftr.getContent().add(paragraph);
sectPr.getEGHdrFtrReferences().add(footerReference);
}
private void createHeader(SectPr sectPr, String type, String watermark, MainDocumentPart mainDocumentPart) throws Exception {
HeaderPart headerPart = new HeaderPart(new PartName("/word/heade-" + type + ".xml"));
Relationship relationship = mainDocumentPart.addTargetPart(headerPart);
Hdr hdr = null;
if (org.apache.commons.lang3.StringUtils.isNoneBlank(watermark)) {
setWatermarkHdr(headerPart, watermark);
hdr = headerPart.getJaxbElement();
} else {
hdr = factory.createHdr();
}
// Bind the header JAXB elements as representing their header parts
headerPart.setJaxbElement(hdr);
P paragraph = factory.createP();
if ("first".equals(type)) {
createHeaderFooterThreePart1(paragraph);
} else {
createHeaderFooterThreePart(paragraph);
}
hdr.getContent().add(paragraph);
// headerPart.getJaxbElement().getContent().add(e)
// Add the reference to both header parts to the Main Document Part
HeaderReference headerReference = factory.createHeaderReference();
headerReference.setType(HdrFtrRef.fromValue(type));
headerReference.setId(relationship.getId());
sectPr.getEGHdrFtrReferences().add(headerReference);
}
/**
* 添加页眉页脚，左中右 三部分内容
*
* @return 页脚对象
*/
private void createHeaderFooterThreePart(P paragraph) {
RPr fontRPr = getRPr("宋体", "000000", "22", STHint.EAST_ASIA, true, false, false, false);
R run = factory.createR();
run.setRPr(fontRPr);
paragraph.getContent().add(run);
// tab
// paragraph.getContent().add(getTextField("left少时诵诗书"));
R r1 = factory.createR();
R.Ptab rPtab = factory.createRPtab();
rPtab.setAlignment(STPTabAlignment.CENTER);
rPtab.setRelativeTo(STPTabRelativeTo.MARGIN);
rPtab.setLeader(STPTabLeader.NONE);
r1.getContent().add(rPtab);
paragraph.getContent().add(r1);
// 中间内容
SdtContentBlock sdtContentBlock = factory.createSdtContentBlock();
sdtContentBlock.getContent().add(getTextField("第"));
sdtContentBlock.getContent().add(getFieldBegin());
sdtContentBlock.getContent().add(getPageNumberField());
sdtContentBlock.getContent().add(getFieldEnd());
sdtContentBlock.getContent().add(getTextField("页"));
sdtContentBlock.getContent().add(getTextField(" 总共"));
sdtContentBlock.getContent().add(getFieldBegin());
sdtContentBlock.getContent().add(getTotalPageNumberField());
sdtContentBlock.getContent().add(getFieldEnd());
sdtContentBlock.getContent().add(getTextField("页"));
paragraph.getContent().add(sdtContentBlock);
// tab
R r2 = factory.createR();
R.Ptab rPtab1 = factory.createRPtab();
rPtab1.setAlignment(STPTabAlignment.RIGHT);
rPtab1.setRelativeTo(STPTabRelativeTo.MARGIN);
rPtab1.setLeader(STPTabLeader.NONE);
r2.getContent().add(rPtab1);
// 右边内容
paragraph.getContent().add(r2);
// paragraph.getContent().add(getTextField("right塑料袋"));
}
/**
* 添加页眉页脚，左中右 三部分内容
*
* @return 页脚对象
*/
private void createHeaderFooterThreePart1(P paragraph) {
RPr fontRPr = getRPr("宋体", "000000", "22", STHint.EAST_ASIA, true, false, false, false);
R run = factory.createR();
run.setRPr(fontRPr);
paragraph.getContent().add(run);
// tab
paragraph.getContent().add(getTextField("9990090"));
R r1 = factory.createR();
R.Ptab rPtab = factory.createRPtab();
rPtab.setAlignment(STPTabAlignment.CENTER);
rPtab.setRelativeTo(STPTabRelativeTo.MARGIN);
rPtab.setLeader(STPTabLeader.NONE);
r1.getContent().add(rPtab);
paragraph.getContent().add(r1);
// 中间内容
SdtContentBlock sdtContentBlock = factory.createSdtContentBlock();
sdtContentBlock.getContent().add(getTextField("第"));
sdtContentBlock.getContent().add(getFieldBegin());
sdtContentBlock.getContent().add(getPageNumberField());
sdtContentBlock.getContent().add(getFieldEnd());
sdtContentBlock.getContent().add(getTextField("页"));
sdtContentBlock.getContent().add(getTextField(" 总共"));
sdtContentBlock.getContent().add(getFieldBegin());
sdtContentBlock.getContent().add(getTotalPageNumberField());
sdtContentBlock.getContent().add(getFieldEnd());
sdtContentBlock.getContent().add(getTextField("页"));
paragraph.getContent().add(sdtContentBlock);
// tab
R r2 = factory.createR();
R.Ptab rPtab1 = factory.createRPtab();
rPtab1.setAlignment(STPTabAlignment.RIGHT);
rPtab1.setRelativeTo(STPTabRelativeTo.MARGIN);
rPtab1.setLeader(STPTabLeader.NONE);
r2.getContent().add(rPtab1);
// 右边内容
paragraph.getContent().add(r2);
paragraph.getContent().add(getTextField("uuuuuuuu"));
}
private R getTextField(String content) {
Text text = factory.createText();
R run = factory.createR();
text.setValue(content);
run.getContent().add(text);
return run;
}
private static R getPageNumberField() {
R run = factory.createR();
Text txt = new Text();
txt.setSpace("preserve");
txt.setValue("PAGE \\* MERGEFORMAT");
run.getContent().add(factory.createRInstrText(txt));
return run;
}
private static R getTotalPageNumberField() {
R run = factory.createR();
Text txt = new Text();
txt.setSpace("preserve");
txt.setValue(" NUMPAGES \\* MERGEFORMAT ");
run.getContent().add(factory.createRInstrText(txt));
return run;
}
private static R getFieldBegin() {
R run = factory.createR();
FldChar fldchar = factory.createFldChar();
fldchar.setFldCharType(STFldCharType.BEGIN);
run.getContent().add(fldchar);
return run;
}
private R getFieldEnd() {
FldChar fldcharend = factory.createFldChar();
fldcharend.setFldCharType(STFldCharType.END);
R run = factory.createR();
run.getContent().add(fldcharend);
return run;
}
public RPr getRPr(String fontFamily, String colorVal, String fontSize, STHint sTHint, boolean isBlod,
boolean isUnderLine, boolean isItalic, boolean isStrike) {
RPr rPr = factory.createRPr();
RFonts rf = new RFonts();
rf.setHint(sTHint);
rf.setAscii(fontFamily);
rf.setHAnsi(fontFamily);
rPr.setRFonts(rf);
BooleanDefaultTrue bdt = factory.createBooleanDefaultTrue();
rPr.setBCs(bdt);
if (isBlod) {
rPr.setB(bdt);
}
if (isItalic) {
rPr.setI(bdt);
}
if (isStrike) {
rPr.setStrike(bdt);
}
if (isUnderLine) {
U underline = new U();
underline.setVal(UnderlineEnumeration.SINGLE);
rPr.setU(underline);
}
Color color = new Color();
color.setVal(colorVal);
rPr.setColor(color);
HpsMeasure sz = new HpsMeasure();
sz.setVal(new BigInteger(fontSize));
rPr.setSz(sz);
rPr.setSzCs(sz);
return rPr;
}
private void setWatermarkHdr(HeaderPart headerPart, String text) throws Exception {
ImagePngPart imagePart = new ImagePngPart(new PartName("/media/background.png"));
ByteArrayOutputStream out = new ByteArrayOutputStream();
ImageIO.write(createWaterMark(text), "png", out);
byte[] imagebytes = out.toByteArray();
imagePart.setBinaryData(imagebytes);
Relationship rel = headerPart.addTargetPart(imagePart, RelationshipsPart.AddPartBehaviour.REUSE_EXISTING);
String openXML = "<w:hdr mc:Ignorable=\"w14 wp14\" xmlns:v=\"urn:schemas-microsoft-com:vml\" xmlns:w=\"http://schemas.openxmlformats.org/wordprocessingml/2006/main\" xmlns:o=\"urn:schemas-microsoft-com:office:office\" xmlns:mc=\"http://schemas.openxmlformats.org/markup-compatibility/2006\" xmlns:r=\"http://schemas.openxmlformats.org/officeDocument/2006/relationships\">"
+ "<w:p>"
+ "<w:pPr>"
+ "<w:pStyle w:val=\"Header\"/>"
+ "</w:pPr>"
+ "<w:r>"
+ "<w:rPr>"
+ "<w:noProof/>"
+ "</w:rPr>"
+ "<w:pict>"
+ "<v:shapetype coordsize=\"21600,21600\" filled=\"f\" id=\"_x0000_t75\" o:preferrelative=\"t\" o:spt=\"75\" path=\"m@4@5l@4@11@9@11@9@5xe\" stroked=\"f\">"
+ "<v:stroke joinstyle=\"miter\"/>"
+ "<v:formulas>"
+ "<v:f eqn=\"if lineDrawn pixelLineWidth 0\"/>"
+ "<v:f eqn=\"sum @0 1 0\"/>"
+ "<v:f eqn=\"sum 0 0 @1\"/>"
+ "<v:f eqn=\"prod @2 1 2\"/>"
+ "<v:f eqn=\"prod @3 21600 pixelWidth\"/>"
+ "<v:f eqn=\"prod @3 21600 pixelHeight\"/>"
+ "<v:f eqn=\"sum @0 0 1\"/>"
+ "<v:f eqn=\"prod @6 1 2\"/>"
+ "<v:f eqn=\"prod @7 21600 pixelWidth\"/>"
+ "<v:f eqn=\"sum @8 21600 0\"/>"
+ "<v:f eqn=\"prod @7 21600 pixelHeight\"/>"
+ "<v:f eqn=\"sum @10 21600 0\"/>"
+ "</v:formulas>"
+ "<v:path gradientshapeok=\"t\" o:connecttype=\"rect\" o:extrusionok=\"f\"/>"
+ "<o:lock aspectratio=\"t\" v:ext=\"edit\"/>"
+ "</v:shapetype>"
+ "<v:shape id=\"WordPictureWatermark835936646\" o:allowincell=\"f\" o:spid=\"_x0000_s2050\" style=\"position:absolute;margin-left:0;margin-top:0;width:467.95pt;height:615.75pt;z-index:-251657216;mso-position-horizontal:center;mso-position-horizontal-relative:margin;mso-position-vertical:center;mso-position-vertical-relative:margin\" type=\"#_x0000_t75\">"
+ "<v:imagedata blacklevel=\"22938f\" gain=\"19661f\" o:title=\"docx4j-logo\" r:id=\"" + rel.getId() + "\"/>"
+ "</v:shape>"
+ "</w:pict>"
+ "</w:r>"
+ "</w:p>"
+ "</w:hdr>";
Hdr hdr = (Hdr) XmlUtils.unmarshalString(openXML);
headerPart.setJaxbElement(hdr);
}
private static BufferedImage createWaterMark(String content) {
Integer width = 1000;
Integer height = 1360;
BufferedImage image = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);// 获取bufferedImage对象
String fontType = "宋体";
Integer fontStyle = Font.PLAIN;
Integer fontSize = 30;
Font font = new Font(fontType, fontStyle, fontSize);
Graphics2D g2d = image.createGraphics(); // 获取Graphics2d对象
image = g2d.getDeviceConfiguration().createCompatibleImage(width, height, Transparency.TRANSLUCENT);
g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER));
g2d.dispose();
for (int i = 1; i <= 20; i += 2) {
for (int j = 1; j <= 10; j += 2) {
int px = j * 100;
int py = i * 100;
g2d = image.createGraphics();
g2d.setColor(java.awt.Color.black);
g2d.setStroke(new BasicStroke(1)); // 设置字体
g2d.setFont(font); // 设置字体类型 加粗 大小
g2d.translate(px, py);// 设置原点
g2d.rotate(Math.toRadians(-30));// 设置倾斜度
FontRenderContext context = g2d.getFontRenderContext();
Rectangle2D bounds = font.getStringBounds(content, context);
g2d.drawString(content, 0, 0);
g2d.dispose();
}
}
return image;
}
private static P makePageBr() throws Exception {
P p = factory.createP();
R r = factory.createR();
Br br = factory.createBr();
br.setType(STBrType.PAGE);
r.getContent().add(br);
p.getContent().add(r);
return p;
}
}四、controller
/**
* 直接接收HTML富文本内容生成Word文档
* @param htmlContent 富文本HTML代码（如：<p>富文本内容</p>）
*/
@PostMapping("/export")
@Operation(summary = "导出word")
@Parameters({
@Parameter(name = "htmlContent", description = "富文本内容", required = true),
@Parameter(name = "watermarkText", description = "水印内容", required = false)
})
public void generateWord(
@RequestParam(value = "htmlContent", required = true) String htmlContent,
@RequestParam(value = "watermarkText", required = false) String watermarkText,
HttpServletRequest request,
HttpServletResponse response
) throws Exception {
// 1. 初始化HtmlConverter（使用配置中的文件保存路径）
HtmlConverter htmlConverter = new HtmlConverter.Builder()
.saveFilePath(htmlConvertproperties.getFileSavePath()) // 从配置获取路径
.builder();
// 2. 转换HTML字符串为Word处理包
WordprocessingMLPackage wordMLPackage = htmlConverter.htmlString2word(htmlContent, watermarkText);
// 3. 生成临时文件并设置响应
String fileName = "report_" + System.currentTimeMillis();
File tempFile = htmlConverter.saveDocx(wordMLPackage, fileName); // 调用原有保存逻辑
// 4. 处理文件下载（兼容不同浏览器）
htmlConverter.handleFileDownload(tempFile, "报告.docx", request, response);
// 5. 清理临时文件（根据需求可选，生产环境建议异步清理或设置过期策略）
tempFile.deleteOnExit();
}五、引用说明
工具类参考github上的文章，但是对于工具类中的的具体逻辑作了修改。
https://github.com/FTOLs/report-demo
六、测试
