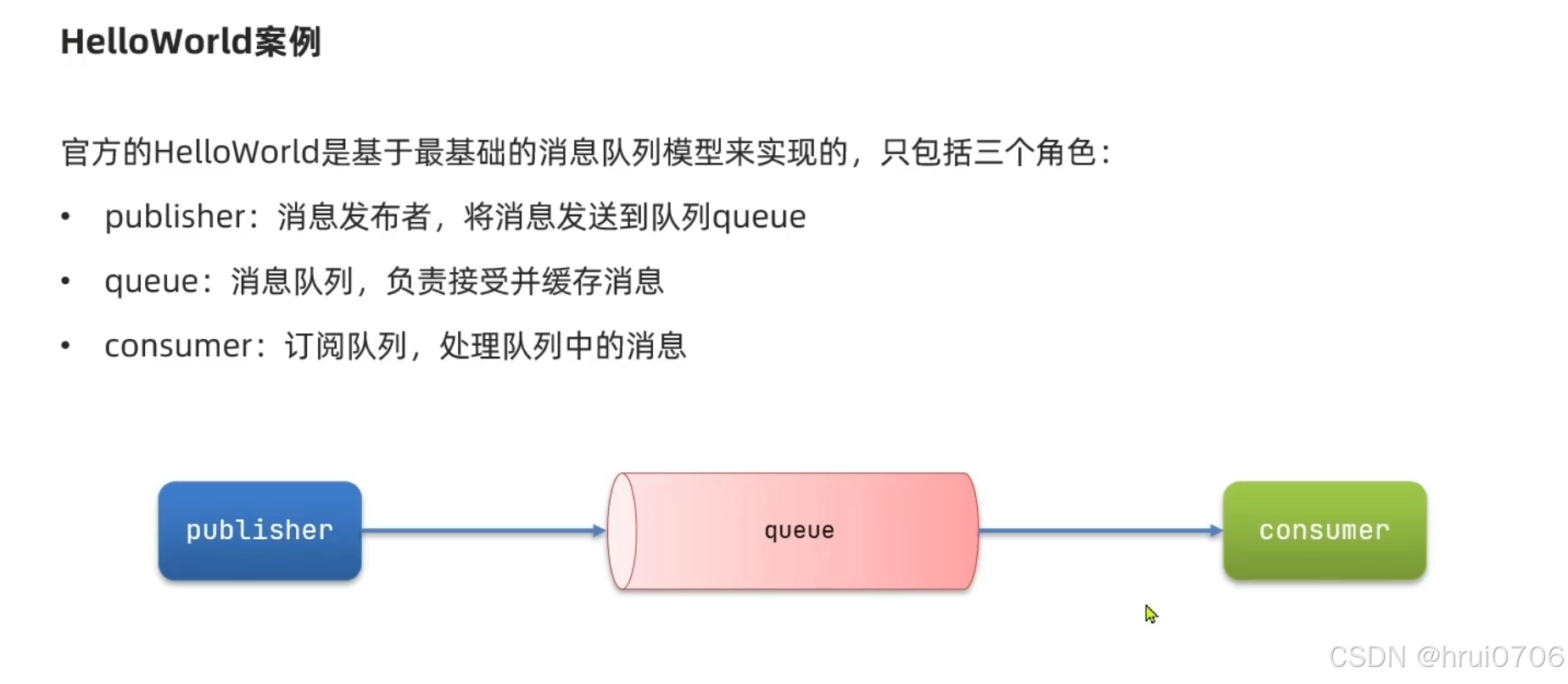

1.HelloWorld案例

简单队列

不使用SpringBoot 给MQ发送简单消息

package com.hrui.rabbitmq;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author hrui
 * @date 2025/5/28 1:36
 */
public class RabbitMQSendMessage {

    public static void main(String[] args) {
        //1.建立连接
        ConnectionFactory factory=new ConnectionFactory();
        //1.1.设置连接参数 分别是:主机名host  端口port 用户名username 密码password 虚拟机vhost
        factory.setHost("xx.xxx.xxx.xx");
        factory.setPort(5672);
        factory.setUsername("xxxx");
        factory.setPassword("xxxxx");
        factory.setVirtualHost("/");


        Connection connection =null;
        Channel channel =null;
        try {
            //1.2.建立连接
            connection = factory.newConnection();

            //2.创建频道(通道)Channel
            channel = connection.createChannel();
            //3.创建队列
            String queueName="simple.queue";
            channel.queueDeclare(queueName, false, false, false, null);

            //4.发送消息
            String message = "hello world";
            channel.basicPublish("", queueName, null, message.getBytes());
            System.out.println("消息发送成功");

        } catch (IOException e) {
            throw new RuntimeException(e);
        } catch (TimeoutException e) {
            throw new RuntimeException(e);
        }finally {
            if (channel != null && channel.isOpen()) {
                try {
                    channel.close();
                } catch (RuntimeException | IOException | TimeoutException e) {
                    throw new RuntimeException(e);
                }
            }
            if (connection != null) {
                try {
                    connection.close();
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
            }
        }

    }
}

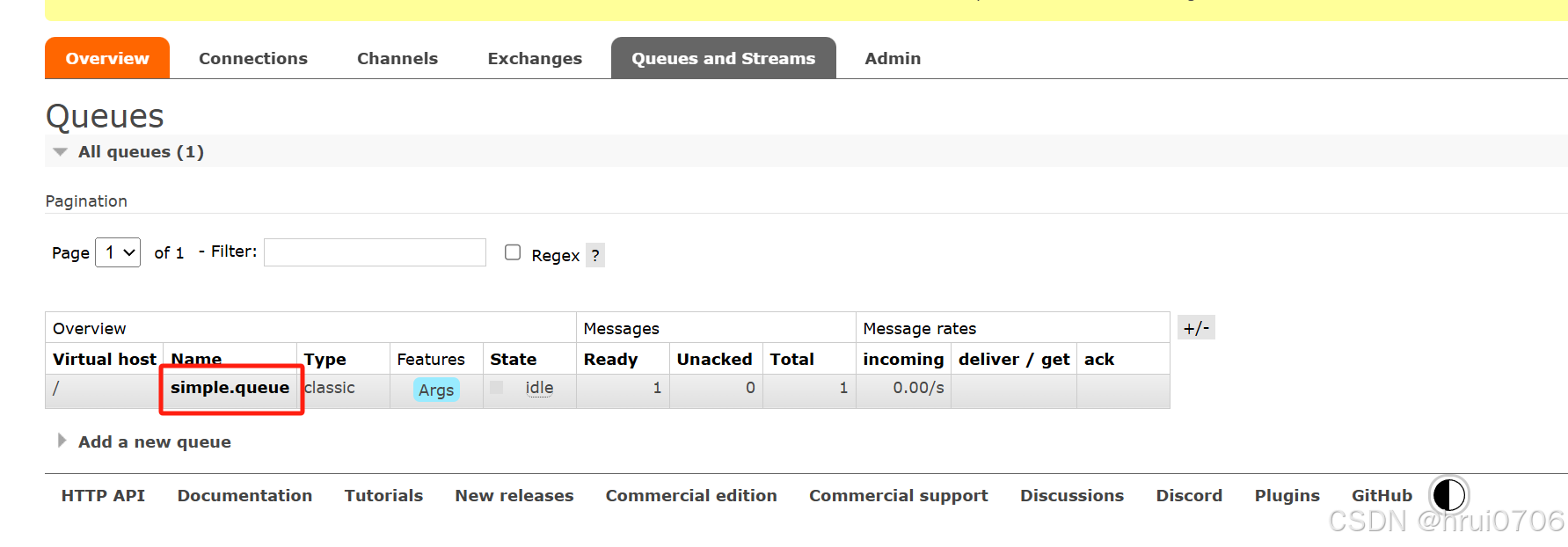

简单消息不需要使用交换机

简单消息消费者

package com.hrui.rabbitmq;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author hrui
 * @date 2025/5/28 1:51
 */
public class RabbitMQReceiveMessage {
    public static void main(String[] args) {
        //1.建立连接
        ConnectionFactory factory=new ConnectionFactory();
        //1.1.设置连接参数 分别是:主机名host  端口port 用户名username 密码password 虚拟机vhost
        factory.setHost("xx.xx.xx.xx");
        factory.setPort(5672);
        factory.setUsername("xxxx");
        factory.setPassword("xxxxx");
        factory.setVirtualHost("/");
        //1.2.建立连接
        Connection connection =null;
        Channel channel =null;
        try {
            connection = factory.newConnection();
            //2.创建频道(通道)Channel
            channel = connection.createChannel();

            //3.创建队列
            String queueName="simple.queue";
            channel.queueDeclare(queueName, false, false, false, null);
            //4.接收消息(订阅该队列中的消息)
            //注意输出的时候是 等待接收消息..... 先输出  说明已经开启了异步
            channel.basicConsume(queueName, new DefaultConsumer(channel){
                @Override
                public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                    System.out.println("接收到的消息:"+new String(body));
                }
            });
            System.out.println("等待接收消息.....");
        } catch (IOException e) {
            throw new RuntimeException(e);
        } catch (TimeoutException e) {
            throw new RuntimeException(e);
        }

    }
}

上面的简单消息发送其实用的是直连交换机也就是默认交换机

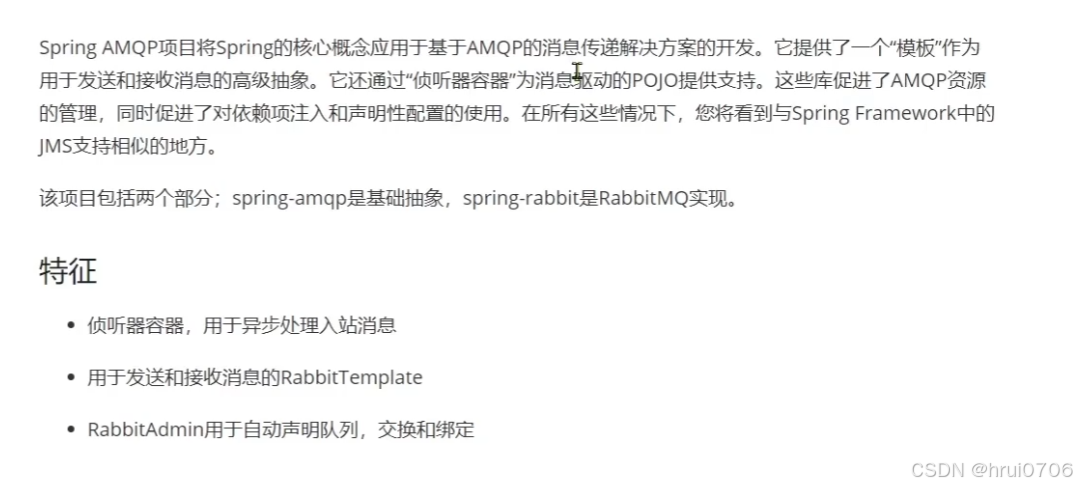

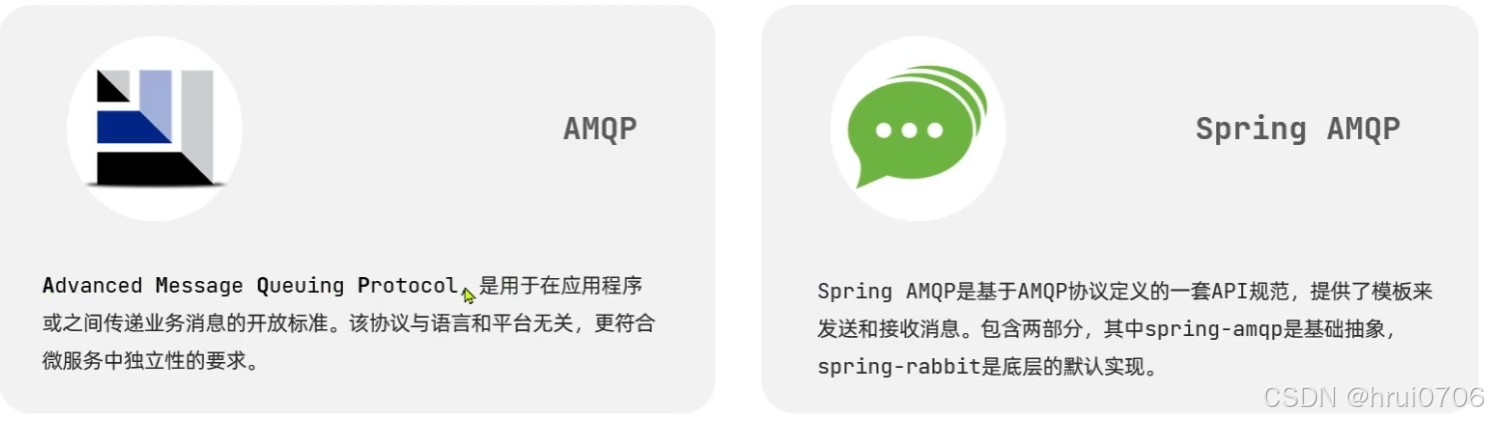

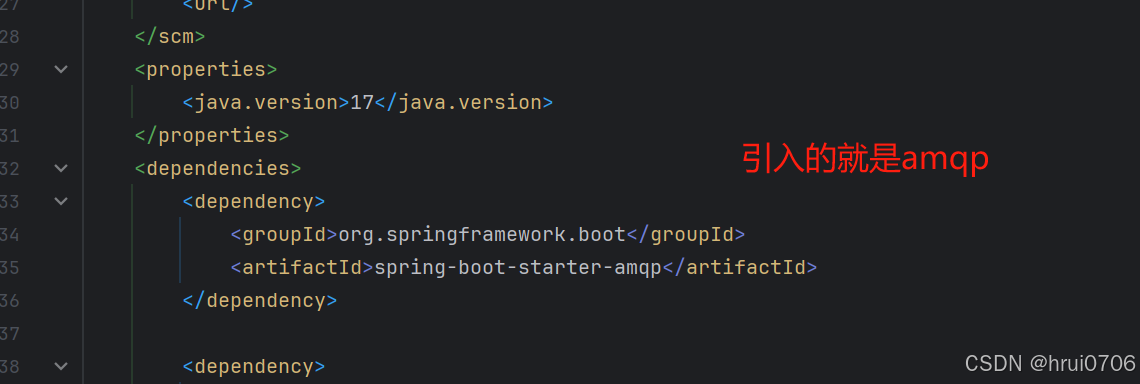

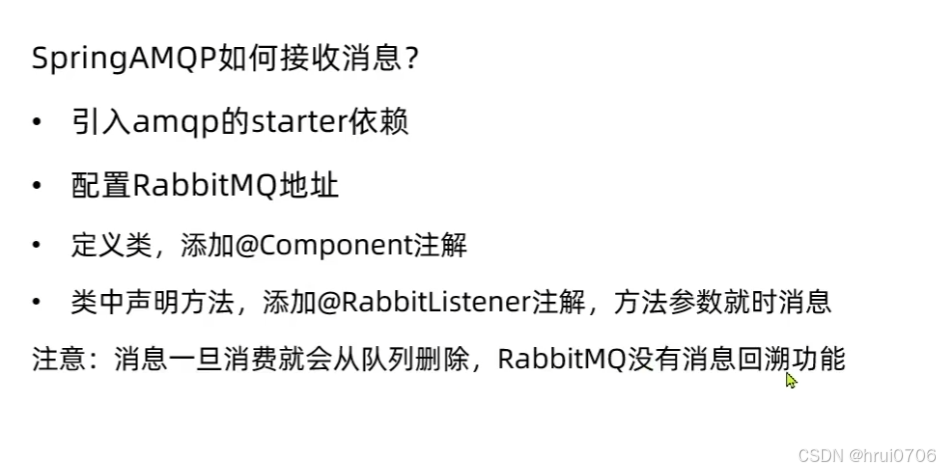

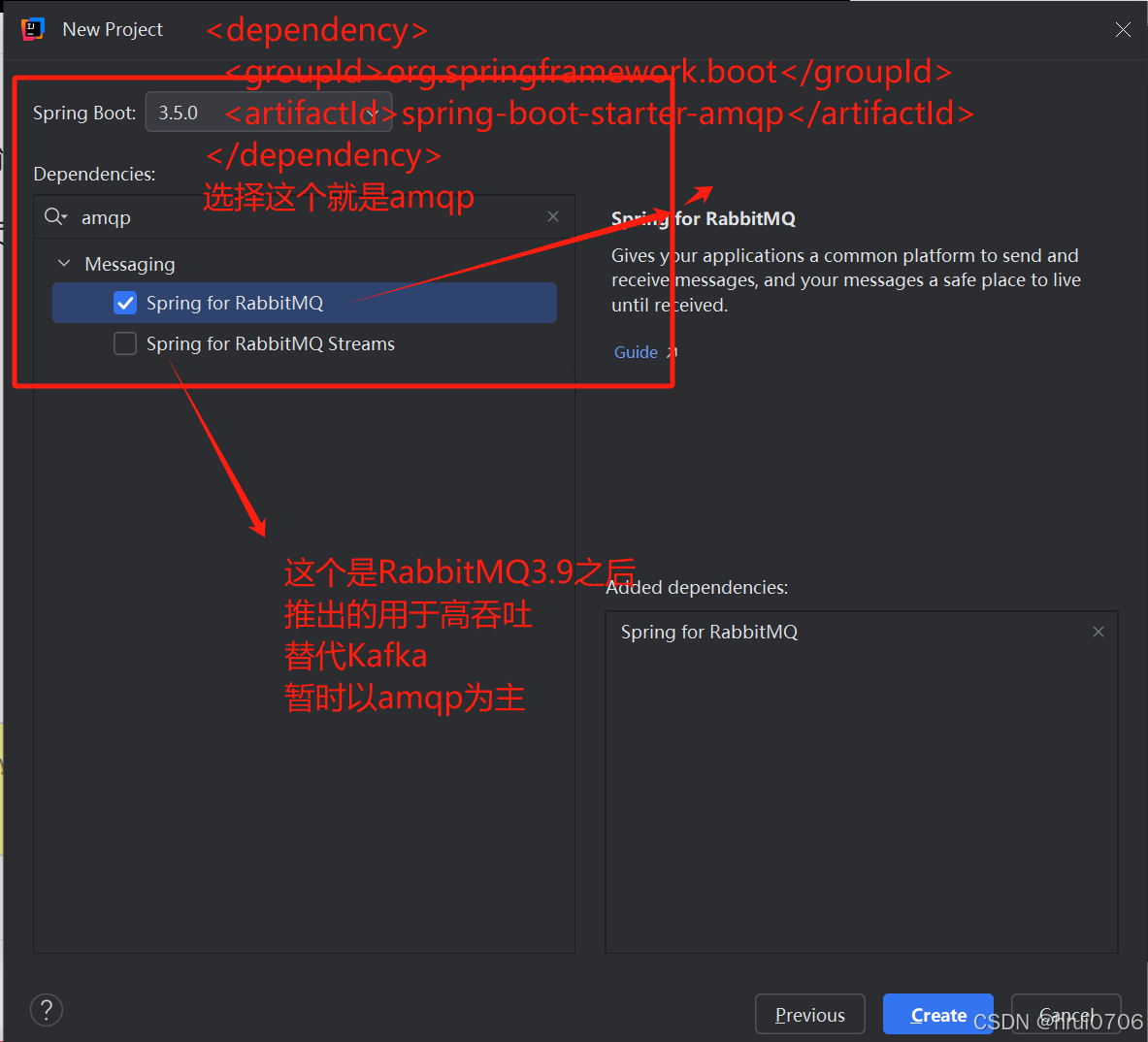

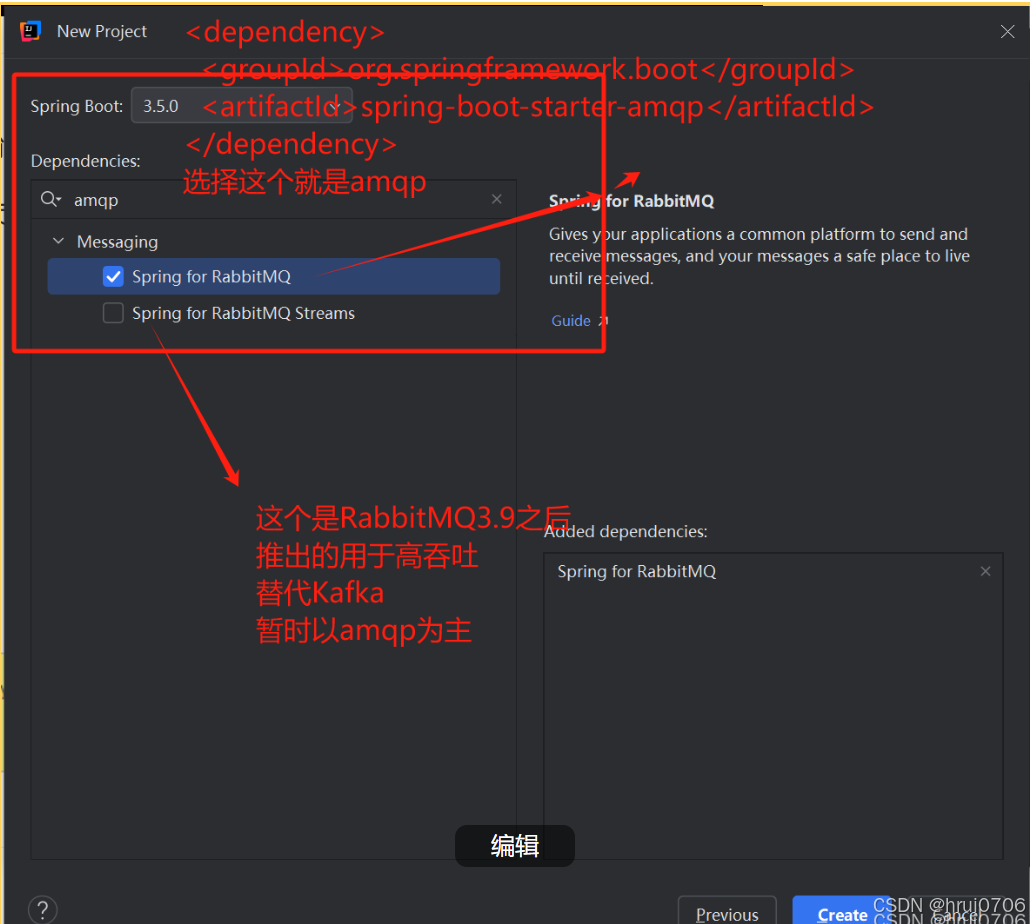

2.使用SpringAMQP

简化消息发送和接收的API

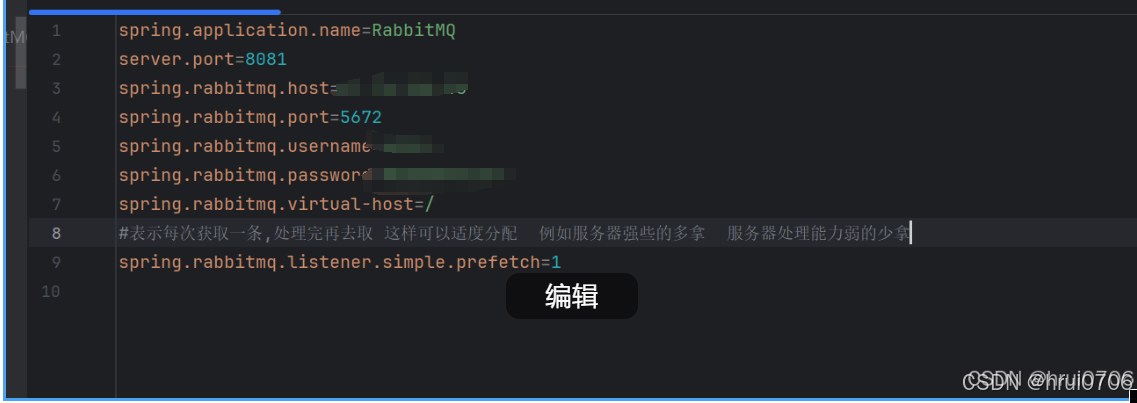

application.properties中的配置

这里生产者和消费者在一起

spring.rabbitmq.host=192.168.1.1
spring.rabbitmq.port=5672
spring.rabbitmq.username=登录账号
spring.rabbitmq.password=登录密码
spring.rabbitmq.virtual-host=/

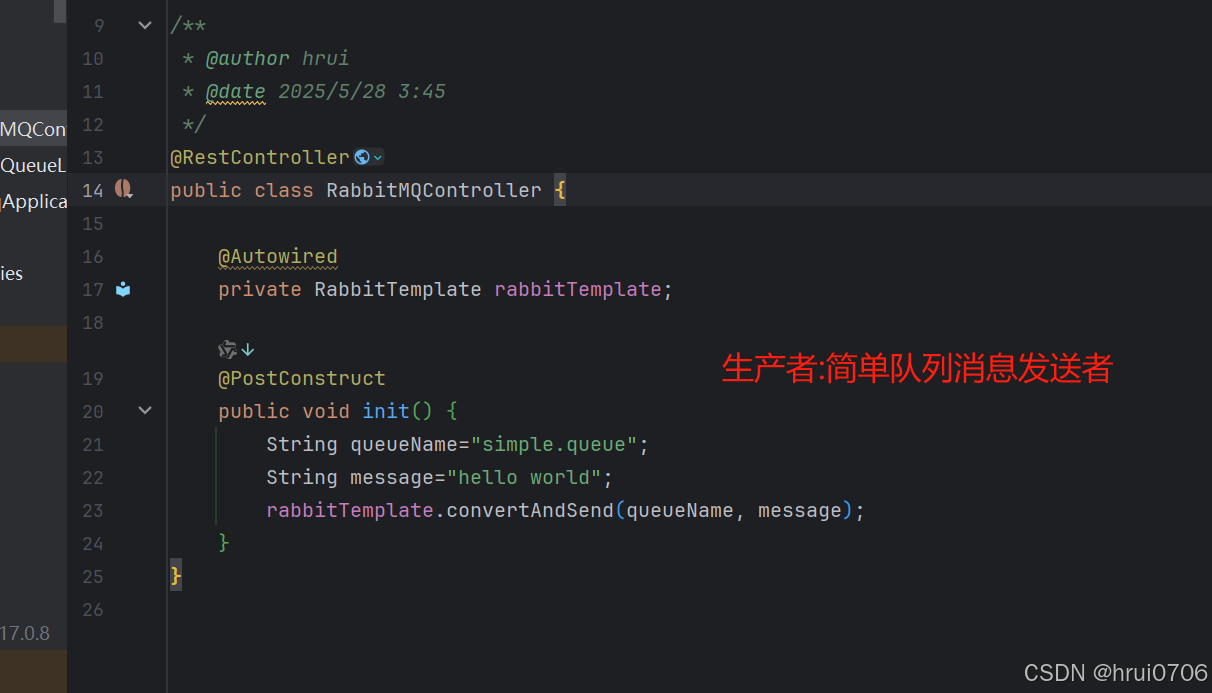

2.1.Basic Queue简单队列模型

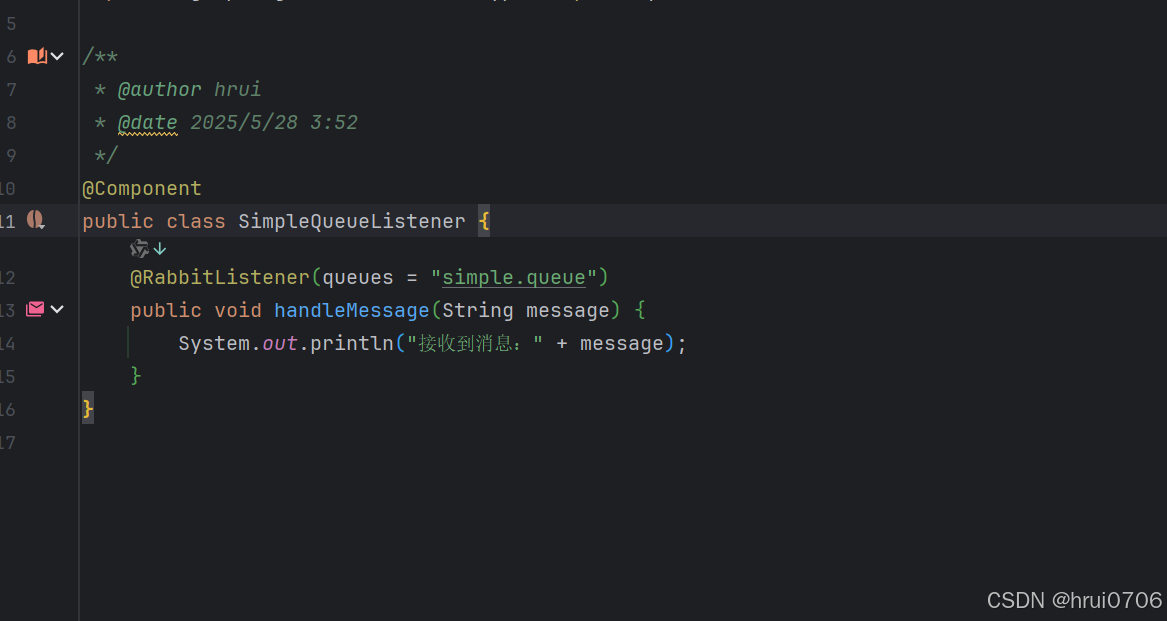

简单队列消息接收者

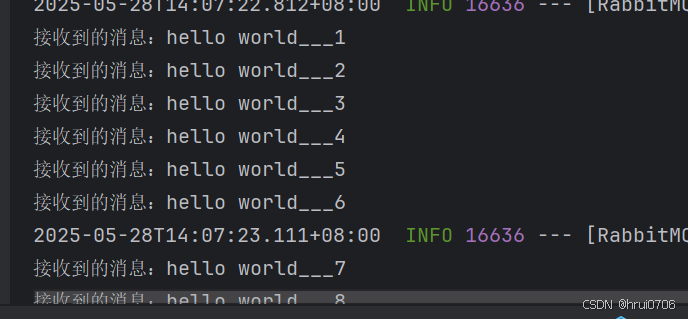

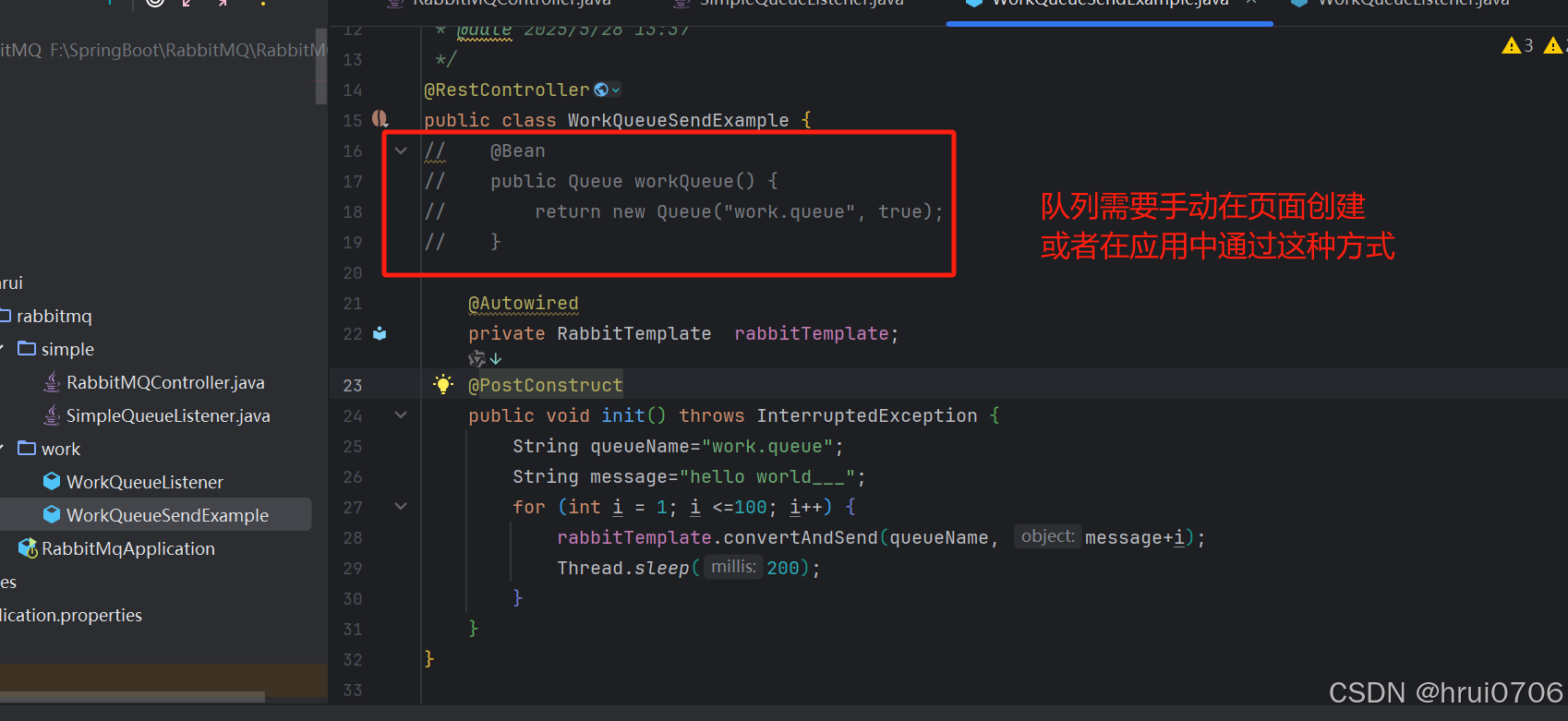

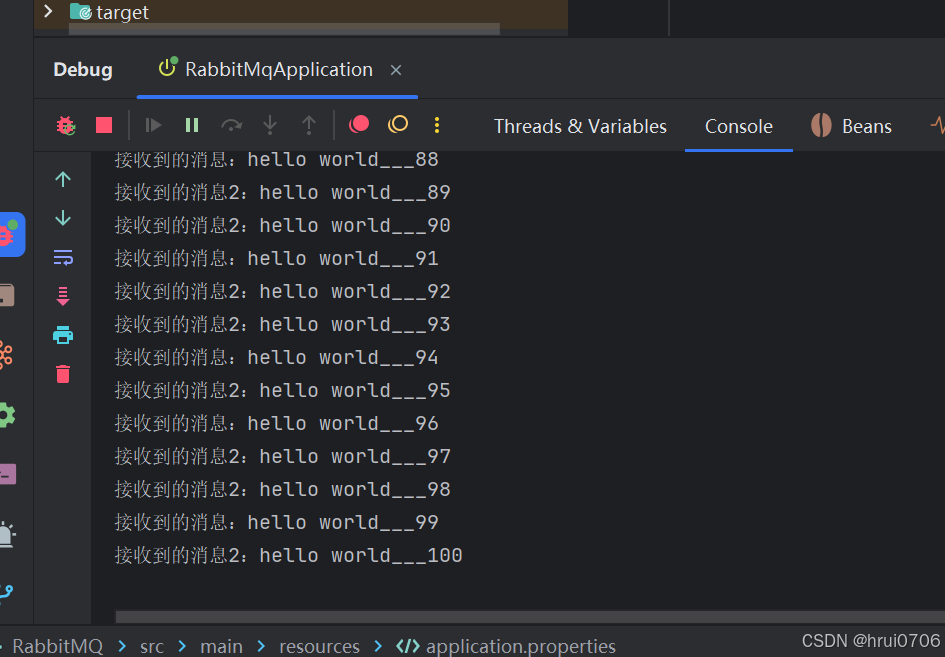

2.2.Work Queue工作队列模型

这里先把简单队列的代码注释掉

如果你消费者和生产者分开两个应用就会出现一人一半消费的现象

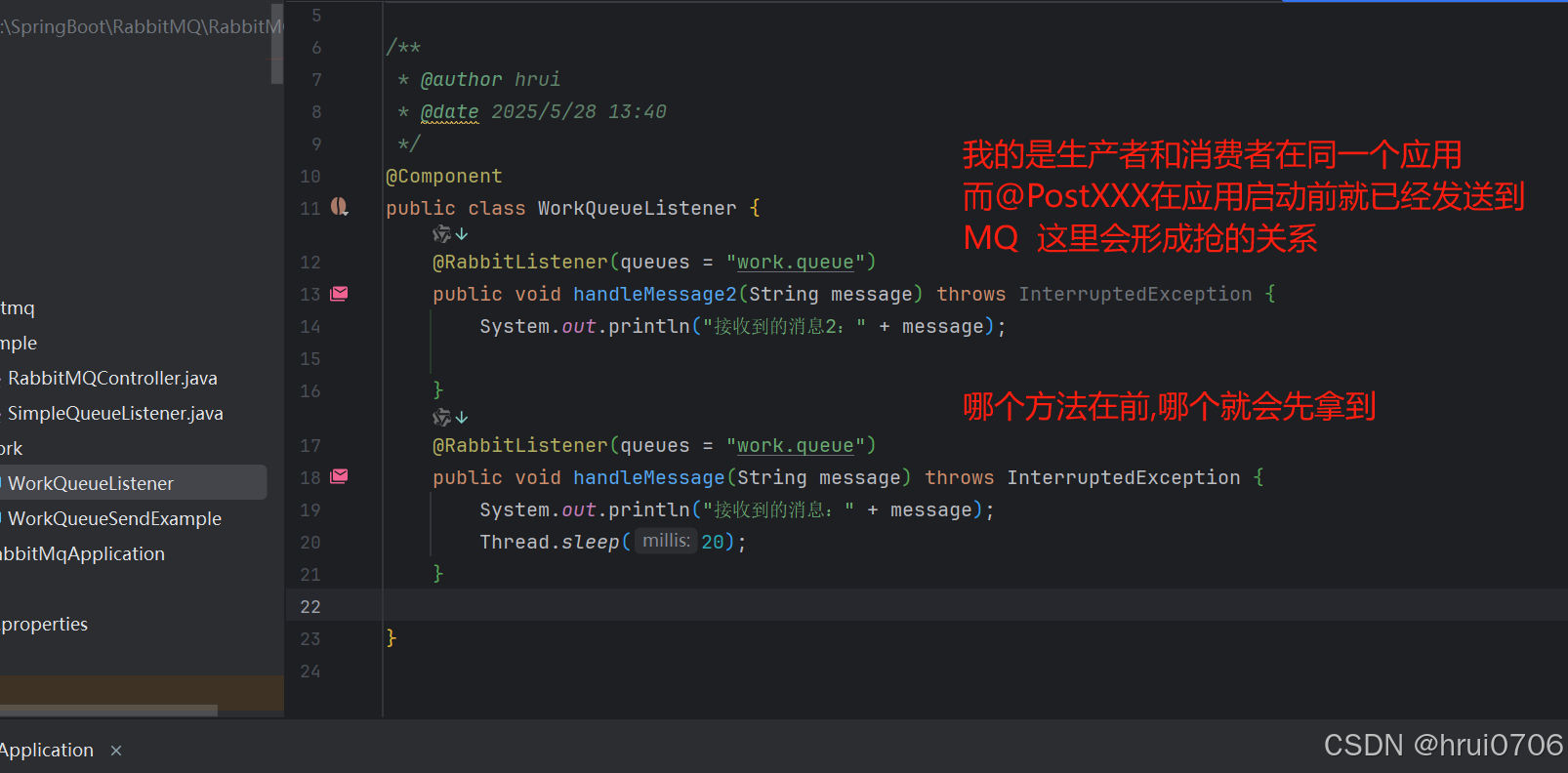

我这里因为引用启动前就已经往MQ发送了消息

哪个消费者的@Rabbitlistner 先注册,就可能全部抢完

分开应用会看到一人一半的现象

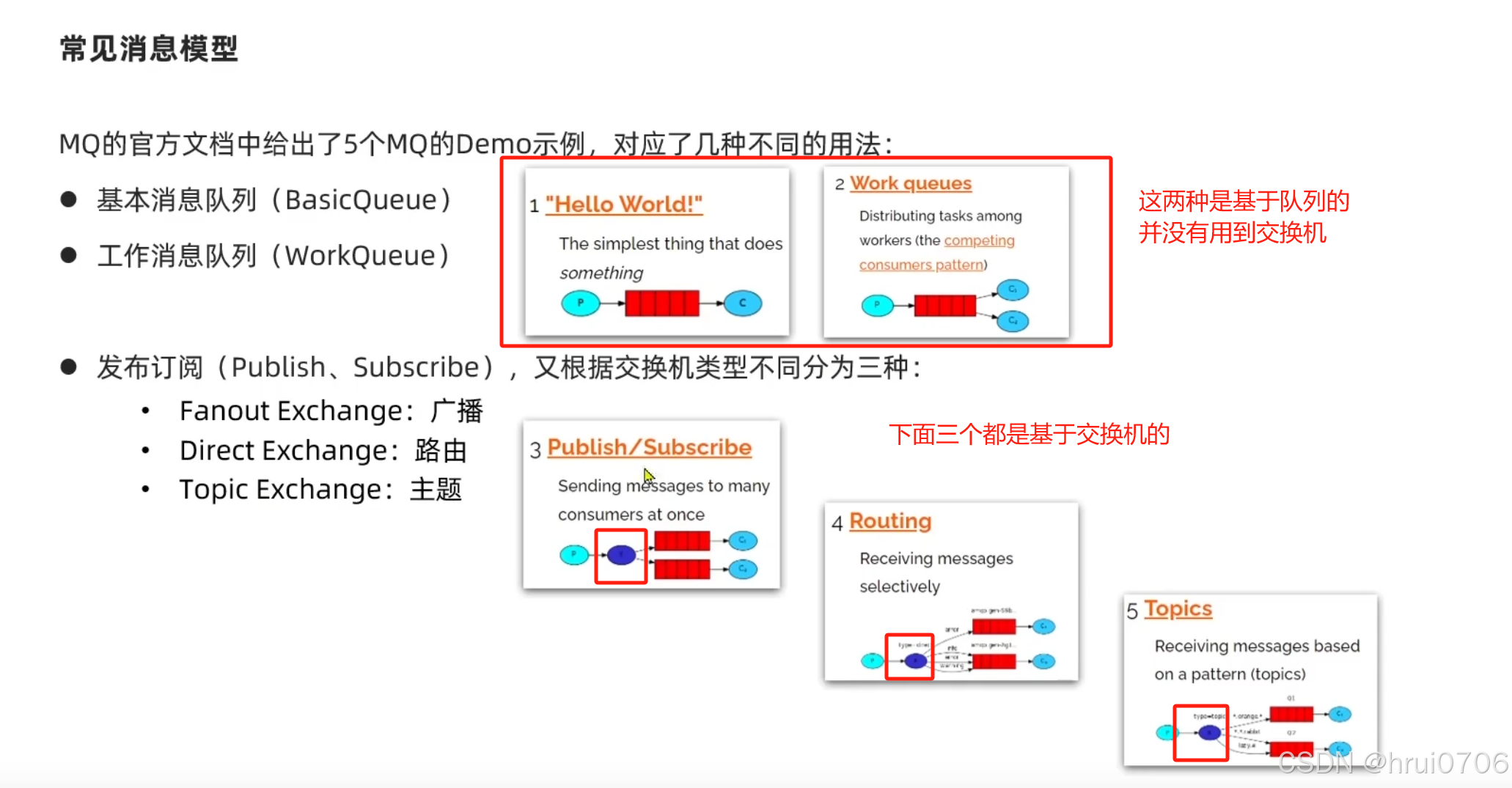

工作模式其实也是简单模式

简单模式和工作队列模式都不允许同一条消息给每个消费者消费

事实上简单队列模式和工作队列模式用的是默认交换机""

MQ的工作流程是

生产者 → 交换机 → 队列 → 消费者

发布订阅模式允许同一消息发送给多个消费者.实现方式是加入了exchange(交换机)

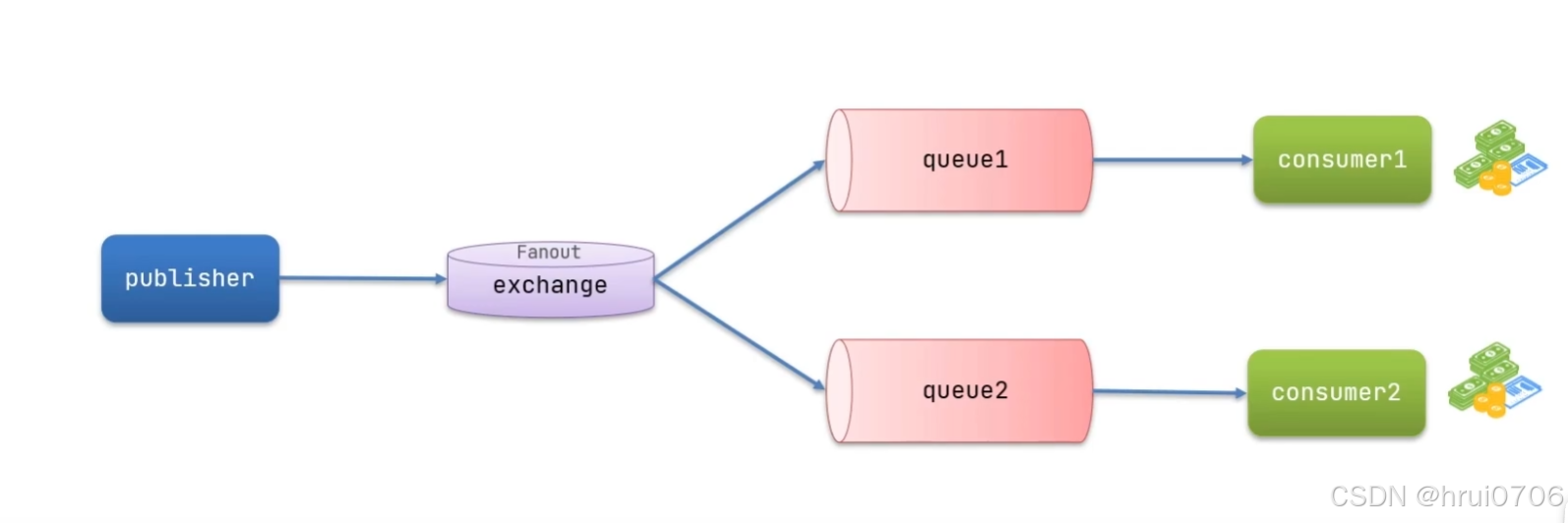

2.3.发布、订阅模型-Fanout-扇形交换机真正广播

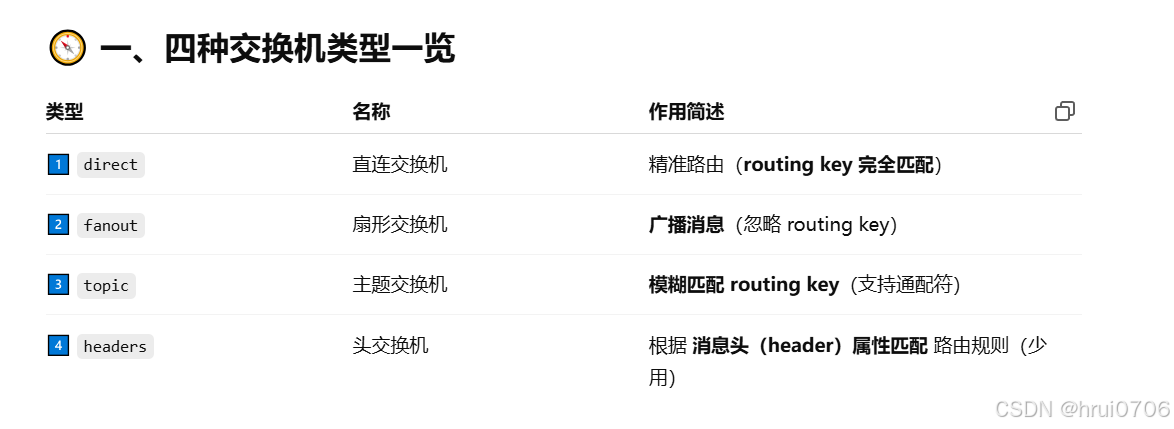

Fanout是交换机的一种类型 Fanout交换机常用于广播

交换机只用于消息转发

Fanout Exchange会将接收到的消息路由到每一个跟其绑定的Queue

上面的简单队列是因为我们开始写代码时候就声明了Queue

工作队列也是通过@Bean的方式声明了

那么发布、订阅模式可以自己在web页面中配置交换机和队列

也可以应用内声明注意注意注意:交换机队列的声明需要在消费者端声明这也是下面出现问题的原因配置和

@RabbitListener 要在同一应用中  才会去声明

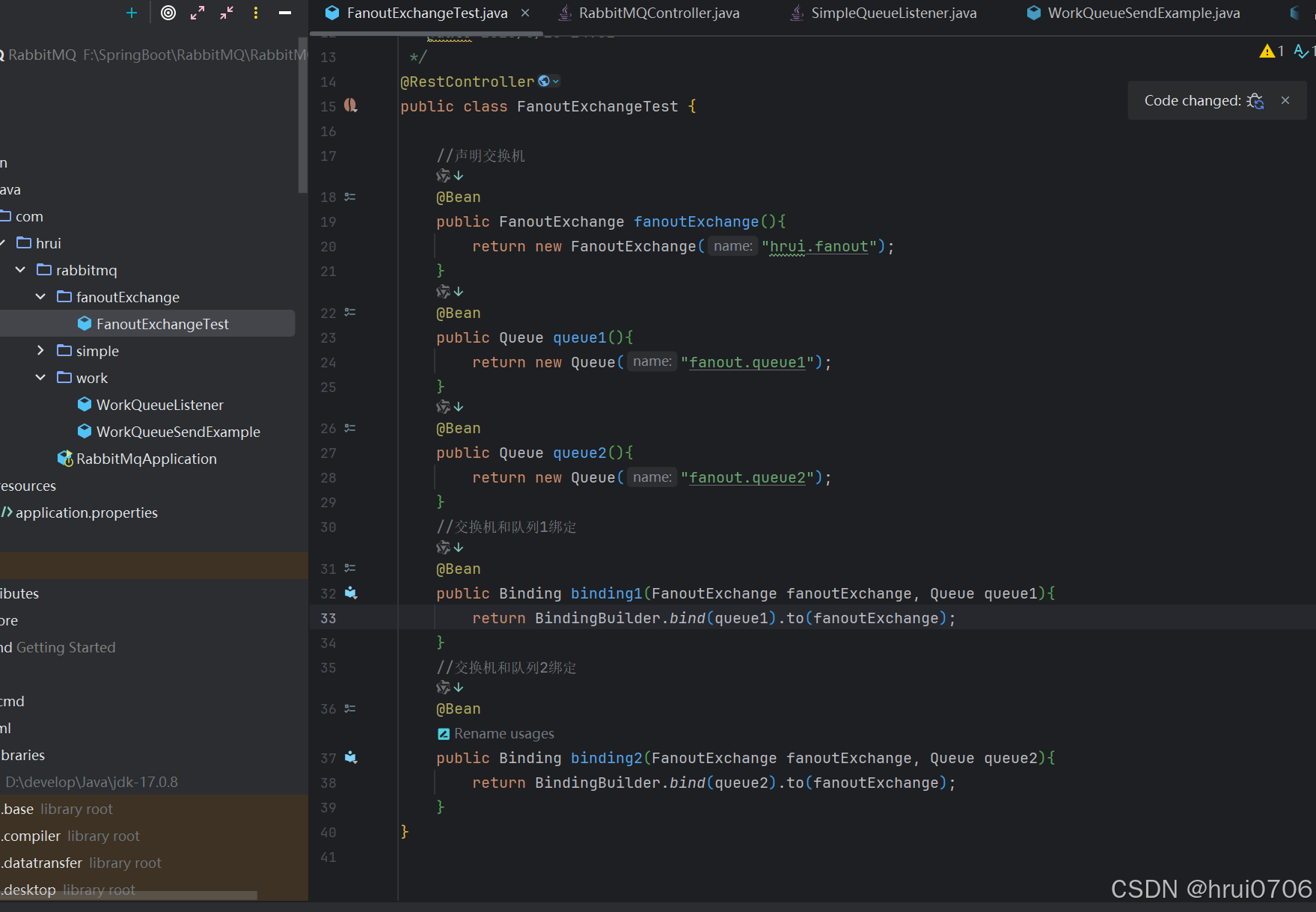

把工作队列代码注释,先启动下

package com.hrui.rabbitmq.fanoutExchange;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author hrui
 * @date 2025/5/28 14:52
 */
@Configuration
public class FanoutExchangeTest {

    //声明交换机
    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange("hrui.fanout");
    }
    @Bean
    public Queue queue1(){
        return new Queue("fanout.queue1");
    }
    @Bean
    public Queue queue2(){
        return new Queue("fanout.queue2");
    }
    //交换机和队列1绑定
    @Bean
    public Binding binding1(FanoutExchange fanoutExchange, Queue queue1){
        return BindingBuilder.bind(queue1).to(fanoutExchange);
    }
    //交换机和队列2绑定
    @Bean
    public Binding binding2(FanoutExchange fanoutExchange, Queue queue2){
        return BindingBuilder.bind(queue2).to(fanoutExchange);
    }
}

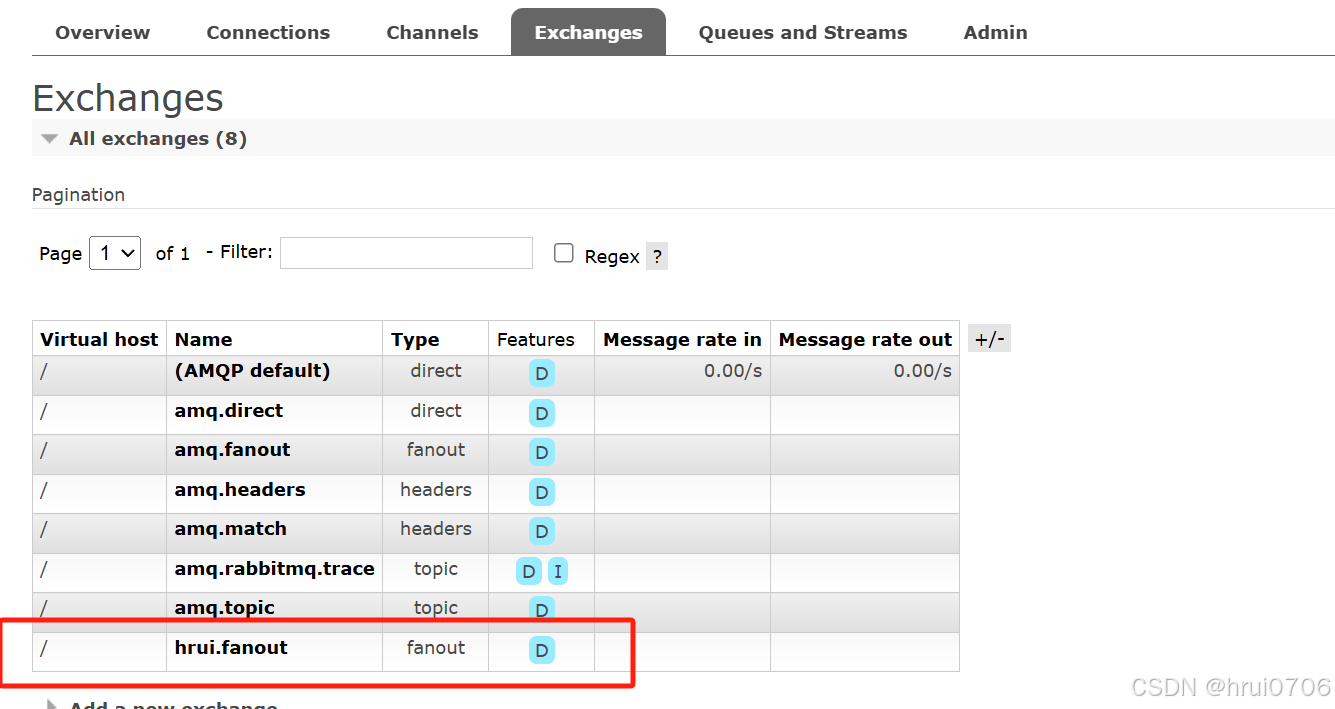

启动了但是web页面上并没有看到声明的交换机和队列

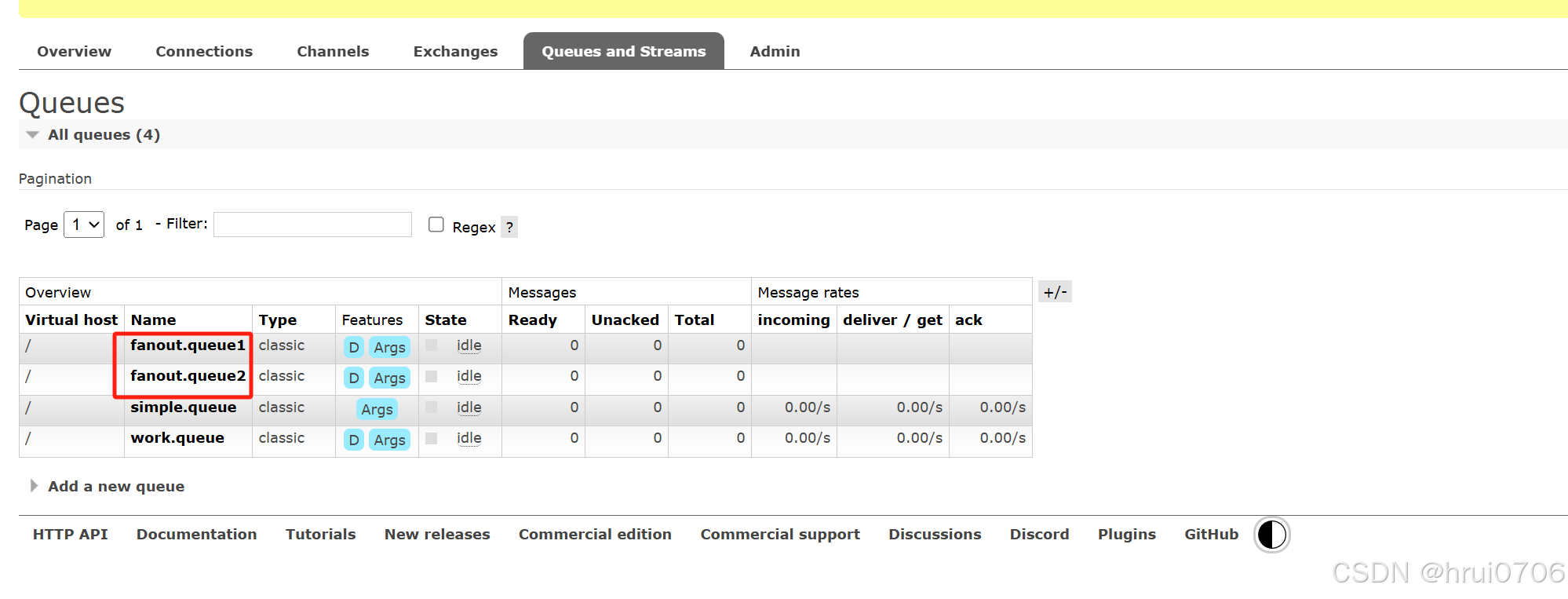

当我定义了两个消费者启动之后才看到

package com.hrui.rabbitmq.fanoutExchange;

import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

/**
 * @author hrui
 * @date 2025/5/28 15:21
 */
@Component
public class FanoutExchangeListener {
    @RabbitListener(queues = "fanout.queue1")
    public void receive1(String msg) {
        System.out.println("queue1 收到消息：" + msg);
    }

    @RabbitListener(queues = "fanout.queue2")
    public void receive2(String msg) {
        System.out.println("queue2 收到消息：" + msg);
    }
}

发消息

package com.hrui.rabbitmq.fanoutExchange;

import jakarta.annotation.PostConstruct;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author hrui
 * @date 2025/5/28 14:52
 */
@Configuration
public class FanoutExchangeTest {

    //声明交换机
    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange("hrui.fanout");
    }
    @Bean
    public Queue queue1(){
        return new Queue("fanout.queue1");
    }
    @Bean
    public Queue queue2(){
        return new Queue("fanout.queue2");
    }
    //交换机和队列1绑定
    @Bean
    public Binding binding1(FanoutExchange fanoutExchange, Queue queue1){
        return BindingBuilder.bind(queue1).to(fanoutExchange);
    }
    //交换机和队列2绑定
    @Bean
    public Binding binding2(FanoutExchange fanoutExchange, Queue queue2){
        return BindingBuilder.bind(queue2).to(fanoutExchange);
    }

    @Autowired
    private RabbitTemplate rabbitTemplate;
    @PostConstruct
    public void init() throws InterruptedException {
        //第一个参数是交换机   第二个参数是路由键(这里先用""空字符串)  第三个参数是消息
        rabbitTemplate.convertAndSend("hrui.fanout","","hello fanout");
    }
}

接收消息的上面已经写了

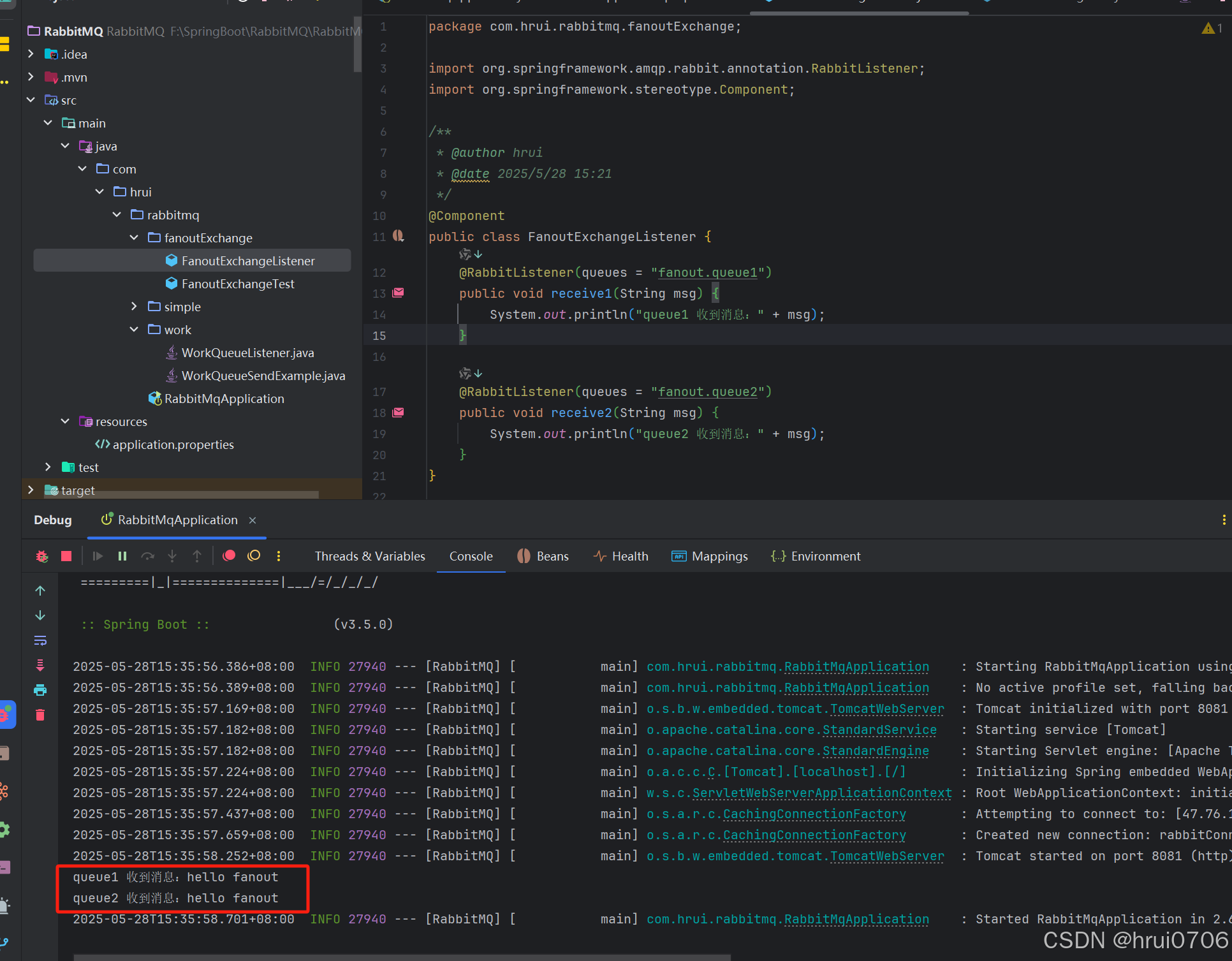

运行结果

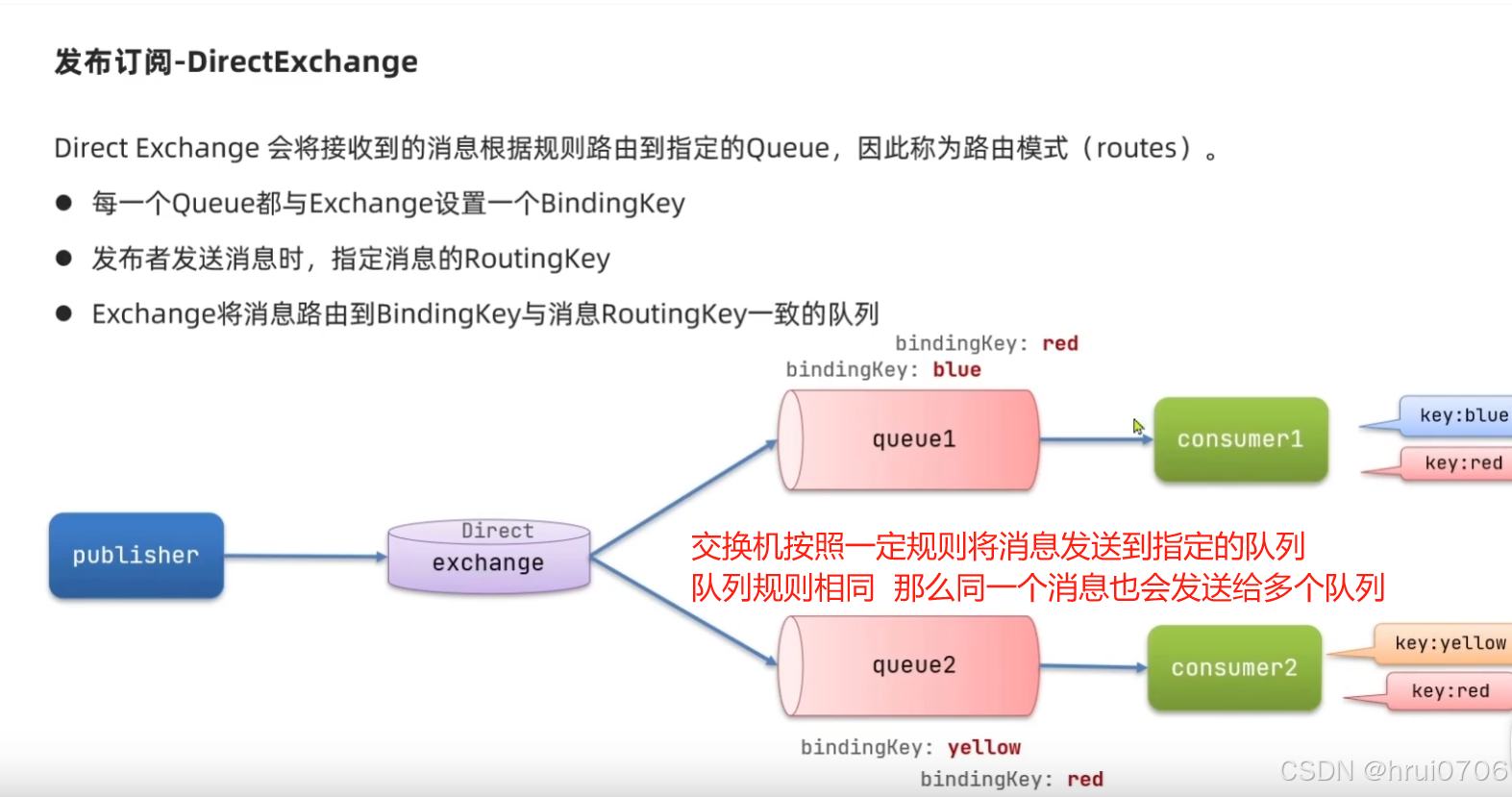

2.4.发布、订阅模型-Direct 条件广播

Direct 按一定规则交换机按一定队则将对应消息发送到对应(指定)的队列

说明Direct 也是可以适配Fanout 比Fanout更加灵活

上面是在消费者中声明交换机声明队列的方式

其实还有另外一种更加直接的方式就是用

@RabbitListener注解来接收消息同时来声明交换机队列路由Key 就是 Echange Queue RoutingKey

package com.hrui.rabbitmq.directExchange;

import org.springframework.amqp.core.ExchangeTypes;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

/**
 * @author hrui
 * @date 2025/5/28 15:53
 */
@Component
public class DirectExchangeListener {


    // 消费者1监听 direct.queue1，绑定 routingKey = red, blue
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "hrui.queue3"),
            exchange = @Exchange(name = "hrui.direct", type = ExchangeTypes.DIRECT),
            key = {"red", "blue"}
    ))
    public void listenDirectQueue1(String msg) {
        System.out.println("消费者1接收到Direct消息: [" + msg + "]");
    }

    // 消费者2监听 direct.queue2，绑定 routingKey = red, yellow
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "hrui.queue4"),
            exchange = @Exchange(name = "hrui.direct", type = ExchangeTypes.DIRECT),
            key = {"red", "yellow"}
    ))

    public void listenDirectQueue2(String msg) {
        System.out.println("消费者2接收到Direct消息: [" + msg + "]");
    }
}

都可以接收到red 1只能接收到blue 2只能接收到 yellow

发送消息

package com.hrui.rabbitmq.directExchange;

import jakarta.annotation.PostConstruct;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author hrui
 * @date 2025/5/28 16:44
 */
@RestController
public class SendDirectExchange {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @PostConstruct
    public void init() {
        for (int i = 0; i < 10; i++) {
            rabbitTemplate.convertAndSend("hrui.direct", "red", "direct exchange msg red"+i);
            rabbitTemplate.convertAndSend("hrui.direct", "blue", "direct exchange msg blue"+i);
            rabbitTemplate.convertAndSend("hrui.direct", "yellow", "direct exchange msg yellow"+i);
        }
    }
}
