基于FPGA的VGA显示文字和数字
前言
结合正点原子以及野火的基础例程，理解了VGA本身基本协议，VGA本身显示像素为640*480，因此注意生成文字或者数字的字模不要太大。本文以VGA显示文字“心率测试”，以及数字“68”
本文不再对VGA驱动的编写作过多叙述，而是在例程的基础上进行修改。
一、VGA显示参数

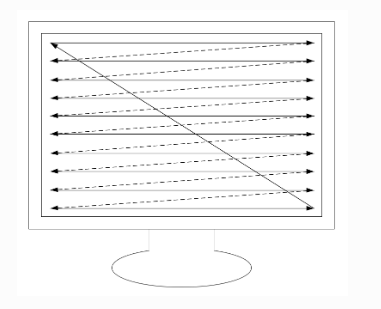

显示方式从左到右，从上到下。
显示模式：640x480@60
640x480是指VGA的分辨率，640是指有效显示图像每一行有640个像素点，480是指每一帧图像有480行，640 * 480 = 307200 ≈ 300000，每一帧图片包含约30万个像素点，之前某品牌手机广告上所说的30万像素指的就是这个；@60是指VGA显示图像的刷新频率，60就是指VGA显示器每秒刷新图像60次，即每秒钟需要显示60帧图像。
时钟(MHz)：25.175MHz
这是VGA显示的工作时钟，像素点扫描频率。
具体的时钟计算流程野火教程中有讲解。
二、字模生成
如果要显示文字或者数字，前提是要生成字模，通过字模软件把字模导出来。关键在于控制字模数组的长宽。

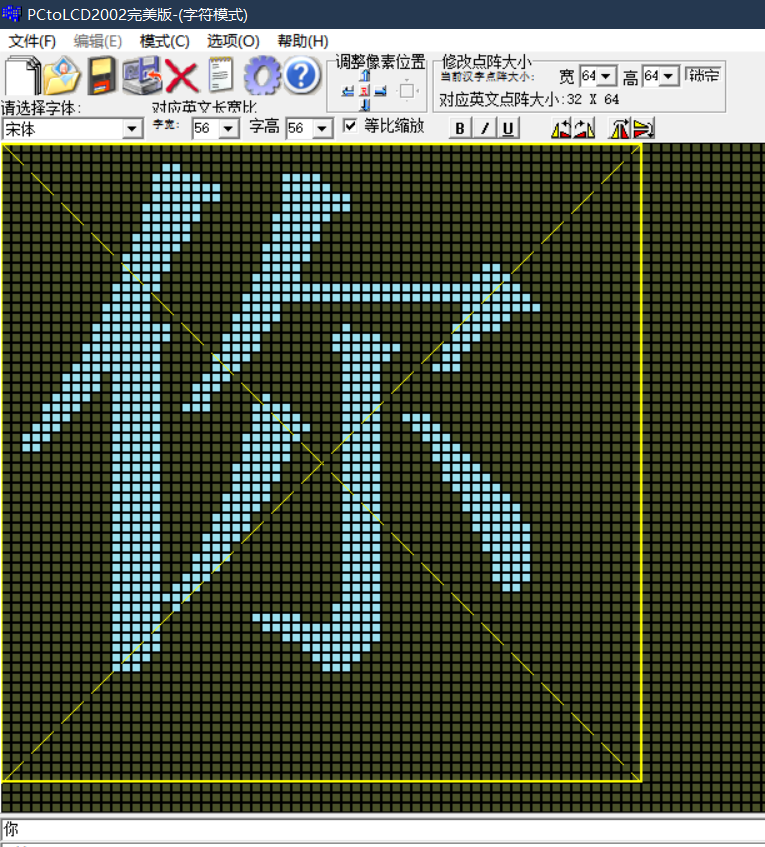

比如：生成“你”这个字的字模，选用的想字体点阵大小是6464
所以关键在于控制输出字模数组的宽度和深度。因为这个你字我们设置的是6464的，所以输出的数组也要是64*64的。

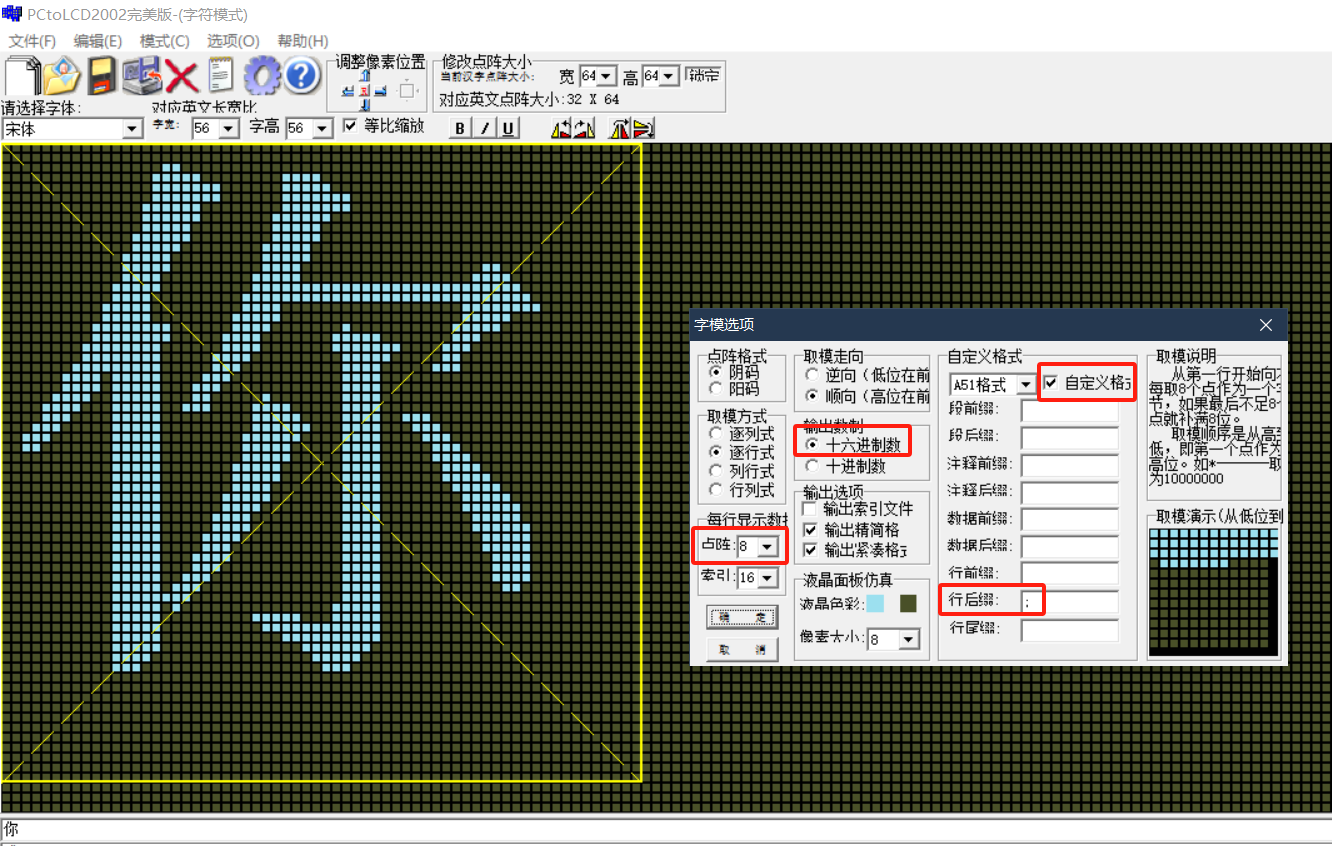

如何进行修改呢，**主要是改这个每行显示数据这，**点阵数决定了你每行的输出。

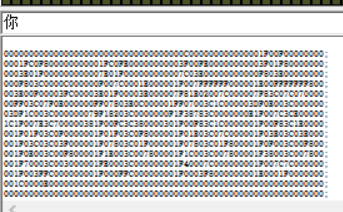

输出正确的数组格式为：
因为输出的是16进制，所以横向看起来很窄，换成2进制的话就是64位了。
但是如果你设置不对，输出的数组就不是6464的，到时候显示就会有问题。
错误案例：

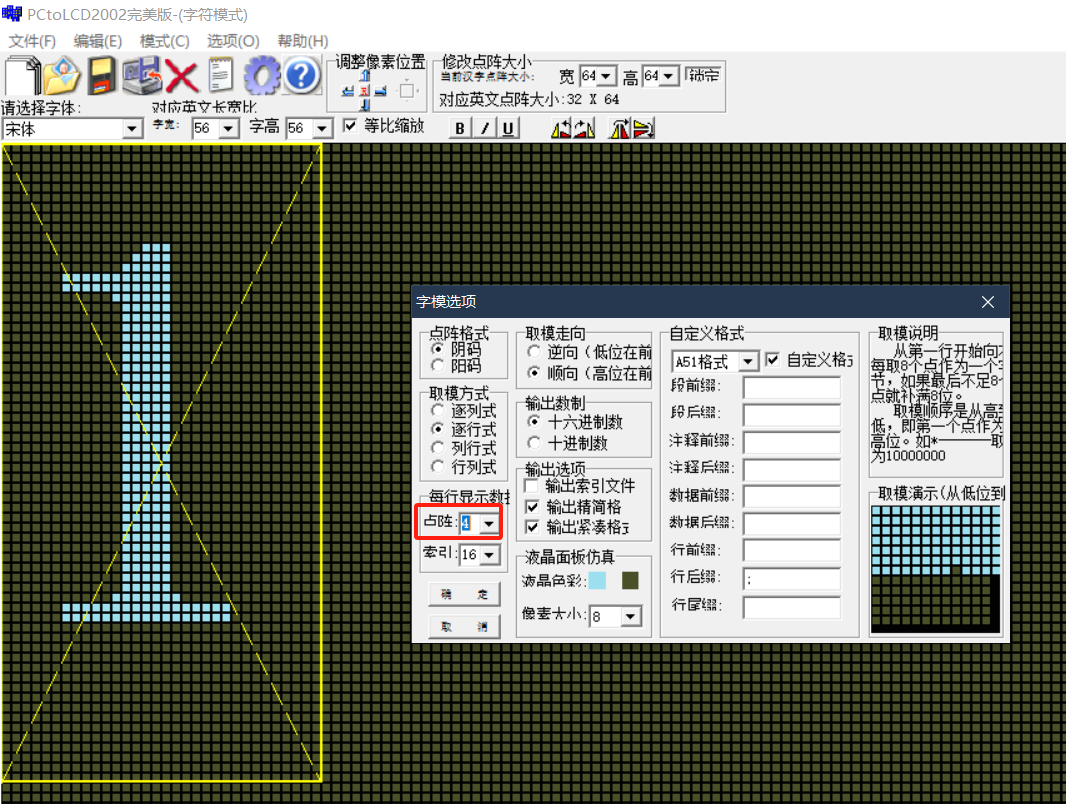

显示数据也是同样的道理，但是注意，即使你设置数字的点阵大小也是6464，但是实际数字的点阵大小只需要32*64，英文字母跟数字都只需要文字的一半宽度。因此生成数组要注意，单个字母和数字只需要输出32*64即可。
比如显示数字1
这样生成的数组就是32*64了：
生成完字模之后，就需要把字模数据放到代码里面的数组进行扫描读取即可。
三、代码分析
顶层文件：
乱码，建议去下载野火科技的VGA例程，然后对应修改pic部分即可。
1.vga_char顶层
`timescale 1ns/1ns
//
// Company: yehuo 野火科技
// Engineer:
//
// Create Date: 2025/05/03 16:40:01
// Design Name:
// Module Name: top
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module vga_char(
input wire sys_clk , //杈撳叆宸ヤ綔鏃堕挓,棰戠巼50MHz
input wire rst_n , //杈撳叆澶嶄綅淇″彿,浣庣數骞虫湁鏁?
input wire vga_clk ,
input wire [3 :0] HEART_data_h,
input wire [3 :0] HEART_data_l,
input wire [3 :0] HEART_data_w,
output wire hsync , //杈撳嚭琛屽悓姝ヤ俊鍙?
output wire vsync , //杈撳嚭鍦哄悓姝ヤ俊鍙?
output wire [15:0] rgb //杈撳嚭鍍忕礌淇℃伅
);
//********************************************************************//
//****************** Parameter and Internal Signal *******************//
//********************************************************************//
//wire define
wire [9:0] pix_x ; //VGA鏈夋晥鏄剧ず鍖哄煙X杞村潗鏍?
wire [9:0] pix_y ; //VGA鏈夋晥鏄剧ず鍖哄煙Y杞村潗鏍?
wire [15:0] pix_data; //VGA鍍忕礌鐐硅壊褰╀俊鎭?
//------------- vga_ctrl_inst -------------
vga_ctrl vga_ctrl_inst
(
.vga_clk (vga_clk ), //杈撳叆宸ヤ綔鏃堕挓,棰戠巼25MHz,1bit
.sys_rst_n (rst_n ), //杈撳叆澶嶄綅淇″彿,浣庣數骞虫湁鏁?,1bit
.pix_data (pix_data ), //杈撳叆鍍忕礌鐐硅壊褰╀俊鎭?,16bit
.pix_x (pix_x ), //杈撳嚭VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筙杞村潗鏍?,10bit
.pix_y (pix_y ), //杈撳嚭VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筜杞村潗鏍?,10bit
.hsync (hsync ), //杈撳嚭琛屽悓姝ヤ俊鍙?,1bit
.vsync (vsync ), //杈撳嚭鍦哄悓姝ヤ俊鍙?,1bit
.rgb (rgb ) //杈撳嚭鍍忕礌鐐硅壊褰╀俊鎭?,16bit
);
//------------- vga_pic_inst -------------
vga_pic vga_pic_inst
(
.vga_clk (vga_clk ), //杈撳叆宸ヤ綔鏃堕挓,棰戠巼25MHz,1bit
.sys_rst_n (rst_n ), //杈撳叆澶嶄綅淇″彿,浣庣數骞虫湁鏁?,1bit
.pix_x (pix_x ), //杈撳叆VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筙杞村潗鏍?,10bit
.pix_y (pix_y ), //杈撳叆VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筜杞村潗鏍?,10bit
.HEART_data_h(HEART_data_h),
.HEART_data_l(HEART_data_l),
.HEART_data_w(HEART_data_w),
.pix_data (pix_data ) //杈撳嚭鍍忕礌鐐硅壊褰╀俊鎭?,16bit
);
endmodule
2.vga_ctrl驱动文件
`timescale 1ns/1ns
//
// Company: yehuo 野火科技
// Engineer:
//
// Create Date: 2025/05/03 16:40:01
// Design Name:
// Module Name: top
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module vga_ctrl
(
input wire vga_clk , //杈撳叆宸ヤ綔鏃堕挓,棰戠巼25MHz
input wire sys_rst_n , //杈撳叆澶嶄綅淇″彿,浣庣數骞虫湁鏁�
input wire [15:0] pix_data , //杈撳叆鍍忕礌鐐硅壊褰╀俊鎭�
output wire [9:0] pix_x , //杈撳嚭VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筙杞村潗鏍�
output wire [9:0] pix_y , //杈撳嚭VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐筜杞村潗鏍�
output wire hsync , //杈撳嚭琛屽悓姝ヤ俊鍙�
output wire vsync , //杈撳嚭鍦哄悓姝ヤ俊鍙�
output wire [15:0] rgb //杈撳嚭鍍忕礌鐐硅壊褰╀俊鎭�
);
//********************************************************************//
//****************** Parameter and Internal Signal *******************//
//********************************************************************//
//parameter define
parameter H_SYNC = 10'd96 , //琛屽悓姝�
H_BACK = 10'd40 , //琛屾椂搴忓悗娌�
H_LEFT = 10'd8 , //琛屾椂搴忓乏杈规
H_VALID = 10'd640 , //琛屾湁鏁堟暟鎹�
H_RIGHT = 10'd8 , //琛屾椂搴忓彸杈规
H_FRONT = 10'd8 , //琛屾椂搴忓墠娌�
H_TOTAL = 10'd800 ; //琛屾壂鎻忓懆鏈�
parameter V_SYNC = 10'd2 , //鍦哄悓姝�
V_BACK = 10'd25 , //鍦烘椂搴忓悗娌�
V_TOP = 10'd8 , //鍦烘椂搴忎笂杈规
V_VALID = 10'd480 , //鍦烘湁鏁堟暟鎹�
V_BOTTOM = 10'd8 , //鍦烘椂搴忎笅杈规
V_FRONT = 10'd2 , //鍦烘椂搴忓墠娌�
V_TOTAL = 10'd525 ; //鍦烘壂鎻忓懆鏈�
//wire define
wire rgb_valid ; //VGA鏈夋晥鏄剧ず鍖哄煙
wire pix_data_req ; //鍍忕礌鐐硅壊褰╀俊鎭姹備俊鍙�
//reg define
reg [9:0] cnt_h ; //琛屽悓姝ヤ俊鍙疯鏁板櫒
reg [9:0] cnt_v ; //鍦哄悓姝ヤ俊鍙疯鏁板櫒
//********************************************************************//
//***************************** Main Code ****************************//
//********************************************************************//
//cnt_h:琛屽悓姝ヤ俊鍙疯鏁板櫒
always@(posedge vga_clk or negedge sys_rst_n)
if(sys_rst_n == 1'b0)
cnt_h <= 10'd0 ;
else if(cnt_h == H_TOTAL - 1'd1)
cnt_h <= 10'd0 ;
else
cnt_h <= cnt_h + 1'd1 ;
//hsync:琛屽悓姝ヤ俊鍙�
assign hsync = (cnt_h <= H_SYNC - 1'd1) ? 1'b1 : 1'b0 ;
//cnt_v:鍦哄悓姝ヤ俊鍙疯鏁板櫒
always@(posedge vga_clk or negedge sys_rst_n)
if(sys_rst_n == 1'b0)
cnt_v <= 10'd0 ;
else if((cnt_v == V_TOTAL - 1'd1) && (cnt_h == H_TOTAL-1'd1))
cnt_v <= 10'd0 ;
else if(cnt_h == H_TOTAL - 1'd1)
cnt_v <= cnt_v + 1'd1 ;
else
cnt_v <= cnt_v ;
//vsync:鍦哄悓姝ヤ俊鍙�
assign vsync = (cnt_v <= V_SYNC - 1'd1) ? 1'b1 : 1'b0 ;
//rgb_valid:VGA鏈夋晥鏄剧ず鍖哄煙
assign rgb_valid = (((cnt_h >= H_SYNC + H_BACK + H_LEFT)
&& (cnt_h < H_SYNC + H_BACK + H_LEFT + H_VALID))
&&((cnt_v >= V_SYNC + V_BACK + V_TOP)
&& (cnt_v < V_SYNC + V_BACK + V_TOP + V_VALID)))
? 1'b1 : 1'b0;
//pix_data_req:鍍忕礌鐐硅壊褰╀俊鎭姹備俊鍙�,瓒呭墠rgb_valid淇″彿涓�涓椂閽熷懆鏈�
assign pix_data_req = (((cnt_h >= H_SYNC + H_BACK + H_LEFT - 1'b1)
&& (cnt_h < H_SYNC + H_BACK + H_LEFT + H_VALID - 1'b1))
&&((cnt_v >= V_SYNC + V_BACK + V_TOP)
&& (cnt_v < V_SYNC + V_BACK + V_TOP + V_VALID)))
? 1'b1 : 1'b0;
//pix_x,pix_y:VGA鏈夋晥鏄剧ず鍖哄煙鍍忕礌鐐瑰潗鏍�
assign pix_x = (pix_data_req == 1'b1)
? (cnt_h - (H_SYNC + H_BACK + H_LEFT - 1'b1)) : 10'h3ff;
assign pix_y = (pix_data_req == 1'b1)
? (cnt_v - (V_SYNC + V_BACK + V_TOP)) : 10'h3ff;
//rgb:杈撳嚭鍍忕礌鐐硅壊褰╀俊鎭�
assign rgb = (rgb_valid == 1'b1) ? pix_data : 16'b0 ;
endmodule
3.vga_pic数据准备文件
我是用来显示心率数据的，所以我设置的是4个文字，所以长是64*4=256 宽是64
后面数字显示3位，我是一位一位的显示，每一次显示都是32*64的
如果你只想验证显示固定数字，只需要把HEART_data_h和 HEART_data_l赋值为固定数字即可。
最后注意工作时钟50Mhz，VGA工作时钟25MHz,用一个锁相环ip核产生一下就行。
