rtsp协议之.c++实现，rtsp，rtp协议框架，模拟多路音视频h264，265，aac，数据帧传输，接收（二）

rtsp协议之.c++实现，rtsp，rtp协议框架，模拟多路音视频h264，265，aac，数据帧传输，接收（二）

1、RTSP 服务器核心：处理 RTSP 会话管理、请求解析和响应生成

2、媒体源抽象：定义了通用媒体源接口，支持不同类型的媒体流
具体媒体源实现：
H264MediaSource：模拟 H.264 视频流
H265MediaSource：模拟 H.265 视频流
AACMediaSource：模拟 AAC 音频流

3、RTP 包生成：根据不同媒体类型生成相应的 RTP 包
使用时，只需创建 RTSP 服务器实例，添加多个媒体源，然后启动服务器即可。服务器会模拟多个相机的码流，可以通过 RTSP 客户端访问这些模拟的媒体流。

在给出例子前，先解释一些概念。

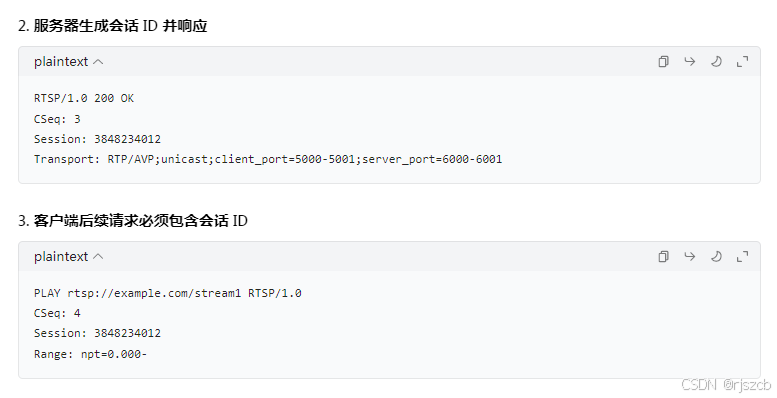

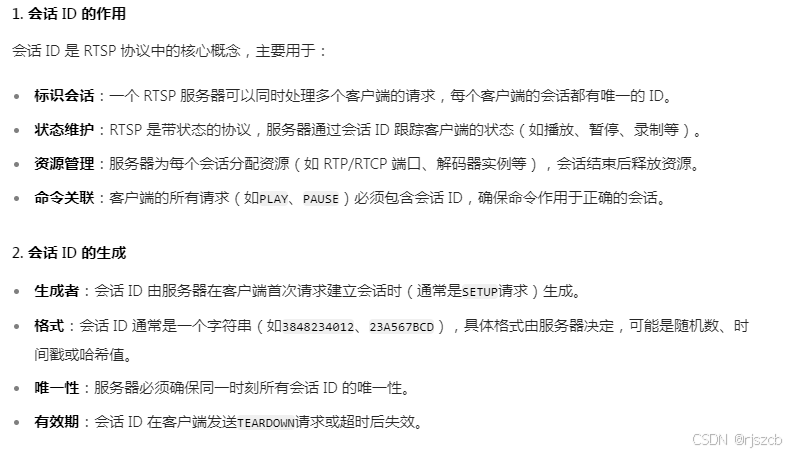

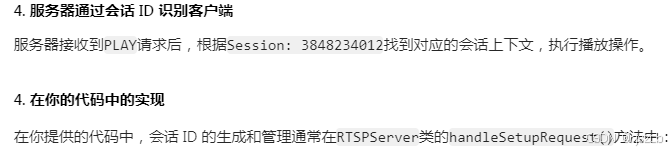

1、会话id

// 伪代码示例（需在实际代码中实现）
std::string RTSPServer::generateSessionId() {
    // 生成唯一会话ID（例如随机数+时间戳）
    static std::atomic<uint32_t> counter(0);
    return std::to_string(time(nullptr)) + "_" + std::to_string(counter++);
}

void RTSPServer::handleSetupRequest(const RTSPRequest& request, RTSPResponse& response) {
    // 为客户端分配会话ID
    std::string sessionId = generateSessionId();
    response.setHeader("Session", sessionId);

    // 保存会话信息（如端口、媒体源等）
    SessionInfo session;
    session.id = sessionId;
    session.clientPort = parseClientPort(request.getHeader("Transport"));
    // ... 其他会话信息

    // 存储会话（通常用std::map）
    m_sessions[sessionId] = session;
}

2、

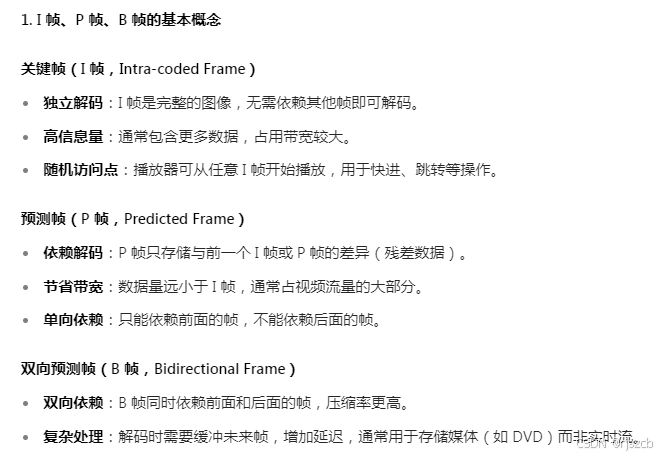

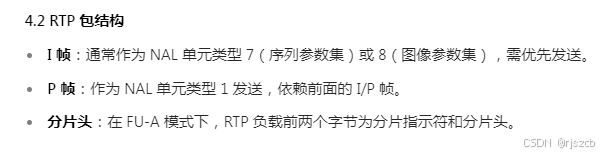

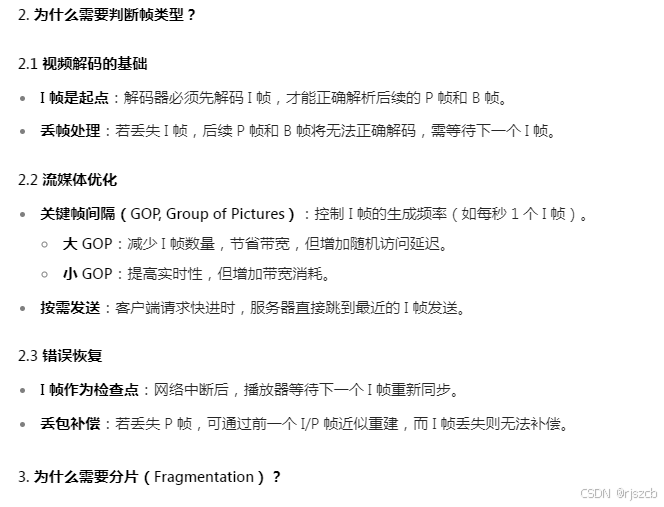

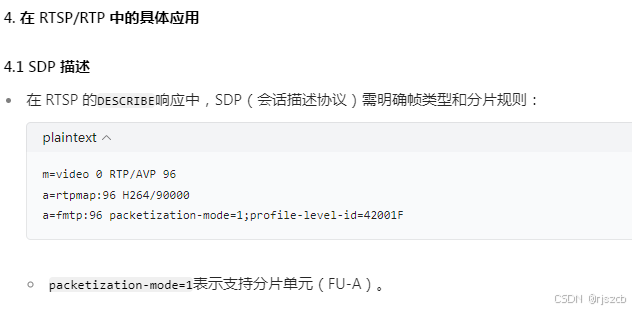

在视频流处理中，区分关键帧（I 帧）、预测帧（P 帧）和分片（Fragmentation）是保证视频正确解码和高效传输的关键。以下从原理、协议和实际应用角度详细解释：

在你的 RTSP 模拟器中，可通过以下方式模拟帧类型和分片：

class MediaSource {
public:
    enum FrameType {
        FRAME_I,
        FRAME_P,
        FRAME_B
    };

    // 生成模拟帧（需在子类实现）
    virtual bool getNextFrame(uint8_t*& data, size_t& size, FrameType& type) = 0;
};

class H264MediaSource : public MediaSource {
public:
    bool getNextFrame(uint8_t*& data, size_t& size, FrameType& type) override {
        // 模拟：每30帧生成一个I帧，其余为P帧
        static int frameCounter = 0;
        if (frameCounter++ % 30 == 0) {
            type = FRAME_I;
            generateIFrame(data, size);
        } else {
            type = FRAME_P;
            generatePFrame(data, size);
        }
        return true;
    }
};

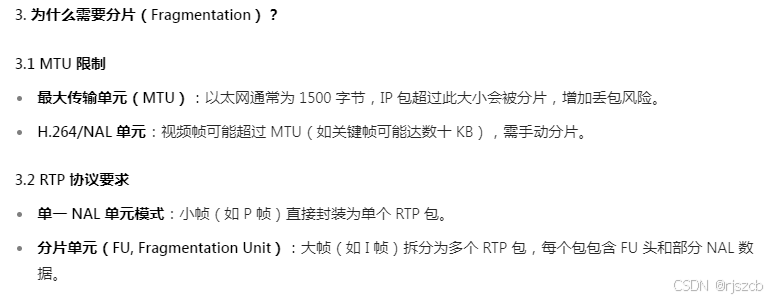

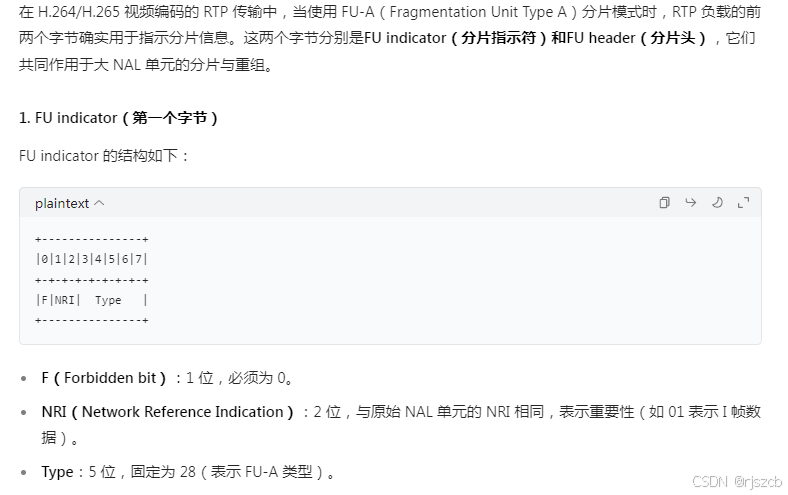

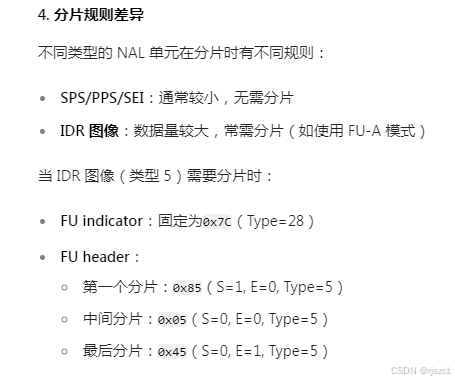

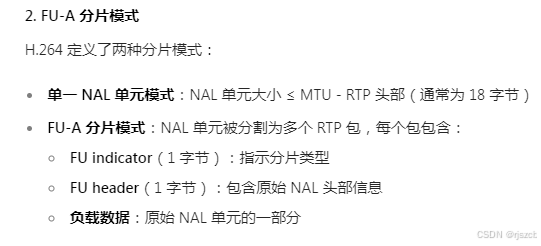

分片处理

class RTPGenerator {
public:
    void generateRtpPackets(const uint8_t* nalData, size_t nalSize,
                          FrameType frameType, std::vector<RtpPacket>& packets) {
        const int MAX_RTP_PAYLOAD = 1400;

        if (nalSize <= MAX_RTP_PAYLOAD) {
            // 小NAL单元直接封装
            packets.emplace_back(nalData, nalSize, frameType, false);
        } else {
            // 分片封装
            const uint8_t* payload = nalData + 1;  // 跳过NAL头
            size_t payloadSize = nalSize - 1;
            size_t offset = 0;

            // 第一个分片
            packets.emplace_back(createFirstFragment(nalData, payload, offset, MAX_RTP_PAYLOAD));
            offset += MAX_RTP_PAYLOAD - 2;  // 减去FU头大小

            // 中间分片
            while (offset + MAX_RTP_PAYLOAD - 2 < payloadSize) {
                packets.emplace_back(createMiddleFragment(nalData, payload, offset, MAX_RTP_PAYLOAD));
                offset += MAX_RTP_PAYLOAD - 2;
            }

            // 最后一个分片
            packets.emplace_back(createLastFragment(nalData, payload, offset, payloadSize - offset));
        }
    }
};

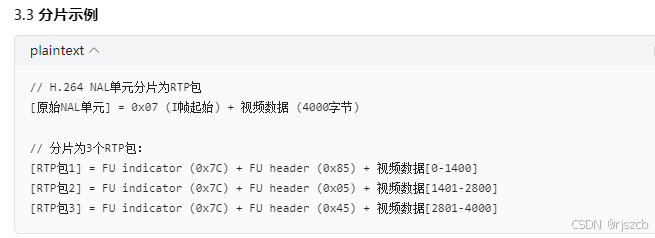

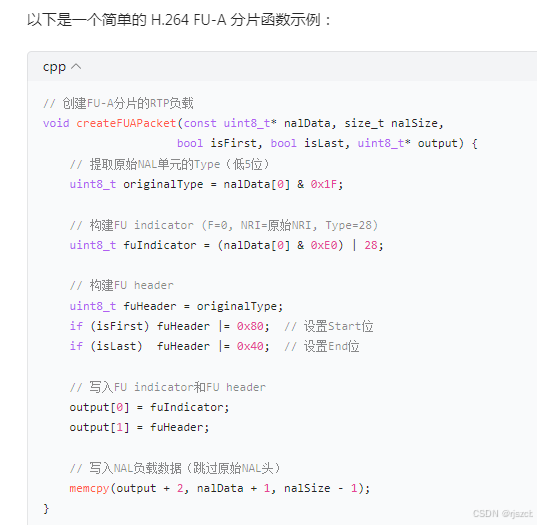

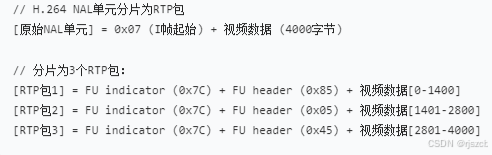

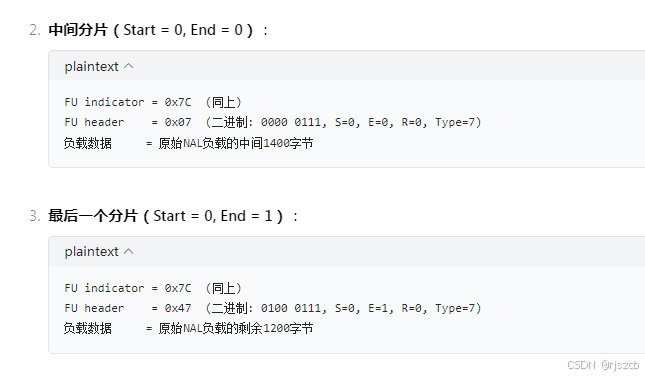

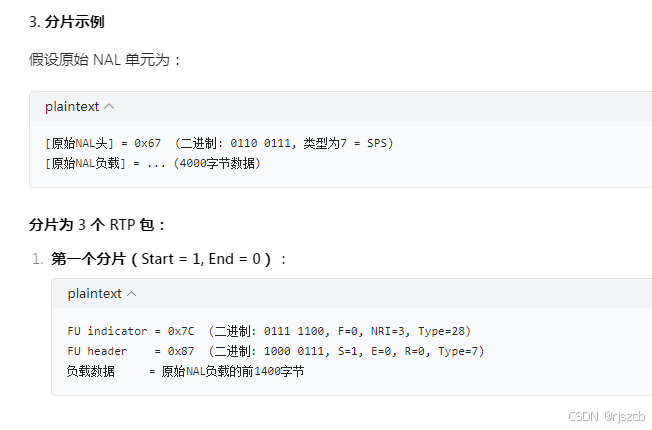

组合后就是如下




或者

// H.264 NAL单元分片为RTP包
void fragmentNalUnit(const uint8_t* nalData, size_t nalSize, std::vector<RtpPacket>& packets) {
    const int MAX_PAYLOAD_SIZE = 1400;  // MTU - RTP头(12字节) - FU头(2字节)

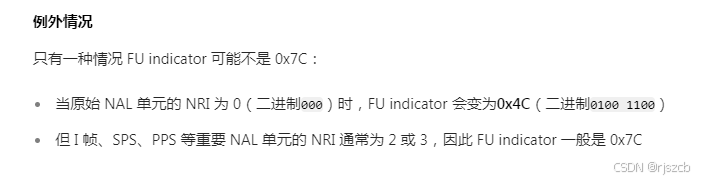

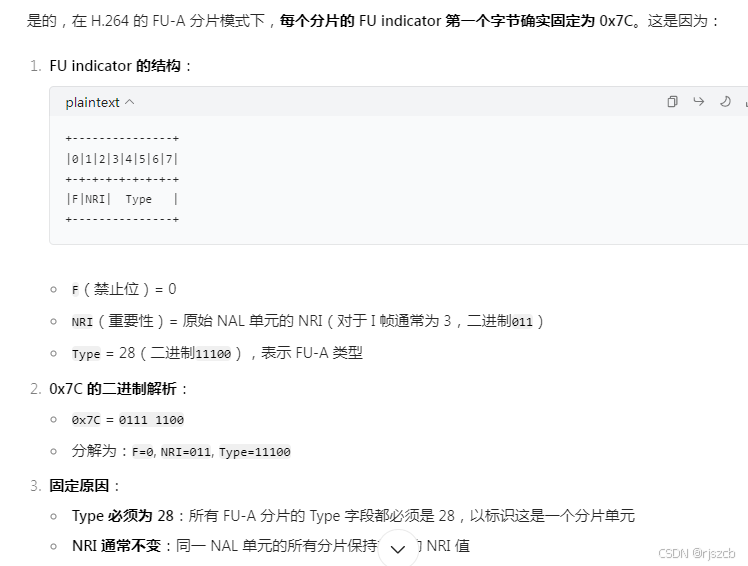

    const uint8_t FU_INDICATOR = 0x7C;  // 固定为0x7C (Type=28)

    // 提取原始NAL类型（低5位）
    uint8_t originalNalType = nalData[0] & 0x1F;

    // 计算需要的分片数
    size_t numFragments = (nalSize - 1 + MAX_PAYLOAD_SIZE - 1) / MAX_PAYLOAD_SIZE;
    size_t offset = 1;  // 跳过原始NAL头(1字节)

    for (size_t i = 0; i < numFragments; i++) {
        size_t fragmentSize = std::min(nalSize - offset, MAX_PAYLOAD_SIZE);
        bool isFirst = (i == 0);
        bool isLast = (i == numFragments - 1);

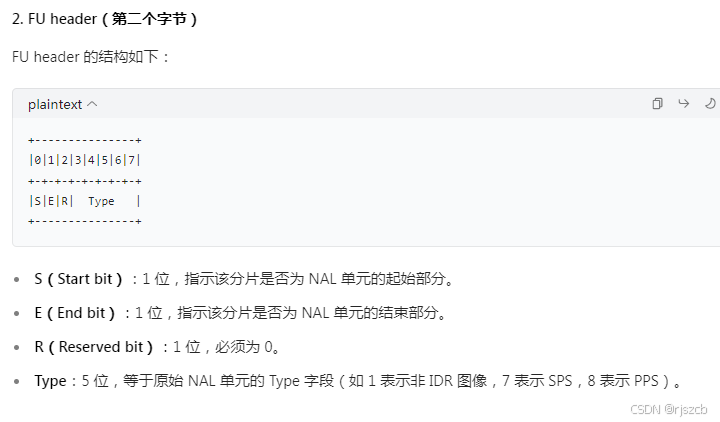

        // 创建FU header
        uint8_t fuHeader = originalNalType;
        if (isFirst) fuHeader |= 0x80;  // 设置起始位
        if (isLast) fuHeader |= 0x40;   // 设置结束位

        // 创建RTP包
        RtpPacket packet;
        packet.payloadSize = 2 + fragmentSize;  // FU指示符(1) + FU头(1) + 数据
        packet.payload[0] = FU_INDICATOR;
        packet.payload[1] = fuHeader;
        memcpy(packet.payload + 2, nalData + offset, fragmentSize);

        packets.push_back(packet);
        offset += fragmentSize;
    }
}

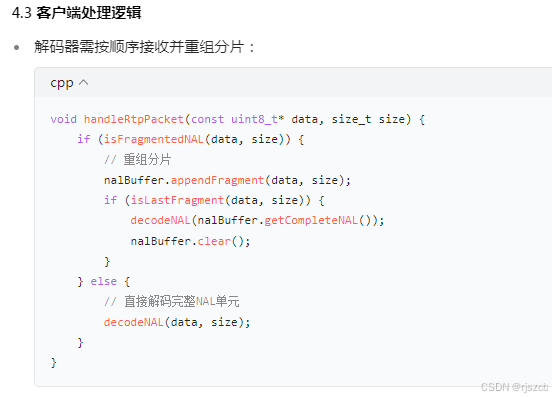

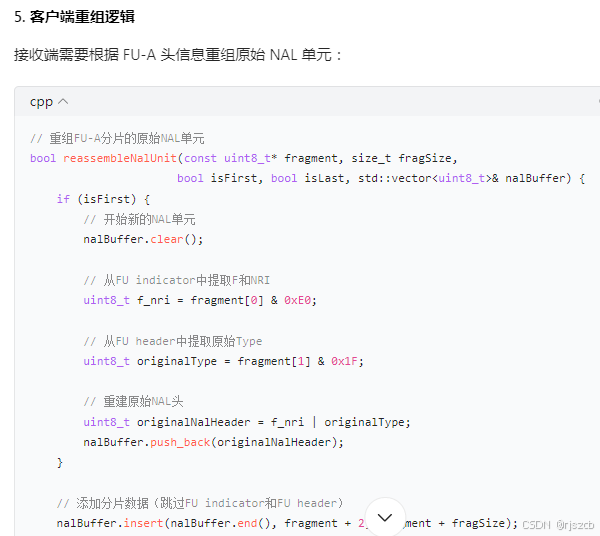

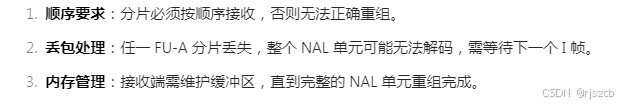

接收端重组逻辑
接收端需要根据 FU-A 头信息重组原始 NAL 单元

或者

// 重组H.264 FU-A分片
bool reassembleFuA(const uint8_t* fragment, size_t fragSize,
                  bool isFirst, bool isLast, std::vector<uint8_t>& nalBuffer) {
    if (isFirst) {
        // 开始新的NAL单元
        nalBuffer.clear();

        // 从FU indicator中提取NRI
        uint8_t nri = (fragment[0] & 0x60);

        // 从FU header中提取原始NAL类型
        uint8_t originalType = fragment[1] & 0x1F;

        // 重建原始NAL头
        uint8_t originalNalHeader = nri | originalType;
        nalBuffer.push_back(originalNalHeader);
    }

    // 添加分片数据（跳过FU indicator和FU header）
    nalBuffer.insert(nalBuffer.end(), fragment + 2, fragment + fragSize);

    // 返回是否完成重组
    return isLast;
}

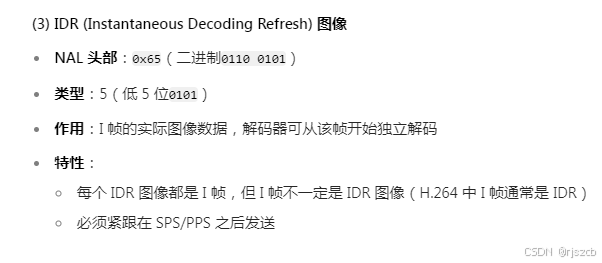

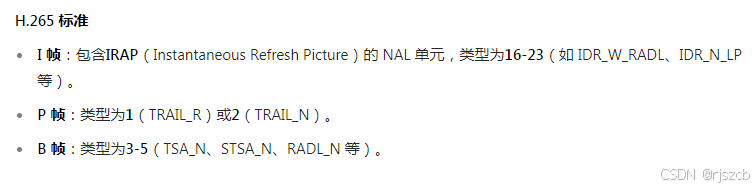

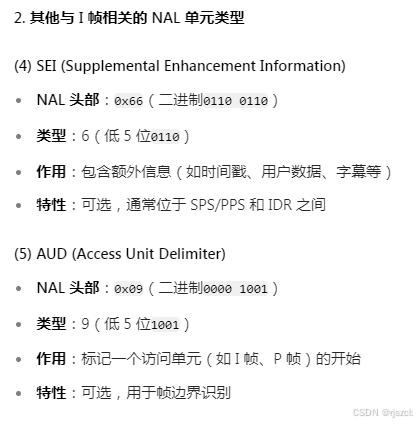

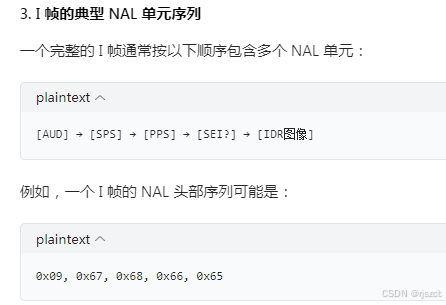

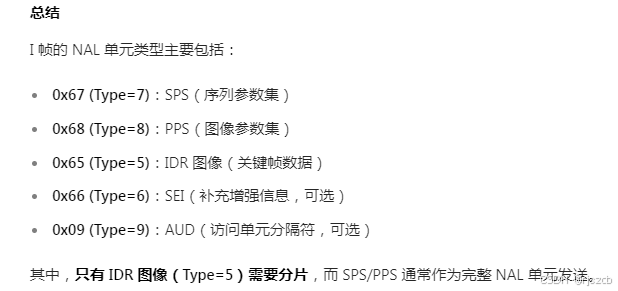

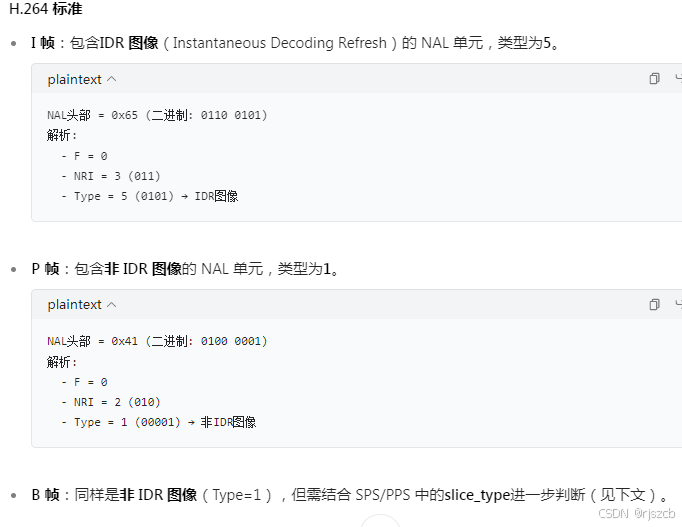

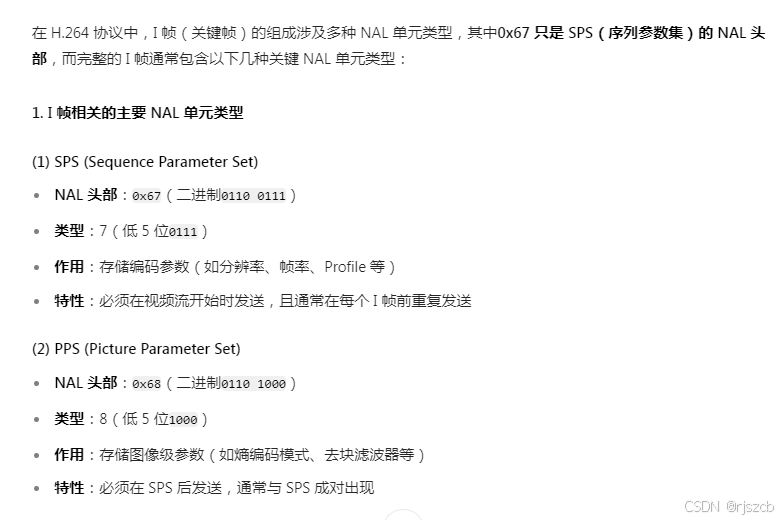

在 H.264/H.265 视频流中，判断一帧是 I 帧、P 帧还是 B 帧需要分析 NAL 单元的类型和内容。以下是具体的判断方法：

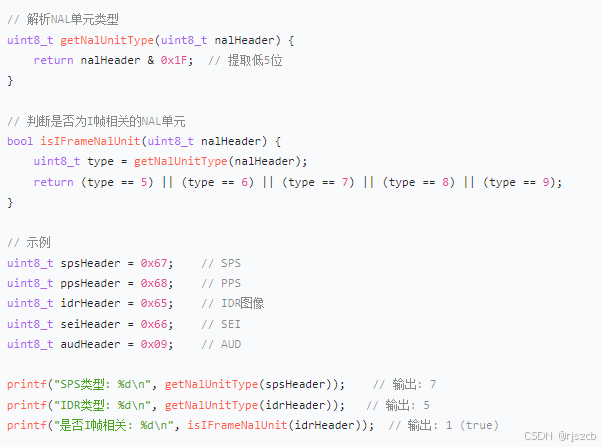

1. 通过 NAL 单元类型判断（最直接方法）




// 判断H.264 NAL单元是否为I帧
bool isH264IFrame(const uint8_t* nalData, size_t nalSize) {
    if (nalSize < 1) return false;

    // 提取NAL头部的Type字段（低5位）
    uint8_t nalType = nalData[0] & 0x1F;

    // 如果是IDR图像（Type=5），直接判定为I帧
    if (nalType == 5) return true;

    // 对于Type=1（非IDR图像），需要进一步分析slice_type

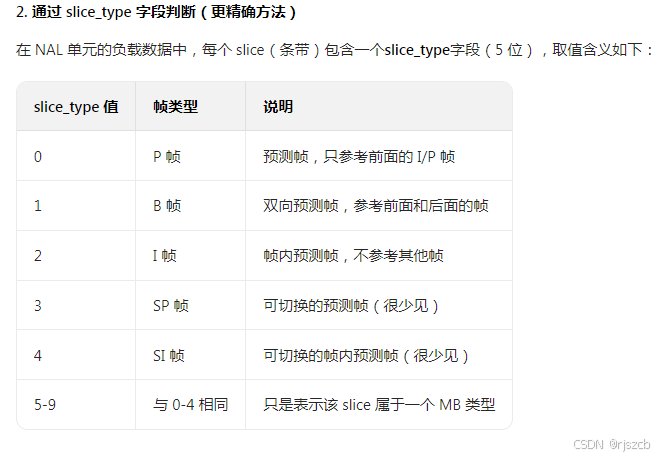

    if (nalType == 1 && nalSize >= 5) {
        // 定位到slice_header中的slice_type字段
        // 注意：实际解析需要考虑NAL单元的RBSP解码和EBSP去封装
        uint8_t sliceType = parseSliceType(nalData + 1, nalSize - 1);
        return (sliceType == 2 || sliceType == 7);  // slice_type=2或7表示I帧
    }

    return false;
}

// 判断H.264 NAL单元是否为B帧
bool isH264BFrame(const uint8_t* nalData, size_t nalSize) {
    if (nalSize < 1) return false;

    uint8_t nalType = nalData[0] & 0x1F;

    // 对于Type=1（非IDR图像），分析slice_type
    if (nalType == 1 && nalSize >= 5) {
        uint8_t sliceType = parseSliceType(nalData + 1, nalSize - 1);
        return (sliceType == 1 || sliceType == 6);  // slice_type=1或6表示B帧
    }

    return false;
}

// 解析slice_type字段（简化版）
uint8_t parseSliceType(const uint8_t* data, size_t size) {
    // 实际解析需要考虑：
    // 1. RBSP解码（移除防止竞争字节0x03）
    // 2. EBSP去封装
    // 3. 按位解析slice_header结构

    // 此处为简化示例，实际代码需根据H.264标准实现
    return data[0] & 0x07;  // 假设slice_type在第一个字节的低3位
}

// 处理RTP包回调
void handleRtpPacket(const uint8_t* rtpData, size_t rtpSize) {
    // 解析RTP头部
    uint16_t seqNum = (rtpData[2] << 8) | rtpData[3];
    uint32_t timestamp = (rtpData[4] << 24) | (rtpData[5] << 16) |
                        (rtpData[6] << 8) | rtpData[7];

    // 提取RTP负载
    const uint8_t* payload = rtpData + 12;  // RTP头部默认12字节
    size_t payloadSize = rtpSize - 12;

    // 判断是否为FU-A分片
    if (payloadSize >= 2 && (payload[0] & 0x1F) == 28) {  // FU-A类型
        uint8_t fuHeader = payload[1];
        bool isStart = (fuHeader & 0x80) != 0;
        bool isEnd = (fuHeader & 0x40) != 0;

        if (isStart) {
            // 开始新的NAL单元重组
            nalBuffer.clear();
            // 重建原始NAL头部
            uint8_t originalNalHeader = (payload[0] & 0xE0) | (fuHeader & 0x1F);
            nalBuffer.push_back(originalNalHeader);
        }

        // 添加分片数据（跳过FU indicator和FU header）
        nalBuffer.insert(nalBuffer.end(), payload + 2, payload + payloadSize);

        if (isEnd) {
            // NAL单元重组完成，判断帧类型
            if (isH264IFrame(nalBuffer.data(), nalBuffer.size())) {
                printf("收到I帧，时间戳: %u\n", timestamp);
            } else if (isH264BFrame(nalBuffer.data(), nalBuffer.size())) {
                printf("收到B帧，时间戳: %u\n", timestamp);
            } else {
                printf("收到P帧，时间戳: %u\n", timestamp);
            }
        }
    } else {
        // 非分片NAL单元，直接判断
        if (isH264IFrame(payload, payloadSize)) {
            printf("收到完整I帧，时间戳: %u\n", timestamp);
        }
    }
}

rtsp_server.h

#ifndef RTSP_SERVER_H
#define RTSP_SERVER_H

#include <string>
#include <vector>
#include <map>
#include <thread>
#include <mutex>
#include <memory>
#include <cstdint>
#include <functional>
#include <unordered_map>
#include <queue>
#include <condition_variable>

class RTSPSession;
class MediaSource;

class RTSPServer {
public:
    RTSPServer(int port = 8554);
    ~RTSPServer();

    bool start();
    void stop();

    void addMediaSource(const std::string& streamName, std::shared_ptr<MediaSource> source);
    void removeMediaSource(const std::string& streamName);

private:
    void handleClient(int clientSocket);
    void handleRTSPRequest(int clientSocket, const std::string& request);
    std::shared_ptr<RTSPSession> createSession(const std::string& streamName);

    int m_serverSocket;
    bool m_running;
    std::thread m_serverThread;
    std::mutex m_sessionsMutex;
    std::map<std::string, std::shared_ptr<RTSPSession>> m_sessions;
    std::unordered_map<std::string, std::shared_ptr<MediaSource>> m_mediaSources;
    int m_nextSessionId;
};

class RTSPSession {
public:
    RTSPSession(int sessionId, std::shared_ptr<MediaSource> mediaSource);
    ~RTSPSession();

    int getSessionId() const;
    std::string getSessionDescription() const;
    void setup(int clientRtpPort, int clientRtcpPort);
    void play();
    void pause();
    void teardown();

private:
    void sendRTPData();

    int m_sessionId;
    std::shared_ptr<MediaSource> m_mediaSource;
    int m_clientRtpPort;
    int m_clientRtcpPort;
    int m_rtpSocket;
    bool m_playing;
    std::thread m_senderThread;
    bool m_senderRunning;
};

class MediaSource {
public:
    virtual ~MediaSource() = default;

    virtual std::string getMimeType() const = 0;
    virtual std::string getMediaDescription() const = 0;
    virtual std::string getAttribute() const = 0;
    virtual void getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) = 0;
    virtual uint32_t getClockRate() const = 0;
};

#endif // RTSP_SERVER_H

rtsp_server.cpp

#include "rtsp_server.h"
#include <iostream>
#include <sstream>
#include <cstring>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <netdb.h>
#include <ctime>
#include <random>

RTSPServer::RTSPServer(int port)
    : m_serverSocket(-1)
    , m_running(false)
    , m_nextSessionId(1000) {
    // 创建套接字
    m_serverSocket = socket(AF_INET, SOCK_STREAM, 0);
    if (m_serverSocket == -1) {
        std::cerr << "Failed to create socket" << std::endl;
        return;
    }

    // 设置套接字选项
    int opt = 1;
    if (setsockopt(m_serverSocket, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt)) == -1) {
        std::cerr << "Failed to set socket options" << std::endl;
        close(m_serverSocket);
        m_serverSocket = -1;
        return;
    }

    // 绑定套接字
    sockaddr_in serverAddr;
    memset(&serverAddr, 0, sizeof(serverAddr));
    serverAddr.sin_family = AF_INET;
    serverAddr.sin_addr.s_addr = INADDR_ANY;
    serverAddr.sin_port = htons(port);

    if (bind(m_serverSocket, (sockaddr*)&serverAddr, sizeof(serverAddr)) == -1) {
        std::cerr << "Failed to bind socket" << std::endl;
        close(m_serverSocket);
        m_serverSocket = -1;
        return;
    }

    // 监听连接
    if (listen(m_serverSocket, 5) == -1) {
        std::cerr << "Failed to listen on socket" << std::endl;
        close(m_serverSocket);
        m_serverSocket = -1;
        return;
    }
}

RTSPServer::~RTSPServer() {
    stop();
    if (m_serverSocket != -1) {
        close(m_serverSocket);
    }
}

bool RTSPServer::start() {
    if (m_running) return true;
    if (m_serverSocket == -1) return false;

    m_running = true;
    m_serverThread = std::thread([this]() {
        while (m_running) {
            sockaddr_in clientAddr;
            socklen_t clientAddrLen = sizeof(clientAddr);
            int clientSocket = accept(m_serverSocket, (sockaddr*)&clientAddr, &clientAddrLen);

            if (clientSocket == -1) {
                if (m_running) {
                    std::cerr << "Failed to accept client connection" << std::endl;
                }
                continue;
            }

            // 处理客户端连接
            std::thread([this, clientSocket]() {
                handleClient(clientSocket);
                close(clientSocket);
            }).detach();
        }
    });

    return true;
}

void RTSPServer::stop() {
    if (!m_running) return;

    m_running = false;
    if (m_serverSocket != -1) {
        // 关闭服务器套接字以中断accept调用
        close(m_serverSocket);
        m_serverSocket = -1;
    }

    if (m_serverThread.joinable()) {
        m_serverThread.join();
    }

    // 清理所有会话
    std::lock_guard<std::mutex> lock(m_sessionsMutex);
    for (auto& session : m_sessions) {
        session.second->teardown();
    }
    m_sessions.clear();
}

void RTSPServer::addMediaSource(const std::string& streamName, std::shared_ptr<MediaSource> source) {
    std::lock_guard<std::mutex> lock(m_sessionsMutex);
    m_mediaSources[streamName] = source;
}

void RTSPServer::removeMediaSource(const std::string& streamName) {
    std::lock_guard<std::mutex> lock(m_sessionsMutex);
    m_mediaSources.erase(streamName);
}

void RTSPServer::handleClient(int clientSocket) {
    char buffer[4096];
    memset(buffer, 0, sizeof(buffer));

    // 读取RTSP请求
    ssize_t bytesRead = recv(clientSocket, buffer, sizeof(buffer) - 1, 0);
    if (bytesRead <= 0) {
        return;
    }

    std::string request(buffer, bytesRead);
    handleRTSPRequest(clientSocket, request);
}

void RTSPServer::handleRTSPRequest(int clientSocket, const std::string& request) {
    std::istringstream iss(request);
    std::string method, url, version;
    iss >> method >> url >> version;

    std::stringstream response;

    if (method == "OPTIONS") {
        response << "RTSP/1.0 200 OK\r\n";
        response << "CSeq: " << 1 << "\r\n";
        response << "Public: OPTIONS, DESCRIBE, SETUP, TEARDOWN, PLAY, PAUSE\r\n";
        response << "\r\n";
    }
    else if (method == "DESCRIBE") {
        // 解析URL获取流名称
        size_t pos = url.find_last_of('/');
        std::string streamName = (pos != std::string::npos) ? url.substr(pos + 1) : url;

        std::lock_guard<std::mutex> lock(m_sessionsMutex);
        auto it = m_mediaSources.find(streamName);
        if (it == m_mediaSources.end()) {
            response << "RTSP/1.0 404 Not Found\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "\r\n";
        } else {
            std::shared_ptr<MediaSource> mediaSource = it->second;

            response << "RTSP/1.0 200 OK\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "Content-Type: application/sdp\r\n";
            response << "Content-Length: ";

            std::string sdp = "v=0\r\n";
            sdp += "o=- " + std::to_string(time(nullptr)) + " 1 IN IP4 127.0.0.1\r\n";
            sdp += "s=Media Session\r\n";
            sdp += "i=" + streamName + "\r\n";
            sdp += "c=IN IP4 0.0.0.0\r\n";
            sdp += "t=0 0\r\n";
            sdp += "m=video 0 RTP/AVP " + std::to_string(96) + "\r\n";
            sdp += "a=rtpmap:" + std::to_string(96) + " " + mediaSource->getMimeType() + "/" + std::to_string(mediaSource->getClockRate()) + "\r\n";
            sdp += "a=control:trackID=0\r\n";
            sdp += mediaSource->getAttribute() + "\r\n";

            response << sdp.length() << "\r\n\r\n";
            response << sdp;
        }
    }
    else if (method == "SETUP") {
        // 解析URL获取流名称
        size_t pos = url.find_last_of('/');
        std::string streamName = (pos != std::string::npos) ? url.substr(pos + 1) : url;

        // 解析客户端端口
        pos = request.find("client_port=");
        int clientRtpPort = 0, clientRtcpPort = 0;
        if (pos != std::string::npos) {
            pos += 12;
            size_t endPos = request.find('-', pos);
            if (endPos != std::string::npos) {
                clientRtpPort = std::stoi(request.substr(pos, endPos - pos));
                pos = endPos + 1;
                endPos = request.find('\r', pos);
                if (endPos != std::string::npos) {
                    clientRtcpPort = std::stoi(request.substr(pos, endPos - pos));
                }
            }
        }

        std::lock_guard<std::mutex> lock(m_sessionsMutex);
        auto it = m_mediaSources.find(streamName);
        if (it == m_mediaSources.end()) {
            response << "RTSP/1.0 404 Not Found\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "\r\n";
        } else {
            // 创建会话
            std::shared_ptr<RTSPSession> session = createSession(streamName);
            session->setup(clientRtpPort, clientRtcpPort);

            response << "RTSP/1.0 200 OK\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "Session: " << session->getSessionId() << ";timeout=60\r\n";
            response << "Transport: RTP/AVP/UDP;unicast;client_port="
                     << clientRtpPort << "-" << clientRtcpPort
                     << ";server_port=" << (clientRtpPort + 1) << "-" << (clientRtcpPort + 1) << "\r\n";
            response << "\r\n";
        }
    }
    else if (method == "PLAY") {
        // 解析会话ID
        size_t pos = request.find("Session: ");
        int sessionId = 0;
        if (pos != std::string::npos) {
            pos += 9;
            size_t endPos = request.find('\r', pos);
            if (endPos != std::string::npos) {
                sessionId = std::stoi(request.substr(pos, endPos - pos));
            }
        }

        std::lock_guard<std::mutex> lock(m_sessionsMutex);
        auto it = m_sessions.find(std::to_string(sessionId));
        if (it == m_sessions.end()) {
            response << "RTSP/1.0 454 Session Not Found\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "\r\n";
        } else {
            it->second->play();

            response << "RTSP/1.0 200 OK\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "Session: " << sessionId << "\r\n";
            response << "Range: npt=0.000-\r\n";
            response << "\r\n";
        }
    }
    else if (method == "PAUSE") {
        // 解析会话ID
        size_t pos = request.find("Session: ");
        int sessionId = 0;
        if (pos != std::string::npos) {
            pos += 9;
            size_t endPos = request.find('\r', pos);
            if (endPos != std::string::npos) {
                sessionId = std::stoi(request.substr(pos, endPos - pos));
            }
        }

        std::lock_guard<std::mutex> lock(m_sessionsMutex);
        auto it = m_sessions.find(std::to_string(sessionId));
        if (it == m_sessions.end()) {
            response << "RTSP/1.0 454 Session Not Found\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "\r\n";
        } else {
            it->second->pause();

            response << "RTSP/1.0 200 OK\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "Session: " << sessionId << "\r\n";
            response << "\r\n";
        }
    }
    else if (method == "TEARDOWN") {
        // 解析会话ID
        size_t pos = request.find("Session: ");
        int sessionId = 0;
        if (pos != std::string::npos) {
            pos += 9;
            size_t endPos = request.find('\r', pos);
            if (endPos != std::string::npos) {
                sessionId = std::stoi(request.substr(pos, endPos - pos));
            }
        }

        std::lock_guard<std::mutex> lock(m_sessionsMutex);
        auto it = m_sessions.find(std::to_string(sessionId));
        if (it == m_sessions.end()) {
            response << "RTSP/1.0 454 Session Not Found\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "\r\n";
        } else {
            it->second->teardown();
            m_sessions.erase(std::to_string(sessionId));

            response << "RTSP/1.0 200 OK\r\n";
            response << "CSeq: " << 1 << "\r\n";
            response << "Session: " << sessionId << "\r\n";
            response << "\r\n";
        }
    }
    else {
        response << "RTSP/1.0 501 Not Implemented\r\n";
        response << "CSeq: " << 1 << "\r\n";
        response << "\r\n";
    }

    // 发送响应
    std::string responseStr = response.str();
    send(clientSocket, responseStr.c_str(), responseStr.length(), 0);
}

std::shared_ptr<RTSPSession> RTSPServer::createSession(const std::string& streamName) {
    auto it = m_mediaSources.find(streamName);
    if (it == m_mediaSources.end()) {
        return nullptr;
    }

    int sessionId = m_nextSessionId++;
    std::shared_ptr<RTSPSession> session = std::make_shared<RTSPSession>(sessionId, it->second);
    m_sessions[std::to_string(sessionId)] = session;

    return session;
}

RTSPSession::RTSPSession(int sessionId, std::shared_ptr<MediaSource> mediaSource)
    : m_sessionId(sessionId)
    , m_mediaSource(mediaSource)
    , m_clientRtpPort(0)
    , m_clientRtcpPort(0)
    , m_rtpSocket(-1)
    , m_playing(false)
    , m_senderRunning(false) {
    // 创建RTP套接字
    m_rtpSocket = socket(AF_INET, SOCK_DGRAM, 0);
    if (m_rtpSocket == -1) {
        std::cerr << "Failed to create RTP socket" << std::endl;
    }
}

RTSPSession::~RTSPSession() {
    teardown();
    if (m_rtpSocket != -1) {
        close(m_rtpSocket);
    }
}

int RTSPSession::getSessionId() const {
    return m_sessionId;
}

std::string RTSPSession::getSessionDescription() const {
    return m_mediaSource->getMediaDescription();
}

void RTSPSession::setup(int clientRtpPort, int clientRtcpPort) {
    m_clientRtpPort = clientRtpPort;
    m_clientRtcpPort = clientRtcpPort;
}

void RTSPSession::play() {
    if (m_playing) return;

    m_playing = true;
    m_senderRunning = true;
    m_senderThread = std::thread([this]() {
        sendRTPData();
    });
}

void RTSPSession::pause() {
    m_playing = false;
    if (m_senderThread.joinable()) {
        m_senderThread.join();
    }
}

void RTSPSession::teardown() {
    m_playing = false;
    m_senderRunning = false;
    if (m_senderThread.joinable()) {
        m_senderThread.join();
    }
}

void RTSPSession::sendRTPData() {
    if (m_clientRtpPort == 0 || m_rtpSocket == -1) return;

    // 设置目标地址
    sockaddr_in destAddr;
    memset(&destAddr, 0, sizeof(destAddr));
    destAddr.sin_family = AF_INET;
    destAddr.sin_addr.s_addr = inet_addr("127.0.0.1");
    destAddr.sin_port = htons(m_clientRtpPort);

    // RTP包计数器和时间戳
    uint16_t sequenceNumber = 0;
    uint32_t timestamp = 0;
    uint32_t ssrc = rand();

    // 帧率控制
    uint32_t clockRate = m_mediaSource->getClockRate();
    uint32_t frameDuration = clockRate / 25; // 25fps

    while (m_senderRunning) {
        if (!m_playing) {
            std::this_thread::sleep_for(std::chrono::milliseconds(10));
            continue;
        }

        // 获取下一帧数据
        std::vector<uint8_t> frame;
        bool marker = false;
        m_mediaSource->getNextFrame(frame, timestamp, marker);

        if (frame.empty()) {
            std::this_thread::sleep_for(std::chrono::milliseconds(40));
            continue;
        }

        // 构建RTP头部
        const int RTP_HEADER_SIZE = 12;
        uint8_t rtpHeader[RTP_HEADER_SIZE];

        // 版本(2)、填充(0)、扩展(0)、CSRC计数(0)
        rtpHeader[0] = (2 << 6) | (0 << 5) | (0 << 4) | 0;
        // 标记位和负载类型(96 for H.264)
        rtpHeader[1] = (marker ? 0x80 : 0) | 96;
        // 序列号
        rtpHeader[2] = (sequenceNumber >> 8) & 0xFF;
        rtpHeader[3] = sequenceNumber & 0xFF;
        // 时间戳
        rtpHeader[4] = (timestamp >> 24) & 0xFF;
        rtpHeader[5] = (timestamp >> 16) & 0xFF;
        rtpHeader[6] = (timestamp >> 8) & 0xFF;
        rtpHeader[7] = timestamp & 0xFF;
        // SSRC
        rtpHeader[8] = (ssrc >> 24) & 0xFF;
        rtpHeader[9] = (ssrc >> 16) & 0xFF;
        rtpHeader[10] = (ssrc >> 8) & 0xFF;
        rtpHeader[11] = ssrc & 0xFF;

        // 发送RTP包
        std::vector<uint8_t> rtpPacket;
        rtpPacket.insert(rtpPacket.end(), rtpHeader, rtpHeader + RTP_HEADER_SIZE);
        rtpPacket.insert(rtpPacket.end(), frame.begin(), frame.end());

        sendto(m_rtpSocket, rtpPacket.data(), rtpPacket.size(), 0,
               (sockaddr*)&destAddr, sizeof(destAddr));

        // 更新序列号和时间戳
        sequenceNumber++;
        timestamp += frameDuration;

        // 控制帧率
        std::this_thread::sleep_for(std::chrono::milliseconds(40)); // 25fps
    }
}

模拟生产frame视频帧
media_sources.h

#ifndef MEDIA_SOURCES_H
#define MEDIA_SOURCES_H

#include "rtsp_server.h"
#include <random>

class H264MediaSource : public MediaSource {
public:
    H264MediaSource(int width = 640, int height = 480);

    std::string getMimeType() const override;
    std::string getMediaDescription() const override;
    std::string getAttribute() const override;
    void getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) override;
    uint32_t getClockRate() const override;

private:
    int m_width;
    int m_height;
    uint32_t m_currentTimestamp;
    std::mt19937 m_rng;
};

class H265MediaSource : public MediaSource {
public:
    H265MediaSource(int width = 640, int height = 480);

    std::string getMimeType() const override;
    std::string getMediaDescription() const override;
    std::string getAttribute() const override;
    void getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) override;
    uint32_t getClockRate() const override;

private:
    int m_width;
    int m_height;
    uint32_t m_currentTimestamp;
    std::mt19937 m_rng;
};

class AACMediaSource : public MediaSource {
public:
    AACMediaSource(int sampleRate = 44100, int channels = 2);

    std::string getMimeType() const override;
    std::string getMediaDescription() const override;
    std::string getAttribute() const override;
    void getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) override;
    uint32_t getClockRate() const override;

private:
    int m_sampleRate;
    int m_channels;
    uint32_t m_currentTimestamp;
    std::mt19937 m_rng;
};

#endif // MEDIA_SOURCES_H

media_sources.cpp

#include "media_sources.h"
#include <random>

H264MediaSource::H264MediaSource(int width, int height)
    : m_width(width)
    , m_height(height)
    , m_currentTimestamp(0) {
    std::random_device rd;
    m_rng = std::mt19937(rd());
}

std::string H264MediaSource::getMimeType() const {
    return "H264";
}

std::string H264MediaSource::getMediaDescription() const {
    return "H.264 Video Stream";
}

std::string H264MediaSource::getAttribute() const {
    return "a=fmtp:96 packetization-mode=1;profile-level-id=42E01F;sprop-parameter-sets=Z0LAH9kA8AoAAAMAAgAAAwDAAAAwDxYuS,aM48gA==";
}

void H264MediaSource::getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) {
    static bool isKeyFrame = true;
    static int frameCount = 0;

    // 每30帧生成一个关键帧
    if (frameCount++ % 30 == 0) {
        isKeyFrame = true;
    } else {
        isKeyFrame = false;
    }

    // 模拟H.264帧
    size_t frameSize = isKeyFrame ? 10000 + (m_rng() % 5000) : 2000 + (m_rng() % 3000);
    frame.resize(frameSize);

    // 模拟H.264 NAL单元头
    if (isKeyFrame) {
        // IDR帧
        frame[0] = 0x00;
        frame[1] = 0x00;
        frame[2] = 0x00;
        frame[3] = 0x01;
        frame[4] = 0x65; // IDR NAL单元类型
    } else {
        // P帧
        frame[0] = 0x00;
        frame[1] = 0x00;
        frame[2] = 0x00;
        frame[3] = 0x01;
        frame[4] = 0x41; // P NAL单元类型
    }

    // 填充随机数据
    for (size_t i = 5; i < frameSize; ++i) {
        frame[i] = m_rng() % 256;
    }

    timestamp = m_currentTimestamp;
    m_currentTimestamp += 90000 / 25; // 25fps，90kHz时钟
    marker = true; // 每帧都设置标记位
}

uint32_t H264MediaSource::getClockRate() const {
    return 90000; // 90kHz
}

H265MediaSource::H265MediaSource(int width, int height)
    : m_width(width)
    , m_height(height)
    , m_currentTimestamp(0) {
    std::random_device rd;
    m_rng = std::mt19937(rd());
}

std::string H265MediaSource::getMimeType() const {
    return "H265";
}

std::string H265MediaSource::getMediaDescription() const {
    return "H.265 Video Stream";
}

std::string H265MediaSource::getAttribute() const {
    return "a=fmtp:96 profile-id=1;level-id=110;packetization-mode=1";
}

void H265MediaSource::getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) {
    static bool isKeyFrame = true;
    static int frameCount = 0;

    // 每30帧生成一个关键帧
    if (frameCount++ % 30 == 0) {
        isKeyFrame = true;
    } else {
        isKeyFrame = false;
    }

    // 模拟H.265帧
    size_t frameSize = isKeyFrame ? 12000 + (m_rng() % 6000) : 2500 + (m_rng() % 3500);
    frame.resize(frameSize);

    // 模拟H.265 NAL单元头
    if (isKeyFrame) {
        // IDR帧
        frame[0] = 0x00;
        frame[1] = 0x00;
        frame[2] = 0x00;
        frame[3] = 0x01;
        frame[4] = 0x40; // IDR_W_RADL NAL单元类型
        frame[5] = 0x01;
    } else {
        // P帧
        frame[0] = 0x00;
        frame[1] = 0x00;
        frame[2] = 0x00;
        frame[3] = 0x01;
        frame[4] = 0x02; // TRAIL_R NAL单元类型
        frame[5] = 0x01;
    }

    // 填充随机数据
    for (size_t i = 6; i < frameSize; ++i) {
        frame[i] = m_rng() % 256;
    }

    timestamp = m_currentTimestamp;
    m_currentTimestamp += 90000 / 25; // 25fps，90kHz时钟
    marker = true; // 每帧都设置标记位
}

uint32_t H265MediaSource::getClockRate() const {
    return 90000; // 90kHz
}

AACMediaSource::AACMediaSource(int sampleRate, int channels)
    : m_sampleRate(sampleRate)
    , m_channels(channels)
    , m_currentTimestamp(0) {
    std::random_device rd;
    m_rng = std::mt19937(rd());
}

std::string AACMediaSource::getMimeType() const {
    return "MPEG4-GENERIC";
}

std::string AACMediaSource::getMediaDescription() const {
    return "AAC Audio Stream";
}

std::string AACMediaSource::getAttribute() const {
    return "a=fmtp:96 streamtype=5;profile-level-id=15;mode=AAC-hbr;sizelength=13;indexlength=3;indexdeltalength=3;config=1408";
}

void AACMediaSource::getNextFrame(std::vector<uint8_t>& frame, uint32_t& timestamp, bool& marker) {
    // 模拟AAC帧
    size_t frameSize = 1024 + (m_rng() % 512); // 1024-1536字节
    frame.resize(frameSize);

    // 填充随机数据
    for (size_t i = 0; i < frameSize; ++i) {
        frame[i] = m_rng() % 256;
    }

    timestamp = m_currentTimestamp;
    m_currentTimestamp += 1024; // 每帧1024个样本
    marker = true;
}

uint32_t AACMediaSource::getClockRate() const {
    return m_sampleRate;
}

main.cpp

#include "rtsp_server.h"
#include "media_sources.h"
#include <iostream>
#include <memory>

int main() {
    // 创建RTSP服务器，监听8554端口
    RTSPServer server(8554);

    // 创建并添加多路媒体源
    auto camera1_h264 = std::make_shared<H264MediaSource>(1280, 720);
    auto camera2_h264 = std::make_shared<H264MediaSource>(800, 600);
    auto camera3_h265 = std::make_shared<H265MediaSource>(1920, 1080);
    auto audio_aac = std::make_shared<AACMediaSource>(44100, 2);

    server.addMediaSource("camera1", camera1_h264);
    server.addMediaSource("camera2", camera2_h264);
    server.addMediaSource("camera3", camera3_h265);
    server.addMediaSource("audio", audio_aac);

    // 启动服务器
    if (server.start()) {
        std::cout << "RTSP Server started on port 8554" << std::endl;
        std::cout << "Available streams:" << std::endl;
        std::cout << "rtsp://localhost:8554/camera1 (H.264 1280x720)" << std::endl;
        std::cout << "rtsp://localhost:8554/camera2 (H.264 800x600)" << std::endl;
        std::cout << "rtsp://localhost:8554/camera3 (H.265 1920x1080)" << std::endl;
        std::cout << "rtsp://localhost:8554/audio (AAC 44.1kHz stereo)" << std::endl;

        // 保持服务器运行
        std::cout << "Press Enter to stop the server..." << std::endl;
        std::cin.get();
    } else {
        std::cerr << "Failed to start RTSP server" << std::endl;
    }

    // 停止服务器
    server.stop();

    return 0;
}

rtsp_client.h

#ifndef RTSP_CLIENT_H
#define RTSP_CLIENT_H

#include <string>
#include <memory>
#include <thread>
#include <mutex>
#include <vector>
#include <functional>
#include <cstdint>

// RTP包结构
struct RTPPacket {
    uint8_t version;      // 版本号
    uint8_t padding;      // 填充标志
    uint8_t extension;    // 扩展标志
    uint8_t cc;           // CSRC计数器
    uint8_t marker;       // 标记位
    uint8_t payloadType;  // 负载类型
    uint16_t sequence;    // 序列号
    uint32_t timestamp;   // 时间戳
    uint32_t ssrc;        // 同步源标识符
    std::vector<uint8_t> payload; // 负载数据
};

// RTSP客户端类
class RTSPClient {
public:
    // 帧数据回调函数类型
    using FrameCallback = std::function<void(const uint8_t*, size_t, uint32_t, bool)>;

    RTSPClient();
    ~RTSPClient();

    // 连接到RTSP服务器
    bool connect(const std::string& rtspUrl);

    // 断开连接
    void disconnect();

    // 设置帧数据回调
    void setFrameCallback(const FrameCallback& callback);

    // 开始播放
    bool play();

    // 暂停播放
    bool pause();

    // 获取媒体信息
    std::string getMediaInfo() const;

private:
    // 状态枚举
    enum class State {
        INIT,
        READY,
        PLAYING,
        PAUSED,
        TEARDOWN
    };

    // 解析RTSP URL
    bool parseUrl(const std::string& rtspUrl);

    // 发送RTSP请求
    std::string sendRequest(const std::string& request);

    // 接收RTP/RTCP数据
    void receiveRTPData();

    // 解析SDP信息
    bool parseSDP(const std::string& sdp);

    // 解析RTP包
    bool parseRTPPacket(const std::vector<uint8_t>& data, RTPPacket& packet);

    // 处理视频帧
    void processVideoFrame(const RTPPacket& packet);

    // 处理音频帧
    void processAudioFrame(const RTPPacket& packet);

    // 成员变量
    std::string m_serverAddress;
    int m_serverPort;
    std::string m_streamPath;
    int m_rtspSocket;
    std::string m_sessionId;
    State m_state;
    int m_cseq;
    int m_rtpPort;
    int m_rtcpPort;
    std::thread m_receiveThread;
    bool m_running;
    mutable std::mutex m_mutex;
    FrameCallback m_frameCallback;
    std::string m_mediaInfo;
    std::string m_codec;
    int m_clockRate;
};

#endif // RTSP_CLIENT_H

rtsp_client.cpp

#include "rtsp_client.h"
#include <iostream>
#include <sstream>
#include <cstring>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <netinet/in.h>
#include <unistd.h>
#include <regex>

RTSPClient::RTSPClient()
    : m_serverPort(554)
    , m_rtspSocket(-1)
    , m_state(State::INIT)
    , m_cseq(0)
    , m_rtpPort(0)
    , m_rtcpPort(0)
    , m_running(false)
    , m_clockRate(90000) {
}

RTSPClient::~RTSPClient() {
    disconnect();
}

bool RTSPClient::connect(const std::string& rtspUrl) {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (m_state != State::INIT) {
        std::cerr << "RTSPClient: Already connected or in progress" << std::endl;
        return false;
    }

    if (!parseUrl(rtspUrl)) {
        std::cerr << "RTSPClient: Failed to parse URL: " << rtspUrl << std::endl;
        return false;
    }

    // 创建RTSP套接字
    m_rtspSocket = socket(AF_INET, SOCK_STREAM, 0);
    if (m_rtspSocket < 0) {
        std::cerr << "RTSPClient: Failed to create socket" << std::endl;
        return false;
    }

    // 设置服务器地址
    sockaddr_in serverAddr;
    memset(&serverAddr, 0, sizeof(serverAddr));
    serverAddr.sin_family = AF_INET;
    serverAddr.sin_port = htons(m_serverPort);

    // 解析服务器地址
    if (inet_pton(AF_INET, m_serverAddress.c_str(), &serverAddr.sin_addr) <= 0) {
        std::cerr << "RTSPClient: Invalid address/ Address not supported" << std::endl;
        close(m_rtspSocket);
        m_rtspSocket = -1;
        return false;
    }

    // 连接服务器
    if (connect(m_rtspSocket, (struct sockaddr*)&serverAddr, sizeof(serverAddr)) < 0) {
        std::cerr << "RTSPClient: Connection failed" << std::endl;
        close(m_rtspSocket);
        m_rtspSocket = -1;
        return false;
    }

    // 发送OPTIONS请求
    std::string request = "OPTIONS " + rtspUrl + " RTSP/1.0\r\n";
    request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
    request += "User-Agent: RTSPClient\r\n\r\n";

    std::string response = sendRequest(request);
    if (response.empty()) {
        std::cerr << "RTSPClient: No response to OPTIONS request" << std::endl;
        disconnect();
        return false;
    }

    // 发送DESCRIBE请求
    request = "DESCRIBE " + rtspUrl + " RTSP/1.0\r\n";
    request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
    request += "Accept: application/sdp\r\n";
    request += "User-Agent: RTSPClient\r\n\r\n";

    response = sendRequest(request);
    if (response.empty()) {
        std::cerr << "RTSPClient: No response to DESCRIBE request" << std::endl;
        disconnect();
        return false;
    }

    // 解析SDP信息
    if (!parseSDP(response)) {
        std::cerr << "RTSPClient: Failed to parse SDP" << std::endl;
        disconnect();
        return false;
    }

    m_state = State::READY;
    return true;
}

void RTSPClient::disconnect() {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (m_state == State::TEARDOWN) {
        return;
    }

    // 发送TEARDOWN请求
    if (m_state != State::INIT && m_rtspSocket != -1) {
        std::string request = "TEARDOWN " + m_streamPath + " RTSP/1.0\r\n";
        request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
        if (!m_sessionId.empty()) {
            request += "Session: " + m_sessionId + "\r\n";
        }
        request += "User-Agent: RTSPClient\r\n\r\n";

        sendRequest(request);
    }

    m_state = State::TEARDOWN;

    // 停止接收线程
    m_running = false;
    if (m_receiveThread.joinable()) {
        m_receiveThread.join();
    }

    // 关闭套接字
    if (m_rtspSocket != -1) {
        close(m_rtspSocket);
        m_rtspSocket = -1;
    }
}

bool RTSPClient::play() {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (m_state != State::READY && m_state != State::PAUSED) {
        std::cerr << "RTSPClient: Cannot play in current state" << std::endl;
        return false;
    }

    // 发送SETUP请求
    std::string request = "SETUP " + m_streamPath + "/track1 RTSP/1.0\r\n";
    request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
    if (!m_sessionId.empty()) {
        request += "Session: " + m_sessionId + "\r\n";
    }
    request += "Transport: RTP/AVP;unicast;client_port=" +
               std::to_string(m_rtpPort) + "-" + std::to_string(m_rtcpPort) + "\r\n";
    request += "User-Agent: RTSPClient\r\n\r\n";

    std::string response = sendRequest(request);
    if (response.empty()) {
        std::cerr << "RTSPClient: No response to SETUP request" << std::endl;
        return false;
    }

    // 提取会话ID
    std::regex sessionRegex("Session: (.*?)\r\n");
    std::smatch sessionMatch;
    if (std::regex_search(response, sessionMatch, sessionRegex) && sessionMatch.size() > 1) {
        m_sessionId = sessionMatch[1].str();
        // 去除可能的超时参数
        size_t semicolonPos = m_sessionId.find(';');
        if (semicolonPos != std::string::npos) {
            m_sessionId = m_sessionId.substr(0, semicolonPos);
        }
    } else {
        std::cerr << "RTSPClient: Session ID not found in SETUP response" << std::endl;
        return false;
    }

    // 提取服务器端口
    std::regex serverPortRegex("server_port=(\\d+)-(\\d+)");
    std::smatch portMatch;
    if (std::regex_search(response, portMatch, serverPortRegex) && portMatch.size() > 2) {
        // 这里可以获取服务器的RTP和RTCP端口，但实际使用中我们通常只需要客户端端口
    }

    // 发送PLAY请求
    request = "PLAY " + m_streamPath + " RTSP/1.0\r\n";
    request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
    request += "Session: " + m_sessionId + "\r\n";
    request += "User-Agent: RTSPClient\r\n\r\n";

    response = sendRequest(request);
    if (response.empty()) {
        std::cerr << "RTSPClient: No response to PLAY request" << std::endl;
        return false;
    }

    // 启动接收线程
    m_running = true;
    m_receiveThread = std::thread(&RTSPClient::receiveRTPData, this);

    m_state = State::PLAYING;
    return true;
}

bool RTSPClient::pause() {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (m_state != State::PLAYING) {
        std::cerr << "RTSPClient: Cannot pause in current state" << std::endl;
        return false;
    }

    // 发送PAUSE请求
    std::string request = "PAUSE " + m_streamPath + " RTSP/1.0\r\n";
    request += "CSeq: " + std::to_string(++m_cseq) + "\r\n";
    request += "Session: " + m_sessionId + "\r\n";
    request += "User-Agent: RTSPClient\r\n\r\n";

    std::string response = sendRequest(request);
    if (response.empty()) {
        std::cerr << "RTSPClient: No response to PAUSE request" << std::endl;
        return false;
    }

    m_state = State::PAUSED;
    return true;
}

std::string RTSPClient::getMediaInfo() const {
    std::lock_guard<std::mutex> lock(m_mutex);
    return m_mediaInfo;
}

void RTSPClient::setFrameCallback(const FrameCallback& callback) {
    std::lock_guard<std::mutex> lock(m_mutex);
    m_frameCallback = callback;
}

bool RTSPClient::parseUrl(const std::string& rtspUrl) {
    // 解析RTSP URL: rtsp://server:port/path
    std::regex urlRegex("rtsp://([^:/]+)(?::(\\d+))?(/.*)");
    std::smatch match;

    if (std::regex_match(rtspUrl, match, urlRegex) && match.size() >= 3) {
        m_serverAddress = match[1].str();
        if (match.length(2) > 0) {
            m_serverPort = std::stoi(match[2].str());
        }
        m_streamPath = "rtsp://" + m_serverAddress +
                      (match.length(2) > 0 ? (":" + match[2].str()) : "") +
                      match[3].str();
        return true;
    }

    return false;
}

std::string RTSPClient::sendRequest(const std::string& request) {
    if (m_rtspSocket == -1) {
        return "";
    }

    // 发送请求
    ssize_t sent = send(m_rtspSocket, request.c_str(), request.length(), 0);
    if (sent < 0) {
        std::cerr << "RTSPClient: Error sending request" << std::endl;
        return "";
    }

    // 接收响应
    char buffer[4096];
    std::string response;

    while (true) {
        memset(buffer, 0, sizeof(buffer));
        ssize_t recvSize = recv(m_rtspSocket, buffer, sizeof(buffer) - 1, 0);

        if (recvSize <= 0) {
            break;
        }

        response.append(buffer, recvSize);

        // 检查是否接收到完整的响应
        if (response.find("\r\n\r\n") != std::string::npos) {
            break;
        }
    }

    return response;
}

bool RTSPClient::parseSDP(const std::string& sdp) {
    // 查找SDP部分
    size_t sdpStart = sdp.find("\r\n\r\n");
    if (sdpStart == std::string::npos) {
        return false;
    }

    std::string sdpContent = sdp.substr(sdpStart + 4);

    // 解析媒体信息
    std::regex mediaRegex("m=([^ ]+) ([^ ]+) ([^ ]+) ([^\r\n]+)");
    std::sregex_iterator currentMatch(sdpContent.begin(), sdpContent.end(), mediaRegex);
    std::sregex_iterator end;

    bool foundVideo = false;
    bool foundAudio = false;

    while (currentMatch != end) {
        std::smatch match = *currentMatch;
        std::string mediaType = match[1].str();
        std::string port = match[2].str();
        std::string proto = match[3].str();
        std::string fmt = match[4].str();

        if (mediaType == "video" && !foundVideo) {
            foundVideo = true;
            m_mediaInfo += "Video: " + fmt + "\n";

            // 查找编码信息
            std::regex codecRegex("a=rtpmap:(\\d+) (H264|H265|MP4V-ES)(?:/([^/\\r\\n]+))?");
            std::smatch codecMatch;
            if (std::regex_search(sdpContent, codecMatch, codecRegex) && codecMatch.size() >= 3) {
                m_codec = codecMatch[2].str();
                if (codecMatch.size() > 3 && codecMatch.length(3) > 0) {
                    m_clockRate = std::stoi(codecMatch[3].str());
                }
            }
        } else if (mediaType == "audio" && !foundAudio) {
            foundAudio = true;
            m_mediaInfo += "Audio: " + fmt + "\n";

            // 查找编码信息
            std::regex codecRegex("a=rtpmap:(\\d+) (MPEG4-GENERIC|PCMA|PCMU)(?:/([^/\\r\\n]+))?");
            std::smatch codecMatch;
            if (std::regex_search(sdpContent, codecMatch, codecRegex) && codecMatch.size() >= 3) {
                if (codecMatch[2].str() == "MPEG4-GENERIC") {
                    m_codec = "AAC";
                } else {
                    m_codec = codecMatch[2].str();
                }
                if (codecMatch.size() > 3 && codecMatch.length(3) > 0) {
                    m_clockRate = std::stoi(codecMatch[3].str());
                }
            }
        }

        ++currentMatch;
    }

    // 为RTP和RTCP选择随机端口
    m_rtpPort = 10000 + (rand() % 5000) * 2;
    m_rtcpPort = m_rtpPort + 1;

    return true;
}

void RTSPClient::receiveRTPData() {
    // 创建RTP套接字
    int rtpSocket = socket(AF_INET, SOCK_DGRAM, 0);
    if (rtpSocket < 0) {
        std::cerr << "RTSPClient: Failed to create RTP socket" << std::endl;
        return;
    }

    // 绑定RTP端口
    sockaddr_in rtpAddr;
    memset(&rtpAddr, 0, sizeof(rtpAddr));
    rtpAddr.sin_family = AF_INET;
    rtpAddr.sin_addr.s_addr = INADDR_ANY;
    rtpAddr.sin_port = htons(m_rtpPort);

    if (bind(rtpSocket, (struct sockaddr*)&rtpAddr, sizeof(rtpAddr)) < 0) {
        std::cerr << "RTSPClient: Failed to bind RTP socket" << std::endl;
        close(rtpSocket);
        return;
    }

    // 设置非阻塞模式
    // int flags = fcntl(rtpSocket, F_GETFL, 0);
    // fcntl(rtpSocket, F_SETFL, flags | O_NONBLOCK);

    char buffer[16000];
    sockaddr_in senderAddr;
    socklen_t senderAddrLen = sizeof(senderAddr);

    std::vector<uint8_t> frameData;
    uint32_t lastTimestamp = 0;
    bool isKeyFrame = false;

    while (m_running) {
        memset(buffer, 0, sizeof(buffer));
        ssize_t recvSize = recvfrom(rtpSocket, buffer, sizeof(buffer), 0,
                                    (struct sockaddr*)&senderAddr, &senderAddrLen);

        if (recvSize > 0) {
            std::vector<uint8_t> packetData(buffer, buffer + recvSize);
            RTPPacket packet;

            if (parseRTPPacket(packetData, packet)) {
                // 处理视频帧
                if (m_codec == "H264" || m_codec == "H265") {
                    processVideoFrame(packet);
                }
                // 处理音频帧
                else if (m_codec == "AAC") {
                    processAudioFrame(packet);
                }
            }
        } else {
            // 超时或错误，短暂休眠
            std::this_thread::sleep_for(std::chrono::milliseconds(10));
        }
    }

    close(rtpSocket);
}

bool RTSPClient::parseRTPPacket(const std::vector<uint8_t>& data, RTPPacket& packet) {
    if (data.size() < 12) {
        return false;
    }

    // 解析RTP头部
    packet.version = (data[0] >> 6) & 0x03;
    packet.padding = (data[0] >> 5) & 0x01;
    packet.extension = (data[0] >> 4) & 0x01;
    packet.cc = data[0] & 0x0F;
    packet.marker = (data[1] >> 7) & 0x01;
    packet.payloadType = data[1] & 0x7F;
    packet.sequence = (data[2] << 8) | data[3];
    packet.timestamp = (data[4] << 24) | (data[5] << 16) | (data[6] << 8) | data[7];
    packet.ssrc = (data[8] << 24) | (data[9] << 16) | (data[10] << 8) | data[11];

    // 提取负载数据
    size_t headerSize = 12 + (packet.cc * 4);
    if (packet.extension && (data.size() > headerSize + 4)) {
        uint16_t extLength = (data[headerSize + 2] << 8) | data[headerSize + 3];
        headerSize += 4 + (extLength * 4);
    }

    if (data.size() > headerSize) {
        packet.payload.assign(data.begin() + headerSize, data.end());
        return true;
    }

    return false;
}

void RTSPClient::processVideoFrame(const RTPPacket& packet) {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (!m_frameCallback) {
        return;
    }

    if (m_codec == "H264" && packet.payload.size() > 0) {
        // H.264 NAL单元类型
        uint8_t nalType = packet.payload[0] & 0x1F;

        // 判断是否为关键帧
        bool isKeyFrame = (nalType == 7) || (nalType == 5);

        // 调用回调函数
        m_frameCallback(packet.payload.data(), packet.payload.size(),
                        packet.timestamp, isKeyFrame);
    } else if (m_codec == "H265" && packet.payload.size() > 0) {
        // H.265 NAL单元类型
        uint8_t nalType = (packet.payload[0] >> 1) & 0x3F;

        // 判断是否为关键帧
        bool isKeyFrame = (nalType >= 16 && nalType <= 23);

        // 调用回调函数
        m_frameCallback(packet.payload.data(), packet.payload.size(),
                        packet.timestamp, isKeyFrame);
    }
}

void RTSPClient::processAudioFrame(const RTPPacket& packet) {
    std::lock_guard<std::mutex> lock(m_mutex);

    if (!m_frameCallback) {
        return;
    }

    // 对于AAC，每个RTP包通常包含一个完整的ADTS帧
    m_frameCallback(packet.payload.data(), packet.payload.size(),
                    packet.timestamp, false);
}

client_example.cpp

#include "rtsp_client.h"
#include <iostream>
#include <fstream>
#include <atomic>
#include <thread>

// 简单的帧处理器
class FrameProcessor {
public:
    FrameProcessor(const std::string& outputPath)
        : m_outputPath(outputPath), m_frameCount(0) {}

    void handleFrame(const uint8_t* data, size_t size, uint32_t timestamp, bool isKeyFrame) {
        std::cout << "Frame received: size=" << size
                  << ", timestamp=" << timestamp
                  << ", keyframe=" << (isKeyFrame ? "YES" : "NO")
                  << std::endl;

        // 保存帧数据到文件
        if (m_outputPath.empty()) {
            return;
        }

        std::stringstream ss;
        ss << m_outputPath << "/frame_" << m_frameCount++ << ".h264";
        std::ofstream frameFile(ss.str(), std::ios::binary);

        if (frameFile.is_open()) {
            frameFile.write(reinterpret_cast<const char*>(data), size);
            frameFile.close();
        }
    }

private:
    std::string m_outputPath;
    std::atomic<int> m_frameCount;
};

int main(int argc, char* argv[]) {
    if (argc < 2) {
        std::cout << "Usage: " << argv[0] << " <rtsp_url> [output_dir]" << std::endl;
        return 1;
    }

    std::string rtspUrl = argv[1];
    std::string outputPath = (argc > 2) ? argv[2] : "";

    // 创建帧处理器
    FrameProcessor processor(outputPath);

    // 创建RTSP客户端
    RTSPClient client;

    // 设置帧回调
    client.setFrameCallback([&processor](const uint8_t* data, size_t size, uint32_t timestamp, bool isKeyFrame) {
        processor.handleFrame(data, size, timestamp, isKeyFrame);
    });

    // 连接到RTSP服务器
    if (!client.connect(rtspUrl)) {
        std::cerr << "Failed to connect to RTSP server" << std::endl;
        return 1;
    }

    // 打印媒体信息
    std::cout << "Media information:" << std::endl;
    std::cout << client.getMediaInfo() << std::endl;

    // 开始播放
    if (!client.play()) {
        std::cerr << "Failed to start playing" << std::endl;
        client.disconnect();
        return 1;
    }

    std::cout << "Playing stream from: " << rtspUrl << std::endl;
    std::cout << "Press Enter to stop..." << std::endl;

    // 等待用户输入
    std::cin.get();

    // 停止播放
    client.disconnect();

    std::cout << "RTSP client stopped" << std::endl;

    return 0;
}

2、完整一点的判断帧类型，分包，解包

#include <iostream>
#include <string>
#include <vector>
#include <map>
#include <memory>
#include <cstring>
#include <thread>
#include <atomic>
#include <random>
#include <ctime>

// RTSP协议常量
const int RTSP_PORT = 8554;
const int RTP_PORT_BASE = 5000;
const int RTCP_PORT_BASE = 5001;
const int MAX_PACKET_SIZE = 1400;  // MTU - IP头 - UDP头

// NAL单元类型
enum NalUnitType {
    NAL_UNKNOWN = 0,
    NAL_SLICE = 1,
    NAL_IDR_SLICE = 5,
    NAL_SEI = 6,
    NAL_SPS = 7,
    NAL_PPS = 8,
    NAL_AUD = 9
};

// 帧类型
enum FrameType {
    FRAME_I = 0,
    FRAME_P = 1,
    FRAME_B = 2
};

// RTP包结构
struct RTPPacket {
    uint8_t version;      // 版本号(2 bits)
    uint8_t padding;      // 填充标志(1 bit)
    uint8_t extension;    // 扩展标志(1 bit)
    uint8_t cc;           // CSRC计数器(4 bits)
    uint8_t marker;       // 标记位(1 bit)
    uint8_t payloadType;  // 负载类型(7 bits)
    uint16_t sequence;    // 序列号
    uint32_t timestamp;   // 时间戳
    uint32_t ssrc;        // 同步源标识符
    std::vector<uint8_t> payload;  // 负载数据

    RTPPacket() : version(2), padding(0), extension(0), cc(0), marker(0),
                  payloadType(96), sequence(0), timestamp(0), ssrc(0) {}
};

// 会话信息
struct Session {
    std::string sessionId;
    std::string streamName;
    int clientRtpPort;
    int clientRtcpPort;
    int serverRtpPort;
    int serverRtcpPort;
    std::atomic<bool> isPlaying;
    std::thread streamThread;

    Session() : clientRtpPort(0), clientRtcpPort(0),
                serverRtpPort(0), serverRtcpPort(0), isPlaying(false) {}
};

// 媒体源接口
class MediaSource {
public:
    virtual ~MediaSource() {}
    virtual std::string getMimeType() = 0;
    virtual std::string getSdpDescription() = 0;
    virtual bool getNextFrame(std::vector<uint8_t>& frameData, FrameType& frameType) = 0;
};

// H.264媒体源实现
class H264MediaSource : public MediaSource {
private:
    int width;
    int height;
    int fps;
    uint32_t frameCount;
    std::mt19937 randomGenerator;
    std::uniform_int_distribution<int> frameTypeDist;

public:
    H264MediaSource(int w, int h, int f = 30)
        : width(w), height(h), fps(f), frameCount(0) {
        randomGenerator.seed(std::time(nullptr));
        frameTypeDist = std::uniform_int_distribution<int>(0, 9);  // 0-9的随机数
    }

    std::string getMimeType() override {
        return "video/H264";
    }

    std::string getSdpDescription() override {
        std::string sdp =
            "m=video 0 RTP/AVP 96\r\n"
            "a=rtpmap:96 H264/90000\r\n"
            "a=fmtp:96 packetization-mode=1;profile-level-id=42001F;sprop-parameter-sets=Z0IAKeKQDwBE/LwEBAAMAAgAAAwAymA0A,aM48gA==\r\n"
            "a=control:streamid=0\r\n";
        return sdp;
    }

    bool getNextFrame(std::vector<uint8_t>& frameData, FrameType& frameType) override {
        // 模拟生成H.264帧
        frameCount++;

        // 每30帧生成一个I帧，其余为P帧(90%)或B帧(10%)
        if (frameCount % 30 == 0) {
            frameType = FRAME_I;
            generateIFrame(frameData);
        } else {
            int randVal = frameTypeDist(randomGenerator);
            if (randVal < 9) {
                frameType = FRAME_P;
                generatePFrame(frameData);
            } else {
                frameType = FRAME_B;
                generateBFrame(frameData);
            }
        }

        return true;
    }

private:
    void generateIFrame(std::vector<uint8_t>& frameData) {
        // 模拟生成I帧 (SPS + PPS + IDR)
        // SPS (Sequence Parameter Set)
        std::vector<uint8_t> sps = {
            0x67, 0x42, 0x00, 0x1F, 0xE9, 0x01, 0x40, 0x16,
            0xE3, 0x88, 0x80, 0x00, 0x00, 0x03, 0x00, 0x40,
            0x00, 0x00, 0x0C, 0x8C, 0x3C, 0x60
        };

        // PPS (Picture Parameter Set)
        std::vector<uint8_t> pps = {
            0x68, 0xCE, 0x38, 0x80
        };

        // IDR Slice (随机数据模拟)
        std::vector<uint8_t> idr(1024 * 4);  // 4KB的IDR图像
        idr[0] = 0x65;  // NAL单元类型: IDR Slice
        for (size_t i = 1; i < idr.size(); i++) {
            idr[i] = rand() % 256;
        }

        // 组合成完整的I帧
        frameData.insert(frameData.end(), sps.begin(), sps.end());
        frameData.insert(frameData.end(), pps.begin(), pps.end());
        frameData.insert(frameData.end(), idr.begin(), idr.end());
    }

    void generatePFrame(std::vector<uint8_t>& frameData) {
        // 模拟生成P帧
        frameData.resize(1024 * 2);  // 2KB的P帧
        frameData[0] = 0x41;  // NAL单元类型: 非IDR Slice
        for (size_t i = 1; i < frameData.size(); i++) {
            frameData[i] = rand() % 256;
        }
    }

    void generateBFrame(std::vector<uint8_t>& frameData) {
        // 模拟生成B帧
        frameData.resize(1024);  // 1KB的B帧
        frameData[0] = 0x41;  // NAL单元类型: 非IDR Slice (与P帧相同)
        for (size_t i = 1; i < frameData.size(); i++) {
            frameData[i] = rand() % 256;
        }
    }
};

// AAC媒体源实现
class AACMediaSource : public MediaSource {
private:
    int sampleRate;
    int channels;

public:
    AACMediaSource(int sr = 44100, int ch = 2)
        : sampleRate(sr), channels(ch) {}

    std::string getMimeType() override {
        return "audio/AAC";
    }

    std::string getSdpDescription() override {
        std::string sdp =
            "m=audio 0 RTP/AVP 97\r\n"
            "a=rtpmap:97 MPEG4-GENERIC/" + std::to_string(sampleRate) + "/" + std::to_string(channels) + "\r\n"
            "a=fmtp:97 profile-level-id=1;mode=AAC-hbr;sizelength=13;indexlength=3;indexdeltalength=3;config=1210\r\n"
            "a=control:streamid=1\r\n";
        return sdp;
    }

    bool getNextFrame(std::vector<uint8_t>& frameData, FrameType& frameType) override {
        // 模拟生成AAC音频帧
        frameData.resize(1024);  // 1KB的AAC帧
        for (size_t i = 0; i < frameData.size(); i++) {
            frameData[i] = rand() % 256;
        }
        return true;
    }
};

// RTSP服务器
class RTSPServer {
private:
    int serverSocket;
    std::map<std::string, std::shared_ptr<MediaSource>> mediaSources;
    std::map<std::string, Session> sessions;
    std::atomic<bool> running;
    std::thread acceptThread;

public:
    RTSPServer(int port = RTSP_PORT) : serverSocket(-1), running(false) {
        // 创建TCP套接字
        serverSocket = socket(AF_INET, SOCK_STREAM, 0);
        if (serverSocket < 0) {
            std::cerr << "Failed to create socket" << std::endl;
            return;
        }

        // 设置套接字选项
        int opt = 1;
        if (setsockopt(serverSocket, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt)) < 0) {
            std::cerr << "Failed to set socket options" << std::endl;
            close(serverSocket);
            serverSocket = -1;
            return;
        }

        // 绑定地址
        sockaddr_in serverAddr;
        memset(&serverAddr, 0, sizeof(serverAddr));
        serverAddr.sin_family = AF_INET;
        serverAddr.sin_addr.s_addr = INADDR_ANY;
        serverAddr.sin_port = htons(port);

        if (bind(serverSocket, (struct sockaddr*)&serverAddr, sizeof(serverAddr)) < 0) {
            std::cerr << "Failed to bind socket" << std::endl;
            close(serverSocket);
            serverSocket = -1;
            return;
        }

        // 监听连接
        if (listen(serverSocket, 5) < 0) {
            std::cerr << "Failed to listen on socket" << std::endl;
            close(serverSocket);
            serverSocket = -1;
            return;
        }
    }

    ~RTSPServer() {
        stop();
        if (serverSocket >= 0) {
            close(serverSocket);
        }
    }

    void addMediaSource(const std::string& name, std::shared_ptr<MediaSource> source) {
        mediaSources[name] = source;
    }

    bool start() {
        if (serverSocket < 0 || running) {
            return false;
        }

        running = true;
        acceptThread = std::thread(&RTSPServer::acceptConnections, this);
        return true;
    }

    void stop() {
        running = false;

        if (acceptThread.joinable()) {
            acceptThread.join();
        }

        // 停止所有会话
        for (auto& pair : sessions) {
            pair.second.isPlaying = false;
            if (pair.second.streamThread.joinable()) {
                pair.second.streamThread.join();
            }
        }
        sessions.clear();
    }

private:
    void acceptConnections() {
        while (running) {
            sockaddr_in clientAddr;
            socklen_t clientAddrLen = sizeof(clientAddr);
            int clientSocket = accept(serverSocket, (struct sockaddr*)&clientAddr, &clientAddrLen);

            if (clientSocket < 0) {
                if (running) {
                    std::cerr << "Failed to accept client connection" << std::endl;
                }
                continue;
            }

            // 为客户端创建处理线程
            std::thread([this, clientSocket]() {
                handleClient(clientSocket);
                close(clientSocket);
            }).detach();
        }
    }

    void handleClient(int clientSocket) {
        char buffer[4096];
        std::string sessionId;

        while (running) {
            memset(buffer, 0, sizeof(buffer));
            int bytesRead = recv(clientSocket, buffer, sizeof(buffer) - 1, 0);

            if (bytesRead <= 0) {
                break;  // 客户端断开连接
            }

            std::string request(buffer, bytesRead);
            std::string response = processRequest(request, sessionId);
            send(clientSocket, response.c_str(), response.size(), 0);
        }
    }

    std::string processRequest(const std::string& request, std::string& sessionId) {
        // 解析RTSP请求方法
        size_t methodEnd = request.find(' ');
        if (methodEnd == std::string::npos) {
            return "RTSP/1.0 400 Bad Request\r\n\r\n";
        }

        std::string method = request.substr(0, methodEnd);
        size_t uriEnd = request.find(' ', methodEnd + 1);
        if (uriEnd == std::string::npos) {
            return "RTSP/1.0 400 Bad Request\r\n\r\n";
        }

        std::string uri = request.substr(methodEnd + 1, uriEnd - methodEnd - 1);
        size_t seqStart = request.find("CSeq: ") + 6;
        size_t seqEnd = request.find("\r\n", seqStart);
        std::string cseq = request.substr(seqStart, seqEnd - seqStart);

        // 处理不同的RTSP方法
        if (method == "OPTIONS") {
            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Public: OPTIONS, DESCRIBE, SETUP, PLAY, PAUSE, TEARDOWN\r\n\r\n";
        }
        else if (method == "DESCRIBE") {
            // 提取流名称
            size_t streamStart = uri.find_last_of('/') + 1;
            std::string streamName = uri.substr(streamStart);

            auto it = mediaSources.find(streamName);
            if (it == mediaSources.end()) {
                return "RTSP/1.0 404 Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            std::string sdp = it->second->getSdpDescription();
            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Content-Base: " + uri + "/\r\n"
                   "Content-Type: application/sdp\r\n"
                   "Content-Length: " + std::to_string(sdp.size()) + "\r\n\r\n"
                   + sdp;
        }
        else if (method == "SETUP") {
            // 提取流名称
            size_t streamStart = uri.find_last_of('/') + 1;
            std::string streamName = uri.substr(streamStart);

            auto it = mediaSources.find(streamName);
            if (it == mediaSources.end()) {
                return "RTSP/1.0 404 Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            // 提取客户端端口
            size_t transportStart = request.find("Transport: ") + 11;
            size_t transportEnd = request.find("\r\n", transportStart);
            std::string transport = request.substr(transportStart, transportEnd - transportStart);

            size_t clientPortStart = transport.find("client_port=") + 12;
            size_t clientPortEnd = transport.find("-", clientPortStart);
            int clientRtpPort = std::stoi(transport.substr(clientPortStart, clientPortEnd - clientPortStart));
            int clientRtcpPort = std::stoi(transport.substr(clientPortEnd + 1));

            // 生成会话ID
            sessionId = generateSessionId();

            // 创建会话
            Session session;
            session.sessionId = sessionId;
            session.streamName = streamName;
            session.clientRtpPort = clientRtpPort;
            session.clientRtcpPort = clientRtcpPort;
            session.serverRtpPort = RTP_PORT_BASE + (sessions.size() * 2);
            session.serverRtcpPort = RTCP_PORT_BASE + (sessions.size() * 2);
            session.isPlaying = false;

            sessions[sessionId] = session;

            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Session: " + sessionId + "\r\n"
                   "Transport: RTP/AVP;unicast;client_port=" +
                   std::to_string(clientRtpPort) + "-" + std::to_string(clientRtcpPort) +
                   ";server_port=" + std::to_string(session.serverRtpPort) + "-" +
                   std::to_string(session.serverRtcpPort) + "\r\n\r\n";
        }
        else if (method == "PLAY") {
            if (sessionId.empty()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            auto it = sessions.find(sessionId);
            if (it == sessions.end()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            // 启动流发送线程
            if (!it->second.isPlaying) {
                it->second.isPlaying = true;
                it->second.streamThread = std::thread(&RTSPServer::sendMediaStream, this, sessionId);
            }

            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Session: " + sessionId + "\r\n"
                   "RTP-Info: url=" + uri + "\r\n\r\n";
        }
        else if (method == "PAUSE") {
            if (sessionId.empty()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            auto it = sessions.find(sessionId);
            if (it == sessions.end()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            it->second.isPlaying = false;
            if (it->second.streamThread.joinable()) {
                it->second.streamThread.join();
            }

            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Session: " + sessionId + "\r\n\r\n";
        }
        else if (method == "TEARDOWN") {
            if (sessionId.empty()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            auto it = sessions.find(sessionId);
            if (it == sessions.end()) {
                return "RTSP/1.0 454 Session Not Found\r\n"
                       "CSeq: " + cseq + "\r\n\r\n";
            }

            it->second.isPlaying = false;
            if (it->second.streamThread.joinable()) {
                it->second.streamThread.join();
            }

            sessions.erase(sessionId);
            sessionId.clear();

            return "RTSP/1.0 200 OK\r\n"
                   "CSeq: " + cseq + "\r\n"
                   "Session: " + sessionId + "\r\n\r\n";
        }
        else {
            return "RTSP/1.0 501 Not Implemented\r\n"
                   "CSeq: " + cseq + "\r\n\r\n";
        }
    }

    std::string generateSessionId() {
        static std::atomic<uint32_t> sessionCounter(0);
        return std::to_string(time(nullptr)) + "_" + std::to_string(sessionCounter++);
    }

    void sendMediaStream(const std::string& sessionId) {
        auto it = sessions.find(sessionId);
        if (it == sessions.end()) {
            return;
        }

        Session& session = it->second;
        auto mediaSourceIt = mediaSources.find(session.streamName);
        if (mediaSourceIt == mediaSources.end()) {
            return;
        }

        std::shared_ptr<MediaSource> mediaSource = mediaSourceIt->second;

        // 创建RTP套接字
        int rtpSocket = socket(AF_INET, SOCK_DGRAM, 0);
        if (rtpSocket < 0) {
            std::cerr << "Failed to create RTP socket" << std::endl;
            return;
        }

        // 设置目标地址
        sockaddr_in clientAddr;
        memset(&clientAddr, 0, sizeof(clientAddr));
        clientAddr.sin_family = AF_INET;
        clientAddr.sin_addr.s_addr = INADDR_ANY;  // 注意：实际应用中应使用客户端IP
        clientAddr.sin_port = htons(session.clientRtpPort);

        // 初始化RTP参数
        RTPPacket rtpPacket;
        rtpPacket.ssrc = rand();
        rtpPacket.sequence = rand() % 65536;
        rtpPacket.timestamp = rand() % 4294967296;

        // 帧率控制
        const int fps = 30;
        const int frameDuration = 1000 / fps;  // 毫秒
        uint32_t frameCount = 0;

        while (session.isPlaying) {
            std::vector<uint8_t> frameData;
            FrameType frameType;

            // 获取下一帧
            if (!mediaSource->getNextFrame(frameData, frameType)) {
                break;
            }

            // 分片并发送
            if (mediaSource->getMimeType() == "video/H264") {
                sendH264Frame(rtpSocket, clientAddr, frameData, frameType, rtpPacket);
            } else {
                // 其他媒体类型的处理
                sendRtpPacket(rtpSocket, clientAddr, frameData, rtpPacket);
            }

            // 更新时间戳和序列号
            rtpPacket.sequence = (rtpPacket.sequence + 1) % 65536;
            rtpPacket.timestamp += 90000 / fps;  // 90kHz时钟
            frameCount++;

            // 控制帧率
            std::this_thread::sleep_for(std::chrono::milliseconds(frameDuration));
        }

        close(rtpSocket);
    }

    void sendH264Frame(int socket, sockaddr_in& addr, const std::vector<uint8_t>& frameData,
                      FrameType frameType, RTPPacket& rtpPacket) {
        // 查找帧中的各个NAL单元
        size_t offset = 0;
        while (offset < frameData.size()) {
            // 查找NAL单元起始码 (0x00000001或0x000001)
            size_t nalStart = offset;
            if (frameData.size() - offset >= 4 &&
                frameData[offset] == 0x00 && frameData[offset+1] == 0x00 &&
                frameData[offset+2] == 0x00 && frameData[offset+3] == 0x01) {
                nalStart += 4;
                offset += 4;
            } else if (frameData.size() - offset >= 3 &&
                       frameData[offset] == 0x00 && frameData[offset+1] == 0x00 &&
                       frameData[offset+2] == 0x01) {
                nalStart += 3;
                offset += 3;
            } else {
                // 没有找到起始码，可能是第一个NAL
                nalStart = offset;
            }

            // 查找下一个NAL单元的起始位置
            size_t nextNalStart = frameData.size();
            for (size_t i = offset; i < frameData.size() - 3; i++) {
                if ((frameData[i] == 0x00 && frameData[i+1] == 0x00 &&
                     frameData[i+2] == 0x00 && frameData[i+3] == 0x01) ||
                    (frameData[i] == 0x00 && frameData[i+1] == 0x00 &&
                     frameData[i+2] == 0x01)) {
                    nextNalStart = i;
                    break;
                }
            }

            size_t nalSize = nextNalStart - nalStart;
            if (nalSize <= 0) {
                break;
            }

            // 处理NAL单元
            const uint8_t* nalData = &frameData[nalStart];
            uint8_t nalType = nalData[0] & 0x1F;

            // 根据NAL单元类型设置RTP标记位
            bool isKeyFrame = (nalType == NAL_IDR_SLICE || nalType == NAL_SPS || nalType == NAL_PPS);
            rtpPacket.marker = isKeyFrame ? 1 : 0;

            // 分片处理
            if (nalSize > MAX_PACKET_SIZE) {
                fragmentAndSendNAL(socket, addr, nalData, nalSize, rtpPacket);
            } else {
                // 不需要分片，直接发送
                rtpPacket.payload.assign(nalData, nalData + nalSize);
                sendRtpPacket(socket, addr, rtpPacket);
                rtpPacket.sequence = (rtpPacket.sequence + 1) % 65536;
            }

            offset = nextNalStart;
        }
    }

    void fragmentAndSendNAL(int socket, sockaddr_in& addr, const uint8_t* nalData,
                           size_t nalSize, RTPPacket& rtpPacket) {
        uint8_t originalNalType = nalData[0] & 0x1F;
        uint8_t fuIndicator = 0x7C;  // FU-A indicator (Type=28)

        size_t payloadSize = MAX_PACKET_SIZE - 2;  // 减去FU indicator和FU header的大小
        size_t offset = 1;  // 跳过原始NAL头部

        while (offset < nalSize) {
            size_t fragmentSize = std::min(payloadSize, nalSize - offset);
            bool isFirst = (offset == 1);
            bool isLast = (offset + fragmentSize >= nalSize);

            // 创建FU header
            uint8_t fuHeader = originalNalType;
            if (isFirst) fuHeader |= 0x80;  // 设置起始位
            if (isLast) fuHeader |= 0x40;   // 设置结束位

            // 构建RTP负载
            rtpPacket.payload.resize(2 + fragmentSize);
            rtpPacket.payload[0] = fuIndicator;
            rtpPacket.payload[1] = fuHeader;
            memcpy(&rtpPacket.payload[2], nalData + offset, fragmentSize);

            // 设置标记位（仅最后一个分片设置）
            rtpPacket.marker = isLast ? 1 : 0;

            // 发送RTP包
            sendRtpPacket(socket, addr, rtpPacket);

            // 更新序列号
            rtpPacket.sequence = (rtpPacket.sequence + 1) % 65536;
            offset += fragmentSize;
        }
    }

    void sendRtpPacket(int socket, sockaddr_in& addr, const std::vector<uint8_t>& payload,
                      RTPPacket& rtpPacket) {
        // 构建RTP头部
        uint8_t rtpHeader[12];
        rtpHeader[0] = (rtpPacket.version << 6) | (rtpPacket.padding << 5) |
                      (rtpPacket.extension << 4) | rtpPacket.cc;
        rtpHeader[1] = (rtpPacket.marker << 7) | rtpPacket.payloadType;
        rtpHeader[2] = (rtpPacket.sequence >> 8) & 0xFF;
        rtpHeader[3] = rtpPacket.sequence & 0xFF;
        rtpHeader[4] = (rtpPacket.timestamp >> 24) & 0xFF;
        rtpHeader[5] = (rtpPacket.timestamp >> 16) & 0xFF;
        rtpHeader[6] = (rtpPacket.timestamp >> 8) & 0xFF;
        rtpHeader[7] = rtpPacket.timestamp & 0xFF;
        rtpHeader[8] = (rtpPacket.ssrc >> 24) & 0xFF;
        rtpHeader[9] = (rtpPacket.ssrc >> 16) & 0xFF;
        rtpHeader[10] = (rtpPacket.ssrc >> 8) & 0xFF;
        rtpHeader[11] = rtpPacket.ssrc & 0xFF;

        // 发送RTP包
        std::vector<uint8_t> packet;
        packet.insert(packet.end(), rtpHeader, rtpHeader + 12);
        packet.insert(packet.end(), payload.begin(), payload.end());

        sendto(socket, packet.data(), packet.size(), 0,
               (struct sockaddr*)&addr, sizeof(addr));
    }

    void sendRtpPacket(int socket, sockaddr_in& addr, RTPPacket& rtpPacket) {
        sendRtpPacket(socket, addr, rtpPacket.payload, rtpPacket);
    }
};

// RTSP客户端
class RTSPClient {
private:
    int rtspSocket;
    std::string sessionId;
    int cseq;
    std::string serverAddress;
    int serverPort;
    int rtpPort;
    int rtcpPort;
    std::atomic<bool> isPlaying;
    std::thread receiveThread;
    std::function<void(const uint8_t*, size_t, uint32_t, bool)> frameCallback;

public:
    RTSPClient() : rtspSocket(-1), cseq(0), serverPort(RTSP_PORT),
                  rtpPort(0), rtcpPort(0), isPlaying(false) {}

    ~RTSPClient() {
        disconnect();
    }

    bool connect(const std::string& url) {
        // 解析URL
        size_t protocolEnd = url.find("://");
        if (protocolEnd == std::string::npos) {
            std::cerr << "Invalid RTSP URL" << std::endl;
            return false;
        }

        std::string protocol = url.substr(0, protocolEnd);
        if (protocol != "rtsp") {
            std::cerr << "Unsupported protocol: " << protocol << std::endl;
            return false;
        }

        size_t hostStart = protocolEnd + 3;
        size_t hostEnd = url.find(":", hostStart);
        size_t pathStart = url.find("/", hostStart);

        if (hostEnd != std::string::npos && pathStart != std::string::npos && hostEnd < pathStart) {
            // 包含端口号
            serverAddress = url.substr(hostStart, hostEnd - hostStart);
            serverPort = std::stoi(url.substr(hostEnd + 1, pathStart - hostEnd - 1));
        } else if (pathStart != std::string::npos) {
            // 不包含端口号，使用默认端口
            serverAddress = url.substr(hostStart, pathStart - hostStart);
        } else {
            std::cerr << "Invalid RTSP URL" << std::endl;
            return false;
        }

        std::string path = url.substr(pathStart);

        // 创建RTSP套接字
        rtspSocket = socket(AF_INET, SOCK_STREAM, 0);
        if (rtspSocket < 0) {
            std::cerr << "Failed to create RTSP socket" << std::endl;
            return false;
        }

        // 连接服务器
        sockaddr_in serverAddr;
        memset(&serverAddr, 0, sizeof(serverAddr));
        serverAddr.sin_family = AF_INET;
        serverAddr.sin_port = htons(serverPort);
        inet_pton(AF_INET, serverAddress.c_str(), &serverAddr.sin_addr);

        if (connect(rtspSocket, (struct sockaddr*)&serverAddr, sizeof(serverAddr)) < 0) {
            std::cerr << "Failed to connect to RTSP server" << std::endl;
            close(rtspSocket);
            rtspSocket = -1;
            return false;
        }

        // 发送OPTIONS请求
        std::string response = sendRequest("OPTIONS " + url + " RTSP/1.0\r\n\r\n");
        if (!parseResponseStatus(response, 200)) {
            std::cerr << "OPTIONS request failed" << std::endl;
            disconnect();
            return false;
        }

        // 发送DESCRIBE请求
        response = sendRequest("DESCRIBE " + url + " RTSP/1.0\r\n"
                              "Accept: application/sdp\r\n\r\n");
        if (!parseResponseStatus(response, 200)) {
            std::cerr << "DESCRIBE request failed" << std::endl;
            disconnect();
            return false;
        }

        // 解析SDP信息
        std::string sdp = parseSDP(response);
        if (sdp.empty()) {
            std::cerr << "Failed to parse SDP" << std::endl;
            disconnect();
            return false;
        }

        // 随机选择RTP/RTCP端口
        rtpPort = 10000 + (rand() % 5000) * 2;
        rtcpPort = rtpPort + 1;

        // 发送SETUP请求
        response = sendRequest("SETUP " + url + " RTSP/1.0\r\n"
                              "Transport: RTP/AVP;unicast;client_port=" +
                              std::to_string(rtpPort) + "-" + std::to_string(rtcpPort) + "\r\n\r\n");
        if (!parseResponseStatus(response, 200)) {
            std::cerr << "SETUP request failed" << std::endl;
            disconnect();
            return false;
        }

        // 解析会话ID
        sessionId = parseSessionId(response);
        if (sessionId.empty()) {
            std::cerr << "Failed to get session ID" << std::endl;
            disconnect();
            return false;
        }

        return true;
    }

    void disconnect() {
        if (isPlaying) {
            pause();
        }

        if (rtspSocket >= 0) {
            // 发送TEARDOWN请求
            if (!sessionId.empty()) {
                sendRequest("TEARDOWN * RTSP/1.0\r\n"
                           "Session: " + sessionId + "\r\n\r\n");
            }

            close(rtspSocket);
            rtspSocket = -1;
            sessionId.clear();
        }

        if (receiveThread.joinable()) {
            receiveThread.join();
        }
    }

    bool play() {
        if (!isPlaying && rtspSocket >= 0 && !sessionId.empty()) {
            std::string response = sendRequest("PLAY * RTSP/1.0\r\n"
                                               "Session: " + sessionId + "\r\n\r\n");
            if (!parseResponseStatus(response, 200)) {
                std::cerr << "PLAY request failed" << std::endl;
                return false;
            }

            isPlaying = true;
            receiveThread = std::thread(&RTSPClient::receiveRtpPackets, this);
            return true;
        }
        return false;
    }

    bool pause() {
        if (isPlaying && rtspSocket >= 0 && !sessionId.empty()) {
            isPlaying = false;
            if (receiveThread.joinable()) {
                receiveThread.join();
            }

            std::string response = sendRequest("PAUSE * RTSP/1.0\r\n"
                                               "Session: " + sessionId + "\r\n\r\n");
            return parseResponseStatus(response, 200);
        }
        return false;
    }

    void setFrameCallback(const std::function<void(const uint8_t*, size_t, uint32_t, bool)>& callback) {
        frameCallback = callback;
    }

    std::string getMediaInfo() {
        // 这里应该返回从SDP解析的媒体信息
        return "Media Info: RTSP Stream";
    }

private:
    std::string sendRequest(const std::string& request) {
        if (rtspSocket < 0) {
            return "";
        }

        // 增加CSeq
        cseq++;
        std::string requestWithCSeq = request;
        size_t crlfPos = request.find("\r\n");
        if (crlfPos != std::string::npos) {
            requestWithCSeq.insert(crlfPos + 2, "CSeq: " + std::to_string(cseq) + "\r\n");
        }

        // 发送请求
        send(rtspSocket, requestWithCSeq.c_str(), requestWithCSeq.size(), 0);

        // 接收响应
        char buffer[4096];
        memset(buffer, 0, sizeof(buffer));
        int bytesRead = recv(rtspSocket, buffer, sizeof(buffer) - 1, 0);

        return std::string(buffer, bytesRead);
    }

    bool parseResponseStatus(const std::string& response, int expectedStatus) {
        size_t statusStart = response.find("RTSP/1.0 ") + 9;
        size_t statusEnd = response.find(" ", statusStart);
        if (statusStart == std::string::npos || statusEnd == std::string::npos) {
            return false;
        }

        int statusCode = std::stoi(response.substr(statusStart, statusEnd - statusStart));
        return (statusCode == expectedStatus);
    }

    std::string parseSDP(const std::string& response) {
        size_t sdpStart = response.find("\r\n\r\n");
        if (sdpStart == std::string::npos) {
            return "";
        }

        return response.substr(sdpStart + 4);
    }

    std::string parseSessionId(const std::string& response) {
        size_t sessionStart = response.find("Session: ");
        if (sessionStart == std::string::npos) {
            return "";
        }

        sessionStart += 9;
        size_t sessionEnd = response.find("\r\n", sessionStart);
        if (sessionEnd == std::string::npos) {
            return "";
        }

        std::string sessionLine = response.substr(sessionStart, sessionEnd - sessionStart);
        size_t idEnd = sessionLine.find(";");
        if (idEnd != std::string::npos) {
            return sessionLine.substr(0, idEnd);
        }

        return sessionLine;
    }

    void receiveRtpPackets() {
        // 创建RTP套接字
        int rtpSocket = socket(AF_INET, SOCK_DGRAM, 0);
        if (rtpSocket < 0) {
            std::cerr << "Failed to create RTP socket" << std::endl;
            return;
        }

        // 绑定端口
        sockaddr_in localAddr;
        memset(&localAddr, 0, sizeof(localAddr));
        localAddr.sin_family = AF_INET;
        localAddr.sin_addr.s_addr = INADDR_ANY;
        localAddr.sin_port = htons(rtpPort);

        if (bind(rtpSocket, (struct sockaddr*)&localAddr, sizeof(localAddr)) < 0) {
            std::cerr << "Failed to bind RTP socket" << std::endl;
            close(rtpSocket);
            return;
        }

        // 创建缓冲区
        uint8_t buffer[65536];
        std::vector<uint8_t> nalBuffer;
        uint32_t currentTimestamp = 0;
        bool isKeyFrame = false;

        // 接收RTP包
        while (isPlaying) {
            sockaddr_in senderAddr;
            socklen_t senderAddrLen = sizeof(senderAddr);
            int bytesRead = recvfrom(rtpSocket, buffer, sizeof(buffer), 0,
                                    (struct sockaddr*)&senderAddr, &senderAddrLen);

            if (bytesRead <= 0) {
                continue;
            }

            // 解析RTP头部
            uint8_t version = (buffer[0] >> 6) & 0x03;
            uint8_t padding = (buffer[0] >> 5) & 0x01;
            uint8_t extension = (buffer[0] >> 4) & 0x01;
            uint8_t cc = buffer[0] & 0x0F;
            uint8_t marker = (buffer[1] >> 7) & 0x01;
            uint8_t payloadType = buffer[1] & 0x7F;
            uint16_t sequence = (buffer[2] << 8) | buffer[3];
            uint32_t timestamp = (buffer[4] << 24) | (buffer[5] << 16) |
                               (buffer[6] << 8) | buffer[7];
            uint32_t ssrc = (buffer[8] << 24) | (buffer[9] << 16) |
                           (buffer[10] << 8) | buffer[11];

            // 提取RTP负载
            size_t headerSize = 12 + (cc * 4);
            if (extension) {
                // 处理扩展头部
                headerSize += 4 + ((buffer[12] << 8) | buffer[13]) * 4;
            }

            const uint8_t* payload = buffer + headerSize;
            size_t payloadSize = bytesRead - headerSize;

            // 检查是否有帧回调
            if (frameCallback && payloadSize > 0) {
                // 检查NAL单元类型
                if (payloadSize >= 1) {
                    uint8_t nalType = payload[0] & 0x1F;

                    // 判断是否为关键帧
                    isKeyFrame = (nalType == NAL_IDR_SLICE || nalType == NAL_SPS || nalType == NAL_PPS);

                    // 处理FU-A分片
                    if (nalType == 28 && payloadSize >= 2) {  // FU-A
                        uint8_t fuHeader = payload[1];
                        bool isStart = (fuHeader & 0x80) != 0;
                        bool isEnd = (fuHeader & 0x40) != 0;

                        if (isStart) {
                            // 开始新的NAL单元
                            nalBuffer.clear();
                            // 重建原始NAL头部
                            uint8_t originalNalHeader = (payload[0] & 0xE0) | (fuHeader & 0x1F);
                            nalBuffer.push_back(originalNalHeader);

                            // 更新时间戳
                            currentTimestamp = timestamp;
                        }

                        // 添加分片数据
                        nalBuffer.insert(nalBuffer.end(), payload + 2, payload + payloadSize);

                        // 如果是结束分片且有回调，则传递完整的NAL单元
                        if (isEnd && !nalBuffer.empty()) {
                            frameCallback(nalBuffer.data(), nalBuffer.size(), currentTimestamp, isKeyFrame);
                        }
                    } else {
                        // 非分片NAL单元，直接传递
                        frameCallback(payload, payloadSize, timestamp, isKeyFrame);
                    }
                }
            }
        }

        close(rtpSocket);
    }
};
