工程图矢量化 笔记 | potrace ezdxf svgpathtools | png转svg保存dxf用matplotlib画出来

python 把图片转为矢量图的库_mob649e815d65e6的技术博客_51CTO博客

  sudo apt install potrace

from PIL import Image
import subprocess
def bitmap_to_svg(input_image_path, output_svg_path):
    image = Image.open(input_image_path)
    image = image.convert('1')  # 黑白图像
    bitmap_path = "temp.bmp"
    image.save(bitmap_path, "BMP")
    subprocess.run(['potrace', bitmap_path, '-s', '-o', output_svg_path])
    print(f"Converted {input_image_path} to {output_svg_path}")

bitmap_to_svg("data/2.jpg", "output/output_image.svg")

ai又在写鬼东西

svgpathtools matplotlib

from svgpathtools import svg2paths
import ezdxf
# 解析 SVG 文件
paths, attributes = svg2paths('output/output_image.svg')

# 创建一个新的 DXF 文档
doc = ezdxf.new(dxfversion='R2010')
msp = doc.modelspace()

# 将 SVG 路径转换为 DXF 实体
for path in paths:
    for segment in path:

        if segment.__class__.__name__ == 'Line':
            start = (segment.start.real, segment.start.imag)
            end = (segment.end.real, segment.end.imag)
            msp.add_line(start, end, dxfattribs={'color': 5})
        elif segment.__class__.__name__ == 'CubicBezier':
            start = (segment.start.real, segment.start.imag)
            control1 = (segment.control1.real, segment.control1.imag)
            control2 = (segment.control2.real, segment.control2.imag)
            end = (segment.end.real, segment.end.imag)
            print('CubicBezier',start, control1, control2, end)
            msp.add_line(start, end, dxfattribs={'color': 1})

        elif segment.__class__.__name__ == 'Arc':
            center = (segment.center.real, segment.center.imag)
            radius = segment.radius
            start_angle = segment.start_angle
            end_angle = segment.end_angle
            msp.add_arc(center=center, radius=radius, start_angle=start_angle, end_angle=end_angle)

# 保存 DXF 文件
doc.saveas('output/output_image.dxf')

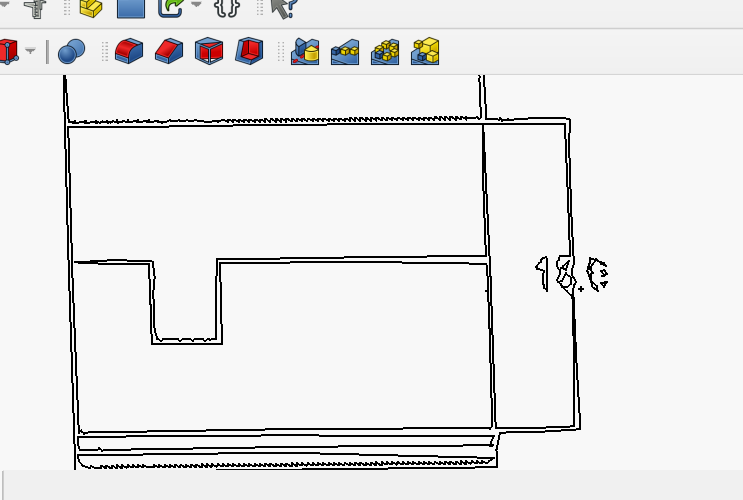

svg长这样

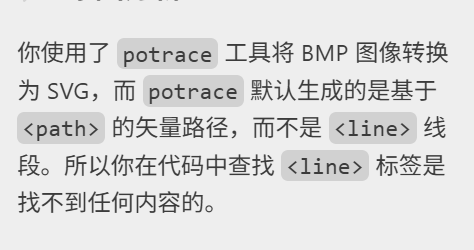

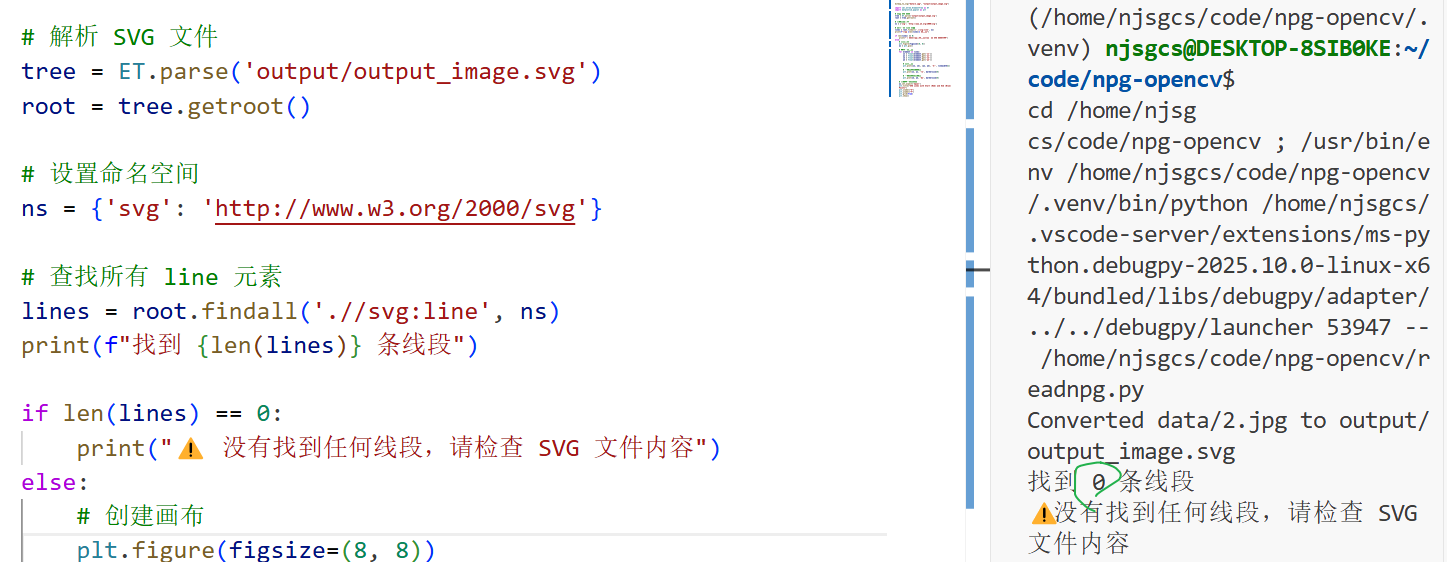

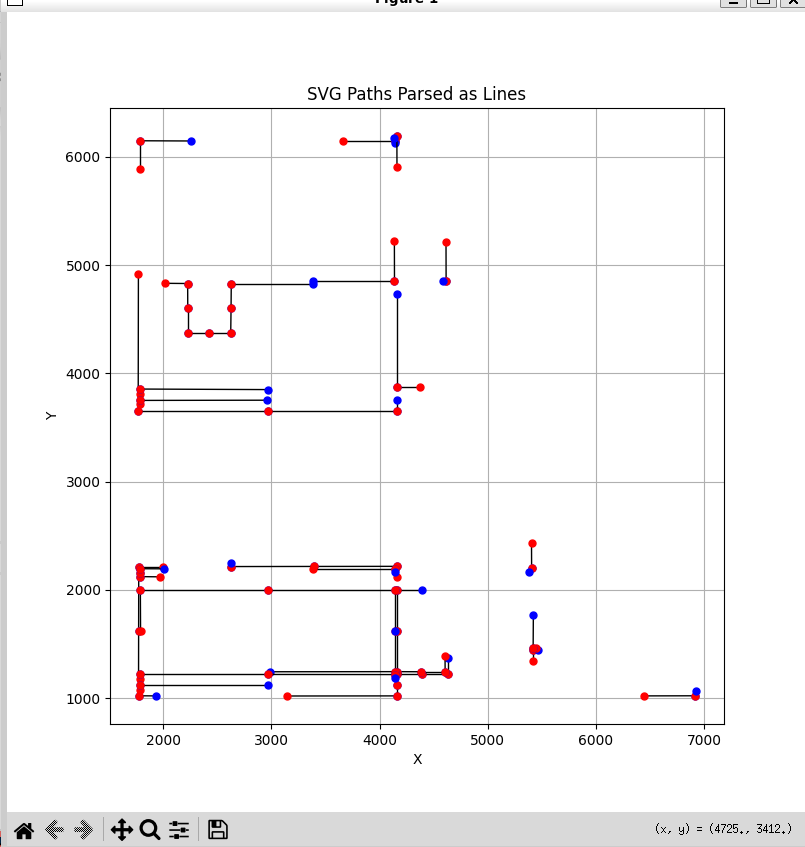

  我本来以为svg是纯线段结构

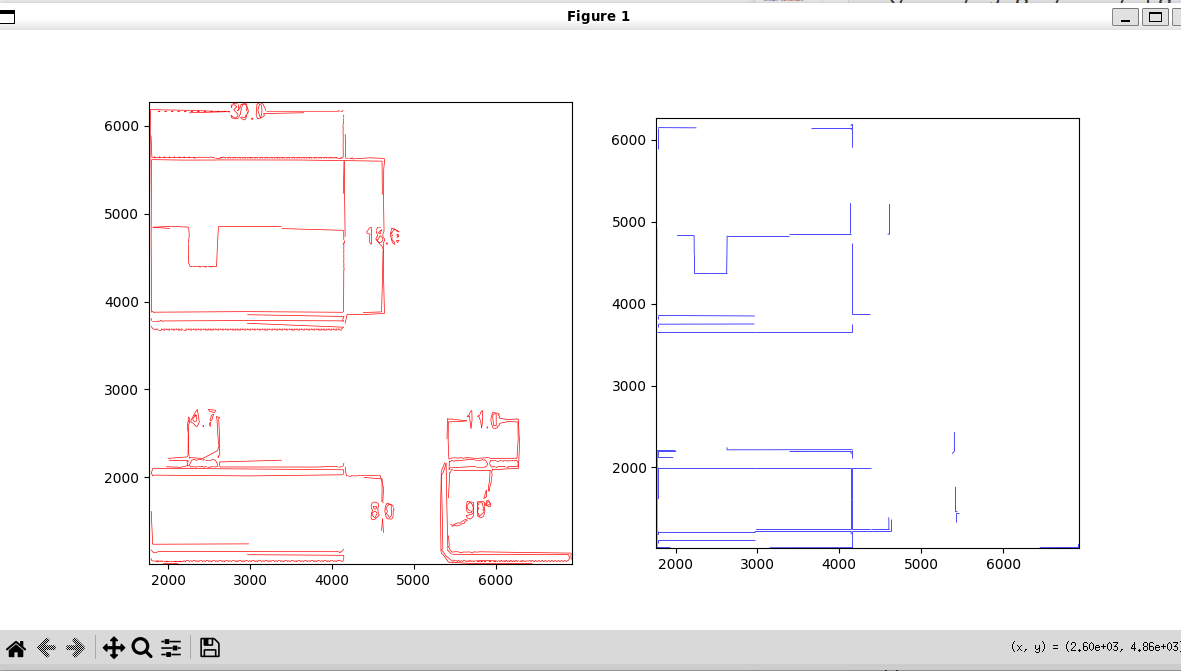

CubicBezier红色多段线， 蓝色直线，圆弧黄色（没识别到）

import ezdxf
import numpy as np
from matplotlib import pyplot as plt
from matplotlib.collections import LineCollection
from matplotlib.patches import Arc

# 指定要读取的DXF文件路径
dxf_file_path = 'output/output_image.dxf'

# 加载DXF文件
doc = ezdxf.readfile(dxf_file_path)
msp = doc.modelspace()  # 获取模型空间

# 创建一个图形对象和坐标轴对象
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 6))  # 1行2列的子图布局


# 准备一个列表用于存储所有的线段
rlines = []
blines = []
# 遍历模型空间中的所有实体
for entity in msp:
    if entity.dxftype() == 'LINE':  # 如果是直线
        # 添加起点和终点到lines列表

        if entity.dxf.color==1:
         rlines.append([(entity.dxf.start.x, entity.dxf.start.y),
                      (entity.dxf.end.x, entity.dxf.end.y)])
        elif entity.dxf.color==5:
         blines.append([(entity.dxf.start.x, entity.dxf.start.y),
                      (entity.dxf.end.x, entity.dxf.end.y)])
    elif entity.dxftype() == 'SPLINE':  # 如果是样条曲线
        fit_points = entity.control_points
        rlines.append([(fit_points[0][0], fit_points[0][1]),
                      (fit_points[-1][0], fit_points[-1][1])])
    elif entity.dxftype() == 'ARC':  # 如果是圆弧
        arc = entity
        center = (arc.dxf.center.x, arc.dxf.center.y)
        radius = arc.dxf.radius
        start_angle = arc.dxf.start_angle
        end_angle = arc.dxf.end_angle
        if start_angle > end_angle:
            end_angle += 360  # 确保角度范围正确

        # 使用matplotlib的Arc类绘制圆弧
        arc_patch = Arc(center, 2*radius, 2*radius, angle=0,
                         theta1=start_angle, theta2=end_angle,
                         color='blue', linewidth=0.5)
        ax.add_patch(arc_patch)
    else:
        print('未处理的实体类型:', entity.dxftype())

# 使用LineCollection绘制所有的线段
line_segments_red  = LineCollection(rlines, linewidths=0.5, colors='red')

ax1.add_collection(line_segments_red)
line_segments_blue = LineCollection(blines, linewidths=0.5, colors='blue')
ax2.add_collection(line_segments_blue)

# 设置坐标范围
lines=rlines + blines
ax1.set_xlim(min([min(l[0][0], l[1][0]) for l in lines])-5, max([max(l[0][0], l[1][0]) for l in lines])+5)
ax1.set_ylim(min([min(l[0][1], l[1][1]) for l in lines])-5, max([max(l[0][1], l[1][1]) for l in lines])+5)
ax2.set_xlim(min([min(l[0][0], l[1][0]) for l in lines])-5, max([max(l[0][0], l[1][0]) for l in lines])+5)
ax2.set_ylim(min([min(l[0][1], l[1][1]) for l in lines])-5, max([max(l[0][1], l[1][1]) for l in lines])+5)

plt.gca().set_aspect('equal', adjustable='box')  # 固定比例
plt.show()

 转成svg对识别工程图不知道有没有用
