lvs集群技术

一、Nat实验

配置

RS1

[root@RS1 ~]# dnf install httpd -y

[root@RS1 ~]# echo RS1 192.168.0.10 > /var/www/html/index.html

[root@RS1 ~]# systemctl disable --now firewalld关闭防火墙

RS2

[root@RS2 ~]# dnf install httpd -y

[root@RS2 ~]# echo RS1 192.168.0.20 > /var/www/html/index.html

[root@RS2 ~]# systemctl disable --now firewalld

VS

启用内核路由功能
[root@lvs ~]# echo "net.ipv4.ip_forward=1" >> /etc/sysctl.d/ip_forward.conf
[root@lvs ~]# sysctl --system
安装ipvsadm
[root@lvs ~]# yum install ipvsadm -y
[root@lvs ~]# systemctl enable --now ipvsadm
添加调度策略
[root@lvs ~]# ipvsadm -A -t 172.25.254.220:80 -s rr
[root@lvs ~]# ipvsadm -a -t 172.25.254.220:80 -r 192.168.0.10:80 -m
[root@lvs ~]# ipvsadm -a -t 172.25.254.220:80 -r 192.168.0.20:80 -m
查看策略
[root@lvs ~]# ipvsadm -Ln
保存
[root@lvs ~]# ipvsadm -Sn
开机启动
[root@lvs ~]# systemctl enable --now ipvsadm.service

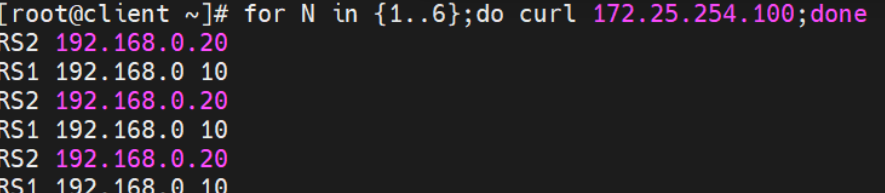

测试

二、DR实验

配置

client在客户端主机中为nat模式网卡

vim /etc/NetworkManager/system-connections/eth0.nmconnection

[connection]

id=eth0

type=ethernet

interface-name=eth0

[ipv4]

method=manual

address1=172.25.254.200/24,172.25.254.255

dns=8.8.8.8

router在路由主机中设定双网卡，eth0为nat网卡，eth1为仅主机网卡

 vim /etc/NetworkManager/system-connections/eth1.nmconnection
[connection]
id=eth1
type=ethernet
interface-name=eth1
[ipv4]
method=manual
address1=192.168.0.100/24,192.168.0.255
dns=8.8.8.8
vim /etc/NetworkManager/system-connections/eth0.nmconnection
[connection]
id=eth0
type=ethernet
interface-name=eth0
[ipv4]
method=manual
address1=172.25.254.100/24,172.25.254.255
dns=8.8.8.8

lvs设定网卡为仅主机模式

 vim /etc/NetworkManager/system-connections/eth1.nmconnection
[connection]
id=eth1
type=ethernet
interface-name=eth1
[ipv4]
method=manual
address1=192.168.0.10/24,192.168.0.255
dns=8.8.8.8

设定vip

ip addr add dev lo 192.168.0.220/32

配置策略

[root@lvs ~]# ipvsadm -A -t 192.168.179.220:80 -s wrr
[root@lvs ~]# ipvsadm -a -t 192.168.179.220:80 -r 192.168.179.20:80 -g
[root@lvs ~]# ipvsadm -a -t 192.168.179.220:80 -r 192.168.179.10:80 -g

RS1

 vim /etc/NetworkManager/system-connections/eth1.nmconnection
[connection]
id=eth1
type=ethernet
interface-name=eth1
[ipv4]
method=manual
address1=192.168.0.20/24,192.168.0.255
dns=8.8.8.8

设定vip

ip addr add dev lo 192.168.0.100/32

解决响应问题
[root@RS1 ~]# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@RS1 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@RS1 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
[root@RS1 ~]# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce


RS2

vim /etc/NetworkManager/system-connections/eth1.nmconnection
[connection]
id=eth1
type=ethernet
interface-name=eth1
[ipv4]
method=manual
address1=192.168.0.100/24,192.168.0.255
dns=8.8.8.8

设定vip

ip addr add dev lo 192.168.0.100/32

解决响应问题

[root@RS2 ~]# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@RS2 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@RS2 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
[root@RS2 ~]# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce

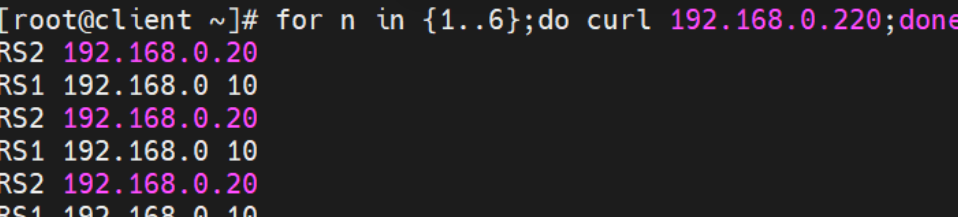

测试
