ELK 统一日志分析系统部署与实践指南（下）

发布于：2025-09-03 ⋅ 阅读:(17) ⋅ 点赞:(0)

#作者：张桐瑞

文章目录


接上篇：《ELK 统一日志分析系统部署与实践指南（上）》
链接: [https://blog.csdn.net/qq_40477248/article/details/151118184?spm=1001.2014.3001.5501)

2.1.8 启动ES集群

[elk@es-master ~]$ /app/elk/elasticsearch-7.6.2/bin/elasticsearch -d
-d  后台启动
[elk@es-master ~]$ ps -elf | grep java
0 S elk       40101      1 99  80   0 - 1048917 futex_ 14:09 pts/0  00:00:29 /usr/local/jdk-15.0.2/bin/java -Des.networkaddress.cache.ttl=60 -Des.networkaddress.cache.negative.ttl=10 -XX:+AlwaysPreTouch -Xss1m -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djna.nosys=true -XX:-OmitStackTraceInFastThrow -Dio.netty.noUnsafe=true -Dio.netty.noKeySetOptimization=true -Dio.netty.recycler.maxCapacityPerThread=0 -Dio.netty.allocator.numDirectArenas=0 -Dlog4j.shutdownHookEnabled=false -Dlog4j2.disable.jmx=true -Djava.locale.providers=COMPAT -Xms1g -Xmx1g -XX:+UseG1GC -XX:G1ReservePercent=25 -XX:InitiatingHeapOccupancyPercent=30 -Djava.io.tmpdir=/tmp/elasticsearch-9707861374109943810 -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=data -XX:ErrorFile=logs/hs_err_pid%p.log -Xlog:gc*,gc+age=trace,safepoint:file=logs/gc.log:utctime,pid,tags:filecount=32,filesize=64m -XX:MaxDirectMemorySize=536870912 -Des.path.home=/app/elk/elasticsearch-7.6.2 -Des.path.conf=/app/elk/elasticsearch-7.6.2/config -Des.distribution.flavor=default -Des.distribution.type=tar -Des.bundled_jdk=true -cp /app/elk/elasticsearch-7.6.2/lib/* org.elasticsearch.bootstrap.Elasticsearch -d

[elk@es-master ~]$netstat -tunlp | grep java
(Not all processes could be identified, non-owned process info
 will not be shown, you would have to be root to see it all.)
tcp6       0      0 192.168.140.10:9200     :::*                    LISTEN      40101/java
tcp6       0      0 192.168.140.10:9300     :::*                    LISTEN      40101/java

2.1.9 查看ES集群的状态

[elk@es-master ~]$ curl -X GET "http://192.168.140.10:9200/_cluster/health?pretty"
{
  "cluster_name" : "es",
  "status" : "green",
  "timed_out" : false,
  "number_of_nodes" : 3,
  "number_of_data_nodes" : 3,
  "active_primary_shards" : 0,
  "active_shards" : 0,
  "relocating_shards" : 0,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

2.1.10 安装kibana

[elk@es-master ~]$  cp /app/elk/kibana-7.6.2-linux-x86_64/config/kibana.yml /app/elk/kibana-7.6.2-linux-x86_64/config/kibana.yml.bak
[elk@es-master ~]$ vim /app/elk/kibana-7.6.2-linux-x86_64/config/kibana.yml
server.port: 5601
server.host: "192.168.140.10"
elasticsearch.hosts: ["http://192.168.140.10:9200"]

2.1.11 启动kibana

[elk@es-master ~]$ nohup /app/elk/kibana-7.6.2-linux-x86_64/bin/kibana &

[elk@es-master ~]$ ps -elf | grep kibana
0 R elk       40227  39800 99  80   0 - 293743 -     14:47 pts/0    00:00:57 /app/elk/kibana-7.6.2-linux-x86_64/bin/../node/bin/node /app/elk/kibana-7.6.2-linux-x86_64/bin/../src/cli

[elk@es-master ~]$ netstat -antp | grep 5601
(Not all processes could be identified, non-owned process info
 will not be shown, you would have to be root to see it all.)
tcp        0      0 192.168.140.10:5601     0.0.0.0:*               LISTEN      40436/node

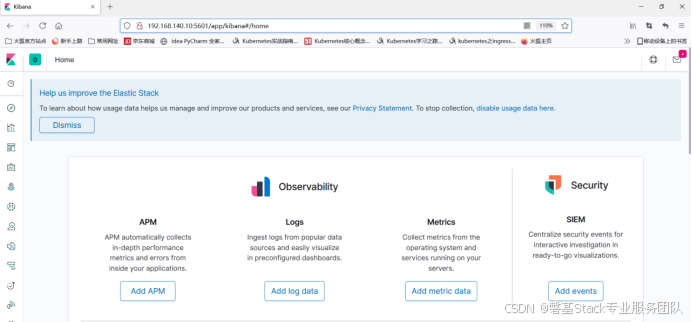

http://192.168.140.10:5601/app/kibana

在这里插入图片描述
2.1.12 安装部署filebeat
安装httpd

[root@web_server ~]# vim /usr/local/filebeat-7.6.2-linux-x86_64/filebeat.yml

#=========================== Filebeat inputs =============================

filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /var/log/httpd/access_log

#============================== Dashboards =====================================
setup.dashboards.enabled: false

#============================== Kibana =====================================
setup.kibana:
  host: "192.168.140.10:5601"

#-------------------------- Elasticsearch output ------------------------------
#output.elasticsearch:   //注释  与Logstash 二选其一
  # Array of hosts to connect to.
#  hosts: ["localhost:9200"]

#----------------------------- Logstash output --------------------------------
output.logstash:
  # The Logstash hosts
  hosts: ["192.168.140.10:5044"]

2.1.13 启动filebeat

[root@web_server filebeat-7.6.2-linux-x86_64]# nohup ./filebeat -c filebeat.yml &
[1] 17237
[root@web_server filebeat-7.6.2-linux-x86_64]# nohup: ignoring input and appending output to ‘nohup.out’

[root@web_server filebeat-7.6.2-linux-x86_64]#
[root@web_server filebeat-7.6.2-linux-x86_64]# ps -elf | grep file
4 S dbus       6265      1  0  80   0 - 14556 ep_pol 10:35 ?        00:00:00 /usr/bin/dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation
0 S root      17237   6885  5  80   0 - 137618 futex_ 15:09 pts/0   00:00:00 ./filebeat -c filebeat.yml

2.1.14 安装配置Logstash

[root@es-master ~]# cp /app/elk/logstash-7.6.2/config/logstash-sample.conf /app/elk/logstash-7.6.2/config/logstash.conf
[root@es-master ~]# vim /app/elk/logstash-7.6.2/config/logstash.conf

input {
  beats {
    port => 5044
  }
}


filter {
   grok {
      match => { "message" => "%{COMBINEDAPACHELOG}" }
   }
}

output {
  elasticsearch {
    hosts => ["http://192.168.140.10:9200"]
    index => "httpd-access-%{+YYYY.MM.dd}"
    #user => "elastic"
    #password => "changeme"
  }
}

2.1.14.1 logstash自带的日志过滤方法

[root@es-master patterns]# pwd
/app/elk/logstash-7.6.2/vendor/bundle/jruby/2.5.0/gems/logstash-patterns-core-4.1.2/patterns

2.1.15 启动logstash

[root@es-master ~]# vim /app/elk/logstash-7.6.2/config/jvm.options

#-XX:+UseConcMarkSweepGC
#-XX:CMSInitiatingOccupancyFraction=75
#-XX:+UseCMSInitiatingOccupancyOnly
[root@es-master ~]# nohup /app/elk/logstash-7.6.2/bin/logstash -f /app/elk/logstash-7.6.2/config/logstash.conf &
[1] 40815

[root@es-master ~]# ps -elf | grep logstash
4 S root      40815   9379 99  80   0 - 1019981 futex_ 15:44 pts/0  00:00:23 /usr/local/jdk-15.0.2/bin/java -Xms1g -Xmx1g -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djruby.compile.invokedynamic=true -Djruby.jit.threshold=0 -Djruby.regexp.interruptible=true -XX:+HeapDumpOnOutOfMemoryError -Djava.security.egd=file:/dev/urandom -Dlog4j2.isThreadContextMapInheritable=true -cp /app/elk/logstash-7.6.2/logstash-core/lib/jars/animal-sniffer-annotations-1.14.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/commons-codec-1.13.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/commons-compiler-3.1.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/error_prone_annotations-2.0.18.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/google-java-format-1.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/gradle-license-report-0.7.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/guava-22.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/j2objc-annotations-1.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jackson-annotations-2.9.10.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jackson-core-2.9.10.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jackson-databind-2.9.10.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jackson-dataformat-cbor-2.9.10.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/janino-3.1.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/javassist-3.26.0-GA.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jruby-complete-9.2.9.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/jsr305-1.3.9.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/log4j-api-2.12.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/log4j-core-2.12.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/log4j-slf4j-impl-2.12.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/logstash-core.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.commands-3.6.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.contenttype-3.4.100.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.expressions-3.4.300.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.filesystem-1.3.100.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.jobs-3.5.100.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.resources-3.7.100.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.core.runtime-3.7.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.equinox.app-1.3.100.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.equinox.common-3.6.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.equinox.preferences-3.4.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.equinox.registry-3.5.101.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.jdt.core-3.10.0.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.osgi-3.7.1.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/org.eclipse.text-3.5.101.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/reflections-0.9.11.jar:/app/elk/logstash-7.6.2/logstash-core/lib/jars/slf4j-api-1.7.25.jar org.logstash.Logstash -f /app/elk/logstash-7.6.2/config/logstash.conf

[root@es-master logs]# netstat -tunlp | grep 5044
tcp6       0      0 :::5044                 :::*                    LISTEN      40815/java

2.1.16 使用测试

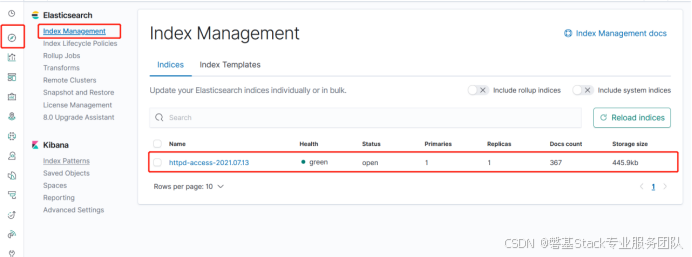

2.1.16.1查看索引

在这里插入图片描述

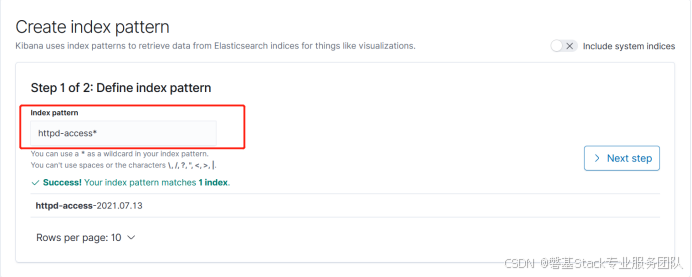

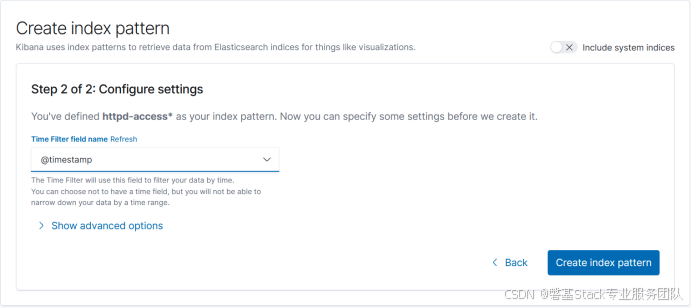

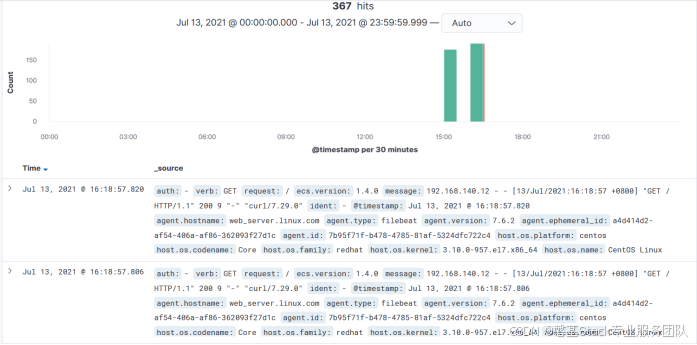

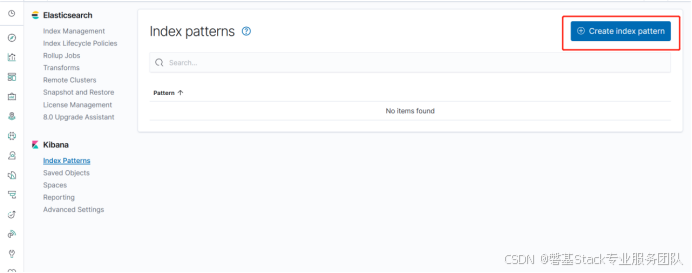

2.1.16.2 创建索引展示数据

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

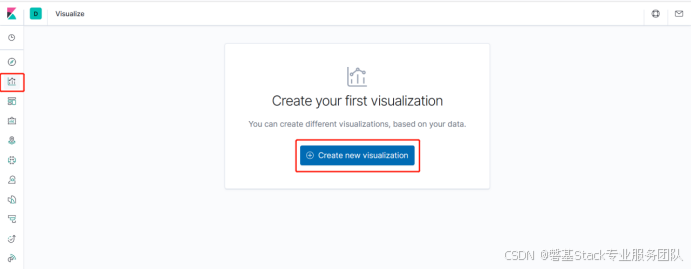

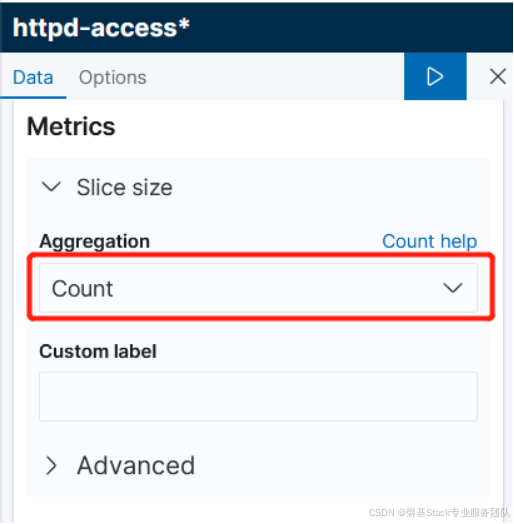

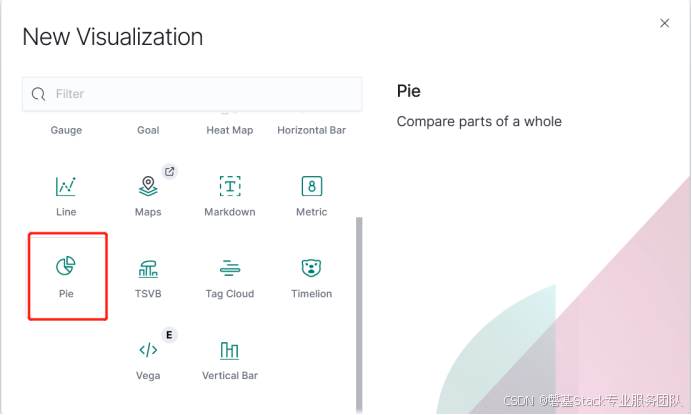

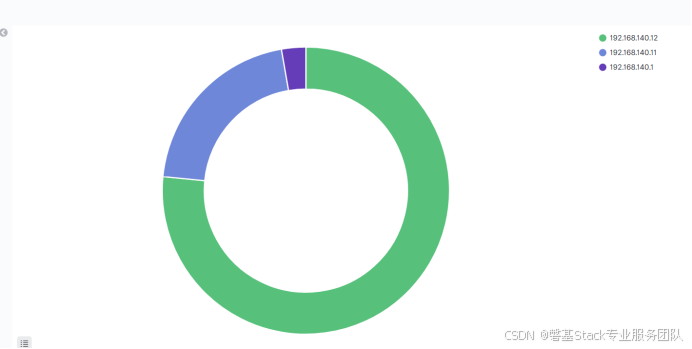

2.1.16.3 创建图形分析web UV
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
