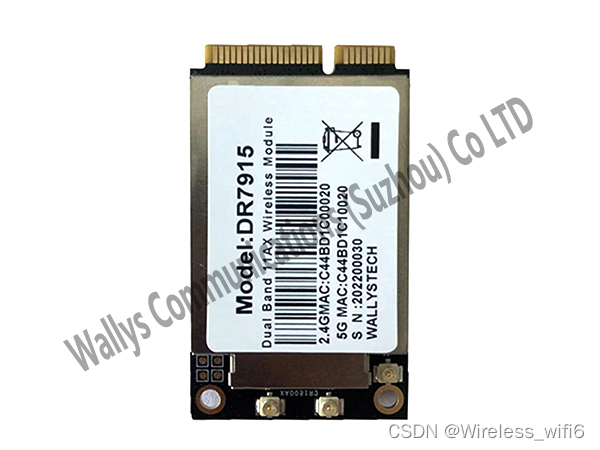

IPQ4019/IPQ4029 support WiFi6 MiniPCIe Module 2T2R 2×2.4GHz 2x5GHz MT7915 MT7975
Featuring with industrial-grade IPQ4019/IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

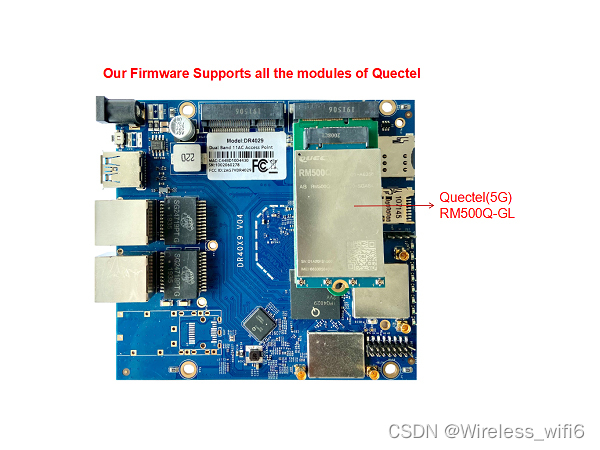

Our Firmware supports all the modules of Quectel
2.4GHz max 23dBm & 5GHz max 35dBm output power
IEEE 802.11ac / ax compliant & backward compatible with 802.11ax/ac/a/b/g/n
2×2 2.4G & 2×2 5G MIMO Technology, up to 1.8Gbps Mini PCI Express edge connector
SupporttheFrequency2412MHz~2482MHz
SupporttheFrequency5180MHz~5825MHz
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing,Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes,Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
CardsareindividuallycalibratedforQualityAssurance
