Technica Engineering 最近推出了 Multi-Gigabit 车载以太网转换器
产品英文名称：Multi-Gigabit MEDIACONVERTER
产品中文名称：万兆车载以太网转换器
产品型号：TE-1416
功能描述：
The MediaConverter Multi-Gigabit Marvell from Technica Engineering establishes a direct point-to-point conversion between Automotive ECUs using 10GBASE-T1 (10 Gbit/s Fullduplex, with 1x Unshielded Twisted Pair (UTP) cable) and any standard Gigabit Ethernet (10 Gbit/s, 10GBASE-T) device. In the conversion, no packets are stored or modified. The conversion takes place on the physical layer with the highest proven reliability.
Technica Engineering的MediaConverter Multi-Gigabit Marvell使用10GBASE-T1（10 Gbit/s全双工，带1条非屏蔽双绞线（UTP）电缆）和任何标准万兆以太网（10 Gbit/s，10GBASE-T）设备在汽车ECU之间建立了直接点对点转换。在转换过程中，不会存储或修改任何数据包。转换在物理层上进行，具有经验证的最高可靠性
This device which uses a PHY from Marvell, is one of the first implementations worldwide of a multigigabit Automotive Ethernet physical layer media converter. We ensure a trustworthy and effective tool to our customers that are looking for a cost-efficient, quick, and manageable solution for their testing requirements, with no latency and no packet loss.
该设备使用Marvell的PHY，是全球首批实现的万兆车载以太网物理层媒体转换器之一。我们确保为那些正在为其测试需求寻找经济高效、快速和可管理的解决方案的客户提供一个值得信赖和有效的工具，并且没有延迟和数据包丢失。
The device features bi-directional conversion between Gigabit Ethernet (10GBASE-T) and Automotive Gigabit Ethernet (10GBASE-T1). A massive housing made of galvanized sheet steel, coupled with DIP switches for ease of configuration, enables the user to interact with the converter effortlessly.
该设备具有万兆以太网（10GBASE-T）和万兆车载以太网之间的双向转换功能。由镀锌钢板制成的巨大外壳，再加上DIP开关，便于配置，使用户可以轻松地与转换器进行交互
No customized driver is needed to interact with this MediaConverter. It communicates with standard Ethernet through an SFP slot. It comes with an automotive-grade H-MTD connector and a standard SFP slot. Its design makes it portable and easy to install in test racks. The metal housing makes it robust with IP20 protection.
与此MediaConverter交互不需要自定义驱动程序。它通过SFP插槽与标准以太网通信。它配有车规级H-MTD连接器和标准SFP插槽。其设计使其便于携带，并易于安装在测试架上。金属外壳使其具有IP20防护。
No extra hardware or software complements are needed to connect the device with a PC or a Laptop. The device can be coupled with any hardware or software tool that runs on standard Ethernet with an RJ-45 connector.
将设备与PC或笔记本电脑连接不需要额外的硬件或软件补充。该设备可以与任何在带有RJ-45连接器的标准以太网上运行的硬件或软件工具耦合
Thus, the MediaConverter Multigig Marvell is the ideal solution for working quickly and efficiently with the new 10GBASE-T1 technology without the hustle of extra- wiring, customized connectors, and vendor specific tools.
因此，MediaConverter Multiggig Marvell是快速高效地使用新的10GBASE-T1技术的理想解决方案，无需额外布线、定制连接器和供应商专用工具。
Feature产品特点
- Converts between 10GBASE-T1 Automotive Gigabit Ethernet and 10GBASE-T Standard Gigabit Ethernet or optical Ethernet
在10GBASE-T1车载千兆以太网和10GBASE-T标准千兆以太网或光纤以太网之间进行转换
- 1 x H-MTD port for 10GBASE-T1 Automotive Ethernet
1 x H-MTD端口，用于10GBASE-T1汽车以太网
- 1 x Standard SFP+ port
1 x 标准 SFP+ port
- 4 x Status LEDs
4 x LED状态灯
- Included in scope of delivery: Tyco MQS socket, 1 × Automotive H-MTD connector, Cableset (Power, 10GBASE-T1), Additional optical components
交付范围包括：Tyco MQS接插件，1 x 汽车H-MTD连接器、Cableset（电源，10GBASE-T1）, 其他等
- Voltage requirement: 12 volt DC
电压要求：直流12V
- Stainless steel housing
不锈钢外壳
- Size: 95 × 95 × 32mm
尺寸：95 × 95 × 32mm
图示：

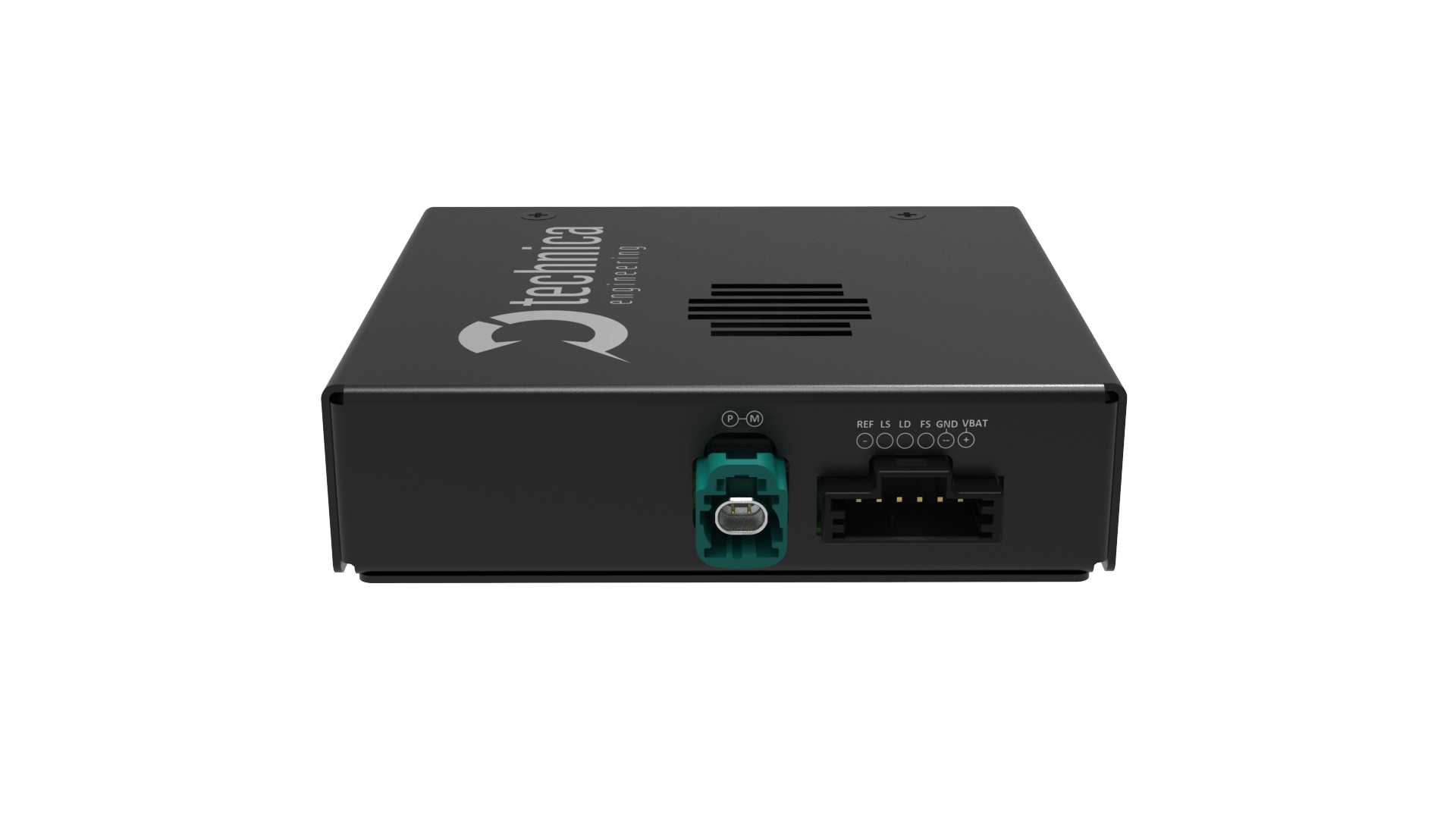

10GBASE-T1 接口为H-MTD接插件；

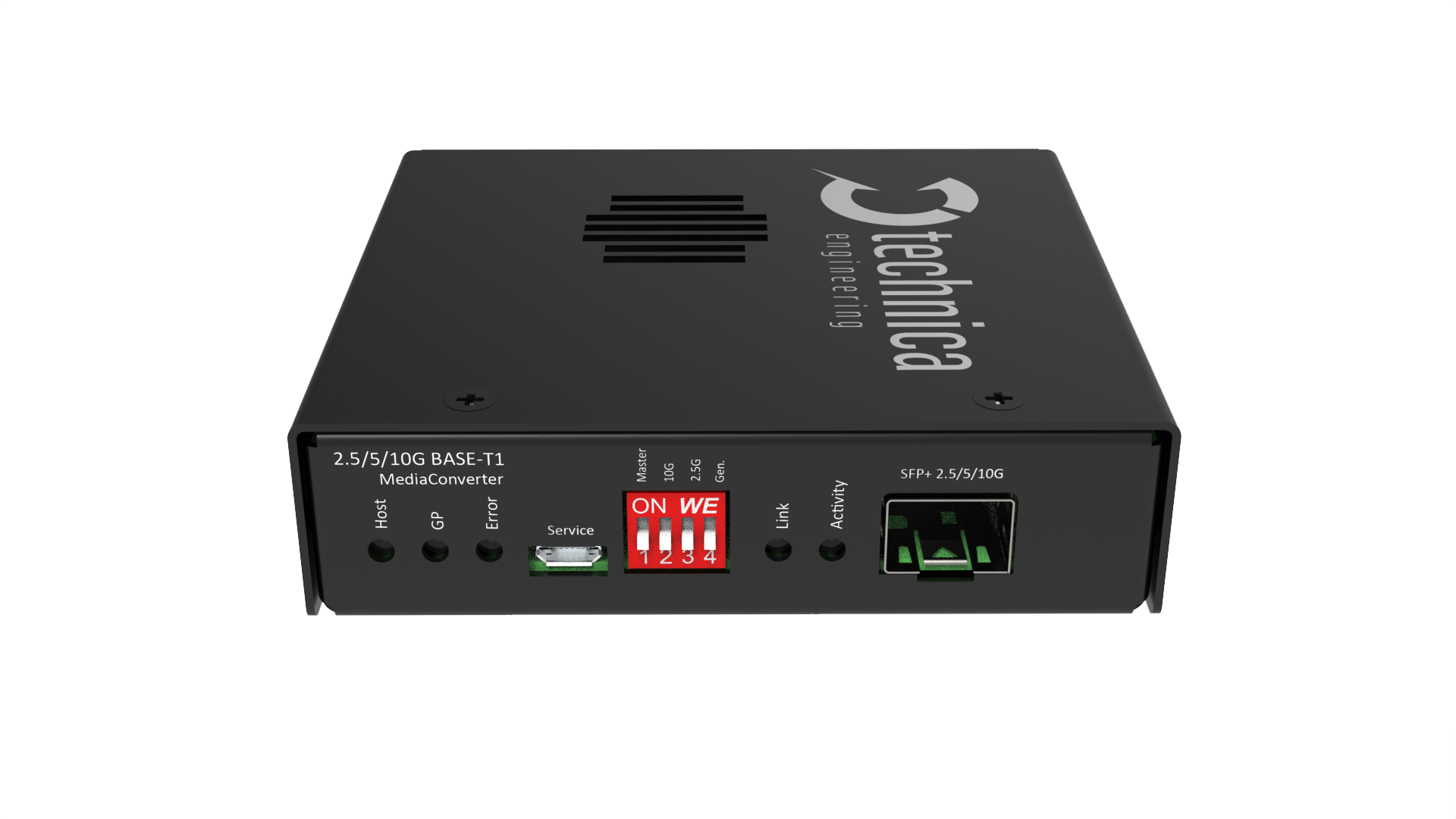

上位机连接接口为SFP，可以用光纤或者SFP转RJ45模块连接；
带有上位机连接指示灯LED，以及BASE-T1连接 link指示灯；
