1.

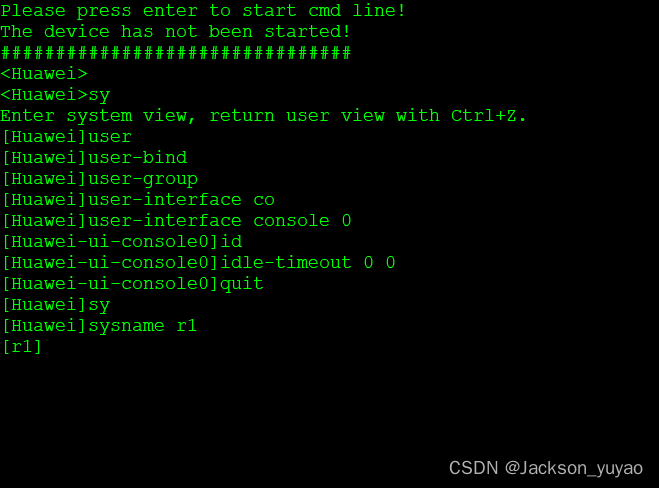

<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]user
[Huawei]user-bind
[Huawei]user-group
[Huawei]user-interface co
[Huawei]user-interface console 0
[Huawei-ui-console0]id
[Huawei-ui-console0]idle-timeout 0 0
[Huawei-ui-console0]quit
[Huawei]sy
[Huawei]sysname r1
[r1]

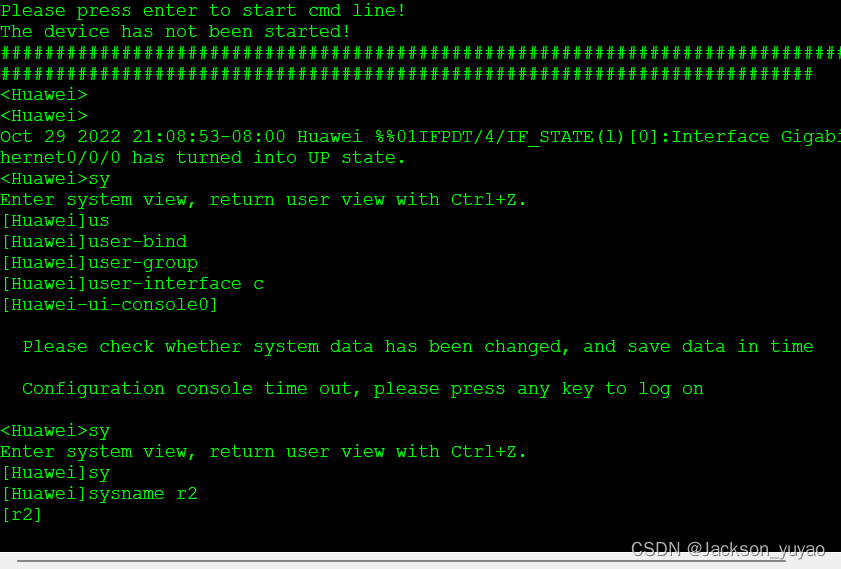

<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]us
[Huawei]user-bind
[Huawei]user-group
[Huawei]user-interface c
[Huawei-ui-console0]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]sy
[Huawei]sysname r2
[r2]
2.

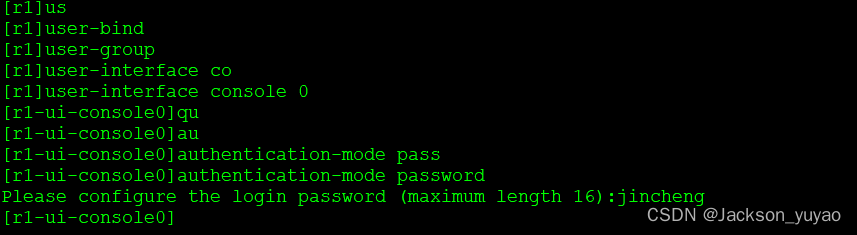

[r1]
[r1]us
[r1]user-bind
[r1]user-group
[r1]user-interface co
[r1]user-interface console 0
[r1-ui-console0]qu
[r1-ui-console0]au
[r1-ui-console0]authentication-mode pass
[r1-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):jincheng
[r1-ui-console0]
3.
<r2>sy
Enter system view, return user view with Ctrl+Z.
[r2]aaa
[r2-aaa]loc
[r2-aaa]local-user jincheng pr
[r2-aaa]local-user jincheng privilege le
[r2-aaa]local-user jincheng privilege level 15 pa
[r2-aaa]local-user jincheng privilege level 15 password ci
[r2-aaa]local-user jincheng privilege level 15 password cipher xueyuan
Info: Add a new user.
[r2-aaa]loc
[r2-aaa]local-user jincheng se
[r2-aaa]local-user jincheng service-type termin
[r2-aaa]local-user jincheng service-type terminal
[r2-aaa]loc
[r2-aaa]local-user xuesheng pr
[r2-aaa]local-user xuesheng privilege le
[r2-aaa]local-user xuesheng privilege level o pa
[r2-aaa]local-user xuesheng privilege level 0 pa
[r2-aaa]local-user xuesheng privilege level 0 password ci
[r2-aaa]local-user xuesheng privilege level 0 password cipher 123
Info: Add a new user.
[r2-aaa]
4.

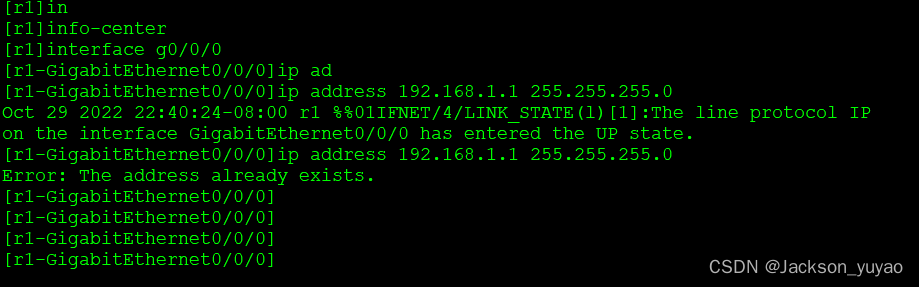

[r1]in
[r1]info-center
[r1]interface g0/0/0
[r1-GigabitEthernet0/0/0]ip ad
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 255.255.255.0
Oct 29 2022 22:40:24-08:00 r1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 255.255.255.0
Error: The address already exists.
[r1-GigabitEthernet0/0/0]

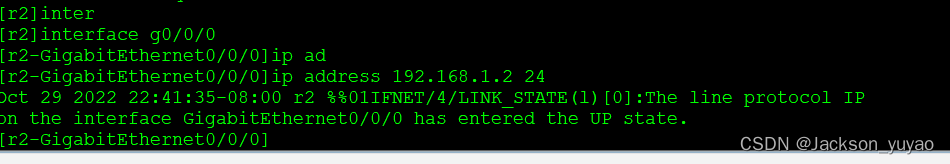

[r2]inter
[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]ip ad
[r2-GigabitEthernet0/0/0]ip address 192.168.1.2 24
Oct 29 2022 22:41:35-08:00 r2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[r2-GigabitEthernet0/0/0]
