1.拓扑图
2.Cloud配置
3.AR2配置
[AR2]int g0/0/1
[AR2-GigabitEthernet0/0/1]ip address 192.168.133.130 255.255.255.0
[AR2-GigabitEthernet0/0/1]undo shutdown
[AR2-GigabitEthernet0/0/1]ping 192.168.133.128
[AR2]snmp-agent sys-info version v2c
[AR2]snmp-agent community read net2001
[AR2]dis version
4. zabbix-server配置
[root@zabbix-server ~]# systemctl restart zabbix-server zabbix-agent httpd rh-php72-php-fpm
[root@zabbix-server ~]# systemctl start mariadb
[root@zabbix-server ~]yum install -y net-snmp-utils
[root@zabbix-server ~]snmpwalk -c net2001 -v 2c 192.168.133.130

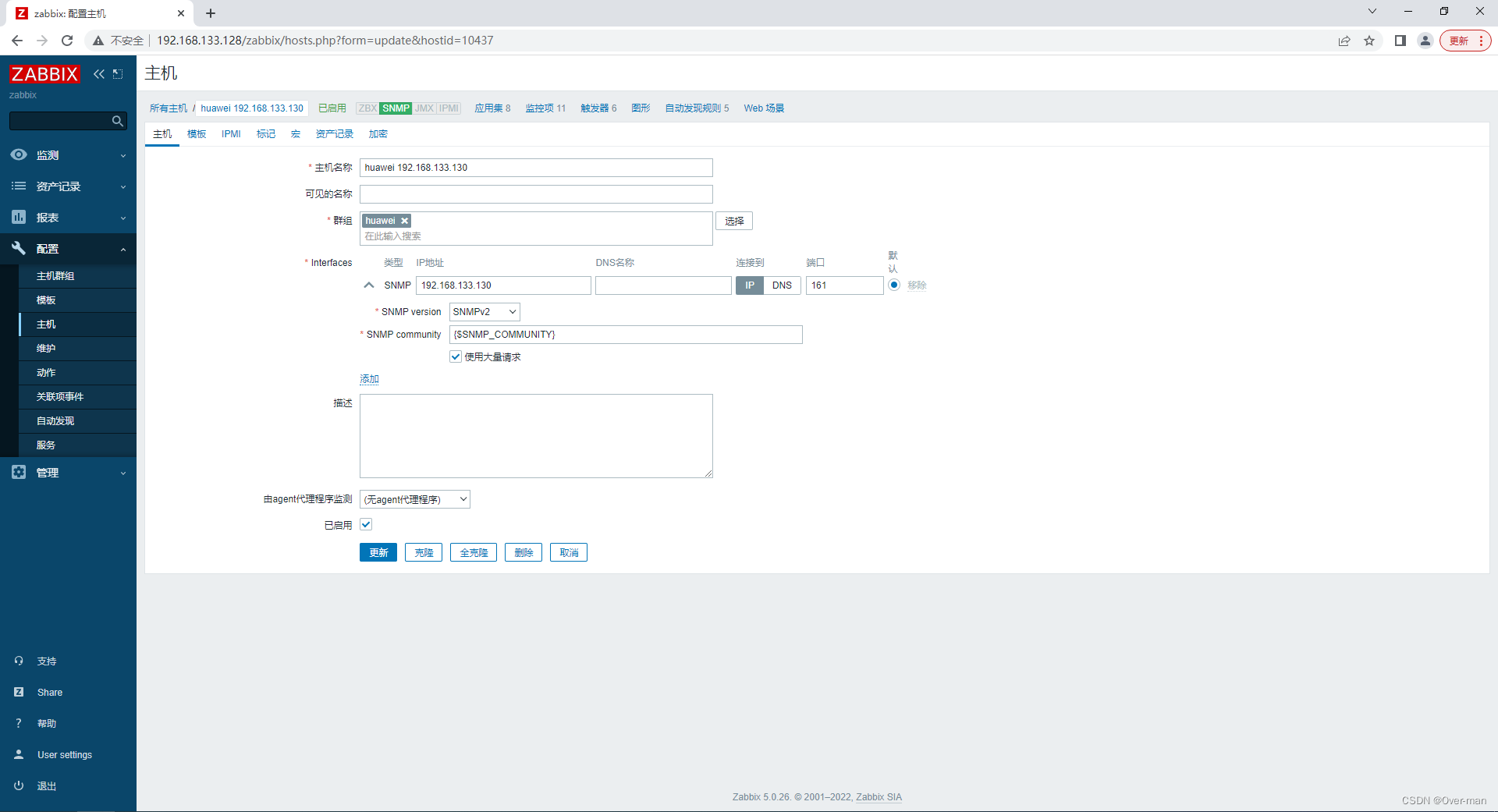

5.zabbix创建主机

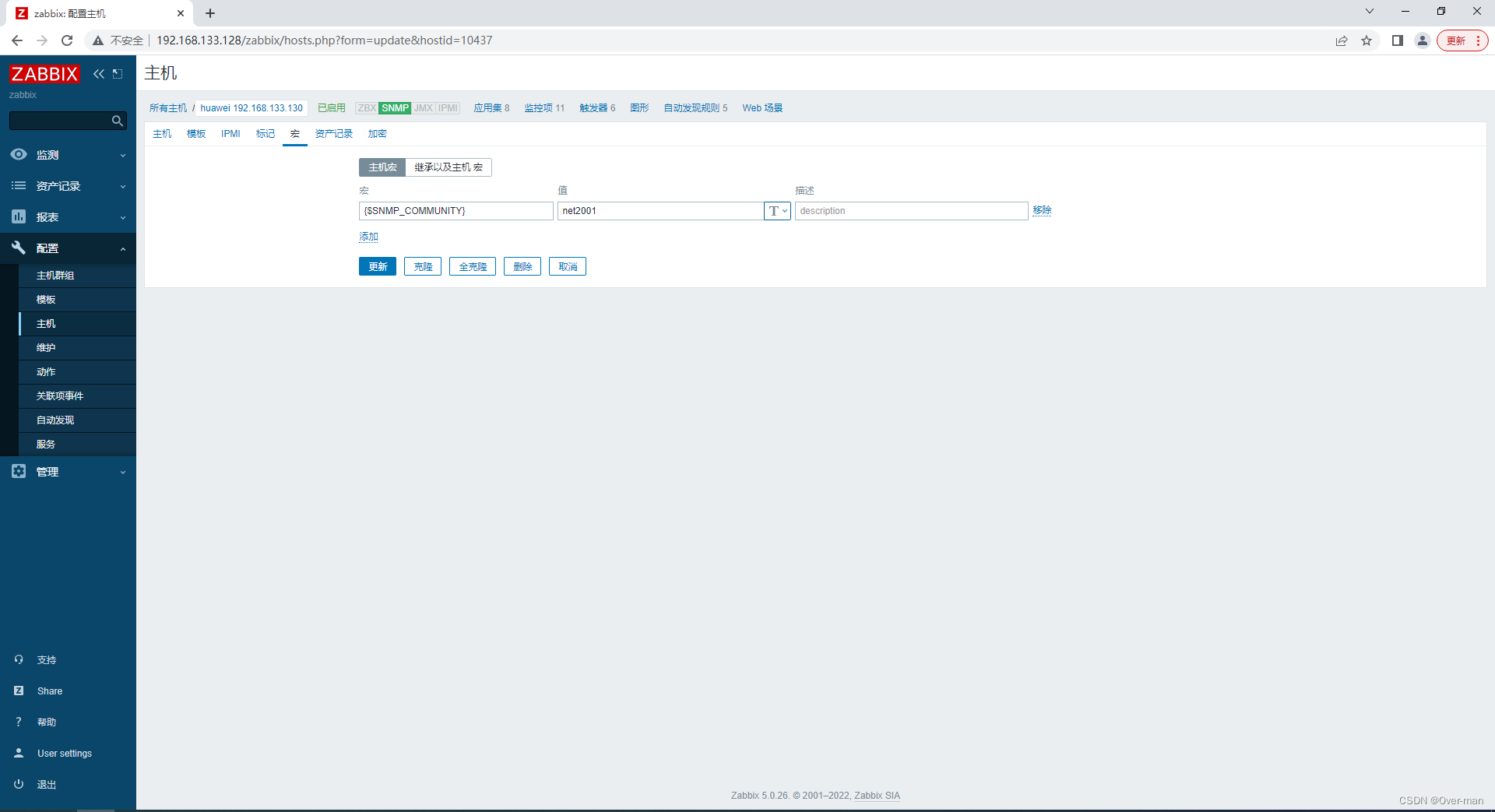

6.配置宏
7.配置模板
8.snmp监控成功
