Linux内存回收机制(一)lru

本文基于linux-5.0内核源码分析

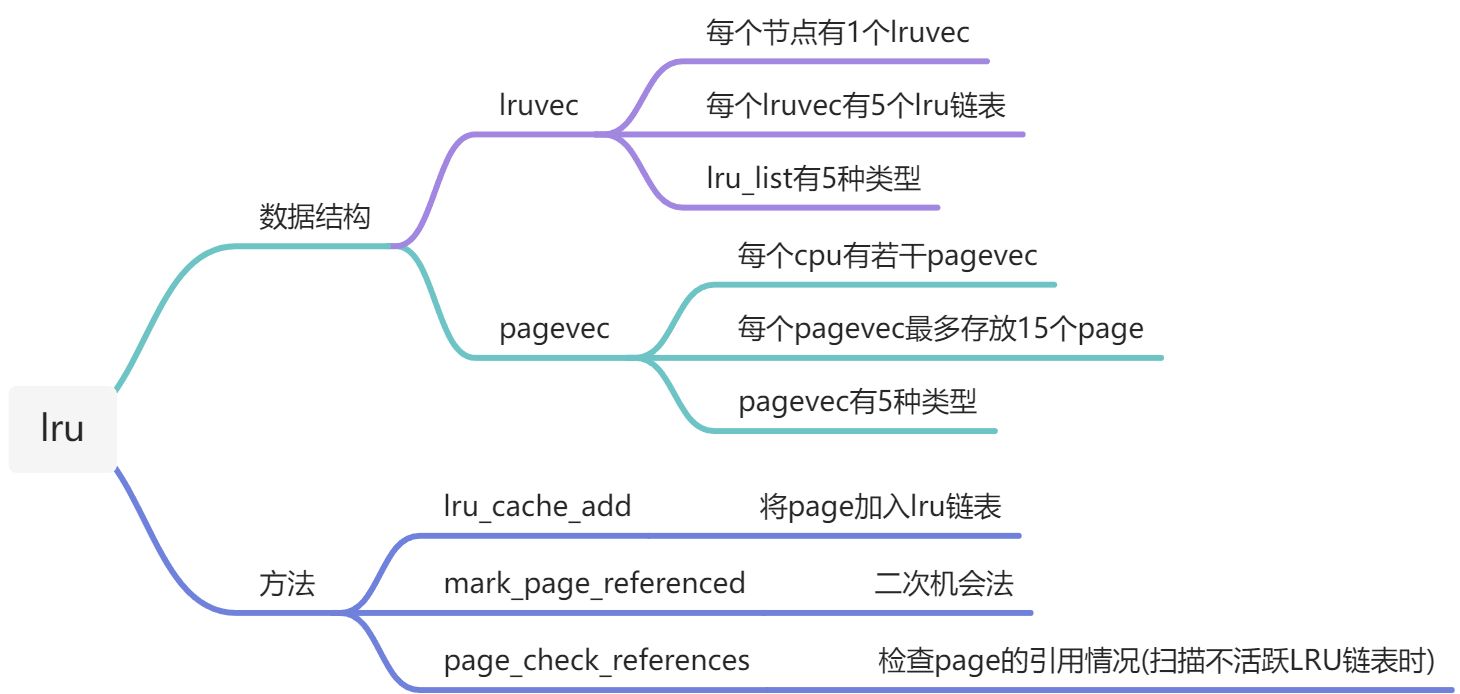

include/linux/mmzone.h
include/linux/pagevec.h
include/linux/mm_inline.h
include/linux/pagemap.h
include/linux/vmstat.h

mm/swap.c
mm/vmscan.c
mm/util.c
mm/rmap.c

1. lru_list

#define LRU_BASE 0
#define LRU_ACTIVE 1
#define LRU_FILE 2

// lru是双向链表: 内核根据页面类型(匿名页和文件页)与活跃性(活跃和不活跃), 分成5种类型lru链表
enum lru_list {
    // 0: inactive anonymous page lru list
    LRU_INACTIVE_ANON = LRU_BASE,
    // 1: active anonymous page lru list
    LRU_ACTIVE_ANON = LRU_BASE + LRU_ACTIVE,
    // 2: inactive page cache lru list
    LRU_INACTIVE_FILE = LRU_BASE + LRU_FILE,
    // 3: active page cache lru list
    LRU_ACTIVE_FILE = LRU_BASE + LRU_FILE + LRU_ACTIVE,
    // 4: unevictable page lru list
    LRU_UNEVICTABLE,
    NR_LRU_LISTS
};

2. lruvec

struct lruvec {
    // 每个lruvec都包含5个lru链表
    struct list_head		lists[NR_LRU_LISTS];
    struct zone_reclaim_stat	reclaim_stat;
    /* Evictions & activations on the inactive file list */
    atomic_long_t			inactive_age;
    /* Refaults at the time of last reclaim cycle */
    unsigned long			refaults;
#ifdef CONFIG_MEMCG
    // 每个node都包含1个lruvec: pgdat标识lruvec所属的node
    struct pglist_data *pgdat;
#endif
};

3. pagevec

/* 15 pointers + header align the pagevec structure to a power of two */
// 对比4.14.186的内核: PAGEVEC_SIZE为14
#define PAGEVEC_SIZE	15

// pagevec用于批量处理
struct pagevec {
	unsigned long nr;
	bool percpu_pvec_drained;
    // 每个pagevec都有1个15个page大小的数组
	struct page *pages[PAGEVEC_SIZE];
};

4. lru_cache_add

// 将page添加到指定的lru链表
void lru_cache_add(struct page *page)
{
    // 活跃且不可回收的页面不能加入lru链表
	VM_BUG_ON_PAGE(PageActive(page) && PageUnevictable(page), page);
    // 已经添加到lru链表的不能再重复添加
	VM_BUG_ON_PAGE(PageLRU(page), page);
	__lru_cache_add(page);
}

/*
 *每个cpu定义1个pagevec
 */
// lru_add_pvec用于存放添加到lru链表的页面
static DEFINE_PER_CPU(struct pagevec, lru_add_pvec);
static DEFINE_PER_CPU(struct pagevec, lru_rotate_pvecs);
static DEFINE_PER_CPU(struct pagevec, lru_deactivate_file_pvecs);
static DEFINE_PER_CPU(struct pagevec, lru_lazyfree_pvecs);
#ifdef CONFIG_SMP
static DEFINE_PER_CPU(struct pagevec, activate_page_pvecs);
#endif

static void __lru_cache_add(struct page *page)
{
    // 获取当前cpu的pagevec
	struct pagevec *pvec = &get_cpu_var(lru_add_pvec);

	get_page(page);
    // 1.首先尝试通过pagevec_add将page添加到pagevec的pages数组
    // 2.如果添加失败代表当前pagevec已满, 需要将pagevec的15个page批量提交到lru链表
    // 3.如果是复合页也直接批量提交
	if (!pagevec_add(pvec, page) || PageCompound(page))
		__pagevec_lru_add(pvec);
    // 更新lru_add_pvec
	put_cpu_var(lru_add_pvec);
}

4.1 pagevec_add

// 将page添加到pagevec, 并返回剩余可用的空间
static inline unsigned pagevec_add(struct pagevec *pvec, struct page *page)
{
    // 将page保存到pagevec的pages数组, 并将page数量加1
	pvec->pages[pvec->nr++] = page;
    // 返回剩余空间: 为0代表空间已满添加失败
	return pagevec_space(pvec);
}

4.2 pagevec_space

// pagevec最多保存15个page, nr保存pagevec当前存储的page数: 两者之差等于pagevec剩余可用空间
static inline unsigned pagevec_space(struct pagevec *pvec)
{
	return PAGEVEC_SIZE - pvec->nr;
}

4.3 __pagevec_lru_add

void __pagevec_lru_add(struct pagevec *pvec)
{
    // 批量处理pagevec的所有page: 针对每个page调用__pagevec_lru_add_fn方法
	pagevec_lru_move_fn(pvec, __pagevec_lru_add_fn, NULL);
}

4.4 pagevec_lru_move_fn

static void pagevec_lru_move_fn(struct pagevec *pvec,
	void (*move_fn)(struct page *page, struct lruvec *lruvec, void *arg),
	void *arg)
{
	int i;
	struct pglist_data *pgdat = NULL;
	struct lruvec *lruvec;
	unsigned long flags = 0;

    // 遍历pagevec中的每个page
	for (i = 0; i < pagevec_count(pvec); i++) {
		struct page *page = pvec->pages[i];
        // page所属的节点
		struct pglist_data *pagepgdat = page_pgdat(page);

		if (pagepgdat != pgdat) {
			if (pgdat)
				spin_unlock_irqrestore(&pgdat->lru_lock, flags);
			pgdat = pagepgdat;
			spin_lock_irqsave(&pgdat->lru_lock, flags);
		}

        // 1.如果mem_cgroup_disabled: 则返回pglist_data的lruvec
        // 2.否则返回mem_cgroup_per_node的lruvec
		lruvec = mem_cgroup_page_lruvec(page, pgdat);
        // 回调__pagevec_lru_add种定义的move_fn函数: __pagevec_lru_add_fn
		(*move_fn)(page, lruvec, arg);
	}
	if (pgdat)
		spin_unlock_irqrestore(&pgdat->lru_lock, flags);
    // 释放并重新初始化pagevec
	release_pages(pvec->pages, pvec->nr, pvec->cold);
	pagevec_reinit(pvec);
}

4.5 __pagevec_lru_add_fn

static inline int page_is_file_cache(struct page *page)
{
    // anonymous page通过磁盘上的swap分区或者在RAM开辟swap分区(zram)实现回收
    // page cache通过drop或者writeback回收
    // PG_swapbacked为0, 即page cache
	return !PageSwapBacked(page);
}

// inactive list：包括inactive page cache和inactive anonymous page
static inline enum lru_list page_lru_base_type(struct page *page)
{
	if (page_is_file_cache(page))
		return LRU_INACTIVE_FILE;
	return LRU_INACTIVE_ANON;
}

static void __pagevec_lru_add_fn(struct page *page, struct lruvec *lruvec,
				 void *arg)
{
    // 4.14.186内核实现
    // 判断是否文件缓存: 不需要swap分区支持的就是文件缓存
	// int file = page_is_file_cache(page);
    // 判断是否活跃
    // int active = PageActive(page);
    // 计算page的lru类型
	// enum lru_list lru = page_lru(page);
    // 将page添加到lruvec类型为lru的链表上, 然后更新node和zone的统计信息
	// add_page_to_lru_list(page, lruvec, lru);
    // 更新lruvec的zone_reclaim_stat成员信息
	// update_page_reclaim_stat(lruvec, file, active);
	// trace_mm_lru_insertion(page, lru);

    enum lru_list lru;
    // 判断page曾经是否不可回收, 同时清除其PG_unevictable标志位
	int was_unevictable = TestClearPageUnevictable(page);
    // 不能重复添加到lru链表
	VM_BUG_ON_PAGE(PageLRU(page), page);

    // 设置PG_lru标志位
	SetPageLRU(page);

	smp_mb();

    // 判断page是否可回收
	if (page_evictable(page)) {
        // 获取page的lru链表类型
		lru = page_lru(page);
		update_page_reclaim_stat(lruvec, page_is_file_cache(page),
					 PageActive(page));
		if (was_unevictable)
			count_vm_event(UNEVICTABLE_PGRESCUED);
	} else {
        // page属于不可回收的lru链表
		lru = LRU_UNEVICTABLE;
        // 清除PG_active标志位
		ClearPageActive(page);
        // 设置PG_unevictable标志位
		SetPageUnevictable(page);
		if (!was_unevictable)
			count_vm_event(UNEVICTABLE_PGCULLED);
	}

    // 将page添加到lruvec类型为lru的链表上, 然后更新node和zone的统计信息
	add_page_to_lru_list(page, lruvec, lru);
	trace_mm_lru_insertion(page, lru);
}

4.5.1 page_evictable

// 两种不可回收的情况
// 1.page->mapping被标记为不可回收
// 2.page属于1个被锁住的vma
int page_evictable(struct page *page)
{
	int ret;

	/* Prevent address_space of inode and swap cache from being freed */
	rcu_read_lock();
    // 首先判断page是否可以回收, 其次判断page是否设置PG_mlocked标志位
	ret = !mapping_unevictable(page_mapping(page)) && !PageMlocked(page);
	rcu_read_unlock();
	return ret;
}

4.5.2 page_mapping

struct address_space *page_mapping(struct page *page)
{
	struct address_space *mapping;

	page = compound_head(page);

	/* This happens if someone calls flush_dcache_page on slab page */
	if (unlikely(PageSlab(page)))
		return NULL;

    // swap缓存
	if (unlikely(PageSwapCache(page))) {
		swp_entry_t entry;

		entry.val = page_private(page);
        // 返回swapper_spaces数组的address_space元素
		return swap_address_space(entry);
	}

	mapping = page->mapping;
    // 如果是匿名映射则返回NULL
	if ((unsigned long)mapping & PAGE_MAPPING_ANON)
		return NULL;

    // 返回page映射的address_space
	return (void *)((unsigned long)mapping & ~PAGE_MAPPING_FLAGS);
}

4.5.3 mapping_unevictable

/*
 * Bits in mapping->flags.
 */
enum mapping_flags {
	AS_EIO		= 0,	/* IO error on async write */
	AS_ENOSPC	= 1,	/* ENOSPC on async write */
	AS_MM_ALL_LOCKS	= 2,	/* under mm_take_all_locks() */
	AS_UNEVICTABLE	= 3,	/* e.g., ramdisk, SHM_LOCK */
	AS_EXITING	= 4, 	/* final truncate in progress */
	/* writeback related tags are not used */
	AS_NO_WRITEBACK_TAGS = 5,
};

static inline int mapping_unevictable(struct address_space *mapping)
{
    // 判断address_space->flags是否含有AS_UNEVICTABLE标志位
	if (mapping)
		return test_bit(AS_UNEVICTABLE, &mapping->flags);
	return !!mapping;
}

4.6 add_page_to_lru_list

static __always_inline void add_page_to_lru_list(struct page *page,
				struct lruvec *lruvec, enum lru_list lru)
{
    // 更新node和zone中的lru链表大小: page_zonenum返回page对应的zone索引
	update_lru_size(lruvec, lru, page_zonenum(page), hpage_nr_pages(page));
    // 将page插入到lruvec对应的链表末尾
	list_add(&page->lru, &lruvec->lists[lru]);
}

4.6.1 update_lru_size

static __always_inline void update_lru_size(struct lruvec *lruvec,
				enum lru_list lru, enum zone_type zid,
				int nr_pages)
{
    // 继续调用__update_lru_size
	__update_lru_size(lruvec, lru, zid, nr_pages);
#ifdef CONFIG_MEMCG
    // memory cgroup使能时更新mem_cgroup_per_node
	mem_cgroup_update_lru_size(lruvec, lru, zid, nr_pages);
#endif
}

4.6.2 __update_lru_size

static __always_inline void __update_lru_size(struct lruvec *lruvec,
				enum lru_list lru, enum zone_type zid,
				int nr_pages)
{
    // lruvec对应的节点
	struct pglist_data *pgdat = lruvec_pgdat(lruvec);

    // 更新node统计信息
	__mod_node_page_state(pgdat, NR_LRU_BASE + lru, nr_pages);
    // 更新zone统计信息
	__mod_zone_page_state(&pgdat->node_zones[zid],
				NR_ZONE_LRU_BASE + lru, nr_pages);
}

4.6.3 __mod_node_page_state

enum node_stat_item {
	NR_LRU_BASE,
	NR_INACTIVE_ANON = NR_LRU_BASE, /* must match order of LRU_[IN]ACTIVE */
	NR_ACTIVE_ANON,		/*  "     "     "   "       "         */
	NR_INACTIVE_FILE,	/*  "     "     "   "       "         */
	NR_ACTIVE_FILE,		/*  "     "     "   "       "         */
	NR_UNEVICTABLE,		/*  "     "     "   "       "         */
    ...
	NR_VM_NODE_STAT_ITEMS
};

static inline void __mod_node_page_state(struct pglist_data *pgdat,
			enum node_stat_item item, int delta)
{
    // delta代表新增的page数量
	node_page_state_add(delta, pgdat, item);
}

static inline void node_page_state_add(long x, struct pglist_data *pgdat,
				 enum node_stat_item item)
{
    // 更新node的vm_stat统计
	atomic_long_add(x, &pgdat->vm_stat[item]);
    // 更新全局的vm_node_stat统计
	atomic_long_add(x, &vm_node_stat[item]);
}

4.6.4 __mod_zone_page_state

enum zone_stat_item {
	/* First 128 byte cacheline (assuming 64 bit words) */
	NR_FREE_PAGES,
	NR_ZONE_LRU_BASE, /* Used only for compaction and reclaim retry */
	NR_ZONE_INACTIVE_ANON = NR_ZONE_LRU_BASE,
	NR_ZONE_ACTIVE_ANON,
	NR_ZONE_INACTIVE_FILE,
	NR_ZONE_ACTIVE_FILE,
	NR_ZONE_UNEVICTABLE,
    ...
	NR_VM_ZONE_STAT_ITEMS };

static inline void __mod_zone_page_state(struct zone *zone,
			enum zone_stat_item item, long delta)
{
    // delta代表新增的page数量
	zone_page_state_add(delta, zone, item);
}

static inline void zone_page_state_add(long x, struct zone *zone,
				 enum zone_stat_item item)
{
    // 更新zone的vm_stat统计
	atomic_long_add(x, &zone->vm_stat[item]);
    // 更新全局的vm_zone_stat统计
	atomic_long_add(x, &vm_zone_stat[item]);
}

5. mark_page_accessed(二次机会法)

// 当page被访问时会有以下三种PG_active和PG_referenced的组合
// 一.不活跃且未被引用 -> 转换为不活跃且被引用
// 二.不活跃且被引用 -> 转换为活跃且未被引用
// 三.活跃且未被引用 -> 转换为活跃且被引用
void mark_page_accessed(struct page *page)
{
    page = compound_head(page);
    // 1. PG_active为0, 即inactive page
    // 2. PG_unevictable为0, 即可回收的page
    // 3. PG_referenced为1, 即已经被使用的page
    // 对应第二种组合: inactive,referenced		->	active,unreferenced
    if (!PageActive(page) && !PageUnevictable(page) &&
        PageReferenced(page)) {
        // PG_lru为1, 即在lru链表中
        if (PageLRU(page))
            // 激活page: 将page从inactive list迁移到active list
            activate_page(page);
        else
            // 激活page: 将PG_active标志位设置为1
            __lru_cache_activate_page(page);
        // 清除PG_referenced标志位
        ClearPageReferenced(page);
        if (page_is_file_cache(page))
            workingset_activation(page);
    } else if (!PageReferenced(page)) {
        // 对应第一种和第三种组合
        // inactive,unreferenced	->	inactive,referenced
        // active,unreferenced		->	active,referenced
        // 只需设置PG_referenced标志位
        SetPageReferenced(page);
    }
    if (page_is_idle(page))
        clear_page_idle(page);
}

5.1 activate_page

// 支持对称多处理器
#ifdef CONFIG_SMP
// 每个cpu都有1个pagevec用于保存active page
static DEFINE_PER_CPU(struct pagevec, activate_page_pvecs);

void activate_page(struct page *page)
{
	page = compound_head(page);
    // page需要满足在lru链表, inactive和evictable三个条件
	if (PageLRU(page) && !PageActive(page) && !PageUnevictable(page)) {
        // 获取当前cpu的activate_page_pvecs
		struct pagevec *pvec = &get_cpu_var(activate_page_pvecs);

		get_page(page);
        // 同前面介绍过的__lru_cache_add类似
        // 1.首先尝试调用pagevec_add将page添加到pagevec
        // 2.如果添加失败代表pagevec已满, 则将pagevec批量激活
		if (!pagevec_add(pvec, page) || PageCompound(page))
			pagevec_lru_move_fn(pvec, __activate_page, NULL);
        // 更新activate_page_pvecs
		put_cpu_var(activate_page_pvecs);
	}
}
#else
void activate_page(struct page *page)
{
    // 获取page对用的zone
    struct zone *zone = page_zone(page);

    page = compound_head(page);
    spin_lock_irq(zone_lru_lock(zone));
    // mem_cgroup_page_lruvec返回值
    // 1.如果支持memory cgroup, 返回mem_cgroup_per_node->lruvec
    // 2.否则返回pglist_data->lruvec
    __activate_page(page, mem_cgroup_page_lruvec(page, zone->zone_pgdat), NULL);
    spin_unlock_irq(zone_lru_lock(zone));
}
#endif

5.2 __activate_page

// page: 即将被激活的page
// lruvec: page对应的lruvec
static void __activate_page(struct page *page, struct lruvec *lruvec,
			    void *arg)
{
    // 这三个条件已经在mark_page_accessed中判断过
    // 对应为: inactive,referenced		->	active,unreferenced
	if (PageLRU(page) && !PageActive(page) && !PageUnevictable(page)) {
        // 判断是否page cache
		int file = page_is_file_cache(page);
        // 判断lru类型
		int lru = page_lru_base_type(page);

        // 将page从lruvec原有的inactive list中删除
		del_page_from_lru_list(page, lruvec, lru);
        // 将PG_active置为1, page状态由inactive变为active
		SetPageActive(page);
        // lru链表类型变为LRU_ACTIVE_ANON或者LRU_ACTIVE_FILE
		lru += LRU_ACTIVE;
        // 将page插入到lruvec的lists[LRU_ACTIVE_ANON]或者lists[LRU_ACTIVE_FILE]链表尾部
		add_page_to_lru_list(page, lruvec, lru);
		trace_mm_lru_activate(page);

		__count_vm_event(PGACTIVATE);
		update_page_reclaim_stat(lruvec, file, 1);
	}
}

5.2.1 del_page_from_lru_list

static __always_inline void del_page_from_lru_list(struct page *page,
				struct lruvec *lruvec, enum lru_list lru)
{
    // 将page从原有lru链表删除
	list_del(&page->lru);
    // 更新node和zone的数据统计: 这里是删除所以是取page的负数
	update_lru_size(lruvec, lru, page_zonenum(page), -hpage_nr_pages(page));
}

5.2.2 add_page_to_lru_list

static __always_inline void add_page_to_lru_list(struct page *page,
				struct lruvec *lruvec, enum lru_list lru)
{
    // 更新node和zone的数据统计: 这里是添加所以是加上page数
	update_lru_size(lruvec, lru, page_zonenum(page), hpage_nr_pages(page));
    // 将page添加到lru类型的链表上
	list_add(&page->lru, &lruvec->lists[lru]);
}

5.3 __lru_cache_activate_page

// lru_cache_add一节中介绍过lru_add_pvec用于存放待批量操作的page
static DEFINE_PER_CPU(struct pagevec, lru_add_pvec);

static void __lru_cache_activate_page(struct page *page)
{
    // 获取当前cpu的pagevec
	struct pagevec *pvec = &get_cpu_var(lru_add_pvec);
	int i;

    // 遍历pagevec中的每个page
	for (i = pagevec_count(pvec) - 1; i >= 0; i--) {
		struct page *pagevec_page = pvec->pages[i];

        // 如果传入的page已经在pagevec中, 则设置其PG_active为1, page状态由inactive改变为active
		if (pagevec_page == page) {
			SetPageActive(page);
			break;
		}
	}

    // 更新pagevec
	put_cpu_var(lru_add_pvec);
}

6. page_check_references

static enum page_references page_check_references(struct page *page,
						  struct scan_control *sc)
{
	int referenced_ptes, referenced_page;
	unsigned long vm_flags;

    // 判断page被pte引用的次数
	referenced_ptes = page_referenced(page, 1, sc->target_mem_cgroup,
					  &vm_flags);
    // 返回并清除PG_referenced标志位
	referenced_page = TestClearPageReferenced(page);

	/*
	 * Mlock lost the isolation race with us.  Let try_to_unmap()
	 * move the page to the unevictable list.
	 */
	if (vm_flags & VM_LOCKED)
		return PAGEREF_RECLAIM;

	if (referenced_ptes) {
		if (PageSwapBacked(page))
			return PAGEREF_ACTIVATE;

		SetPageReferenced(page);

		if (referenced_page || referenced_ptes > 1)
			return PAGEREF_ACTIVATE;

		/*
		 * Activate file-backed executable pages after first usage.
		 */
		if (vm_flags & VM_EXEC)
			return PAGEREF_ACTIVATE;

		return PAGEREF_KEEP;
	}

	/* Reclaim if clean, defer dirty pages to writeback */
	if (referenced_page && !PageSwapBacked(page))
		return PAGEREF_RECLAIM_CLEAN;

	return PAGEREF_RECLAIM;
}

6.1 page_referenced

// 1.利用rmap系统遍历所有映射该页面的pte
// 2.对每个pte: 如果L_PTE_YOUNG比特位置位说明之前被访问过,referenced计数加1；
// 然后清空L_PTE_YOUNG.对ARM32来说会清空硬件页表项内容, 人为制造一个缺页中断
// 当再次访问该pte时，在缺页中断中设置L_PTE_YOUNG比特位
// 2.返回referenced计数, 表示该页有多少个访问引用pte
int page_referenced(struct page *page,
		    int is_locked,
		    struct mem_cgroup *memcg,
		    unsigned long *vm_flags)
{
	int we_locked = 0;
	struct page_referenced_arg pra = {
		.mapcount = total_mapcount(page),
		.memcg = memcg,
	};
	struct rmap_walk_control rwc = {
		.rmap_one = page_referenced_one,
		.arg = (void *)&pra,
		.anon_lock = page_lock_anon_vma_read,
	};

	*vm_flags = 0;
	if (!page_mapped(page))
		return 0;

	if (!page_rmapping(page))
		return 0;

	if (!is_locked && (!PageAnon(page) || PageKsm(page))) {
		we_locked = trylock_page(page);
		if (!we_locked)
			return 1;
	}

	/*
	 * If we are reclaiming on behalf of a cgroup, skip
	 * counting on behalf of references from different
	 * cgroups
	 */
	if (memcg) {
		rwc.invalid_vma = invalid_page_referenced_vma;
	}

	rmap_walk(page, &rwc);
	*vm_flags = pra.vm_flags;

	if (we_locked)
		unlock_page(page);

	return pra.referenced;
}

6.2 page_referenced_one

static bool page_referenced_one(struct page *page, struct vm_area_struct *vma,
			unsigned long address, void *arg)
{
	struct page_referenced_arg *pra = arg;
	struct page_vma_mapped_walk pvmw = {
		.page = page,
		.vma = vma,
		.address = address,
	};
	int referenced = 0;

	while (page_vma_mapped_walk(&pvmw)) {
		address = pvmw.address;

		if (vma->vm_flags & VM_LOCKED) {
			page_vma_mapped_walk_done(&pvmw);
			pra->vm_flags |= VM_LOCKED;
			return false; /* To break the loop */
		}

		if (pvmw.pte) {
			if (ptep_clear_flush_young_notify(vma, address,
						pvmw.pte)) {
				if (likely(!(vma->vm_flags & VM_SEQ_READ)))
					referenced++;
			}
		} else if (IS_ENABLED(CONFIG_TRANSPARENT_HUGEPAGE)) {
			if (pmdp_clear_flush_young_notify(vma, address,
						pvmw.pmd))
				referenced++;
		} else {
			/* unexpected pmd-mapped page? */
			WARN_ON_ONCE(1);
		}

		pra->mapcount--;
	}

	if (referenced)
		clear_page_idle(page);
	if (test_and_clear_page_young(page))
		referenced++;

	if (referenced) {
		pra->referenced++;
		pra->vm_flags |= vma->vm_flags;
	}

	if (!pra->mapcount)
		return false; /* To break the loop */

	return true;
}
