从0到1 手把手搭建spring cloud alibaba 微服务大型应用框架（十二）日志篇(1)：rocketmq+ aop +自定义注解 实现入参出参日志收集记录 完整源码

发布于：2022-12-19 ⋅ 阅读:(642) ⋅ 点赞:(0)

入参出参日志

我们日常开发中日志是不可缺少的一部分，

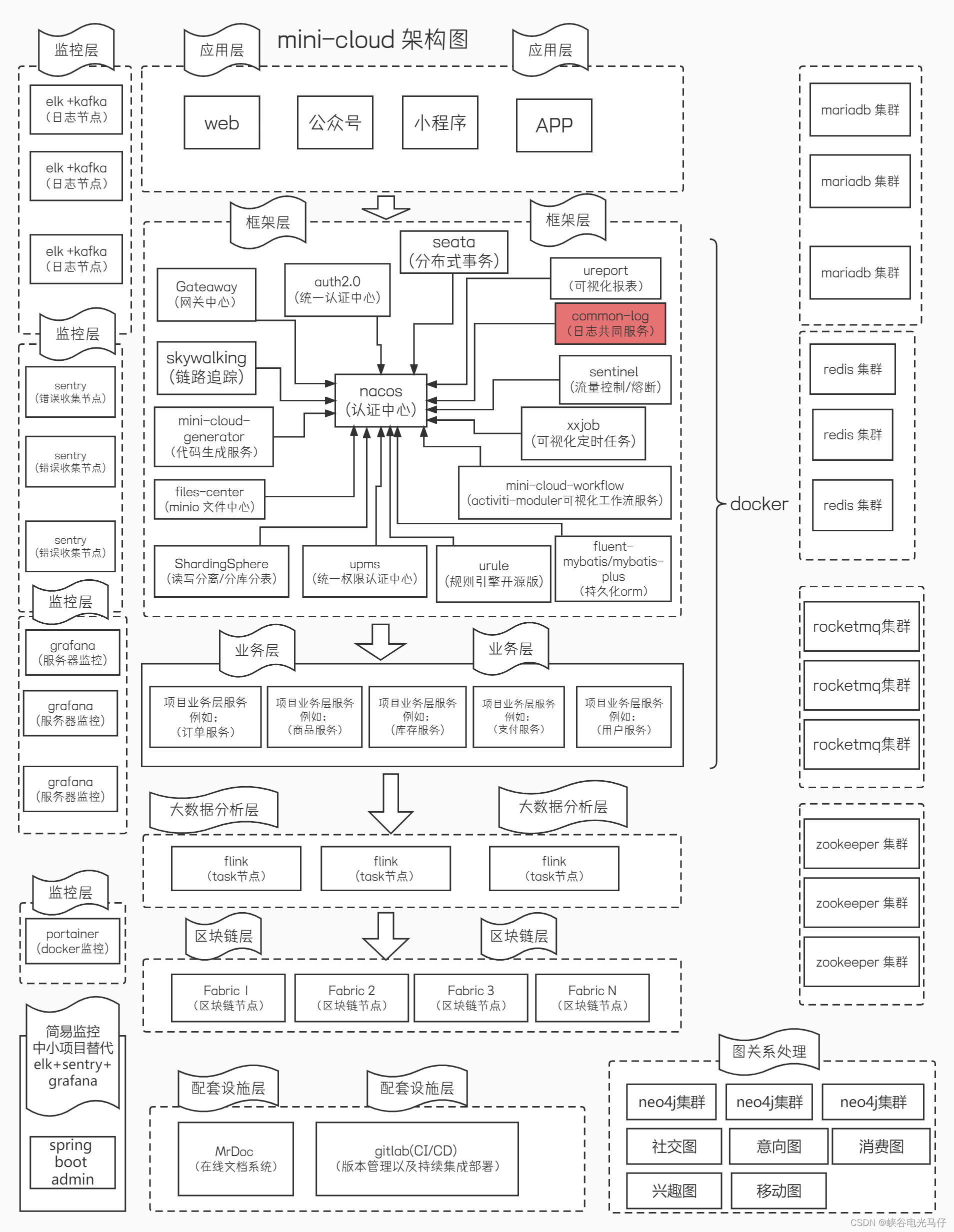

如mini-cloud架构图所示，大型系统一般可用elk 等进行日志收集
中小型系统也可以用spring-boot-admin 等进行收集，但我们业务场景经常
会有一种需求，就是一些重要入参出参接口希望按照url 进行收集并便于以后排查分析
比较典型的就是金融产品或者银行产品扣款，出账，转账，扣款等

期望效果

我们可能会希望通过一个url 或者关联参数定位查询某接口入参出参，比如转账例子，我们希望单独看转账接口得入出参日志

url: /transfer
args: {"transfer":1,"amount":200,"to":2}
response: {"status":200,"msg":"转账成功"}
keyword:{"转账"}
description:"转账接口记录"

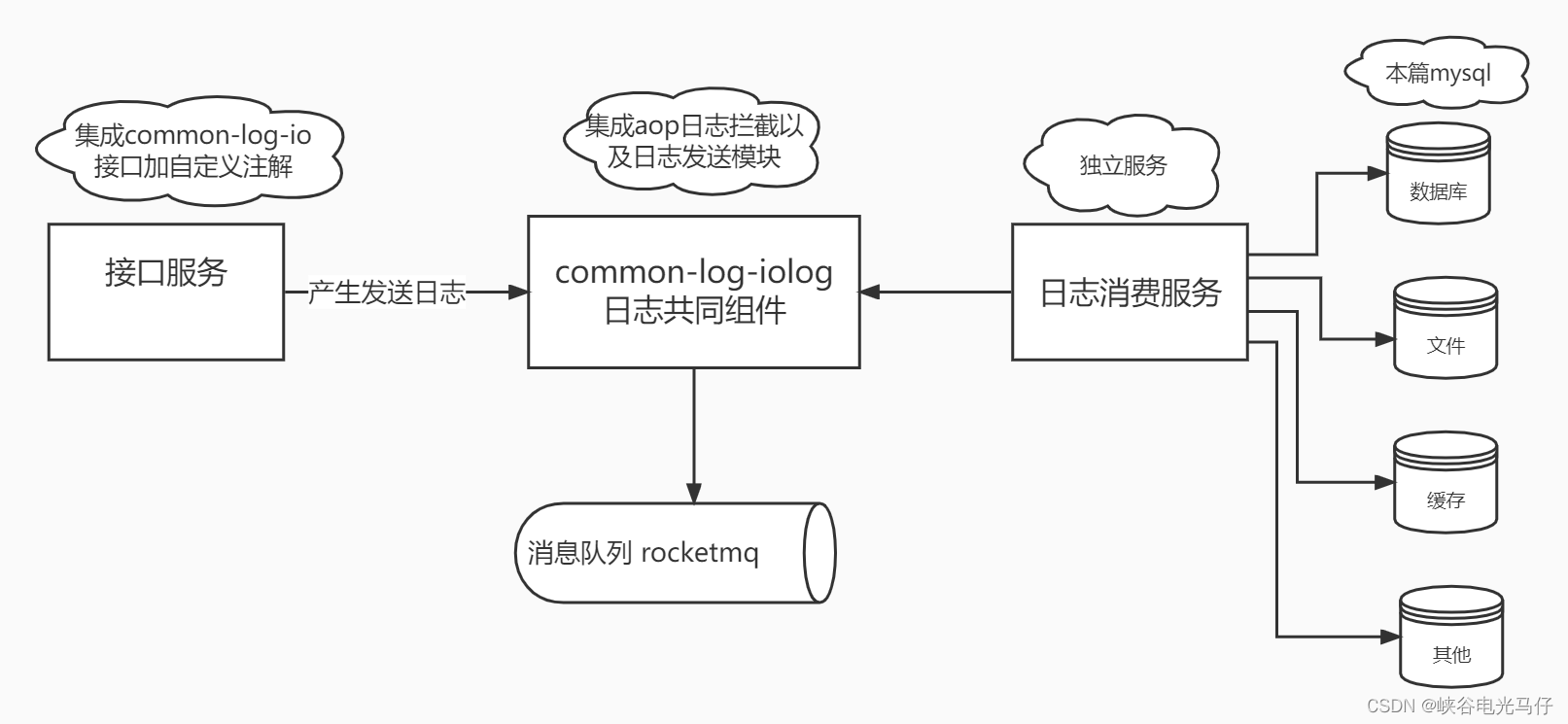

架构图

源码

共通部分aop+自定义注解

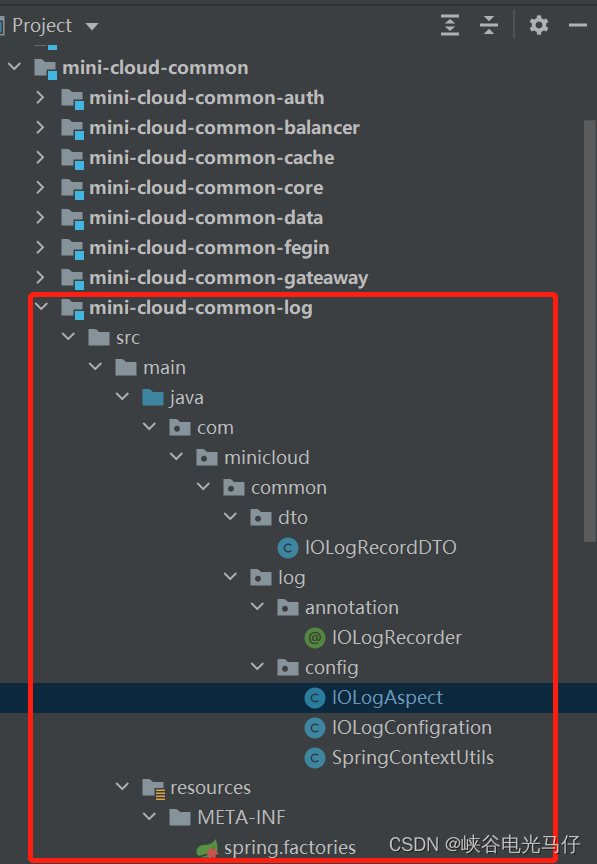

我们在共同中添加common-log模块，并添加spring.factories 自动注入，目录结构如下：



 pom.xml

    <dependencies>
        <!--web 模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>

        <!--rocketmq依赖-->
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-spring-boot-starter</artifactId>
            <version>2.2.2</version>
        </dependency>
    </dependencies>

 IOLogRecordDTO.java


@Builder
@Getter
@Setter
public class IOLogRecordDTO implements Serializable {

    private Long timestamp ;

    private String method;

    private String url ;

    private String contentType;

    private String args ;

    private Object response ;

    private String dateTime;

    private String keyword ;

    private String description;


}


IOLogRecorder.java
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
public @interface IOLogRecorder {

    String keyword() default "";

    String descrition() default "";
}

IOLogAspect.java

@Aspect
public class IOLogAspect {

    @Autowired
    RocketMQTemplate rocketMQTemplate;

    @Pointcut("@annotation(com.minicloud.common.log.annotation.IOLogRecorder)")
    public void pointCut() {
    }

    @Around("pointCut()")
    public Object record(ProceedingJoinPoint joinPoint) throws Throwable {

        ServletRequestAttributes servletRequestAttributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        HttpServletRequest request = servletRequestAttributes.getRequest();
        String url = request.getRequestURI();
        String contentType= request.getHeader("content-type");
        String method = request.getMethod();

        Signature signature = joinPoint.getSignature();
        MethodSignature methodSignature = (MethodSignature) signature;
        IOLogRecorder ioLogRecorder = methodSignature.getMethod().getAnnotation(IOLogRecorder.class);
        System.out.println(methodSignature.getMethod().getName());
        Object[] args = joinPoint.getArgs();
        String inArgs = JSONUtil.toJsonStr(args);
        Object response =  joinPoint.proceed();
        long timestamp = System.nanoTime();
        IOLogRecordDTO ioLogRecordDTO = IOLogRecordDTO.builder().keyword(ioLogRecorder.keyword()).description(ioLogRecorder.descrition()).url(url).contentType(contentType).method(method).args(inArgs).response(response).dateTime(LocalDateTime.now().format(DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss.SSS"))).timestamp(timestamp).build();
        rocketMQTemplate.send("iolog", MessageBuilder.withPayload(ioLogRecordDTO).build());
        return response;
    }

}

IOLogConfigration.java
@Configuration
public class IOLogConfigration {

    @Bean
    public IOLogAspect ioLogAspect(){
        return new IOLogAspect();
    }
}

spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
com.minicloud.common.log.config.IOLogConfigration

rockemq搭建

 本篇暂时不提及rocketmq搭建，因为涉及内容太多，会有单独篇幅介绍

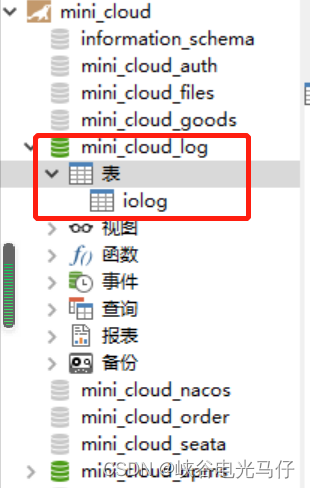

日志数据库创建

 日志存储可以是数据库，文件，缓存等，本篇使用的是mysql数据库

CREATE TABLE `iolog` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '住建',
  `timestamp` bigint(20) DEFAULT NULL COMMENT '时间戳',
  `method` varchar(10) DEFAULT '' COMMENT '请求方式',
  `url` varchar(100) DEFAULT NULL COMMENT '请求url',
  `content_type` varchar(30) DEFAULT '' COMMENT '数据类型',
  `args` varchar(500) DEFAULT '' COMMENT '请求参数',
  `response` varchar(1000) DEFAULT '' COMMENT '响应',
  `data_time` varchar(30) DEFAULT '' COMMENT '日志时间',
  `keyword` varchar(50) DEFAULT '' COMMENT '关键字',
  `description` varchar(100) DEFAULT NULL COMMENT '描述',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=18 DEFAULT CHARSET=utf8mb4;

mq 消费端搭建

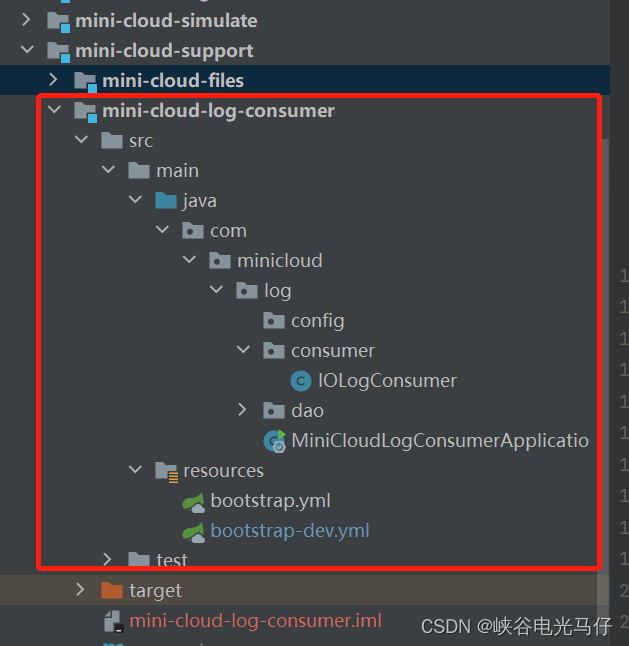

mq消费端是一个独立的mq服务，因为以后还需要集成别的消费业务，所以独立消费端便于扩展，不与具体某业务服务耦合，具体代码如下：



 pom.xml

    <dependencies>

        <!--注册中心客户端-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--配置中心客户端-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--日志拦截依赖-->
        <dependency>
            <groupId>org.mini-cloud</groupId>
            <artifactId>mini-cloud-common-log</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.mini-cloud</groupId>
            <artifactId>mini-cloud-common-fegin</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
        <!--common data 依赖 -->
        <dependency>
            <groupId>org.mini-cloud</groupId>
            <artifactId>mini-cloud-common-data</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.mini-cloud</groupId>
            <artifactId>mini-cloud-common-auth</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>


IOLogConsumer.java
@Component
@RocketMQMessageListener(consumerGroup = "group-a", topic = "iolog",consumeMode = ConsumeMode.ORDERLY)
public class IOLogConsumer implements RocketMQListener<String> {

    @Autowired
    private IOLogRecordDao ioLogRecordDao;

    @Override
    public void onMessage(String message) {

        IOLogRecordDTO ioLogRecordDTO = JSONUtil.toBean(message,IOLogRecordDTO.class);
        ioLogRecordDao.insert(ioLogRecordDTO);
    }
}

MiniCloudLogConsumerApplication.java
@SpringCloudApplication
@EnableCaching
@EnableMiniCloudFeignClients
@EnableMiniCloudResourceServer
public class MiniCloudLogConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(MiniCloudLogConsumerApplication.class, args);
    }

}

nacos 中 mini-cloud-log-consumer-dev.yml

server:
  port: 6600
  tomcat:
    uri-encoding: UTF-8
    max-threads: 500
    max-connections: 10000
    accept-count: 500


spring:
  shardingsphere:
    props:
      sql:
        show: true
    datasource:
      names: master,slave0,slave1
      master:
        type: com.alibaba.druid.pool.DruidDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://${MYSQL_HOST:192.168.1.2}:${MYSQL_PORT:3306}/${MYSQL_DB:mini_cloud_log}?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&allowMultiQueries=true&allowPublicKeyRetrieval=true
        username: root
        password: root
      slave0:
        type: com.alibaba.druid.pool.DruidDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://${MYSQL_HOST:192.168.1.2}:${MYSQL_PORT:3306}/${MYSQL_DB:mini_cloud_log}?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&allowMultiQueries=true&allowPublicKeyRetrieval=true
        username: root
        password: root
      slave1:
        type: com.alibaba.druid.pool.DruidDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://${MYSQL_HOST:192.168.1.2}:${MYSQL_PORT:3306}/${MYSQL_DB:mini_cloud_log}?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&allowMultiQueries=true&allowPublicKeyRetrieval=true
        username: root
        password: root
    sharding:
      master-slave-rules:
        master:
          master-data-source-name: master
          slave-data-source-names: slave0,slave1

服务日志发送方集成

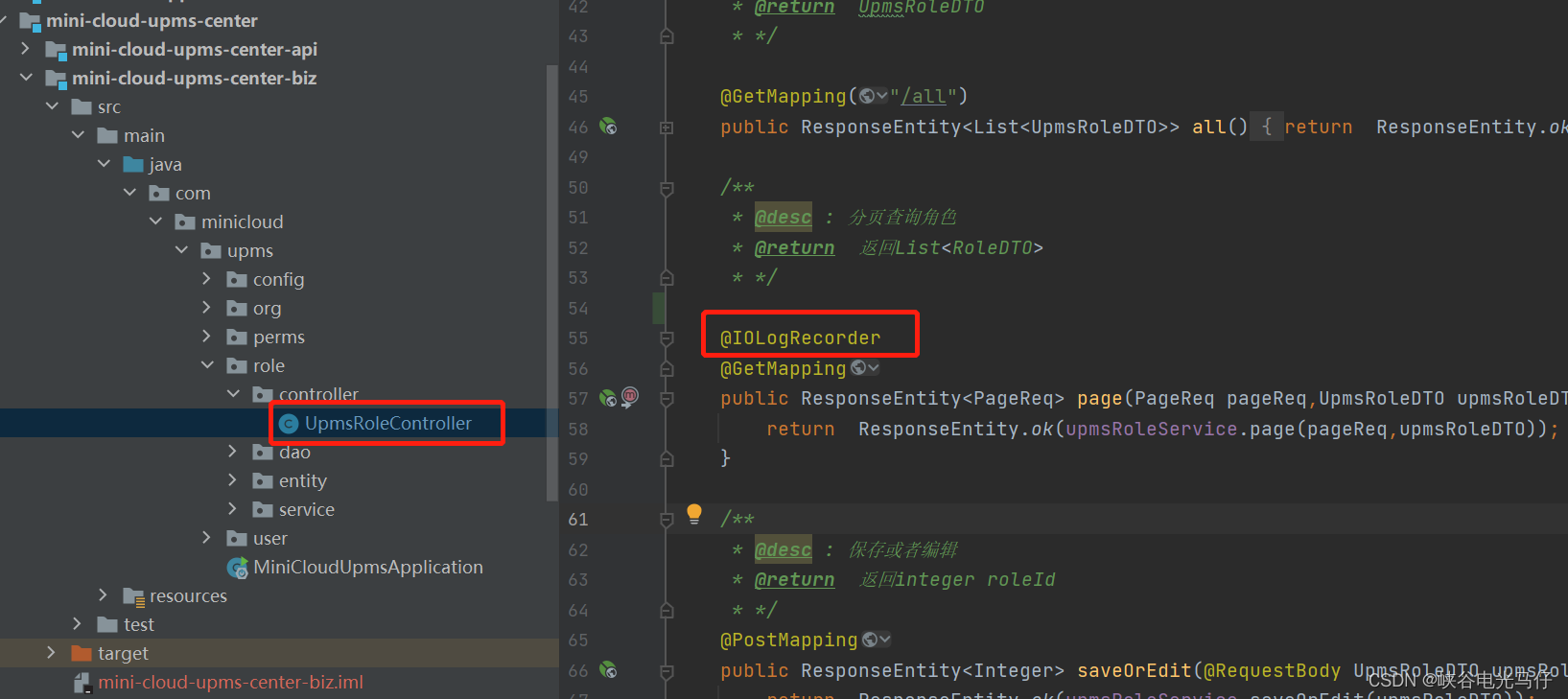

日志发送方其实就是实际的各个业务端服务，本文在upms 服务的一个角色分页接口加上日志注解，只要添加 @IOLogRecorder 变可自动收集入参出参发送到mq,如下：



重启服务以及查看结果

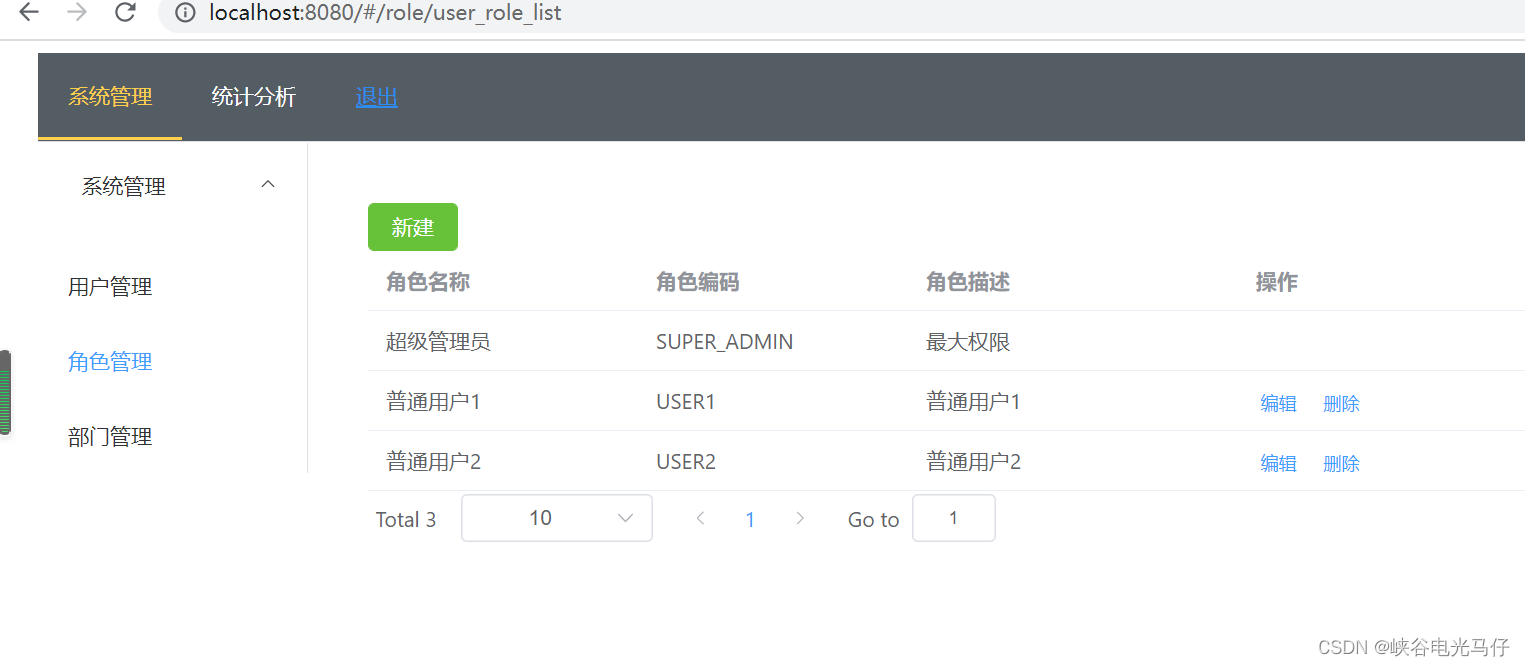

我们在业务端请求一个角色分页列表接口，来看看效

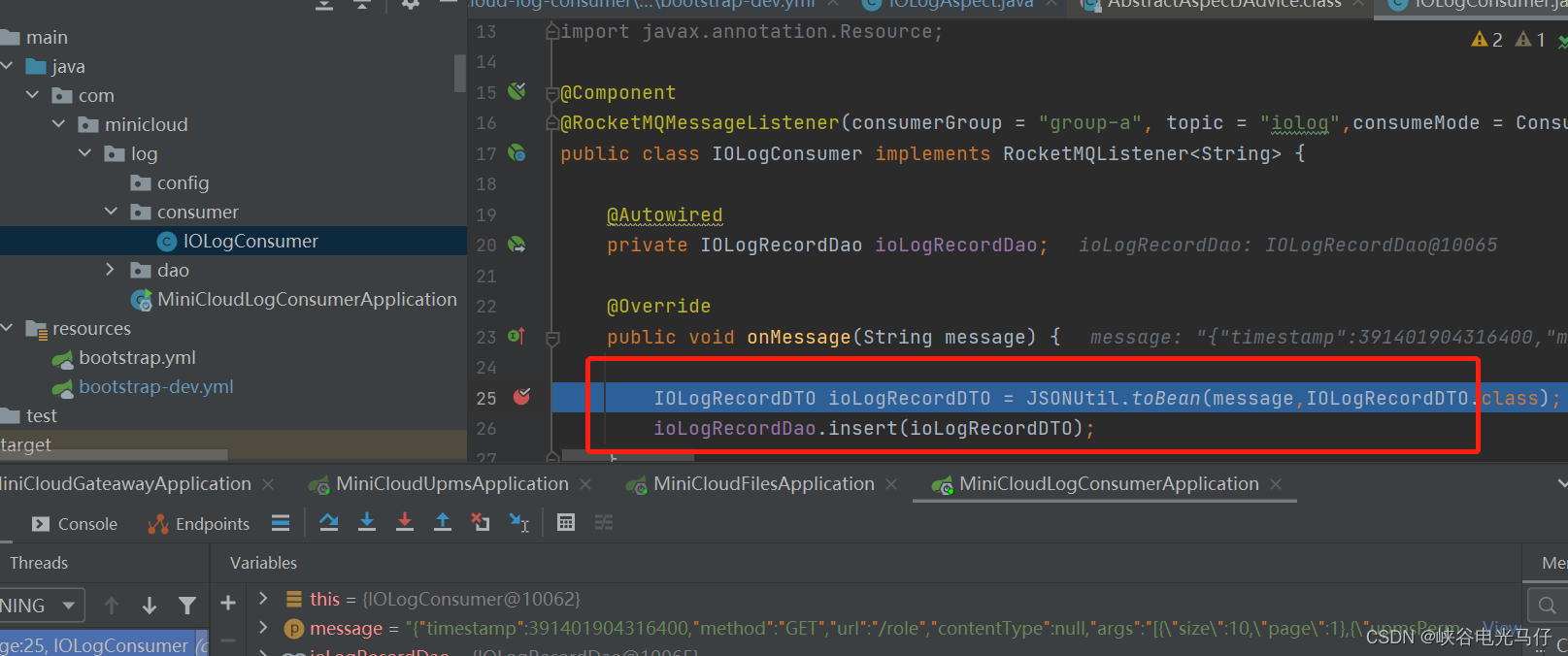

 业务消费端接收到消息



 来看看response

{
    "headers": { },
    "statusCodeValue": 200,
    "body": {
        "data": [
            {
                "roleId": 33,
                "roleDesc": "最大权限",
                "roleCode": "SUPER_ADMIN",
                "roleName": "超级管理员",
                "tenantId": 1,
                "upmsPermDTOS": [ ]
            },
            {
                "roleId": 34,
                "roleDesc": "普通用户1",
                "roleCode": "USER1",
                "roleName": "普通用户1",
                "tenantId": 1,
                "upmsPermDTOS": [ ]
            },
            {
                "roleId": 35,
                "roleDesc": "普通用户2",
                "roleCode": "USER2",
                "roleName": "普通用户2",
                "tenantId": 1,
                "upmsPermDTOS": [ ]
            }
        ],
        "total": 3,
        "size": 10,
        "page": 1
    },
    "statusCode": "OK"
}

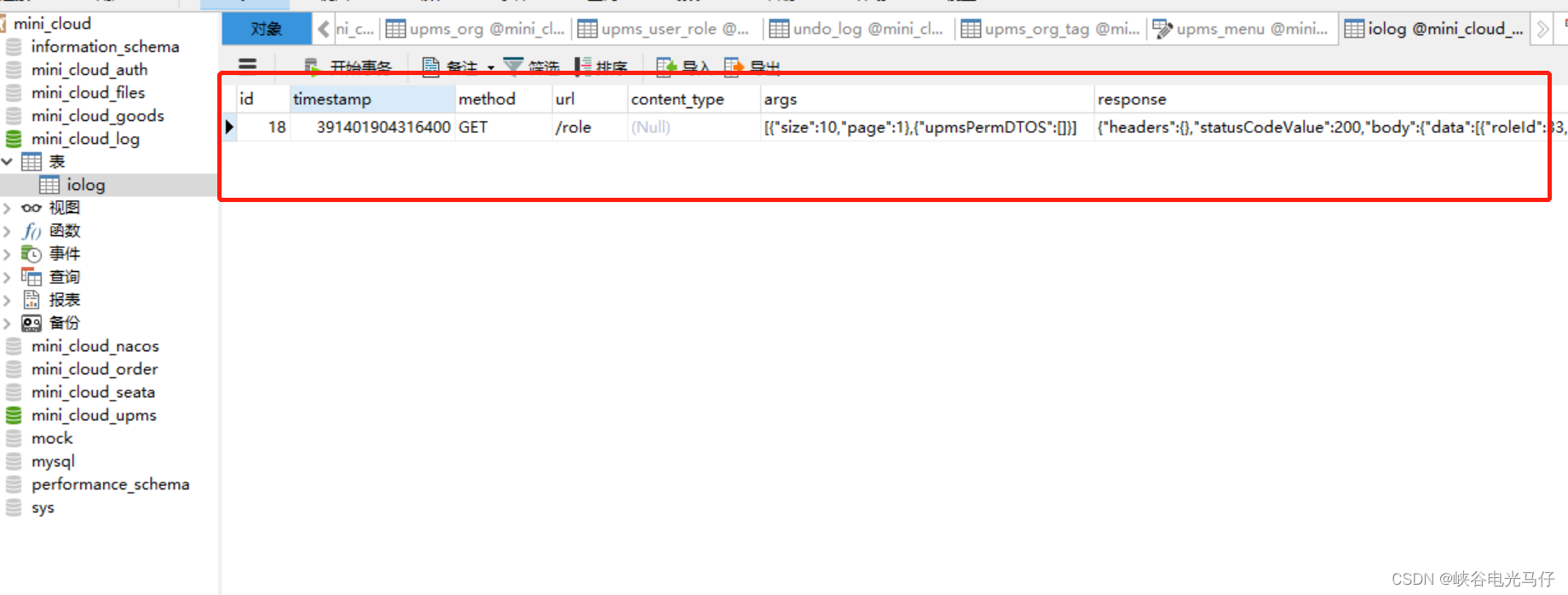

看结果已经通过mq消费端保存到数据库里了，以后可以通过各个字段进行查询操作
