Update on September 13, 2022: please refer to To V Or Not To V? – FPGA Coding.

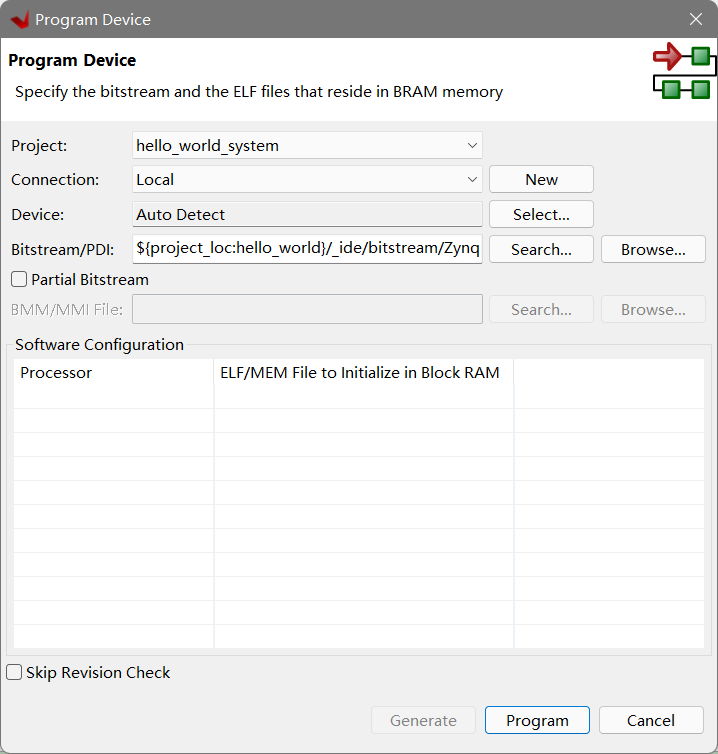

In Xilinx Vitis 2021, Menu->Xilinx->Program Device:

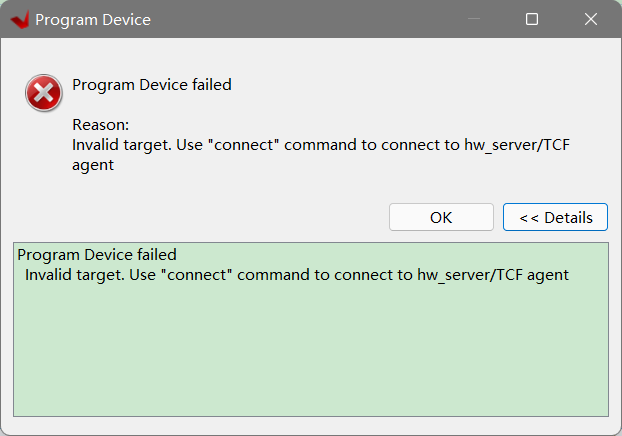

It showed an error:
but it is not applicable for Xilinx Vitis 2021. Inspired by【分享】如何使用coresight作为MPSoC的标准输入输出？ - HankFu - 博客园 (cnblogs.com)
https://www.cnblogs.com/hankfu/p/14441851.html

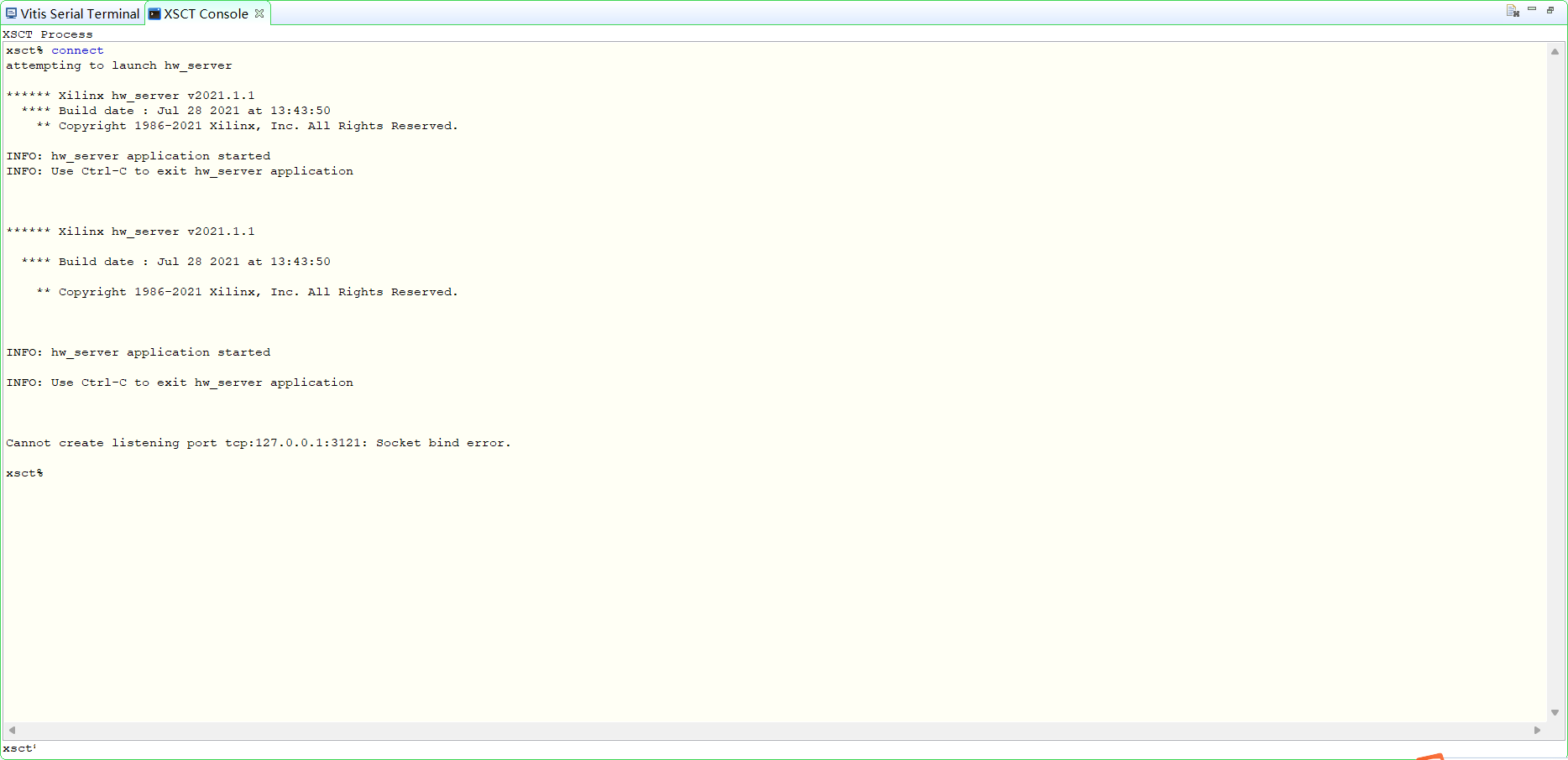

I opened Menu->Xilinx->XSCT Console and ran
connect

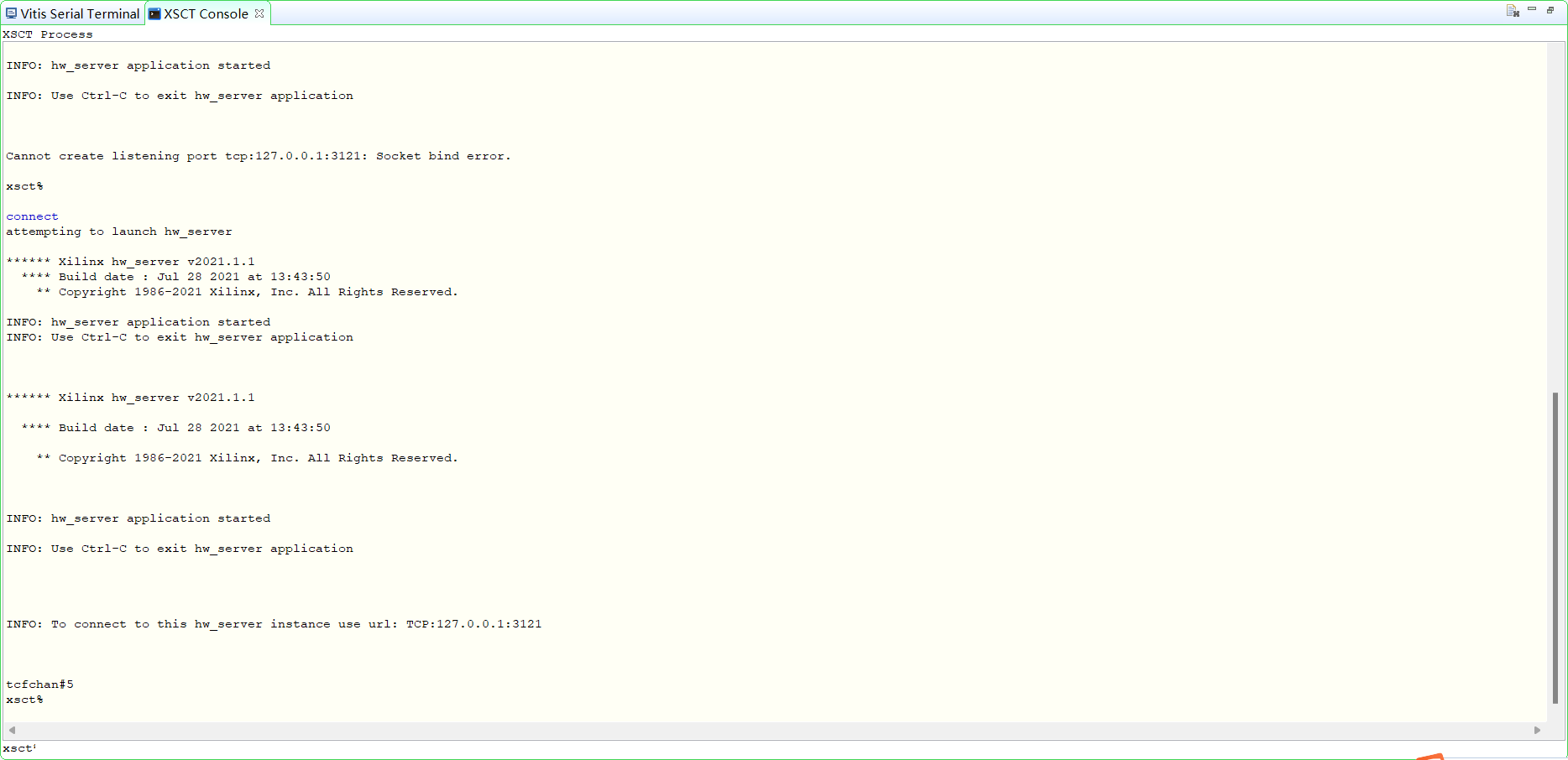

If closing Xilinx Vivado on my computer and tried to reconnect, it succeeded:
Then, re-program the device; anything would be OK. Sometimes this still does not work. However, it seems that restarting the computer always works. What is the reason for this indeed?
- Try to reinstall the drivers:

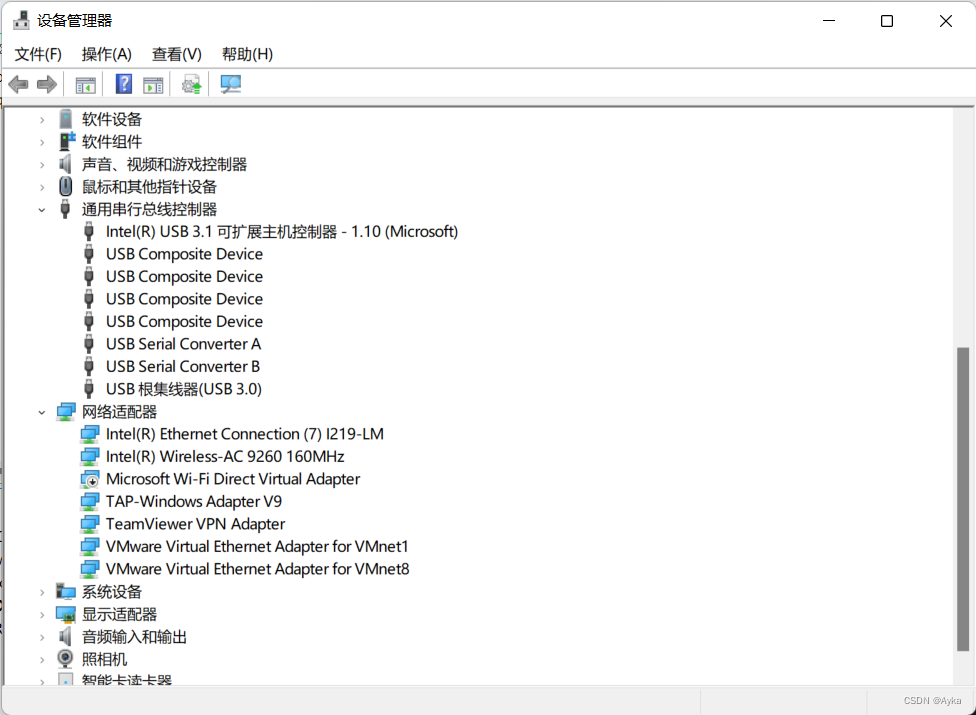

cd F:\Xilinx\Vivado\2022.1\data\xicom\cable_drivers\nt64 install_drivers_wrapper.bat - Check the driver setup for the FTDI device. In Device Manager->Universal Serial Bus controllers->USB Serial Converter A and USB Serial Converter B:
Check the "Driver" tab:

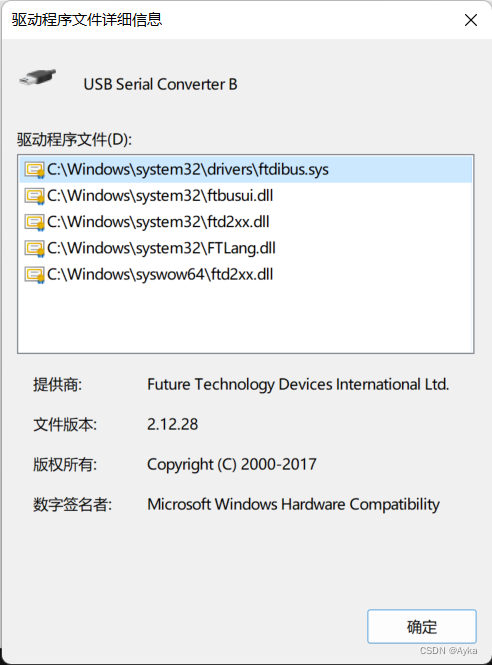

To Update Driver does not update because it is already the latest. Check "Driver Details":

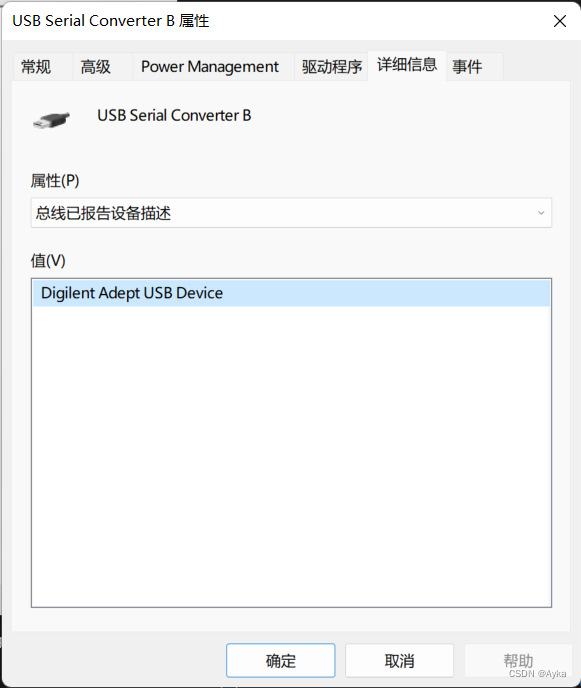

Check the "Details" tab and select "Bus reported device description" Property. Check the value "Diligent Adept USB Device":
- Run
F:\Xilinx\Vivado\2022.1\bin\unwrapped\win64.o\hw_server.exein CMD. It should output
****** Xilinx hw_server v2022.1.2
**** Build date : Aug 5 2022 at 23:12:38
** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.INFO: hw_server application started
INFO: Use Ctrl-C to exit hw_server applicationINFO: To connect to this hw_server instance use url: TCP:Administrator:3121
but it instead shows:
Cannot create listening port: Socket bind error. An attempt was made to access a socket in a way forbidden by its access permissions
Run
netstat -ano | findstr 3121or
netstat -abp TCP | find “3121”but found nothing. No processes are listening or connected to that port.
Test by code:
int createListenSocket(int port) { errCode = E_NONE; auto s = socket(PF_INET, SOCK_STREAM, 0); SOCKADDR_IN sin; sin.sin_family = PF_INET; sin.sin_addr.s_addr = 0; sin.sin_port = htons(port); auto result = bind(s, (LPSOCKADDR)&sin, sizeof(sin)); if (result) { errCode = WSAGetLastError(); closesocket(s); return errCode; } result = listen(s, SOMAXCONN); if (result) { errCode = WSAGetLastError(); } closesocket(s); return errCode; } int main(int argc, char *argv[]) { auto result = initWinsock(); // check ports result = createListenSocket(3121); assert(result == E_NONE); // cleanup WSACleanup(); }The code was unable to bind successfully to port 3121.
One way is to run hw_server by
hw_server.exe -s tcp::50000However, it cannot change 3001-3003:
Warning: Cannot create '3001:arm64' GDB server: An attempt was made to access a socket in a way forbidden by its access permissions Warning: Cannot create '3002:microblaze' GDB server: An attempt was made to access a socket in a way forbidden by its access permissions Warning: Cannot create '3003:microblaze64' GDB server: An attempt was made to access a socket in a way forbidden by its access permissions
If try
connect_hw_server -url TCP:localhost:50000it will show the error:
INFO: [Labtools 27-2285] Connecting to hw_server url TCP:localhost:50000 INFO: [Labtools 27-3415] Connecting to cs_server url TCP:localhost:3042 INFO: [Labtools 27-3417] Launching cs_server... INFO: [Labtools 27-2221] Launch Output: Traceback (most recent call last): File "git_cs_server\chipscope\server\main.py", line 401, in <module> File "git_cs_server\chipscope\server\main.py", line 397, in main File "site-packages\click-7.0-py3.7.egg\click\core.py", line 764, in __call__ File "site-packages\click-7.0-py3.7.egg\click\core.py", line 717, in main File "site-packages\click-7.0-py3.7.egg\click\core.py", line 956, in invoke File "site-packages\click-7.0-py3.7.egg\click\core.py", line 555, in invoke File "git_cs_server\chipscope\server\main.py", line 279, in start_server File "git_cs_server\chipscope\server\main.py", line 259, in start_server File "git_cs_server\chipscope\server\main.py", line 293, in __init__ OSError: [WinError 10013] An attempt was made to access a socket in a way forbidden by its access permissions [22024] Failed to execute script main ERROR: [Labtools 27-3733] Error during cs_server initialization: Unable to connect to cs_server at URL: TCP:localhost:3042. connect_hw_server: Time (s): cpu = 00:00:00 ; elapsed = 00:00:14 . Memory (MB): peak = 1042.156 ; gain = 0.000 ERROR: [Common 17-39] 'connect_hw_server' failed due to earlier errors.
The second way is to disable Hyper-V in Settings->Apps & Features->Programs and Features->Windows Features, which is to host Windows Subsystem for Linux (WSL). However, the problem also exists on machines that do not enable Hyper-V.
The final solution is given in another article:netsh int ip 添加/删除 TCP 协议 excludedportrange 的方法_Ayka的博客-CSDN博客. After that, re-program the device. In XSCT Console->XSCT Process:
xsct%

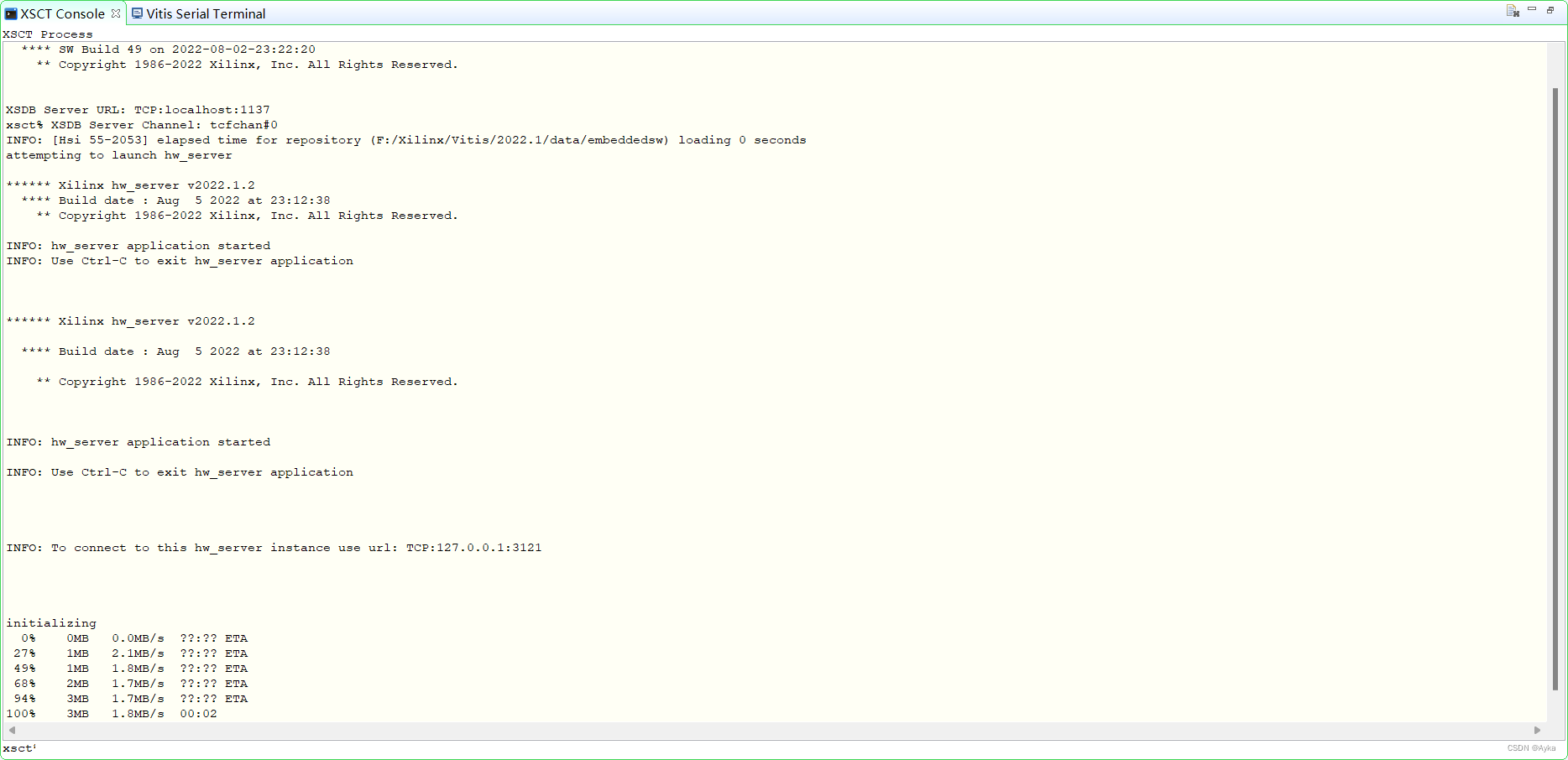

****** Xilinx Software Commandline Tool (XSCT) v2022.1.2
**** SW Build 49 on 2022-08-02-23:22:20
** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.
XSDB Server URL: TCP:localhost:1137
xsct% XSDB Server Channel: tcfchan#0
INFO: [Hsi 55-2053] elapsed time for repository (F:/Xilinx/Vitis/2022.1/data/embeddedsw) loading 0 seconds

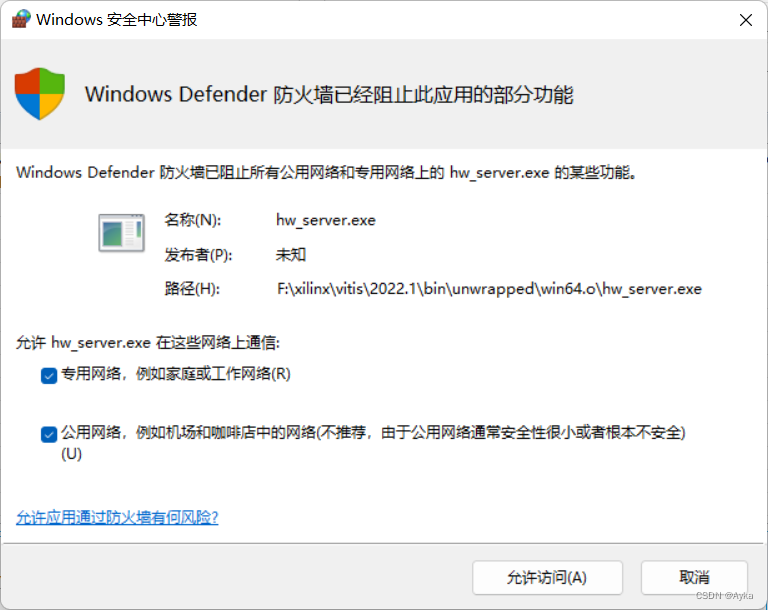

attempting to launch hw_server****** Xilinx hw_server v2022.1.2
**** Build date : Aug 5 2022 at 23:12:38
** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.INFO: hw_server application started
INFO: Use Ctrl-C to exit hw_server application****** Xilinx hw_server v2022.1.2
**** Build date : Aug 5 2022 at 23:12:38
** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.
INFO: hw_server application started
INFO: Use Ctrl-C to exit hw_server application
INFO: To connect to this hw_server instance use url: TCP:127.0.0.1:3121
initializing
0% 0MB 0.0MB/s ??:?? ETA
27% 1MB 2.1MB/s ??:?? ETA
49% 1MB 1.8MB/s ??:?? ETA
68% 2MB 1.7MB/s ??:?? ETA
94% 3MB 1.7MB/s ??:?? ETA
100% 3MB 1.8MB/s 00:02
