数仓搭建-ODS层

发布于：2022-12-28 ⋅ 阅读:(184) ⋅ 点赞:(0)

目录

Yarn配置

增加ApplicationMaster资源比例

 数仓开发环境

 数据准备

数仓搭建-ODS层

创建日志表ods_log

 ODS层日志表加载数据脚本

ODS层（业务数据）

ODS层业务表首日数据装载脚本

ODS层业务表每日数据装载脚本

Yarn配置

增加ApplicationMaster资源比例

（1）在hadoop102的/opt/module/hadoop-3.1.3/etc/hadoop/capacity-scheduler.xml文件中修改如下参数值

[doudou@hadoop102 hadoop]$ vim capacity-scheduler.xml

<property>
    <name>yarn.scheduler.capacity.maximum-am-resource-percent</name>
    <value>0.8</value>

分发
[doudou@hadoop102 hadoop]$ xsync capacity-scheduler.xml

已成功

 数仓开发环境

1.启动HiveServer2

[doudou@hadoop102 hadoop]$ hiveserver2

下载datagrip

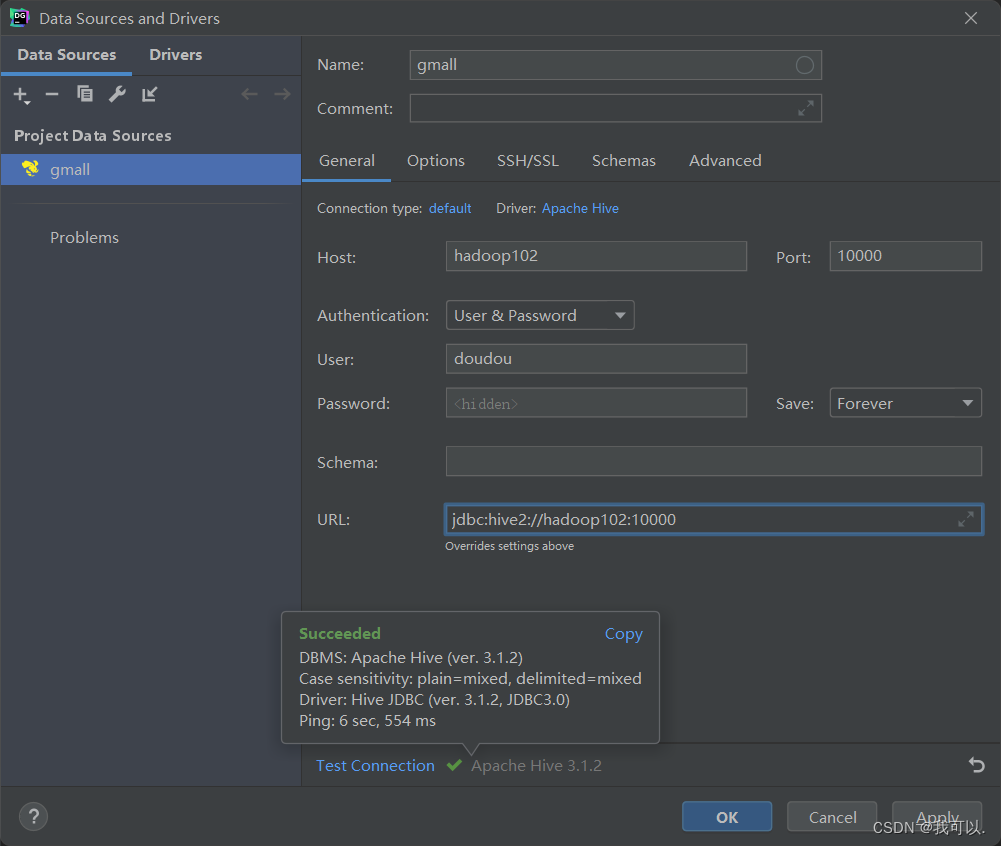

2.配置DataGrip连接

1）创建连接

 数据准备

1.用户行为日志

[doudou@hadoop102 db_log]$ vim application.properties

2.业务数据

1）修改hadoop102节点上的/opt/module/db_log/application.properties文件，将mock.date、mock.clear，mock.clear.user三个参数

[doudou@hadoop102 db_log]$ vim application.properties

mock.date=2020-06-10
#是否重置     注意：第一次执行必须设置为1，后续不需要重置不用设置为1
mock.clear=1
#是否重置用户 注意：第一次执行必须设置为1，后续不需要重置不用设置为1
mock.clear.user=1

 2）执行模拟生成业务数据的命令，生成第一天2020-06-10的历史数据。

[doudou@hadoop102 db_log]$ java -jar gmall2020-mock-db-2021-01-22.jar

3）修改/opt/module/db_log/application.properties文件，将mock.date、mock.clear，mock.clear.user三个参数

[doudou@hadoop102 db_log]$ vim application.properties
#业务日期
mock.date=2020-06-11
#是否重置     注意：第一次执行必须设置为1，后续不需要重置不用设置为1
mock.clear=0
#是否重置用户 注意：第一次执行必须设置为1，后续不需要重置不用设置为1
mock.clear.user=0

4）执行模拟生成业务数据的命令，生成第二天2020-06-11的历史数据。

[doudou@hadoop102 db_log]$ java -jar gmall2020-mock-db-2021-01-22.jar

5）之后只修改/opt/module/db_log/application.properties文件中的mock.date参数，依次改为2020-06-12，2020-06-13，2020-06-14，并分别生成对应日期的数据

6）执行mysql_to_hdfs_init.sh脚本，将模拟生成的业务数据同步到HDFS。

[doudou@hadoop102 bin]$ ./mysql_to_hdfs_init.sh all 2022-09-03

数仓搭建-ODS层

创建日志表ods_log

--ODS层
--ods日志表
drop table if exists ods_log;
CREATE EXTERNAL TABLE ods_log (`line` string)
PARTITIONED BY (`dt` string) -- 按照时间创建分区
STORED AS -- 指定存储方式，读数据采用LzoTextInputFormat；
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
LOCATION '/warehouse/gmall/ods/ods_log'  -- 指定数据在hdfs上的存储位置
;

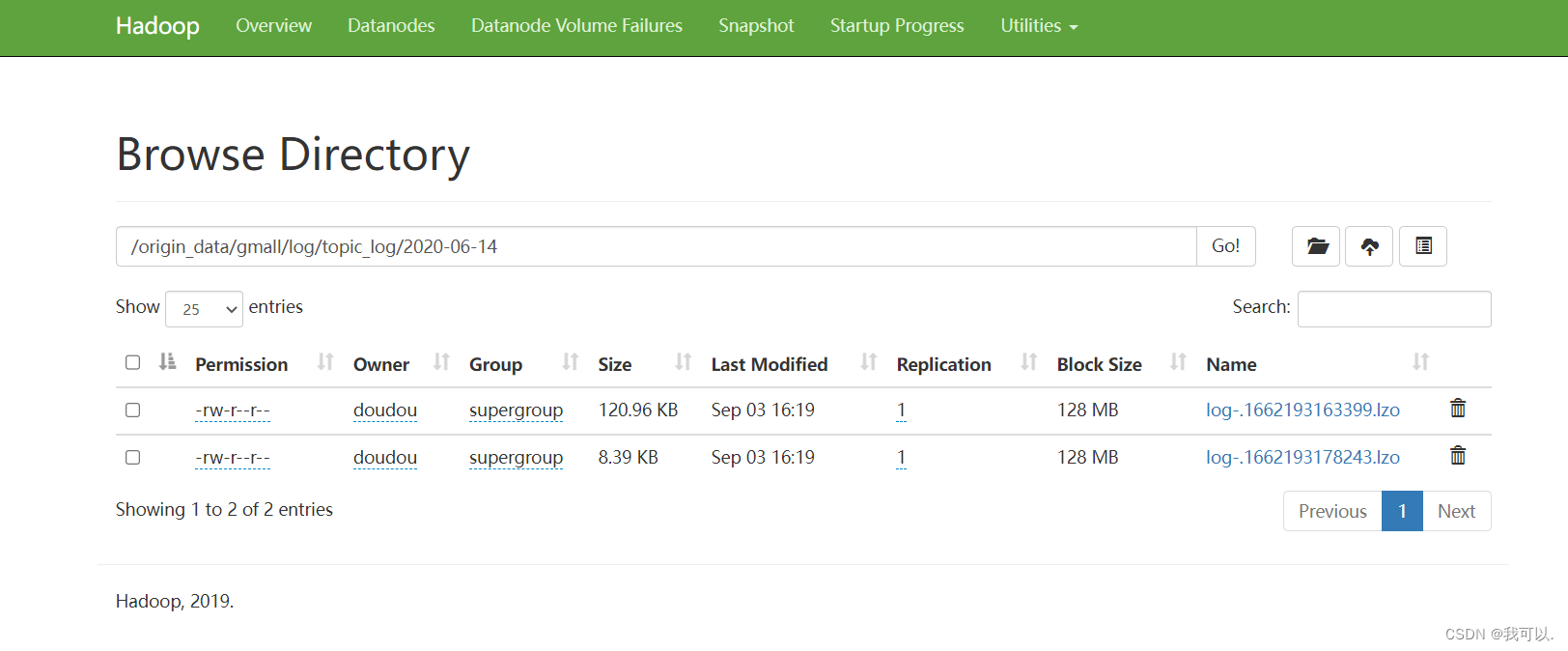

--数据装载
load data inpath '/origin_data/gmall/log/topic_log/2020-06-14'into table ods_log partition(dt='2020-06-14');

 ODS层日志表加载数据脚本

[doudou@hadoop102 bin]$  vim hdfs_to_ods_log.sh

#!/bin/bash

# 定义变量方便修改
APP=gmall

# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;then
   do_date=$1
else
   do_date=`date -d "-1 day" +%F`
fi

echo ================== 日志日期为 $do_date ==================
sql="
load data inpath '/origin_data/$APP/log/topic_log/$do_date' into table ${APP}.ods_log partition(dt='$do_date');
"

hive -e "$sql"

hadoop jar /opt/module/hadoop-3.1.3/share/hadoop/common/hadoop-lzo-0.4.20.jar com.hadoop.compression.lzo.DistributedLzoIndexer /warehouse/$APP/ods/ods_log/dt=$do_date

[doudou@hadoop102 bin]$ ./hdfs_to_ods_log.sh 2020-06-14

ODS层（业务数据）

创建业务数据表

ODS层业务表首日数据装载脚本

[doudou@hadoop102 bin]$ vim hdfs_to_ods_db_init.sh

#!/bin/bash

APP=gmall

if [ -n "$2" ] ;then
   do_date=$2
else
   echo "请传入日期参数"
   exit
fi

ods_order_info="
load data inpath '/origin_data/$APP/db/order_info/$do_date' OVERWRITE into table ${APP}.ods_order_info partition(dt='$do_date');"

ods_order_detail="
load data inpath '/origin_data/$APP/db/order_detail/$do_date' OVERWRITE into table ${APP}.ods_order_detail partition(dt='$do_date');"

ods_sku_info="
load data inpath '/origin_data/$APP/db/sku_info/$do_date' OVERWRITE into table ${APP}.ods_sku_info partition(dt='$do_date');"

ods_user_info="
load data inpath '/origin_data/$APP/db/user_info/$do_date' OVERWRITE into table ${APP}.ods_user_info partition(dt='$do_date');"

ods_payment_info="
load data inpath '/origin_data/$APP/db/payment_info/$do_date' OVERWRITE into table ${APP}.ods_payment_info partition(dt='$do_date');"

ods_base_category1="
load data inpath '/origin_data/$APP/db/base_category1/$do_date' OVERWRITE into table ${APP}.ods_base_category1 partition(dt='$do_date');"

ods_base_category2="
load data inpath '/origin_data/$APP/db/base_category2/$do_date' OVERWRITE into table ${APP}.ods_base_category2 partition(dt='$do_date');"

ods_base_category3="
load data inpath '/origin_data/$APP/db/base_category3/$do_date' OVERWRITE into table ${APP}.ods_base_category3 partition(dt='$do_date'); "

ods_base_trademark="
load data inpath '/origin_data/$APP/db/base_trademark/$do_date' OVERWRITE into table ${APP}.ods_base_trademark partition(dt='$do_date'); "

ods_activity_info="
load data inpath '/origin_data/$APP/db/activity_info/$do_date' OVERWRITE into table ${APP}.ods_activity_info partition(dt='$do_date'); "

ods_cart_info="
load data inpath '/origin_data/$APP/db/cart_info/$do_date' OVERWRITE into table ${APP}.ods_cart_info partition(dt='$do_date'); "

ods_comment_info="
load data inpath '/origin_data/$APP/db/comment_info/$do_date' OVERWRITE into table ${APP}.ods_comment_info partition(dt='$do_date'); "

ods_coupon_info="
load data inpath '/origin_data/$APP/db/coupon_info/$do_date' OVERWRITE into table ${APP}.ods_coupon_info partition(dt='$do_date'); "

ods_coupon_use="
load data inpath '/origin_data/$APP/db/coupon_use/$do_date' OVERWRITE into table ${APP}.ods_coupon_use partition(dt='$do_date'); "

ods_favor_info="
load data inpath '/origin_data/$APP/db/favor_info/$do_date' OVERWRITE into table ${APP}.ods_favor_info partition(dt='$do_date'); "

ods_order_refund_info="
load data inpath '/origin_data/$APP/db/order_refund_info/$do_date' OVERWRITE into table ${APP}.ods_order_refund_info partition(dt='$do_date'); "

ods_order_status_log="
load data inpath '/origin_data/$APP/db/order_status_log/$do_date' OVERWRITE into table ${APP}.ods_order_status_log partition(dt='$do_date'); "

ods_spu_info="
load data inpath '/origin_data/$APP/db/spu_info/$do_date' OVERWRITE into table ${APP}.ods_spu_info partition(dt='$do_date'); "

ods_activity_rule="
load data inpath '/origin_data/$APP/db/activity_rule/$do_date' OVERWRITE into table ${APP}.ods_activity_rule partition(dt='$do_date');"

ods_base_dic="
load data inpath '/origin_data/$APP/db/base_dic/$do_date' OVERWRITE into table ${APP}.ods_base_dic partition(dt='$do_date'); "

ods_order_detail_activity="
load data inpath '/origin_data/$APP/db/order_detail_activity/$do_date' OVERWRITE into table ${APP}.ods_order_detail_activity partition(dt='$do_date'); "

ods_order_detail_coupon="
load data inpath '/origin_data/$APP/db/order_detail_coupon/$do_date' OVERWRITE into table ${APP}.ods_order_detail_coupon partition(dt='$do_date'); "

ods_refund_payment="
load data inpath '/origin_data/$APP/db/refund_payment/$do_date' OVERWRITE into table ${APP}.ods_refund_payment partition(dt='$do_date'); "

ods_sku_attr_value="
load data inpath '/origin_data/$APP/db/sku_attr_value/$do_date' OVERWRITE into table ${APP}.ods_sku_attr_value partition(dt='$do_date'); "

ods_sku_sale_attr_value="
load data inpath '/origin_data/$APP/db/sku_sale_attr_value/$do_date' OVERWRITE into table ${APP}.ods_sku_sale_attr_value partition(dt='$do_date'); "

ods_base_province="
load data inpath '/origin_data/$APP/db/base_province/$do_date' OVERWRITE into table ${APP}.ods_base_province;"

ods_base_region="
load data inpath '/origin_data/$APP/db/base_region/$do_date' OVERWRITE into table ${APP}.ods_base_region;"

case $1 in
    "ods_order_info"){
        hive -e "$ods_order_info"
    };;
    "ods_order_detail"){
        hive -e "$ods_order_detail"
    };;
    "ods_sku_info"){
        hive -e "$ods_sku_info"
    };;
    "ods_user_info"){
        hive -e "$ods_user_info"
    };;
    "ods_payment_info"){
        hive -e "$ods_payment_info"
    };;
    "ods_base_category1"){
        hive -e "$ods_base_category1"
    };;
    "ods_base_category2"){
        hive -e "$ods_base_category2"
    };;
    "ods_base_category3"){
        hive -e "$ods_base_category3"
    };;
    "ods_base_trademark"){
        hive -e "$ods_base_trademark"
    };;
    "ods_activity_info"){
        hive -e "$ods_activity_info"
    };;
    "ods_cart_info"){
        hive -e "$ods_cart_info"
    };;
    "ods_comment_info"){
        hive -e "$ods_comment_info"
    };;
    "ods_coupon_info"){
        hive -e "$ods_coupon_info"
    };;
    "ods_coupon_use"){
        hive -e "$ods_coupon_use"
    };;
    "ods_favor_info"){
        hive -e "$ods_favor_info"
    };;
    "ods_order_refund_info"){
        hive -e "$ods_order_refund_info"
    };;
    "ods_order_status_log"){
        hive -e "$ods_order_status_log"
    };;
    "ods_spu_info"){
        hive -e "$ods_spu_info"
    };;
    "ods_activity_rule"){
        hive -e "$ods_activity_rule"
    };;
    "ods_base_dic"){
        hive -e "$ods_base_dic"
    };;
    "ods_order_detail_activity"){
        hive -e "$ods_order_detail_activity"
    };;
    "ods_order_detail_coupon"){
        hive -e "$ods_order_detail_coupon"
    };;
    "ods_refund_payment"){
        hive -e "$ods_refund_payment"
    };;
    "ods_sku_attr_value"){
        hive -e "$ods_sku_attr_value"
    };;
    "ods_sku_sale_attr_value"){
        hive -e "$ods_sku_sale_attr_value"
    };;
    "ods_base_province"){
        hive -e "$ods_base_province"
    };;
    "ods_base_region"){
        hive -e "$ods_base_region"
    };;
    "all"){
        hive -e "$ods_order_info$ods_order_detail$ods_sku_info$ods_user_info$ods_payment_info$ods_base_category1$ods_base_category2$ods_base_category3$ods_base_trademark$ods_activity_info$ods_cart_info$ods_comment_info$ods_coupon_info$ods_coupon_use$ods_favor_info$ods_order_refund_info$ods_order_status_log$ods_spu_info$ods_activity_rule$ods_base_dic$ods_order_detail_activity$ods_order_detail_coupon$ods_refund_payment$ods_sku_attr_value$ods_sku_sale_attr_value$ods_base_province$ods_base_region"
    };;
esac

[doudou@hadoop102 bin]$ chmod 777 hdfs_to_ods_db_init.sh

ODS层业务表每日数据装载脚本

[doudou@hadoop102 bin]$ vim hdfs_to_ods_db.sh

#!/bin/bash

APP=gmall

# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$2" ] ;then
    do_date=$2
else
    do_date=`date -d "-1 day" +%F`
fi

ods_order_info="
load data inpath '/origin_data/$APP/db/order_info/$do_date' OVERWRITE into table ${APP}.ods_order_info partition(dt='$do_date');"

ods_order_detail="
load data inpath '/origin_data/$APP/db/order_detail/$do_date' OVERWRITE into table ${APP}.ods_order_detail partition(dt='$do_date');"

ods_sku_info="
load data inpath '/origin_data/$APP/db/sku_info/$do_date' OVERWRITE into table ${APP}.ods_sku_info partition(dt='$do_date');"

ods_user_info="
load data inpath '/origin_data/$APP/db/user_info/$do_date' OVERWRITE into table ${APP}.ods_user_info partition(dt='$do_date');"

ods_payment_info="
load data inpath '/origin_data/$APP/db/payment_info/$do_date' OVERWRITE into table ${APP}.ods_payment_info partition(dt='$do_date');"

ods_base_category1="
load data inpath '/origin_data/$APP/db/base_category1/$do_date' OVERWRITE into table ${APP}.ods_base_category1 partition(dt='$do_date');"

ods_base_category2="
load data inpath '/origin_data/$APP/db/base_category2/$do_date' OVERWRITE into table ${APP}.ods_base_category2 partition(dt='$do_date');"

ods_base_category3="
load data inpath '/origin_data/$APP/db/base_category3/$do_date' OVERWRITE into table ${APP}.ods_base_category3 partition(dt='$do_date'); "

ods_base_trademark="
load data inpath '/origin_data/$APP/db/base_trademark/$do_date' OVERWRITE into table ${APP}.ods_base_trademark partition(dt='$do_date'); "

ods_activity_info="
load data inpath '/origin_data/$APP/db/activity_info/$do_date' OVERWRITE into table ${APP}.ods_activity_info partition(dt='$do_date'); "

ods_cart_info="
load data inpath '/origin_data/$APP/db/cart_info/$do_date' OVERWRITE into table ${APP}.ods_cart_info partition(dt='$do_date'); "

ods_comment_info="
load data inpath '/origin_data/$APP/db/comment_info/$do_date' OVERWRITE into table ${APP}.ods_comment_info partition(dt='$do_date'); "

ods_coupon_info="
load data inpath '/origin_data/$APP/db/coupon_info/$do_date' OVERWRITE into table ${APP}.ods_coupon_info partition(dt='$do_date'); "

ods_coupon_use="
load data inpath '/origin_data/$APP/db/coupon_use/$do_date' OVERWRITE into table ${APP}.ods_coupon_use partition(dt='$do_date'); "

ods_favor_info="
load data inpath '/origin_data/$APP/db/favor_info/$do_date' OVERWRITE into table ${APP}.ods_favor_info partition(dt='$do_date'); "

ods_order_refund_info="
load data inpath '/origin_data/$APP/db/order_refund_info/$do_date' OVERWRITE into table ${APP}.ods_order_refund_info partition(dt='$do_date'); "

ods_order_status_log="
load data inpath '/origin_data/$APP/db/order_status_log/$do_date' OVERWRITE into table ${APP}.ods_order_status_log partition(dt='$do_date'); "

ods_spu_info="
load data inpath '/origin_data/$APP/db/spu_info/$do_date' OVERWRITE into table ${APP}.ods_spu_info partition(dt='$do_date'); "

ods_activity_rule="
load data inpath '/origin_data/$APP/db/activity_rule/$do_date' OVERWRITE into table ${APP}.ods_activity_rule partition(dt='$do_date');"

ods_base_dic="
load data inpath '/origin_data/$APP/db/base_dic/$do_date' OVERWRITE into table ${APP}.ods_base_dic partition(dt='$do_date'); "

ods_order_detail_activity="
load data inpath '/origin_data/$APP/db/order_detail_activity/$do_date' OVERWRITE into table ${APP}.ods_order_detail_activity partition(dt='$do_date'); "

ods_order_detail_coupon="
load data inpath '/origin_data/$APP/db/order_detail_coupon/$do_date' OVERWRITE into table ${APP}.ods_order_detail_coupon partition(dt='$do_date'); "

ods_refund_payment="
load data inpath '/origin_data/$APP/db/refund_payment/$do_date' OVERWRITE into table ${APP}.ods_refund_payment partition(dt='$do_date'); "

ods_sku_attr_value="
load data inpath '/origin_data/$APP/db/sku_attr_value/$do_date' OVERWRITE into table ${APP}.ods_sku_attr_value partition(dt='$do_date'); "

ods_sku_sale_attr_value="
load data inpath '/origin_data/$APP/db/sku_sale_attr_value/$do_date' OVERWRITE into table ${APP}.ods_sku_sale_attr_value partition(dt='$do_date'); "

ods_base_province="
load data inpath '/origin_data/$APP/db/base_province/$do_date' OVERWRITE into table ${APP}.ods_base_province;"

ods_base_region="
load data inpath '/origin_data/$APP/db/base_region/$do_date' OVERWRITE into table ${APP}.ods_base_region;"

case $1 in
    "ods_order_info"){
        hive -e "$ods_order_info"
    };;
    "ods_order_detail"){
        hive -e "$ods_order_detail"
    };;
    "ods_sku_info"){
        hive -e "$ods_sku_info"
    };;
    "ods_user_info"){
        hive -e "$ods_user_info"
    };;
    "ods_payment_info"){
        hive -e "$ods_payment_info"
    };;
    "ods_base_category1"){
        hive -e "$ods_base_category1"
    };;
    "ods_base_category2"){
        hive -e "$ods_base_category2"
    };;
    "ods_base_category3"){
        hive -e "$ods_base_category3"
    };;
    "ods_base_trademark"){
        hive -e "$ods_base_trademark"
    };;
    "ods_activity_info"){
        hive -e "$ods_activity_info"
    };;
    "ods_cart_info"){
        hive -e "$ods_cart_info"
    };;
    "ods_comment_info"){
        hive -e "$ods_comment_info"
    };;
    "ods_coupon_info"){
        hive -e "$ods_coupon_info"
    };;
    "ods_coupon_use"){
        hive -e "$ods_coupon_use"
    };;
    "ods_favor_info"){
        hive -e "$ods_favor_info"
    };;
    "ods_order_refund_info"){
        hive -e "$ods_order_refund_info"
    };;
    "ods_order_status_log"){
        hive -e "$ods_order_status_log"
    };;
    "ods_spu_info"){
        hive -e "$ods_spu_info"
    };;
    "ods_activity_rule"){
        hive -e "$ods_activity_rule"
    };;
    "ods_base_dic"){
        hive -e "$ods_base_dic"
    };;
    "ods_order_detail_activity"){
        hive -e "$ods_order_detail_activity"
    };;
    "ods_order_detail_coupon"){
        hive -e "$ods_order_detail_coupon"
    };;
    "ods_refund_payment"){
        hive -e "$ods_refund_payment"
    };;
    "ods_sku_attr_value"){
        hive -e "$ods_sku_attr_value"
    };;
    "ods_sku_sale_attr_value"){
        hive -e "$ods_sku_sale_attr_value"
    };;
    "all"){
        hive -e "$ods_order_info$ods_order_detail$ods_sku_info$ods_user_info$ods_payment_info$ods_base_category1$ods_base_category2$ods_base_category3$ods_base_trademark$ods_activity_info$ods_cart_info$ods_comment_info$ods_coupon_info$ods_coupon_use$ods_favor_info$ods_order_refund_info$ods_order_status_log$ods_spu_info$ods_activity_rule$ods_base_dic$ods_order_detail_activity$ods_order_detail_coupon$ods_refund_payment$ods_sku_attr_value$ods_sku_sale_attr_value"
    };;
esac

[doudou@hadoop102 bin]$ chmod 777 hdfs_to_ods_db.sh
