1.前言
日常的学习生活中常常会用到进制转换如2-8-10-16互转，笔算当然可以解决但长度过长的时候难免会有些计算繁琐，当然在线的进制转换网站一大堆，主要想每次需要用到时不想再百度找。进制转换用Python实现很简单，设计一个简单的界面，打包成可执行文件方便使用，于是用wxFormBuilder构建转换器的UI界面，用wxpython库实现完整的功能。
2.wxFormBuilder实现进制转换器的UI界面

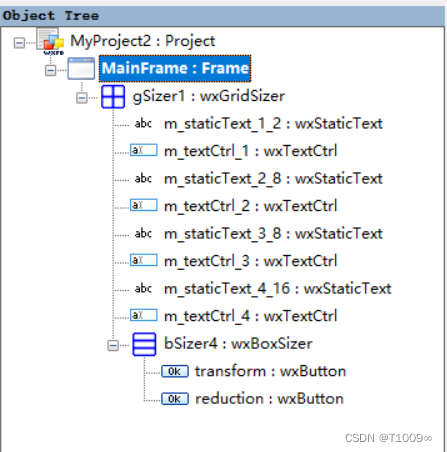

2.1 object tree及各组件功能说明
| 组件 | 功能 | 组件 | |
|---|---|---|---|
| m_staticText_1_2 | 静态文本 2： | m_textCtrl_1 | 2进制输入（初始值：请输入2进制） |
| m_staticText_2_8 | 静态文本 8： | m_textCtrl_2 | 8进制输入（初始值：请输入8进制） |
| m_staticText_3_10 | 静态文本 10： | m_textCtrl_3 | 10进制输入（初始值：请输入10进制） |
| m_staticText_4_16 | 静态文本 16： | m_textCtrl_4 | 16进制输入（初始值：请输入16进制） |
| tranform | 点击按钮实现输入进制到其他进制转换 | ||
| reduction | 点击按钮还原到初始状态 |

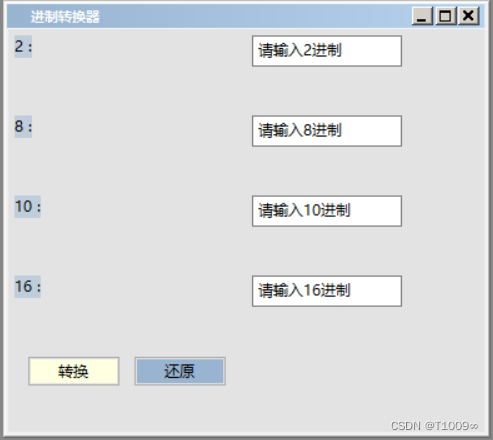

2.2 转换器UI界面
用wxFormBuilder生成GUI界面类MainFrame
# -*- coding: utf-8 -*-
###########################################################################
## Python code generated with wxFormBuilder (version 3.10.1-0-g8feb16b3)
## http://www.wxformbuilder.org/
##
## PLEASE DO *NOT* EDIT THIS FILE!
###########################################################################
import wx
import wx.xrc
###########################################################################
## Class MainFrame
###########################################################################
class MainFrame(wx.Frame):
def __init__(self, parent):
wx.Frame.__init__(self, parent, id=wx.ID_ANY, title=u"进制转换器", pos=wx.DefaultPosition, size=wx.Size(390, 350),
style=wx.DEFAULT_FRAME_STYLE | wx.TAB_TRAVERSAL)
self.SetSizeHints(wx.DefaultSize, wx.DefaultSize)
self.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_3DLIGHT))
gSizer1 = wx.GridSizer(5, 2, 0, 0)
self.m_staticText_1_2 = wx.StaticText(self, wx.ID_ANY, u"2 :", wx.DefaultPosition, wx.DefaultSize, 0)
self.m_staticText_1_2.Wrap(-1)
self.m_staticText_1_2.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_INACTIVECAPTION))
gSizer1.Add(self.m_staticText_1_2, 0, wx.ALL, 5)
self.m_textCtrl_1 = wx.TextCtrl(self, wx.ID_ANY, u"请输入2进制", wx.DefaultPosition, wx.Size(120, -1), 0)
self.m_textCtrl_1.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_WINDOW))
gSizer1.Add(self.m_textCtrl_1, 0, wx.ALL, 5)
self.m_staticText_2_8 = wx.StaticText(self, wx.ID_ANY, u"8 :", wx.DefaultPosition, wx.DefaultSize, 0)
self.m_staticText_2_8.Wrap(-1)
self.m_staticText_2_8.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_INACTIVECAPTION))
gSizer1.Add(self.m_staticText_2_8, 0, wx.ALL, 5)
self.m_textCtrl_2 = wx.TextCtrl(self, wx.ID_ANY, u"请输入8进制", wx.DefaultPosition, wx.Size(120, -1), 0)
gSizer1.Add(self.m_textCtrl_2, 0, wx.ALL, 5)
self.m_staticText_3_8 = wx.StaticText(self, wx.ID_ANY, u"10 :", wx.DefaultPosition, wx.DefaultSize, 0)
self.m_staticText_3_8.Wrap(-1)
self.m_staticText_3_8.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_INACTIVECAPTION))
gSizer1.Add(self.m_staticText_3_8, 0, wx.ALL, 5)
self.m_textCtrl_3 = wx.TextCtrl(self, wx.ID_ANY, u"请输入10进制", wx.DefaultPosition, wx.Size(120, -1), 0)
gSizer1.Add(self.m_textCtrl_3, 0, wx.ALL, 5)
self.m_staticText_4_16 = wx.StaticText(self, wx.ID_ANY, u"16 :", wx.DefaultPosition, wx.DefaultSize, 0)
self.m_staticText_4_16.Wrap(-1)
self.m_staticText_4_16.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_INACTIVECAPTION))
gSizer1.Add(self.m_staticText_4_16, 0, wx.ALL, 5)
self.m_textCtrl_4 = wx.TextCtrl(self, wx.ID_ANY, u"请输入16进制", wx.DefaultPosition, wx.Size(120, -1), 0)
gSizer1.Add(self.m_textCtrl_4, 0, wx.ALL, 5)
bSizer4 = wx.BoxSizer(wx.HORIZONTAL)
self.transform = wx.Button(self, wx.ID_ANY, u"转换", wx.DefaultPosition, wx.DefaultSize, 0)
self.transform.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_INFOBK))
bSizer4.Add(self.transform, 0, wx.ALL, 5)
self.reduction = wx.Button(self, wx.ID_ANY, u"还原", wx.DefaultPosition, wx.DefaultSize, 0)
self.reduction.SetBackgroundColour(wx.SystemSettings.GetColour(wx.SYS_COLOUR_ACTIVECAPTION))
bSizer4.Add(self.reduction, 0, wx.ALL, 5)
gSizer1.Add(bSizer4, 1, wx.ALIGN_CENTER_HORIZONTAL, 5)
self.SetSizer(gSizer1)
self.Layout()
self.Centre(wx.BOTH)
# Connect Events
self.transform.Bind(wx.EVT_BUTTON, self.answer)
self.reduction.Bind(wx.EVT_BUTTON, self.red_answer)
def __del__(self):
pass
# Virtual event handlers, override them in your derived class
def answer(self, event):
event.Skip()
def red_answer(self, event):
event.Skip()
answer, red_anser方法实现两个按钮事件处理。
3.主函数实现按钮事件处理
用主函数文件去调用MainFrame类，并实现两个按钮的功能
import wx
from base_transf import MainFrame
class transFrame(MainFrame):
# 进制转换
def answer(self, event):
base_2 = ''
base_8 = ''
base_10 = ''
base_16 = ''
# 2 进制转 8,10,16
if self.m_textCtrl_1.Value != '请输入2进制':
# print(type(self.m_textCtrl_1.Value))
# <class 'str'>
# 2 转 8
base_8 = oct(int(self.m_textCtrl_1.Value, 2))[2:]
self.m_textCtrl_2.Clear()
self.m_textCtrl_2.AppendText(base_8)
# 2 转 10
base_10 = str(int(self.m_textCtrl_1.Value, 2))
self.m_textCtrl_3.Clear()
self.m_textCtrl_3.AppendText(base_10)
# 2 转 16
base_16 = hex(int(self.m_textCtrl_1.Value, 2))[2:]
self.m_textCtrl_4.Clear()
self.m_textCtrl_4.AppendText(base_16)
# 8 转 2, 10, 16
elif self.m_textCtrl_2.Value != '请输入8进制':
# 8 转 2
base_2 = bin(int(self.m_textCtrl_2.Value, 8))[2:]
self.m_textCtrl_1.Clear()
self.m_textCtrl_1.AppendText(base_2)
# 8 转 10
base_10 = str(int(self.m_textCtrl_2.Value, 8))
self.m_textCtrl_3.Clear()
self.m_textCtrl_3.AppendText(base_10)
# 8 转 16
base_16 = hex(int(self.m_textCtrl_2.Value, 8))[2:]
self.m_textCtrl_4.Clear()
self.m_textCtrl_4.AppendText(base_16)
# 10 转 2, 8, 16
elif self.m_textCtrl_3.Value != '请输入10进制':
# 10 转 2
base_2 = bin(int(self.m_textCtrl_3.Value))[2:]
self.m_textCtrl_1.Clear()
self.m_textCtrl_1.AppendText(base_2)
# 10 转 8
base_8 = oct(int(self.m_textCtrl_3.Value))[2:]
self.m_textCtrl_2.Clear()
self.m_textCtrl_2.AppendText(base_8)
# 10 转 16
base_16 = hex(int(self.m_textCtrl_3.Value))[2:]
self.m_textCtrl_4.Clear()
self.m_textCtrl_4.AppendText(base_16)
# 16 转 2, 8, 10
elif self.m_textCtrl_4.Value != '请输入16进制':
# 16 转 2
base_2 = bin(int(self.m_textCtrl_4.Value, 16))[2:]
self.m_textCtrl_1.Clear()
self.m_textCtrl_1.AppendText(base_2)
# 16 转 8
base_8 = oct(int(self.m_textCtrl_4.Value, 16))[2:]
self.m_textCtrl_2.Clear()
self.m_textCtrl_2.AppendText(base_8)
# 16 转 10
base_10 = str(int(self.m_textCtrl_4.Value, 16))
self.m_textCtrl_3.Clear()
self.m_textCtrl_3.AppendText(base_10)
# 还原
def red_answer(self, event):
self.m_textCtrl_1.Clear()
self.m_textCtrl_1.AppendText('请输入2进制')
self.m_textCtrl_2.Clear()
self.m_textCtrl_2.AppendText('请输入8进制')
self.m_textCtrl_3.Clear()
self.m_textCtrl_3.AppendText('请输入10进制')
self.m_textCtrl_4.Clear()
self.m_textCtrl_4.AppendText('请输入16进制')
app = wx.App()
transFrame(None).Show()
app.MainLoop()
4.fbp文件
<?xml version="1.0" encoding="UTF-8" standalone="yes" ?>
<wxFormBuilder_Project>
<FileVersion major="1" minor="16" />
<object class="Project" expanded="1">
<property name="class_decoration">; </property>
<property name="code_generation">Python</property>
<property name="disconnect_events">1</property>
<property name="disconnect_mode">source_name</property>
<property name="disconnect_php_events">0</property>
<property name="disconnect_python_events">0</property>
<property name="embedded_files_path">res</property>
<property name="encoding">UTF-8</property>
<property name="event_generation">connect</property>
<property name="file">base_transf</property>
<property name="first_id">1000</property>
<property name="help_provider">none</property>
<property name="image_path_wrapper_function_name"></property>
<property name="indent_with_spaces"></property>
<property name="internationalize">0</property>
<property name="name">MyProject2</property>
<property name="namespace"></property>
<property name="path">.</property>
<property name="precompiled_header"></property>
<property name="relative_path">1</property>
<property name="skip_lua_events">1</property>
<property name="skip_php_events">1</property>
<property name="skip_python_events">1</property>
<property name="ui_table">UI</property>
<property name="use_array_enum">0</property>
<property name="use_enum">0</property>
<property name="use_microsoft_bom">0</property>
<object class="Frame" expanded="1">
<property name="aui_managed">0</property>
<property name="aui_manager_style">wxAUI_MGR_DEFAULT</property>
<property name="bg">wxSYS_COLOUR_3DLIGHT</property>
<property name="center">wxBOTH</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="enabled">1</property>
<property name="event_handler">impl_virtual</property>
<property name="extra_style"></property>
<property name="fg"></property>
<property name="font"></property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="maximum_size"></property>
<property name="minimum_size"></property>
<property name="name">MainFrame</property>
<property name="pos"></property>
<property name="size">390,350</property>
<property name="style">wxDEFAULT_FRAME_STYLE</property>
<property name="subclass">; ; forward_declare</property>
<property name="title">进制转换器</property>
<property name="tooltip"></property>
<property name="two_step_creation">0</property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style">wxTAB_TRAVERSAL</property>
<property name="xrc_skip_sizer">1</property>
<object class="wxGridSizer" expanded="0">
<property name="cols">2</property>
<property name="hgap">0</property>
<property name="minimum_size"></property>
<property name="name">gSizer1</property>
<property name="permission">none</property>
<property name="rows">5</property>
<property name="vgap">0</property>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxStaticText" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_INACTIVECAPTION</property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">2 :</property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_staticText_1_2</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<property name="wrap">-1</property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxTextCtrl" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_WINDOW</property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="maxlength"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_textCtrl_1</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size">120,-1</property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="value">请输入2进制</property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxStaticText" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_INACTIVECAPTION</property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">8 :</property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_staticText_2_8</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<property name="wrap">-1</property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxTextCtrl" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg"></property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="maxlength"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_textCtrl_2</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size">120,-1</property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="value">请输入8进制</property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxStaticText" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_INACTIVECAPTION</property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">10 :</property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_staticText_3_8</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<property name="wrap">-1</property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxTextCtrl" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg"></property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="maxlength"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_textCtrl_3</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size">120,-1</property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="value">请输入10进制</property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxStaticText" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_INACTIVECAPTION</property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">16 :</property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_staticText_4_16</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<property name="wrap">-1</property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxTextCtrl" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="best_size"></property>
<property name="bg"></property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="default_pane">0</property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="maxlength"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">m_textCtrl_4</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size">120,-1</property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="value">请输入16进制</property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALIGN_CENTER_HORIZONTAL</property>
<property name="proportion">1</property>
<object class="wxBoxSizer" expanded="0">
<property name="minimum_size"></property>
<property name="name">bSizer4</property>
<property name="orient">wxHORIZONTAL</property>
<property name="permission">none</property>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxButton" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="auth_needed">0</property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_INFOBK</property>
<property name="bitmap"></property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="current"></property>
<property name="default">0</property>
<property name="default_pane">0</property>
<property name="disabled"></property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="focus"></property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">转换</property>
<property name="margins"></property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">transform</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="position"></property>
<property name="pressed"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<event name="OnButtonClick">answer</event>
</object>
</object>
<object class="sizeritem" expanded="0">
<property name="border">5</property>
<property name="flag">wxALL</property>
<property name="proportion">0</property>
<object class="wxButton" expanded="0">
<property name="BottomDockable">1</property>
<property name="LeftDockable">1</property>
<property name="RightDockable">1</property>
<property name="TopDockable">1</property>
<property name="aui_layer"></property>
<property name="aui_name"></property>
<property name="aui_position"></property>
<property name="aui_row"></property>
<property name="auth_needed">0</property>
<property name="best_size"></property>
<property name="bg">wxSYS_COLOUR_ACTIVECAPTION</property>
<property name="bitmap"></property>
<property name="caption"></property>
<property name="caption_visible">1</property>
<property name="center_pane">0</property>
<property name="close_button">1</property>
<property name="context_help"></property>
<property name="context_menu">1</property>
<property name="current"></property>
<property name="default">0</property>
<property name="default_pane">0</property>
<property name="disabled"></property>
<property name="dock">Dock</property>
<property name="dock_fixed">0</property>
<property name="docking">Left</property>
<property name="enabled">1</property>
<property name="fg"></property>
<property name="floatable">1</property>
<property name="focus"></property>
<property name="font"></property>
<property name="gripper">0</property>
<property name="hidden">0</property>
<property name="id">wxID_ANY</property>
<property name="label">还原</property>
<property name="margins"></property>
<property name="markup">0</property>
<property name="max_size"></property>
<property name="maximize_button">0</property>
<property name="maximum_size"></property>
<property name="min_size"></property>
<property name="minimize_button">0</property>
<property name="minimum_size"></property>
<property name="moveable">1</property>
<property name="name">reduction</property>
<property name="pane_border">1</property>
<property name="pane_position"></property>
<property name="pane_size"></property>
<property name="permission">protected</property>
<property name="pin_button">1</property>
<property name="pos"></property>
<property name="position"></property>
<property name="pressed"></property>
<property name="resize">Resizable</property>
<property name="show">1</property>
<property name="size"></property>
<property name="style"></property>
<property name="subclass">; ; forward_declare</property>
<property name="toolbar_pane">0</property>
<property name="tooltip"></property>
<property name="validator_data_type"></property>
<property name="validator_style">wxFILTER_NONE</property>
<property name="validator_type">wxDefaultValidator</property>
<property name="validator_variable"></property>
<property name="window_extra_style"></property>
<property name="window_name"></property>
<property name="window_style"></property>
<event name="OnButtonClick">red_answer</event>
</object>
</object>
</object>
</object>
</object>
</object>
</object>
</wxFormBuilder_Project>
5. pyinstaller打包成可执行文件
将两个py文件放在同一目录结构下：
pyinstaller -F -w 主函数文件名.py

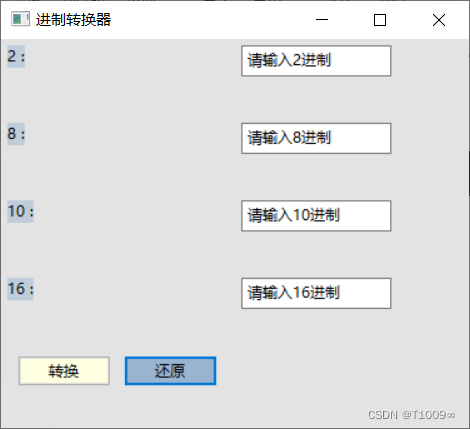

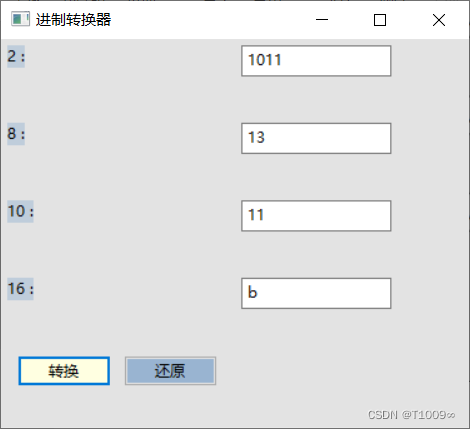

可执行文件
