SpringMVC(CRUD)

发布于：2023-01-11 ⋅ 阅读:(429) ⋅ 点赞:(0)

目录

一，CRUD

二，文件上传

三，文件下载

一，CRUD

步骤：

  1. 导入相关pom依赖
  2. 导入相关配置文件
  3. Web.xml配置

 po.xml

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>ssm02</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssm02 Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <maven.compiler.plugin.version>3.7.0</maven.compiler.plugin.version>

    <!--添加jar包依赖-->
    <!--1.spring 5.0.2.RELEASE相关-->
    <spring.version>5.0.2.RELEASE</spring.version>
    <!--2.mybatis相关-->
    <mybatis.version>3.4.5</mybatis.version>
    <!--mysql-->
    <mysql.version>5.1.44</mysql.version>
    <!--pagehelper分页jar依赖-->
    <pagehelper.version>5.1.2</pagehelper.version>
    <!--mybatis与spring集成jar依赖-->
    <mybatis.spring.version>1.3.1</mybatis.spring.version>
    <!--3.dbcp2连接池相关 druid-->
    <commons.dbcp2.version>2.1.1</commons.dbcp2.version>
    <commons.pool2.version>2.4.3</commons.pool2.version>
    <!--4.log日志相关-->
    <log4j2.version>2.9.1</log4j2.version>
    <!--5.其他-->
    <junit.version>4.12</junit.version>
    <servlet.version>4.0.0</servlet.version>
    <lombok.version>1.18.2</lombok.version>
  </properties>

  <dependencies>
    <!--1.spring相关-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!--2.mybatis相关-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <!--mysql-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!--pagehelper分页插件jar包依赖-->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>
    <!--mybatis与spring集成jar包依赖-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis.spring.version}</version>
    </dependency>

    <!--3.dbcp2连接池相关-->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>${commons.dbcp2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-pool2</artifactId>
      <version>${commons.pool2.version}</version>
    </dependency>

    <!--4.log日志相关依赖-->
    <!--核心log4j2jar包-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <!--web工程需要包含log4j-web，非web工程不需要-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>${log4j2.version}</version>
    </dependency>

    <!--5.其他-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet.version}</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>${lombok.version}</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!-- jsp依赖-->
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>javax.servlet.jsp-api</artifactId>
      <version>2.3.3</version>
    </dependency>
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>1.1.2</version>
    </dependency>
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.3</version>
    </dependency>

    <!--做服务端参数校验 JSR303的jar包依赖-->
    <dependency>
      <groupId>org.hibernate</groupId>
      <artifactId>hibernate-validator</artifactId>
      <version>6.0.7.Final</version>
    </dependency>
  </dependencies>

  <build>
    <finalName>ssm02</finalName>

    <resources>
      <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>jdbc.properties</include>
          <include>*.xml</include>
        </includes>
      </resource>
    </resources>

    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>

        <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>${maven.compiler.plugin.version}</version>
          <configuration>
            <source>${maven.compiler.source}</source>
            <target>${maven.compiler.target}</target>
            <encoding>${project.build.sourceEncoding}</encoding>
          </configuration>
        </plugin>
        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.2</version>
          <dependencies>
            <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
            <dependency>
              <groupId>mysql</groupId>
              <artifactId>mysql-connector-java</artifactId>
              <version>${mysql.version}</version>
            </dependency>
          </dependencies>
          <configuration>
            <overwrite>true</overwrite>
          </configuration>
        </plugin>

        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>



2.相关配置文件

①applicationContext.xml

②applicationContext-mybatis.xml

③generatorConfig.xml

④jdbc.properties

⑤log4j2.xml

⑥mybatis.cfg.xml

⑦springmvc-servlet.xml

 ①

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
<!--随着后续的学习，框架会越来越多，不能讲所有的框架配置放在同一个配置间中，否则不便于管理-->
    <import resource="applicationContext-mybatis.xml"></import>

</beans>

②

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!--1. 注解式开发 -->
    <!-- 注解驱动 -->
    <context:annotation-config/>
    <!-- 用注解方式注入bean，并指定查找范围：com.javaxl.ssm及子子孙孙包-->
    <context:component-scan base-package="com.dengxiyan.ssm"/>

    <context:property-placeholder location="classpath:jdbc.properties"/>

    <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource"
          destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <!--初始连接数-->
        <property name="initialSize" value="10"/>
        <!--最大活动连接数-->
        <property name="maxTotal" value="100"/>
        <!--最大空闲连接数-->
        <property name="maxIdle" value="50"/>
        <!--最小空闲连接数-->
        <property name="minIdle" value="10"/>
        <!--设置为-1时，如果没有可用连接，连接池会一直无限期等待，直到获取到连接为止。-->
        <!--如果设置为N（毫秒），则连接池会等待N毫秒，等待不到，则抛出异常-->
        <property name="maxWaitMillis" value="-1"/>
    </bean>

    <!--4. spring和MyBatis整合 -->
    <!--1) 创建sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 指定数据源 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 自动扫描XxxMapping.xml文件，**任意路径 -->
        <property name="mapperLocations" value="classpath*:com/dengxiyan/ssm/**/mapper/*.xml"/>
        <!-- 指定别名 -->
        <property name="typeAliasesPackage" value="com/dengxiyan/ssm/**/model"/>
        <!--配置pagehelper插件-->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <value>
                            helperDialect=mysql
                        </value>
                    </property>
                </bean>
            </array>
        </property>
    </bean>

    <!--2) 自动扫描com/javaxl/ssm/**/mapper下的所有XxxMapper接口(其实就是DAO接口)，并实现这些接口，-->
    <!--   即可直接在程序中使用dao接口，不用再获取sqlsession对象-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--basePackage 属性是映射器接口文件的包路径。-->
        <!--你可以使用分号或逗号 作为分隔符设置多于一个的包路径-->
        <property name="basePackage" value="com/dengxiyan/ssm/**/mapper"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
    <tx:annotation-driven transaction-manager="transactionManager" />
    <aop:aspectj-autoproxy/>
</beans>

③

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 引入配置文件 -->
    <properties resource="jdbc.properties"/>

    <!--指定数据库jdbc驱动jar包的位置-->
    <classPathEntry location="D:\\Maven\\apache-maven-3.5.0-bin\\apache-maven-3.5.0-bin\\mvn_repository\\mysql\\mysql-connector-java\\5.1.44\\mysql-connector-java-5.1.44.jar"/>

    <!-- 一个数据库一个context -->
    <context id="infoGuardian">
        <!-- 注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
        </commentGenerator>

        <!-- jdbc连接 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}" 用户编号="${jdbc.用户名}" password="${jdbc.password}"/>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 01 指定javaBean生成的位置 -->
        <!-- targetPackage：指定生成的model生成所在的包名 -->
        <!-- targetProject：指定在该项目下所在的路径  -->
        <javaModelGenerator targetPackage="com.dengxiyan.ssm.model"
                            targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否针对string类型的字段在set的时候进行trim调用 -->
            <property name="trimStrings" value="false"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!-- 02 指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.dengxiyan.ssm.mapper"
                         targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 03 生成XxxMapper接口 -->
        <!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
        <!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
        <!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
        <javaClientGenerator targetPackage="com.dengxiyan.ssm.mapper"
                             targetProject="src/main/java" type="XMLMAPPER">
            <!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 配置表信息 -->
        <!-- schema即为数据库名 -->
        <!-- tableName为对应的数据库表 -->
        <!-- domainObjectName是要生成的实体类 -->
        <!-- enable*ByExample是否生成 example类 -->
        <!--<table schema="" tableName="t_book" domainObjectName="Book"-->
        <!--enableCountByExample="false" enableDeleteByExample="false"-->
        <!--enableSelectByExample="false" enableUpdateByExample="false">-->
        <!--&lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
        <!--&lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
        <!--&lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
        <!--&lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        <!--</table>-->



        <table schema="" tableName="t_struts_class" domainObjectName="Clazz"
               enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false">
        </table>


    </context>
</generatorConfiguration>

④

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/db_zsgc?useUnicode=true&characterEncoding=UTF-8
jdbc.用户名=xxx
jdbc.密码=xxx

⑤

<?xml version="1.0" encoding="UTF-8"?>

<!-- status : 指定log4j本身的打印日志的级别.ALL< Trace < DEBUG < INFO < WARN < ERROR
	< FATAL < OFF。 monitorInterval : 用于指定log4j自动重新配置的监测间隔时间，单位是s,最小是5s. -->
<Configuration status="WARN" monitorInterval="30">
    <Properties>
        <!-- 配置日志文件输出目录 ${sys:user.home} -->
        <Property name="LOG_HOME">/root/workspace/lucenedemo/logs</Property>
        <property name="ERROR_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/error</property>
        <property name="WARN_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/warn</property>
        <property name="PATTERN">%d{yyyy-MM-dd HH:mm:ss.SSS} [%t-%L] %-5level %logger{36} - %msg%n</property>
    </Properties>

    <Appenders>
        <!--这个输出控制台的配置 -->
        <Console name="Console" target="SYSTEM_OUT">
            <!-- 控制台只输出level及以上级别的信息(onMatch),其他的直接拒绝(onMismatch) -->
            <ThresholdFilter level="trace" onMatch="ACCEPT"
                             onMismatch="DENY" />
            <!-- 输出日志的格式 -->
            <!-- %d{yyyy-MM-dd HH:mm:ss, SSS} : 日志生产时间 %p : 日志输出格式 %c : logger的名称
                %m : 日志内容，即 logger.info("message") %n : 换行符 %C : Java类名 %L : 日志输出所在行数 %M
                : 日志输出所在方法名 hostName : 本地机器名 hostAddress : 本地ip地址 -->
            <PatternLayout pattern="${PATTERN}" />
        </Console>

        <!--文件会打印出所有信息，这个log每次运行程序会自动清空，由append属性决定，这个也挺有用的，适合临时测试用 -->
        <!--append为TRUE表示消息增加到指定文件中，false表示消息覆盖指定的文件内容，默认值是true -->
        <File name="log" fileName="logs/test.log" append="false">
            <PatternLayout
                    pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
        </File>
        <!-- 这个会打印出所有的info及以下级别的信息，每次大小超过size， 则这size大小的日志会自动存入按年份-月份建立的文件夹下面并进行压缩，作为存档 -->
        <RollingFile name="RollingFileInfo" fileName="${LOG_HOME}/info.log"
                     filePattern="${LOG_HOME}/$${date:yyyy-MM}/info-%d{yyyy-MM-dd}-%i.log">
            <!--控制台只输出level及以上级别的信息（onMatch），其他的直接拒绝（onMismatch） -->
            <ThresholdFilter level="info" onMatch="ACCEPT"
                             onMismatch="DENY" />
            <PatternLayout
                    pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
            <Policies>
                <!-- 基于时间的滚动策略，interval属性用来指定多久滚动一次，默认是1 hour。 modulate=true用来调整时间：比如现在是早上3am，interval是4，那么第一次滚动是在4am，接着是8am，12am...而不是7am. -->
                <!-- 关键点在于 filePattern后的日期格式，以及TimeBasedTriggeringPolicy的interval， 日期格式精确到哪一位，interval也精确到哪一个单位 -->
                <!-- log4j2的按天分日志文件 : info-%d{yyyy-MM-dd}-%i.log -->
                <TimeBasedTriggeringPolicy interval="1"
                                           modulate="true" />
                <!-- SizeBasedTriggeringPolicy:Policies子节点， 基于指定文件大小的滚动策略，size属性用来定义每个日志文件的大小. -->
                <!-- <SizeBasedTriggeringPolicy size="2 kB" /> -->
            </Policies>
        </RollingFile>

        <RollingFile name="RollingFileWarn" fileName="${WARN_LOG_FILE_NAME}/warn.log"
                     filePattern="${WARN_LOG_FILE_NAME}/$${date:yyyy-MM}/warn-%d{yyyy-MM-dd}-%i.log">
            <ThresholdFilter level="warn" onMatch="ACCEPT"
                             onMismatch="DENY" />
            <PatternLayout
                    pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
            <Policies>
                <TimeBasedTriggeringPolicy />
                <SizeBasedTriggeringPolicy size="2 kB" />
            </Policies>
            <!-- DefaultRolloverStrategy属性如不设置，则默认为最多同一文件夹下7个文件，这里设置了20 -->
            <DefaultRolloverStrategy max="20" />
        </RollingFile>

        <RollingFile name="RollingFileError" fileName="${ERROR_LOG_FILE_NAME}/error.log"
                     filePattern="${ERROR_LOG_FILE_NAME}/$${date:yyyy-MM}/error-%d{yyyy-MM-dd-HH-mm}-%i.log">
            <ThresholdFilter level="error" onMatch="ACCEPT"
                             onMismatch="DENY" />
            <PatternLayout
                    pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
            <Policies>
                <!-- log4j2的按分钟 分日志文件 : warn-%d{yyyy-MM-dd-HH-mm}-%i.log -->
                <TimeBasedTriggeringPolicy interval="1"
                                           modulate="true" />
                <!-- <SizeBasedTriggeringPolicy size="10 MB" /> -->
            </Policies>
        </RollingFile>

    </Appenders>

    <!--然后定义logger，只有定义了logger并引入的appender，appender才会生效 -->
    <Loggers>
        <!--过滤掉spring和mybatis的一些无用的DEBUG信息 -->
        <logger name="org.springframework" level="INFO"></logger>
        <logger name="org.mybatis" level="INFO"></logger>

        <!-- 第三方日志系统 -->
        <logger name="org.springframework" level="ERROR" />
        <logger name="org.hibernate" level="ERROR" />
        <logger name="org.apache.struts2" level="ERROR" />
        <logger name="com.opensymphony.xwork2" level="ERROR" />
        <logger name="org.jboss" level="ERROR" />


        <!-- 配置日志的根节点 -->
        <root level="all">
            <appender-ref ref="Console" />
            <appender-ref ref="RollingFileInfo" />
            <appender-ref ref="RollingFileWarn" />
            <appender-ref ref="RollingFileError" />
        </root>

    </Loggers>

</Configuration>

⑥

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- 引入外部配置文件 -->
    <properties resource="jdbc.properties"/>

    <settings>
        <setting name="logImpl" value="LOG4J2"/>
    </settings>

    <!-- 别名 -->
    <typeAliases>
        <!--<typeAlias type="com.javaxl.model.Book" alias="Book"/>-->
    </typeAliases>

    <plugins>
        <!-- 配置分页插件PageHelper, 4.0.0以后的版本支持自动识别使用的数据库 -->
        <plugin interceptor="com.github.pagehelper.PageInterceptor">
        </plugin>
    </plugins>

    <!-- 配置mybatis运行环境 -->
    <environments default="development">
        <environment id="development">
            <!-- type="JDBC" 代表使用JDBC的提交和回滚来管理事务 -->
            <transactionManager type="jdbc"/>

            <!-- mybatis提供了3种数据源类型，分别是：POOLED,UNPOOLED,JNDI -->
            <!-- POOLED 表示支持JDBC数据源连接池 -->
            <!-- UNPOOLED 表示不支持数据源连接池 -->
            <!-- JNDI 表示支持外部数据源连接池 -->
            <dataSource type="POOLED">
                <property name="driver"
                          value="${jdbc.driver}"/>
                <property name="url"
                          value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>



    <mappers>
        <mapper resource="com/dengxiyan/ssm/mapper/ClazzMapper.xml"/>
    </mappers>
</configuration>

⑦

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!-- 通过context:component-scan元素扫描指定包下的控制器-->
    <!--1) 扫描com.javaxl.zf及子子孙孙包下的控制器(扫描范围过大，耗时)-->
    <aop:aspectj-autoproxy/>
    <context:component-scan base-package="com.dengxiyan.ssm"/>

    <!--2) 此标签默认注册DefaultAnnotationHandlerMapping和AnnotationMethodHandlerAdapter -->
    <!--两个bean，这两个bean是spring MVC为@Controllers分发请求所必须的。并提供了数据绑定支持，-->
    <!--@NumberFormatannotation支持，@DateTimeFormat支持，@Valid支持，读写XML的支持（JAXB），读写JSON的支持（Jackson）-->
    <mvc:annotation-driven></mvc:annotation-driven>

    <!--3) ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- viewClass需要在pom中引入两个包：standard.jar and jstl.jar -->
        <property name="viewClass"
                  value="org.springframework.web.servlet.view.JstlView"></property>
        <property name="prefix" value="/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--4) 单独处理图片、样式、js等资源 -->
    <!--<mvc:resources location="/css/" mapping="/css/**"/>-->
    <!--<mvc:resources location="/images/" mapping="/images/**"/>-->
    <!--<mvc:resources location="/js/" mapping="/js/**"/>-->
    <mvc:resources location="/static/" mapping="/static/**" />

    <!--文件上传多功能解析器-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 必须和用户JSP 的pageEncoding属性一致，以便正确解析表单的内容 -->
        <property name="defaultEncoding" value="UTF-8"></property>
        <!-- 文件最大大小(字节) 1024*1024*50=50M-->
        <property name="maxUploadSize" value="52428800"></property>
        <!--resolveLazily属性启用是为了推迟文件解析，以便捕获文件大小异常-->
        <property name="resolveLazily" value="true"/>
    </bean>

    <!--配置页面拦截器-->
    <mvc:interceptors>
    <!--针对于所有的请求进行拦截-->
        <bean class="com.dengxiyan.ssm.intercept.OneHandlerInterceptor"></bean>
    </mvc:interceptors>


    <!--配置页面拦截器-->
    <!--配置拦截器立链-->
    <mvc:interceptors>
        <mvc:interceptor>
            <mvc:mapping path="/**"/>
            <bean class="com.dengxiyan.ssm.intercept.OneHandlerInterceptor"></bean>
        </mvc:interceptor>
<!--        <mvc:interceptor>-->
<!--            <mvc:mapping path="/clz/**"/>-->
<!--            <bean class="com.dengxiyan.ssm.intercept.TowHandlerInterceptor"></bean>-->
<!--        </mvc:interceptor>-->
    </mvc:interceptors>
</beans>

 3.web.xml相关配置

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
  <display-name>Archetype Created Web Application</display-name>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <!-- 读取Spring上下文的监听器 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!-- Spring MVC servlet -->
  <servlet>
    <servlet-name>SpringMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!--此参数可以不配置，默认值为：/WEB-INF/springmvc-servlet.xml-->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>/WEB-INF/springmvc-servlet.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
    <!--web.xml 3.0的新特性，是否支持异步-->
    <async-supported>true</async-supported>
  </servlet>
  <servlet-mapping>
    <servlet-name>SpringMVC</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!-- 中文乱码处理 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <!--web.xml 3.0的新特性，是否支持异步-->
    <async-supported>true</async-supported>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
</web-app>

 4.逆向生成

将表格的Model,Mapper生成出来后即可编码

辅助类

分页

package com.dengxiyan.ssm.Tag;

import java.io.IOException;
import java.util.Map;
import java.util.Map.Entry;
import java.util.Set;

import javax.servlet.jsp.JspException;
import javax.servlet.jsp.JspWriter;
import javax.servlet.jsp.tagext.BodyTagSupport;

import com.dengxiyan.ssm.util.PageBean;

public class PageTag extends BodyTagSupport{
	private PageBean pageBean;// 包含了所有分页相关的元素

	public PageBean getPageBean() {
		return pageBean;
	}

	public void setPageBean(PageBean pageBean) {
		this.pageBean = pageBean;
	}

	@Override
	public int doStartTag() throws JspException {
//		没有标签体，要输出内容
		JspWriter out = pageContext.getOut();
		try {
			out.print(toHTML());
		} catch (IOException e) {
			e.printStackTrace();
		}
		return super.doStartTag();
	}

	private String toHTML() {
		StringBuffer sb = new StringBuffer();
//		隐藏的form表单---这个就是上一次请求下次重新发的奥义所在
//		上一次请求的URL
		sb.append("<form action='"+pageBean.getUrl()+"' id='pageBeanForm' method='post'>");
		sb.append("	<input type='hidden' name='page'>");
//		上一次请求的参数
		Map<String, String[]> paramMap = pageBean.getParamMap();
		if(paramMap != null && paramMap.size() > 0) {
			Set<Entry<String, String[]>> entrySet = paramMap.entrySet();
			for (Entry<String, String[]> entry : entrySet) {
//				参数名
				String key = entry.getKey();
//				参数值
				for (String value : entry.getValue()) {
//					上一次请求的参数，再一次组装成了新的Form表单
//					注意：page参数每次都会提交，我们需要避免
					if(!"page".equals(key)) {
						sb.append("	<input type='hidden' name='"+key+"' value='"+value+"' >");
					}
				}
			}
		}
		sb.append("</form>");

//		分页条
		sb.append("<ul class='pagination justify-content-center'>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == 1 ? "disabled" : "")+"'><a class='page-link'");
		sb.append("	href='javascript:gotoPage(1)'>首页</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == 1 ? "disabled" : "")+"'><a class='page-link'");
		sb.append("	href='javascript:gotoPage("+pageBean.previousPage()+")'>&lt;</a></li>");// less than 小于号
//		sb.append("	<li class='page-item'><a class='page-link' href='#'>1</a></li>");
//		sb.append("	<li class='page-item'><a class='page-link' href='#'>2</a></li>");
		sb.append("	<li class='page-item active'><a class='page-link' href='#'>"+pageBean.getPage()+"</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == pageBean.maxPage() ? "disabled" : "")+"'><a class='page-link' href='javascript:gotoPage("+pageBean.nextPage()+")'>&gt;</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == pageBean.maxPage() ? "disabled" : "")+"'><a class='page-link' href='javascript:gotoPage("+pageBean.maxPage()+")'>尾页</a></li>");
		sb.append("	<li class='page-item go-input'><b>到第</b><input class='page-link'");
		sb.append("	type='text' id='skipPage' name='' /><b>页</b></li>");
		sb.append("	<li class='page-item go'><a class='page-link'");
		sb.append("	href='javascript:skipPage()'>确定</a></li>");
		sb.append("	<li class='page-item'><b>共"+pageBean.getTotal()+"条</b></li>");
		sb.append("</ul>");

//		分页执行的JS代码
		sb.append("<script type='text/javascript'>");
		sb.append("	function gotoPage(page) {");
		sb.append("		document.getElementById('pageBeanForm').page.value = page;");
		sb.append("		document.getElementById('pageBeanForm').submit();");
		sb.append("	}");
		sb.append("	function skipPage() {");
		sb.append("		var page = document.getElementById('skipPage').value;");
		sb.append("		if (!page || isNaN(page) || parseInt(page) < 1 || parseInt(page) > "+pageBean.maxPage()+") {");
		sb.append("			alert('请输入1~"+pageBean.maxPage()+"的数字');");
		sb.append("			return;");
		sb.append("		}");
		sb.append("		gotoPage(page);");
		sb.append("	}");
		sb.append("</script>");

		return sb.toString();
	}
}



package com.dengxiyan.ssm.Tag;

import java.io.IOException;
import java.util.Map;
import java.util.Map.Entry;
import java.util.Set;

import javax.servlet.jsp.JspException;
import javax.servlet.jsp.JspWriter;
import javax.servlet.jsp.tagext.BodyTagSupport;

import com.dengxiyan.ssm.util.PageBean;

public class PageTag extends BodyTagSupport{
	private PageBean pageBean;// 包含了所有分页相关的元素

	public PageBean getPageBean() {
		return pageBean;
	}

	public void setPageBean(PageBean pageBean) {
		this.pageBean = pageBean;
	}

	@Override
	public int doStartTag() throws JspException {
//		没有标签体，要输出内容
		JspWriter out = pageContext.getOut();
		try {
			out.print(toHTML());
		} catch (IOException e) {
			e.printStackTrace();
		}
		return super.doStartTag();
	}

	private String toHTML() {
		StringBuffer sb = new StringBuffer();
//		隐藏的form表单---这个就是上一次请求下次重新发的奥义所在
//		上一次请求的URL
		sb.append("<form action='"+pageBean.getUrl()+"' id='pageBeanForm' method='post'>");
		sb.append("	<input type='hidden' name='page'>");
//		上一次请求的参数
		Map<String, String[]> paramMap = pageBean.getParamMap();
		if(paramMap != null && paramMap.size() > 0) {
			Set<Entry<String, String[]>> entrySet = paramMap.entrySet();
			for (Entry<String, String[]> entry : entrySet) {
//				参数名
				String key = entry.getKey();
//				参数值
				for (String value : entry.getValue()) {
//					上一次请求的参数，再一次组装成了新的Form表单
//					注意：page参数每次都会提交，我们需要避免
					if(!"page".equals(key)) {
						sb.append("	<input type='hidden' name='"+key+"' value='"+value+"' >");
					}
				}
			}
		}
		sb.append("</form>");

//		分页条
		sb.append("<ul class='pagination justify-content-center'>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == 1 ? "disabled" : "")+"'><a class='page-link'");
		sb.append("	href='javascript:gotoPage(1)'>首页</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == 1 ? "disabled" : "")+"'><a class='page-link'");
		sb.append("	href='javascript:gotoPage("+pageBean.previousPage()+")'>&lt;</a></li>");// less than 小于号
//		sb.append("	<li class='page-item'><a class='page-link' href='#'>1</a></li>");
//		sb.append("	<li class='page-item'><a class='page-link' href='#'>2</a></li>");
		sb.append("	<li class='page-item active'><a class='page-link' href='#'>"+pageBean.getPage()+"</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == pageBean.maxPage() ? "disabled" : "")+"'><a class='page-link' href='javascript:gotoPage("+pageBean.nextPage()+")'>&gt;</a></li>");
		sb.append("	<li class='page-item "+(pageBean.getPage() == pageBean.maxPage() ? "disabled" : "")+"'><a class='page-link' href='javascript:gotoPage("+pageBean.maxPage()+")'>尾页</a></li>");
		sb.append("	<li class='page-item go-input'><b>到第</b><input class='page-link'");
		sb.append("	type='text' id='skipPage' name='' /><b>页</b></li>");
		sb.append("	<li class='page-item go'><a class='page-link'");
		sb.append("	href='javascript:skipPage()'>确定</a></li>");
		sb.append("	<li class='page-item'><b>共"+pageBean.getTotal()+"条</b></li>");
		sb.append("</ul>");

//		分页执行的JS代码
		sb.append("<script type='text/javascript'>");
		sb.append("	function gotoPage(page) {");
		sb.append("		document.getElementById('pageBeanForm').page.value = page;");
		sb.append("		document.getElementById('pageBeanForm').submit();");
		sb.append("	}");
		sb.append("	function skipPage() {");
		sb.append("		var page = document.getElementById('skipPage').value;");
		sb.append("		if (!page || isNaN(page) || parseInt(page) < 1 || parseInt(page) > "+pageBean.maxPage()+") {");
		sb.append("			alert('请输入1~"+pageBean.maxPage()+"的数字');");
		sb.append("			return;");
		sb.append("		}");
		sb.append("		gotoPage(page);");
		sb.append("	}");
		sb.append("</script>");

		return sb.toString();
	}
}



package com.dengxiyan.ssm.util;

public class StringUtils {
	// 私有的构造方法，保护此类不能在外部实例化
	private StringUtils() {
	}

	/**
	 * 如果字符串等于null或去空格后等于""，则返回true，否则返回false
	 *
	 * @param s
	 * @return
	 */
	public static boolean isBlank(String s) {
		boolean b = false;
		if (null == s || s.trim().equals("")) {
			b = true;
		}
		return b;
	}

	/**
	 * 如果字符串不等于null或去空格后不等于""，则返回true，否则返回false
	 *
	 * @param s
	 * @return
	 */
	public static boolean isNotBlank(String s) {
		return !isBlank(s);
	}

}

servlet层

接口类

package com.dengxiyan.ssm.Biz;

import com.dengxiyan.ssm.model.Clazz;
import com.dengxiyan.ssm.util.PageBean;

import java.util.List;

/**
 * @author dxy
 * @site www.javadxy.com
 * @company ds公司
 * @create  2022-08-17 19:28
 */

public interface ClazzBiz {

    int deleteByPrimaryKey(Integer cid);

    int insert(Clazz record);

    int insertSelective(Clazz record);

    Clazz selectByPrimaryKey(Integer cid);

    List<Clazz> listPager(Clazz clazz, PageBean pageBean);

    int updateByPrimaryKeySelective(Clazz record);

    int updateByPrimaryKey(Clazz record);
}

实现类

package com.dengxiyan.ssm.Biz.impl;

import com.dengxiyan.ssm.Biz.ClazzBiz;
import com.dengxiyan.ssm.mapper.ClazzMapper;
import com.dengxiyan.ssm.model.Clazz;
import com.dengxiyan.ssm.util.PageBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @author dxy
 * @site www.javadxy.com
 * @company ds公司
 * @create  2022-08-17 19:28
 */
@Service
public class ClazzBizImpl implements ClazzBiz {

    @Autowired
    private ClazzMapper clazzMapper;


    @Override
    public int deleteByPrimaryKey(Integer cid) {
        return clazzMapper.deleteByPrimaryKey(cid);
    }

    @Override
    public int insert(Clazz record) {
        return clazzMapper.insert(record);
    }

    @Override
    public int insertSelective(Clazz record) {
        return clazzMapper.insertSelective(record);
    }

    @Override
    public Clazz selectByPrimaryKey(Integer cid) {
        return clazzMapper.selectByPrimaryKey(cid);
    }

    @Override
    public List<Clazz> listPager(Clazz clazz, PageBean pageBean) {
        return clazzMapper.listPager(clazz);
    }

    @Override
    public int updateByPrimaryKeySelective(Clazz record) {
        return clazzMapper.updateByPrimaryKeySelective(record);
    }

    @Override
    public int updateByPrimaryKey(Clazz record) {
        return clazzMapper.updateByPrimaryKey(record);
    }
}

Mapper层

接口

 List<Clazz> listPager(Clazz clazz);

 配置文件

<select id="listPager" parameterType="com.zking.ssm.model.Clazz" resultType="com.zking.ssm.model.Clazz">
    select
    <include refid="Base_Column_List" />
    from t_struts_class
    <where>
      <if test="cname != null and cname != ''">
         cname like CONCAT('%',#{cname},'%')
      </if>
      <if test="cid != null and cid != ''">
        cid = #{cid}
      </if>
    </where>
  </select>

 5.代码开发

注意：记得配置aop分页切面

后台（web层）

package com.dengxiyan.ssm.controller;

import com.dengxiyan.ssm.Biz.ClazzBiz;
import com.dengxiyan.ssm.model.Clazz;
import com.dengxiyan.ssm.model.dto.ClazzDto;
import com.dengxiyan.ssm.util.PageBean;
import com.sun.webkit.graphics.WCPageBackBuffer;
import org.apache.commons.io.FileUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.validation.BindingResult;
import org.springframework.validation.FieldError;
import org.springframework.validation.ObjectError;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.multipart.MultipartFile;

import javax.servlet.http.HttpServletRequest;
import javax.validation.Valid;
import java.io.File;
import java.io.FileOutputStream;
import java.io.InputStream;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author dxy
 * @site www.javadxy.com
 * @company ds公司
 * @create  2022-08-17 19:46
 */
@Controller
@RequestMapping("/clz")
public class ClazzController {

    @Autowired
    private ClazzBiz clazzBiz;
    //list->clzlist
    //toList->重定向list->"redirect:/clz/list"
    //clazz:以前是通过，模型驱动接口封装，现在是直接在方法周末和接受参数即可
   @RequestMapping("/list")
    public String list(Clazz clazz, HttpServletRequest request){
       PageBean pageBean = new PageBean();
       pageBean.setRequest(request);
       List<Clazz> lst = clazzBiz.listPager(clazz, pageBean);
       request.setAttribute("lst",lst);
       request.setAttribute("pageBean", pageBean);
       return "clzList";

    }



    @RequestMapping("/toEdit")
    public String toEdit(Clazz clazz, HttpServletRequest request){
       Integer cid = clazz.getCid();
       //传递的id代表了修改，没有代表新增
        if(cid!=null){
            List<Clazz> lst = this.clazzBiz.listPager(clazz, null);
            request.setAttribute("b",lst.get(0));
        }
       return "clzEdit";

    }

    @RequestMapping("/add")
    public String add(Clazz clazz){
       this.clazzBiz.insertSelective(clazz);
        return "redirect:/clz/list";

    }


    @RequestMapping("/edit")
    public String edit(Clazz clazz){
       this.clazzBiz.updateByPrimaryKeySelective(clazz);
        return "redirect:/clz/list";

    }

    @RequestMapping("/del")
    public String del(Clazz clazz){
       this.clazzBiz.deleteByPrimaryKey(clazz.getCid());
        return "redirect:/clz/list";

    }


}

前台（jsp页面）

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8"%>
<%@ taglib uri="http://jsp.veryedu.cn" prefix="z"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <link
            href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/4.5.0/css/bootstrap.css"
            rel="stylesheet">
    <script
            src="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/4.5.0/js/bootstrap.js"></script>
    <title>博客列表</title>
    <style type="text/css">
        .page-item input {
            padding: 0;
            width: 40px;
            height: 100%;
            text-align: center;
            margin: 0 6px;
        }

        .page-item input, .page-item b {
            line-height: 38px;
            float: left;
            font-weight: 400;
        }

        .page-item.go-input {
            margin: 0 10px;
        }
    </style>
</head>
<body>
<form class="form-inline"
      action="${pageContext.request.contextPath }/clz/list" method="post">
    <div class="form-group mb-2">
        <input type="text" class="form-control-plaintext" name="bname"
               placeholder="请输入班级名称">
        <!-- 			<input name="rows" value="20" type="hidden"> -->
        <!-- 不想分页 -->
        <input name="pagination" value="false" type="hidden">
    </div>
    <button type="submit" class="btn btn-primary mb-2">查询</button>
    <a class="btn btn-primary mb-2" href="${pageContext.request.contextPath }/clz/toEdit">新增</a>
</form>

<table class="table table-striped bg-success">
    <thead>
    <tr>
        <th scope="col">ID</th>
        <th scope="col">班级名称</th>
        <th scope="col">指导老师</th>
        <th scope="col">班级相册</th>
        <th scope="col">操作</th>
    </tr>
    </thead>
    <tbody>
    <c:forEach  var="b" items="${lst }">
        <tr>
            <td>${b.cid }</td>
            <td>${b.cname }</td>
            <td>${b.cteacher }</td>
            <td>
                <img src="${pageContext.request.contextPath }${b.pic}" style="height: 100px;width: 100px;"/>
            </td>
            <td>
                <a href="${pageContext.request.contextPath }/clz/toEdit?cid=${b.cid}">修改</a>
                <a href="${pageContext.request.contextPath }/clz/del?cid=${b.cid}">删除</a>
                <a href="${pageContext.request.contextPath }/clzUpload.jsp?cid=${b.cid}">上传图片</a>
                <a href="${pageContext.request.contextPath }/clz/download?cid=${b.cid}">下载图片</a>
            </td>
        </tr>
    </c:forEach>
    </tbody>
</table>
<!-- 这一行代码就相当于前面分页需求前端的几十行了 -->
<z:page pageBean="${pageBean }"></z:page>

</body>
</html>

 效果图



二，文件上传

步骤：

1.pom依赖

2.Spring.xml配置

3.前台编写

4.后台编写

 5.地址映射

 1.pom依赖

<dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.3</version>
</dependency>

 2.Springmvc.xml配置

<bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 必须和用户JSP 的pageEncoding属性一致，以便正确解析表单的内容 -->
        <property name="defaultEncoding" value="UTF-8"></property>
        <!-- 文件最大大小(字节) 1024*1024*50=50M-->
        <property name="maxUploadSize" value="52428800"></property>
        <!--resolveLazily属性启用是为了推迟文件解析，以便捕获文件大小异常-->
        <property name="resolveLazily" value="true"/>
    </bean>

 3.前台

<body>
<form action="${pageContext.request.contextPath }/clz/upload" method="post" enctype="multipart/form-data">
    <input type="text" name="cid" value="${b.cid }"><br>
    <input type="file" name="picFile">
    <input type="submit">
</form>
</body>

4.后台

package com.dengxiyan.ssm.model.dto;

import com.dengxiyan.ssm.model.Clazz;
import org.springframework.web.multipart.MultipartFile;

/**
 * @author dxy
 * @site www.javadxy.com
 * @company ds公司
 * @create  2022-08-18 2:21
 */
public class ClazzDto extends Clazz {
    private MultipartFile picFile;


    public MultipartFile getPicFile() {
        return picFile;
    }

    public void setPicFile(MultipartFile picFile) {
        this.picFile = picFile;
    }
}

web层

//文件上传
    @RequestMapping("/upload")
    public String upload(ClazzDto clazzDto){

       try {
           //前台上传的文件
           MultipartFile picFile = clazzDto.getPicFile();
           //实际应该配置到resource.properties中
           String diskPath = "E:/imges/dxy/";//图片存放地址
           //拿到最终路径名http://localhost:8080/upload/mvc/..png
           String requestPath = "/upload/mvc/";//数据库保存地址，也是访问地址
           //拿到上传文件的名字
           String fileName = picFile.getOriginalFilename();
           //完成文件上传
           FileUtils.copyInputStreamToFile(picFile.getInputStream(),new File(diskPath+fileName));

           //将图片上传之后，并且将图片地址更新到数据库中
           Clazz clazz = new Clazz();
           clazz.setCid(clazzDto.getCid());
           //requestPath+fileName保存到数据库
           clazz.setPic(requestPath+fileName);
           this.clazzBiz.updateByPrimaryKeySelective(clazz);
       }catch (Exception e){
           e.printStackTrace();
       }

        return "redirect:/clz/list";

    }

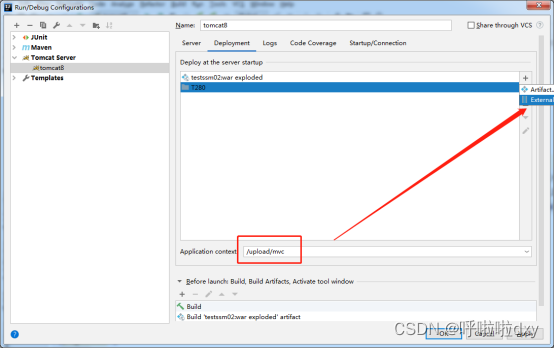

5.地址映射



三，文件下载

前台

<c:if test="${not empty b.pic}">
                <a href="${pageContext.request.contextPath }/clz/download?cid=${b.cid}">下载图片</a>
                </c:if>

后台

 @RequestMapping("/download")
    public ResponseEntity download(ClazzDto clazzDto){
        try {
            //1.点击下载传递文件的ID，通过文件的ID查询文件的路径
            Clazz clazz = this.clazzBiz.selectByPrimaryKey(clazzDto.getCid());
            String pic = clazz.getPic();//数据库中的地址----->不能直接转化为流
            //实际应该配置到resource.properties中
            String diskPath = "E:/imges/dxy/";//图片存放地址
            //拿到最终路径名http://localhost:8080/upload/mvc/..png
            String requestPath = "/upload/mvc/";//数据库保存地址，也是访问地址

            //2.通过文件的请求地址，转换成文件存放的硬盘地址
            String realPath = pic.replace(requestPath, diskPath);//硬盘地址
            String fileName = realPath.substring(requestPath.lastIndexOf("/")+1);

            //3.将硬盘中文件下载下来->固定代码
            //下载关键代码
            File file=new File(realPath);
            HttpHeaders headers = new HttpHeaders();//http头信息
            String downloadFileName = new String(fileName.getBytes("UTF-8"),"iso-8859-1");//设置编码
            headers.setContentDispositionFormData("attachment", downloadFileName);
            headers.setContentType(MediaType.APPLICATION_OCTET_STREAM);
            //MediaType:互联网媒介类型  contentType：具体请求中的媒体类型信息
            return new ResponseEntity<byte[]>(FileUtils.readFileToByteArray(file),headers, HttpStatus.OK);
        }catch (Exception e){
            e.printStackTrace();
        }

        return null;
本文含有隐藏内容，请 开通VIP 后查看

网站公告

今日签到

点亮在社区的每一天
去签到

热门文章

最新发布
