MX-640V5 802.11ax WiFi6工业无线网卡规格书

发布于：2023-01-13 ⋅ 阅读:(702) ⋅ 点赞:(0)



产品概述

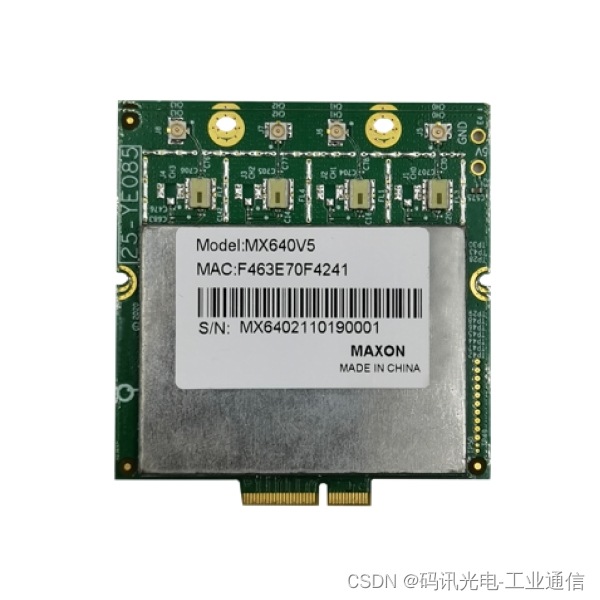

     码讯MX-640V5 是一款配有 PCI Express 3.0 界面及 M.2 E-key 的内嵌型无线网卡。

    该无线网卡采用 Qualcomm® 802.11ax Wi-Fi 6技术，支持 5180-5850GHz 频段，可执行 AP 及 STA 功能，同时具备 4x4 MIMO 和 4 个空间流，适用于 5GHz IEEE802.11a/n/ac/ax应用，相比上一代无线网卡的传输效率更高，并具备动态频率选择(DFS)功能。

产品特征

  • 配有PCI Express 3.0界面及M.2 E-key

  • 采用Qualcomm® 802.11ax Wi-Fi 6技术

  • 支持5180-5850GHz频段

  • 可执行AP及STA功能

  • 同时具备4x4 MIMO和4个空间流

  • 适用于5GHz IEEE802.11a/n/ac/ax应用

  • 相比上一代无线网卡的传输效率更高，并具备动态频率选择(DFS)功能

产品规格

硬件规格

IEEE 标准

IEEE 802.11ax

界面

PCI Express 3.0，M.2 E-key

工作电压

3.3V/5V

工作频段

5G：5.180GHz~5.850GHz

调变技术

802.11n： OFDM（BPSK，QPSK，16-QAM，64-QAM， 256-QAM）

802.11ac： OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM）

802.11ax： OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM，256-QAM，1024-QAM，4096-QAM）

输出功率

802.11ax：Max. 23dBm (每条链路)

电源功耗

≦15W

接收灵敏度

11ax：

HE20 MCS0 <-82dBm / MCS11 <-52dBm

HE40 MCS0 <-79dBm / MCS11 <-49dBm

HE80 MCS0 <-76dBm / MCS11 <-46dBm

天线接口

4x U. FL

重量

20 克

产品尺寸

60 (长) x 57 (宽) x 4.2 (高) mm (偏差±0.1mm)

工作环境

温度：-20°C to 70°C

湿度：95% (无冷凝)

存储环境

温度：-40°C to 90°C

湿度：90% (无冷凝)

软件规格

认证

RoHS/REACH

射频参数

速率 发射功率（单通道） 公差 接收灵敏度 公差
802.11a 6Mbps 21dBm ±2dB -91dBm ±2dB
9Mbps 21dBm ±2dB --- ±2dB
12Mbps 21dBm ±2dB --- ±2dB
18Mbps 21dBm ±2dB --- ±2dB
24Mbps 20dBm ±2dB --- ±2dB
36Mbps 20dBm ±2dB --- ±2dB
48Mbps 17dBm ±2dB --- ±2dB
54Mbps 17dBm ±2dB -74dBm ±2dB
802.11n/ac VHT20 MCS0 21dBm ±2dB -91dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB -74dBm ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB -67dBm ±2dB
802.11n/ac VHT40 MCS0 21dBm ±2dB -89dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB -71dBm ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB -65dBm ±2dB
802.11ac VHT80 MCS0 21dBm ±2dB -86dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB --- ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB -61dBm ±2dB
802.11ac VHT160 MCS0 19dBm ±2dB --- ±2dB
MCS1 19dBm ±2dB --- ±2dB
MCS2 19dBm ±2dB --- ±2dB
MCS3 19dBm ±2dB --- ±2dB
MCS4 18dBm ±2dB --- ±2dB
MCS5 18dBm ±2dB --- ±2dB
MCS6 15dBm ±2dB --- ±2dB
MCS7 15dBm ±2dB --- ±2dB
MCS8 15dBm ±2dB --- ±2dB
MCS9 15dBm ±2dB --- ±2dB
802.11ax HE20 MCS0 21dBm ±2dB -89dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB --- ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB --- ±2dB
MCS10 16dBm ±2dB --- ±2dB
MCS11 16dBm ±2dB -64dBm ±2dB
MCS12 10dBm ±2dB --- ±2dB
MCS13 10dBm ±2dB --- ±2dB
802.11ax HE40 MCS0 21dBm ±2dB -89dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB --- ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB --- ±2dB
MCS10 16dBm ±2dB --- ±2dB
MCS11 16dBm ±2dB -60dBm ±2dB
MCS12 10dBm ±2dB --- ±2dB
MCS13 10dBm ±2dB --- ±2dB
802.11ax HE80 MCS0 21dBm ±2dB -86dBm ±2dB
MCS1 21dBm ±2dB --- ±2dB
MCS2 21dBm ±2dB --- ±2dB
MCS3 21dBm ±2dB --- ±2dB
MCS4 20dBm ±2dB --- ±2dB
MCS5 20dBm ±2dB --- ±2dB
MCS6 17dBm ±2dB --- ±2dB
MCS7 17dBm ±2dB --- ±2dB
MCS8 17dBm ±2dB --- ±2dB
MCS9 17dBm ±2dB --- ±2dB
MCS10 16dBm ±2dB --- ±2dB
MCS11 16dBm ±2dB -58dBm ±2dB
MCS12 10dBm ±2dB --- ±2dB
MCS13 10dBm ±2dB --- ±2dB
802.11ax HE160 MCS0 19dBm ±2dB --- ±2dB
MCS1 19dBm ±2dB --- ±2dB
MCS2 19dBm ±2dB --- ±2dB
MCS3 19dBm ±2dB --- ±2dB
MCS4 18dBm ±2dB --- ±2dB
MCS5 18dBm ±2dB --- ±2dB
MCS6 15dBm ±2dB --- ±2dB
MCS7 15dBm ±2dB --- ±2dB
MCS8 15dBm ±2dB --- ±2dB
MCS9 15dBm ±2dB --- ±2dB
MCS10 14dBm ±2dB --- ±2dB
MCS11 14dBm ±2dB --- ±2dB
MCS12 7dBm ±2dB --- ±2dB
MCS13 7dBm ±2dB --- ±2dB

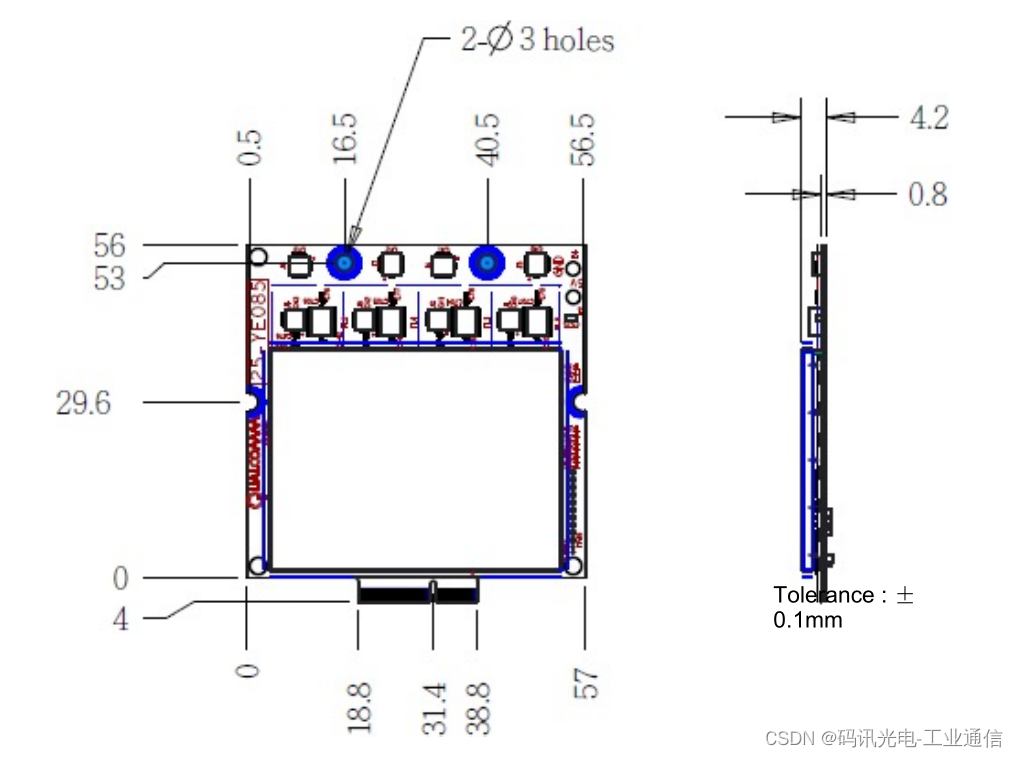

模组尺寸和推荐 PCB 方式
