流体力学（水力学）满分实验报告——伯努利方程

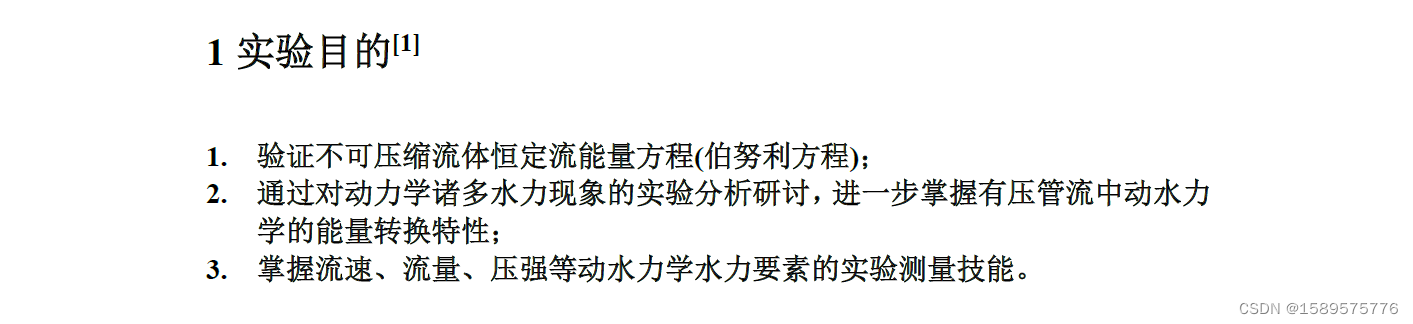

实验目的
实验装置

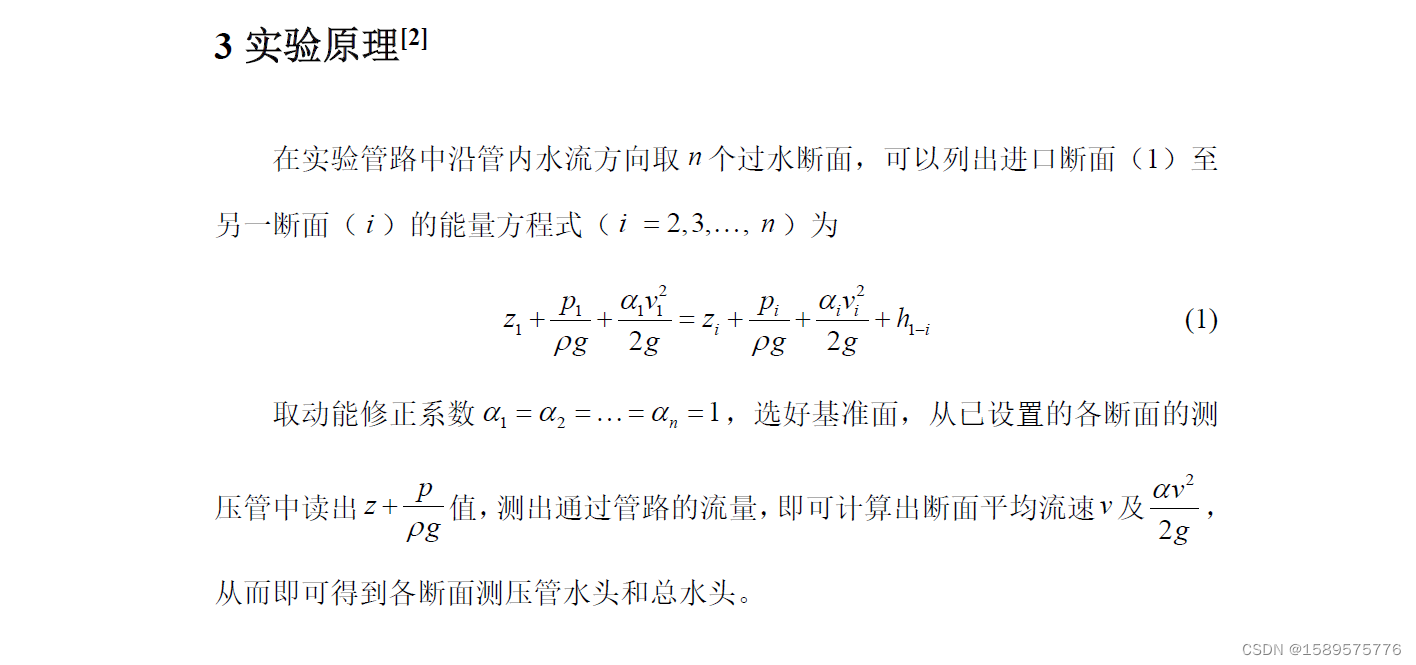

实验原理
【部分】实验数据记录及处理
【部分】绘图
【部分】MATLAB代码
Absolute_distance_Adjusted = [8, 14, 20, 24, 37.5, 43.5, 53.5, 82.5, 98.5, 114.5];
Piezometric_head_of_Q1_Adjusted = [47.15, 47.0, 47.0, 43.4, 44.6, 43.95, 43.75, 42.9, 43.1, 42.0];
Piezometric_head_of_Q2_Adjusted = [46.85, 46.1, 46.0, 40.4, 42.5, 46.85, 41.3, 40.1, 40.4, 38.7];
Piezometric_head_of_Q3_Adjusted = [45.15, 45.1, 44.8, 44.7, 36.2, 45.15, 37.9, 36.0, 36.6, 33.9];
Hydraulic_head_of_Q1 = [48, 47.9, 47.9, 46.93, 45.5, 44.4, 44.65, 43.8, 43.33, 42.9];
Hydraulic_head_of_Q2 = [48.32, 47.62, 47.52, 46.36, 44.02, 42.32, 42.82, 41.62, 40.79, 40.22];
Hydraulic_head_of_Q3 = [47.45, 47.15, 47.05, 45.4, 41.85, 39.35, 40.25, 38.35, 37.2, 36.25];
figure(1)
plot(Absolute_distance_Adjusted, Piezometric_head_of_Q1_Adjusted, "*b", "MarkerSize", 8);hold on;
plot(Absolute_distance_Adjusted, Hydraulic_head_of_Q1, "or", "MarkerSize", 8);hold on;
plot(Absolute_distance_Adjusted, Piezometric_head_of_Q1_Adjusted, "b", "LineWidth", 2);hold on;
plot(Absolute_distance_Adjusted, Hydraulic_head_of_Q1, "r", "LineWidth", 2);hold on;
legend("测压管水头","总水头")
xlabel("距离/cm")
ylabel("水头/cm")
title("Q1时的总水头线和测压管水头线")

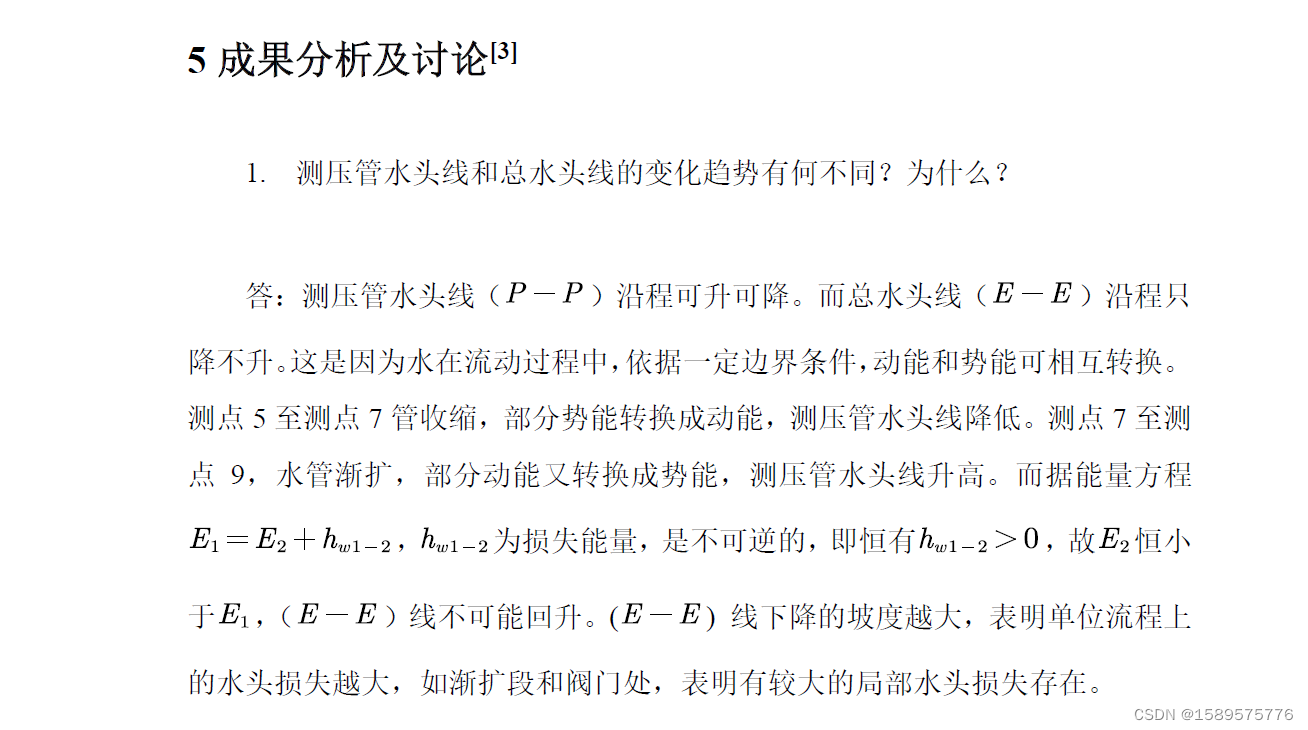

【部分】成果分析及讨论

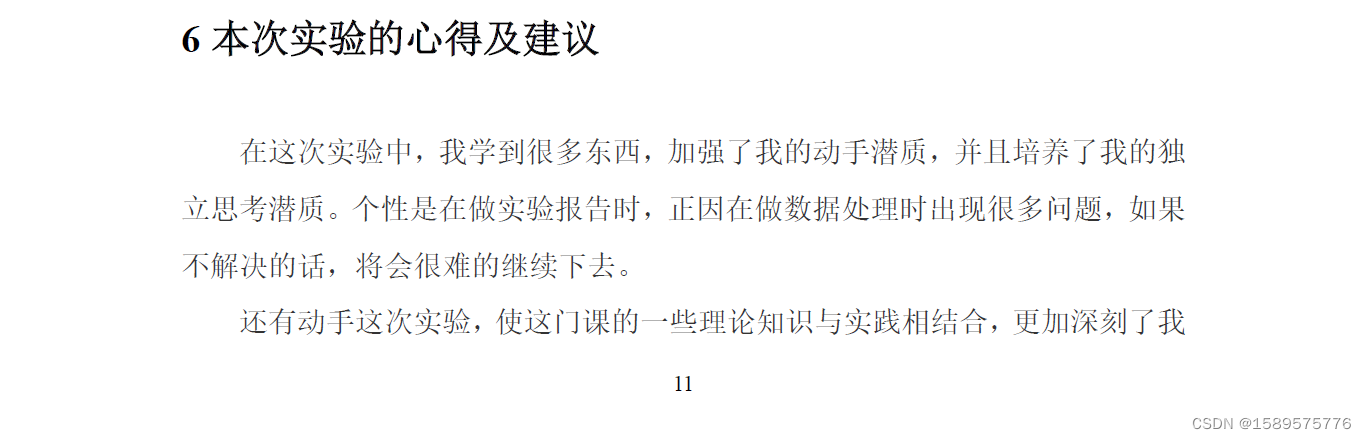

【部分】本次实验的心得及建议
