实验题目：hcip----vlan基础实验
实验要求：pc间能够互通
实验分析：
1.pc2/4/5/6 在同一个广播域中 .pc1/3 在同一个广播域中
2.pc1和pc3是独立的vlan2，pc2是vlan3，pc4是vlan4，pc5是vlan5，pc6是vlan6
3.pc2和pc4/5/6 的接口是混杂（hybrid）模式
4.pc1,pc2，pc3可以访问其他所有pc，pc4、pc5不可以访问pc6，相应的pc6也不能访问其

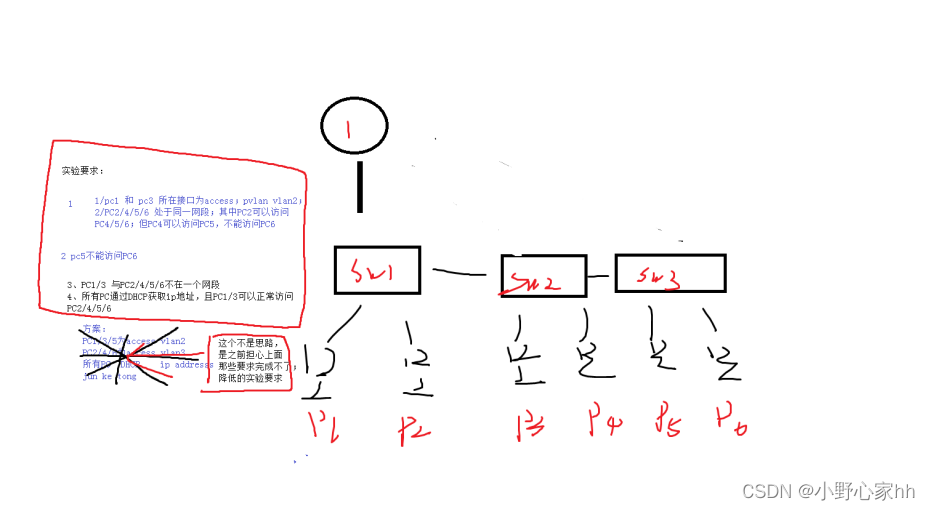

实验拓扑：
实验内容：
1配置交换机上对应pc的端口
.[sw1]vlan batch 2 to 6
[sw1-Ethernet0/0/2]port link-type access
[sw1-Ethernet0/0/2]port default vlan 2
[sw1-Ethernet0/0/3]port hybrid
[sw1-port-group-hybrid]port hybrid u vlan 3 to 6
[sw1-Ethernet0/0/3]port hybrid pvid vlan 3
[sw2]vlan batch 2 to 6
[sw2]int e0/0/2
[sw2-Ethernet0/0/2]port link-type access
[sw2-Ethernet0/02]port default vlan 2
[sw2-Ethernet0/0/2int e0/0/3
[sw2-Ethernet0/0/3]port hybrid u vlan 3 to 5
[sw2-Ethernet0/0/3]port hybrid pvid vlan 4
[sw3]vlan batch 2 to 6
[sw3]int e0/0/2
[sw3-Ethernet0/0/2]port hybrid u vlan 3 to 5
[sw3-Ethernet0/0/2]port hybrid pvid vlan 5
[sw3-Ethernet0/0/2]int e0/0/3
[sw3-Ethernet0/0/3]port hybrid u vlan 3 6
[sw3-Ethernet0/0/3]port hybrid pvid vlan 6
2.配置交换机与交换机间的接口
[sw1]int g 0/0/4
[sw1-GigabitEthernet0/0/4]port link-type trunk
[sw1-GigabitEthernet0/04]port trunk allow-pass vlan 2 to 6
[sw2]int g0/0/1
[sw2-GigabitEthernet0/0/1]port hybrid t vlan 2 to 6
[sw2-GigabitEthernet0/0/1]int g0/0/2
[sw2-GigabitEthernet0/0/4]port link-type trunk
[sw2-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 6
3.配置网关 池塘
[sw1]int g0/0/1
[sw1-GigabitEthernet0/0/1]port hybrid t vlan 2
[sw1-GigabitEthernet0/0/1]port hybrid u vlan 3 to 6
在华为中不带标签的划归物理接口
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip ad 192.168.1.1 24
[r1-GigabitEthernet0/0/0]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]ip ad 192.168.2.1 24
[r1-GigabitEthernet0/0/0.1]arp broadcast enable
[r1]dhcp en
[r1]ip pool v2
[r1-ip-pool-v2]network 192.168.2.0 mask 24
[r1-ip-pool-v2]gateway-list 192.168.2.1
[r1]ip pool v3to6
[r1-ip-pool-v3to6]network 192.168.1.0 mask 24
[r1-ip-pool-v3to6]gateway-list 192.168.1.1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]dhcp select global
[r1]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]dhcp select global

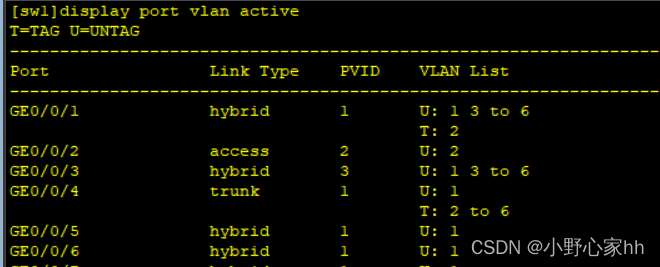

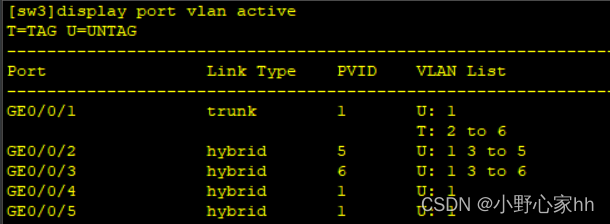

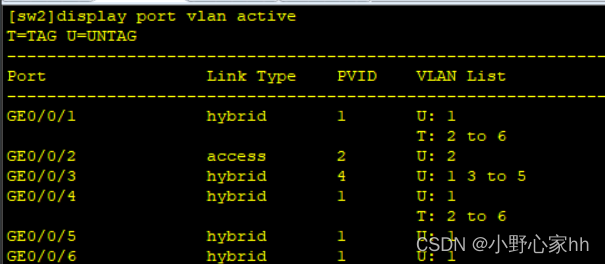

测试：

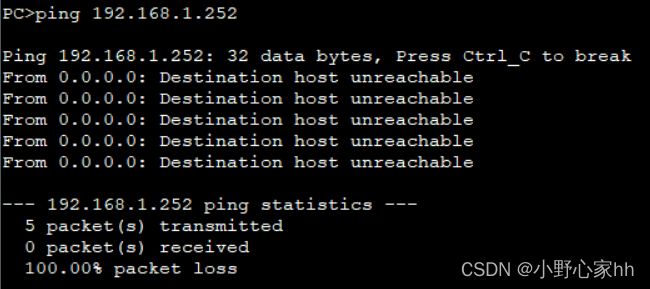

Pc1:
Pc4:

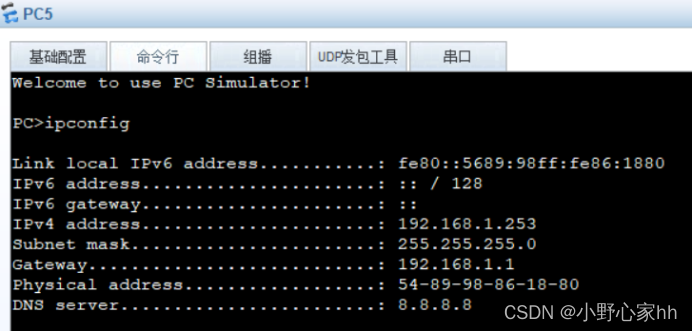

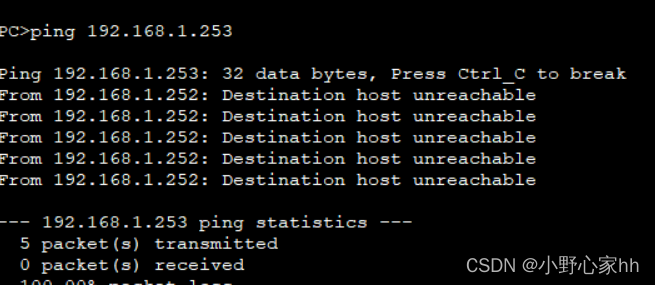

Pc6:
