0
00:00:01,730 --> 00:00:03,372
那现在我们得到这些
1
00:00:03,372 --> 00:00:03,920
对不对
2
00:00:05,130 --> 00:00:07,258
现在还差一个包
3
00:00:07,258 --> 00:00:07,790
就是
4
00:00:08,330 --> 00:00:09,330
这个包
5
00:00:12,720 --> 00:00:13,270
6
00:00:13,270 --> 00:00:13,820
7
00:00:14,100 --> 00:00:17,025
ISO 80000，就是ISO eighty thousands
8
00:00:17,025 --> 00:00:17,512
这个就是
9
00:00:17,512 --> 00:00:22,540
国际标准组织关于量和单位的一个标准
10
00:00:22,950 --> 00:00:23,233
11
00:00:23,233 --> 00:00:26,920
里面规定了很多很多的量、单位
12
00:00:28,610 --> 00:00:29,800
那这个呢
13
00:00:32,820 --> 00:00:35,850

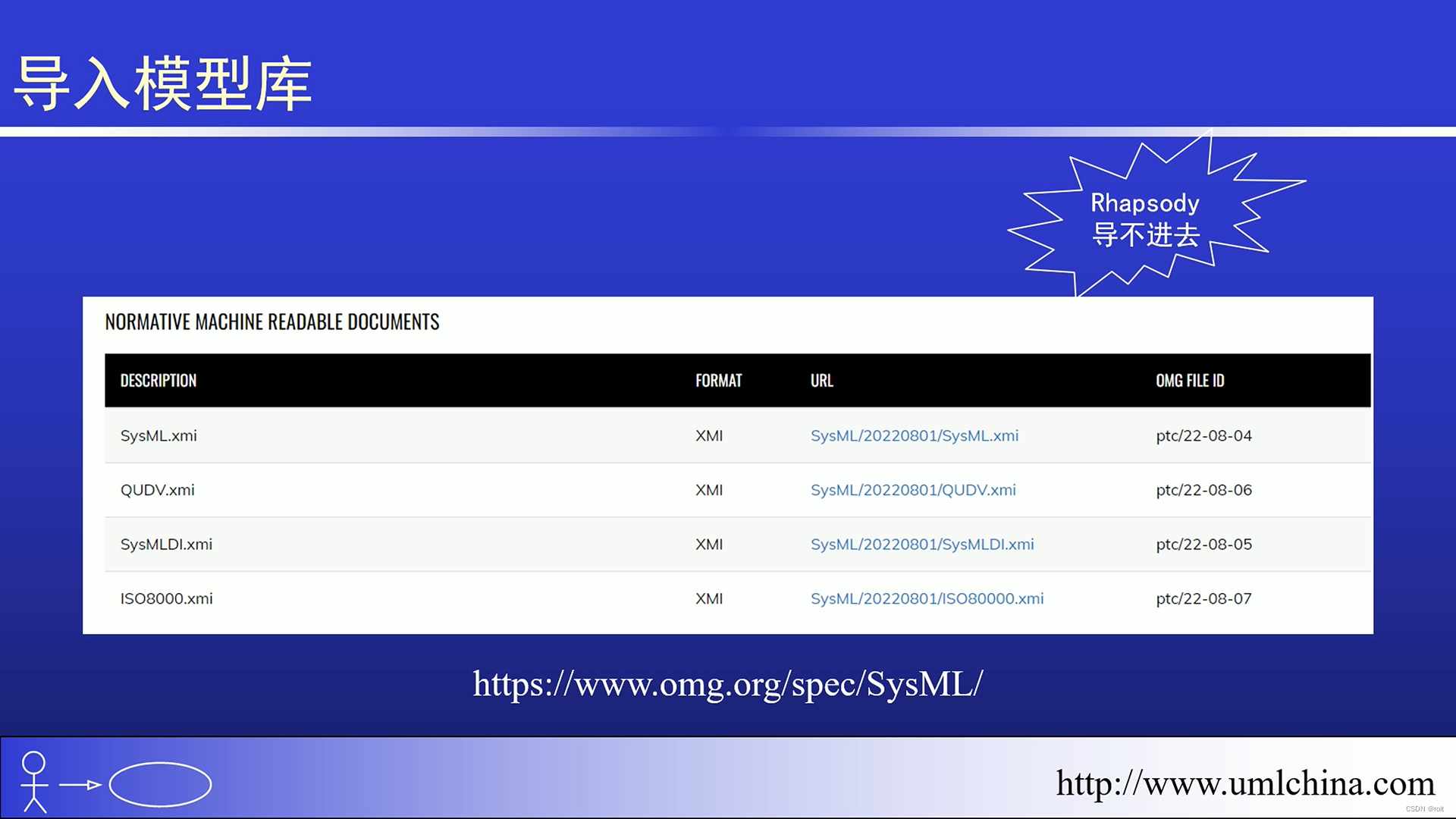

包括OMG网站
14
00:00:38,830 --> 00:00:41,630
这个文件名少了一个0
15
00:00:41,960 --> 00:00:43,690
包括那个
16
00:00:45,990 --> 00:00:49,610
ISO网站它提供了一个XML下载
17
00:00:50,220 --> 00:00:52,010
就是这个
18
00:00:52,400 --> 00:00:55,877
XMI就是XML的交换文件嘛
19
00:00:55,877 --> 00:00:56,680
下载
20
00:00:57,340 --> 00:00:59,440
按道理是可以导进去的
21
00:01:02,840 --> 00:01:03,880
但是呢
22
00:01:04,210 --> 00:01:05,350
Rhapsody
23
00:01:06,050 --> 00:01:08,110
是导不进去的
24
00:01:11,470 --> 00:01:13,620
用EA可以导
25
00:01:13,930 --> 00:01:18,230
所以网上有人就怀疑说这个是EA写的
26
00:01:18,510 --> 00:01:18,737
27
00:01:18,737 --> 00:01:22,608
这是OMG要委托EA写的文件
28
00:01:22,608 --> 00:01:24,430
这个就不得而知了
29
00:01:25,390 --> 00:01:25,621
30
00:01:25,621 --> 00:01:27,240
你看，我们导一下
31
00:01:27,760 --> 00:01:28,037
32
00:01:28,037 --> 00:01:29,425
看看怎么导
33
00:01:29,425 --> 00:01:29,980
对吧
0
00:00:00,270 --> 00:00:03,954
那现在我们已经下载了那个文件，放在目录下面了
1
00:00:03,954 --> 00:00:05,709
那我们来导一导看看
2
00:00:05,709 --> 00:00:06,060
你看
3
00:00:06,620 --> 00:00:07,890
这里，对吧
4
00:00:08,170 --> 00:00:08,407
5
00:00:08,407 --> 00:00:11,260
导入from OMG什么什么这里
6
00:00:16,620 --> 00:00:17,700
等一下
7
00:00:19,390 --> 00:00:19,691
好
8
00:00:19,691 --> 00:00:23,610

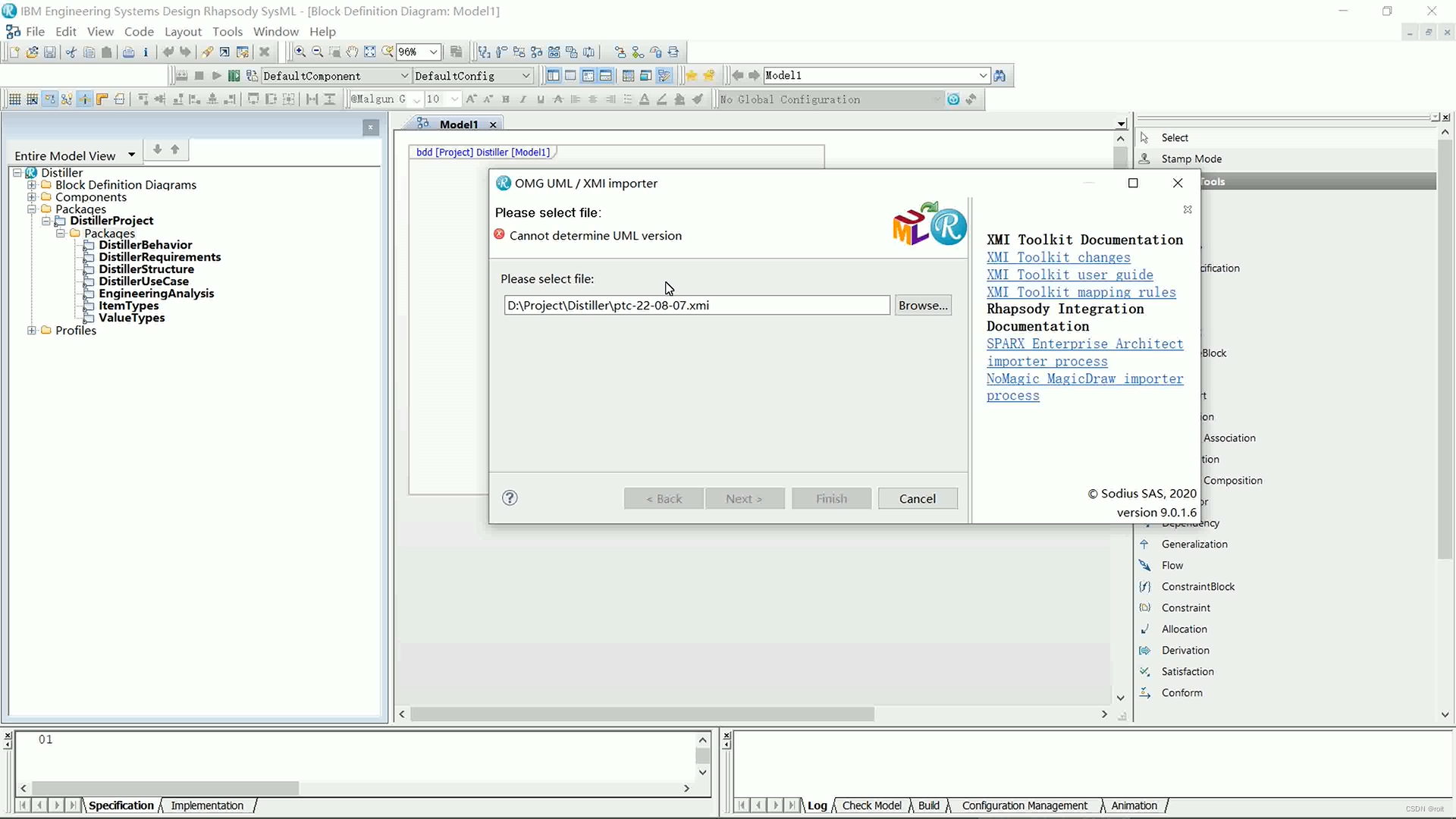

这里有个XMI的导入工具
9
00:00:26,310 --> 00:00:26,565
10
00:00:26,565 --> 00:00:27,330
就这个
11
00:00:33,010 --> 00:00:33,268
好
12
00:00:33,268 --> 00:00:34,558
导不了
13
00:00:34,558 --> 00:00:38,170
但是如果我们用EA导就可以导
14
00:00:38,450 --> 00:00:39,110
15
00:00:40,180 --> 00:00:42,995
就是用SparxSystems
16
00:00:42,995 --> 00:00:45,185
那个建模工具
17
00:00:45,185 --> 00:00:46,750
Enterprise Architect
18
00:00:47,040 --> 00:00:47,315
19
00:00:47,315 --> 00:00:48,970
EA可以导
20
00:00:52,730 --> 00:00:54,277
所以呢，第二条路
21
00:00:54,277 --> 00:00:56,710
如果你真的想用这个的话
22
00:00:57,510 --> 00:01:00,533
可以走换条路线
23
00:01:00,533 --> 00:01:01,440
就是说
24
00:01:01,830 --> 00:01:04,410
用EA先导进去
25
00:01:05,010 --> 00:01:06,809
得到这个包之后
26
00:01:06,809 --> 00:01:10,150
再把这个包再用EA导出来
27
00:01:10,150 --> 00:01:12,720
变成EA的那个XMI
28
00:01:13,170 --> 00:01:15,090
然后再用Rhapsody导进来
29
00:01:17,190 --> 00:01:19,620
那下面我们来试一下这个
