1.概述
交通要道的路口上人车穿行，特别是上下班早高峰，且时常发生交通事故。因此对交通路口的车流量和人流量的监测必不可少。
2.检测模型
使用的检测模型为YOLOX模型，模型权重为训练VOC数据集得来，其中包括了二十个类别，但我们主要针对地面交通路口进行监测，选择了最关键的三个监测要素作为监测目标，分别为人、汽车和自行车。YOLOX神经网络模型代码如下：
#!/usr/bin/env python3
# -*- coding:utf-8 -*-
# Copyright (c) Megvii, Inc. and its affiliates.
import torch
import torch.nn as nn
from .darknet import BaseConv, CSPDarknet, CSPLayer, DWConv
class YOLOXHead(nn.Module):
def __init__(self, num_classes, width=1.0, in_channels=[256, 512, 1024], act="silu", depthwise=False, ):
super().__init__()
Conv = DWConv if depthwise else BaseConv
self.cls_convs = nn.ModuleList()
self.reg_convs = nn.ModuleList()
self.cls_preds = nn.ModuleList()
self.reg_preds = nn.ModuleList()
self.obj_preds = nn.ModuleList()
self.stems = nn.ModuleList()
for i in range(len(in_channels)):
self.stems.append(
BaseConv(in_channels=int(in_channels[i] * width), out_channels=int(256 * width), ksize=1, stride=1,
act=act))
self.cls_convs.append(nn.Sequential(*[
Conv(in_channels=int(256 * width), out_channels=int(256 * width), ksize=3, stride=1, act=act),
Conv(in_channels=int(256 * width), out_channels=int(256 * width), ksize=3, stride=1, act=act),
]))
self.cls_preds.append(
nn.Conv2d(in_channels=int(256 * width), out_channels=num_classes, kernel_size=1, stride=1, padding=0)
)
self.reg_convs.append(nn.Sequential(*[
Conv(in_channels=int(256 * width), out_channels=int(256 * width), ksize=3, stride=1, act=act),
Conv(in_channels=int(256 * width), out_channels=int(256 * width), ksize=3, stride=1, act=act)
]))
self.reg_preds.append(
nn.Conv2d(in_channels=int(256 * width), out_channels=4, kernel_size=1, stride=1, padding=0)
)
self.obj_preds.append(
nn.Conv2d(in_channels=int(256 * width), out_channels=1, kernel_size=1, stride=1, padding=0)
)
def forward(self, inputs):
outputs = []
for k, x in enumerate(inputs):
x = self.stems[k](x)
cls_feat = self.cls_convs[k](x)
cls_output = self.cls_preds[k](cls_feat)
reg_feat = self.reg_convs[k](x)
reg_output = self.reg_preds[k](reg_feat)
obj_output = self.obj_preds[k](reg_feat)
output = torch.cat([reg_output, obj_output, cls_output], 1)
outputs.append(output)
return outputs
class YOLOPAFPN(nn.Module):
def __init__(self, depth=1.0, width=1.0, in_features=("dark3", "dark4", "dark5"), in_channels=[256, 512, 1024],
depthwise=False, act="silu"):
super().__init__()
Conv = DWConv if depthwise else BaseConv
self.backbone = CSPDarknet(depth, width, depthwise=depthwise, act=act)
self.in_features = in_features
self.upsample = nn.Upsample(scale_factor=2, mode="nearest")
# -------------------------------------------#
# 20, 20, 1024 -> 20, 20, 512
# -------------------------------------------#
self.lateral_conv0 = BaseConv(int(in_channels[2] * width), int(in_channels[1] * width), 1, 1, act=act)
# -------------------------------------------#
# 40, 40, 1024 -> 40, 40, 512
# -------------------------------------------#
self.C3_p4 = CSPLayer(
int(2 * in_channels[1] * width),
int(in_channels[1] * width),
round(3 * depth),
False,
depthwise=depthwise,
act=act,
)
# -------------------------------------------#
# 40, 40, 512 -> 40, 40, 256
# -------------------------------------------#
self.reduce_conv1 = BaseConv(int(in_channels[1] * width), int(in_channels[0] * width), 1, 1, act=act)
# -------------------------------------------#
# 80, 80, 512 -> 80, 80, 256
# -------------------------------------------#
self.C3_p3 = CSPLayer(
int(2 * in_channels[0] * width),
int(in_channels[0] * width),
round(3 * depth),
False,
depthwise=depthwise,
act=act,
)
# -------------------------------------------#
# 80, 80, 256 -> 40, 40, 256
# -------------------------------------------#
self.bu_conv2 = Conv(int(in_channels[0] * width), int(in_channels[0] * width), 3, 2, act=act)
# -------------------------------------------#
# 40, 40, 256 -> 40, 40, 512
# -------------------------------------------#
self.C3_n3 = CSPLayer(
int(2 * in_channels[0] * width),
int(in_channels[1] * width),
round(3 * depth),
False,
depthwise=depthwise,
act=act,
)
# -------------------------------------------#
# 40, 40, 512 -> 20, 20, 512
# -------------------------------------------#
self.bu_conv1 = Conv(int(in_channels[1] * width), int(in_channels[1] * width), 3, 2, act=act)
# -------------------------------------------#
# 20, 20, 1024 -> 20, 20, 1024
# -------------------------------------------#
self.C3_n4 = CSPLayer(
int(2 * in_channels[1] * width),
int(in_channels[2] * width),
round(3 * depth),
False,
depthwise=depthwise,
act=act,
)
def forward(self, input):
out_features = self.backbone.forward(input)
[feat1, feat2, feat3] = [out_features[f] for f in self.in_features]
P5 = self.lateral_conv0(feat3)
P5_upsample = self.upsample(P5)
P5_upsample = torch.cat([P5_upsample, feat2], 1)
P5_upsample = self.C3_p4(P5_upsample)
P4 = self.reduce_conv1(P5_upsample)
P4_upsample = self.upsample(P4)
P4_upsample = torch.cat([P4_upsample, feat1], 1)
P3_out = self.C3_p3(P4_upsample)
P3_downsample = self.bu_conv2(P3_out)
P3_downsample = torch.cat([P3_downsample, P4], 1)
P4_out = self.C3_n3(P3_downsample)
P4_downsample = self.bu_conv1(P4_out)
P4_downsample = torch.cat([P4_downsample, P5], 1)
P5_out = self.C3_n4(P4_downsample)
return (P3_out, P4_out, P5_out)
class YoloBody(nn.Module):
def __init__(self, num_classes, phi):
super().__init__()
depth_dict = {'nano': 0.33, 'tiny': 0.33, 's': 0.33, 'm': 0.67, 'l': 1.00, 'x': 1.33, }
width_dict = {'nano': 0.25, 'tiny': 0.375, 's': 0.50, 'm': 0.75, 'l': 1.00, 'x': 1.25, }
depth, width = depth_dict[phi], width_dict[phi]
depthwise = True if phi == 'nano' else False
self.backbone = YOLOPAFPN(depth, width, depthwise=depthwise)
self.head = YOLOXHead(num_classes, width, depthwise=depthwise)
def forward(self, x):
fpn_outs = self.backbone.forward(x)
outputs = self.head.forward(fpn_outs)
return outputs
3.系统可视化

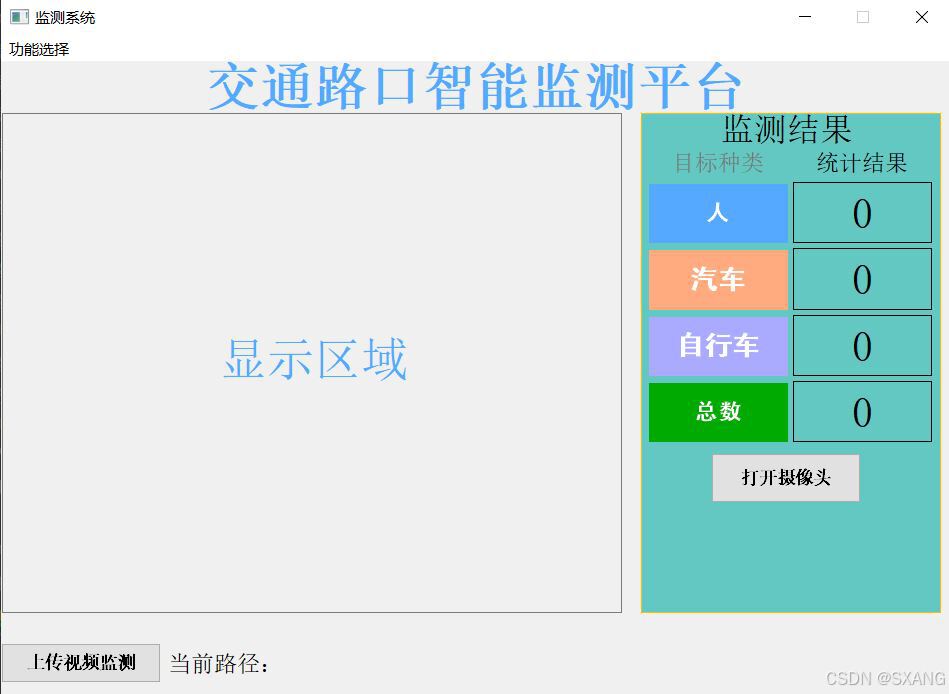

系统使用了PyQt5作为可视化工具，整体效果如下：
系统实现了实时摄像头监测功能和上传视频监测功能，视频流都通过opencv库来读取。读取成功后将每一帧交由YOLOX模型进行检测。
摄像头功能代码如下：
def open_camera_btn(self):
if not self.timer_camera.isActive(): # 定时器未启动
flag = self.cap.open(self.CAM_NUM)
if flag == False:
msg = QtWidgets.QMessageBox.warning(self.window, '警告！', "请检查摄像头是否连接正确",
buttons=QtWidgets.QMessageBox.Ok)
else:
self.timer_camera.start() # 设置30毫秒后，定时器将每隔30毫秒调用timeout函数
self.open_camera.setText('关闭监测')
# 关闭检测按钮事件
else:
self.timer_camera.stop()
self.cap.release()
self.label_show_camera.clear() # 清空视频显示区域
self.open_camera.setText('开始监测')
上传视频监测代码如下：
def video_detect_btn(self):
fileUrl, _ = QFileDialog.getOpenFileName(self, "Open Video File", QDir.currentPath(),
"Video Files (*.mp4 *.avi *.mov *.wmv);;")
# 视频选择成功
if fileUrl:
print(fileUrl)
self.label_video_url.setText(fileUrl)
if not self.timer_camera.isActive(): # 定时器未启动
flag = self.cap.open(fileUrl)
if flag == False:
msg = QtWidgets.QMessageBox.warning(self.window, '警告！', "请检查摄像头是否连接正确",
buttons=QtWidgets.QMessageBox.Ok)
else:
self.timer_camera.start() # 设置30毫秒后，定时器将每隔30毫秒调用timeout函数

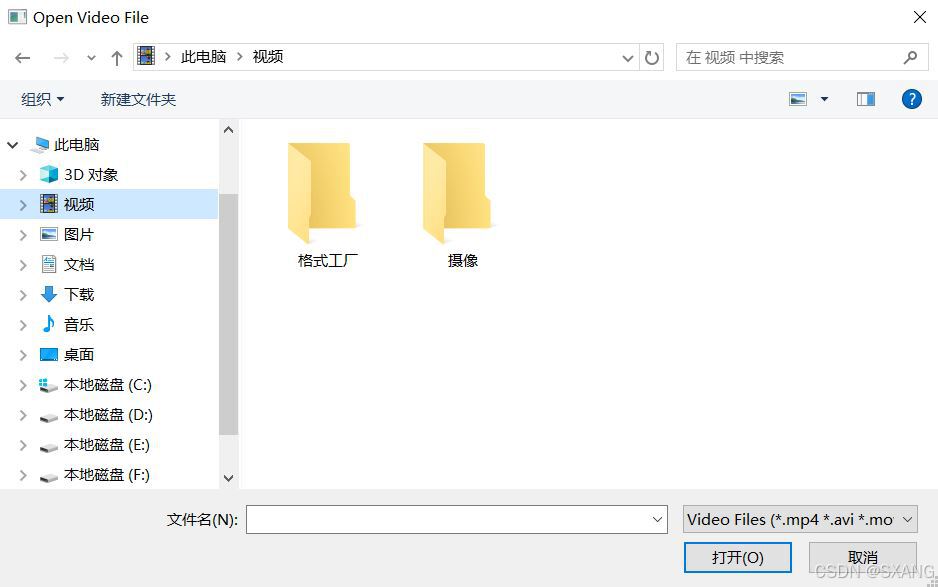

点击上传监测视频后，将打开资源文件窗口进行视频文件选择，效果如下：

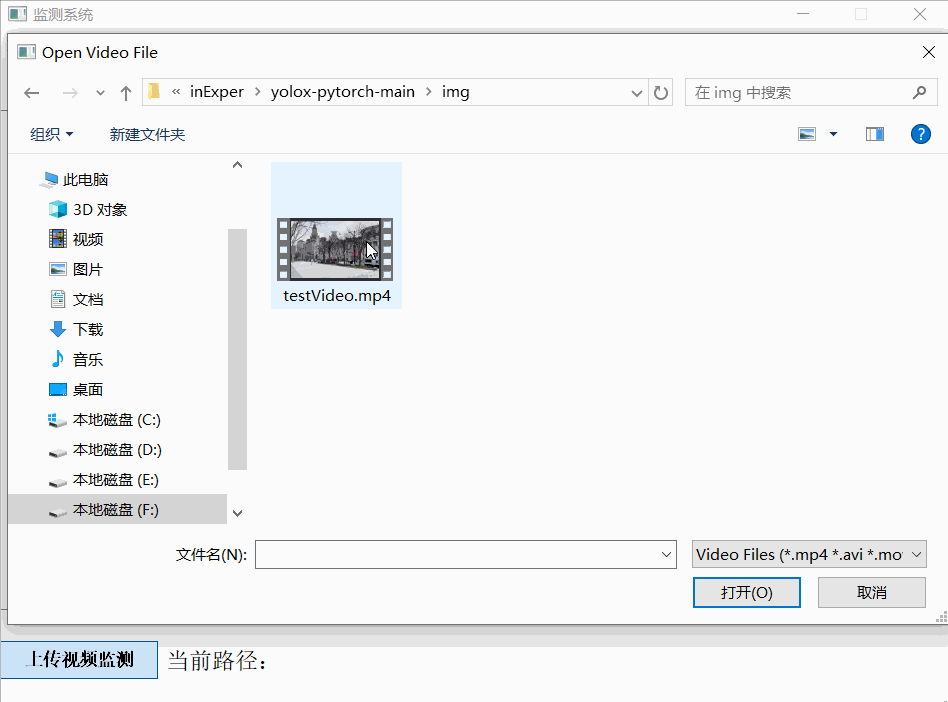

用户选择完成后，将开始逐帧检测。
整个页面的逻辑代码如下：
import cv2
from PIL import Image
from PyQt5 import uic, QtCore, QtGui, QtWidgets
import numpy as np
from PyQt5.QtCore import QDir
from PyQt5.QtWidgets import QMainWindow, QFileDialog
from utils.utils import get_class_dic
from yolo import YOLO
class Monitor(QMainWindow):
def __init__(self):
super().__init__() # 父类的构造函数
self.CAM_NUM = 0 # 调用摄像头
self.timer_camera = QtCore.QTimer()
self.cap = cv2.VideoCapture() # 视频流
self.set_ui_init()
self.slot_init()
self.yolox = YOLO()
# 布局初始化
def set_ui_init(self):
self.window = uic.loadUi('ui/monitor.ui',self)
self.open_camera = self.window.open_camera
self.label_show_camera = self.window.label_camera
self.all_result = self.window.res_array
self.person_num = self.window.person_label
self.car_num = self.window.car_label
self.light_num = self.window.light_label
self.label_1 = self.window.id_one
self.label_2 = self.window.id_two
self.label_3 = self.window.id_three
self.label_video_url = self.window.label_video_url
# 槽函数初始化
def slot_init(self):
self.open_camera.clicked.connect(self.open_camera_btn)
self.timer_camera.timeout.connect(self.show_camera) # 将timeout绑定槽函数show_camera
self.btn_submit_video.clicked.connect(self.video_detect_btn)
# 显示摄像头
def show_camera(self):
flag, image = self.cap.read()
if not flag:
self.timer_camera.stop()
self.cap.release()
self.label_show_camera.clear() # 清空视频显示区域
else:
show = cv2.resize(image, (620, 500))
show = Image.fromarray(show)
re_show, pre_label = self.yolox.detect_image(show)
res_dict = get_class_dic(pre_label)
self.show_res_num(res_dict)
res_dict.clear()
re_show = np.array(re_show)
re_show = cv2.cvtColor(re_show, cv2.COLOR_BGR2RGB)
showImage = QtGui.QImage(re_show.data, re_show.shape[1], re_show.shape[0],
QtGui.QImage.Format_RGB888)
self.label_show_camera.setPixmap(QtGui.QPixmap.fromImage(showImage)) # 将画面显示在ui控件上
# 摄像头按钮点击事件
def open_camera_btn(self):
if not self.timer_camera.isActive(): # 定时器未启动
flag = self.cap.open(self.CAM_NUM)
if flag == False:
msg = QtWidgets.QMessageBox.warning(self.window, '警告！', "请检查摄像头是否连接正确",
buttons=QtWidgets.QMessageBox.Ok)
else:
self.timer_camera.start() # 设置30毫秒后，定时器将每隔30毫秒调用timeout函数
self.open_camera.setText('关闭监测')
# 关闭检测按钮事件
else:
self.timer_camera.stop()
self.cap.release()
self.label_show_camera.clear() # 清空视频显示区域
self.open_camera.setText('开始监测')
# 视频监测
def video_detect_btn(self):
fileUrl, _ = QFileDialog.getOpenFileName(self, "Open Video File", QDir.currentPath(),
"Video Files (*.mp4 *.avi *.mov *.wmv);;")
# 视频选择成功
if fileUrl:
print(fileUrl)
self.label_video_url.setText(fileUrl)
if not self.timer_camera.isActive(): # 定时器未启动
flag = self.cap.open(fileUrl)
if flag == False:
msg = QtWidgets.QMessageBox.warning(self.window, '警告！', "请检查摄像头是否连接正确",
buttons=QtWidgets.QMessageBox.Ok)
else:
self.timer_camera.start() # 设置30毫秒后，定时器将每隔30毫秒调用timeout函数
def show_res_num(self, dict):
label_list = [*dict]
all = 0
if 'person' in label_list:
self.person_num.setText(str(dict['person']))
all += int(dict['person'])
else:
self.person_num.setText('0')
if 'car' in label_list:
self.car_num.setText(str(dict['car']))
all += int(dict['car'])
else:
self.car_num.setText('0')
if 'bicycle' in label_list:
self.light_num.setText(str(dict['bicycle']))
all += int(dict['bicycle'])
else:
self.light_num.setText('0')
self.all_result.setText(str(all))
4.效果
