跟着Nature正刊学作图：回归曲线+散点图

复现目标图片

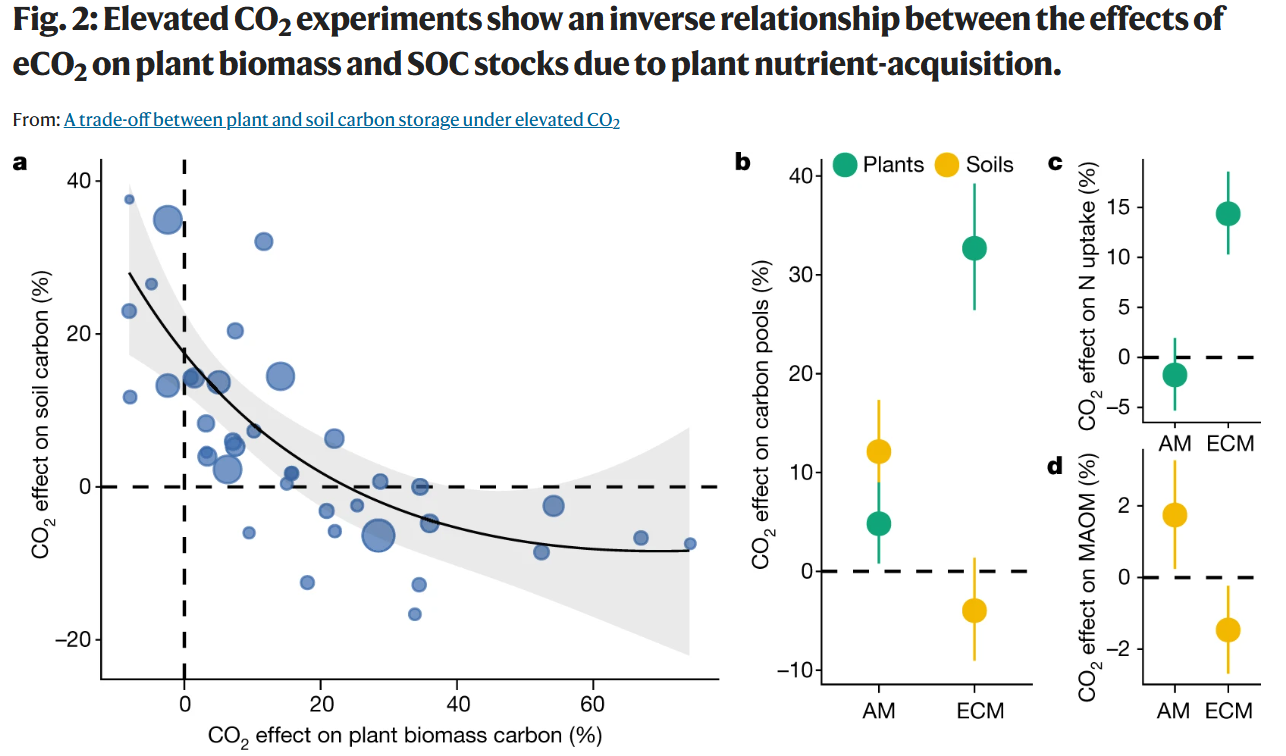

图注：Nature原文中的组合图 (来源 https://www.nature.com/articles/s41586-021-03306-8)

图注：使用R ggplot2 + cowplot复现的效果

绘图前期准备

rm(list = ls())
setwd(dirname(rstudioapi::getActiveDocumentContext()$path))

library(openxlsx);library(ggplot2);library(cowplot)

data<- purrr::map(1:6, ~read.xlsx("data.xlsx", .x))
# 读取数据：6个子图的数据分别存储在data.xlsx的6个sheet中
data <- purrr::map(1:6, ~read.xlsx("data.xlsx", .x))
# <-- 补充说明开始 -->
# 提示：如需练习数据，可通过文末方式联系获取。
# 这里用map循环读取，保证每个子图数据独立存储，便于后续清晰调用。
# <-- 补充说明结束 -->

绘制左侧回归线图

Lineplot<- ggplot(data[[1]], aes(Biomass*100, yi*100))+
  geom_point(aes(size = 1/vi, col = Treatment, fill = Treatment), alpha = 0.7)+#设置点的大小
  geom_line(aes(Biomass*100, yhat), data[[2]], col = "#F2B701", size = 0.8)+
  geom_ribbon(aes(x = Biomass*100, y = yhat, ymax = UCL, ymin = LCL),
              data[[2]], fill = "#F2B701", alpha = 0.1, size = 0.8)+#绘制置信区间
  geom_line(aes(Biomass*100, yhat), data[[3]], col = "#3969AC", size = 0.8)+#拟合曲线
  geom_ribbon(aes(x = Biomass*100, y = yhat, ymax = UCL, ymin = LCL),
              data[[3]], fill = "#3969AC", alpha = 0.1, size = 0.8)+
  scale_size(range = c(1, 6))+
  scale_color_manual(values = c("#F2B701","#3969AC"))+
  scale_fill_manual(values = c("#F2B701","#3969AC"))+
  geom_hline(yintercept = 0, lty=2, size = 1)+
  geom_vline(xintercept = 0, lty=2, size = 1)+
  guides(size = "none")+
  theme_cowplot(font_size = 8)+#将字号设置为8
  theme(legend.position = c(0.5,0.7),
        legend.box = 'horizontal',
        legend.title = element_blank(),
        plot.margin = unit(c(5,5,5,5), "points"))+
  geom_text(aes(35, 60, label =
                  (paste(expression("y = 0.1 - 0.17 x + 0.06 x"^2*", p = 0.3453")))),
            parse = TRUE, size = 3, color = "#3969AC")+#填入公式
  labs(x = expression(paste(CO[2], " effect on biomass carbon (%)")),
       y = expression(paste(CO[2], " effect on soil carbon (%)")))

Lineplot

绘制右侧散点图

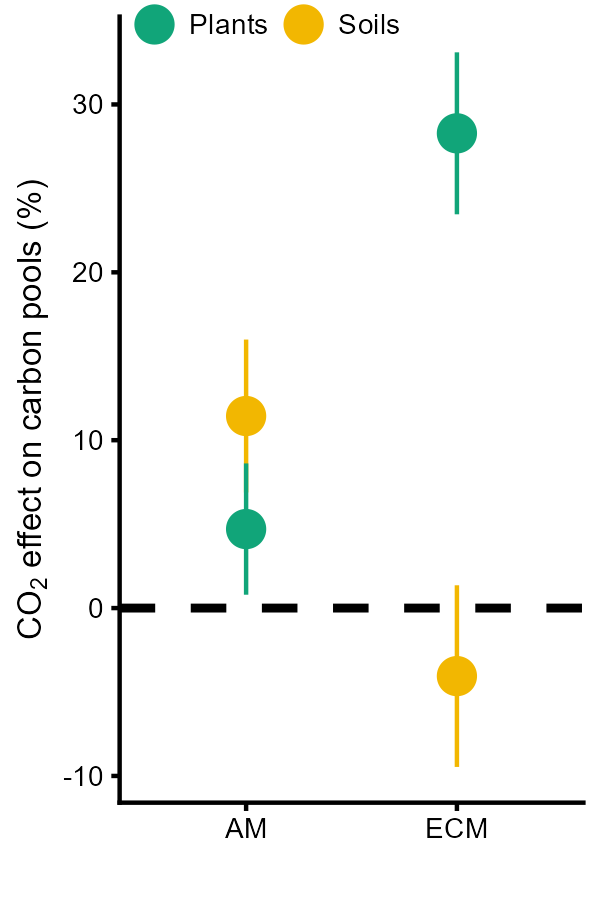

Myco<- ggplot(data[[4]],
               aes(Mycohiza, estimate*100, color = group, group = group))+
  geom_hline(yintercept = 0, lty = 2, size = 1)+
  scale_color_manual(values = c("#11A579", "#F2B701"))+
  geom_pointrange(aes(ymin = ci.lb*100, ymax = ci.ub*100),
                  position = position_dodge(width = 0), size = 0.8)+
  theme_cowplot(font_size=8) +
  theme(legend.title = element_blank(),
        legend.direction = "horizontal",
        legend.position = c(0, 0.99))+
  labs(x = "",
       y = expression(paste(CO[2], " effect on carbon pools (%)")))

Myco

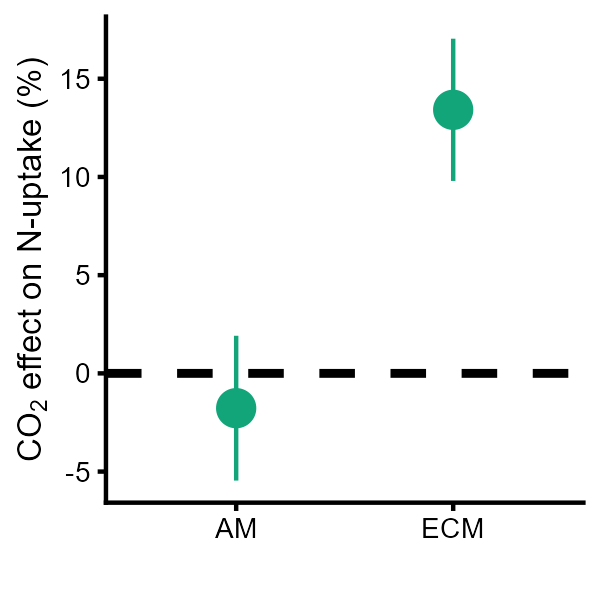

Nutake<- ggplot(data[[5]], aes(Mycohiza, estimate*100)) +
  geom_hline(yintercept = 0, lty=2, size=1) +
  geom_pointrange(aes(ymin = ci.lb*100, ymax = ci.ub*100),
                  size = 0.8, color = "#11A579")+
  theme_cowplot(font_size=8) +
  theme(legend.position = "none",
        axis.title.y = element_text(margin = margin(r=1)))+
  labs(x = "",
       y = expression(paste(CO[2]," effect on N-uptake (%)")))

Nutake

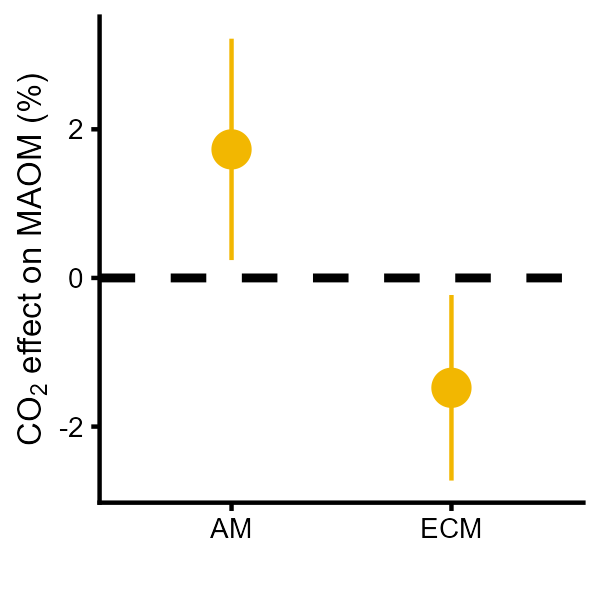

MAOM<- ggplot(data[[6]], aes(Mycohiza, estimate*100))+
  geom_hline(yintercept = 0, lty = 2, size = 1)+
  geom_pointrange(aes(ymin = ci.lb*100, ymax = ci.ub*100),
                  size = 0.8, color = "#F2B701")+
  theme_cowplot(font_size = 8) +
  theme(legend.position = "none",
        axis.title.y = element_text(margin = margin(r=1)))+
  labs(x = "",
       y = expression(paste(CO[2]," effect on MAOM (%)")))

MAOM

组合拼图 (关键步骤！)

Right<- plot_grid(Nutake + theme(plot.margin = unit(c(5, 5, -10, 5), "points")),
                   MAOM + theme(plot.margin = unit(c(0, 5, 5, 5), "points")),
                   nrow = 2, labels = c("c","d"), align = "v", axis = "l",
                   vjust = 1.2, hjust = 0.5, label_size = 10)#先拼接右侧上下两张图
Midrig<- plot_grid(Myco + theme(plot.margin = unit(c(5,5,5,0), "points")),
                   Right,
                   vjust = 1.2,
                   axis = "b",
                   labels = c("b",""), label_size = 10,
                   rel_widths = c(1, 0.7),
                   nrow = 1, ncol = 2)#拼接所有的散点图
Total<- plot_grid(Lineplot,
                   middleright,
                   vjust = 1.2, axis = "b", labels = c("a",""),
                   label_size= 10,
                   rel_widths = c(1, 0.7))#拼接左侧的回归曲线图

Total

图注：拼图完成！关键点在于使用plot.margin微调子图间距，以及rel_widths控制左右比例。

复现完成！ 总结一下关键点：

• 数据组织：清晰分隔不同子图所需数据。

• 回归图：geom_ribbon画置信区间，size=1/vi实现加权散点。

• 点估计图：geom_pointrange是核心，position_dodge处理分组错位。

• 拼图：cowplot::plot_grid是核心，精调plot.margin和rel_widths是成败关键。
