思考

1、当服务访问量达到一定程度,流量扛不住的时候,该如何处理?

2、服务之间相互依赖,当服务A出现响应时间过长,影响到服务B的响应,进而产生连锁反应,直至影响整个依赖链上的所有服务,该如何处理?

这是分布式、微服务开发不可避免的问题。

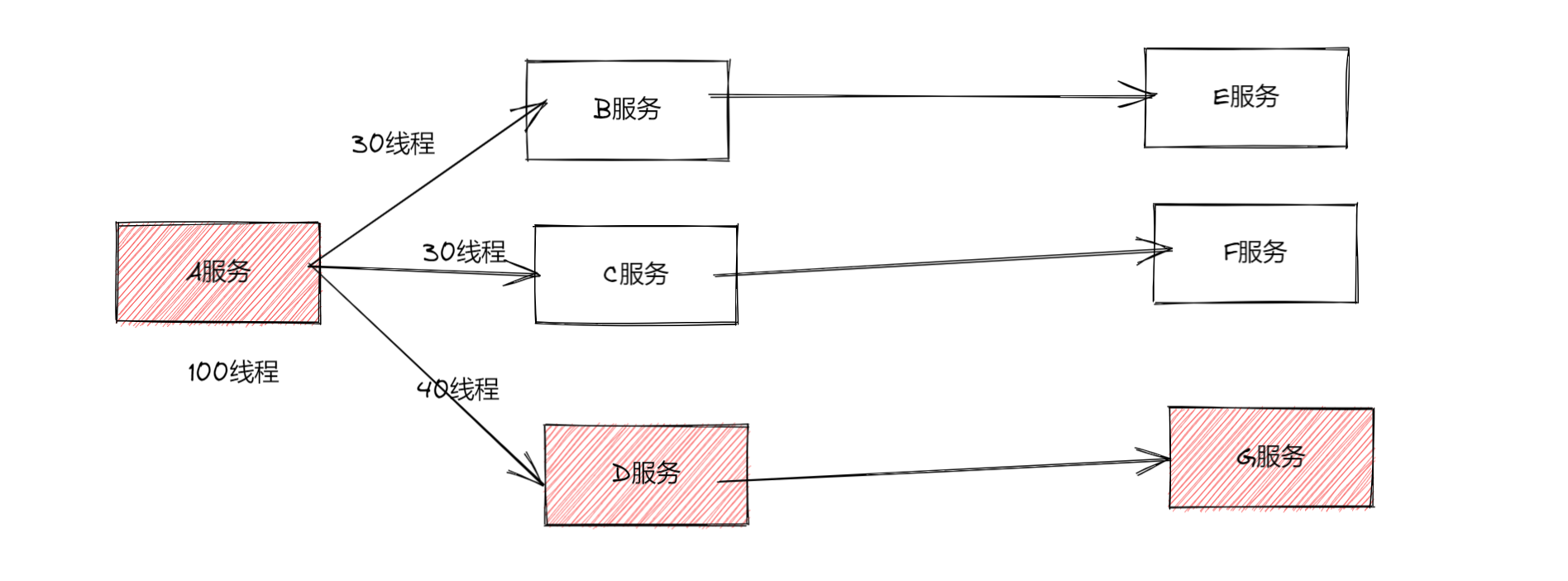

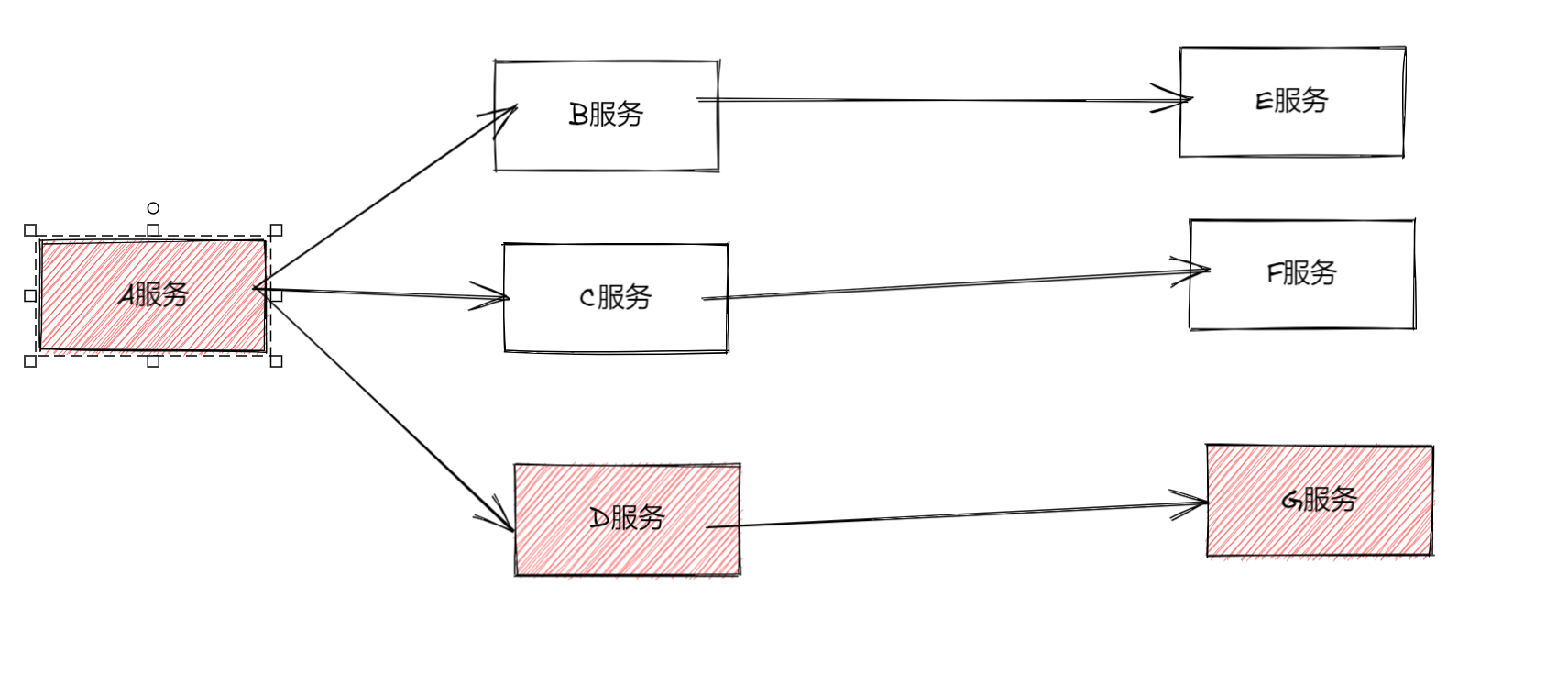

我们系统假如是这样的调用图。当G服务出现程序Bug,大流量请求,硬件故障,缓存击穿时,导致服务不可用。进而导致D服务不可用,导致A服务不可用。

B、C、D三个服务共享A服务的线程池,当D服务出现故障时,则导致A服务中所有线程池都在等待D服务响应而被阻塞。进而导致A服务不可用

 解决方案

超时机制

在不做任何处理的情况下,服务提供者不可用会导致消费者请求线程强制等待,而造成系统资源耗尽。加入超时机制,一旦超时,就释放资源。由于释放资源速度较快,一定程度上可以抑制资源耗尽的问题。

服务限流(资源隔离)

限制请求核心服务提供者的流量,使大流量拦截在核心服务之外,这样可以更好的保证核心服务提供者不出问题,对于一些出问题的服务可以限制流量访问,只分配固定线程资源访问,这样能使整体的资源不至于被出问题的服务耗尽,进而整个系统雪崩。那么服务之间怎么限流,怎么资源隔离?例如可以通过线程池+队列的方式,通过信号量的方式。

当D服务出问题时,A调用C服务和B服务不受影响。

服务熔断

远程服务不稳定或网络抖动时暂时关闭,就叫服务熔断。

服务降级

有服务熔断,必然要有服务降级。

sentinel开源功能不足之点

 相信用过开源版本sentinel的小伙伴,会发现当服务重新启动是,sentinel控制台规则数据则失效;接下里引入sentinel-datasource-nacos 规则持久化,来解决sentinel规则失效问题。但是发现在sentinel的dashboard的客户端更改规则生效,但是nacos中的配置未发生变更,导致dashboard的和nacos的数据不一致现象。

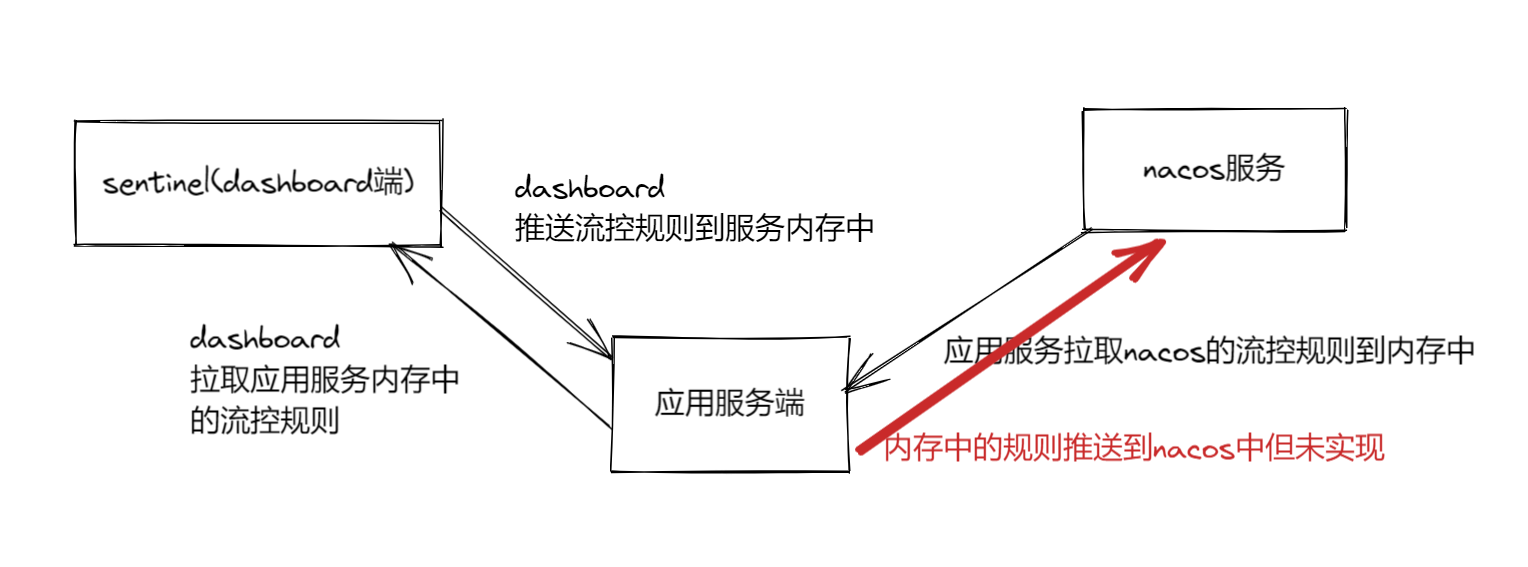

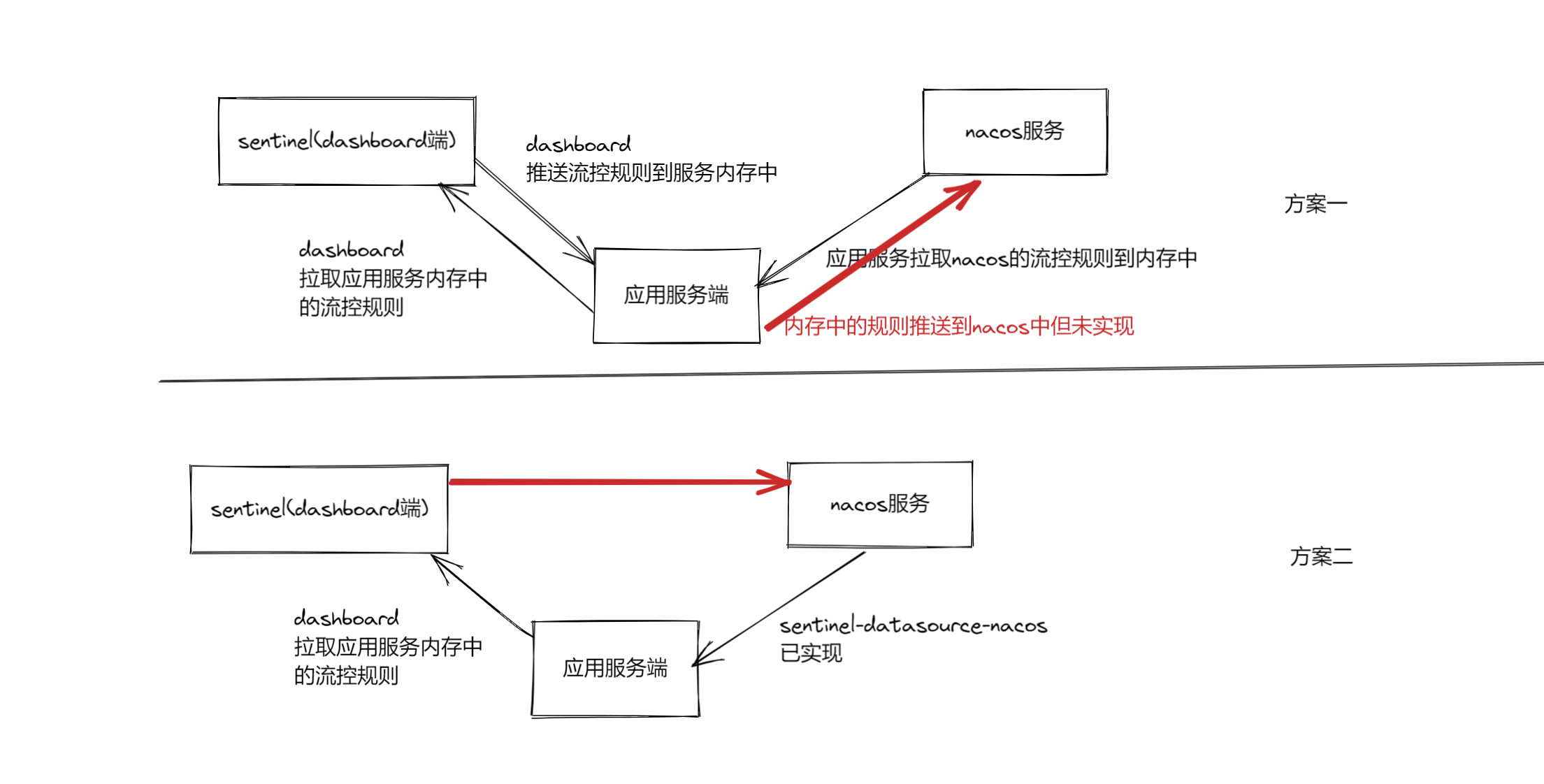

红色的箭头未实现,就会导致dashboard配置的规则和nacos配置中的数据不一致。

为了解决这个问题,官方的建议是在dashboard源码中进行改造,直接写入数据到nacos中。标红的部分

所以实现dashboard和nacos中的数据规则一致,则有两个方案:

 方案一 需要在应用服务端进行改造

方案二 需要在dashboard的源码中进行改造(官方推荐

设计模式的核心理念逻辑之一:开放封闭原则。选择方案一比较好点。

我对方案一进行的实现。

代码实现

1.SpringContextHolder 工具类(为了能获取到配置中变量)

@Component
public class SpringContextHolder implements ApplicationContextAware {

    private static ApplicationContext context;

    public static ApplicationContext getContext() {
        return context;
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) {
        context = applicationContext;
    }
}

2. SentinelNacosProperties 实体类

public class SentinelNacosProperties {
    public String serverAddr;
    public String groupId;
    public String dataId;
    public String username;
    public String password;
    public String namespace;
    public String appName;
//自己添加get/set方法
}

 3.利用sentinel的扩展点InitFunc(NacosDataSourceInitFunc)

@Slf4j
public class NacosDataSourceInitFunc implements InitFunc {

    @Override
    public void init() throws Exception {
        log.info("NacosDataSourceInitFunc init...");
        Environment env = SpringContextHolder.getContext().getEnvironment();
        String appName = env.getProperty("spring.application.name", "demo-project");
        String groupId = "SENTINEL_GROUP";
        String serverAddr = env.getProperty("spring.cloud.nacos.config.server-addr", "localhost:8848");
        String namespace = env.getProperty("spring.cloud.nacos.config.namespace", "public");
        String username = env.getProperty("spring.cloud.nacos.config.username", "nacos");
        String password = env.getProperty("spring.cloud.nacos.config.password", "xx#pj70Qdd1");
        log.info("NacosDataSourceInitFunc appName:{}, group:{}, serverAddr:{}", appName, groupId, serverAddr);

        SentinelNacosProperties sentinelNacosProperties = new SentinelNacosProperties();
        sentinelNacosProperties.setAppName(appName);
        sentinelNacosProperties.setGroupId(groupId);
        sentinelNacosProperties.setServerAddr(serverAddr);
        sentinelNacosProperties.setNamespace(namespace);
        sentinelNacosProperties.setUsername(username);
        sentinelNacosProperties.setPassword(password);

        // =============== FlowRule 流控规则 ==================
        String flowDataId = appName + "-flow-rules";
        sentinelNacosProperties.setDataId(flowDataId);
        WritableDataSource<List<FlowRule>> flowRuleWritableDataSource = new NacosWritableDataSource<>(
                sentinelNacosProperties, JSON::toJSONString);
        WritableDataSourceRegistry.registerFlowDataSource(flowRuleWritableDataSource);

        // =============== DegradeRule 降级规则 ==================
        String degradeDataId = appName + "-degrade-rules";
        sentinelNacosProperties.setDataId(degradeDataId);
        WritableDataSource<List<DegradeRule>> degradeRuleWritableDataSource = new NacosWritableDataSource<>(
                sentinelNacosProperties, JSON::toJSONString);
        WritableDataSourceRegistry.registerDegradeDataSource(degradeRuleWritableDataSource);

        // =============== AuthorityRule 授权规则 ==================
        String authorityDataId = appName + "-authority-rules";
        sentinelNacosProperties.setDataId(authorityDataId);
        WritableDataSource<List<AuthorityRule>> authorityRuleWritableDataSource = new NacosWritableDataSource<>(
                sentinelNacosProperties, JSON::toJSONString);
        WritableDataSourceRegistry.registerAuthorityDataSource(authorityRuleWritableDataSource);

        // =============== SystemRule 系统规则 ==================
        String systemDataId = appName + "-system-rules";
        sentinelNacosProperties.setDataId(systemDataId);
        WritableDataSource<List<SystemRule>> systemRuleWritableDataSource = new NacosWritableDataSource<>(
                sentinelNacosProperties, JSON::toJSONString);
        WritableDataSourceRegistry.registerSystemDataSource(systemRuleWritableDataSource);

        log.info("NacosDataSourceInitFunc init finished");
    }
}

由于sentinel的各个规则都可以在不同的nacos服务上,根据自己的修改此配置。

4. 写数据源的实现

import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.datasource.WritableDataSource;
import com.alibaba.nacos.api.NacosFactory;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.nacos.api.config.ConfigType;
import com.alibaba.nacos.api.exception.NacosException;
import org.springframework.beans.factory.annotation.Value;

import java.util.Properties;
import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;

/**
 * Sentinel nacos写数据源实现
 *
 */
public class NacosWritableDataSource<T> implements WritableDataSource<T> {

    private final String serverAddr;
    private final String groupId;
    private final String dataId;
    private final String username;
    private final String password;
    private final String namespace;
    private final Properties properties;
    private ConfigService configService;
    private final Converter<T, String> configEncoder;
    private final Lock lock = new ReentrantLock(true);

    public NacosWritableDataSource(SentinelNacosProperties nacosProperties, Converter<T, String> configEncoder) {
        this.serverAddr = nacosProperties.getServerAddr();
        this.namespace = nacosProperties.getNamespace();
        this.groupId = nacosProperties.getGroupId();
        this.dataId = nacosProperties.getDataId();
        this.username = nacosProperties.getUsername();
        this.password = nacosProperties.getPassword();
        this.properties = NacosWritableDataSource.buildProperties( nacosProperties);
        this.configEncoder = configEncoder;
        initConfigService();
    }

    private void initConfigService() {
        try {
            this.configService = NacosFactory.createConfigService(properties);
        } catch (NacosException e) {
            e.printStackTrace();
        }
    }

    private static Properties buildProperties(SentinelNacosProperties nacosProperties) {
        Properties properties = new Properties();
        properties.setProperty(PropertyKeyConst.SERVER_ADDR, nacosProperties.getServerAddr());
        properties.setProperty(PropertyKeyConst.NAMESPACE, nacosProperties.getNamespace());
        properties.setProperty(PropertyKeyConst.USERNAME, nacosProperties.getUsername());
        properties.setProperty(PropertyKeyConst.PASSWORD, nacosProperties.getPassword());
        return properties;
    }

    @Override
    public void write(T t) throws Exception {
        lock.lock();
        try {
            configService.publishConfig(dataId, groupId, this.configEncoder.convert(t));
        } finally {
            lock.unlock();
        }
    }

    @Override
    public void close() throws Exception {

    }

}

5. application.yml 规则定义

spring:
  cloud:
    sentinel:
      transport:
        dashboard: localhost:8080 # Sentinel 控制台地址
        port: 8719 # 本地启动的端口,用于与 Sentinel 控制台通信
      eager: true # 是否立即初始化
      web-context-unify: false # 是否合并 Web 上下文
      datasource:
        flow-rules:
          nacos:
            server-addr: 127.0.0.1:8848
            dataId: ${spring.application.name}-flow-rules
            groupId: SENTINEL_GROUP
            data-type: json
            rule-type: flow
        degrade-rules:
          nacos:
            server-addr: 127.0.0.1:8848
            dataId: ${spring.application.name}-degrade-rules
            groupId: SENTINEL_GROUP
            data-type: json
            rule-type: degrade
        param-flow-rules:
          nacos:
            server-addr: 127.0.0.1:8848
            dataId: ${spring.application.name}-param-flow-rules
            groupId: SENTINEL_GROUP
            data-type: json
            rule-type: param-flow
        authority-rules:
          nacos:
            server-addr: 127.0.0.1:8848
            dataId: ${spring.application.name}-authority-rules
            groupId: SENTINEL_GROUP
            data-type: json
            rule-type: authority
        system-rules:
          nacos:
            server-addr: 127.0.0.1:8848
            dataId: ${spring.application.name}-system-rules
            groupId: SENTINEL_GROUP
            data-type: json
            rule-type: system

nacos的配置自己添加一下即可。

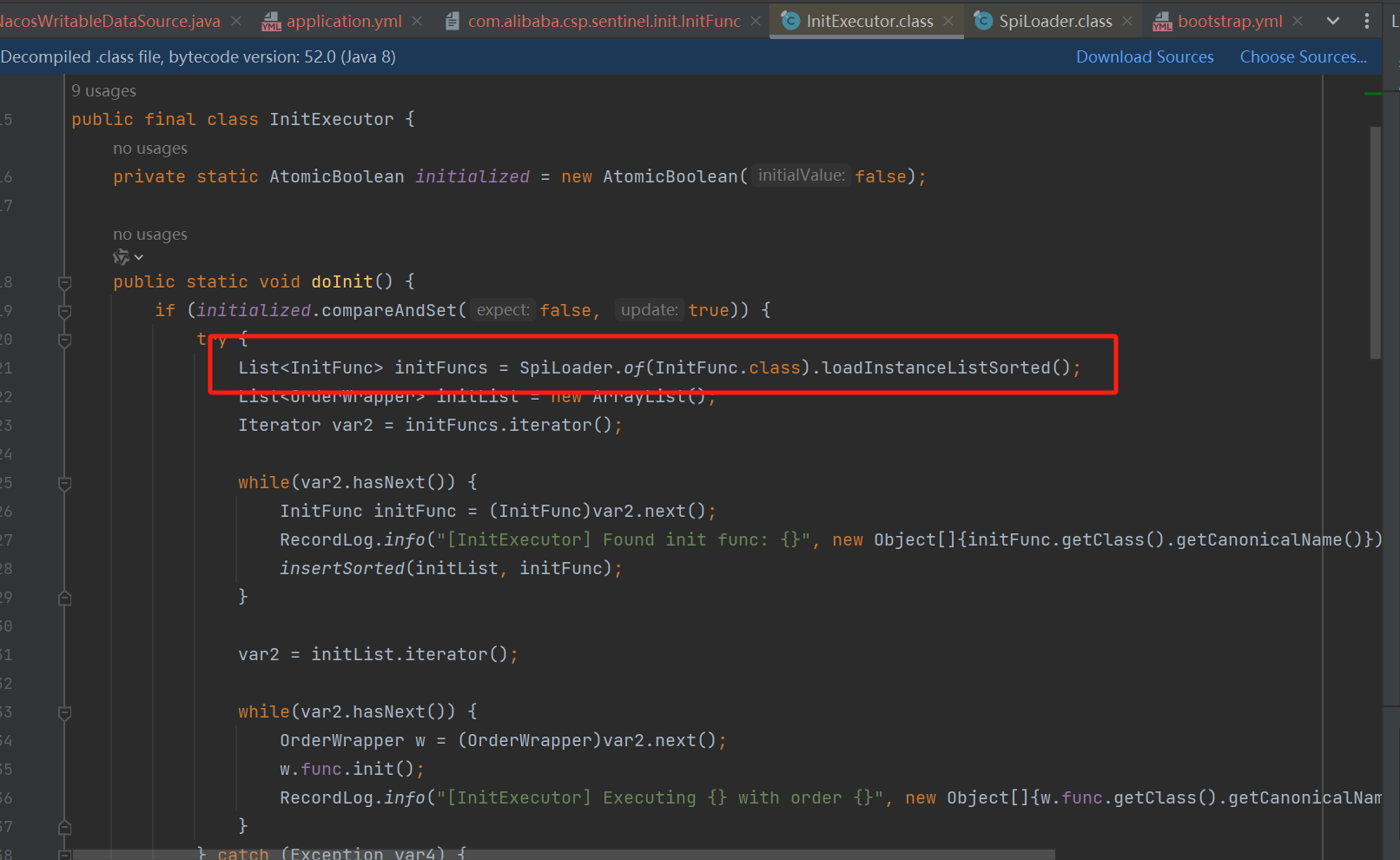

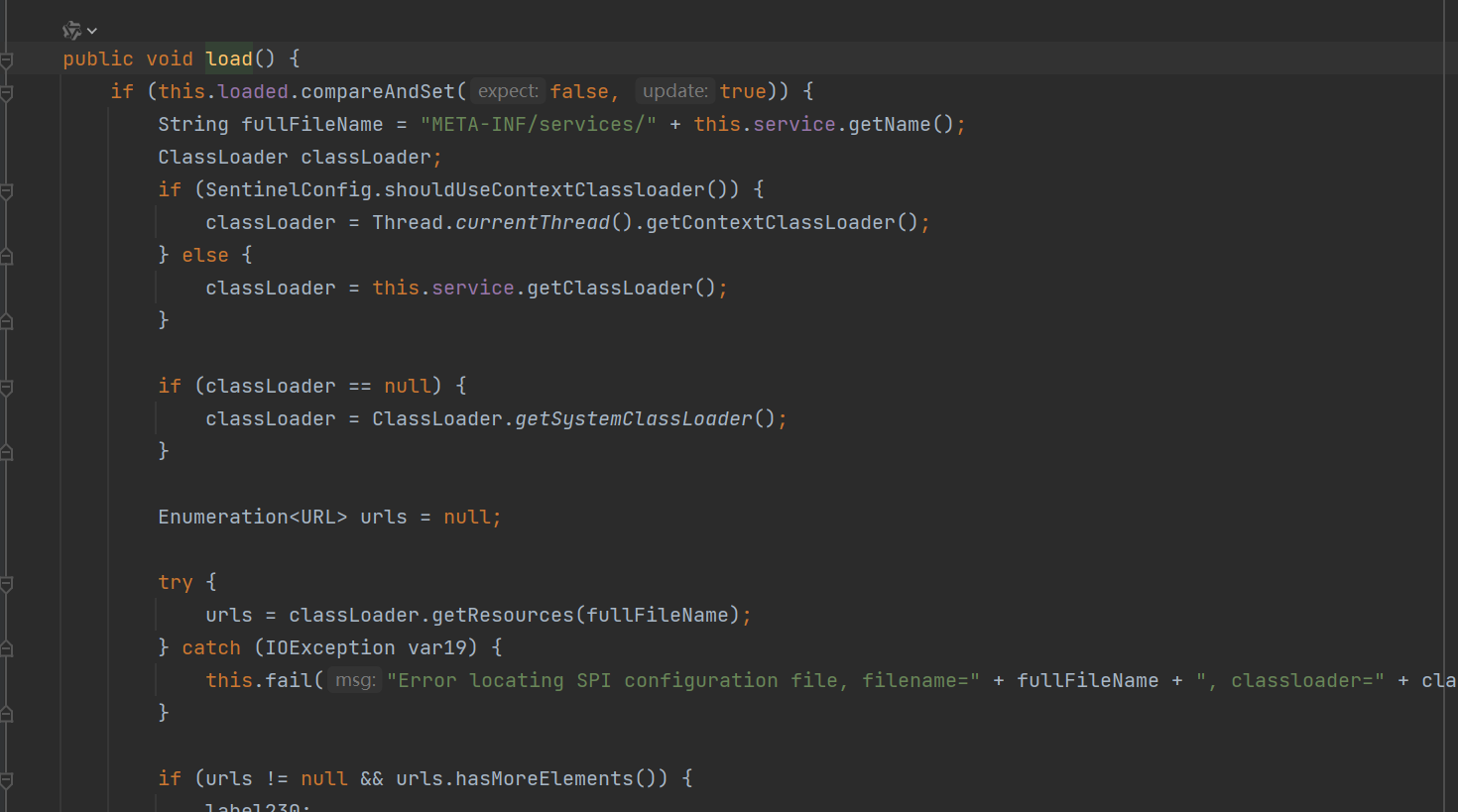

5.由于我们利用的sentinel的SPI机制

需要以下的文件夹META-INF/services/

com.alibaba.csp.sentinel.init.InitExecutor的类

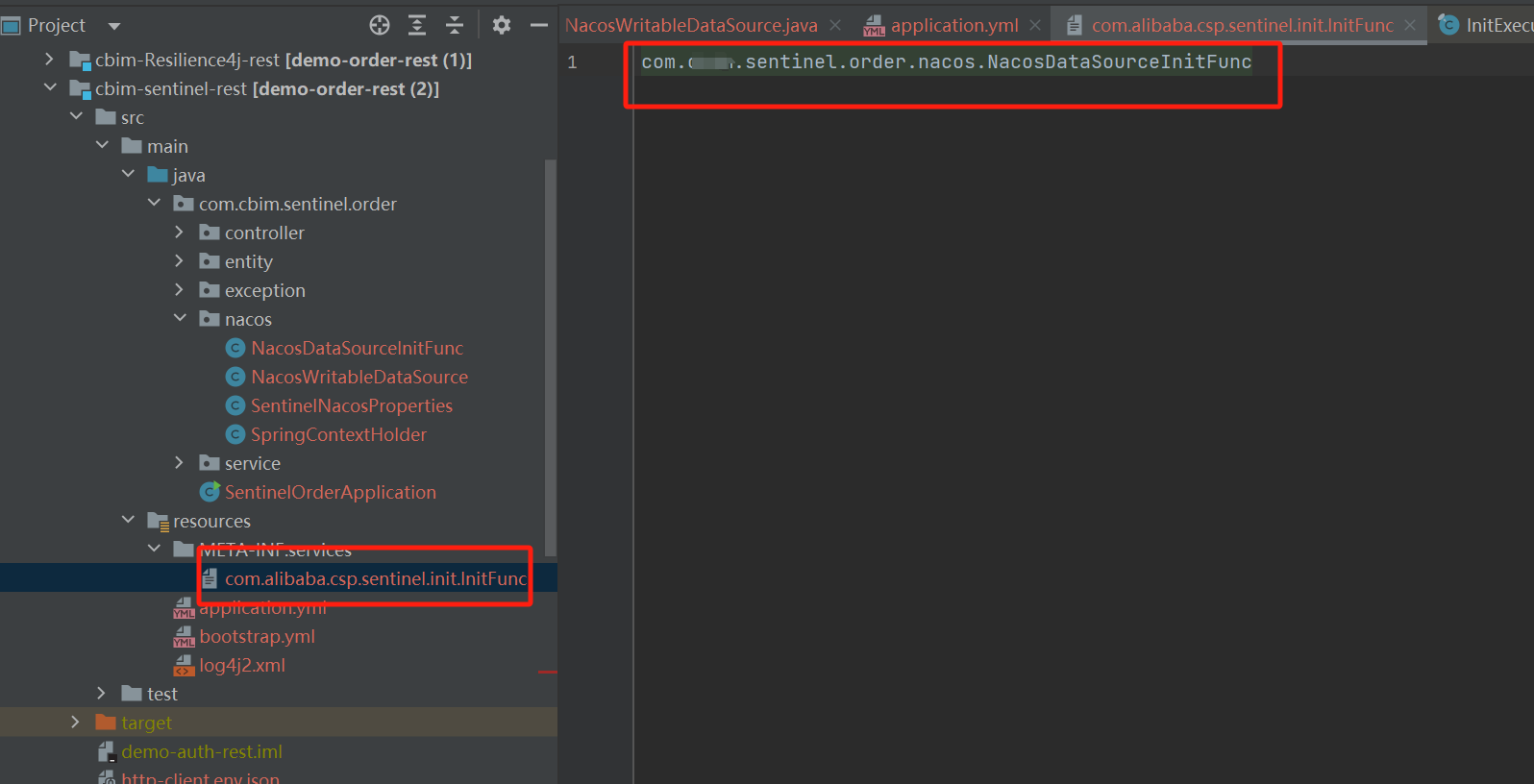

 将你的实现类按照图中存放即可。

 测试

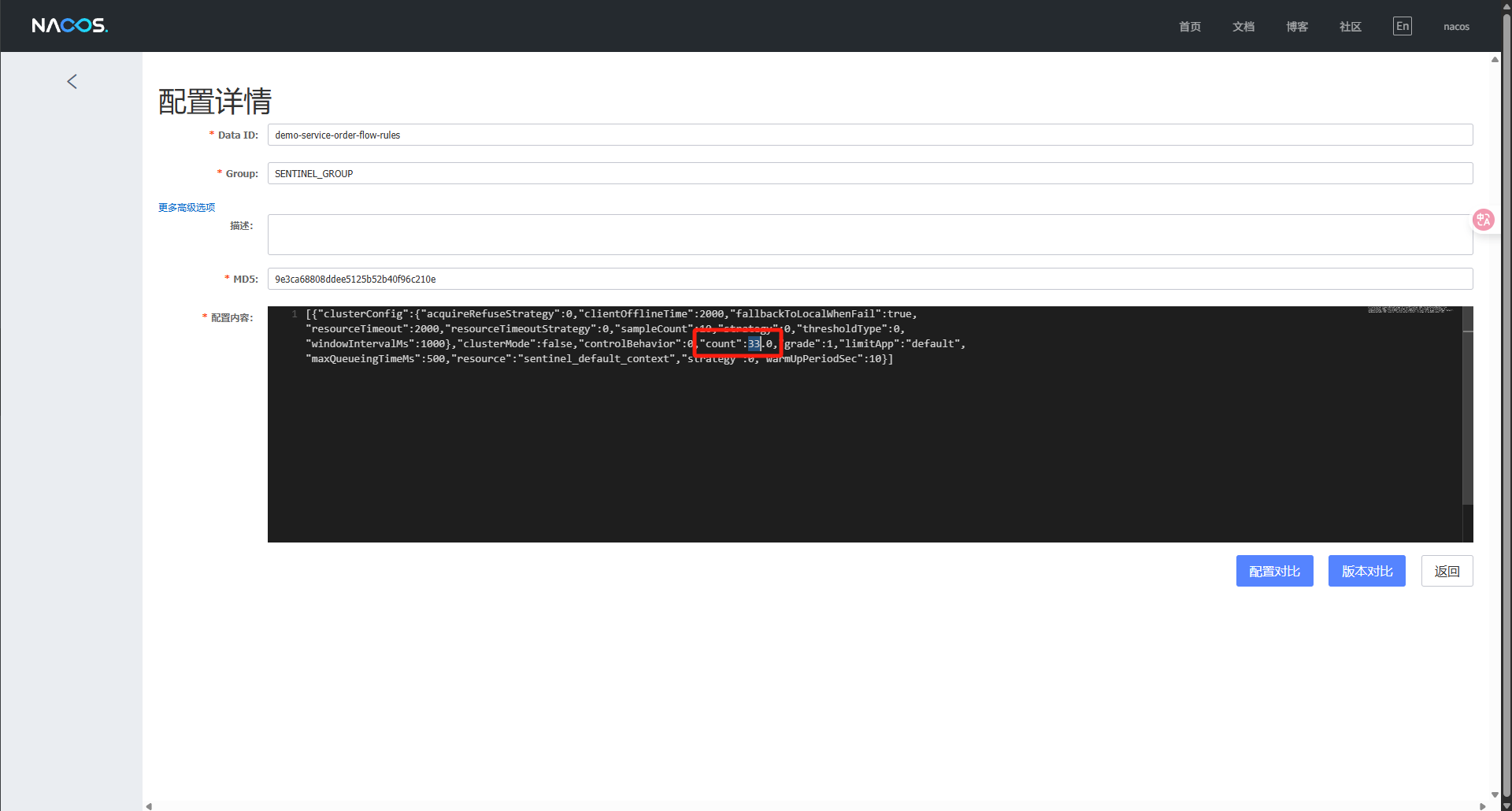

nacos中流控规则中的阈值是33.

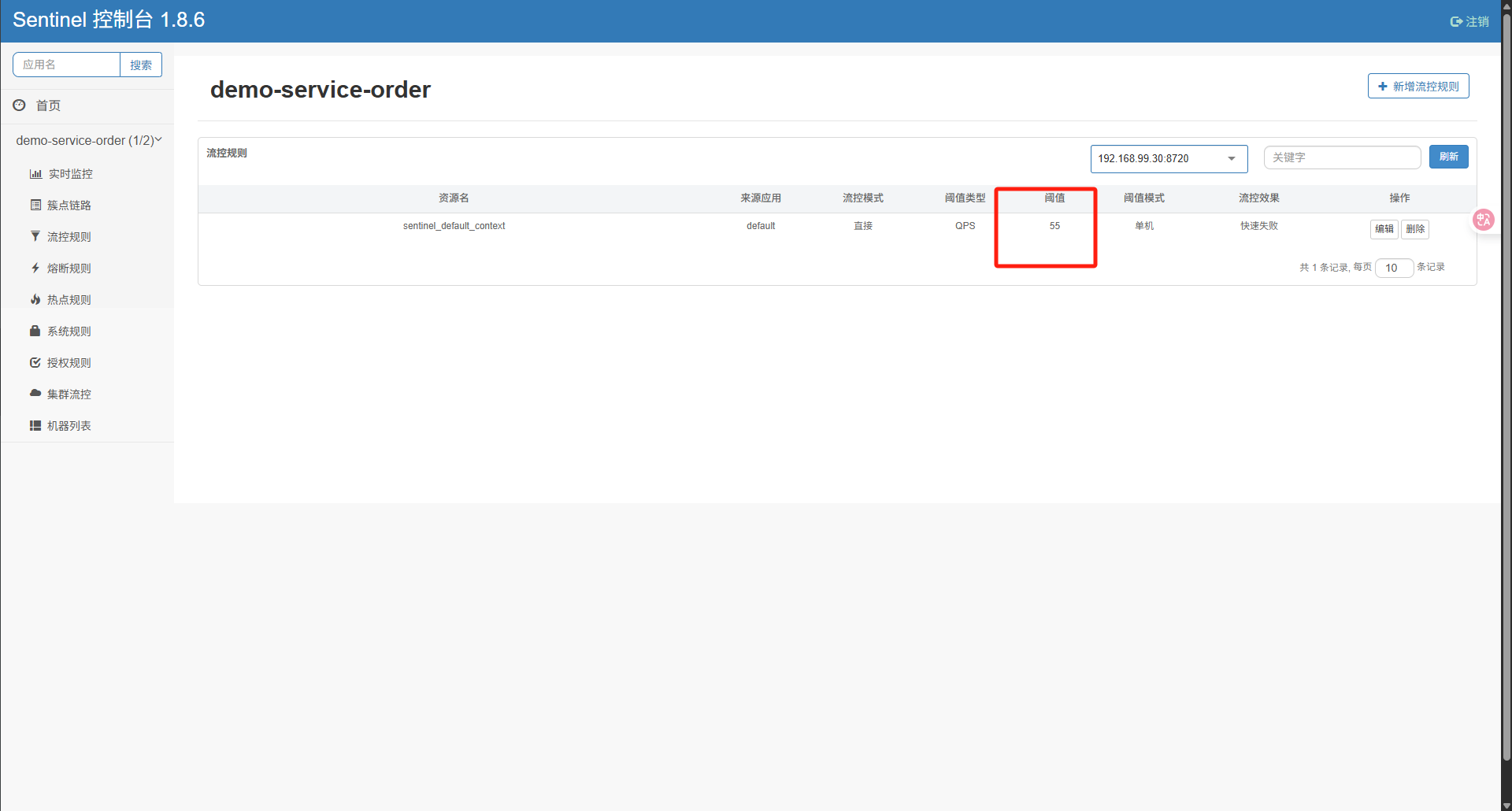

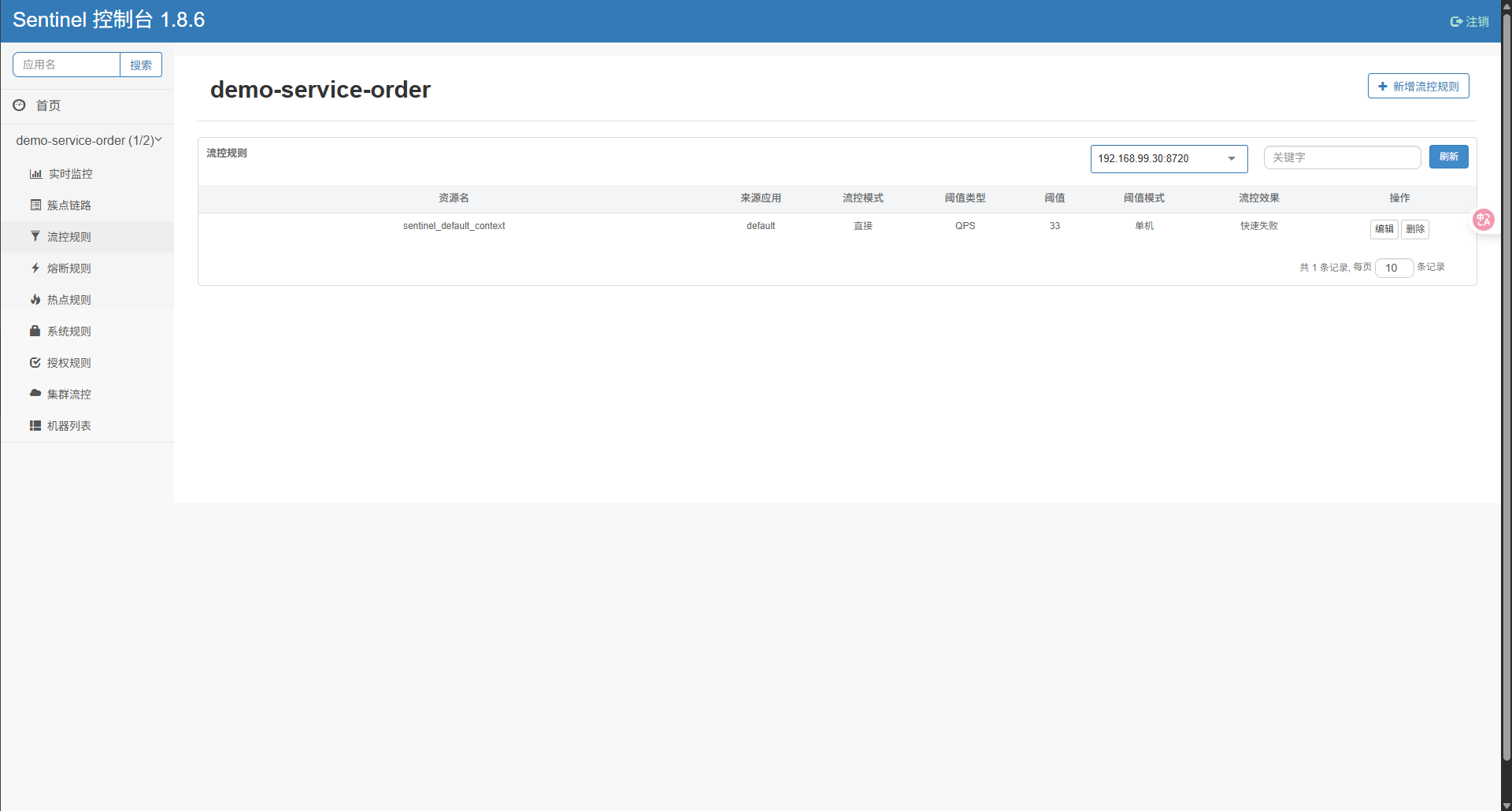

dashboard的界面显示也是33.则代表nacos->服务内存->dashboard 这条链路已经走通。

 现在我们在dashboard上进行修改阈值为:55

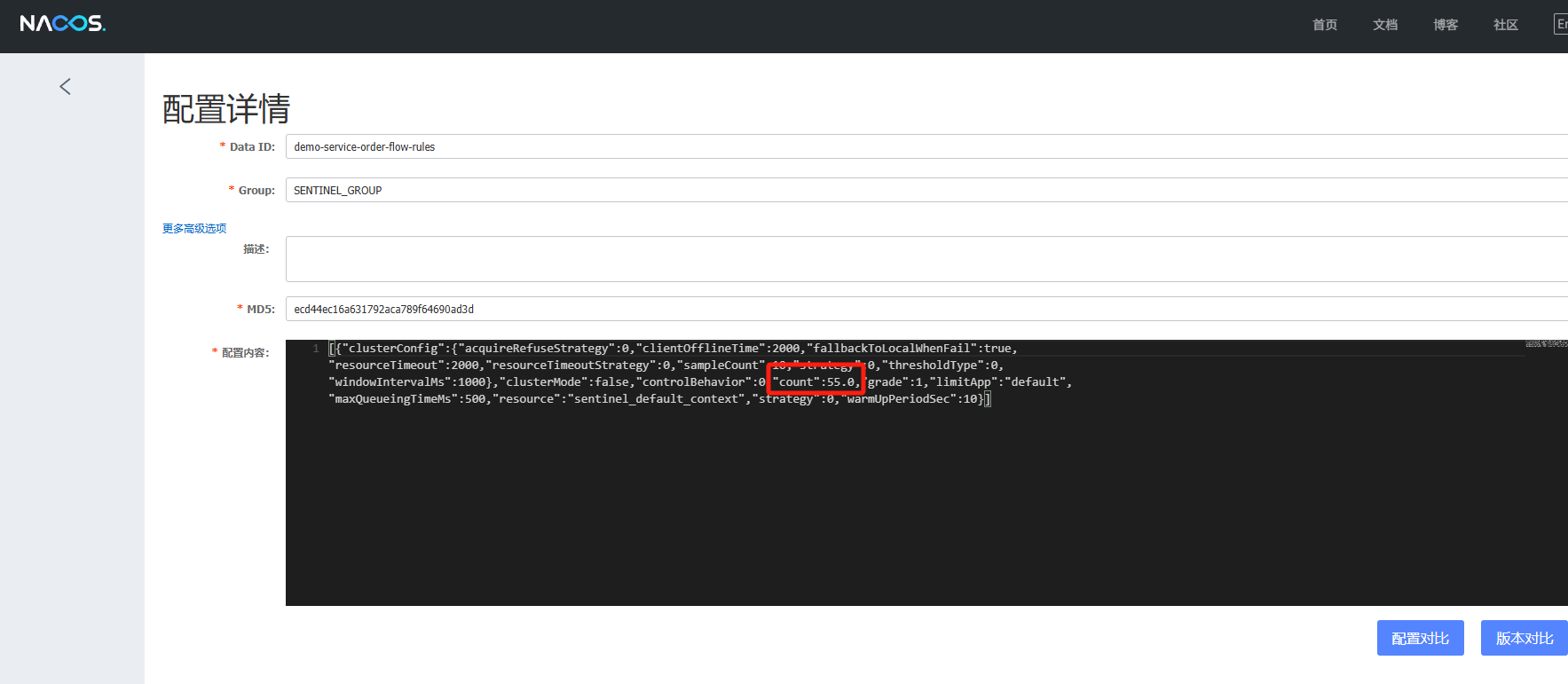

查看naocs是否同步修改:



nacos中已经修改,则代表方案一已实现。
