1.每日复盘与今日内容
1.1复盘
- 在play中定义变量
- 在当前目录group_vars host_vars 定义变量🍟🍟🍟🍟🍟
- 变量注册register🍟🍟🍟🍟🍟
- 使用Facts内置变量 ansible_hostname 获取客户端主机名称等...🍟🍟🍟🍟🍟
1.2今日内容
- when判断🍟🍟🍟🍟🍟、Handlers
- 循环语句
- 任务标签、文件复用
- jinjia2模板
- roles模板🍟🍟🍟🍟🍟
2.Ansible-流程控制
playbook条件语句
不管是shell还是各大编程语言中，流程控制，条件判断这些都是必不可少的，在我们使用Ansible的过程中，条件判断的使用频率极其高。
例如：
1.我们使用不同的系统的时候，可以通过判断系统来对软件包进行安装。
2.在nfs和rsync安装过程中，客户端服务器不需要推送配置文件，之前我们都是写多个play，会影响效率。
3.我们在源码安装nginx的时候，执行第二遍就无法执行了，此时我们就可以进行判断是否安装过。1. when判断
案例1.客户端WEB01卸载 wget WEB02卸载tree命令
- hosts: webs
tasks:
- name: Install wget
yum:
name: wget
state: present
when: ansible_hostname == "WEB01"
- name: Remove tree
yum:
name: tree
state: absent
when: ansible_hostname == "WEB02"
ansible-playbook --syntax-check when.yml
ansible-playbook when.yml案例2.并且关系 主机名称是WEB01并且IP地址是10.0.0.7
[root@m01 ansible]# cat when.yml
- hosts: webs
tasks:
- name: Install wget
yum:
name: wget
state: present
when: (ansible_hostname == "web01") and (ansible_default_ipv4.address == "10.0.0.7")
或者使用列表的方式
[root@m01 ansible]# cat when.yml
- hosts: webs
tasks:
- name: Install wget
yum:
name: wget
state: present
when:
- ansible_hostname == "web01"
- ansible_default_ipv4.address == "10.0.0.7"案例3.或者关系 or
[root@m01 ansible]# cat when.yml
- hosts: webs
tasks:
- name: Install wget
yum:
name: wget
state: present
when: ( ansible_hostname == "web01") or (ansible_default_ipv4.address == "10.0.0.8")2. Nginx-when判断实战

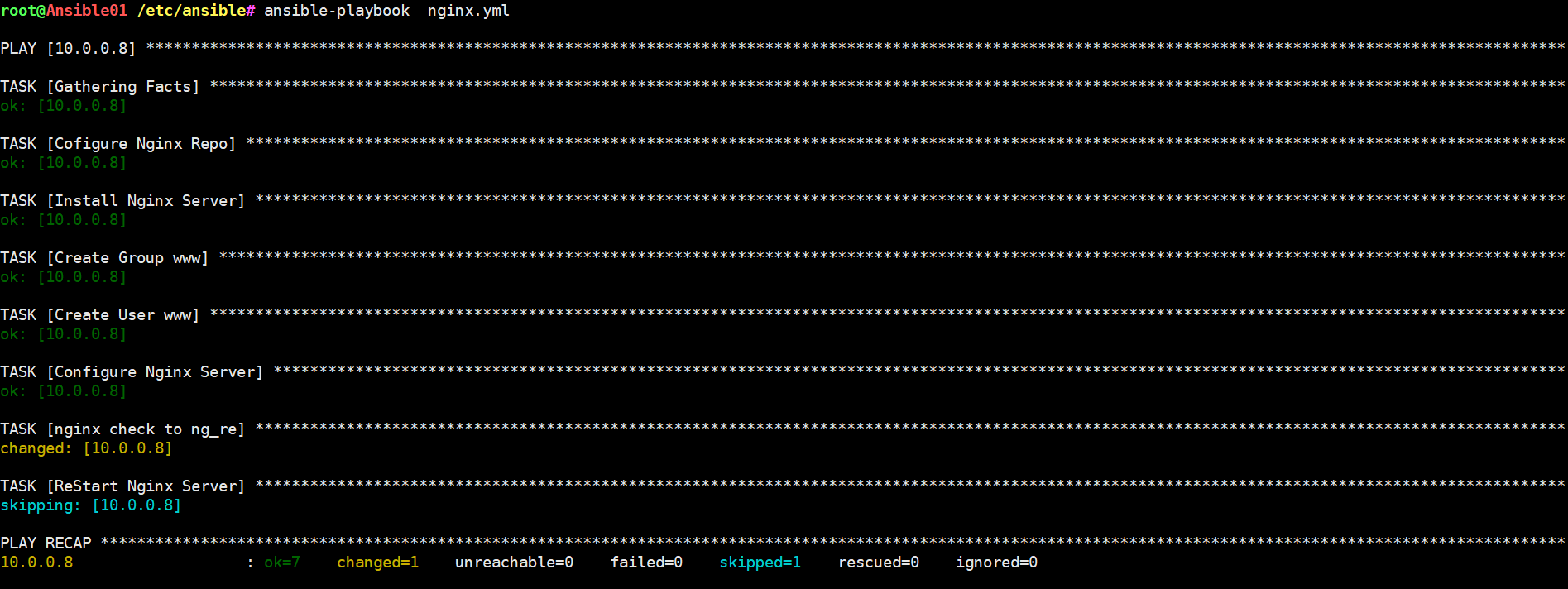

[root@m01 ansible]# cat nginx.yml
- hosts: 10.0.0.8
tasks:
- name: Configure Nginx Repo
yum_repository:
name: nginx
description: Nginx YUM repo
baseurl: http://nginx.org/packages/centos/7/$basearch/
gpgcheck: no
enabled: yes
- name: Install Nginx Server
yum:
name: nginx
state: present
- name: Create Group www
group:
name: www
gid: 666
state: present
- name: Create User www
user:
name: www
uid: 666
group: www
shell: /sbin/nologin
create_home: false
- name: Configure Nginx Server
copy:
src: nginx.conf
dest: /etc/nginx/
- name: nginx check to ng_re
command: nginx -t
register: ng_re
ignore_errors: yes # 当结果错误时候忽略掉、继续向下执行
- name: Restart Nginx Server
systemd:
name: nginx
state: restarted
enabled: yes
when: ng_re is search "successful" # 判断ng_re变量中是否存在successful
或者使用其他的返回值作为执行标准
- name: Restart Nginx Server
systemd:
name: nginx
state: restarted
enabled: yes
when: ng_re.rc is match "0"
#when条件表达式
when: ansible_hostname == "web01"
when: ansible_hostname is match "web01"
when: ansible_hostname is search "web01"
ansible_hostname is search "web" # 只要主机名称有web则运行
ansible_hostname is match "web" # 只要主机名称有web则运行
#ignore_errors: yes 当tasks执行错误时、忽略继续执行。

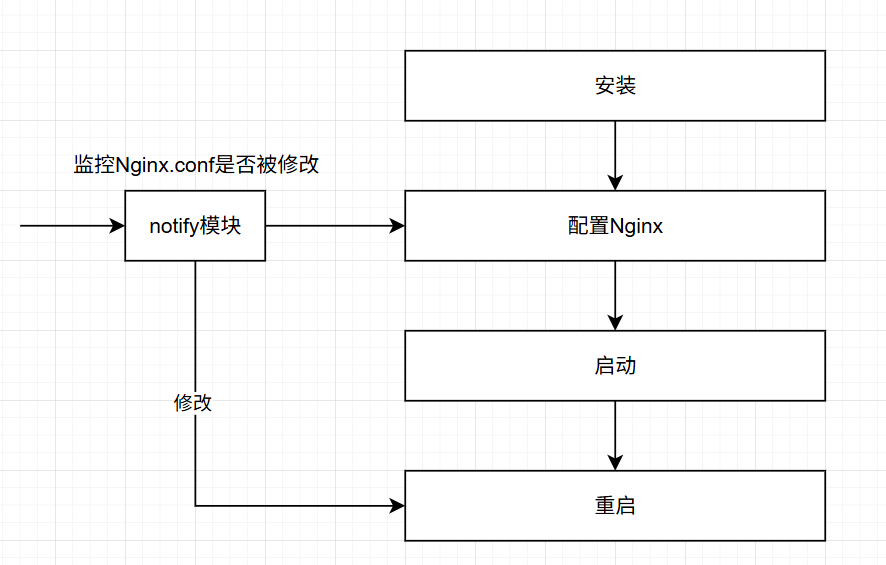

3. Handlers
什么是handlers？
handler用来执行某些条件下的任务，比如当配置文件发生变化的时候，通过notify触发handler去重启服务。
案例: 当nginx.conf配置文件被修改才会触发重启动作、如果不修改则不重启
[root@m01 ansible]# cat nginx.yml
- hosts: 10.0.0.8
tasks:
- name: Configure Nginx Repo
yum_repository:
name: nginx
description: Nginx YUM repo
baseurl: http://nginx.org/packages/centos/7/$basearch/
gpgcheck: no
enabled: yes
- name: Install Nginx Server
yum:
name: nginx
state: present
- name: Create Group www
group:
name: www
gid: 666
state: present
- name: Create User www
user:
name: www
uid: 666
group: www
shell: /sbin/nologin
create_home: false
- name: Configure Nginx Server
copy:
src: nginx.conf
dest: /etc/nginx/
notify: Restart Nginx Server
- name: nginx -t
command: nginx -t
register: ng_re
ignore_errors: yes
- name: Start Nginx Server
systemd:
name: nginx
state: started
enabled: yes
handlers:
- name: Restart Nginx Server
systemd:
name: nginx
state: restarted
enabled: yes
when: ng_re.rc is match "0"4. playbook循环语句
之前的学习过程中，我们经常会有传送文件，创建目录之类的操作，创建2个目录就要写两个file模块来创建，如果要创建100个目录，我们需要写100个file模块？？？妈耶~~~~ 当然不是，只要有循环即可，减少重复性代码。

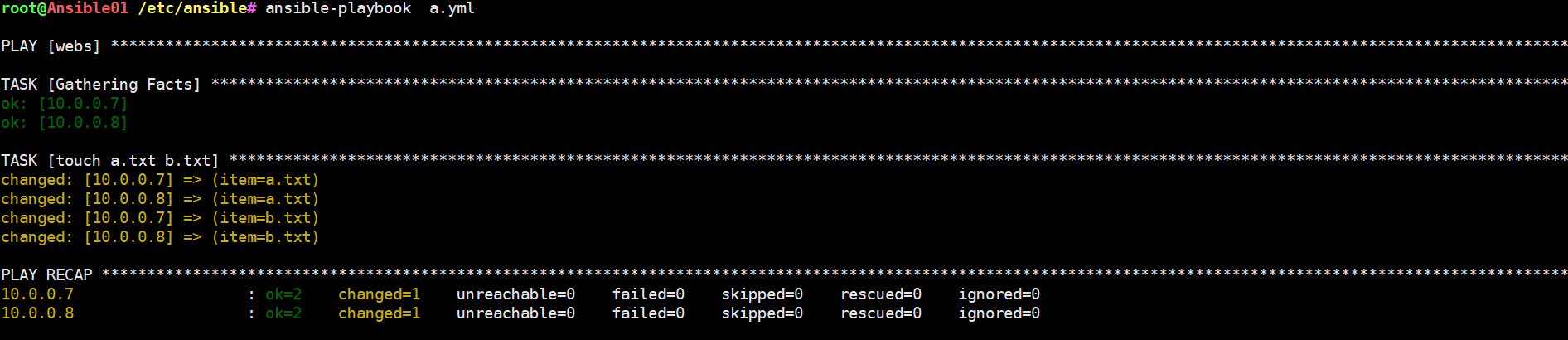

案例1.创建多个文件
[root@m01 ansible]# cat a.yml
- hosts: webs
tasks:
- name: touch a.txt b.txt
file:
path: "{{ item }}"
state: touch
loop:
- a.txt
- b.txt
案例2.拷贝多个文件
[root@m01 ansible]# cat copy.yml
- hosts: 10.0.0.8
tasks:
- name: copy a.txt to /root , b.txt to /opt
copy:
src: "{{ item.src }}"
dest: "{{ item.dest }}"
loop:
- { src: a.txt,dest: /root/ }
- { src: b.txt,dest: /opt/ }

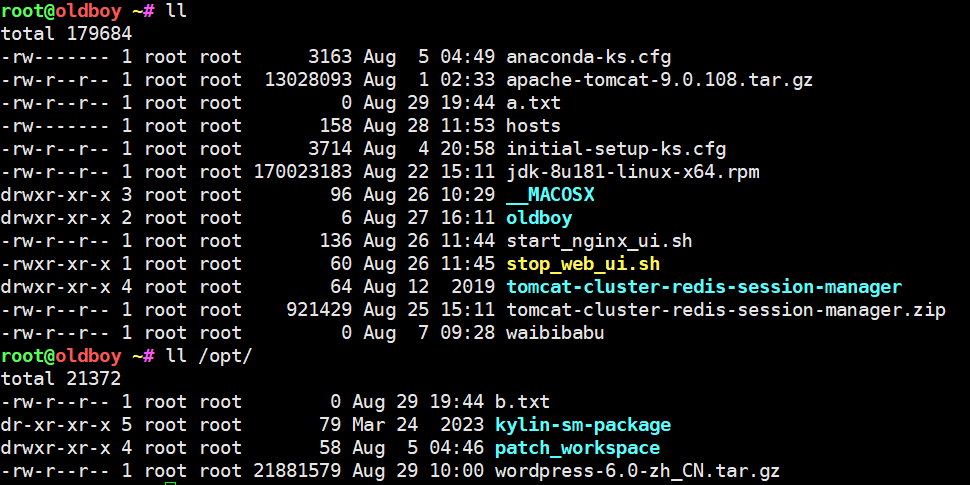

案例3.a.txt到/root 属主属主为root 权限644， b.txt到/opt属主属组www 权限600
[root@m01 ansible]# cat copy.yml
- hosts: 10.0.0.8
tasks:
- name: copy a.txt to /root , b.txt to /opt
copy:
src: "{{ item.src }}"
dest: "{{ item.dest }}"
owner: "{{ item.owner }}"
group: "{{ item.group }}"
mode: "{{ item.mode }}"
loop:
- { src: a.txt,dest: /root/,owner: root,group: root,mode: '0644' }
- { src: b.txt,dest: /opt/,owner: www,group: www,mode: '0600' }案例4.创建两个组
oldboy01 组 gid 778
oldboy02 组 gid 779
[root@m01 ansible]# cat group.yml
- hosts: web02
tasks:
- name: create groups
group:
name: "{{ item.name }}"
gid: "{{ item.gid }}"
loop:
- { name: oldboy01,gid: '778' }
- { name: oldboy02,gid: '779' }案例5.创建两个用户
oldboy01 uid gid 778的普通账号
oldboy02 uid gid 779的虚拟账号
[root@m01 ansible]# cat user.yml
- hosts: web02
tasks:
- name: Create User
user:
name: "{{ item.name }}"
uid: "{{ item.uid }}"
group: "{{ item.group }}"
shell: "{{ item.shell }}"
create_home: "{{ item.home }}"
state: present
loop:
- { name: oldboy01,uid: '778',group: oldboy01,shell: /bin/bash,home: true }
- { name: oldboy02,uid: '779',group: oldboy02,shell: /sbin/nologin,home: false }
[root@m01 ansible]# ansible-playbook user.yml5. playbook任务标签
默认情况下，Ansible在执行一个playbook时，会执行playbook中定义的所有任务，Ansible的标签(tag)功能可以给单独任务甚至整个playbook打上标签，然后利用这些标签来指定要运行playbook中的个别任务，或不执行指定的任务。
#第一步给一个task打标签
vim nginx.yml
..
- name: Configure Nginx Server
copy:
src: nginx.conf
dest: /etc/nginx/
notify: Restart Nginx Server
tags: config
- name: nginx -t
command: nginx -t
register: ng_re
ignore_errors: yes
tags: config
...
#第二步: 查看yml中所有的标签
[root@m01 ansible]# ansible-playbook nginx.yml --list-tags
playbook: nginx.yml
play #1 (web02): web02 TAGS: []
TASK TAGS: [config]
#第三步: 通过-t指定某个标签运行
[root@m01 m01]# ansible-playbook tag.yml --list-tags # 查看当前的所有tag
[root@m01 m01]# ansible-playbook tag.yml -t config # 只运行带有config标签的tasks
[root@m01 m01]# ansible-playbook tag.yml --skip-tags config # 跳过带有config标签的tasks6. playbook文件复用
在之前写playbook的过程中，我们发现，写多个playbook没有办法，一键执行，这样我们还要单个playbook挨个去执行，很鸡肋。所以在playbook中有一个功能，叫做`include`用来动态调用task任务列表。
#需求 nfs服务器上安装nfs服务 web02上安装nginx服务
#第一步准备两个tasks文件
[root@m01 ansible]# cat a.yml
- name: Install nfs Server
yum:
name: nfs-utils
state: present
[root@m01 ansible]# cat b.yml
- name: Install nginx Server
yum:
name: nginx
state: present
#第二步: 准备一个文件将上面两个文件包含引入
[root@m01 ansible]# cat all.yml
- hosts: all
tasks:
- include_tasks: a.yml
when: ansible_hostname is match "nfs"
- include_tasks: b.yml
when: ansible_hostname is match "web02"
[root@m01 ansible]# ansible-playbook --syntax-check all.yml
playbook: all.yml
[root@m01 ansible]# ansible-playbook all.yml7. 抑制changed
目标已经变成我想要的了，将changed改为ok
- name: nginx -t
command: nginx -t
register: ng_re
ignore_errors: yes
tags: config
changed_when: false # 将黄色修改为绿色8. jiaja2模板
什么是jiaja2?
jinja2是Python的全功能模板引擎
Jinja2与Ansible啥关系?
Ansible通常会使用jinja2模板来修改被管理主机的配置文件等
Ansible如何使用Jinja2?
使用Ansible的jinja2模板也就是使用template模块，该模块和copy模块一样，都是将文件复制到远端主机上去，但是区别在于，template模块可以获取到文件中的变量，而copy则是原封不动的把文件内容复制过去。之前我们在推送rsync的backup脚本时，想把脚本中的变量名改成主机名，如果使用copy模块则推送过去的就是{{ ansible_fqdn }}，不变，如果使用template，则会变成对应的主机名。
案例1.将motd.j2拷贝到目标主机的/root下
[root@m01 ansible]# cat copy.yml
- hosts: web02
tasks:
- name: copy motd.j2 to web02
template:
src: motd.j2
dest: /root/motd
[root@m01 ansible]# ansible-playbook copy.yml
查看目标内容
[root@web02 ~]# cat motd
Welcome to web02
This system total mem is : 948 MB
This system free mem is: 148 MB
This system ip address is : 10.0.0.8案例2.生成负载均衡的配置文件
[root@m01 ansible]# cat lb.conf.j2
upstream {{ server_name }} {
{% for n in range(7,9) %}
server 172.16.1.{{ n }}:{{ up_port }};
{% endfor %}
}
server {
listen 80;
server_name {{ server_name }};
location / {
root /code;
index index.html;
proxy_pass http://{{ server_name }};
proxy_set_header Host $http_host;
}
}
拷贝到目标主机
[root@m01 ansible]# cat copy.yml
- hosts: web02
vars:
- server_name: www.wp.com
- up_port: 8080
tasks:
- name: copy lb.conf to web02
template:
src: lb.conf.j2
dest: /root/lb.conf案例3.将keepliaved.conf.j2拷贝到两台web
routeid 都以自身主机名称生成
web01生成是角色master 票数150
web02生成的角色backup 票数100
[root@m01 ansible]# cat keepalived.conf.j2
global_defs {
router_id {{ ansible_hostname }}
}
vrrp_instance VI_1 {
{% if ansible_fqdn == "web01" %}
state MASTER
priority 150
{% else %}
state BACKUP
priority 100
{% endif %}
interface eth0
virtual_router_id 50
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.0.0.3
}
}
[root@m01 ansible]# cat copy.yml
- hosts: webs
tasks:
- name: copy keepalived.conf.j2 to webs
template:
src: keepalived.conf.j2
dest: /root/keepalived.conf9. Roles角色
roles对playbook的一种重新编排。
- 前期准备
root@Ansible01 ~# mkdir roles
root@Ansible01 ~# cd roles/
root@Ansible01 ~/roles# ansible-galaxy init backup
- Role backup was created successfully
root@Ansible01 ~/roles# tree backup/
backup/
├── defaults
│ └── main.yml
├── files
├── handlers
│ └── main.yml
├── meta
│ └── main.yml
├── README.md
├── tasks
│ └── main.yml
├── templates
├── tests
│ ├── inventory
│ └── test.yml
└── vars
└── main.yml
8 directories, 8 files
root@Ansible01 ~/roles/backup# rm -fr defaults/ meta/ README.md tests/
root@Ansible01 ~/roles/backup# ll
total 0
drwxr-xr-x 2 root root 6 Aug 30 12:10 files
drwxr-xr-x 2 root root 22 Aug 30 12:10 handlers
drwxr-xr-x 2 root root 22 Aug 30 12:10 tasks
drwxr-xr-x 2 root root 6 Aug 30 12:10 templates
drwxr-xr-x 2 root root 22 Aug 30 12:10 vars

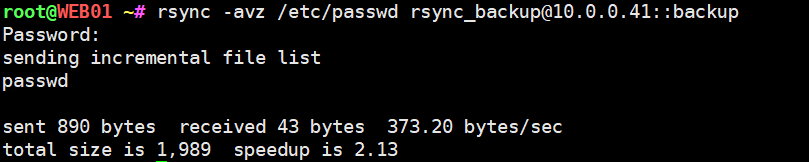

案例: roles重构backup服务
41恢复快照
41和81做免密钥
#1.安装rsync
#2.配置rsync 收集rsync.conf
#3.rsync.conf中配置变量练习
#4.启动rsync
root@Ansible01 ~/roles/backup/tasks# vim main.yml
- name: Install rsync Server
yum:
name: rsync
state: present
- name: Configure Rsync Server
template:
src: "{{ item.src }}"
dest: "{{ item.dest }}"
mode: "{{ item.mode }}"
notify: Restart rsync Server
loop:
- { src: rsyncd.conf.j2,dest: /etc/rsyncd.conf,mode: '0644' }
- { src: rsync.passwd,dest: /etc/,mode: '0600' }
- name: Create Group
state: directory
owner: www
group: www
- name: Start backup Server
systemd:
name: rsyncd
state: started
enabled: yes
[root@m01 templates]# pwd
/root/roles/backup/templates
[root@m01 templates]# cat rsyncd.conf.j2
uid = {{ user }}
gid = {{ user }}
port = {{ port }}
fake super = yes
use chroot = no
max connections = 200
timeout = 600
ignore errors
read only = false
list = false
auth users = rsync_backup
secrets file = /etc/rsync.passwd
log file = /var/log/rsyncd.log
#####################################
[backup]
comment = welcome to oldboyedu backup!
path = {{ code_dir }}
#密码文件
[root@m01 templates]# pwd
/root/roles/backup/templates
[root@m01 templates]# cat rsync.passwd
rsync_backup:123
#变量文件内容
[root@m01 backup]# pwd
/root/roles/backup
[root@m01 backup]# cat vars/main.yml
user: www
port: 873
code_dir: /backup
#handlers配置文件
[root@m01 backup]# cat handlers/main.yml
- name: Restart rsync Server
systemd:
name: rsyncd
state: restarted
#site配置文件
root@Ansible01 ~/roles# vim site.yml
- hosts: all
roles:
- role: backup
when: ansible_hostname is match "backup"
测试成功
3.今日总结
- when判断🍟🍟🍟🍟🍟、Handlers
- 循环语句
- 任务标签、文件复用
- jinjia2模板
- roles模板🍟🍟🍟🍟🍟
