使用wavesurfer.js自定义波形绘制，集成频谱、时间轴、缩放、区域选择等插件

使用wavesurfer.js自定义波形绘制，集成频谱、时间轴、缩放、区域选择等插件；

wavesurfer.js 官网

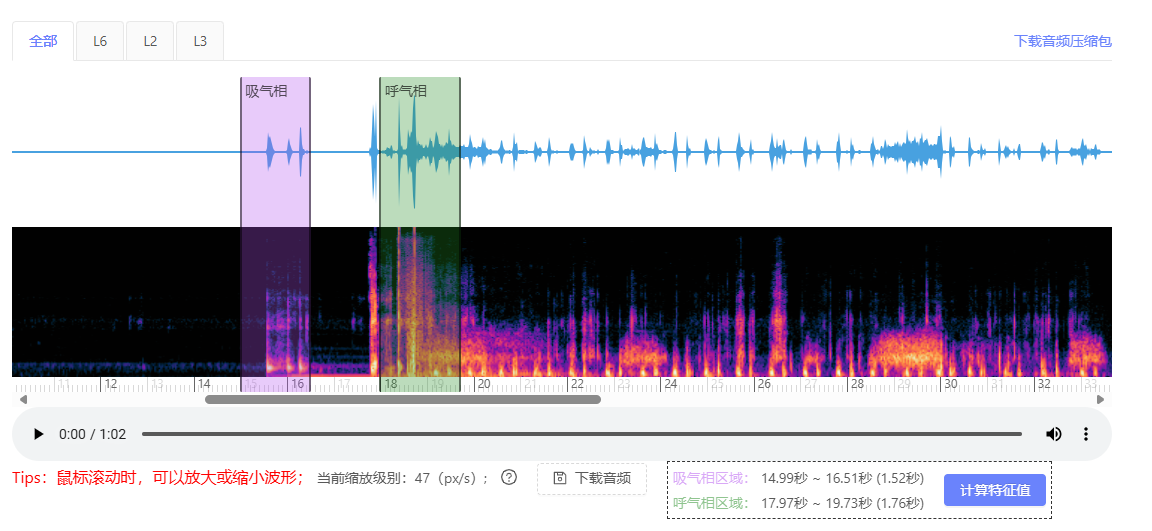

页面效果：

<template>
  <div>
    <div>
      <div ref="waveform" class="waveform"></div>
      <div v-if="loading" class="loading-indicator">
        音频加载中... {{ progress }}%
        <div class="progress-bar">
          <div class="progress-fill" :style="{ width: progress + '%' }"></div>
        </div>
      </div>
      <div v-if="error" class="error-message">{{ error }}</div>
    </div>

    <div v-if="canZoom" style="display: inline">
      <span class="zoom-tips">Tips：鼠标滚动时，可以放大或缩小波形； </span>
      <span v-if="zoomLevel > 0"> 当前缩放级别：{{ zoomLevel }}（px/s）; </span>

      <a-popover title="说明：">
        <template slot="content">
          <span style="color: #6a5acd">
            1、鼠标滚轮，可以放大或缩小波形！
            <br />
            2、点击选区，可以播放该区域音频！
            <br />
            3、拖动选区边缘，可以调整选区大小！
            <br />
            4、拖动选区中间，可以移动选区位置！
            <br />
            5、移动【吸气相】和【呼气相】选区后，可以重新计算特征值！
          </span>
          <p />
          <img
            :src="'http://116.162.220.48:8888/image/ls.png'"
            style="max-width: 500px; font-size: 12px; font-style: italic"
          />
        </template>
        <a-icon type="question-circle" style="font-size: 16px; margin-left: 10px" />
      </a-popover>
    </div>

    <div style="display: inline; margin-left: 20px">
      <a-button type="dashed" icon="save" @click="downloadAudio" :disabled="loading">下载音频</a-button>
    </div>

    <div v-if="inhaleRegion || exhaleRegion" class="region-container">
      <div class="region-text">
        <span v-if="inhaleRegion" class="region-item">
          <span style="color: rgba(180, 84, 240, 0.5)">吸气相区域：</span>
          {{ formatTimeNumber(inhaleRegion.start) }}秒 ~ {{ formatTimeNumber(inhaleRegion.end) }}秒 ({{
            formatTimeNumber(inhaleRegion.end - inhaleRegion.start)
          }}秒)
        </span>

        <span v-if="exhaleRegion" class="region-item">
          <span style="color: rgba(34, 139, 34, 0.5)">呼气相区域：</span>
          {{ formatTimeNumber(exhaleRegion.start) }}秒 ~ {{ formatTimeNumber(exhaleRegion.end) }}秒 ({{
            formatTimeNumber(exhaleRegion.end - exhaleRegion.start)
          }}秒)
        </span>
      </div>

      <a-popconfirm title="确定重新计算特征值吗，会覆盖旧值?" @confirm="regionUpdate">
        <a-button type="primary" :disabled="!inhaleRegion || !exhaleRegion"> 计算特征值 </a-button>
      </a-popconfirm>
    </div>
  </div>
</template>

<script>
import Vue from 'vue'
import { ROLE_ID } from '@/store/mutation-types'
import axios from 'axios'
import WaveSurfer from 'wavesurfer.js'
import Spectrogram from 'wavesurfer.js/dist/plugins/spectrogram.esm.js'
import TimelinePlugin from 'wavesurfer.js/dist/plugins/timeline.esm.js'
import ZoomPlugin from 'wavesurfer.js/dist/plugins/zoom.esm.js'
import RegionsPlugin from 'wavesurfer.js/dist/plugins/regions.esm.js'
import { downloadAsWav } from '@/utils/util'

export default {
  name: 'MyWaveSurfer',
  props: {
    audioUrl: String, // 总音频文件URL
    indexBean: Object, // 包含startIndex和endIndex的对象
  },
  data() {
    return {
      wavesurfer: null,
      spectrogramPlugin: null,
      timelinePlugin: null,
      zoomPlugin: null,
      regionsPlugin: null,
      audioBlob: null, // 存储原始音频Blob
      segmentBlob: null, // 存储音频片段Blob
      loading: false,
      error: null,
      progress: 0,
      currentSegmentBlobUrl: null,
      fullAudioBlobUrl: null,
      zoomLevel: 110, //默认1秒显示的像素
      canZoom: false,
      inhaleRegion: null, // 吸气相区域
      exhaleRegion: null, // 呼气相区域
    }
  },
  watch: {
    audioUrl: {
      // immediate: true, // 立即执行
      async handler(newVal) {
        await this.loadFullAudio(newVal)
      },
    },
    indexBean: {
      deep: true,
      handler(newVal) {
        if (this.audioBlob) {
          this.loadAudioSegment(newVal)
        }
      },
    },
  },
  async mounted() {
    var roleId = Vue.ls.get(ROLE_ID)

    if (roleId == 11 || roleId == 15) {
      this.canZoom = true
    } else {
      this.canZoom = false
    }
    console.log(
      'MyWaveSurfer',
      'audioUrl=',
      this.audioUrl,
      'indexBean=',
      this.indexBean.positionFileName,
      'roleId=',
      roleId,
      'canZoom=',
      this.canZoom
    )
    await this.initWaveSurfer()
  },
  beforeDestroy() {
    this.cleanup()
  },
  methods: {
    async downloadAudio() {
      console.log('下载音频', this.indexBean.positionFileName, this.fullAudioBlobUrl)

      if (this.currentSegmentBlobUrl && this.indexBean.positionFileName !== '全部') {
        downloadAsWav(this.currentSegmentBlobUrl, this.indexBean.positionFileName || 'audio.wav')
      } else if (this.fullAudioBlobUrl) {
        downloadAsWav(this.fullAudioBlobUrl, 'raw.wav')
      } else {
        console.error('没有可用的音频数据进行下载')
      }
    },

    /**
     * 将 PCM 数据转换为 WAV 格式
     * @param {ArrayBuffer} pcmData - PCM 音频数据
     * @param {number} sampleRate - 采样率（默认 44100）
     * @param {number} numChannels - 声道数（默认 1）
     * @param {number} bitsPerSample - 位深（默认 16）
     * @returns {Blob} - WAV 格式的 Blob
     */
    pcmToWav(pcmData, sampleRate = 8000, numChannels = 1, bitsPerSample = 16) {
      const bytesPerSample = bitsPerSample / 8
      const blockAlign = numChannels * bytesPerSample
      const byteRate = sampleRate * blockAlign
      const dataSize = pcmData.byteLength

      // WAV 文件头（44字节）
      const buffer = new ArrayBuffer(44 + dataSize)
      const view = new DataView(buffer)

      // RIFF 头
      this.writeString(view, 0, 'RIFF')
      view.setUint32(4, 36 + dataSize, true) // 文件总大小
      this.writeString(view, 8, 'WAVE')

      // fmt 子块
      this.writeString(view, 12, 'fmt ')
      view.setUint32(16, 16, true) // fmt 块大小
      view.setUint16(20, 1, true) // PCM 格式
      view.setUint16(22, numChannels, true) // 声道数
      view.setUint32(24, sampleRate, true) // 采样率
      view.setUint32(28, byteRate, true) // 字节率
      view.setUint16(32, blockAlign, true) // 块对齐
      view.setUint16(34, bitsPerSample, true) // 位深

      // data 子块
      this.writeString(view, 36, 'data')
      view.setUint32(40, dataSize, true) // 数据大小

      // 写入 PCM 数据
      const pcmView = new Uint8Array(pcmData)
      const wavView = new Uint8Array(buffer, 44)
      wavView.set(pcmView)

      return new Blob([buffer], { type: 'audio/wav' })
    },
    // 辅助函数：写入字符串到 DataView
    writeString(view, offset, string) {
      for (let i = 0; i < string.length; i++) {
        view.setUint8(offset + i, string.charCodeAt(i))
      }
    },
    async initWaveSurfer() {
      console.log('初始化 WaveSurfer', this.zoomLevel)
      // 初始化波形和频谱图
      this.wavesurfer = WaveSurfer.create({
        container: this.$refs.waveform,
        waveColor: '#48a1e0',
        progressColor: '#25ebd7',
        cursorColor: '#333',
        height: 150,
        sampleRate: 8000,
        // minPxPerSec: this.zoomLevel, // 每秒至少 110 像素（缩放）
        // dragToSeek: true,
        // fillParent: true,
        mediaControls: true,
        // 自定义渲染函数
        renderFunction: (channels, ctx) => {
          const width = ctx.canvas.width
          const height = ctx.canvas.height
          const centerY = height / 2
          const maxMillimeter = 5 * 5 // 与原有逻辑一致：25格
          const zoom = height / maxMillimeter
          const gain = this.gain || 10 // 可从 data 或 props 获取动态值
          const STEP_SIZE = 50

          // ====== Step 1: 清除画布并绘制网格背景 ======
          ctx.clearRect(0, 0, width, height)

          // 绘制网格线
          const drawGrid = (ctx, step) => {
            ctx.strokeStyle = '#ccc'
            ctx.lineWidth = 1
            const rowSpace = (height / maxMillimeter) * step

            // 垂直线（时间轴方向）
            for (let x = 0; x * rowSpace <= width; x++) {
              ctx.beginPath()
              ctx.moveTo(x * rowSpace, 0)
              ctx.lineTo(x * rowSpace, height)
              ctx.stroke()
            }

            // 水平线
            for (let y = 0; y <= maxMillimeter; y += step) {
              const yPos = y * (height / maxMillimeter)
              ctx.beginPath()
              ctx.moveTo(0, yPos)
              ctx.lineTo(width, yPos)
              ctx.stroke()
            }
          }

          // 先画细线（每1mm）
          // drawGrid(ctx, 1)
          // 再画粗线（每5mm）
          ctx.lineWidth = 2
          drawGrid(ctx, 5)

          // ====== Step 2: 获取第一个声道数据 ======
          if (!channels || channels.length === 0) return
          const floatData = channels[0] // 单声道或左声道；Float32Array, 范围 [-1, 1]

          // 方法1：Float32Array 转换为 Int16Array
          const data = new Int16Array(floatData.length)
          for (let i = 0; i < floatData.length; i++) {
            // 映射 [-1, 1] -> [-32768, 32767]
            data[i] = Math.max(-32768, Math.min(32767, Math.floor(floatData[i] * 32768)))
          }

          // ====== Step 3: 计算绘图参数 ======
          const dataSize = data.length
          // const pixelRatio = window.devicePixelRatio || 1
          // const totalPixels = Math.round(width * pixelRatio)
          // const gapX = width / totalPixels // 每个样本占多少视觉像素
          // const xSize = totalPixels

          // 缩放因子：将原始采样值映射到电压再乘以增益和zoom
          const calcRealMv = (point) => (point * 3.3) / 32767

          // ====== Step 4: 绘制波形 ======
          ctx.beginPath()
          ctx.strokeStyle = '#48a1e0'
          ctx.lineWidth = 1

          let lastX = null
          let lastY = null

          for (let i = 0; i < dataSize; i += STEP_SIZE) {
            const value = data[i]
            const voltage = calcRealMv(0 - value)
            let y = Math.floor(voltage * gain * zoom + centerY)
            y = Math.max(0, Math.min(y, height)) // 钳位在画布范围内

            const x = (i / dataSize) * width

            if (lastX === null) {
              ctx.moveTo(x, y)
            } else {
              ctx.lineTo(x, y)
            }

            lastX = x
            lastY = y
          }

          ctx.stroke()
        },
      })

      // 监听用户交互事件
      this.wavesurfer.on('interaction', () => {
        this.isUserInteraction = true
      })

      // 监听波形图进度变化
      this.wavesurfer.on('timeupdate', (currentTime) => {
        if (this.isUserInteraction) {
          this.isUserInteraction = false // 重置标志
        }
      })

      // 音频加载完成后，强制频谱图重新绘制
      this.wavesurfer.on('ready', () => {
        // 销毁旧的频谱图数据，重新绘制新的
        if (this.spectrogramPlugin) {
          this.spectrogramPlugin.destroy() // 清除旧数据
        }
        if (this.timelinePlugin) {
          this.timelinePlugin.destroy()
        }
        if (this.zoomPlugin) {
          this.zoomPlugin.destroy()
        }
        if (this.regionsPlugin) {
          this.regionsPlugin.destroy()
        }
        const duration = this.wavesurfer.getDuration()

        this.zoomLevel = Math.round(1100 / Math.round(duration)) // 1100px宽度
        console.log('音频加载完成，时长:', duration, '秒', 'px', '初始缩放级别:', this.zoomLevel, 'px/s')
        if (this.zoomLevel < 110) {
          this.zoomLevel = 110
        }
        this.inhaleRegion = null
        this.exhaleRegion = null

        // 注册频谱图插件
        this.registerWavePlugin()
      })

      this.wavesurfer.on('zoom', (currentZoom) => {
        this.zoomLevel = Math.round(currentZoom)
        // console.log('当前缩放级别:', currentZoom)
      })

      this.wavesurfer.on('finish', () => {
        this.wavesurfer.setTime(0)
      })
    },

    registerWavePlugin() {
      // 注册频谱图插件的方法
      this.spectrogramPlugin = this.wavesurfer.registerPlugin(
        Spectrogram.create({
          // container: this.$refs.spectrogram,
          height: 150,
          labels: false,
          windowFunc: 'hann',
        })
      )

      if (this.canZoom) {
        this.registerOtherPlugins()
      }
    },

    registerOtherPlugins() {
      // 注册时间轴插件的方法
      this.timelinePlugin = this.wavesurfer.registerPlugin(
        TimelinePlugin.create({
          height: 15,
          timeInterval: 0.1, //竖线刻度；时间标记之间的间隔（秒）
          primaryLabelInterval: 2, //	主标签之间的间隔（秒）
          secondaryLabelInterval: 1, //	次标签之间的间隔（秒）
          style: {
            fontSize: '12px',
            color: '#666',
          },
        })
      )

      // 注册缩放插件的方法
      this.zoomPlugin = this.wavesurfer.registerPlugin(
        ZoomPlugin.create({
          scale: 0.01, //每次滚轮滚动的缩放比例。0.5 表示每次滚动放大50%
          maxZoom: 200, // 最大500像素/秒
          minZoom: 10, // 最小10像素/秒
          // scrollParent: false, // 是否允许在缩放时滚动父容器
          // showControls: true, // 如果插件提供控制UI
          // dragToSeek: true, // 启用拖动以寻址
          // slider: true,
        })
      )
      this.wavesurfer.zoom(this.zoomLevel)

      // 注册区域选择插件的方法
      // let cssText =
      //   'color: white; font-weight: bold;  line-height: normal; text-align: center; display: flex; align-items: center; justify-content: center; width: 100%; height: 100%; pointer-events: none; white-space: nowrap;'
      // const span1 = document.createElement('span')
      // span1.textContent = '吸气相'
      // span1.style.cssText = cssText

      // const span2 = document.createElement('span')
      // span2.textContent = '呼气相'
      // span2.style.cssText = cssText

      this.regionsPlugin = this.wavesurfer.registerPlugin(RegionsPlugin.create())
      this.regionsPlugin.addRegion({
        id: 'inhale',
        start: 0,
        end: 0.3,
        content: '吸气相',
        // content: span1,
        minLength: 0.3,
        maxLength: 10,
        color: 'rgba(180, 84, 240, 0.3)',
      })
      this.regionsPlugin.addRegion({
        id: 'exhale',
        start: 1,
        end: 1.3,
        content: '呼气相',
        // content: span2,
        minLength: 0.3,
        maxLength: 10,
        color: 'rgba(34,139,34, 0.3)',
      })

      let activeRegion = null
      // let loop = false
      // // 监听区域创建事件
      // this.regionsPlugin.on('region-in', (region) => {
      //   console.log('region-in（进入区域）', region)
      // })
      // this.regionsPlugin.on('region-out', (region) => {
      //   console.log('region-out（离开区域）', region)
      //   if (activeRegion === region) {
      //     // if (loop) {
      //     //   region.play()
      //     // } else {
      //     //   activeRegion = null
      //     // }
      //     activeRegion = null
      //   }
      // })
      this.regionsPlugin.on('region-clicked', (region, e) => {
        e.stopPropagation() // 防止触发波形上的点击
        activeRegion = region
        region.play(true)
        // region.setOptions({ color: randomColor() })
      })
      this.regionsPlugin.on('region-updated', (region) => {
        console.log('Updated region', region.id, region.start, region.end)

        if (region.id === 'inhale') {
          this.inhaleRegion = region
        } else if (region.id === 'exhale') {
          this.exhaleRegion = region
        } else {
          this.inhaleRegion = null
          this.exhaleRegion = null
        }
      })
    },

    formatTimeNumber(num) {
      // 检查是否为整数
      if (Number.isInteger(num)) {
        return num.toString() // 整数直接返回，不加 .0
      } else {
        return num.toFixed(2) // 小数保留1位
      }
    },

    async loadFullAudio(url) {
      this.loading = true
      if (!url || url.trim() === '') {
        this.error = '音频URL未提供或为空'
        console.error('音频URL未提供或为空（wavUrl is null or empty）')
        this.loading = false
        return
      }

      try {
        const response = await fetch(url)
        this.audioBlob = await response.blob()

        // 创建完整音频URL
        this.fullAudioBlobUrl = URL.createObjectURL(this.audioBlob)

        // 加载到WaveSurfer
        await this.wavesurfer.loadBlob(this.audioBlob)

        this.error = null
      } catch (err) {
        console.log('加载音频失败:', err)
        this.error = '音频加载失败: ' + err.message
      } finally {
        this.loading = false
      }
    },

    // 区域更新后触发
    async regionUpdate() {
      if (this.inhaleRegion && this.exhaleRegion) {
        console.log('indexBean', this.indexBean.positionFileName)

        let inArrayBuffer, exArrayBuffer
        if (this.segmentBlob && this.indexBean.positionFileName !== '全部') {
          inArrayBuffer = await this.extractAudioBufferByTime(
            this.segmentBlob,
            false,
            this.inhaleRegion.start,
            this.inhaleRegion.end
          )

          exArrayBuffer = await this.extractAudioBufferByTime(
            this.segmentBlob,
            false,
            this.exhaleRegion.start,
            this.exhaleRegion.end
          )
        } else {
          inArrayBuffer = await this.extractAudioBufferByTime(
            this.audioBlob,
            true,
            this.inhaleRegion.start,
            this.inhaleRegion.end
          )

          exArrayBuffer = await this.extractAudioBufferByTime(
            this.audioBlob,
            true,
            this.exhaleRegion.start,
            this.exhaleRegion.end
          )
        }

        this.loading = true
        // 创建 FormData 对象
        const formData = new FormData()
        formData.append('inhale', new Blob([inArrayBuffer], { type: 'application/octet-stream' }))
        formData.append('exhale', new Blob([exArrayBuffer], { type: 'application/octet-stream' }))
        // 发送请求
        axios
          .post('http://58.57.172.66:8082/aimed/api/algorithm/calculatePower', formData, {
            headers: {
              'Content-Type': 'multipart/form-data',
            },
          })
          .then((response) => {
            this.loading = false
            const newCharc = response.data.data
            if (response.status != 200) {
              this.$message.warning('计算失败：' + response.data.msg)
              return
            }
            if (!newCharc) {
              this.$message.warning('计算失败，返回结果为空！')
              return
            }
            console.log('计算成功', newCharc)
            this.updateCharcteristic(newCharc)
          })
          .catch((error) => {
            this.loading = false
            this.$message.warning('计算失败，请重试！')
            console.error('计算失败', error)
          })
      }
    },

    updateCharcteristic(data) {
      const inTimeL = this.inhaleRegion.end - this.inhaleRegion.start
      const exTimeL = this.exhaleRegion.end - this.exhaleRegion.start
      const hxl = 60 / (inTimeL + exTimeL)
      // console.log('inTimeL=', inTimeL, 'exTimeL=', exTimeL, 'hxl=', hxl,'特征值=', data)

      this.$emit('charc-update', {
        AVG_INHALE_DURATION: inTimeL.toFixed(2),
        AVG_EXHALE_DURATION: exTimeL.toFixed(2),
        BREATHING_RATE: hxl.toFixed(2),
        LOW_BAND_POWER_RATIO: data.LOW_BAND_POWER_RATIO,
        MID_BAND_POWER_RATIO: data.MID_BAND_POWER_RATIO,
      })
    },

    /**
     * 从 Blob 中根据开始和结束时间提取 ArrayBuffer
     * @param {Blob} blob - 音频 Blob（16-bit PCM, 8000 Hz, 单声道）
     * @param {number} startTime - 开始时间（秒）
     * @param {number} endTime - 结束时间（秒）
     * @returns {Promise<ArrayBuffer>} 提取的音频数据 ArrayBuffer
     */
    async extractAudioBufferByTime(blob, hasHeader, startTime, endTime) {
      if (!blob) {
        console.error('音频 Blob 未提供', hasHeader)
        throw new Error('音频 Blob 未提供')
      }
      // 1. 转为 ArrayBuffer
      const fullArrayBuffer = await blob.arrayBuffer()

      // 2. 音频参数
      const sampleRate = 8000 // 采样率
      const bitsPerSample = 16 // 位深
      const channels = 1 // 单声道
      const bytesPerSample = bitsPerSample / 8 // 2 字节 per sample

      // 3. 计算每秒对应的字节数
      const bytesPerSecond = sampleRate * bytesPerSample * channels

      let audioData = fullArrayBuffer
      if (hasHeader) {
        // 4. 跳过 WAV header（44 字节）
        const headerOffset = 44
        if (fullArrayBuffer.byteLength < headerOffset) {
          throw new Error('Invalid WAV file: too small to have a header')
        }

        // 真正的音频数据（去掉 header）
        audioData = fullArrayBuffer.slice(headerOffset)
      }

      // 5. 计算时间对应的数据偏移（字节）
      const startByte = Math.floor(startTime * bytesPerSecond)
      const endByte = Math.floor(endTime * bytesPerSecond)

      // 边界检查
      if (startByte < 0 || endByte > audioData.byteLength || startByte >= endByte) {
        throw new Error('Time range out of bounds')
      }

      // 6. 截取目标区域
      const extractedBuffer = audioData.slice(startByte, endByte)
      return extractedBuffer
    },

    // 根据听诊区的域加载音频片段
    async loadAudioSegment(segment) {
      if (!segment || (!segment.startIndex && !segment.endIndex)) {
        // 回退到完整音频
        console.log('回退到完整音频')
        await this.wavesurfer.loadBlob(this.audioBlob)
        return
      }

      try {
        this.loading = true
        const arrayBuffer = await this.audioBlob.arrayBuffer()
        const segmentData = this.extractWavSegment(arrayBuffer, segment.startIndex + 44, segment.endIndex + 44)

        const blob = new Blob([segmentData], { type: 'audio/wav' })
        const segmentUrl = URL.createObjectURL(blob)
        this.segmentBlob = blob

        await this.wavesurfer.loadBlob(blob)

        // 释放旧URL并保存新URL
        if (this.currentSegmentBlobUrl) {
          URL.revokeObjectURL(this.currentSegmentBlobUrl)
        }
        this.currentSegmentBlobUrl = segmentUrl
      } catch (err) {
        this.error = '片段加载失败: ' + err.message
      } finally {
        this.loading = false
      }
    },

    extractWavSegment(arrayBuffer, start, end) {
      // 实现WAV文件截取逻辑
      const header = arrayBuffer.slice(0, 44)
      const data = arrayBuffer.slice(44)

      // 创建新的数据视图
      const headerView = new DataView(header)
      const newData = data.slice(start, end)

      // 更新WAV头信息
      headerView.setUint32(4, 36 + newData.byteLength, true) // ChunkSize
      headerView.setUint32(40, newData.byteLength, true) // Subchunk2Size

      // 合并头和音频数据
      const newWav = new Uint8Array(header.byteLength + newData.byteLength)
      newWav.set(new Uint8Array(header), 0)
      newWav.set(new Uint8Array(newData), header.byteLength)

      return newWav.buffer
    },
    resetComponentState() {
      // 停止播放
      this.stopPlay()

      // 清空波形图
      if (this.wavesurfer) {
        this.wavesurfer.empty()
      }

      // 重置状态
      this.progress = 0
      this.error = null
      this.isUserInteraction = false

      // 如果你希望每次都重新初始化 WaveSurfer（可选）
      // this.cleanup()
      // this.initWaveSurfer()
    },

    cleanup() {
      // 释放URL对象
      if (this.currentSegmentBlobUrl) {
        URL.revokeObjectURL(this.currentSegmentBlobUrl)
      }
      if (this.wavesurfer) {
        this.wavesurfer.destroy()
      }
    },

    stopPlay() {
      if (this.wavesurfer) {
        this.wavesurfer.pause()
      }
    },

    convertPcmToWav(pcmData) {
      const sampleRate = 8000
      const numChannels = 1
      const bitsPerSample = 16
      const byteRate = (sampleRate * numChannels * bitsPerSample) / 8
      const blockAlign = (numChannels * bitsPerSample) / 8
      const dataLength = pcmData.byteLength

      const buffer = new ArrayBuffer(44 + dataLength)
      const view = new DataView(buffer)

      this.writeString(view, 0, 'RIFF')
      view.setUint32(4, 36 + dataLength, true)
      this.writeString(view, 8, 'WAVE')
      this.writeString(view, 12, 'fmt ')
      view.setUint32(16, 16, true)
      view.setUint16(20, 1, true)
      view.setUint16(22, numChannels, true)
      view.setUint32(24, sampleRate, true)
      view.setUint32(28, byteRate, true)
      view.setUint16(32, blockAlign, true)
      view.setUint16(34, bitsPerSample, true)
      this.writeString(view, 36, 'data')
      view.setUint32(40, dataLength, true)

      const pcmView = new Uint8Array(pcmData)
      const wavView = new Uint8Array(buffer, 44)
      wavView.set(pcmView)

      return buffer
    },

    writeString(view, offset, string) {
      for (let i = 0; i < string.length; i++) {
        view.setUint8(offset + i, string.charCodeAt(i))
      }
    },
  },
}
</script>

<style>
.zoom-tips {
  margin: 18px 0;
  font-size: 16px;
  color: #ff0000;

  span {
    color: #000;
  }
}
.waveform {
  width: 1100px;
  /* overflow: hidden;
  position: relative;
  max-width: 100% !important; */
}
.loading-indicator {
  position: absolute;
  top: 50%;
  left: 50%;
  transform: translate(-50%, -50%);
  color: #333;
  background: rgba(255, 255, 255, 0.9);
  padding: 10px 20px;
  border-radius: 8px;
  font-size: 14px;
  text-align: center;
}

.progress-bar {
  width: 100%;
  height: 6px;
  background: #eee;
  margin-top: 8px;
  border-radius: 3px;
  overflow: hidden;
}

.progress-fill {
  height: 100%;
  background: #48a1e0;
  transition: width 0.2s;
}

.error-message {
  color: red;
  font-size: 14px;
  padding: 10px;
  background: #ffe5e5;
  border-radius: 4px;
}

.region-container {
  display: inline-flex;
  align-items: center;
  margin: auto;
  margin-left: 20px;
  gap: 20px;
  /* width: 35%; */
  width: fit-content;
  border: 1px dashed #333; /* 1像素宽的灰色虚线边框 */
  padding: 5px; /* 内边距，使内容不紧贴边框 */
}

.region-text {
  display: flex;
  flex-direction: column;
  align-items: flex-start;
  white-space: nowrap;
}

.region-item {
  margin-bottom: 4px; /* 调整两个span之间的间距 */
}

.region-item:last-child {
  margin-bottom: 0;
}
</style>
