容器管理工具Containerd
nerdctl 实践
nerdctl管理存储
nerdctl命令创建容器的时候，可以使用-v选项将本地目录挂载给容器实现数据持久化
示例：
[root@localhost ~]# mkdir /data
[root@localhost ~]# nerdctl run -d -v /data:/data busybox -- sleep infinity
341b6bb965f1c201a5092b004c888e5511619f42ac8e841fe13c26b045fca3ff
[root@localhost ~]# touch /data/f1
[root@localhost ~]# nerdctl exec busybox-341b6 -- ls /data
f1

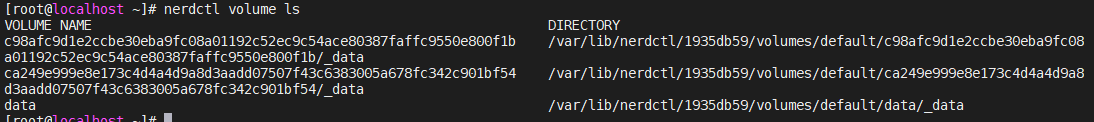

nerdctl命令创建容器的时候，也可以用-v选项指定volume
[root@localhost ~]# nerdctl run -d -v /data busybox -- sleep infinity
5ffccac443bf4b85408a63e99d61678e53ae08d0d06c937910ec92c98bc575c6
[root@localhost ~]# nerdctl exec busybox-
busybox-341b6 busybox-5ffcc
[root@localhost ~]# nerdctl exec busybox-5ffcc -- touch /data/f2
# 指定宿主机生成的目录名为data
[root@localhost ~]# nerdctl run -d -v data:/data busybox -- sleep infinity
c1dbe3824e85e78d08918939b1e87e4ed9f3280de28ab0e4072d21ac506c3cc5
[root@localhost ~]# nerdctl exec busybox-c1dbe -- touch /data/f3
[root@localhost ~]# ls /var/lib/nerdctl/1935db59/volumes/default/data/_data
f3
nerdctl管理命令空间
[root@localhost ~]# nerdctl namespace
Unrelated to Linux namespaces and Kubernetes namespaces
Usage: nerdctl namespace [flags]
Aliases: namespace, ns
Commands:
create Create a new namespace
inspect Display detailed information on one or more namespaces.
ls List containerd namespaces
remove Remove one or more namespaces
update Update labels for a namespace
Flags:
-h, --help help for namespace
See also 'nerdctl --help' for the global flags such as '--namespace', '--snapshotter', and '--cgroup-manager'.
[root@localhost ~]# nerdctl namespace ls
NAME CONTAINERS IMAGES VOLUMES LABELS
default 8 5 3
myns 1 1 0
crictl实践
crictl 命令
crictl 是遵循 Kubernetes CRI（Container Runtime Interface，容器运行时接口）规范的官方命令行工具，核心作用是连接用户与节点上的容器运行时（如 containerd、CRI-O），实现对容器、镜像的检查与管理，是 Kubernetes 节点级运维的关键工具。
在 Kubernetes 集群中，crictl 的使用分为 “自动调用” 和 “手动操作” 两种场景：
- 自动调用：kubelet 的 “隐形协作工具”
当执行kubectl run、kubectl apply等集群管理命令时，请求会经 API Server 下发至节点的 kubelet。此时 kubelet 会自动调用 crictl，通过 CRI 接口向容器运行时发送指令，完成 “拉取镜像”“创建容器”“启动容器” 等底层操作 —— 整个过程无需用户干预，crictl 相当于 kubelet 与容器运行时之间的 “通信桥梁”。 - 手动操作：集群排障与底层查询的 “直接入口”
日常运维中，手动执行 crictl 命令主要用于定位容器 / 镜像相关故障或查询底层资源状态（尤其当kubectl无法获取底层详情时）。例如：查看节点上所有镜像（含 K8s Pod 依赖的镜像）、排查 Pod 日志无法输出的问题、检查容器启动失败的底层原因等，是kubectl工具的重要补充。
crictl 命令安装
配置kubernetes源：
[root@localhost ~]# cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.30/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.30/rpm/repodata/repomd.xml.key
EOF
安装CRI命令
[root@localhost ~]# yum install -y cri-tools
crictl命令配置
使用之前，先配置/etc/crictl.yml
示例：
配置crictl后端运行时使用containerd
[root@localhost ~]# vim /etc/crictl.yml
[root@localhost ~]# cat /etc/crictl.yml
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 5
debug: false
也可以通过命令进行配置：
[root@localhost ~]# crictl config runtime-endpoint unix:///run/containerd/containerd.sock
[root@localhost ~]# crictl config image-endpoint unix:///run/containerd/containerd.sock
crictl 命令实践
[root@localhost ~]# crictl pull httpd
Image is up to date for sha256:65005131d37e90347c3259856d51f35c505d260c308f2b7d0fc020a841dd1220
[root@localhost ~]# crictl images
IMAGE TAG IMAGE ID SIZE
docker.io/library/httpd latest 65005131d37e9 45.2MB
crictl 核心命令分类
crictl 作为遵循 Kubernetes CRI（容器运行时接口） 的命令行工具，命令围绕镜像、容器、Pod 及辅助操作展开：
- 镜像操作：
images/image/img：列出节点上所有镜像，支持通过名称、仓库等过滤，还能显示镜像摘要等详细信息；pull：从镜像仓库拉取指定镜像，可用于私有仓库（需提前配置认证）；inspecti：返回一个或多个镜像的状态，帮助了解镜像的元数据等情况；imagefsinfo：返回镜像文件系统的相关信息；rmi：删除一个或多个镜像，也可结合--prune清理未使用的镜像（操作需谨慎）。
- 容器管理：
ps：列出容器，默认显示运行中的容器，加-a可显示所有容器（含已停止），还能按名称、所属 Pod 等过滤；create：创建新容器；run：在沙箱内运行新容器；inspect：显示一个或多个容器的状态，包括容器的配置、运行状态等详细信息；info：展示容器运行时的相关信息；attach：连接到运行中的容器；exec：在运行中的容器内执行命令；logs：获取容器的日志，支持实时跟踪（-f参数）、查看指定行数（--tail参数）等；update：更新一个或多个运行中的容器；stats：列出容器的资源使用统计信息（如 CPU、内存等）；checkpoint：为一个或多个运行中的容器创建检查点；start：启动一个或多个已创建的容器；stop：停止一个或多个运行中的容器；rm：删除一个或多个容器，已停止的容器可直接删除，运行中的容器需加-f强制删除（谨慎操作，可能影响 Pod）。
- Pod 相关操作：
pods：列出节点上由 kubelet 管理的所有 Pod；runp：运行新的 Pod；inspectp：显示一个或多个 Pod 的状态，包含所属容器、运行状态等信息；statsp：列出 Pod 的资源使用统计信息；port-forward：将本地端口转发到 Pod；stopp：停止一个或多个运行中的 Pod；rmp：删除一个或多个 Pod。
- 辅助命令：
version：显示容器运行时的版本信息；config：获取和设置crictl客户端的配置选项；completion：输出 shell 自动补全代码；help/h：显示命令列表或单个命令的帮助信息。
安装OpenStack-Victoria
准备模板虚拟机
配置yum源
[root@localhost ~]# rm -rf /etc/yum.repos.d/*
[root@localhost ~]# cat /etc/yum.repos.d/openstack.repo
[centos-openstack-victoria]
name=CentOS 8 - OpenStack victoria
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/cloud/x86_64/openstack-victoria/
gpgcheck=0
enabled=1
[highavailability]
name=CentOS Stream 8 - HighAvailability
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/HighAvailability/x86_64/os/
gpgcheck=0
enabled=1
[nfv]
name=CentOS Stream 8 - NFV
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/NFV/x86_64/os/
gpgcheck=0
enabled=1
[rt]
name=CentOS Stream 8 - RT
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/RT/x86_64/os/
gpgcheck=0
enabled=1
[resilientstorage]
name=CentOS Stream 8 - ResilientStorage
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/ResilientStorage/x86_64/os/
gpgcheck=0
enabled=1
[extras-common]
name=CentOS Stream 8 - Extras packages
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/extras/x86_64/extras-common/
gpgcheck=0
enabled=1
[extras]
name=CentOS Stream - Extras
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/extras/x86_64/os/
gpgcheck=0
enabled=1
[centos-ceph-pacific]
name=CentOS - Ceph Pacific
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/storage/x86_64/ceph-pacific/
gpgcheck=0
enabled=1
[centos-rabbitmq-38]
name=CentOS-8 - RabbitMQ 38
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/messaging/x86_64/rabbitmq-38/
gpgcheck=0
enabled=1
[centos-nfv-openvswitch]
name=CentOS Stream 8 - NFV OpenvSwitch
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/nfv/x86_64/openvswitch-2/
gpgcheck=0
enabled=1
[baseos]
name=CentOS Stream 8 - BaseOS
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/BaseOS/x86_64/os/
gpgcheck=0
enabled=1
[appstream]
name=CentOS Stream 8 - AppStream
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/AppStream/x86_64/os/
gpgcheck=0
enabled=1
[powertools]
name=CentOS Stream 8 - PowerTools
baseurl=https://mirrors.aliyun.com/centos-vault/8-stream/PowerTools/x86_64/os/
gpgcheck=0
enabled=1
[root@localhost ~]# yum clean all
0 files removed
[root@localhost ~]#
[root@localhost ~]# yum makecache
安装方便操作环境包及基础软件包
[root@localhost ~]# yum install -y bash-completion vim open-vm-tools net-tools chrony.x86_64
[root@localhost ~]# source /usr/share/bash-completion/bash_completion
设置/etc/hosts
[root@localhost ~]# vim /etc/hosts
[root@localhost ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.108.10 controller
192.168.108.11 compute
关闭SELinux
[root@localhost ~]# sed -i '/^SELINUX=/cSELINUX=disabled' /etc/selinux/config
编辑网卡信息
[root@localhost ~]# cd /etc/sysconfig/network-scripts/
[root@localhost network-scripts]# vim ifcfg-ens160
[root@localhost network-scripts]# cat ifcfg-ens160
TYPE=Ethernet
BOOTPROTO=dhcp
NAME=ens160
DEVICE=ens160
ONBOOT=yes
清除密钥信息
[root@localhost network-scripts]# cd /etc/ssh/
[root@localhost ssh]# rm -rf ssh_host_*
清除Machine ID
[root@localhost ssh]# cat /dev/null > /etc/machine-id
[root@localhost ssh]# cat /etc/machine-id
虚拟机模板准备完成
准备openstack节点
克隆出两台虚拟机controller和computer
配置主机名
controller:
[root@localhost ~]# hostnamectl set-hostname controller
compute:
[root@localhost ~]# hostnamectl set-hostname compute
配置IP地址
controller:
[root@localhost ~]# hostnamectl set-hostname controller
[root@localhost ~]# bash
[root@controller ~]#
[root@controller ~]#
[root@controller ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
[root@controller ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
BOOTPROTO=none
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.108.10
NETMASK=255.255.255.0
GATEWAY=192.168.108.2
DNS1=192.168.108.2
[root@controller ~]# nmcli connection down ens160
[root@controller ~]# nmcli connection up ens160
compute:
[root@localhost ~]# hostnamectl set-hostname compute
[root@localhost ~]#
[root@localhost ~]# bash
[root@compute ~]#
[root@compute ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
[root@compute ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
BOOTPROTO=none
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.108.11
NETMASK=255.255.255.0
GATEWAY=192.168.108.2
DNS1=192.168.108.2
[root@compute ~]# nmcli connection down ens160
[root@compute ~]# nmcli connection up ens160
配置NTP
controller:
[root@controller ~]# vim /etc/chrony.conf
# pool 2.centos.pool.ntp.org iburst
server ntp.aliyun.com iburst
# Allow NTP client access from local network.
#allow 192.168.0.0/16
allow 192.168.108.0/24
#启动服务
[root@controller ~]# systemctl restart chronyd
[root@controller ~]# systemctl enable chronyd
compute:
[root@compute ~]# vim /etc/chrony.conf
# pool 2.centos.pool.ntp.org iburst
server controller iburst
#启动服务
[root@compute ~]# systemctl restart chronyd
[root@compute ~]# systemctl enable chronyd
安装OpenStack和测试
控制节点安装packstack
controller:
[root@controller ~]# yum install -y openstack-packstack
生成应答文件
controller:
[root@controller ~]# packstack --gen-answer-file=answers.txt
Packstack changed given value to required value /root/.ssh/id_rsa.pub
Additional information:
* Parameter CONFIG_NEUTRON_L2_AGENT: You have chosen OVN Neutron backend. Note that this backend does not support the VPNaaS plugin. Geneve will be used as the encapsulation method for tenant networks
更改应答文件
controller:
[root@controller ~]# sed -i '/^CONFIG_COMPUTE_HOSTS=/cCONFIG_COMPUTE_HOSTS=192.168.108.10,192.168.108.11' answers.txt
[root@controller ~]# sed -i '/^CONFIG_PROVISION_DEMO=/cCONFIG_PROVISION_DEMO=n' answers.txt
[root@controller ~]# sed -i '/^CONFIG_HEAT_INSTALL=/cCONFIG_HEAT_INSTALL=y' answers.txt
[root@controller ~]# sed -i '/^CONFIG_NEUTRON_OVN_BRIDGE_IFACES=/cCONFIG_NEUTRON_OVN_BRIDGE_IFACES=br-ex:ens160' answers.txt
[root@controller ~]# sed -i.bak -r 's/(.+_PW)=[0-9a-z]+/\1=huawei/g' answers.txt
关闭NetworkManager
controller:
[root@controller ~]# systemctl stop NetworkManager; systemctl disable NetworkManager; systemctl mask NetworkManager
Removed /etc/systemd/system/multi-user.target.wants/NetworkManager.service.
Removed /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service.
Removed /etc/systemd/system/network-online.target.wants/NetworkManager-wait-online.service.
Created symlink /etc/systemd/system/NetworkManager.service → /dev/null.
compute:
[root@compute ~]# systemctl stop NetworkManager; systemctl disable NetworkManager; systemctl mask NetworkManager
Removed /etc/systemd/system/multi-user.target.wants/NetworkManager.service.
Removed /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service.
Removed /etc/systemd/system/network-online.target.wants/NetworkManager-wait-online.service.
Created symlink /etc/systemd/system/NetworkManager.service → /dev/null.
根据应答文件配置安装openstack
controller：
[root@controller ~]# packstack --answer-file=answers.txt
Welcome to the Packstack setup utility
The installation log file is available at: /var/tmp/packstack/20250912-145512-7_0z46p_/openstack-setup.log
Installing:
Clean Up [ DONE ]
Discovering ip protocol version [ DONE ]
root@192.168.108.11's password:
root@192.168.108.10's password:
Setting up ssh keys [ DONE ]
Preparing servers [ DONE ]
......

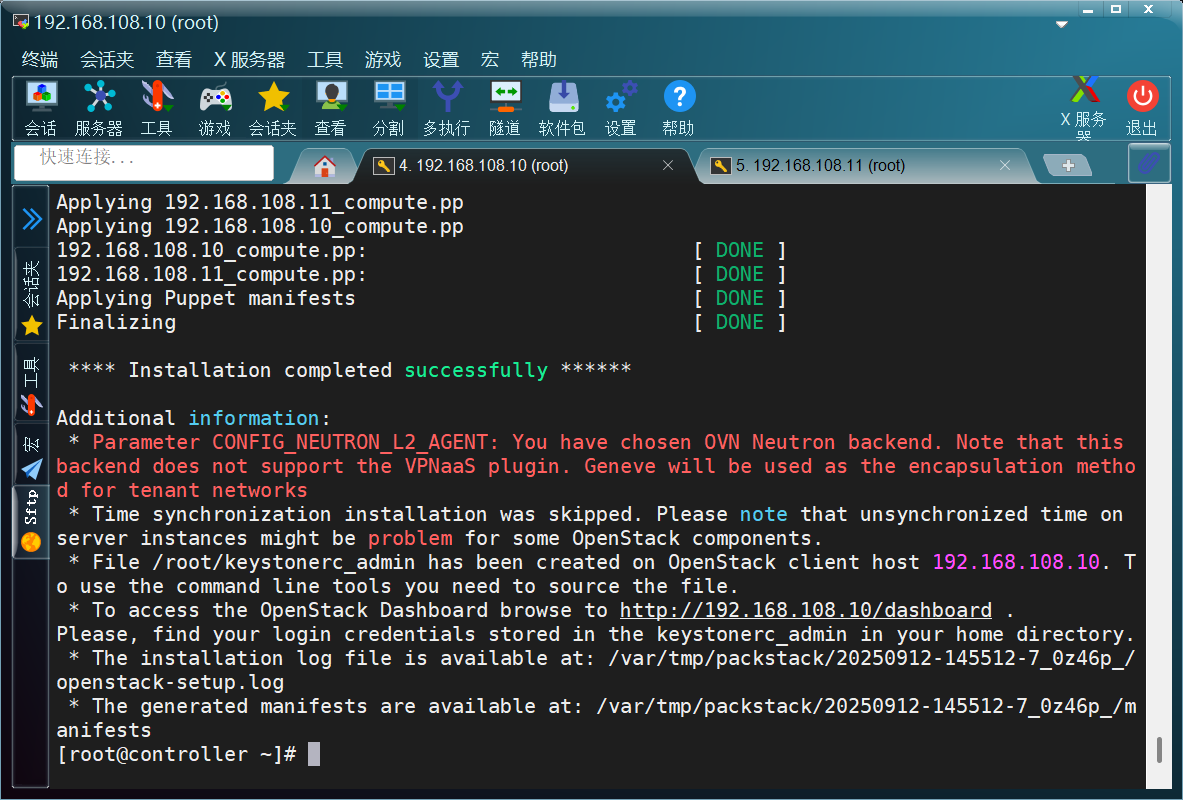

安装完成

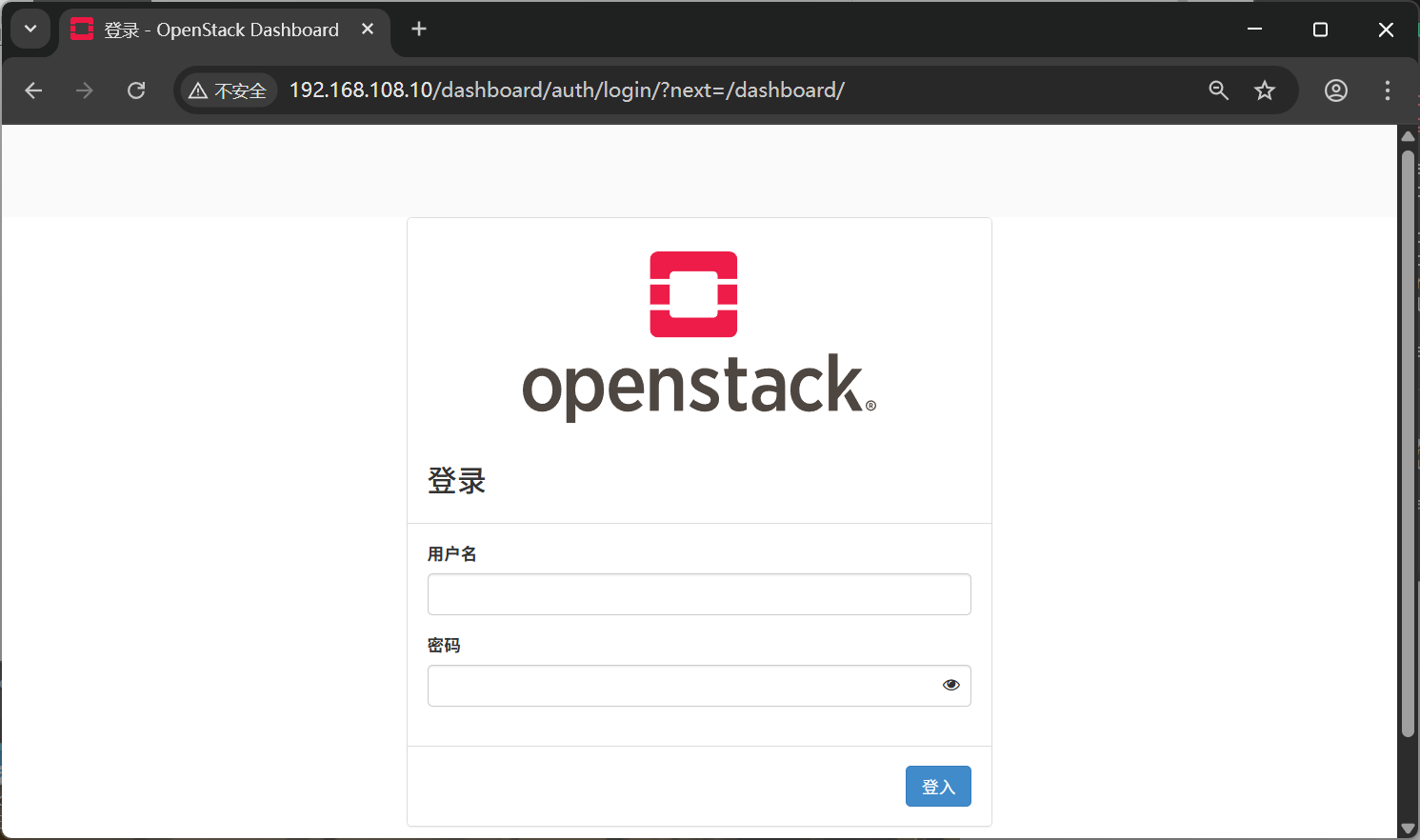

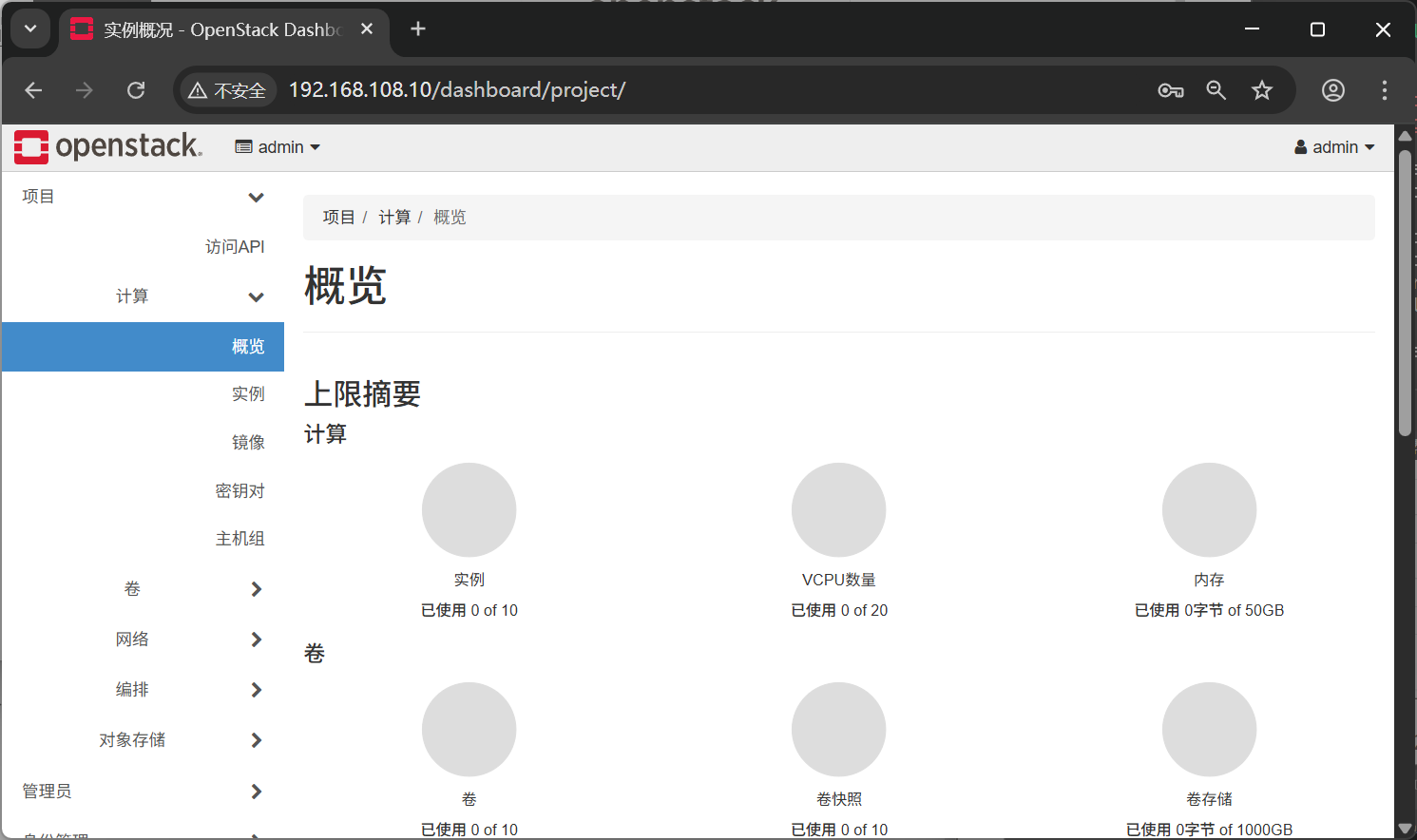

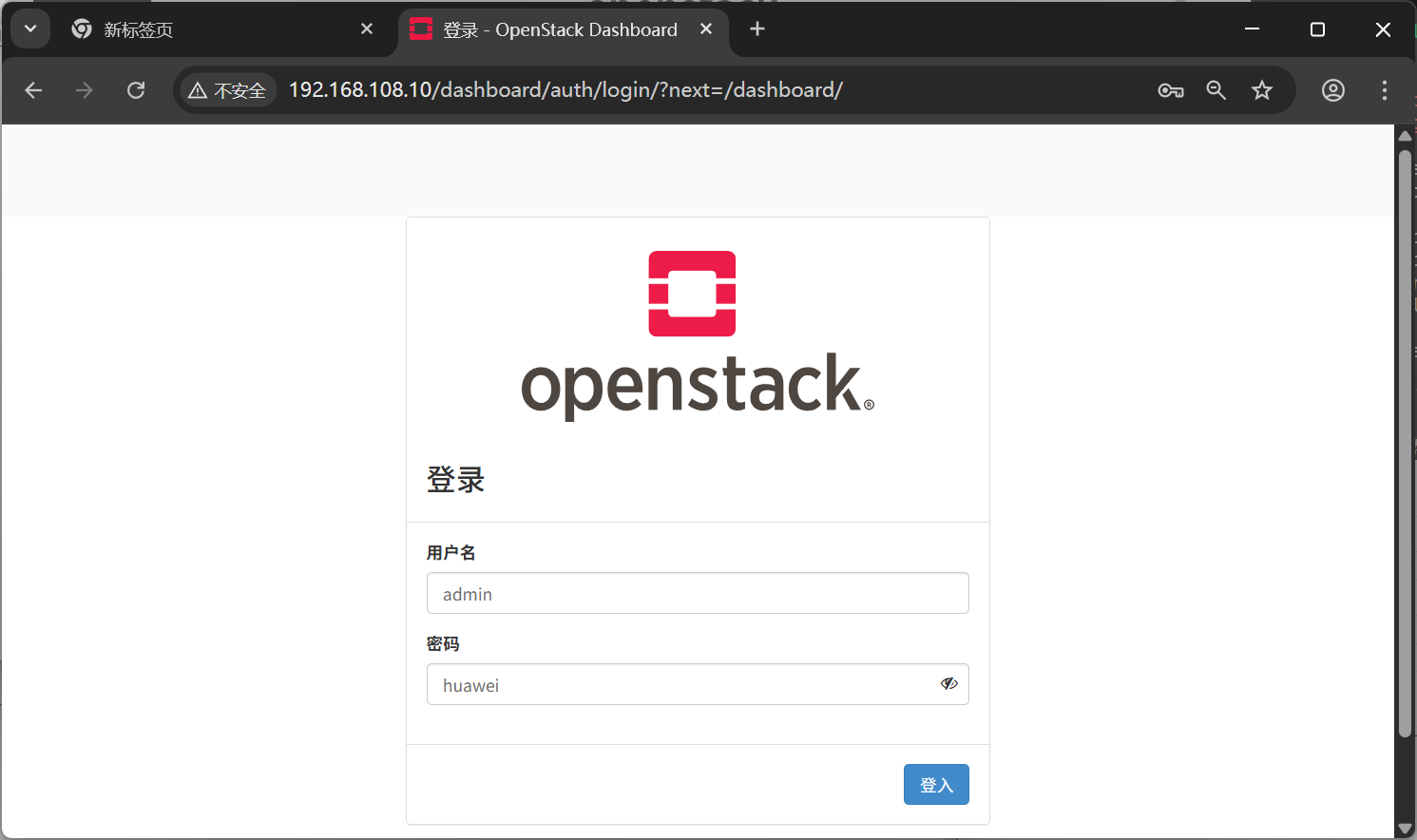

登录测试
开启network服务
controller:
[root@controller ~]# systemctl start network
[root@controller ~]# systemctl enable network
network.service is not a native service, redirecting to systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable network
[root@controller ~]#
compute:
[root@compute ~]# systemctl start network
[root@compute ~]# systemctl enable network
network.service is not a native service, redirecting to systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable network
[root@compute ~]#
配置OpenStack命令补全
# 只在controller里面写入
[root@controller ~]# openstack complete >> /etc/bash_completion.d/complete
The 'openstack bgp speaker show dragents' CLI is deprecated and will be removed in the future. Use 'openstack bgp dragent list' CLI instead.
配置完成，安装结束
compute:
[root@compute ~]# systemctl start network
[root@compute ~]# systemctl enable network
network.service is not a native service, redirecting to systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable network
[root@compute ~]#
配置OpenStack命令补全
# 只在controller里面写入
[root@controller ~]# openstack complete >> /etc/bash_completion.d/complete
The 'openstack bgp speaker show dragents' CLI is deprecated and will be removed in the future. Use 'openstack bgp dragent list' CLI instead.
配置完成，安装结束
