内网穿透工具

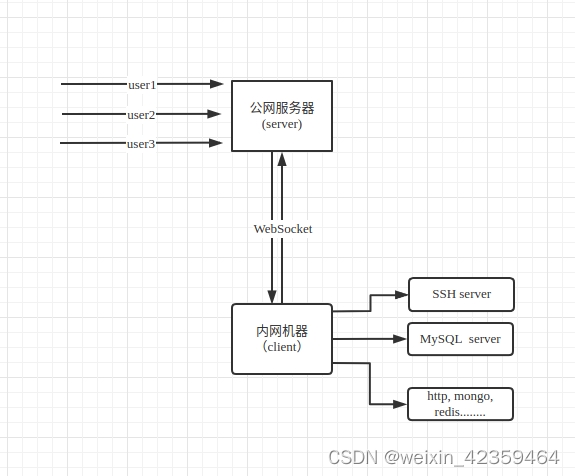

原理
该工具的公网和内网通信使用WebSocket, 因此可以部署在nginx后端服务路径上.
该工具用到的第三方库有: tornado, websocket-client, typing_extensions
使用前
git clone https://github.com/sazima/nat_traversal.git
cd nat_traversal
安装依赖
pip install -r requirements.txt
使用
客户端
python run_client.py -c config_c.json
服务端
python run_server.py -c config_s.json
示例, 通过 SSH 访问内网机器
假设公网机器的ip是 192.168.9.224
1. 在公网机器上配置config_s.json
, 设置连接密码, 接受客户端配置的端口和websocket路径
{
"port": 18888,
"password": "yourhelloworld",
"path": "/websocket_path"
}
然后启动:
python run_server.py -c config_s.json
2. 在需要被访问的内网电脑上配置config_c.json
配置config_c.json
{
"server": {
"port": 18888,
"host": "192.168.9.224",
"https": false,
"password": "yourhelloworld",
"path": "/websocket_path"
},
"client": [
{
"name": "ssh1",
"remote_port": 12222,
"local_port": 22,
"local_ip": "127.0.0.1"
}
]
}
然后启动:
python run_client.py -c config_c.json
3. ssh 连接:
ssh -oPort=12222 test@192.168.9.224
本文含有隐藏内容,请 开通VIP 后查看
