RTL8201F-phy芯片MDIO接口FPGA配置RMII模式
介绍
以太网物理层芯片支持10Mbps/100Mbps，支持mii、rmii接口；电路图上配置为RMII接口，寄存器也需要配置。
phy芯片使用的是rmii接口，用mdio配置，配置方法比较简单，先看MDIO接口时序：
MDC频率最高为2.5Mhz，phy在上升沿锁存MDIO的数据

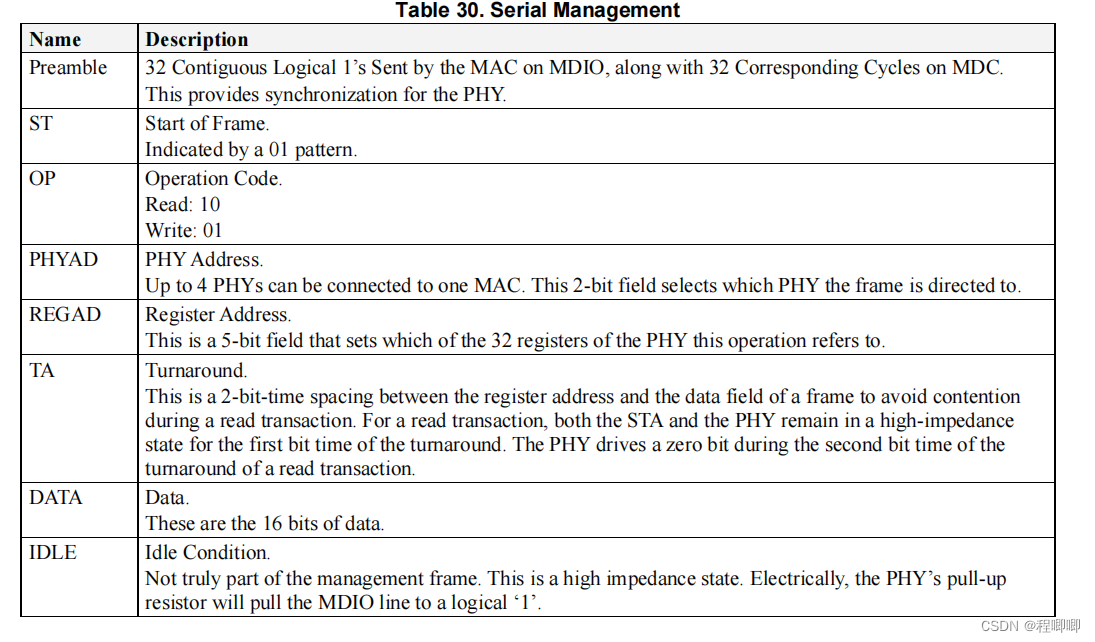

phy address 是在挂多个phy芯片的时候用来识别phy的，下面看配置寄存器有哪些：
PHY配置寄存器
每个寄存器都有默认值，不配置也可以运行，当要修改配置或者查看phy发送接收芯片状态的时候就要使用mdio接口。

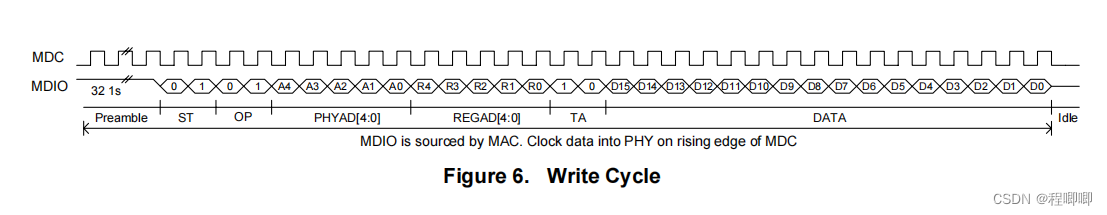

下面是写时序的例程可以参考一下：
module mdio_master (
input wire clk,
input wire rst,
/*
* Host interface
*/
input wire [4:0] cmd_phy_addr,
input wire [4:0] cmd_reg_addr,
input wire [15:0] cmd_data,
input wire [1:0] cmd_opcode,
input wire cmd_valid,
output wire cmd_ready,
output wire [15:0] data_out,
output wire data_out_valid,
input wire data_out_ready,
/*
* MDIO to PHY
*/
output wire mdc_o,
input wire mdio_i,
output wire mdio_o,
output wire mdio_t,
/*
* Status
*/
output wire busy,
/*
* Configuration
*/
input wire [7:0] prescale
);
localparam [1:0]
STATE_IDLE = 2'd0,
STATE_PREAMBLE = 2'd1,
STATE_TRANSFER = 2'd2;
reg [1:0] state_reg = STATE_IDLE, state_next;
reg [16:0] count_reg = 16'd0, count_next;
reg [6:0] bit_count_reg = 6'd0, bit_count_next;
reg cycle_reg = 1'b0, cycle_next;
reg [31:0] data_reg = 32'd0, data_next;
reg [1:0] op_reg = 2'b00, op_next;
reg cmd_ready_reg = 1'b0, cmd_ready_next;
reg [15:0] data_out_reg = 15'd0, data_out_next;
reg data_out_valid_reg = 1'b0, data_out_valid_next;
reg mdio_i_reg = 1'b1;
reg mdc_o_reg = 1'b0, mdc_o_next;
reg mdio_o_reg = 1'b0, mdio_o_next;
reg mdio_t_reg = 1'b1, mdio_t_next;
reg busy_reg = 1'b0;
assign cmd_ready = cmd_ready_reg;
assign data_out = data_out_reg;
assign data_out_valid = data_out_valid_reg;
assign mdc_o = mdc_o_reg;
assign mdio_o = mdio_o_reg;
assign mdio_t = mdio_t_reg;
assign busy = busy_reg;
always @* begin
state_next = STATE_IDLE;
count_next = count_reg;
bit_count_next = bit_count_reg;
cycle_next = cycle_reg;
data_next = data_reg;
op_next = op_reg;
cmd_ready_next = 1'b0;
data_out_next = data_out_reg;
data_out_valid_next = data_out_valid_reg & ~data_out_ready;
mdc_o_next = mdc_o_reg;
mdio_o_next = mdio_o_reg;
mdio_t_next = mdio_t_reg;
if (count_reg > 16'd0) begin
count_next = count_reg - 16'd1;
state_next = state_reg;
end else if (cycle_reg) begin
cycle_next = 1'b0;
mdc_o_next = 1'b1;
count_next = prescale;
state_next = state_reg;
end else begin
mdc_o_next = 1'b0;
case (state_reg)
STATE_IDLE: begin
// idle - accept new command
cmd_ready_next = ~data_out_valid;
if (cmd_ready & cmd_valid) begin
cmd_ready_next = 1'b0;
data_next = {2'b01, cmd_opcode, cmd_phy_addr, cmd_reg_addr, 2'b10, cmd_data};
op_next = cmd_opcode;
mdio_t_next = 1'b0;
mdio_o_next = 1'b1;
bit_count_next = 6'd32;
cycle_next = 1'b1;
count_next = prescale;
state_next = STATE_PREAMBLE;
end else begin
state_next = STATE_IDLE;
end
end
STATE_PREAMBLE: begin
cycle_next = 1'b1;
count_next = prescale;
if (bit_count_reg > 6'd1) begin
bit_count_next = bit_count_reg - 6'd1;
state_next = STATE_PREAMBLE;
end else begin
bit_count_next = 6'd32;
{mdio_o_next, data_next} = {data_reg, mdio_i_reg};
state_next = STATE_TRANSFER;
end
end
STATE_TRANSFER: begin
cycle_next = 1'b1;
count_next = prescale;
if ((op_reg == 2'b10 || op_reg == 2'b11) && bit_count_reg == 6'd19) begin
mdio_t_next = 1'b1;
end
if (bit_count_reg > 6'd1) begin
bit_count_next = bit_count_reg - 6'd1;
{mdio_o_next, data_next} = {data_reg, mdio_i_reg};
state_next = STATE_TRANSFER;
end else begin
if (op_reg == 2'b10 || op_reg == 2'b11) begin
data_out_next = data_reg[15:0];
data_out_valid_next = 1'b1;
end
mdio_t_next = 1'b1;
state_next = STATE_IDLE;
end
end
endcase
end
end
always @(posedge clk) begin
if (rst) begin
state_reg <= STATE_IDLE;
count_reg <= 16'd0;
bit_count_reg <= 6'd0;
cycle_reg <= 1'b0;
cmd_ready_reg <= 1'b0;
data_out_valid_reg <= 1'b0;
mdc_o_reg <= 1'b0;
mdio_o_reg <= 1'b0;
mdio_t_reg <= 1'b1;
busy_reg <= 1'b0;
end else begin
state_reg <= state_next;
count_reg <= count_next;
bit_count_reg <= bit_count_next;
cycle_reg <= cycle_next;
cmd_ready_reg <= cmd_ready_next;
data_out_valid_reg <= data_out_valid_next;
mdc_o_reg <= mdc_o_next;
mdio_o_reg <= mdio_o_next;
mdio_t_reg <= mdio_t_next;
busy_reg <= (state_next != STATE_IDLE || count_reg != 0 || cycle_reg || mdc_o);
end
data_reg <= data_next;
op_reg <= op_next;
data_out_reg <= data_out_next;
mdio_i_reg <= mdio_i;
end
endmodule

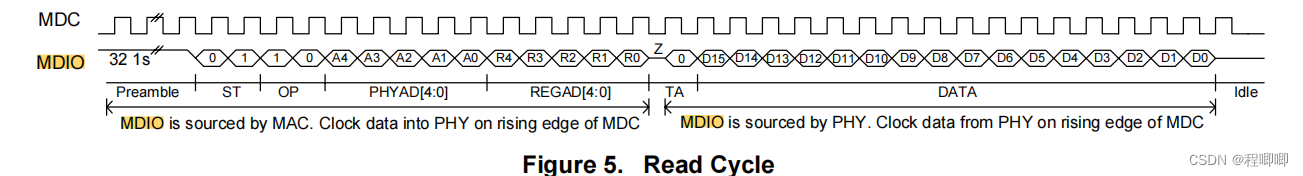

读时序图如下：
读时序和写时序一样，FPGA在上升沿锁存MDIO的数据。
**
配置RMII模式
**因为phy芯片电路配置的是rmii接口，需要使用mdio接口配置成rmii模式：

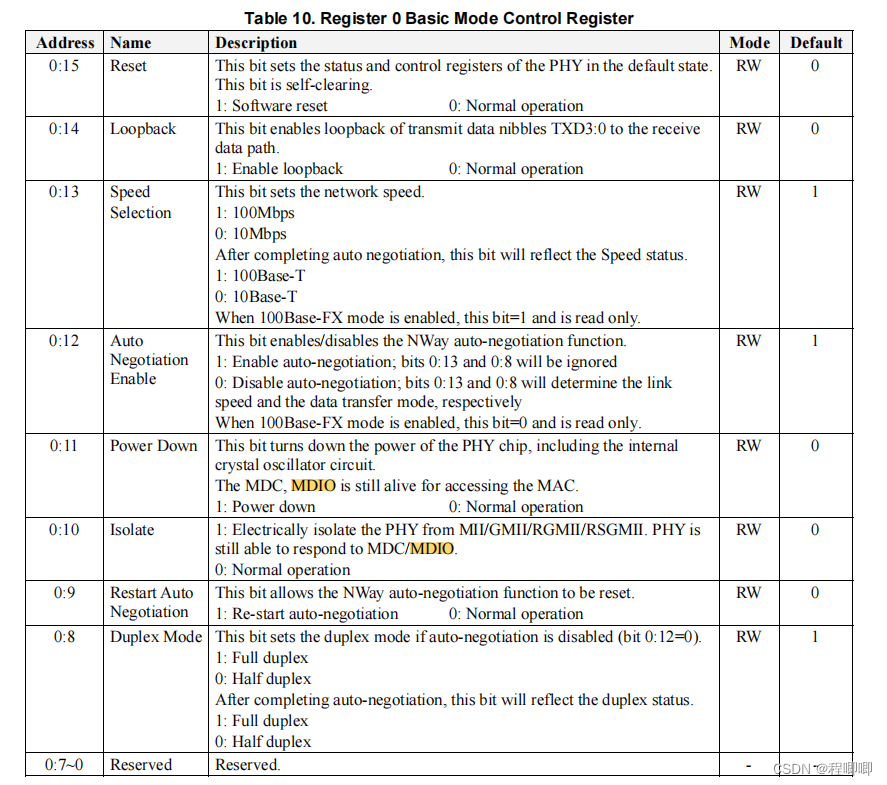

1）Register 0 Basic Mode Control Register：配置成默认值就可以；

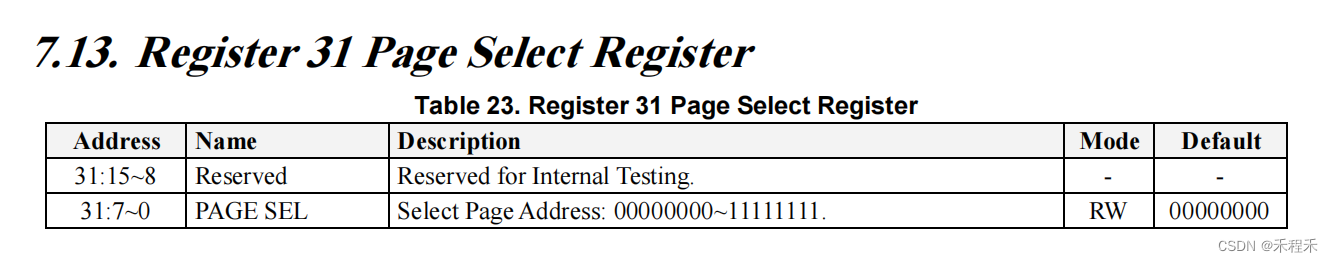

2）Register 31 Page Select Register：要配置成RMII需要跳转到 RMII Mode Setting Register，后者属于page7, page sel为7；

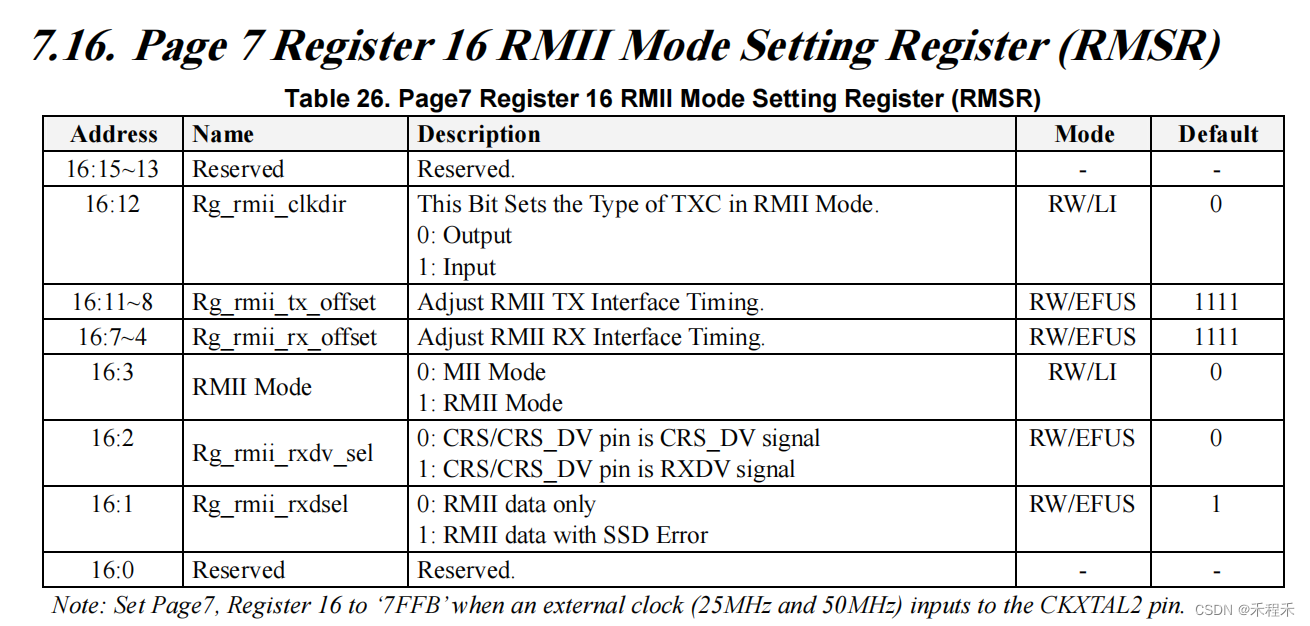

3）Page 7 Register 16 RMII Mode Setting Register (RMSR)
电路图上晶振25m输出到CKXTAL2 pin.，需要配成7FFB；
Note: Set Page7, Register 16 to ‘7FFB’ when an external clock (25MHz and 50MHz) inputs to the CKXTAL2 pin.
然后再把register31配置成0就完成配置了。
