Elasticsearch搜索原理
https://www.cs.usfca.edu/~galles/visualization/Algorithms.html
1、正排索引和倒排索引
- 正排索引
记录文档Id到文档内容、单词的关联关系
尚硅谷:1,3
docid |
content |
1 |
尚硅谷是最好的培训机构 |
2 |
php是世界上最好的语言 |
3 |
机构尚硅谷是如何诞生的 |
- 倒排索引
记录单词到文档id的关联关系,包含:
单词词典(Term DicTionary):记录所有文档的单词,一般比较大
倒排索引(Posting List):记录单词倒排列表的关联信息
例如:尚硅谷
1、Term Dictionary
尚硅谷
2、Posting List
DocId |
TF |
Position |
Offset |
1 |
1 |
0 |
<0,2> |
3 |
1 |
0 |
<0,2> |
DocId:文档id,文档的原始信息
TF:单词频率,记录该词再文档中出现的次数,用于后续相关性算分
Position:位置,记录Field分词后,单词所在的位置,从0开始
Offset:偏移量,记录单词在文档中开始和结束位置,用于高亮显示等
- 内存结构
https://www.cs.usfca.edu/~galles/visualization/Algorithms.html

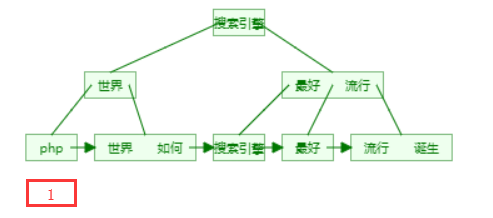

B+Tree
每个文档字段都有自己的倒排索引
2、分词
分词是指将文本转换成一系列单词(term or token)的过程,也可以叫做文本分析,在es里面称为Analysis
- 分词机制
Character Filter |
对原始文本进行处理 |
例:去除html标签、特殊字符等 |
Tokenizer |
将原始文本进行分词 |
例:培训机构–>培训,机构 |
Token Filters |
分词后的关键字进行加工 |
例:转小写、删除语气词、近义词和同义词等 |
- 分词API
- 直接指定测试(指定分词器)
Request:
POST _analyze
{
“analyzer”: “standard”,
“text”:”hello 1111″
}
Response:
{
“tokens”: [
{
“token”: “hello”, #分词
“start_offset”: 0, #开始偏移
“end_offset”: 5, #结束偏移
“type”: “<ALPHANUM>”, #单词类型
“position”: 0 #位置
},
{
“token”: “world”,
“start_offset”: 6,
“end_offset”: 11,
“type”: “<NUM>”,
“position”: 1
}
]
}
- 针对索引的字段进行分词测试(利用该字段的分词器)
Request:
POST atguigu/_analyze
{
“field”: “name”,
“text”:”hello world”
}
Response:
{
“tokens”: [
{
“token”: “hello”,
“start_offset”: 0,
“end_offset”: 5,
“type”: “<ALPHANUM>”,
“position”: 0
},
{
“token”: “world”,
“start_offset”: 6,
“end_offset”: 11,
“type”: “<ALPHANUM>”,
“position”: 1
}
]
}
- 自定义分词器
Request:
POST _analyze
{
“tokenizer”: “standard”,
“filter”: [“lowercase”],
“text”:”Hello WORLD”
}
Response:
{
“tokens”: [
{
“token”: “hello”,
“start_offset”: 0,
“end_offset”: 5,
“type”: “<ALPHANUM>”,
“position”: 0
},
{
“token”: “world”,
“start_offset”: 6,
“end_offset”: 11,
“type”: “<ALPHANUM>”,
“position”: 1
}
]
}
- Elasticsearch自带的分词器
分词器(Analyzer) |
特点 |
Standard(es默认) |
支持多语言,按词切分并做小写处理 |
Simple |
按照非字母切分,小写处理 |
Whitespace |
按照空格来切分 |
Stop |
去除语气助词,如the、an、的、这等 |
Keyword |
不分词 |
Pattern |
正则分词,默认\w+,即非字词符号做分割符 |
Language |
常见语言的分词器(30+) |
- 中文分词
分词器名称 |
介绍 |
特点 |
地址 |
IK |
实现中英文单词切分 |
自定义词库 |
https://github.com/medcl/elasticsearch-analysis-ik |
Jieba |
python流行分词系统,支持分词和词性标注 |
支持繁体、自定义、并行分词 |
http://github.com/sing1ee/elasticsearch-jieba-plugin |
Hanlp |
由一系列模型于算法组成的java工具包 |
普及自然语言处理在生产环境中的应用 |
https://github.com/hankcs/HanLP |
THULAC |
清华大学中文词法分析工具包 |
具有中文分词和词性标注功能 |
https://github.com/microbun/elasticsearch-thulac-plugin |
- Character Filters
在进行Tokenizer之前对原始文本进行处理,如增加、删除或替换字符等
HTML Strip |
去除html标签和转换html实体 |
Mapping |
字符串替换操作 |
Pattern Replace |
正则匹配替换 |
注意:进行处理后,会影响后续tokenizer解析的position和offset
Request:
POST _analyze
{
“tokenizer”: “keyword”,
“char_filter”: [“html_strip”],
“text”:”<div><h1>B<sup>+</sup>Trees</h1></div>”
}
Response:
{
“tokens”: [
{
“token”: “””
B+Trees
“””,
“start_offset”: 0,
“end_offset”: 38,
“type”: “word”,
“position”: 0
}
]
}
- Token Filter
对输出的单词(term)进行增加、删除、修改等操作
Lowercase |
将所有term转换为小写 |
stop |
删除stop words |
NGram |
和Edge NGram连词分割 |
Synonym |
添加近义词的term |
Request:
POST _analyze
{
“tokenizer”: “standard”,
“text”:”a Hello World”,
“filter”: [
“stop”,
“lowercase”,
{
“type”:”ngram”,
“min_gram”:3,
“max_gram”:4
}
]
}
Response:
{
“tokens”: [
{
“token”: “hel”,
“start_offset”: 2,
“end_offset”: 7,
“type”: “<ALPHANUM>”,
“position”: 1
},
{
“token”: “hell”,
“start_offset”: 2,
“end_offset”: 7,
“type”: “<ALPHANUM>”,
“position”: 1
},
{
“token”: “ell”,
“start_offset”: 2,
“end_offset”: 7,
“type”: “<ALPHANUM>”,
“position”: 1
},
{
“token”: “ello”,
“start_offset”: 2,
“end_offset”: 7,
“type”: “<ALPHANUM>”,
“position”: 1
},
{
“token”: “llo”,
“start_offset”: 2,
“end_offset”: 7,
“type”: “<ALPHANUM>”,
“position”: 1
},
{
“token”: “wor”,
“start_offset”: 8,
“end_offset”: 13,
“type”: “<ALPHANUM>”,
“position”: 2
},
{
“token”: “worl”,
“start_offset”: 8,
“end_offset”: 13,
“type”: “<ALPHANUM>”,
“position”: 2
},
{
“token”: “orl”,
“start_offset”: 8,
“end_offset”: 13,
“type”: “<ALPHANUM>”,
“position”: 2
},
{
“token”: “orld”,
“start_offset”: 8,
“end_offset”: 13,
“type”: “<ALPHANUM>”,
“position”: 2
},
{
“token”: “rld”,
“start_offset”: 8,
“end_offset”: 13,
“type”: “<ALPHANUM>”,
“position”: 2
}
]
}
- 自定义分词api
Request:
PUT my_analyzer
{
“settings”: {
“analysis”: {
“analyzer”: {
“my”:{
“tokenizer”:”punctuation”,
“type”:”custom”,
“char_filter”:[“emoticons”],
“filter”:[“lowercase”,”english_stop”]
}
},
“tokenizer”: {
“punctuation”:{
“type”:”pattern”,
“pattern”:”[.,!?]”
}
},
“char_filter”: {
“emoticons”:{
“type”:”mapping”,
“mappings”:[
“:)=>_happy_”,
“:(=>_sad_”
]
}
},
“filter”: {
“english_stop”:{
“type”:”stop”,
“stopwords”:”_english_”
}
}
}
}
}
测试:
POST my_analyzer/_analyze
{
“analyzer”: “my”,
“text”:”l’m a person,and you?”
}
{
“tokens”: [
{
“token”: “l’m a _happy_ person”,
“start_offset”: 0,
“end_offset”: 15,
“type”: “word”,
“position”: 0
},
{
“token”: “and you”,
“start_offset”: 16,
“end_offset”: 23,
“type”: “word”,
“position”: 1
}
]
}
- 分词使用场景
- 索引时分词:创建或更新文档时,会对相应得文档进行分词(指定字段分词)
PUT my_test
{
“mappings”:{
“doc”:{
“properties”:{
“title”:{
“type”:”text”,
“analyzer”:”ik_smart”
}
}
}
}
}
- 查询时分词:查询时会对查询语句进行分词
POST my_test/_search
{
“query”:{
“match”:{
“message”:{
“query”:”hello”,
“analyzer”:”standard”
}
}
}
}
PUT my_test
{
“mappings”:{
“doc”:{
“properties”:{
“title”:{
“type”:”text”,
“analyzer”:”whitespace”,
“search_analyzer”:”standard” #查询指定分词器
}
}
}
}
}
一般不需要特别指定查询时分词器,直接使用索引时分词器即可,否则会出现无法匹配得情况,如果不需要分词将字段type设置成keyword,可以节省空间
3、IK分词器
- IK分词器的安装
- 下载地址:https://github.com/medcl/elasticsearch-analysis-ik/releases
下载与安装的ES相对应的版本
2)解压,将解压后的elasticsearch文件夹拷贝到elasticsearch-5.6.8\plugins下,并重命名文件夹为analysis-ik
3)重新启动ElasticSearch,即可加载IK分词器
- IK分词器测试
IK提供了两个分词算法ik_smart 和 ik_max_word,其中 ik_smart 为最少切分,ik_max_word为最细粒度划分
- 最小切分:
在浏览器地址栏输入地址
http://127.0.0.1:9200/_analyze?analyzer=ik_smart&pretty=true&text=我是程序员
输出的结果为:
{
“tokens” : [
{
“token” : “我”,
“start_offset” : 0,
“end_offset” : 1,
“type” : “CN_CHAR”,
“position” : 0
},
{
“token” : “是”,
“start_offset” : 1,
“end_offset” : 2,
“type” : “CN_CHAR”,
“position” : 1
},
{
“token” : “程序员”,
“start_offset” : 2,
“end_offset” : 5,
“type” : “CN_WORD”,
“position” : 2
}
]
}
2)最细切分:在浏览器地址栏输入地址
http://127.0.0.1:9200/_analyze?analyzer=ik_max_word&pretty=true&text=我是程序员
输出的结果为:
{
“tokens” : [
{
“token” : “我”,
“start_offset” : 0,
“end_offset” : 1,
“type” : “CN_CHAR”,
“position” : 0
},
{
“token” : “是”,
“start_offset” : 1,
“end_offset” : 2,
“type” : “CN_CHAR”,
“position” : 1
},
{
“token” : “程序员”,
“start_offset” : 2,
“end_offset” : 5,
“type” : “CN_WORD”,
“position” : 2
},
{
“token” : “程序”,
“start_offset” : 2,
“end_offset” : 4,
“type” : “CN_WORD”,
“position” : 3
},
{
“token” : “员”,
“start_offset” : 4,
“end_offset” : 5,
“type” : “CN_CHAR”,
“position” : 4
}
]
}
