目 录
9 成员感想 14 1
1 项目背景以及意义 1
2 项目创新点 2
3 项目的设计 3
一：数据爬取部分 3
- 利用urllib获取网页数据 3
- 利用bs4的beautifulSoup进行数据的解析和获取想要的数据 4
- 利用re正则表达式结合bs4得出想要的数 4
二：数据可视化部分 5
一：数据爬取部分 6
二：数据可视化部分 6
9 成员感想 14
二：数据可视化部分
把所有数据从数据库中取出来
利用了matplotlib.pyplot
matplotlib.pyplot是一个有命令风格的函数集合，它看起来和MATLAB很相似。每一个pyplot函数都使一副图像做出些许改变，例如创建一幅图，在图中创建一个绘图区域，在绘图区域中添加一条线等等。在matplotlib.pyplot中，各种状态通过函数调用保存起来，以便于可以随时跟踪像当前图像和绘图区域这样的东西。绘图函数是直接作用于当前axes（matplotlib中的专有名词，本文转载自http://www.biyezuopin.vip/onews.asp?id=14765图形中组成部分，不是数学中的坐标系。）
随后输出下面这些图片：

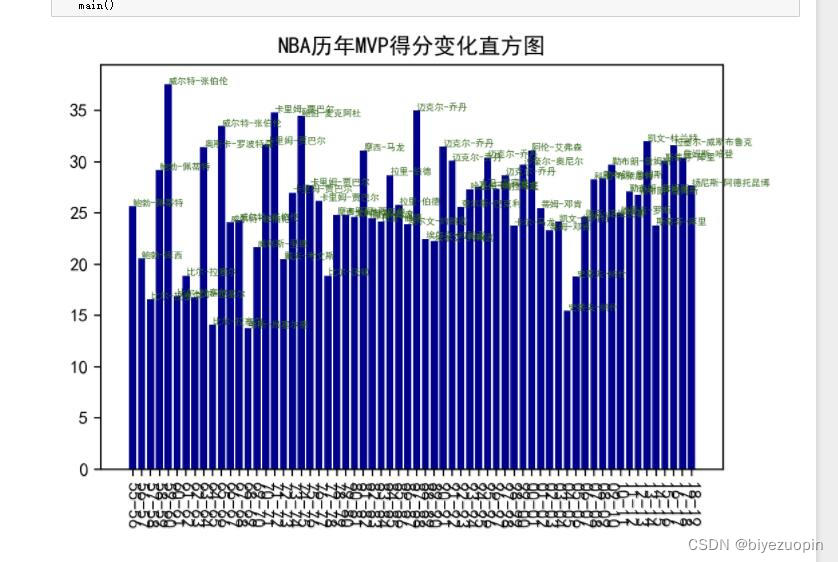

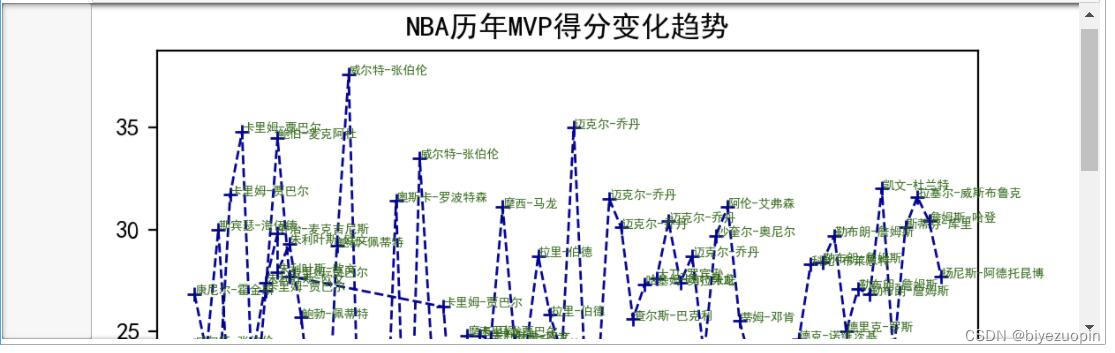

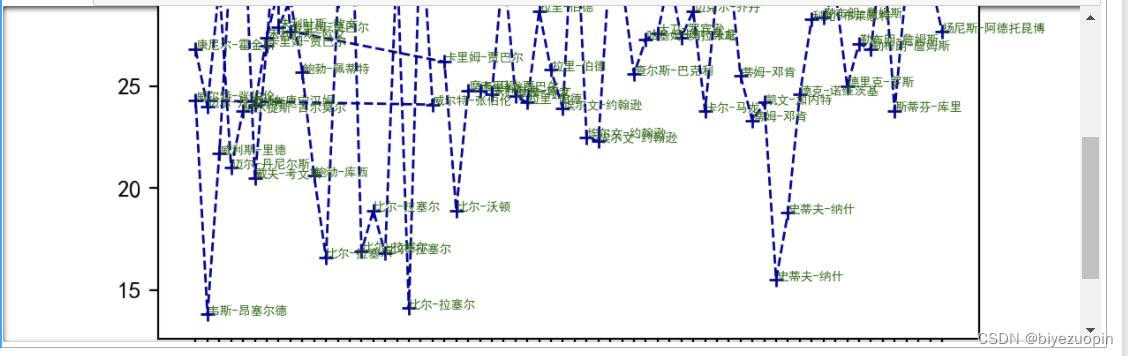

NBA历年MVP得分变化趋势
NBA历年MVP得分条形图

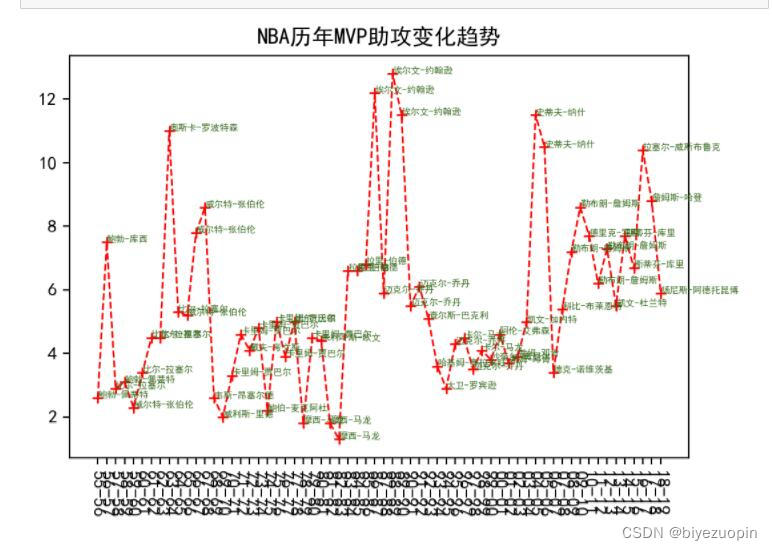

NBA历年MVP助攻变化趋势

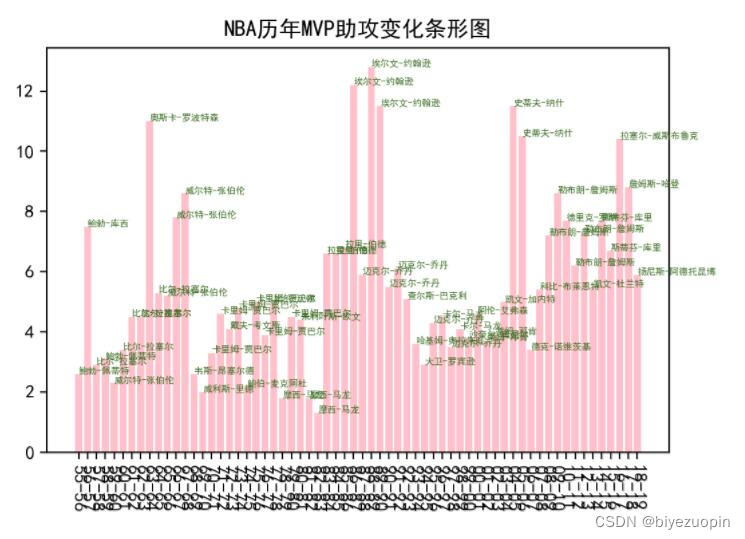

NBA历年MVP助攻条形图

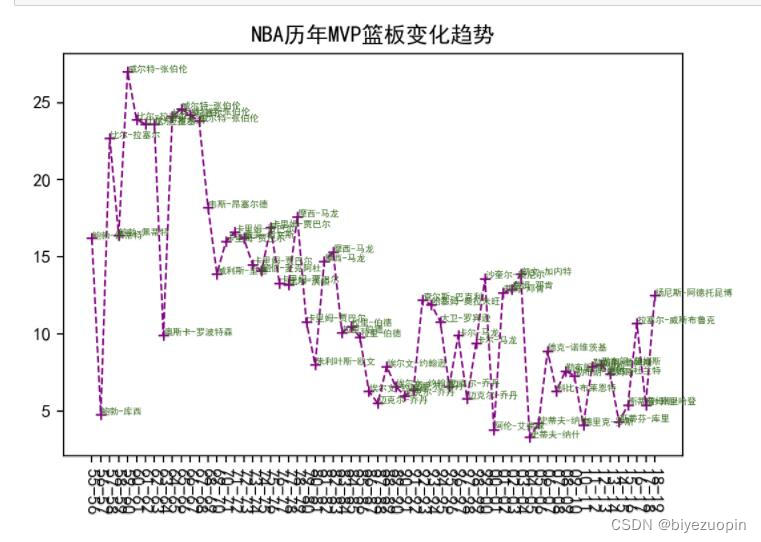

NBA历年MVP篮板变化趋势

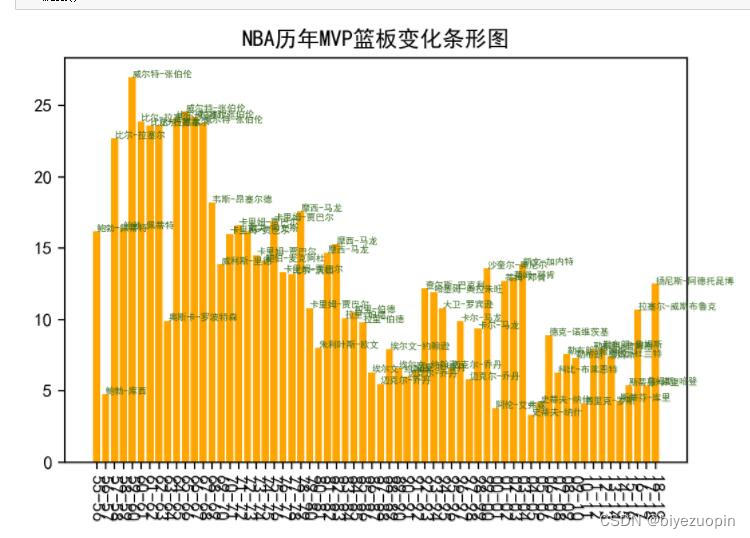

NBA历年MVP篮板条形图
4 如何实现
一：数据爬取部分
数据的爬取分为如下几个步骤
利用urllib获取网页数据
利用bs4的beautifulSoup进行数据的解析和获取想要的数据
利用re正则表达式结合bs4得出想要的数据
利用sqlite3存储数据
二：数据可视化部分
把所有数据从数据库中取出来
利用了matplotlib.pyplot进行可视化
{
"cells": [
{
"cell_type": "markdown",
"metadata": {},
"source": [
"# 数据爬取部分\n",
"## 数据的爬取分为如下几个步骤\n",
"* 利用urllib获取网页数据\n",
"* 利用bs4的beautifulSoup进行数据的解析和获取想要的数据\n",
"* 利用re正则表达式结合bs4得出想要的数据\n",
"* 利用sqlite3存储数据"
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {},
"outputs": [],
"source": [
"# -*- coding: utf-8 -*-# \n",
"#-------------------------------------------------------------------------------\n",
"# Name: NBA\n",
"# Description: \n",
"# Author: zhouzikang\n",
"# Date: 2020-01-09\n",
"#-------------------------------------------------------------------------------\n",
"import sqlite3 #进行SQLit数据库的操作\n",
"from bs4 import BeautifulSoup #网页解析，获取数据\n",
"import urllib.request, urllib.error #指定URL 获取网页数据\n",
"import re #正则表达式-进行文字匹配\n",
"\n",
"def main():\n",
" baseurl = \"http://www.stat-nba.com/award/item0.html\"\n",
" #1.爬取网页,解析数据\n",
" datalist = getData(baseurl)\n",
" #2.保存数据\n",
" dbpath = \"mvp.db\"\n",
" saveData2DB(datalist,dbpath)\n",
"\n",
"#正则表达式\n",
"findPlayer = re.compile(r'[\\s\\S]+/player/[\\s\\S]+')\n",
"\n",
"findYear = re.compile(r'current season change_color col0 row[\\s\\S]+')\n",
"findScore = re.compile(r'normal pts change_color col23 row[\\s\\S]+')\n",
"findAssist = re.compile(r'normal ast change_color col18 row[\\s\\S]+')\n",
"findRebound = re.compile(r'normal trb change_color col15 row[\\s\\S]+')\n",
"\n",
"# 获取路径\n",
"def askURL(url):\n",
" head = { # 模拟浏览器头部信息，向豆瓣服务器发送消息\n",
" \"User-Agent\": \"Mozilla / 5.0(WindowsNT 10.0;WOW64) AppleWebKit / 537.36(KHTML, likeGecko) Chrome / 70.0.3538 .67Safari / 537.36\"\n",
" }\n",
" # 用户代理表示告诉豆瓣服务器，我们是什么类型的机器\n",
" request = urllib.request.Request(url,headers=head)\n",
" html = \"\"\n",
" try:\n",
" response = urllib.request.urlopen(request)\n",
" html = response.read().decode(\"utf-8\")\n",
" #print(html)\n",
" except urllib.error.URLError as e:\n",
" if hasattr(e,\"code\"):\n",
" print(e.code)\n",
" if hasattr(e,\"reason\"):\n",
" print(e.reason)\n",
" return html\n",
"\n",
"\n",
"#获取数据\n",
"def getData(baseurl):\n",
" datalist = []\n",
" players = []\n",
" years = []\n",
" scores = []\n",
" assists = []\n",
" rebounds = []\n",
" html = askURL(baseurl)\n",
" #逐一解析\n",
" soup = BeautifulSoup(html, \"html.parser\")\n",
"\n",
" # 爬取MVP姓名\n",
" for item in soup.find_all('a',href=findPlayer):\n",
" item = str(item)\n",
" item = re.sub('</a>',\" \", item)\n",
" item = re.sub('<a[\\s\\S]+>', \" \", item)\n",
" players.append(item.strip())\n",
"\n",
" # 爬取MVP年份\n",
" for item in soup.find_all('td', class_=findYear):\n",
" item = str(item)\n",
" item = re.sub('</td>', \" \", item)\n",
" item = re.sub('<td[\\s\\S]+>', \" \", item)\n",
" years.append(item.strip())\n",
"\n",
" # 爬取MVP获得年份的得分\n",
" for item in soup.find_all('td', class_=findScore):\n",
" item = str(item)\n",
" item = re.sub('</td>', \" \", item)\n",
" item = re.sub('<td[\\s\\S]+>', \" \", item)\n",
" scores.append(item.strip())\n",
"\n",
" # 爬取MVP获得年份的助攻\n",
" for item in soup.find_all('td', class_=findAssist):\n",
" item = str(item)\n",
" item = re.sub('</td>', \" \", item)\n",
" item = re.sub('<td[\\s\\S]+>', \" \", item)\n",
" assists.append(item.strip())\n",
"\n",
" # 爬取MVP获得年份的篮板\n",
" for item in soup.find_all('td', class_=findRebound):\n",
" item = str(item)\n",
" item = re.sub('</td>', \" \", item)\n",
" item = re.sub('<td[\\s\\S]+>', \" \", item)\n",
" rebounds.append(item.strip())\n",
" #print(datalist)\n",
" #把爬取的数据保存到列表中\n",
" for i in range(len(players)):\n",
" data = []\n",
" data.append(years[i])\n",
" data.append(players[i])\n",
" data.append(scores[i])\n",
" data.append(assists[i])\n",
" data.append(rebounds[i])\n",
" datalist.append(data)\n",
" return datalist\n",
"\n",
"def saveData2DB(datalist,dbpath):\n",
" init_db(dbpath)\n",
" conn = sqlite3.connect(dbpath)\n",
" cur = conn.cursor()\n",
" for data in datalist:\n",
" for index in range(len(data)):\n",
" if index >=2:\n",
" continue\n",
" data[index] = '\"' + str(data[index]) + '\"'\n",
" sql = '''\n",
" insert into nba (\n",
" year,name,score,assist,rebound)\n",
" values(%s)'''%\",\".join(data)\n",
"\n",
" cur.execute(sql)\n",
" conn.commit()\n",
" cur.close()\n",
" conn.close()\n",
"\n",
"\n",
"def init_db(dbpath):\n",
" sql = '''\n",
" create table nba(\n",
" year varchar ,\n",
" name varchar ,\n",
" score numeric ,\n",
" assist numeric ,\n",
" rebound numeric \n",
" )\n",
" '''\n",
" conn = sqlite3.connect(dbpath)\n",
" cursor = conn.cursor()\n",
" cursor.execute(sql)\n",
" conn.commit()\n",
" conn.close()\n",
"\n",
"\n",
"if __name__ == \"__main__\":\n",
" #调用参数\n",
" main()"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"# 数据可视化部分"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## 把所有数据从数据库中取出来"
]
