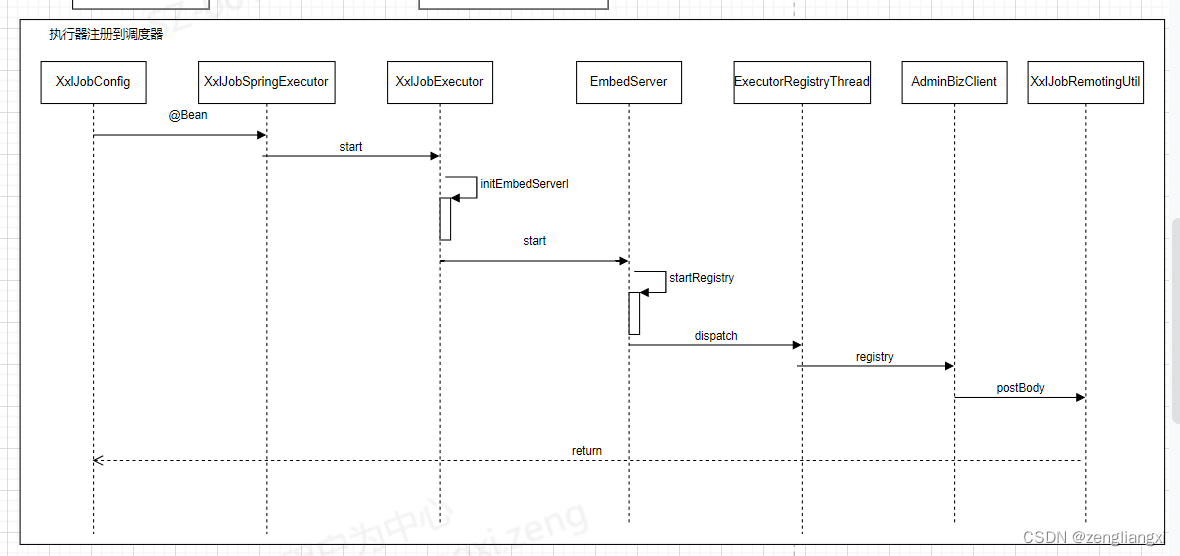

一.执行器注册调度器时序图
二.部分代码片段
1.springboot扫描xxljob配置类初始化XxlJobSpringExecutor
@Configuration
public class XxlJobConfig {
private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);
@Value("${xxl.job.admin.addresses}")
private String adminAddresses;
@Value("${xxl.job.accessToken}")
private String accessToken;
@Value("${xxl.job.executor.appname}")
private String appname;
@Value("${xxl.job.executor.address}")
private String address;
@Value("${xxl.job.executor.ip}")
private String ip;
@Value("${xxl.job.executor.port}")
private int port;
@Value("${xxl.job.executor.logpath}")
private String logPath;
@Value("${xxl.job.executor.logretentiondays}")
private int logRetentionDays;
@Bean
public XxlJobSpringExecutor xxlJobExecutor() {
logger.info(">>>>>>>>>>> xxl-job config init.");
XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
xxlJobSpringExecutor.setAppname(appname);
xxlJobSpringExecutor.setAddress(address);
xxlJobSpringExecutor.setIp(ip);
xxlJobSpringExecutor.setPort(port);
xxlJobSpringExecutor.setAccessToken(accessToken);
xxlJobSpringExecutor.setLogPath(logPath);
xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);
return xxlJobSpringExecutor;
}
}2. XxlJobSpringExecutor实现SmartInitializingSingleton接口执行afterSingletonsInstantiated方法
public class XxlJobSpringExecutor extends XxlJobExecutor implements ApplicationContextAware, SmartInitializingSingleton, DisposableBean {
// start
@Override
public void afterSingletonsInstantiated() {
// init JobHandler Repository
/*initJobHandlerRepository(applicationContext);*/
// init JobHandler Repository (for method)
initJobHandlerMethodRepository(applicationContext);
// refresh GlueFactory
GlueFactory.refreshInstance(1);
// super start
try {
super.start();
} catch (Exception e) {
throw new RuntimeException(e);
}
}
}3.EmbedServer内置服务类，启动netty服务，注册到调度器
public class EmbedServer {
private static final Logger logger = LoggerFactory.getLogger(EmbedServer.class);
private ExecutorBiz executorBiz;
private Thread thread;
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
try {
// start server
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel channel) throws Exception {
channel.pipeline()
.addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS)) // beat 3N, close if idle
.addLast(new HttpServerCodec())
.addLast(new HttpObjectAggregator(5 * 1024 * 1024)) // merge request & reponse to FULL
.addLast(new EmbedHttpServerHandler(executorBiz, accessToken, bizThreadPool));
}
})
.childOption(ChannelOption.SO_KEEPALIVE, true);
// bind
ChannelFuture future = bootstrap.bind(port).sync();
logger.info(">>>>>>>>>>> xxl-job remoting server start success, nettype = {}, port = {}", EmbedServer.class, port);
// start registry
startRegistry(appname, address);
// wait util stop
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
logger.info(">>>>>>>>>>> xxl-job remoting server stop.");
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job remoting server error.", e);
} finally {
// stop
try {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
}
});
thread.setDaemon(true); // daemon, service jvm, user thread leave >>> daemon leave >>> jvm leave
thread.start();
}4.ExecutorRegistryThread注册线程类,重启一个守护线程发起http请求，完成注册
public class ExecutorRegistryThread {
private Thread registryThread;
private volatile boolean toStop = false;
public void start(final String appname, final String address){
registryThread = new Thread(new Runnable() {
@Override
public void run() {
// registry
while (!toStop) {
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registry(registryParam);
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
// registry remove
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registryRemove(registryParam);
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, executor registry thread destroy.");
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, executor ExecutorRegistryThread");
registryThread.start();
}三.调度服务代码片段
1.JobApiController控制类，接收http请求
@Controller
@RequestMapping("/api")
public class JobApiController {
@Resource
private AdminBiz adminBiz;
/**
* api
*
* @param uri
* @param data
* @return
*/
@RequestMapping("/{uri}")
@ResponseBody
@PermissionLimit(limit=false)
public ReturnT<String> api(HttpServletRequest request, @PathVariable("uri") String uri, @RequestBody(required = false) String data) {
// services mapping
RegistryParam registryParam = GsonTool.fromJson(data, RegistryParam.class);
return adminBiz.registry(registryParam);
}
}2.JobRegistryHelper注册帮助类，将注册信息存入数据库，异步响应注册结果
*/
public class JobRegistryHelper {
public ReturnT<String> registry(RegistryParam registryParam) {
// valid
if (!StringUtils.hasText(registryParam.getRegistryGroup())
|| !StringUtils.hasText(registryParam.getRegistryKey())
|| !StringUtils.hasText(registryParam.getRegistryValue())) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "Illegal Argument.");
}
// async execute
registryOrRemoveThreadPool.execute(new Runnable() {
@Override
public void run() {
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registryUpdate(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
if (ret < 1) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registrySave(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
// fresh
freshGroupRegistryInfo(registryParam);
}
}
});
return ReturnT.SUCCESS;
}
}四.代码说明
a.ExecutorRegistryThread，内部启动一个线程registryThread
1.setDaemon(ture)为守护线程，程序关闭不受影响
2.toStop在程序关闭的时候，注销注册的执行器，以免后续调度器调用无效执行器
b.服务端，接收到http请求，将注册信息，存入到数据库，供后面，调度器调度
