<1> ODOO15中关于MIS Builder的报表研究

发布于:2022-12-22 ⋅ 阅读:(185) ⋅ 点赞:(0)

         MIS Build是ODOO模块中功能强大的报表生成器,但是使用有点复杂,为此我做了一些分析,希望对大家有所帮助,如有错误也请大家指出,欢迎沟通交流。

一.访问权限:

     1.用户必须拥有权限组 “Accounting / Advisers” ;

      2.标准的财务MIS Builder菜单在:

          Accounting > Report > MIS Builder

          Accounting > Report > Configuration > MIS Builder


二、模板和实例的区别?

1.报表是基于【Periods】特定期间(年度、月度)和数据项目【Data】(实际营业数据、预算等)的关键指标。

     1.1 在MIS Report templates 中定义关键指标;

     1.2 MIS Reports中定义期间【Periods】(年度、月度);

     1.3 实际营业数据来自ODOO标准的财务记录;

      1.4预算数据 定义在 “MIS Budgets”;

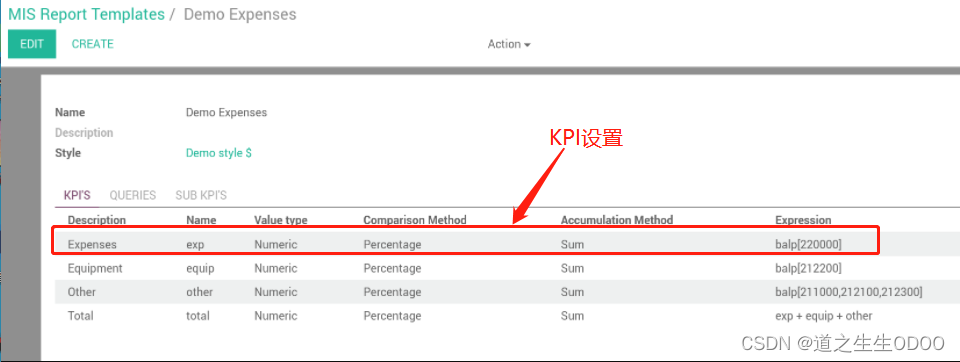

2.MIS Report Templates模板的定义

   2.1 路径:Accounting > Configuration > Financial Reports > MIS Report Templates

   2.2 操作:在模板界面下,定义KPI数据。

名称 费用演示
类型 演示类型
描述说明 简称 数值类型 比较方式 汇总方式 表达式Expression 预算表Budgetable
EXPENSES EXP Numeric 百分比 SUM balp(22000)
Equipment equip Numeric 百分比 SUM balp(212200)
Other other Numeric 百分比 SUM balp(211000,212100,212300)
Total total Numeric 百分比 SUM exp+equip+other

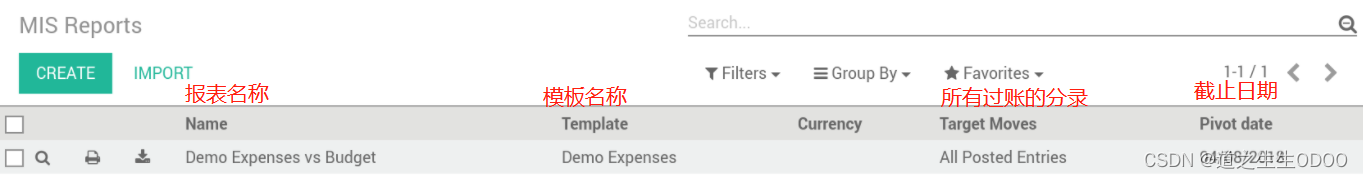

3.MIS Report

   3.1 路径:Accounting > Reporting > MIS Reports;你可以结合模型、期间构成报表。




三、建立一个报表

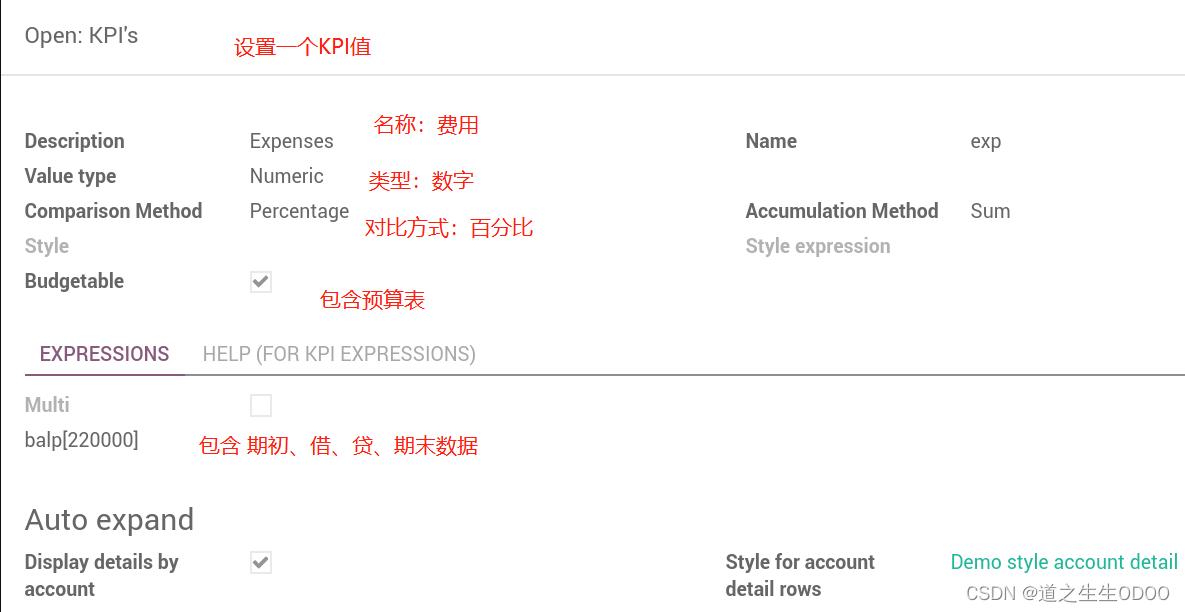

1.创建一个KPI模型

    1.1.指定一个名称;

    1.2 值的类型:数字Numeric, 百分比percentage or 字符string

    1.3 比较方式:百分比、差异、无

    1.4类型style:报表类型

    1.5 表达式类型:根据KPI的值返回一个类型。

     1.6 预算表(MIS_Budget module is installed):预算数据被提供。

     1.7 多个值Multi:如果设置为True,那么 一个KPI可设置多个值,例如 初始值,借方,贷方,期末,使用SUB-KPI。

     1.8 表达式Expression:计算KPI的值。

      1.9 账户信息Display details by account:如果设置为True,将显示账户明细。

       1.10 账户明细行的类型Style for account detail rows:指定账户明细的类型。

2. 增加KPI给到当前的报表

     KPI是构成模板主要内容:

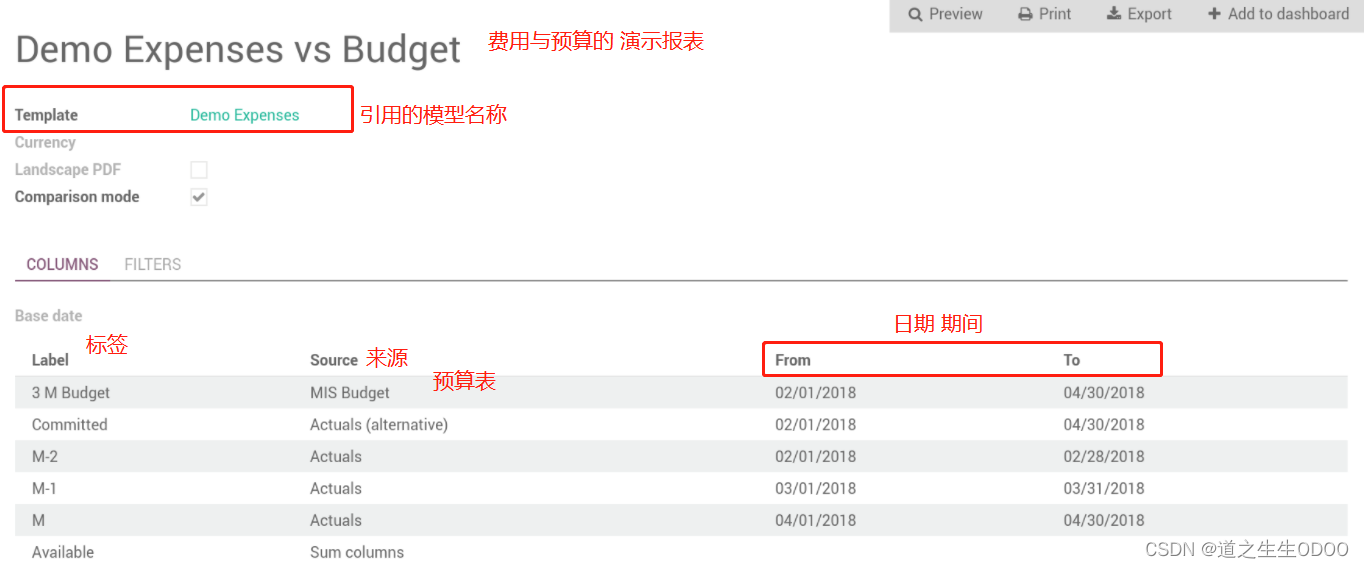

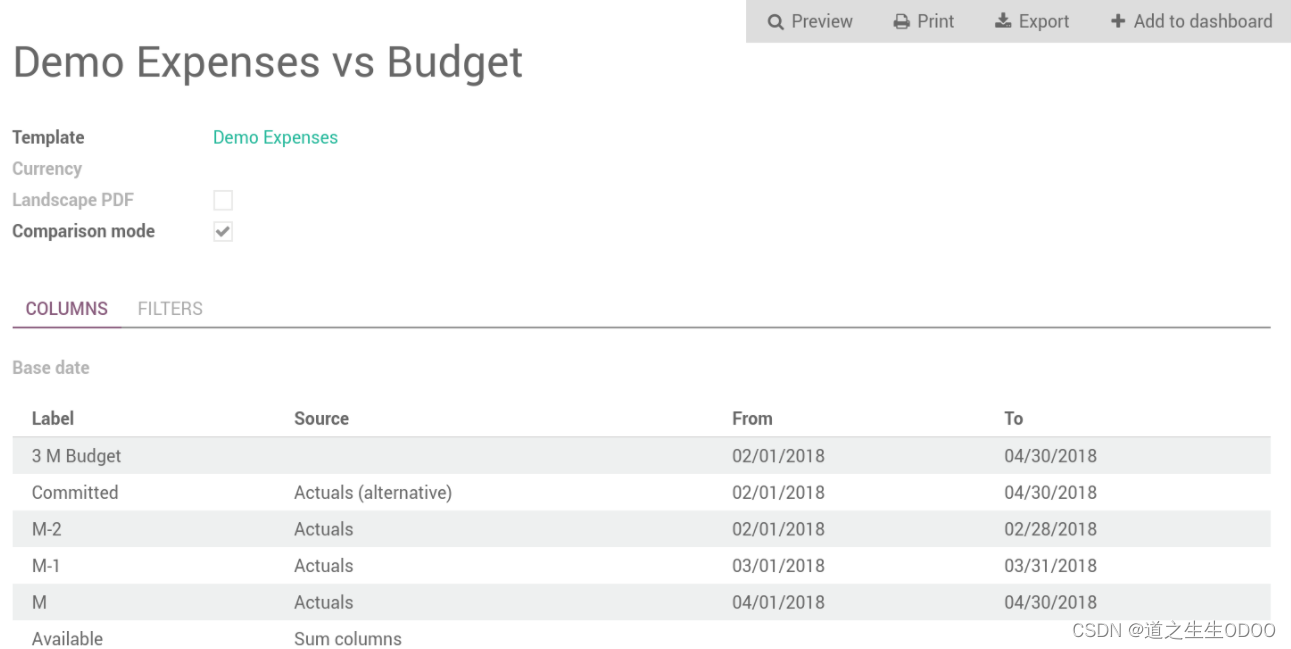

 3、使用模板创建一个报表

路径:Accounting > Reports > MIS Reporting > MIS Reports

3.1创建报表的步骤:

  1. Provide a Name:输入一个名称
  2. Select the Template:选择模型
  3. Select the currency:选择货币
  4. Comparison mode: set to true if you wish to be able to compare data from different series or dates.:比较模型,如果设置为True,那么你能够不同的系列或数据之间进行比较。
  5. Set your filters: Posted entries or not:选择是过账后的分录还是所有分录。
  6. Base date: important for relative date reports (today by default):基本日期,对于关联日期很重要,默认是当天。
  7. Add Columns to your report (if comparison is True):如果比较模型设置为True,那么可以增加列在报表里。

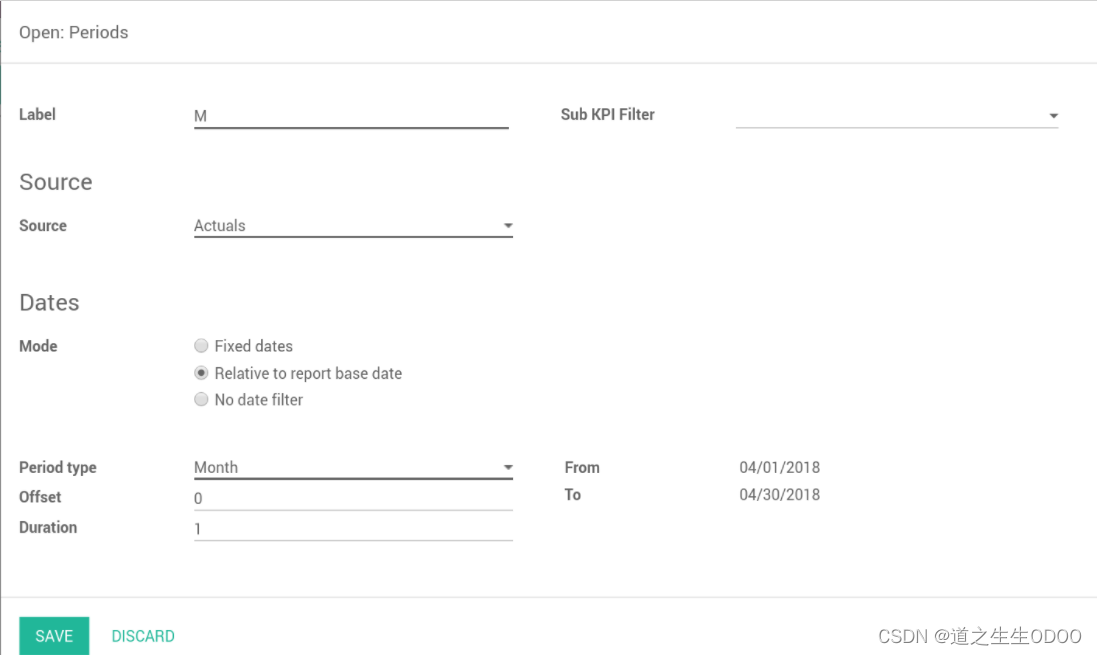

 3.2 为报表设置列参数:

  1. Set the label to appear on top of the column as title:设置一个标签作为列标题;
  2. Select sub-KPI filter if necessary:选择子KPI,如果需要的话;
  3. Select the source of the data:选择数据来源;
    • Actual: use data from accounting move lines.来自账户记录;
    • Actual (Alternative): Use a custom-made series (not accounting moves) with at least following fields: initial, debit, credit, ending, dates;另一种营业收入,使用客户系列,包括字段:期初,借,贷,期末,日期;
    • Sum Columns: Creates a new column sum of others existing in the report列合计;
    • Compare Columns: Creates a comparison (percentage) of 2 existing columns;在两个列的比较百分比;
    • MIS Budget (If budget installed): Use Budget Series;使用预算系列;
  4. Dates Mode: 数据模式
    • Fixed Dates: simply provide the fixed range;固定数据,固定范围;
    • Relative to report base date: allows to select the period compared with base report date.选择另一个日期段的和当前日期段比较。
      • Offset = -1 means previous month. 之前的月份
      • Duration = 2 means 2 months from the start of the period 期间开始之后的2个月
