迷宫_Q-Learning算法_边做边学深度强化学习：PyTorch程序设计实践（3）
0、相关系列文章
迷宫_随机实验_边做边学深度强化学习：PyTorch程序设计实践（1）
迷宫_Sarsa算法_边做边学深度强化学习：PyTorch程序设计实践（2）
1、导入所使用的包
# 导入所使用的包
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.cm import ScalarMappable
2、 定义迷宫
fig = plt.figure(figsize=(5, 5))
ax = plt.gca()
# 画出红色的墙壁
plt.plot([1, 1], [0, 1], color='red', linewidth=2)
plt.plot([1, 2], [2, 2], color='red', linewidth=2)
plt.plot([2, 2], [2, 1], color='red', linewidth=2)
plt.plot([2, 3], [1, 1], color='red', linewidth=2)
# 画出表示状态的文字S0-S8
plt.text(0.5, 2.5, 'S0', size=14, ha='center')
plt.text(1.5, 2.5, 'S1', size=14, ha='center')
plt.text(2.5, 2.5, 'S2', size=14, ha='center')
plt.text(0.5, 1.5, 'S3', size=14, ha='center')
plt.text(1.5, 1.5, 'S4', size=14, ha='center')
plt.text(2.5, 1.5, 'S5', size=14, ha='center')
plt.text(0.5, 0.5, 'S6', size=14, ha='center')
plt.text(1.5, 0.5, 'S7', size=14, ha='center')
plt.text(2.5, 0.5, 'S8', size=14, ha='center')
plt.text(0.5, 2.3, 'START', ha='center')
plt.text(2.5, 0.3, 'GOAL', ha='center')
# 设定画图的范围
ax.set_xlim(0, 3)
ax.set_ylim(0, 3)
ax.set_title("Q_Learning")
plt.tick_params(axis='both', which='both', bottom='off', top='off',
labelbottom='off', right='off', left='off', labelleft='off')
# 当前位置S0用绿色圆圈画出
line, = ax.plot([0.5], [2.5], marker="o", color='g', markersize=60)
# colorBar
# 增加jet格式颜色条
scales = np.linspace(0,1,7)
cmap = plt.get_cmap("jet")
norm = plt.Normalize(scales.min(), scales.max())
sm = ScalarMappable(norm=norm,cmap=cmap)
sm.set_array([])
cbar = fig.colorbar(sm,ax=ax)
cbar.ax.set_title("scale")
3、定义迷宫动作
# 设定参数θ的初始值theta_0,用于确定初始方案
# 行为状态0~7，列为用↑、→、↓、←表示的移动方向
theta_0 = np.array([[np.nan, 1, 1, np.nan], # s0
[np.nan, 1, np.nan, 1], # s1
[np.nan, np.nan, 1, 1], # s2
[1, 1, 1, np.nan], # s3
[np.nan, np.nan, 1, 1], # s4
[1, np.nan, np.nan, np.nan], # s5
[1, np.nan, np.nan, np.nan], # s6
[1, 1, np.nan, np.nan], # s7，s8是目标，无策略
])

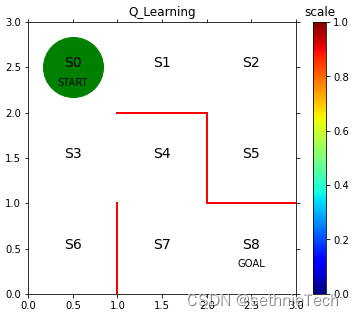

效果：
4、策略参数θ转换为行动策略π
1、（策略梯度法）对策略进行更新，选择能够更快到达目标的策略下所执行的动作，即借鉴成功案例
2、（价值迭代法）从目标反向计算在目标的前一步、前两步的位置（状态）等，一步步引导智能体的行为，即给目标以外的位置也附加价值
# 动作转策略
def simple_convert_into_pi_from_theta(theta):
[m,n] = theta.shape
pi = np.zeros((m,n))
for i in range(0,m):
pi[i,:] = theta[i,:] / np.nansum(theta[i,:])
pi = np.nan_to_num(pi)
return pi
5、定义动作和状态获取函数
# 获得动作
def get_action(s, Q, epsilon, pi_0):
direction = ["up", "right", "down", "left"]
# 确定行动
if np.random.rand() < epsilon:
# 以ε概率随机行动
next_direction = np.random.choice(direction, p=pi_0[s, :])
else:
# 采用Q的最大值对应的动作
next_direction = direction[np.nanargmax(Q[s, :])]
# 为动作加上索引
if next_direction == "up":
action = 0
elif next_direction == "right":
action = 1
elif next_direction == "down":
action = 2
elif next_direction == "left":
action = 3
return action
def get_s_next(s, a, Q, epsilon, pi_0):
direction = ["up", "right", "down", "left"]
next_direction = direction[a]
# 由动作确定下一个状态
if next_direction == "up":
s_next = s - 3 # 向上移动时状态的数字减少3
elif next_direction == "right":
s_next = s + 1 # 向右移动时状态的数字增加1
elif next_direction == "down":
s_next = s + 3 # 向下移动时状态的数字增加3
elif next_direction == "left":
s_next = s - 1 # 想做移动时状态的数字减少1
return s_next
6、定义Q-Learning算法
# 更新动作价值函数
def Q_learning(s, a, r, s_next, Q, eta, gamma):
if s_next == 8:
Q[s, a] = Q[s, a] + eta * (r - Q[s, a])
else:
Q[s, a] = Q[s, a] + eta * (r + gamma * np.nanmax(Q[s_next,: ]) - Q[s, a])
return Q
7、定义使智能体移动到目标的函数
# 迷宫内使智能体移动到目标，输出状态和动作序列
def goal_maze_ret_s_a_Q(Q, epsilon, eta, gamma, pi):
s = 0 # 开始地点
a = a_next = get_action(s, Q, epsilon, pi) # 初始动作
s_a_history = [[0,np.nan]] # 记录智能体移动轨迹的列表
while (1): # 循环，直至到达目标
a = a_next # 更新动作
s_a_history[-1][1] = a # 将动作放在现在的状态下
s_next = get_s_next(s, a, Q, epsilon, pi) # 有效的下一个状态
s_a_history.append([s_next, np.nan])
if s_next == 8: # 到达目标地点则终止
r = 1 # 到达目标，给予奖励
a_next = np.nan
else:
r = 0
a_next = get_action(s_next, Q, epsilon, pi)
# 更新价值函数
Q = Q_learning(s, a, r, s_next, Q, eta, gamma)
if s_next == 8:
break
else:
s = s_next
return [s_a_history, Q]
8、初始化
# 设置初始的动作价值函数
[a,b] = theta_0.shape # 将行列数放入a、b
Q = np.random.rand(a, b) * theta_0 * 0.1 # 将theta_0乘到各元素上，使得Q的墙壁方向的值为nan
# 求初始策略π
pi_0 = simple_convert_into_pi_from_theta(theta_0)
pi_0
9、智能体移动到目标
eta = 0.1
gamma = 0.9
epsilon = 0.5
v = np.nanmax(Q, axis=1)
is_continue = True
episode = 1
ypoints = []
V = []
V.append(np.nanmax(Q, axis=1))
while is_continue:
print("当前回合："+ str(episode))
epsilon = epsilon / 2
[s_a_history, Q] = goal_maze_ret_s_a_Q(Q, epsilon, eta, gamma, pi_0)
new_v = np.nanmax(Q, axis=1)
print(np.sum(np.abs(new_v - v)))
# 可视化
ypoints.append(np.sum(np.abs(new_v - v)))
v = new_v
V.append(v)
print("求解迷宫问题所需要的步数是：" + str(len(s_a_history) - 1))
print(np.sum(np.abs(new_v - v))) # 输出策略的变化的绝对值
episode = episode + 1
if episode > 100:
break
# 可视化策略变化的绝对值
plt.figure(figsize = (20,10))
plt.plot(ypoints)
plt.show()

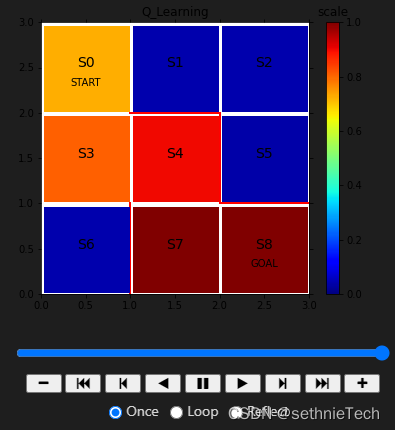

10、运行路径可视化
# 参考URL http://louistiao.me/posts/notebooks/embedding-matplotlib-animations-in-jupyter-notebooks/
from matplotlib import animation
from IPython.display import HTML
import matplotlib.cm as cm # color map
def init():
# 初始化背景图像
line.set_data([], [])
return (line,)
def animate(i):
# 各帧的绘图内容
# 各方格中根据状态价值的大小画颜色
line, = ax.plot([0.5], [2.5], marker="s",
color=cm.jet(V[i][0]), markersize=85) # S0
line, = ax.plot([1.5], [2.5], marker="s",
color=cm.jet(V[i][1]), markersize=85) # S1
line, = ax.plot([2.5], [2.5], marker="s",
color=cm.jet(V[i][2]), markersize=85) # S2
line, = ax.plot([0.5], [1.5], marker="s",
color=cm.jet(V[i][3]), markersize=85) # S3
line, = ax.plot([1.5], [1.5], marker="s",
color=cm.jet(V[i][4]), markersize=85) # S4
line, = ax.plot([2.5], [1.5], marker="s",
color=cm.jet(V[i][5]), markersize=85) # S5
line, = ax.plot([0.5], [0.5], marker="s",
color=cm.jet(V[i][6]), markersize=85) # S6
line, = ax.plot([1.5], [0.5], marker="s",
color=cm.jet(V[i][7]), markersize=85) # S7
line, = ax.plot([2.5], [0.5], marker="s",
color=cm.jet(1.0), markersize=85) # S8
return (line,)
# 用初始化函数和各帧的绘图函数来制作动画
anim = animation.FuncAnimation(
fig, animate, init_func=init, frames=len(V), interval=200, repeat=False)
anim.save('result/maze_QLearning.gif',writer='pillow')
HTML(anim.to_jshtml())

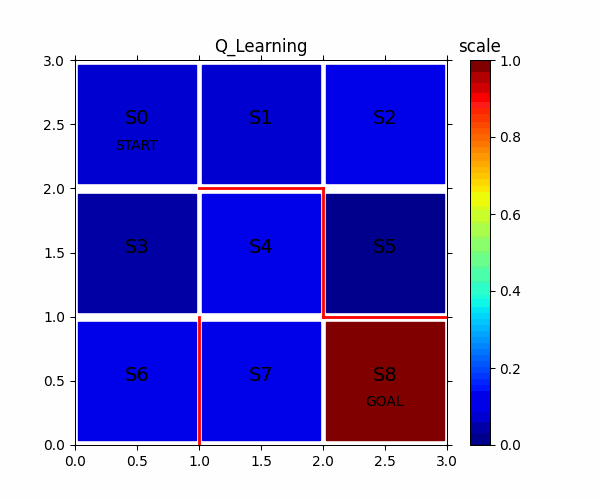

11、最终结果
