Spring整合Mybatis案例(XML格式)
案例分析
使用spring整合mybatis技术，完成账户模块(Account)的基础增删改查功能
账户模块对应字段
编号：id
账户名：name
余额：money
非spring环境
1.实体类与表
2.业务层接口与实现
3.数据层接口
4.Mybatis核心配置
5.Mybatis映射配置
6.客户端程序测试功能
spring环境
1.实体类与表
2.业务层接口与实现(提供数据层接口的注入操作)
3.数据层接口
4.Mybatis核心配置(交给spring控制，该文件省略)
5.Mybatis映射配置
6.客户端程序测试功能(使用spring方式获取bean)
7.Spring核心配置文件
8.Druid数据源的应用(可选)
9.Spring整合Mybatis
基础准备工作
环境准备

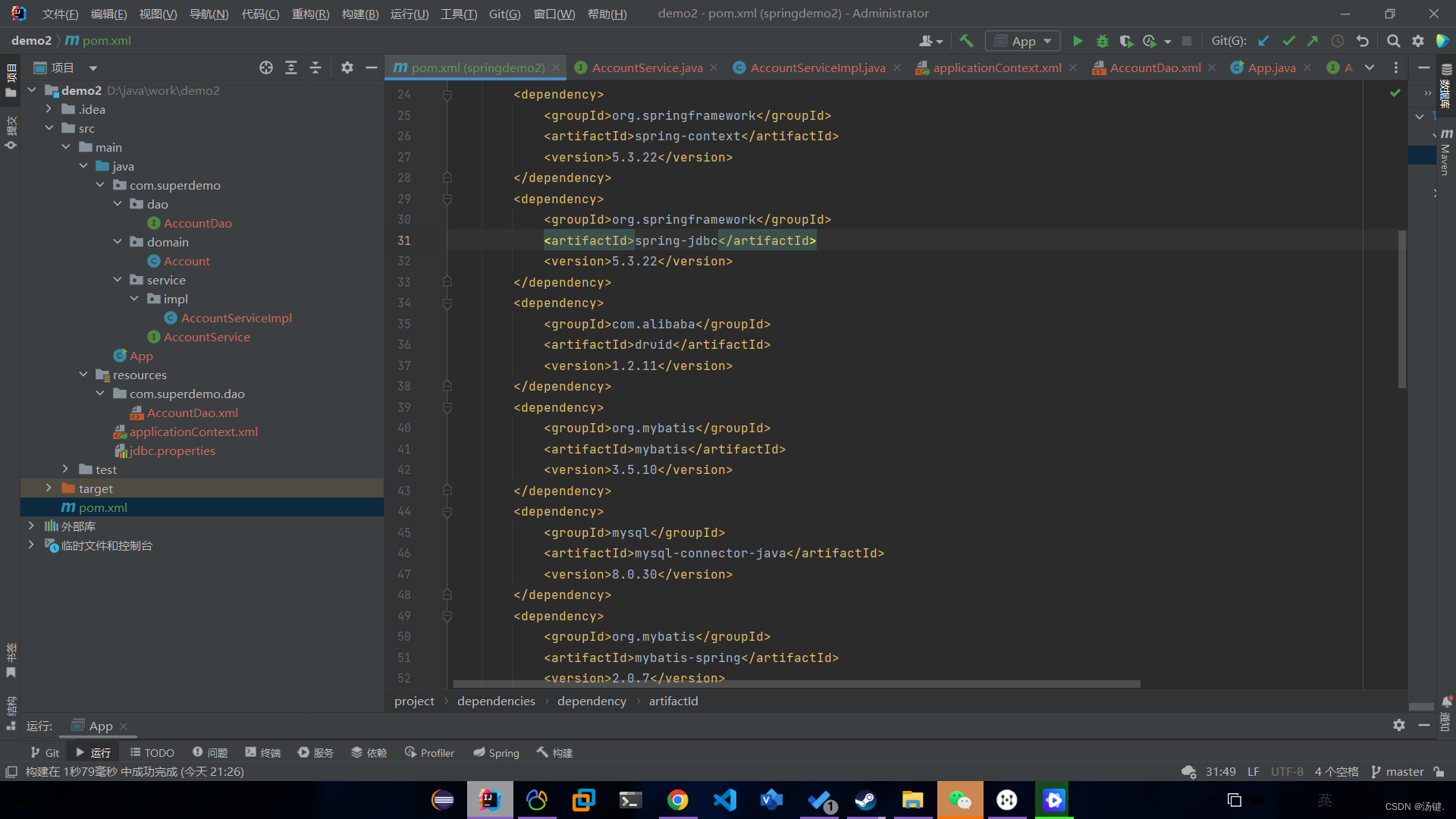

1.导入Spring坐标，Mybatis坐标，MySQL坐标，Druid坐标

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>springdemo2</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.3.22</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.3.22</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.11</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.10</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.30</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.7</version>
        </dependency>
    </dependencies>

    <build>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <!-- clean lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#clean_Lifecycle -->
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- default lifecycle, jar packaging: see https://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_jar_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-jar-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
                <!-- site lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#site_Lifecycle -->
                <plugin>
                    <artifactId>maven-site-plugin</artifactId>
                    <version>3.7.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-project-info-reports-plugin</artifactId>
                    <version>3.0.0</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

业务类与接口准备

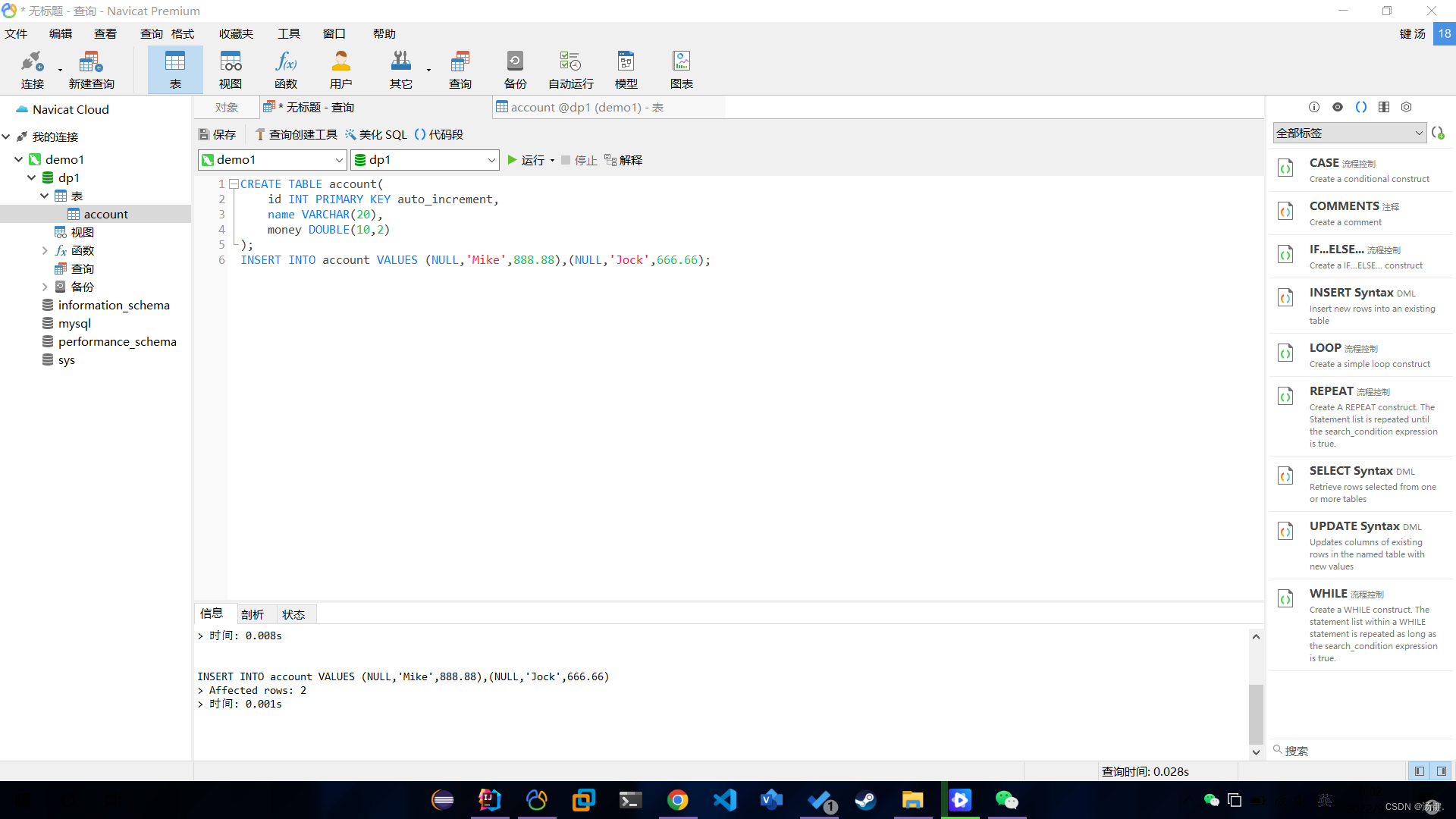

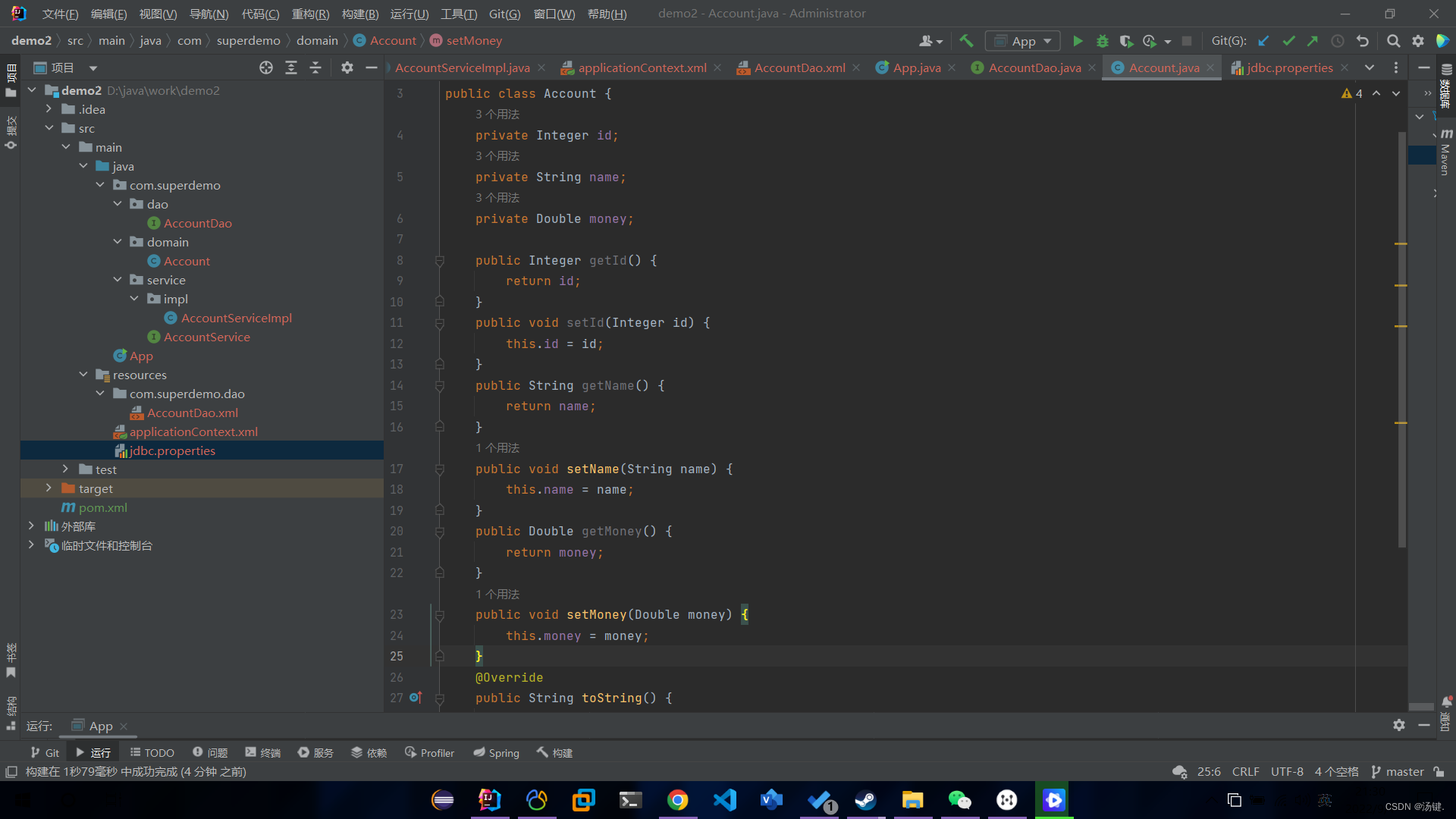

2.创建数据库表，并制作相应的实体类Account

CREATE TABLE account(
		id INT PRIMARY KEY auto_increment,
		name VARCHAR(20),
		money DOUBLE(10,2)
);
INSERT INTO account VALUES (NULL,'Mike',888.88),(NULL,'Jock',666.66);

package com.superdemo.domain;

public class Account {
    private Integer id;
    private String name;
    private Double money;

    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public Double getMoney() {
        return money;
    }
    public void setMoney(Double money) {
        this.money = money;
    }
    @Override
    public String toString() {
        return "Account{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

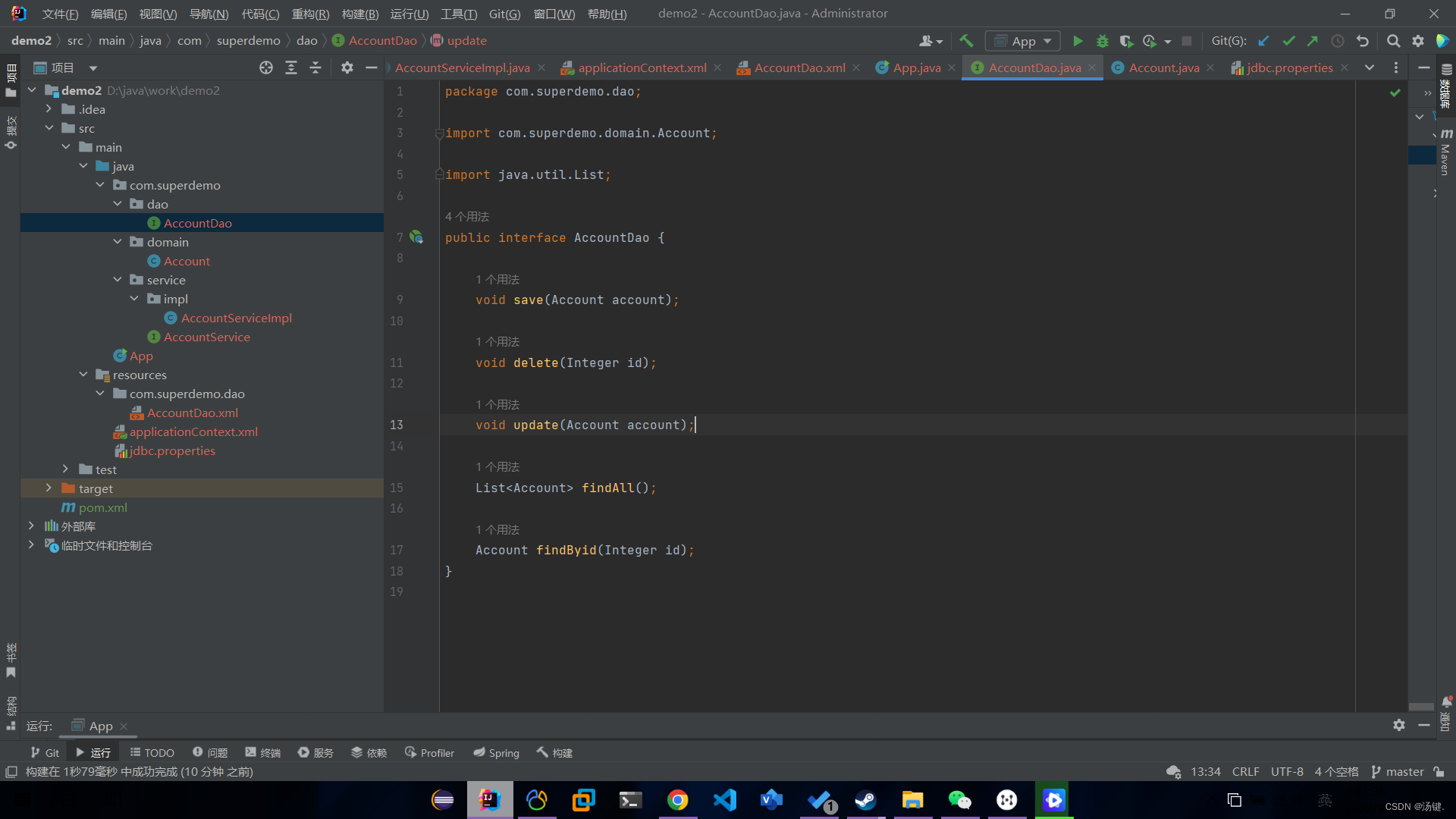

3.定义业务层接口与数据层接口

package com.superdemo.dao;

import com.superdemo.domain.Account;

import java.util.List;

public interface AccountDao {

    void save(Account account);

    void delete(Integer id);

    void update(Account account);

    List<Account> findAll();

    Account findByid(Integer id);
}

package com.superdemo.service;

import com.superdemo.domain.Account;

import java.util.List;

public interface AccountService {

    void save(Account account);

    void delete(Integer id);

    void update(Account account);

    List<Account> findAll();

    Account findByid(Integer id);
}

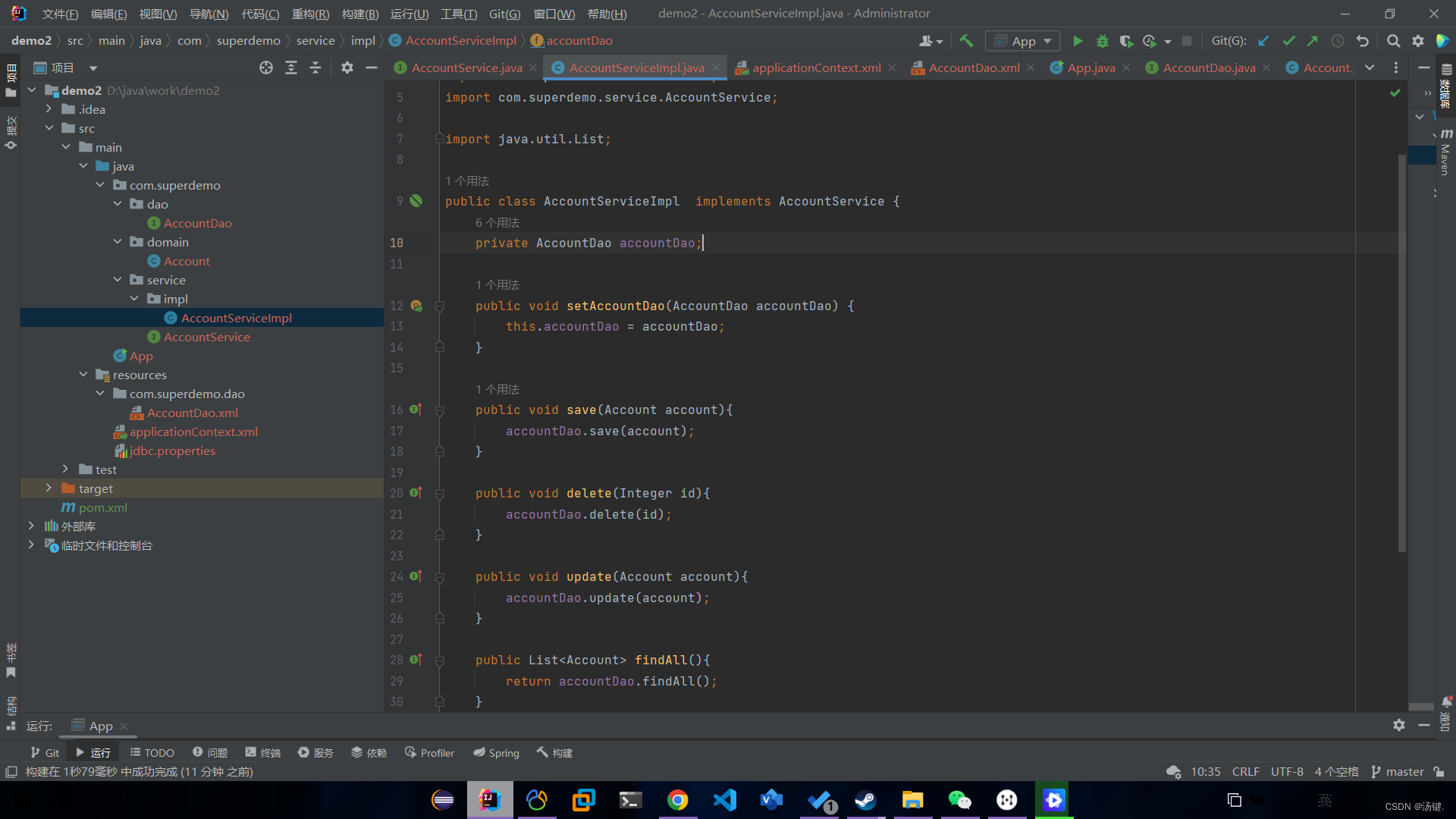

4.在业务层调用数据层接口，并实现业务方法的调用

package com.superdemo.service.impl;

import com.superdemo.dao.AccountDao;
import com.superdemo.domain.Account;
import com.superdemo.service.AccountService;

import java.util.List;

public class AccountServiceImpl  implements AccountService {
    private AccountDao accountDao;

    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }

    public void save(Account account){
        accountDao.save(account);
    }

    public void delete(Integer id){
        accountDao.delete(id);
    }

    public void update(Account account){
        accountDao.update(account);
    }

    public List<Account> findAll(){
        return accountDao.findAll();
    }

    public Account findByid(Integer id){
        return accountDao.findByid(id);
    }
}

基础配置文件

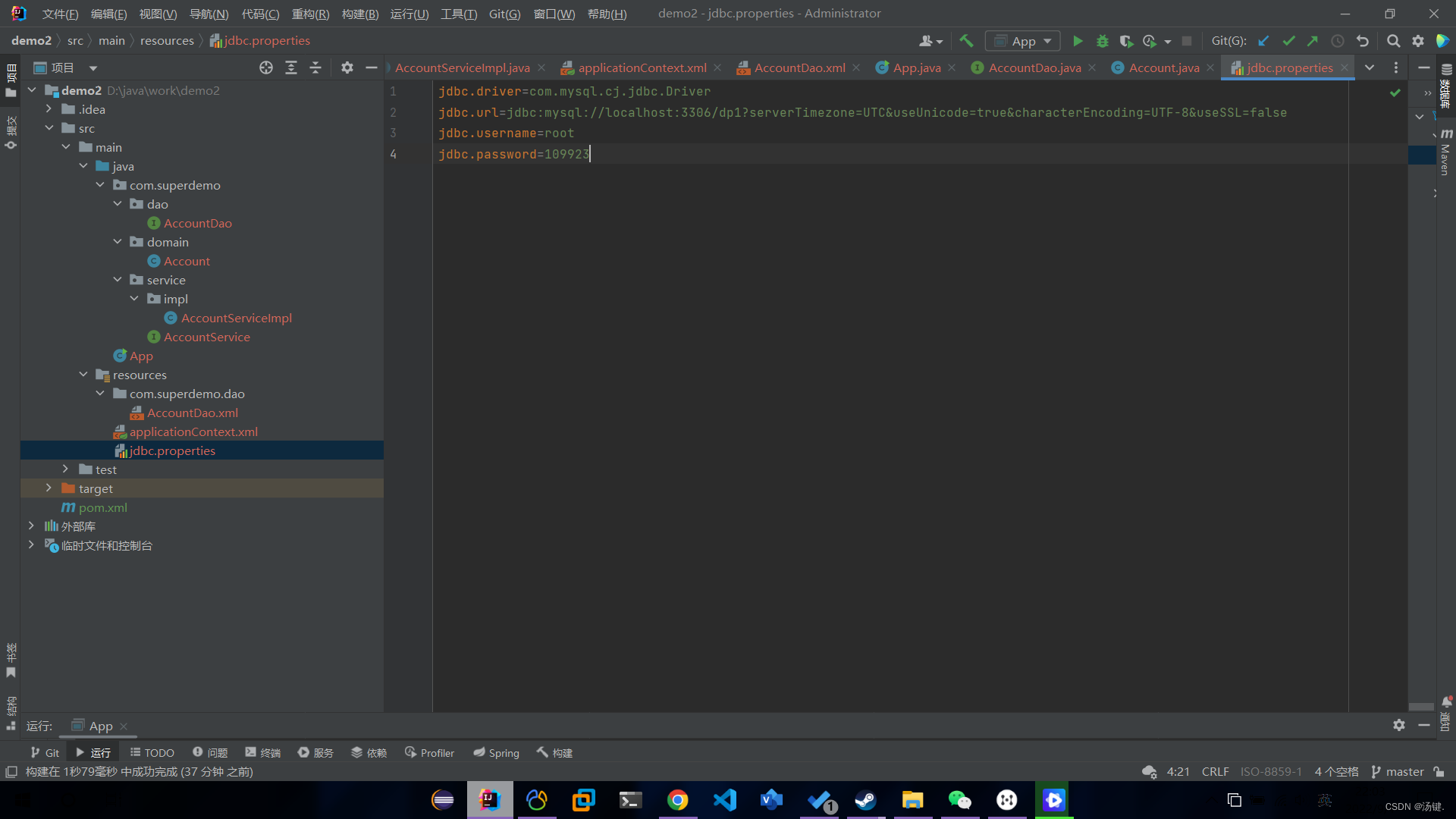

5.jdbc.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/dp1?serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.username=root
jdbc.password=109923

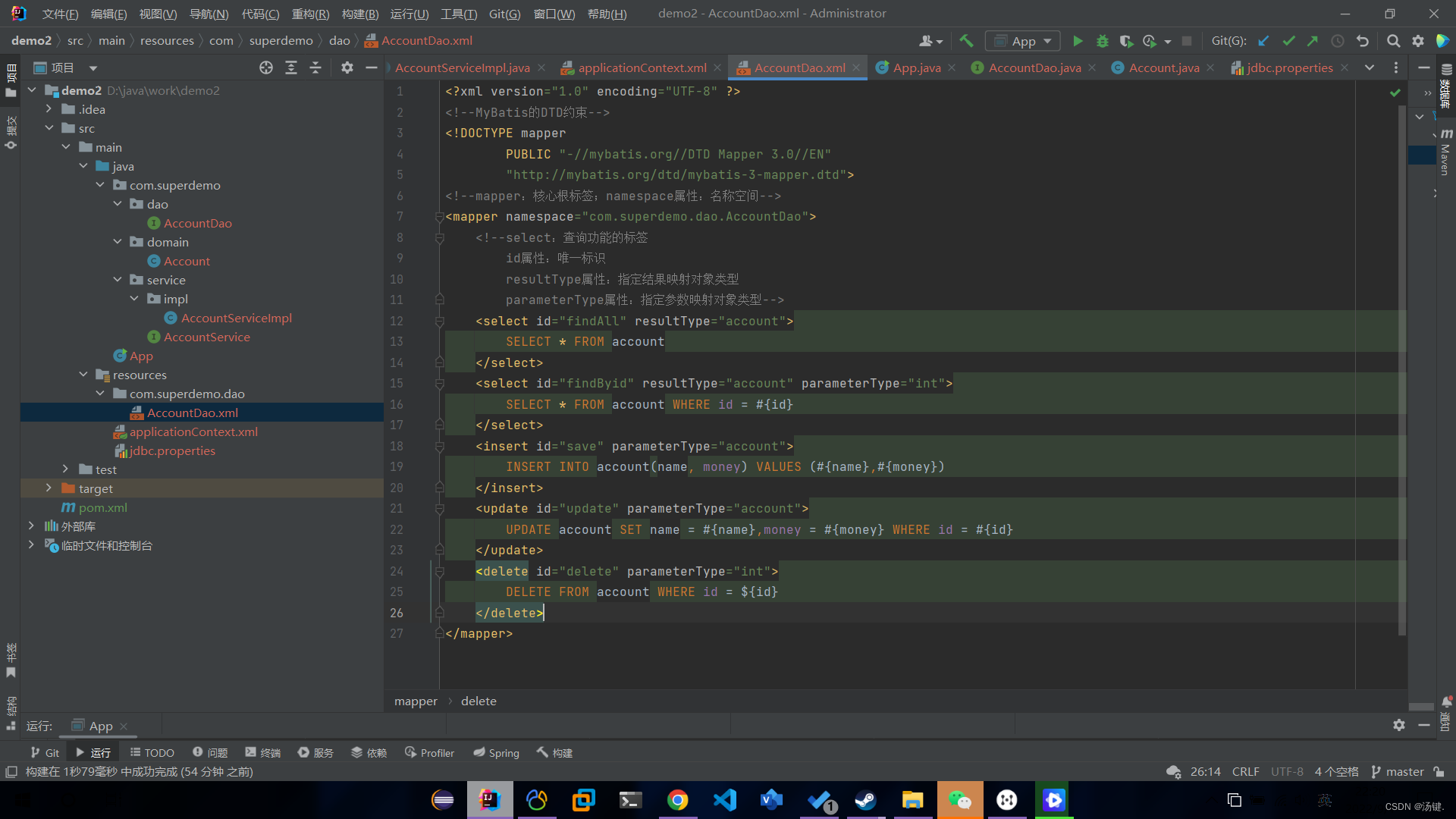

6.Mybatis映射配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--mapper：核心根标签；namespace属性：名称空间-->
<mapper namespace="com.superdemo.dao.AccountDao">
    <!--select：查询功能的标签
        id属性：唯一标识
        resultType属性：指定结果映射对象类型
        parameterType属性：指定参数映射对象类型-->
    <select id="findAll" resultType="account">
        SELECT * FROM account
    </select>
    <select id="findByid" resultType="account" parameterType="int">
        SELECT * FROM account WHERE id = #{id}
    </select>
    <insert id="save" parameterType="account">
        INSERT INTO account(name, money) VALUES (#{name},#{money})
    </insert>
    <update id="update" parameterType="account">
        UPDATE account SET name = #{name},money = #{money} WHERE id = #{id}
    </update>
    <delete id="delete" parameterType="int">
        DELETE FROM account WHERE id = ${id}
    </delete>
</mapper>

整合准备工作
1.spring配置文件，加上context命名空间，用于加载properties文件
2.开启加载properties文件
3.配置数据源Druid(备用)
4.定义service层bean，注入dao层bean
5.dao的bean无需定义，使用代理自动生成
整合工作
1.导入Spring整合Mybatis坐标
2.将mybatis配置成spring管理的bean(SqlSessionFactoryBean)
- 将原始配置文件中的所有项，转入到当前配置中
  - 数据源转换
  - 映射转换
3.通过spring加载mybatis的映射配置文件到spring环境中
4.设置类型别名

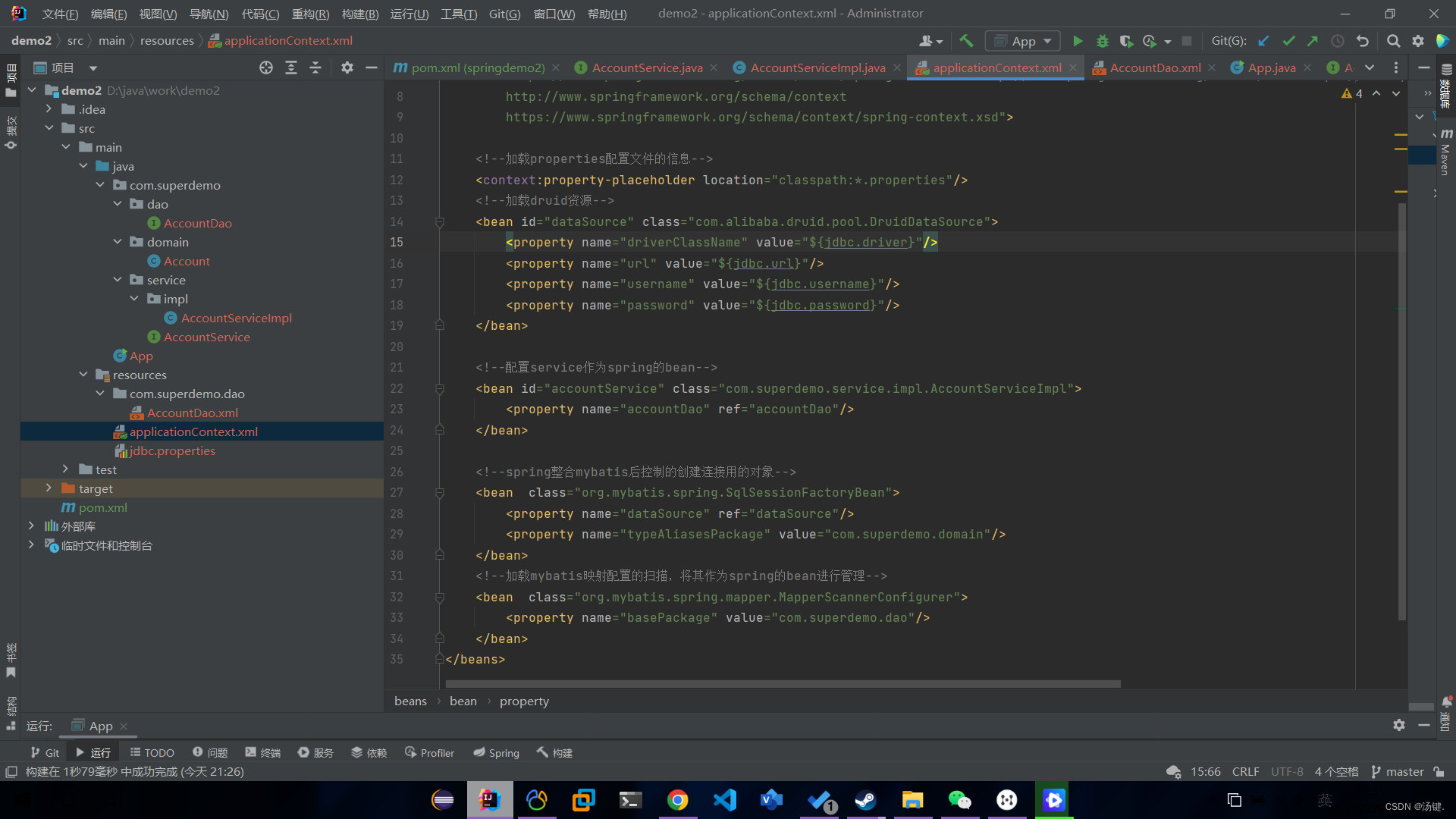

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/util https://www.springframework.org/schema/util/spring-util.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">

    <!--加载properties配置文件的信息-->
    <context:property-placeholder location="classpath:*.properties"/>
    <!--加载druid资源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!--配置service作为spring的bean-->
    <bean id="accountService" class="com.superdemo.service.impl.AccountServiceImpl">
        <property name="accountDao" ref="accountDao"/>
    </bean>

    <!--spring整合mybatis后控制的创建连接用的对象-->
    <bean  class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="typeAliasesPackage" value="com.superdemo.domain"/>
    </bean>
    <!--加载mybatis映射配置的扫描，将其作为spring的bean进行管理-->
    <bean  class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.superdemo.dao"/>
    </bean>
</beans>

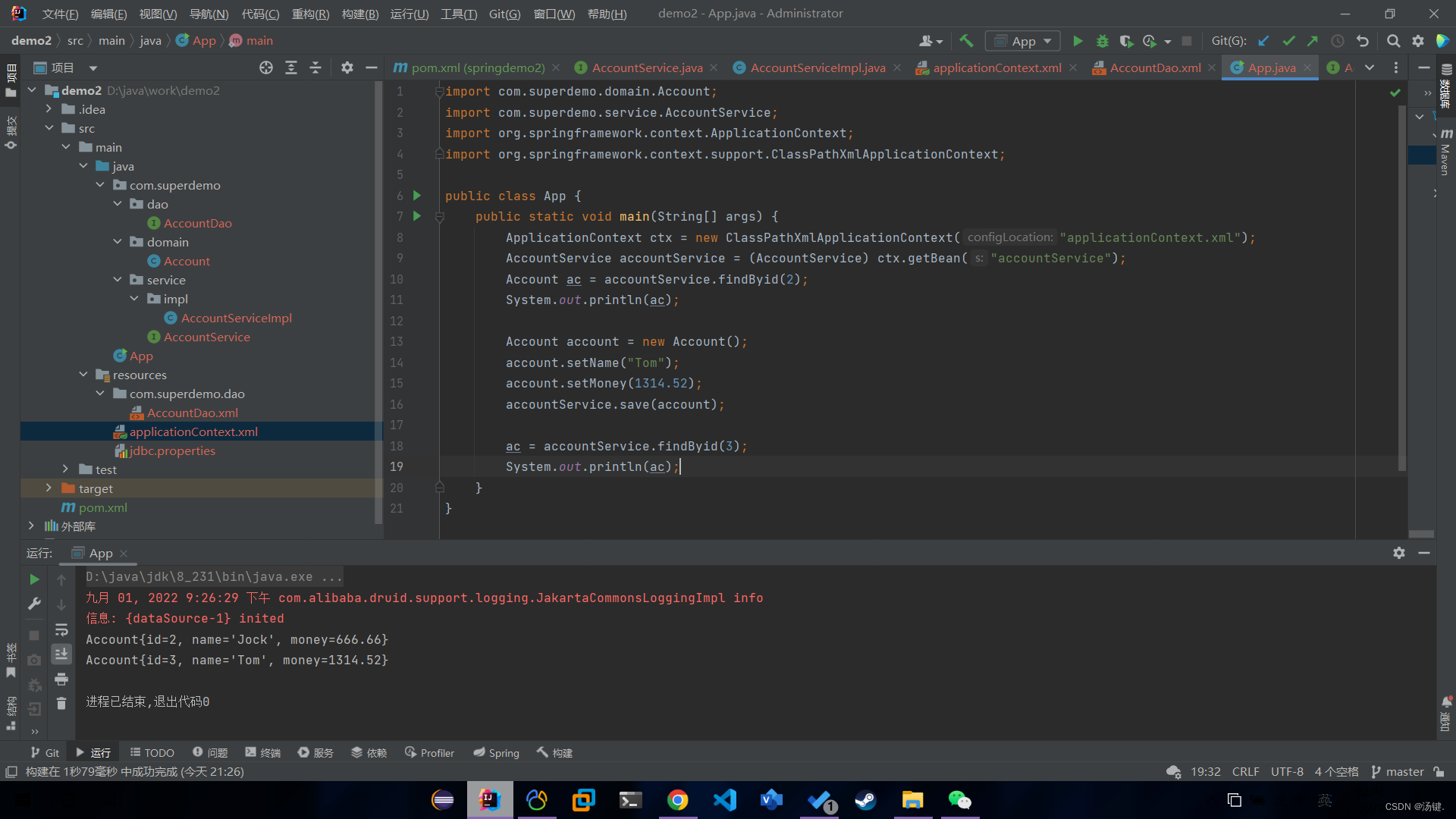

5.测试结果；使用spring环境加载业务层bean，执行操作

import com.superdemo.domain.Account;
import com.superdemo.service.AccountService;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class App {
    public static void main(String[] args) {
        ApplicationContext ctx = new ClassPathXmlApplicationContext("applicationContext.xml");
        AccountService accountService = (AccountService) ctx.getBean("accountService");
        Account ac = accountService.findByid(2);
        System.out.println(ac);

        Account account = new Account();
        account.setName("Tom");
        account.setMoney(1314.52);
        accountService.save(account);

        ac = accountService.findByid(3);
        System.out.println(ac);
    }
}

小节：
需要专用的spring整合mybatis的jar包
Mybatis核心配置文件消失
- 环境environment转换成数据源对象
- 映射Mapper扫描工作交由spring处理
- 类型别名交由spring处理
业务发起使用spring上下文对象获取对应的bean
