cesium中绘制点，线，面的绘制流程 附vue2.0单页面源码

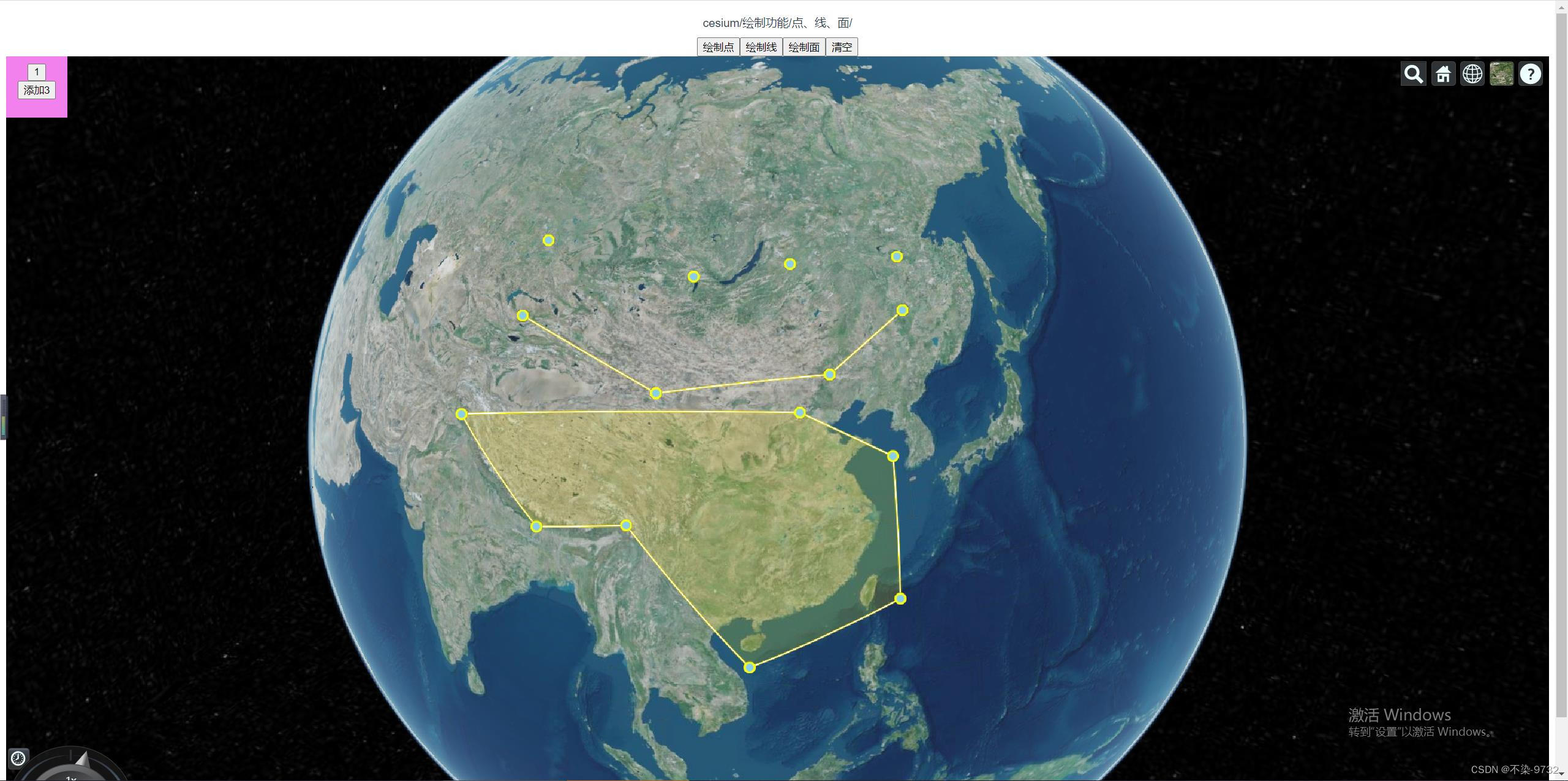

1.效果展示

2.准备工作

1.代码是vue2.0写法
2.调用绘制方法时，先要创建出来一个有一定权限的cesium球体 创建流程可参考上一篇 球体创建

代码中的 Cesium.Ion.defaultAccessToken 有快速创建球体的地址

3.绘制 点 线 面 效果的vue单页面源码

让按钮模块 position: absolute; 并且 z-index=999 即可悬浮在球体canvas上，这里未作样式上的优化

<template>
  <div class="home">
    <el-row type="flex" :gutter="20">
      <el-col :span="24">
        <div class="grid-content bg-purple">
          <el-breadcrumb separator="/">
            <el-breadcrumb-item>cesium</el-breadcrumb-item>
            <el-breadcrumb-item>绘制功能</el-breadcrumb-item>
            <el-breadcrumb-item>点、线、面</el-breadcrumb-item>
          </el-breadcrumb>
        </div>
      </el-col>
    </el-row>
    <el-row type="flex" :gutter="20">
      <el-col :span="24">
        <div class="grid-content bg-purple">
          <el-button type="primary" @click="draw('point')">绘制点</el-button>
          <el-button type="primary" @click="draw('polyline')">绘制线</el-button>
          <el-button type="primary" @click="draw('polygon')">绘制面</el-button>
          <el-button type="primary" @click="clearDrawEntities">清空</el-button>
        </div>
      </el-col>
    </el-row>
    <el-row type="flex" :gutter="20">
      <el-col :span="24">
        <div class="grid-content bg-purple" id="cesiumContainer">
          <div class="testVuex">
            <el-button type="primary">{{ 1 }}</el-button>
            <el-button type="primary" @click="addVuex(3)">添加3</el-button>
          </div>
        </div>
      </el-col>
    </el-row>
  </div>
</template>

<script>
// import { mapState } from " vuex";
export default {
  name: "draw",
  data() {
    return {
      mapViewer: undefined,
      tempEntities: [],
    };
  },
  computed: {
    // ...mapState(["nub001"]),
  },

  mounted() {
    this.init();
  },
  methods: {
    init() {
      Cesium.Ion.defaultAccessToken =
        "这里是你的cesium球体的token，翻看快速创建篇可快速获取
        地址： https://blog.csdn.net/weixin_43564810/article/details/125665419?spm=1001.2014.3001.5501";

      // Initialize the Cesium Viewer in the HTML element with the `cesiumContainer` ID.
      const viewer = new Cesium.Viewer("cesiumContainer", {
        terrainProvider: Cesium.createWorldTerrain(),
      });
      this.mapViewer = viewer;
    },
    /**
     * 根据类型绘制对象
     * @param type point、polyline、polygon
     */
    draw(type) {
      //绘制点
      let that = this;
      let viewer = this.mapViewer;
      let tempEntities = this.tempEntities;
      let position = [];
      let tempPoints = [];
      // 开启深度检测
      viewer.scene.globe.depthTestAgainstTerrain = true;
      let handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
      switch (type) {
        case "point":
          // 监听鼠标左键
          handler.setInputAction(function (movement) {
            // 从相机位置通过windowPosition 世界坐标中的像素创建一条射线。返回Cartesian3射线的位置和方向。
            let ray = viewer.camera.getPickRay(movement.position);
            // 查找射线与渲染的地球表面之间的交点。射线必须以世界坐标给出。返回Cartesian3对象
            position = viewer.scene.globe.pick(ray, viewer.scene);
            let point = that.drawPoint(position);
            tempEntities.push(point);
          }, Cesium.ScreenSpaceEventType.LEFT_CLICK);
          // 左键双击停止绘制
          handler.setInputAction(function () {
            handler.destroy(); //关闭事件句柄
            handler = null;
          }, Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);
          // 右击单击停止绘制
          handler.setInputAction(function () {
            handler.destroy(); //关闭事件句柄
            handler = null;
          }, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
          break;
        case "polyline":
          //鼠标移动事件
          handler.setInputAction(function (movement) {},
          Cesium.ScreenSpaceEventType.MOUSE_MOVE);
          //左键点击操作
          handler.setInputAction(function (click) {
            //调用获取位置信息的接口
            let ray = viewer.camera.getPickRay(click.position);
            position = viewer.scene.globe.pick(ray, viewer.scene);
            tempPoints.push(position);
            let tempLength = tempPoints.length;
            //调用绘制点的接口
            let point = that.drawPoint(tempPoints[tempPoints.length - 1]);
            tempEntities.push(point);
            if (tempLength > 1) {
              let pointline = that.drawPolyline([
                tempPoints[tempPoints.length - 2],
                tempPoints[tempPoints.length - 1],
              ]);
              tempEntities.push(pointline);
            } else {
              // tooltip.innerHTML = "请绘制下一个点，右键结束";
            }
          }, Cesium.ScreenSpaceEventType.LEFT_CLICK);
          //右键点击操作
          handler.setInputAction(function (click) {
            tempPoints = [];
            handler.destroy(); //关闭事件句柄
            handler = null;
          }, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
          break;
        case "polygon":
          //鼠标移动事件
          handler.setInputAction(function (movement) {},
          Cesium.ScreenSpaceEventType.MOUSE_MOVE);
          //左键点击操作
          handler.setInputAction(function (click) {
            //调用获取位置信息的接口
            let ray = viewer.camera.getPickRay(click.position);
            position = viewer.scene.globe.pick(ray, viewer.scene);
            tempPoints.push(position);
            let tempLength = tempPoints.length;
            //调用绘制点的接口
            let point = that.drawPoint(position);
            tempEntities.push(point);
            if (tempLength > 1) {
              let pointline = that.drawPolyline([
                tempPoints[tempPoints.length - 2],
                tempPoints[tempPoints.length - 1],
              ]);
              tempEntities.push(pointline);
            } else {
              // tooltip.innerHTML = "请绘制下一个点，右键结束";
            }
          }, Cesium.ScreenSpaceEventType.LEFT_CLICK);
          //右键点击操作
          handler.setInputAction(function (click) {
            let cartesian = viewer.camera.pickEllipsoid(
              click.position,
              viewer.scene.globe.ellipsoid
            );

            if (cartesian) {
              let tempLength = tempPoints.length;
              if (tempLength < 3) {
                alert("请选择3个以上的点再执行闭合操作命令");
              } else {
                //闭合最后一条线
                let pointline = that.drawPolyline([
                  tempPoints[tempPoints.length - 1],
                  tempPoints[0],
                ]);
                tempEntities.push(pointline);
                that.drawPolygon(tempPoints);
                tempEntities.push(tempPoints);
                handler.destroy(); //关闭事件句柄
                handler = null;
              }
            }
          }, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
          break;
      }
    },
    drawPoint(position, config) {
      let viewer = this.mapViewer;
      let config_ = config ? config : {};
      return viewer.entities.add({
        name: "点几何对象",
        position: position,
        point: {
          color: Cesium.Color.SKYBLUE,
          pixelSize: 10,
          outlineColor: Cesium.Color.YELLOW,
          outlineWidth: 3,
          disableDepthTestDistance: Number.POSITIVE_INFINITY,
          heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
        },
      });
    },
    drawPolyline(positions, config_) {
      let viewer = this.mapViewer;
      if (positions.length < 1) return;
      let config = config_ ? config_ : {};
      return viewer.entities.add({
        name: "线几何对象",
        polyline: {
          positions: positions,
          width: config.width ? config.width : 5.0,
          material: new Cesium.PolylineGlowMaterialProperty({
            color: config.color
              ? new Cesium.Color.fromCssColorString(config.color)
              : Cesium.Color.GOLD,
          }),
          depthFailMaterial: new Cesium.PolylineGlowMaterialProperty({
            color: config.color
              ? new Cesium.Color.fromCssColorString(config.color)
              : Cesium.Color.GOLD,
          }),
          clampToGround: true,
        },
      });
    },
    drawPolygon(positions, config_) {
      let viewer = this.mapViewer;
      if (positions.length < 2) return;
      let config = config_ ? config_ : {};
      return viewer.entities.add({
        name: "面几何对象",
        polygon: {
          hierarchy: positions,
          material: config.color
            ? new Cesium.Color.fromCssColorString(config.color).withAlpha(0.2)
            : new Cesium.Color.fromCssColorString("#FFD700").withAlpha(0.2),
        },
      });
    },
    /**
     * 清除实体
     */
    clearDrawEntities() {
      let viewer = this.mapViewer;
      this.tempEntities = [];
      // 清除之前的实体
      const entitys = viewer.entities._entities._array;
      let length = entitys.length;
      // 倒叙遍历防止实体减少之后entitys[f]不存在
      for (let f = length - 1; f >= 0; f--) {
        if (
          entitys[f]._name &&
          (entitys[f]._name === "点几何对象" ||
            entitys[f]._name === "线几何对象" ||
            entitys[f]._name === "面几何对象")
        ) {
          viewer.entities.remove(entitys[f]);
        }
      }
    },
    addVuex() {},
  },
  created() {},
};
</script>

<style scoped>
.home {
  height: 100%;
  margin: 0;
  padding: 0;
  overflow-y: auto;
  overflow-x: hidden;
}

.el-breadcrumb {
  margin: 10px;
  font-size: 15px;
}
#cesium {
  max-height: 600px;
}
.testVuex {
  height: 60px;
  width: 60px;
  background: violet;
  z-index: 999;
  position: absolute;
  padding: 10px;
}
</style>
