一、UDF(User Defined Function:用户定义函数)

Hive本身内置大量用户函数UDF 来操作时间、字符串和其他的数据挖掘工具，同时也支持用户扩展UDF 函数来完成内置函数无法实现的操作。官网API

1.1、继承UDF函数

继承UDF类，实现简单，只需要重写evaluate方法（该方法必须返回String类型）读取和返回基本类型，但是在hive3.0版本中，已不建议使用该类，推荐使用 GenericUDF

1.1.1、pom.xml 引入hive执行包

<dependency>
	<groupId>org.apache.hive</groupId>
	<artifactId>hive-exec</artifactId>
	<version>3.1.0</version>
</dependency>

1.1.2、MaskUDF 实现掩码函数

3.0开始已不建议使用：

源码：

package com.renxiaozhao.udf;

import org.apache.hadoop.hive.ql.exec.UDF;
import org.apache.hadoop.hive.ql.metadata.HiveException;

/**
 * 掩码函数.
 * @author rxz 20220808
 *
 */
@SuppressWarnings("deprecation")
public class MaskUDF extends UDF {

    private static final int MASK_LEFT = 0;//掩码从左至右标识
    private static final int MASK_RIGHT = -1;//掩码从右至左标识

    /**
     * 掩码处理.
     * @param input 掩码输入参数
     * @param startIndex 掩码从左至右标识:0-掩码从左至右；-1-掩码从右至左；其他则按位截取，比如2-从第三位开始截取
     * @param subIndex 掩码位数
     * @return
     * @throws HiveException
     */
    public String evaluate(String input,Integer startIndex,Integer subIndex) throws HiveException {

        //掩码处理
        String append = "";
        if (startIndex == MASK_LEFT || startIndex == MASK_RIGHT) {

            for (int i = 0;i < subIndex;i++) {

                append += "*";
            }
        } else {

            for (int i = 0;i < (subIndex - startIndex);i++) {

                append += "*";
            }
        }
        if (startIndex == MASK_LEFT) {

            return append + input.substring(subIndex);
        } else if (startIndex == MASK_RIGHT) {

            return input.substring(0, input.length() - subIndex) + append;
        } else {

            return input.substring(0,startIndex) + append + input.substring(subIndex);
        }
    }

    //测试
    public static void main(String[] args) {

        String input = "18866866888";
        String append = "";
        for (int i = 0;i < (6 - 4);i++) {

            append += "*";
        }
        System.out.println(input.substring(0,4) + append + input.substring(6));
    }
}

1.1.3、打包放到hive环境

hive-env.sh配置jar包路径

将jar包放到 HIVE_AUX_JARS_PATH 对应的目录下(不再需要单独执行add jar …)，重启hive

export HIVE_AUX_JARS_PATH=/root/collect

1.1.4、创建临时函数测试

create temporary function mask_udf as "com.renxiaozhao.udf.MaskUDF";

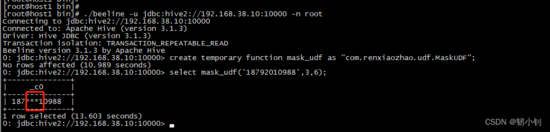

1.1.5、验证

select mask_udf('18792010988',3,6);

1.2、继承GenericUDF函数

适合处理复杂数据，list、map等,更加灵活，但是实现起来比较复杂，最容易报各种类之间的转换错，需要重写三个方法：

initialize ：初始化方法，可以给定义的List,初始化赋值、转换、校验参数个数等
evaluate ：同UDF,具体的逻辑处理
getDisplayString：固定输出一段提示，可以展示一个正常的结果值

1.2.1、直接编写CutOffUDF 实现截取函数，其它同UDF步骤

package com.renxiaozhao.udf;

import org.apache.hadoop.hive.ql.exec.UDFArgumentException;
import org.apache.hadoop.hive.ql.metadata.HiveException;
import org.apache.hadoop.hive.ql.udf.generic.GenericUDF;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspector;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspectorConverters;
import org.apache.hadoop.hive.serde2.objectinspector.PrimitiveObjectInspector;
import org.apache.hadoop.hive.serde2.objectinspector.primitive.PrimitiveObjectInspectorFactory;

/**
 * 截断函数.
 * @author rxz 20220810
 *
 */
public class CutOffUDF extends GenericUDF {

    private static final int CUT_LEFT = 0;//截取从左至右标识
    private static final int CUT_RIGHT = -1;//截取从右至左标识
    ObjectInspectorConverters.Converter[] converters = new ObjectInspectorConverters.Converter[3];

    /**
     * 初始化操作，在函数进行初始化的时候会执行，其他时间不执行.
     */
    public ObjectInspector initialize(ObjectInspector[] arguments) throws UDFArgumentException {

        if (arguments.length != 3) {

            throw new UDFArgumentException("参数个数不符合要求，应包含三个参数");
        }
        if (arguments.length == 3) {

            //判断: 参数类型
            if ((((PrimitiveObjectInspector) arguments[0])).getPrimitiveCategory() != PrimitiveObjectInspector.PrimitiveCategory.STRING) {

                throw new UDFArgumentException("第一个参数类型应为String");
            }
            if ((((PrimitiveObjectInspector) arguments[1])).getPrimitiveCategory() != PrimitiveObjectInspector.PrimitiveCategory.INT) {

                throw new UDFArgumentException("第二个参数类型应为Int");
            }
            if ((((PrimitiveObjectInspector) arguments[2])).getPrimitiveCategory() != PrimitiveObjectInspector.PrimitiveCategory.INT) {

                throw new UDFArgumentException("第三个参数类型应为Int");
            }
            //参数 <--->参数转换器
            converters[0] = ObjectInspectorConverters.getConverter(arguments[0], PrimitiveObjectInspectorFactory.javaStringObjectInspector);
            converters[1] = ObjectInspectorConverters.getConverter(arguments[1], PrimitiveObjectInspectorFactory.javaIntObjectInspector);
            converters[2] = ObjectInspectorConverters.getConverter(arguments[2], PrimitiveObjectInspectorFactory.javaIntObjectInspector);
        }
        return PrimitiveObjectInspectorFactory.javaStringObjectInspector;
    }

    /**
     * 进行业务计算逻辑，处理具体的数据.
     */
    public String evaluate(DeferredObject[] arguments) throws HiveException {

        //输入掩码参数
        String input = (String)converters[0].convert(arguments[0].get());
        //0-掩码从左至右；-1-掩码从右至左
        int startIndex =  (Integer)converters[1].convert(arguments[1].get());
        //掩码位数
        int subIndex = (Integer)converters[2].convert(arguments[2].get());
        //掩码处理
        if (startIndex == CUT_LEFT) {

            return input.substring(0, input.length() - subIndex);
        } else if (startIndex == CUT_RIGHT) {

            return input.substring(subIndex);
        } else {

            return input.substring(0,startIndex) + input.substring(subIndex);
        }
    }

    /**
     * 进行函数描述结果的显示.
     */
    public String getDisplayString(String[] children) {

        return "cutoffudf('18866866888',0,3) = 66866888";
    }

    public static void main(String[] args) {

        String input = "18866866888";
        System.out.println(input.substring(0,4) + input.substring(6));

    }
}

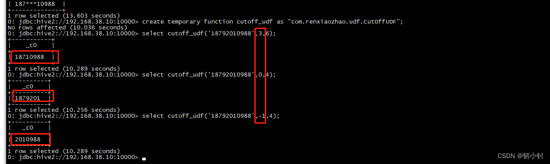

1.2.2、测试

create temporary function cutoff_udf as "com.renxiaozhao.udf.CutOffUDF";
select cutoff_udf('18792010988',3,6);

二、JDBC连接测试

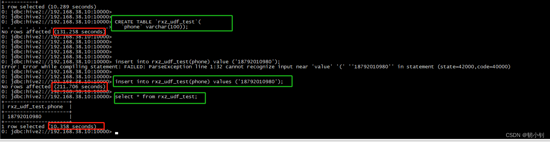

2.1、创建表及数据

SQL 语句：

CREATE TABLE `rxz_udf_test`(`phone` varchar(100));
insert into rxz_udf_test(phone) values ('18792010980');
select * from rxz_udf_test;

特别慢…

2.2、创建正式函数

临时函数只针对当前会话，只在该会话内有效

create function rxz_mask as "com.renxiaozhao.udf.MaskUDF";
create function rxz_cutoff as "com.renxiaozhao.udf.CutOffUDF";

2.3、JDBC连接工具类及驱动引入

2.3.1、HiveJDBCUtil

package com.renxiaozhao.udf.util;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**.
 * JDBC连接工具类
 * @author https://renxiaozhao.blog.csdn.net/
 *
 */
public class HiveJDBCUtil {

    private static final Logger LOGGER = LoggerFactory.getLogger(HiveJDBCUtil.class);

    public static Connection getConn() throws ClassNotFoundException {

        Connection conn = null;
        try {

            Class.forName("org.apache.hive.jdbc.HiveDriver");
            conn = DriverManager.getConnection("jdbc:hive2://192.168.38.10:10000/default", "root", "");// 连接数据库
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.getConn()异常---->", e);
        }
        return conn;
    }

    public void closeConn(Connection conn) {

        try {

            if (conn != null) {

                conn.close();
                conn = null;
            }
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.closeConn()异常---->" + e);
        }
    }

    public static PreparedStatement getPStmt(Connection conn, String sql) {

        PreparedStatement pstmt = null;
        try {

            pstmt = conn.prepareStatement(sql);
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.getPStmt()异常---->" + e);
        }
        return pstmt;
    }

    public static void closePStmt(PreparedStatement stmt) {

        try {

            if (stmt != null) {

                stmt.close();
                stmt = null;
            }
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.closePStmt()异常---->" + e);
        }

    }

    public static void closeRs(ResultSet rs) {

        try {

            if (rs != null) {

                rs.close();
                rs = null;
            }
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.closeRs()异常---->" + e);
        }
    }

    public ResultSet executeQuery(Connection conn, String sql) {

        ResultSet rs = null;
        try {

            rs = conn.createStatement().executeQuery(sql);
        } catch (SQLException e) {

            LOGGER.error("HiveJDBCUtil.executeQuery()异常---->", e);
        }
        return rs;
    }

}

2.3.2、pom.xml引入hive-jdbc驱动

<dependency>
	<groupId>org.apache.hive</groupId>
	<artifactId>hive-jdbc</artifactId>
	<version>3.1.0</version>
</dependency>

2.4、UDF测试类

2.4.1、UdfUseDemo

package com.renxiaozhao.udf;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

import com.renxiaozhao.udf.util.HiveJDBCUtil;

/**
 * UdfUseDemo.
 * @author https://renxiaozhao.blog.csdn.net/
 */
public class UdfUseDemo {

    public static void main(String[] args) throws ClassNotFoundException, SQLException {

        Connection conn = HiveJDBCUtil.getConn();
        //掩码函数rxz_mask
        String maskSql1 = "select rxz_mask(phone,0,4) as maskPhone from  rxz_udf_test";
        String maskSql2 = "select rxz_mask(phone,-1,4) as maskPhone from  rxz_udf_test";
        String maskSql3 = "select rxz_mask(phone,3,4) as maskPhone from  rxz_udf_test";
        PreparedStatement maskPstmt1 = HiveJDBCUtil.getPStmt(conn,maskSql1);
        PreparedStatement maskPstmt2 = HiveJDBCUtil.getPStmt(conn,maskSql2);
        PreparedStatement maskPstmt3 = HiveJDBCUtil.getPStmt(conn,maskSql3);
        ResultSet maskRes1 = maskPstmt1.executeQuery();
        ResultSet maskRes2 = maskPstmt2.executeQuery();
        ResultSet maskRes3 = maskPstmt3.executeQuery();
        while (maskRes1.next()) {

            System.out.println("掩码 rxz_mask(phone,0,4)：" + maskRes1.getString("maskPhone"));
        }
        while (maskRes2.next()) {

            System.out.println("掩码 rxz_mask(phone,-1,4)：" + maskRes2.getString("maskPhone"));
        }
        while (maskRes3.next()) {

            System.out.println("掩码 rxz_mask(phone,3,4)：" + maskRes3.getString("maskPhone"));
        }
        HiveJDBCUtil.closePStmt(maskPstmt1);
        HiveJDBCUtil.closePStmt(maskPstmt2);
        HiveJDBCUtil.closePStmt(maskPstmt3);
        HiveJDBCUtil.closeRs(maskRes1);
        HiveJDBCUtil.closeRs(maskRes2);
        HiveJDBCUtil.closeRs(maskRes3);
        //截断函数rxz_cutoff
        conn = HiveJDBCUtil.getConn();
        String cutoffSql1 = "select rxz_cutoff(phone,0,4) as cutoffPhone from  rxz_udf_test";
        String cutoffSql2 = "select rxz_cutoff(phone,-1,4) as cutoffPhone from  rxz_udf_test";
        String cutoffSql3 = "select rxz_cutoff(phone,3,4) as cutoffPhone from  rxz_udf_test";
        PreparedStatement cutoffPstmt1 = HiveJDBCUtil.getPStmt(conn,cutoffSql1);
        PreparedStatement cutoffPstmt2 = HiveJDBCUtil.getPStmt(conn,cutoffSql2);
        PreparedStatement cutoffPstmt3 = HiveJDBCUtil.getPStmt(conn,cutoffSql3);
        ResultSet cutoffRes1 = cutoffPstmt1.executeQuery();
        ResultSet cutoffRes2 = cutoffPstmt2.executeQuery();
        ResultSet cutoffRes3 = cutoffPstmt3.executeQuery();
        while (cutoffRes1.next()) {

            System.out.println("截断 rxz_cutoff(phone,0,4)：" + cutoffRes1.getString("cutoffPhone"));
        }
        while (cutoffRes2.next()) {

            System.out.println("截断 rxz_cutoff(phone,-1,4)：" + cutoffRes2.getString("cutoffPhone"));
        }
        while (cutoffRes3.next()) {

            System.out.println("截断 rxz_cutoff(phone,3,4)：" + cutoffRes3.getString("cutoffPhone"));
        }
        HiveJDBCUtil.closePStmt(cutoffPstmt1);
        HiveJDBCUtil.closePStmt(cutoffPstmt2);
        HiveJDBCUtil.closePStmt(cutoffPstmt3);
        HiveJDBCUtil.closeRs(cutoffRes1);
        HiveJDBCUtil.closeRs(cutoffRes2);
        HiveJDBCUtil.closeRs(cutoffRes3);
    }
}

2.4.2、测试结果

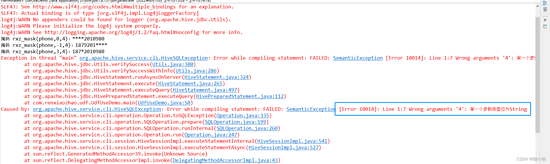

2.4.2.1、截断函数报错

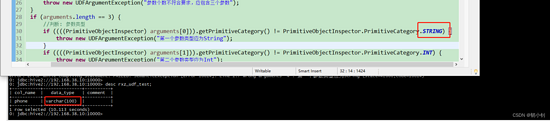

2.4.2.2、原因-类型不匹配

表定义的 varchar 类型，代码写的 String 类型，不想打包了，直接修改字段类型，再次验证:

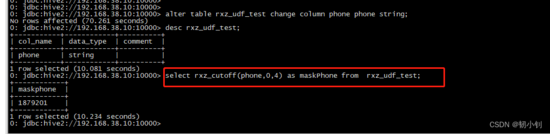

2.4.2.2.1、修改字段类型

alter table rxz_udf_test change column phone phone string;

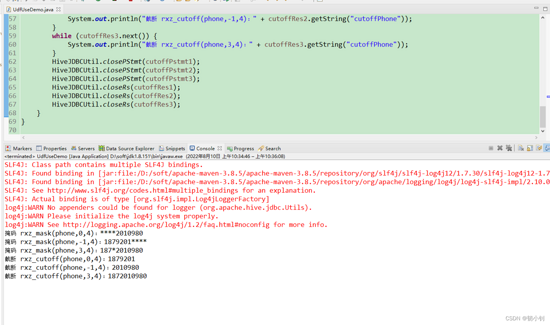

2.4.2.2.2、再次验证

JDBC验证：

三、其他

测试报 Invalid function xxx ,可以同步UDF函数，登录hive执行 reload function;
Concurrency mode is disabled, not creating a lock manager
放开 hive-env.sh 的 export HADOOP_HEAPSIZE=1024 ，默认256，放开后重启依然会报上面提示，不过目前没发现影响。

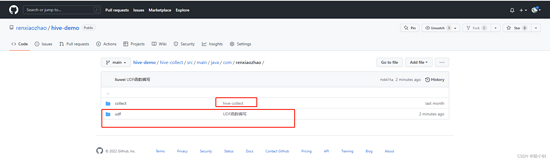

源码下载

源码下载地址

包含之前采集hive元数据的代码，需要自取
