Vue3 + TypeScript + Element Plus 开启边框 > 调整列宽（拖动表头）> 保存列宽（本地存储）> 加载列宽（读取本地数据）

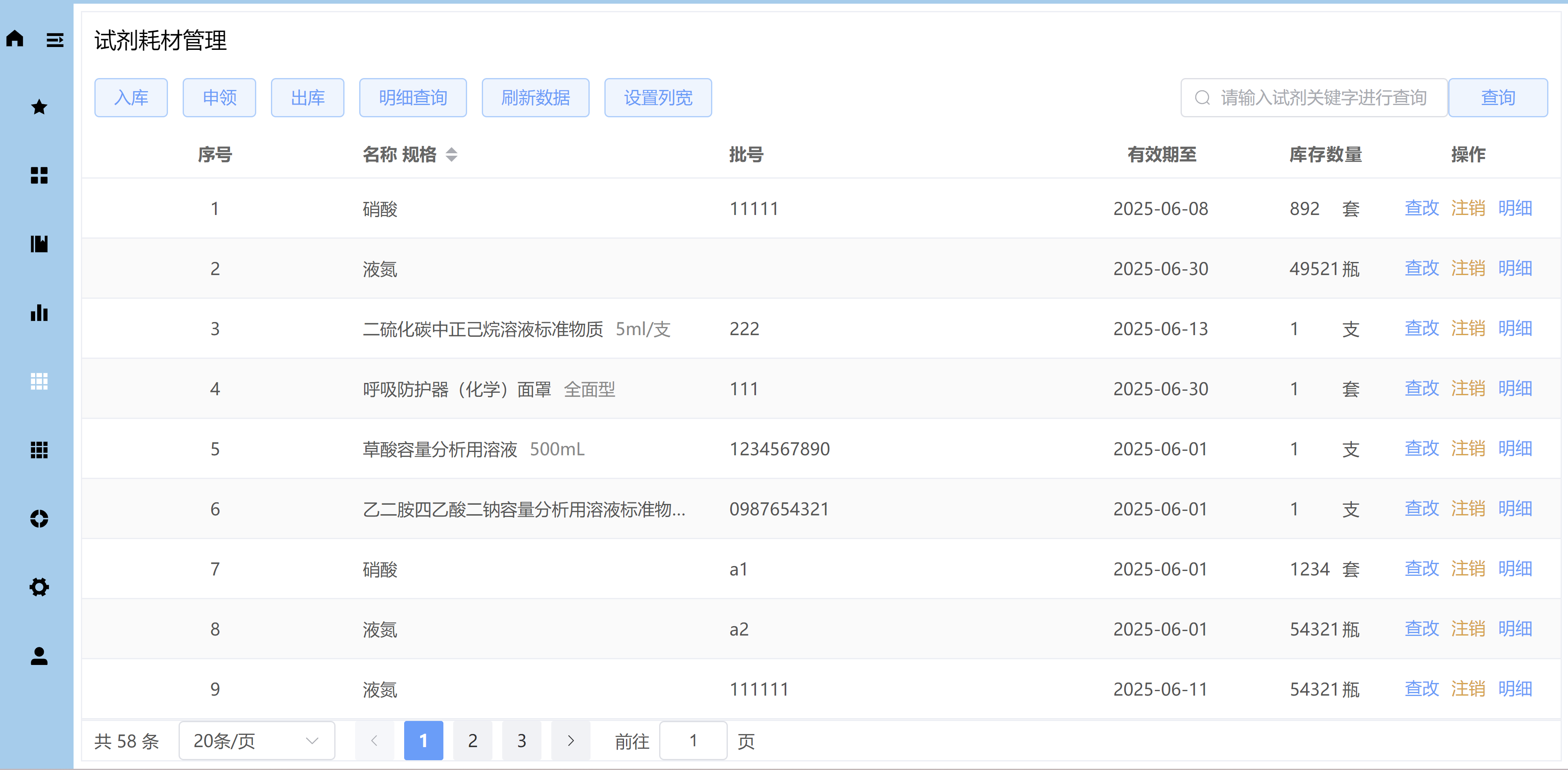

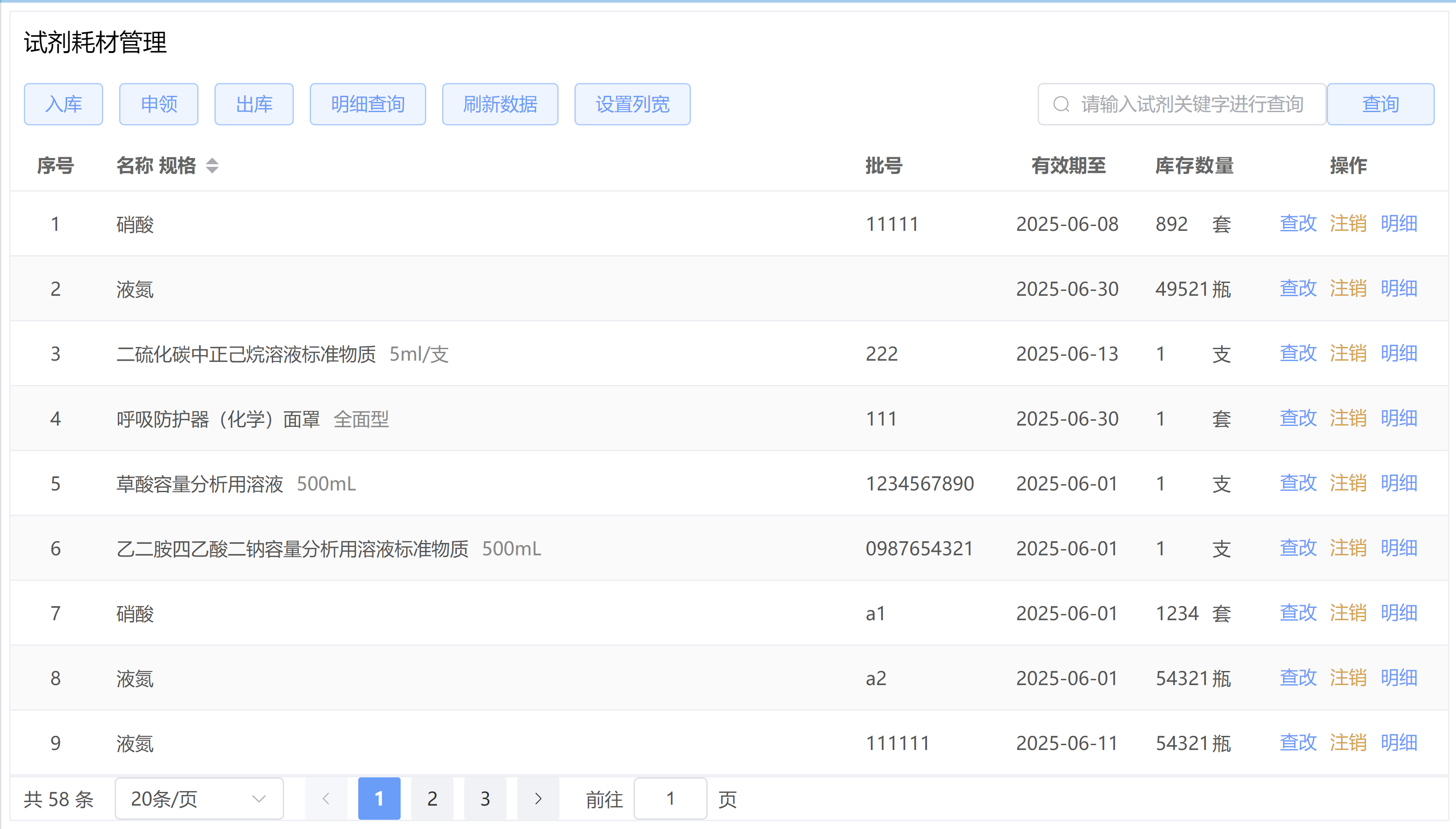

初始效果：

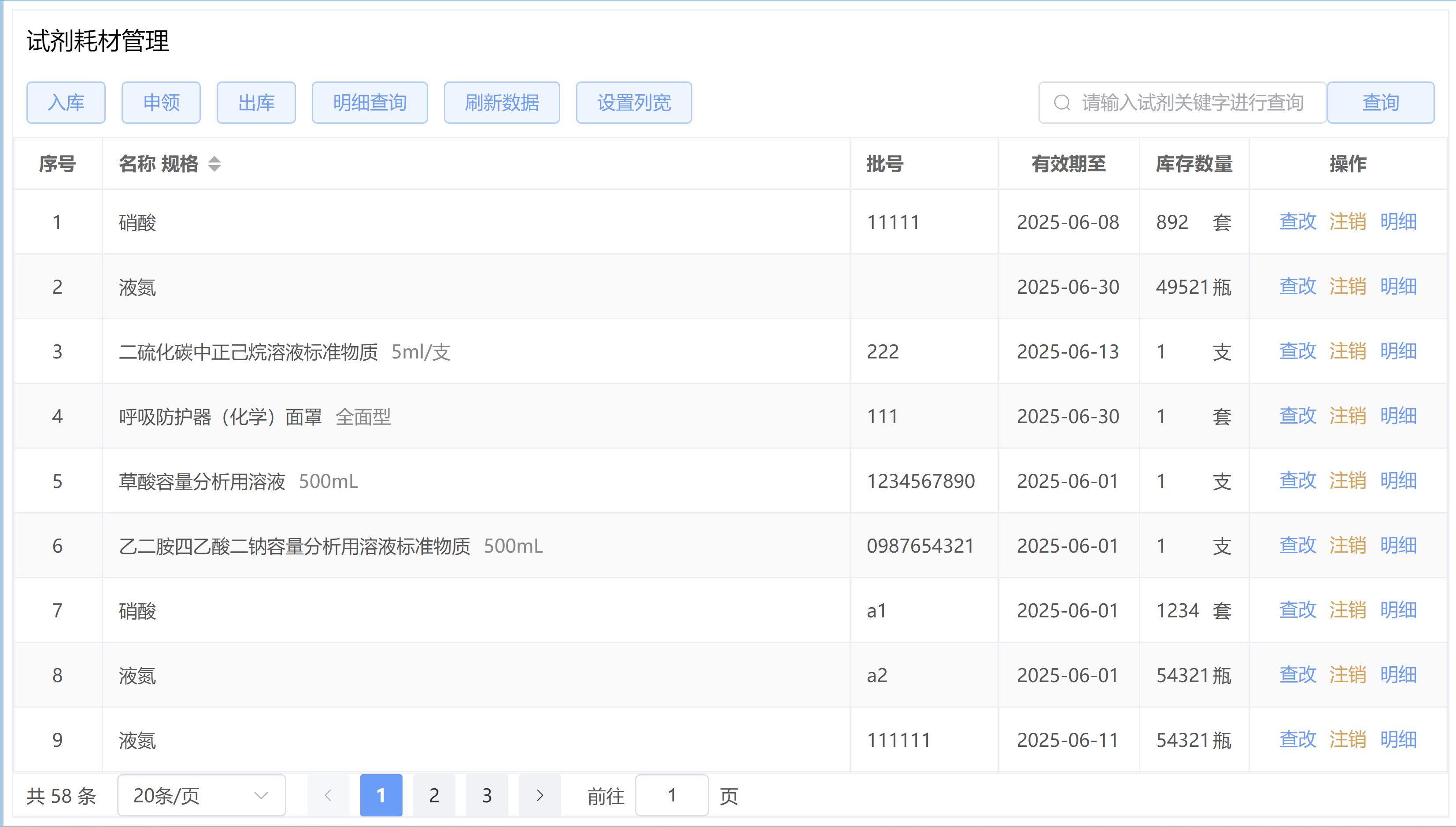

1、开启边框，点击【设置列宽】
2、调整列宽，在表头的纵向边框处，按住拖动

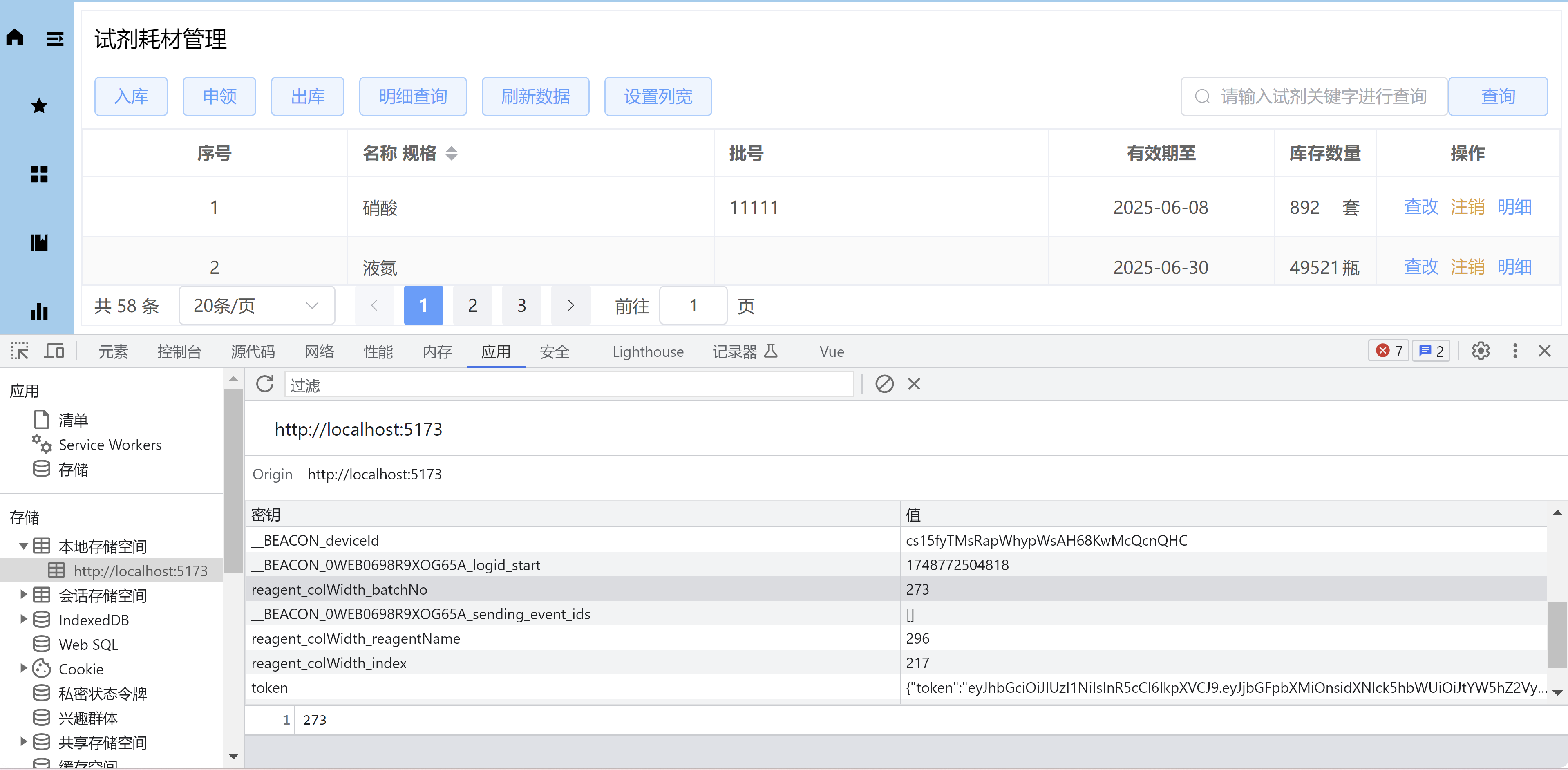

3、保存列宽，列宽数据保存在本地 localStorage

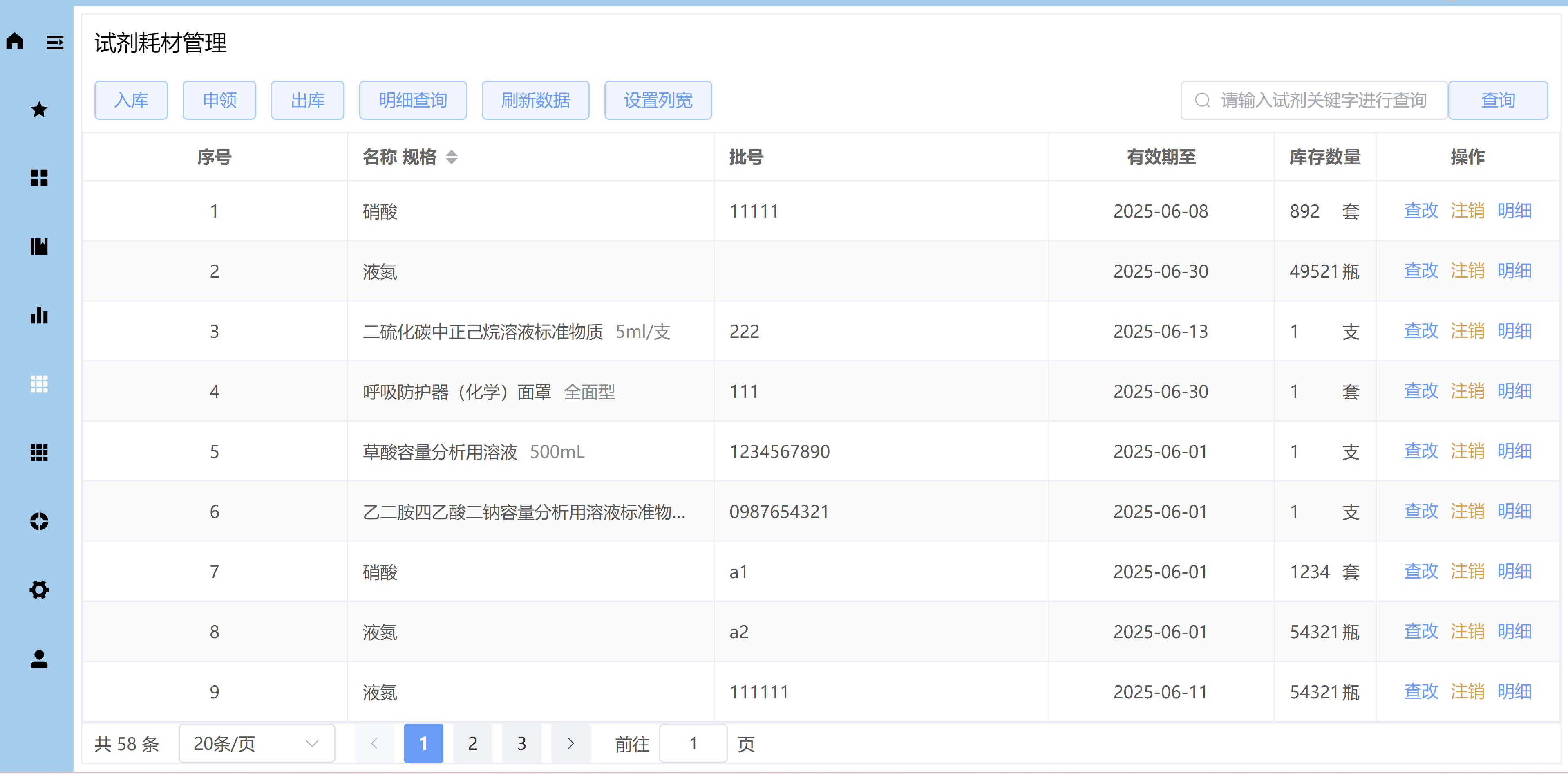

4、打开页面，加载列宽 ，从本地 localStorage 中读取列宽数据
技术栈：
1、涉及表格属性：border、 @header-dragend
2、涉及表格列属性：prop、width
3、本地存储 localStorage
4、相关逻辑：存储表格列宽 localStorage.setItem、加载表格列宽 localStorage.getItem
相关代码：Reagent.vue
<script setup lang="ts" name="Reagent">
......
// 边框标识
const isBorder = ref(false);
// 设置列宽
const onSetColumnWidthClick = () => {
isBorder.value = !isBorder.value;
};
// 存储表格列宽
const saveColumnWidth = (newWidth: number, oldWidth: number, column: TableColumnCtx<IReagent>, event: MouseEvent) => {
let prop = column.property;
localStorage.setItem(`reagent_colWidth_${prop}`, newWidth.toString());
};
// 加载表格列宽
const loadColumnWidth = (prop: string, defaultValue: number) => {
let colWidth = localStorage.getItem(`reagent_colWidth_${prop}`);
return colWidth ? parseInt(colWidth, 10) : defaultValue;
};
......
</script>
<template>
......
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onSetColumnWidthClick" :delay="0">
设置列宽
</BasePreventReClickButton>
......
<el-table
ref="table"
:data="store.reagentPageList"
v-loading="store.loading"
:border="isBorder"
highlight-current-row
stripe
:show-summary="false"
style="width: 100%; height: 100%"
@header-dragend="saveColumnWidth">
<el-table-column
type="index"
prop="index"
label="序号"
:width="loadColumnWidth(`index`, 60)"
fixed="left"
header-align="center"
align="center" />
<el-table-column
prop="reagentName"
label="名称 规格"
min-width="200"
fixed="left"
header-align="left"
sortable
show-overflow-tooltip>
<template #default="scope">
<span class="material-name">{{ scope.row.reagentName }}</span>
<span class="material-spec">{{ scope.row.reagentSpec }}</span>
</template>
</el-table-column>
<el-table-column
prop="batchNo"
label="批号"
:width="loadColumnWidth(`batchNo`, 120)"
header-align="left"
show-overflow-tooltip />
<el-table-column
prop="validityDate"
label="有效期至"
:width="loadColumnWidth(`validityDate`, 110)"
header-align="center"
align="center"
show-overflow-tooltip />
<el-table-column
prop="amount"
:width="loadColumnWidth(`amount`, 80)"
header-align="center"
align="center"
resizable
show-overflow-tooltip>
<template #header>
<div class="custom-table-column-header-amount-unit-div">库存数量</div>
</template>
<template #default="scope">
<div class="custom-table-row-default-amount-unit-div">
<span>{{ scope.row.amount }}</span>
<span>{{ scope.row.reagentUnit }}</span>
</div>
</template>
</el-table-column>
<el-table-column label="操作" header-align="center" align="center" fixed="right" width="150">
<template #default="scope">
<el-button
class="table-btn"
type="primary"
size="default"
text
@click="onModifyClick(scope.$index, scope.row)"
>查改</el-button
>
<el-button class="table-btn" type="warning" size="default" text @click="onLogoutClick(scope.row.id)"
>注销</el-button
>
<el-button class="table-btn" type="primary" size="default" text @click="onTransactionsClick(scope.row.id)"
>明细</el-button
>
</template>
</el-table-column>
</el-table>
......
</template>
完整代码：Reagent.vue
<script setup lang="ts" name="Reagent">
import BasePreventReClickButton from "@/components/base/BasePreventReClickButton.vue";
import { Search } from "@element-plus/icons-vue";
import { ElMessage, ElMessageBox, type TableColumnCtx } from "element-plus";
import { isEqual } from "lodash-es";
import { nextTick, onMounted, ref } from "vue";
import ReagentApplyDialog from "./reagent/comps/ReagentApplyDialog.vue";
import ReagentInDialog from "./reagent/comps/ReagentInDialog.vue";
import ReagentInfoDialog from "./reagent/comps/ReagentInfoDialog.vue";
import ReagentOutDialog from "./reagent/comps/ReagentOutDialog.vue";
import ReagentTransactionsDrawer from "./reagent/comps/ReagentTransactionsDrawer.vue";
import useReagentStore from "./reagent/stores";
import type { IReagent } from "./reagent/types";
const store = useReagentStore();
// 当前表格选择行
const currentSelectedRow = ref<IReagent>({
id: 0,
reagentCategory: "",
reagentNo: "",
reagentName: "",
reagentSpec: "",
reagentUnit: ""
});
// 是否新增
const isNew = ref(true);
// 试剂耗材入库模态框实例对象
const reagentInDialogRef = ref<InstanceType<typeof ReagentInDialog> | null>(null);
// 试剂耗材申领模态框实例对象
const reagentApplyDialogRef = ref<InstanceType<typeof ReagentApplyDialog> | null>(null);
// 试剂耗材出库模态框实例对象
const reagentOutDialogRef = ref<InstanceType<typeof ReagentOutDialog> | null>(null);
// 试剂耗材信息模态框实例对象
const reagentInfoDialogRef = ref<InstanceType<typeof ReagentInfoDialog> | null>(null);
// 试剂耗材流转记录抽屉实例对象
const reagentTransactionsDrawerRef = ref<InstanceType<typeof ReagentTransactionsDrawer> | null>(null);
// 边框标识
const isBorder = ref(false);
// 入库
const onInClick = () => {
isNew.value = true;
// 打开试剂耗材入库模态框
reagentInDialogRef.value?.openDialog();
};
// 申领
const onReceiveClick = () => {
// 打开试剂耗材申领模态框
reagentApplyDialogRef.value?.openDialog();
};
// 出库
const onOutClick = () => {
// 打开试剂耗材出库模态框
reagentOutDialogRef.value?.openDialog();
};
// 明细查询
const onDetailClick = async () => {
await reagentTransactionsDrawerRef.value?.openDrawerByQuery();
};
// 刷新数据
const onRefreshClick = async () => {
await store.fetchReagentPageList();
};
// 查询
const onQueryClick = async () => {
// 分页页数及显示数量变动监听标识，设置为 false，后面更改 page，不会触发分页监听
store.onPageOrSizeChangeValid = false;
// 重置当前页码为 1
store.queryObj.pageHelper.page = 1;
// 刷新数据
await onRefreshClick();
};
// 查改
const onModifyClick = async (index: number, row: IReagent) => {
isNew.value = false;
currentSelectedRow.value = row;
await nextTick();
reagentInfoDialogRef.value?.openDialog();
};
// 注销
const onLogoutClick = async (id: number) => {
try {
await ElMessageBox.confirm("确定注销吗？", "询问", {
cancelButtonText: "取消",
confirmButtonText: "确定",
type: "warning"
});
await store.fetchLogoutReagent(id);
ElMessage.success("注销成功！");
// 刷新数据
await onRefreshClick();
} catch (error) {}
};
// 明细（流转明细）
const onTransactionsClick = async (id: number) => {
await reagentTransactionsDrawerRef.value?.openDrawerByTransactions(id);
};
// 更新试剂
const handleUpdateReagent = async (reagent: IReagent) => {
// 两个对象不相同，需要更新数据；如果两个对象相同（所有属性值都相同），不需要更新数据
if (!isEqual(currentSelectedRow.value, reagent)) {
try {
// 发送网络请求，更新数据
await store.fetchUpdateReagent(reagent);
} catch (error) {
return;
}
// 使用浅拷贝，复制对象引用，同步更新页面数据
Object.assign(currentSelectedRow.value, reagent);
}
};
// 改变页码、显示数量，重新获取数据
const onPageOrSizeChange = async (currentPage: number, pageSize: number) => {
if (!store.onPageOrSizeChangeValid) {
return;
}
store.queryObj.pageHelper.page = currentPage;
store.queryObj.pageHelper.size = pageSize;
// 刷新数据
await onRefreshClick();
};
// 设置列宽
const onSetColumnWidthClick = () => {
isBorder.value = !isBorder.value;
};
// 存储表格列宽
const saveColumnWidth = (newWidth: number, oldWidth: number, column: TableColumnCtx<IReagent>, event: MouseEvent) => {
let prop = column.property;
localStorage.setItem(`reagent_colWidth_${prop}`, newWidth.toString());
};
// 加载表格列宽
const loadColumnWidth = (prop: string, defaultValue: number) => {
let colWidth = localStorage.getItem(`reagent_colWidth_${prop}`);
return colWidth ? parseInt(colWidth, 10) : defaultValue;
};
onMounted(async () => {
// 刷新数据
await onRefreshClick();
});
</script>
<template>
<el-container class="container">
<el-header class="header">
<!-- 标题 -->
<div class="header-title">试剂耗材管理</div>
<!-- 操作栏 -->
<div class="header-operation">
<div>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onInClick">
入库
</BasePreventReClickButton>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onReceiveClick" :delay="0">
申领
</BasePreventReClickButton>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onOutClick" :delay="0">
出库
</BasePreventReClickButton>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onDetailClick" :delay="0">
明细查询
</BasePreventReClickButton>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onRefreshClick" :delay="0">
刷新数据
</BasePreventReClickButton>
<BasePreventReClickButton class="header-btn" type="primary" plain :onClick="onSetColumnWidthClick" :delay="0">
设置列宽
</BasePreventReClickButton>
</div>
<div class="query-div">
<el-input v-model="store.queryObj.reagentName" placeholder="请输入试剂关键字进行查询" clearable>
<template #prefix>
<el-icon><Search /></el-icon>
</template>
</el-input>
<BasePreventReClickButton class="query-btn" type="primary" plain :onClick="onQueryClick" :delay="100">
查询
</BasePreventReClickButton>
</div>
</div>
</el-header>
<el-main class="main">
<!-- 展示区 -->
<el-table
ref="table"
:data="store.reagentPageList"
v-loading="store.loading"
:border="isBorder"
highlight-current-row
stripe
:show-summary="false"
style="width: 100%; height: 100%"
@header-dragend="saveColumnWidth">
<el-table-column
type="index"
prop="index"
label="序号"
:width="loadColumnWidth(`index`, 60)"
fixed="left"
header-align="center"
align="center" />
<el-table-column
prop="reagentName"
label="名称 规格"
min-width="200"
fixed="left"
header-align="left"
sortable
show-overflow-tooltip>
<template #default="scope">
<span class="material-name">{{ scope.row.reagentName }}</span>
<span class="material-spec">{{ scope.row.reagentSpec }}</span>
</template>
</el-table-column>
<el-table-column
prop="batchNo"
label="批号"
:width="loadColumnWidth(`batchNo`, 120)"
header-align="left"
show-overflow-tooltip />
<el-table-column
prop="validityDate"
label="有效期至"
:width="loadColumnWidth(`validityDate`, 110)"
header-align="center"
align="center"
show-overflow-tooltip />
<el-table-column
prop="amount"
:width="loadColumnWidth(`amount`, 80)"
header-align="center"
align="center"
resizable
show-overflow-tooltip>
<template #header>
<div class="custom-table-column-header-amount-unit-div">库存数量</div>
</template>
<template #default="scope">
<div class="custom-table-row-default-amount-unit-div">
<span>{{ scope.row.amount }}</span>
<span>{{ scope.row.reagentUnit }}</span>
</div>
</template>
</el-table-column>
<!-- <el-table-column prop="total" label="余额" width="110" header-align="right" align="right" show-overflow-tooltip>
<template #default="scope">
{{ formatMoney(scope.row.total, "¥", 2) }}
</template>
</el-table-column> -->
<el-table-column label="操作" header-align="center" align="center" fixed="right" width="150">
<template #default="scope">
<el-button
class="table-btn"
type="primary"
size="default"
text
@click="onModifyClick(scope.$index, scope.row)"
>查改</el-button
>
<el-button class="table-btn" type="warning" size="default" text @click="onLogoutClick(scope.row.id)"
>注销</el-button
>
<el-button class="table-btn" type="primary" size="default" text @click="onTransactionsClick(scope.row.id)"
>明细</el-button
>
</template>
</el-table-column>
</el-table>
</el-main>
<el-footer class="footer">
<!-- 分页 -->
<el-pagination
:total="store.total"
:page-sizes="[20, 50, 100, 200, 500]"
v-model:page-size="store.queryObj.pageHelper.size"
v-model:current-page="store.queryObj.pageHelper.page"
background
layout="total, sizes, prev, pager, next, jumper"
:small="false"
@change="onPageOrSizeChange" />
</el-footer>
</el-container>
<div>
<!-- 试剂耗材入库模态框 -->
<ReagentInDialog ref="reagentInDialogRef" :is-new="isNew" />
<!-- 试剂耗材申领模态框 -->
<ReagentApplyDialog ref="reagentApplyDialogRef" />
<!-- 试剂耗材出库模态框 -->
<ReagentOutDialog ref="reagentOutDialogRef" :is-new="isNew" @refresh="onRefreshClick" />
<!-- 试剂耗材修改模态框 -->
<ReagentInfoDialog
ref="reagentInfoDialogRef"
:reagent-info="currentSelectedRow"
@update-reagent="handleUpdateReagent" />
<!-- 试剂耗材流转记录抽屉 -->
<ReagentTransactionsDrawer ref="reagentTransactionsDrawerRef" />
</div>
</template>
<style scoped lang="scss">
// 选择 container 所有直接子元素（不包括孙级）
.container > * {
margin: 0;
padding: 0;
}
.container {
height: 100%;
border: 1px solid #ebeef5;
.header {
height: auto;
.header-title {
margin: 10px 10px 20px 10px;
font-size: 18px;
}
.header-operation {
margin: 10px;
display: flex;
justify-content: space-between;
.query-div {
display: flex;
justify-content: flex-end;
// 设置固定宽度，避免由于宽度自适应，导致页面跳动
width: 300px;
// 因为点击查询按钮时，会显示加载动画，撑大了原来的按钮宽度，导致页面跳动，所以设置宽度为100px，预留足够的空间，避免页面跳动
.query-btn {
width: 100px;
}
}
}
}
.footer {
height: auto;
padding: 0 10px;
}
}
.table-btn {
margin: 0;
padding: 0 5px;
}
.custom-table-column-header-amount-unit-div {
text-align: justify;
text-align-last: justify;
}
.custom-table-row-default-amount-unit-div {
display: flex;
justify-content: space-between;
}
</style>
