核心程序：
model = torch.load(path)
calculate_flops = 1
if calculate_flops:
total_params = sum(p.numel() for p in model.parameters())
print("Total parameters:", total_params)
trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
print("Trainable parameters:", trainable_params)
# 确保模型构建完成
input_shape = (1, x.shape[1]) # batch size = 1
macs, params = get_model_complexity_info(model, input_shape, as_strings=True,
print_per_layer_stat=True, verbose=True)
print(f"FLOPs: {macs}")

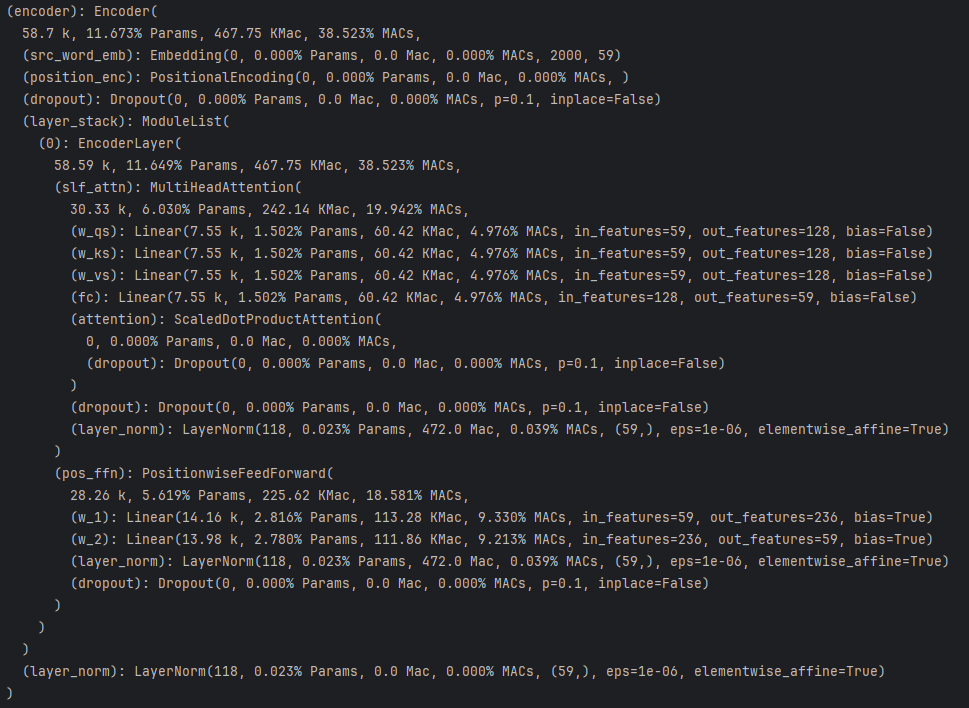

print(f"Parameters: {params}")每一模块的Flops计算结果，其中1Flops=2MACs=1次乘法+1次加法
最终结果：
完整程序，仅供参考：
import argparse
import torch
import h5py
import numpy as np
from transformer.Models import Transformer, MLP
import os
import re
import torch.nn as nn
from torch.nn import functional as F
from tensorboardX import SummaryWriter
import time
from ptflops import get_model_complexity_info
N = 30
snr = 40
learning_rate = 0.003
M = 3000
epochs = 10000
dataset_n = 100
def graph_normalize(signals):
for i in range(signals.shape[0]):
signals[i, :] = signals[i, :]/np.max(np.abs(signals[i, :]))
def generate_dataset():
base_dir = "D:\无线通信网络认知\论文1\大修意见\Reviewer2-7 多种深度学习方法对比实验\\test data 30 (mat)\\"
mat_file = h5py.File(base_dir + '30_nodes_dataset.mat', 'r')
# 获取数据集
signals = mat_file["Signals"][()]
tp = mat_file["Tp"][()]
tp_list = mat_file["Tp_list"][()]
Signals = np.swapaxes(signals, 2, 0)
Tp = np.swapaxes(tp, 2, 0)
# tp_list = tp_list - 1
# 关闭文件
mat_file.close()
#把每张图的数据和标签都装进去
x_list = []
y_list = []
for n in range(0,dataset_n,1):
# print("n: ",n)
signals = Signals[n,:,:]
graph_normalize(signals)
L = 2 * signals.shape[1] # 待分析的2个信号拼在一起
tp = Tp[n,:,:]
# x 的形状为 (100000, 3600)
x = np.zeros((N * N, L))
# y 的形状为 (100000, 1)
y = np.zeros((N * N, 1))
# 生成 x 和 y
index = 0
#处理正样本
for i in range(N):
for j in range(N):
if i!=j and tp[i, j]==1:
combined_signal = np.concatenate(
(signals[i, :], signals[j, :]))
x[index, :] = combined_signal
y[index, 0] = 1
index += 1
#算负样本总共有多少
n_pair_list = []
for i in range(N):
for j in range(N):
if i!=j and tp[i, j] == 0:
n_pair_list.append((i,j))
np.random.seed(42)
indices = np.arange(len(n_pair_list))
np.random.shuffle(indices)
n_pair_list = np.array(n_pair_list)
n_pair_list = n_pair_list[indices]
#根据正样本数取负样本
n_pair = n_pair_list[:index,:]
for k in range(n_pair.shape[0]):
i = n_pair[k, 0]
j = n_pair[k, 1]
combined_signal = np.concatenate(
(signals[i, :], signals[j, :]))
x[index, :] = combined_signal
y[index, 0] = 0
index += 1
x = x[:index,:]
y = y[:index, :]
# x = np.expand_dims(x, axis=-1)
# plt.plot(np.linspace(0, 1, 2520), np.hstack((x[1, :1260], x[2, 1260:])))
# c = 70
# plot_sig = np.vstack((x[c, :1260], x[c, 1260:]))
# print("y: ",1-y[c,0])
# plt.plot(np.linspace(0, 1, 1260), plot_sig.T)
x_list.append(x)
y_list.append(y)
x = np.vstack(x_list)
y = np.vstack(y_list)
return x, y
def generate_time_dataset():
base_dir = "D:\无线通信网络认知\论文1\大修意见\Reviewer2-7 多种深度学习方法对比实验\\test data 30 (mat)\\"
mat_file = h5py.File(base_dir + '30_nodes_dataset.mat', 'r')
signals = mat_file["Signals"][()]
tp = mat_file["Tp"][()]
# 获取数据集
Signals = np.swapaxes(signals, 2, 0)
Tp = np.swapaxes(tp, 2, 0)
# tp_list = tp_list - 1
# 关闭文件
mat_file.close()
x_list = []
for n in range(0,dataset_n,1):
# print("n: ",n)
signals = Signals[n, :, :]
L = 2 * signals.shape[1] # 待分析的2个信号拼在一起
tp = Tp[n, :, :]
# x 的形状为 (100000, 3600)
x = np.zeros((N * N, L))
# y 的形状为 (100000, 1)
y = np.zeros((N * N, 1))
# 生成 x 和 y
index = 0
for i in range(N):
for j in range(N):
combined_signal = np.concatenate((signals[i, :], signals[j, :]))
x[index, :] = combined_signal
index += 1
x_list.append(x)
x = np.vstack(x_list)
return x
def cal_performance(tra_pred,tra_true):
return F.mse_loss(tra_pred,tra_true)
def train(model, data, label, optimizer):
best_acc = 0
count = 0
# model = torch.load(model_dir + 'model.pt')
for epoch in range(epochs):
# if epoch!=0:
count = count + 1
if count>50:
break
optimizer.zero_grad() # 清零优化器梯度，梯度不清零会一直存在
# score = score.to(device)
correct_count = 0
# pred = model(before_track_data.get(p).to(device), after_track_data.get(q).to(device))
pre = model(data)
loss = loss_function(pre, label) # 计算一次损失
# loss = loss_function(pre_1.float(), data_1.y.float())
# loss = loss_function(pre_1, data_1.y)
# loss反向传播就行，这里没有acc监视器
loss.backward()
# print(" ")
# 用反向传播得到的梯度进行参数更新
optimizer.step()
# 计算准确率
with torch.no_grad():
# 输出是概率，转换成0/1预测值
pred_class = (pre >= 0.5).float()
correct = (pred_class == label).sum().item()
total = label.size(0)
accuracy = correct / total
if accuracy > best_acc:
best_acc = accuracy
torch.save(model, model_dir + 'epoch '+ str(round(epoch)) +' accuracy '+str(round(accuracy,3))+'.pt')
count = 0
print("epoch: ", epoch, " loss: ", loss.item(), "accuracy: ", accuracy)
def find_max_val_acc_file(folder_path):
max_val_acc = -1
max_file = None
# 正则表达式匹配 'val_acc_' 后面的数字
# pattern = re.compile(r'val_accuracy_([0-9]+\.[0-9]+)')
pattern = re.compile(r'accuracy ([0-9]+\.[0-9]+)')
for filename in os.listdir(folder_path):
match = pattern.search(filename)
if match:
val_acc = float(match.group(1))
if val_acc > max_val_acc:
max_val_acc = val_acc
max_file = filename
return max_file, max_val_acc
def test(data, label):
base_path = r'D:\english\WCNA\Transformer\fn 59 8\\'
max_file, max_val_acc = find_max_val_acc_file(base_path)
path = base_path + max_file
model = torch.load(path)
calculate_flops = 1
if calculate_flops:
# model.summary()
# print("Total parameters:", model.count_params())
total_params = sum(p.numel() for p in model.parameters())
print("Total parameters:", total_params)
trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
print("Trainable parameters:", trainable_params)
# 确保模型构建完成
input_shape = (1, x.shape[1]) # batch size = 1
# input_shape = x.shape[1]
# input_shape = (1, x_val.shape[1]) # 例如 (batch_size=1, sequence_length=3600)
macs, params = get_model_complexity_info(model, input_shape, as_strings=True,
print_per_layer_stat=True, verbose=True)
print(f"FLOPs: {macs}")
print(f"Parameters: {params}")
# print(f"FLOPs: {flops / 10 ** 6:.2f} MFLOPs")
pre = model(data)
# loss = loss_function(pre, label)
with torch.no_grad():
# 输出是概率，转换成0/1预测值
pred_class = (pre >= 0.5).float()
correct = (pred_class == label).sum().item()
total = label.size(0)
accuracy = correct / total
print("accuracy: ", accuracy)
def calculate(data):
base_path = r'D:\englist\WCNA\Transformer\fn 59 8\\'
max_file, max_val_acc = find_max_val_acc_file(base_path)
path = base_path + max_file
model = torch.load(path)
t1 =time.time()
pre = model(data)
t2 = time.time()
delta_t = (t2 - t1)/100 #100个样本
print("time: ", delta_t)
if __name__ == '__main__':
x, y = generate_dataset()
indices = np.arange(y.shape[0])
np.random.shuffle(indices)
x = x[indices]
y = y[indices]
# x_down = x[:, ::2]
a = round(0.8 * len(indices))
# b = 12000
x_train = x[:a, :]
y_train = y[:a, :]
x_val = x[a:, :]
y_val = y[a:, :]
x_train = torch.tensor(x_train).float()
y_train = torch.tensor(y_train).float()
x_val = torch.tensor(x_val).float()
y_val = torch.tensor(y_val).float()
device = "cuda:0"
x_train = x_train.to(device)
y_train = y_train.to(device)
x_val = x_val.to(device)
y_val = y_val.to(device)
log_writer = SummaryWriter()
# os.environ['CUDA_LAUNCH_BLOCKING'] = '1'
model_dir = "D:\englist\WCNA\Transformer\\fn 7 4\\"
loss_function = nn.BCELoss() # 损失函数
parser = argparse.ArgumentParser()
parser.add_argument('-epoch', type=int, default=epochs)
parser.add_argument('-b', '--batch_size', type=int, default=40)
parser.add_argument('-d_model', type=int, default=7)
parser.add_argument('-d_inner_hid', type=int, default=236)
parser.add_argument('-d_k', type=int, default=64)
parser.add_argument('-d_v', type=int, default=64)
parser.add_argument('-warmup', '--n_warmup_steps', type=int, default=2000)
parser.add_argument('-lr_mul', type=float, default=2.0)
parser.add_argument('-lr', type=float, default=0.001)
parser.add_argument('-n_head', type=int, default=2)
parser.add_argument('-n_layers', type=int, default=1)
parser.add_argument('-dropout', type=float, default=0.1)
parser.add_argument('-do_train', type=bool, default=False)
parser.add_argument('-do_retrain', type=bool, default=False)
parser.add_argument('-do_eval', type=bool, default=True)
parser.add_argument('-use_mlp', type=bool, default=False)
parser.add_argument('-calculate', type=bool, default=False)
opt = parser.parse_args()
opt.d_word_vec = opt.d_model
# device = "gpu:0"
# device="cpu"
transformer = Transformer(
2000,
2000,
d_k=opt.d_k,
d_v=opt.d_v,
d_model=opt.d_model,
d_word_vec=opt.d_word_vec,
d_inner=opt.d_inner_hid,
n_layers=opt.n_layers,
n_head=opt.n_head,
dropout=opt.dropout,
n_position = 250
).to(device)
mlp = MLP(10,10,25,50,use_extra_input=False).to(device)
model_train = transformer
if opt.use_mlp:
model_train = mlp
if opt.do_train == True:
parameters = mlp.parameters() if opt.use_mlp else transformer.parameters()
# optimizer = ScheduledOptim(
# optim.Adam(parameters, betas=(0.9, 0.98), eps=1e-09),
# opt.lr, opt.d_model, opt.n_warmup_steps, opt.use_mlp)
lr = 0.001
optimizer = torch.optim.Adam(model_train.parameters(), lr=lr)
if opt.do_retrain == True: # only used for transformer
checkpoint = torch.load("./checkpoint/ckpt.pth")
transformer.load_state_dict(checkpoint['net'])
optimizer.load_state_dict(checkpoint['optimizer'])
train(
model=model_train,
data=x_train,
label=y_train,
optimizer=optimizer
)
if opt.do_eval == True:
test(data=x_val,label=y_val)
if opt.calculate == True:
x = generate_time_dataset()
x = torch.tensor(x).float()
x = x.to("cuda:0")
calculate(data=x)
# model = torch.load(model_dir + 'model.pt')
