rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ cat rk3588_linux6.1_release_v1.2.0_20241220.tar_0* > rk3588_linux6.1_release_v1.2.0_20241220.tar
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ tar xvf rk3588_linux6.1_release_v1.2.0_20241220.tar
rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ .repo/repo/repo sync -l
[2025/7/18 20:43:41] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~$ ll
[2025/7/18 20:43:51] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~$ cd rk3588_linux6.1_release_v1.2.0_20241220/
[2025/7/18 20:43:52] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
[2025/7/18 20:44:37] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ./build.sh lunch
[2025/7/18 20:44:38] 3. rockchip_rk3588_evb7_v11_defconfig
[2025/7/18 20:44:50] Which would you like? [1]: 3
[2025/7/18 20:45:22] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ./build.sh
[2025/7/18 23:09:32] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
[2025/7/18 23:09:36] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ du -sh

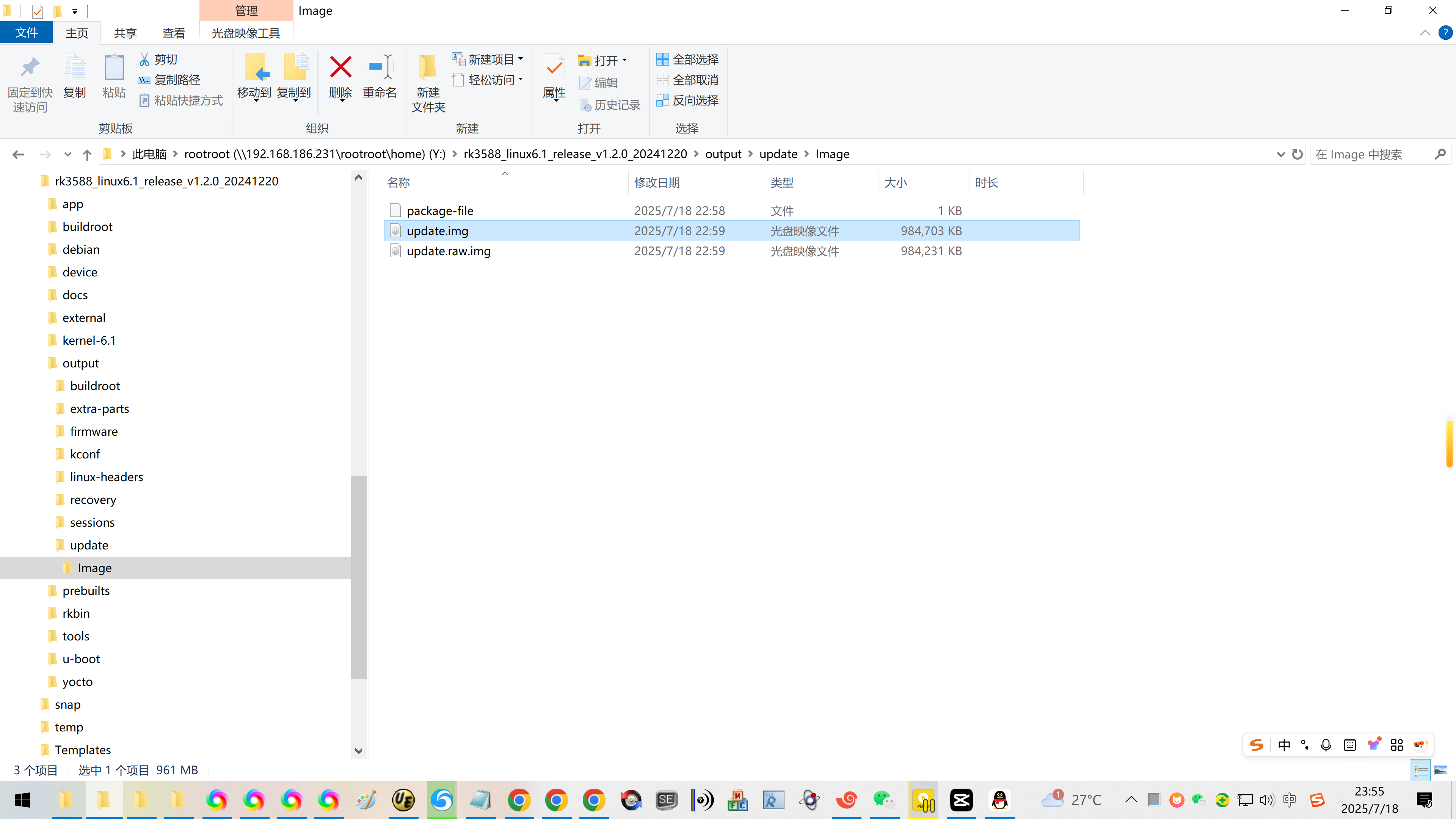

编译完成的IMG固件：
Y:\rk3588_linux6.1_release_v1.2.0_20241220\output\update\Image\update.img

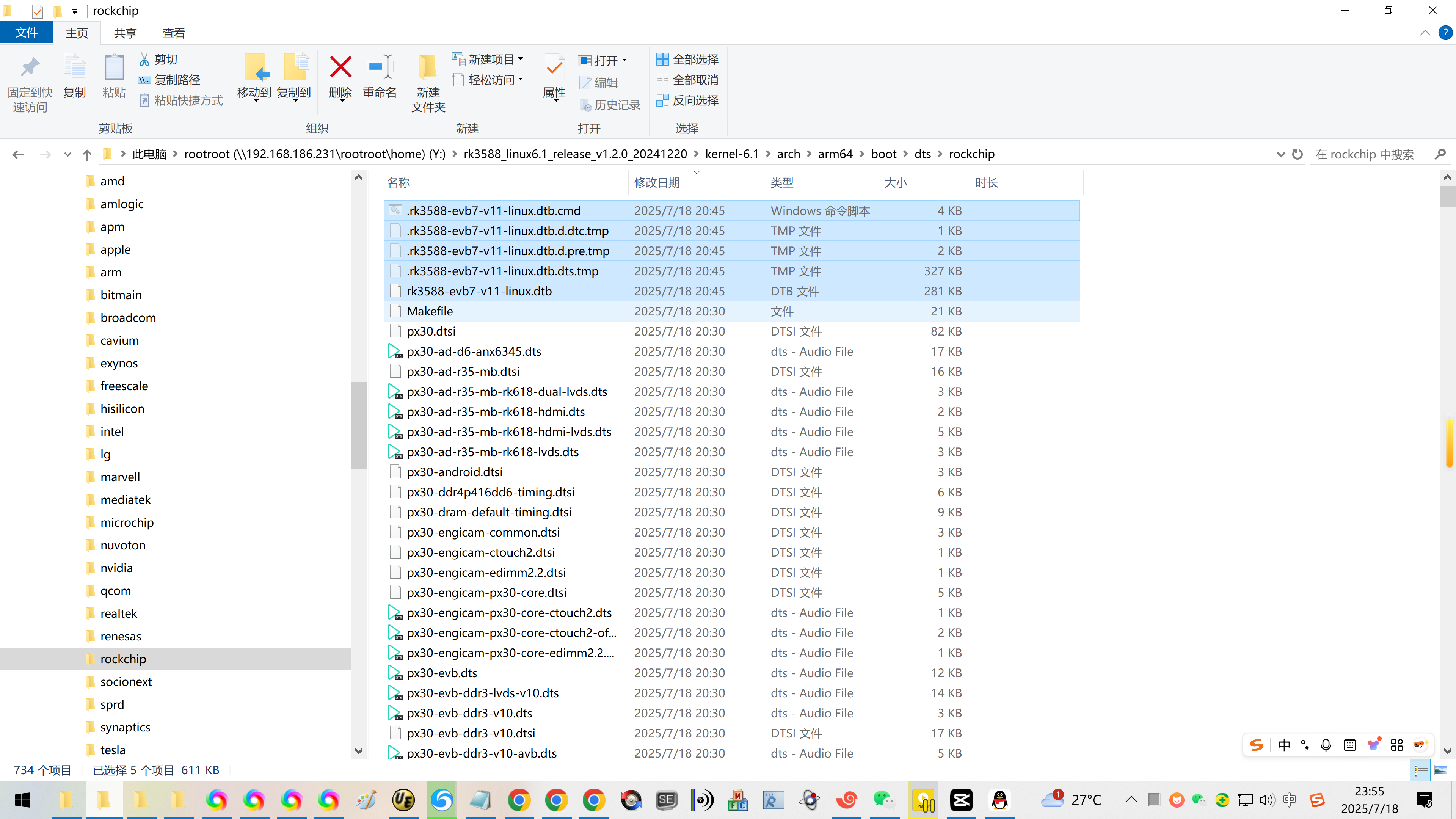

Y:\rk3588_linux6.1_release_v1.2.0_20241220\kernel-6.1\arch\arm64\boot\dts\rockchip\rk3588-evb7-v11-linux.dtb
Y:\rk3588_linux6.1_release_v1.2.0_20241220\kernel-6.1\.config
#
# Automatically generated file; DO NOT EDIT.
# Linux/arm64 6.1.75 Kernel Configuration
#
20250718在ubuntu22.04.5下编译RK3588的Buildroot【linux-6.1】
2025/7/18 23:41
缘起：在 海鲜市场拿到了这份找了很久很久的SDK。
以EVB7模式开搞！
精简编译LOG：

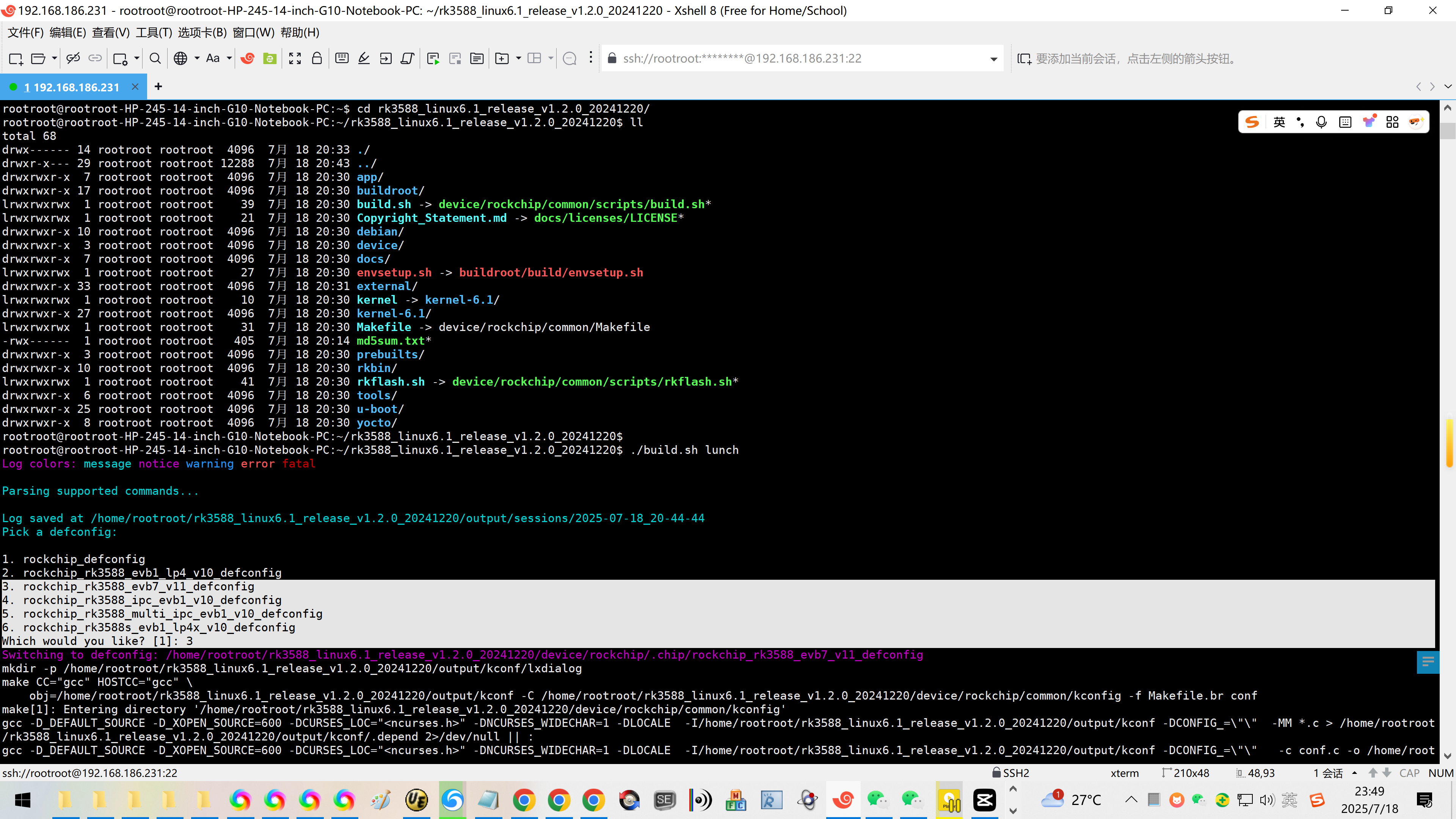

[2025/7/18 20:43:41] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~$ ll
[2025/7/18 20:43:51] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~$ cd rk3588_linux6.1_release_v1.2.0_20241220/
[2025/7/18 20:43:52] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
[2025/7/18 20:43:52] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$

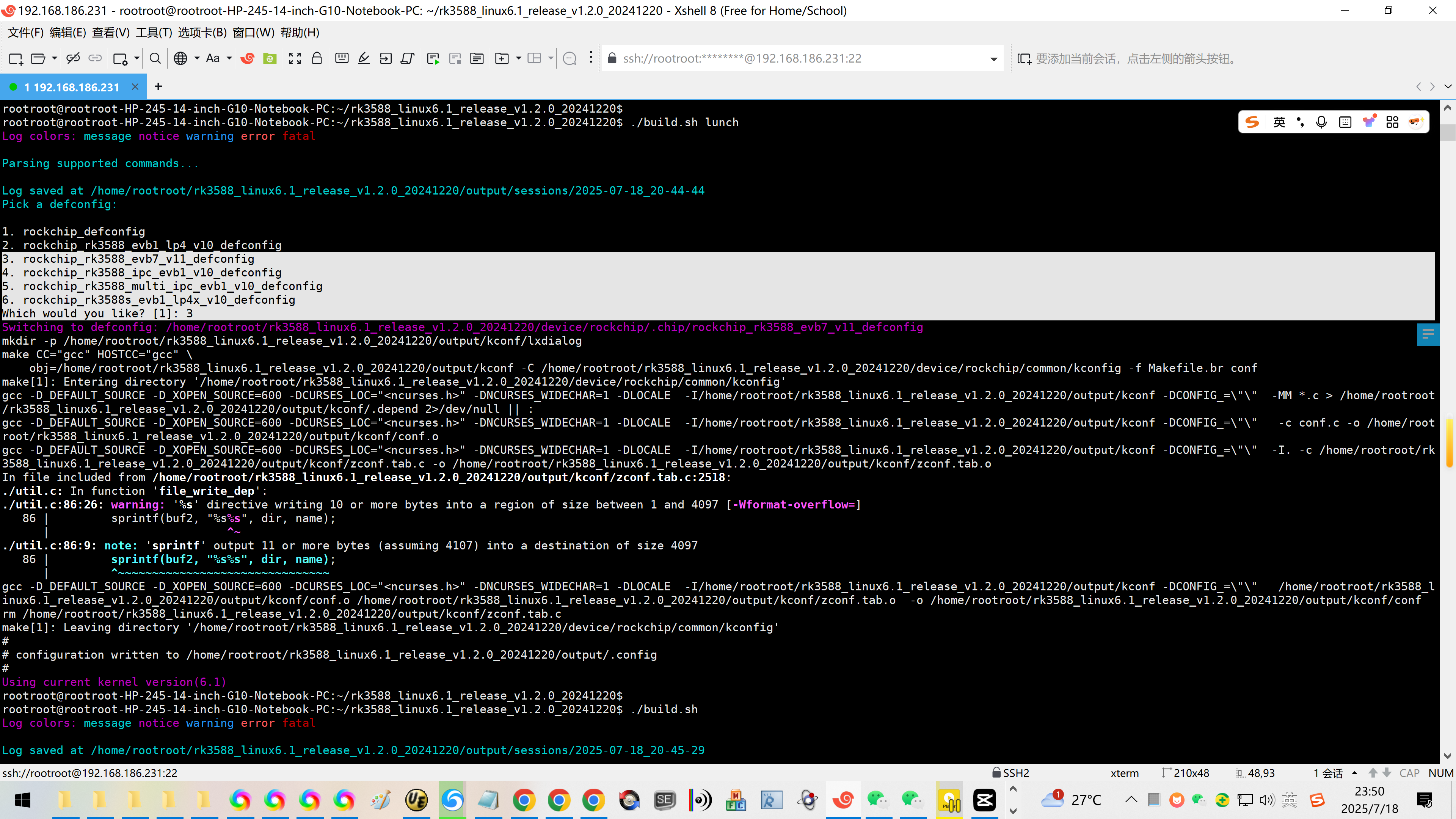

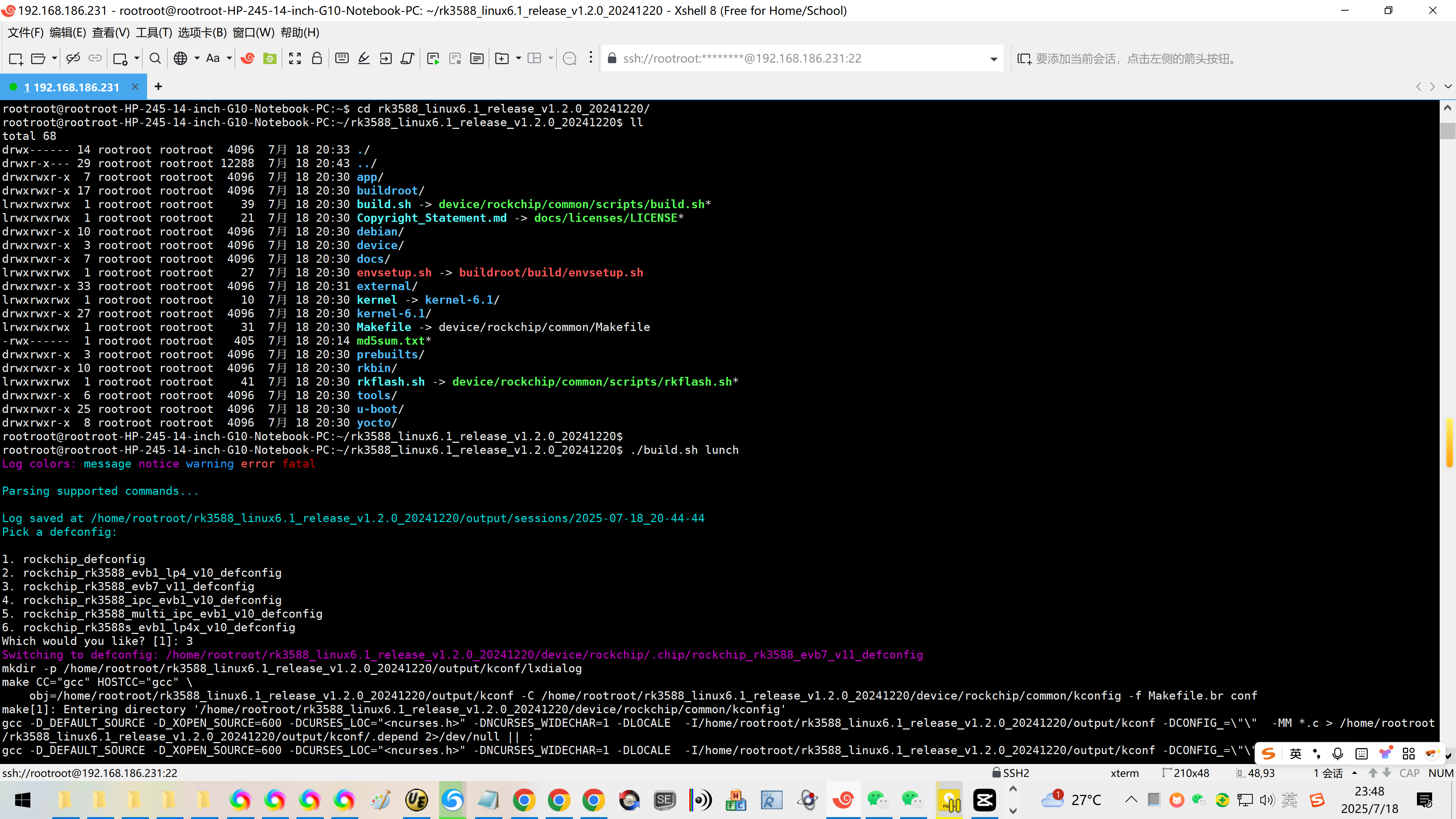

[2025/7/18 20:44:37] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ./build.sh lunch
[2025/7/18 20:44:38] Log colors: message notice warning error fatal
[2025/7/18 20:44:38]
[2025/7/18 20:44:38] Parsing supported commands...
[2025/7/18 20:44:38]
[2025/7/18 20:44:38] Log saved at /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/sessions/2025-07-18_20-44-44
[2025/7/18 20:44:38] Pick a defconfig:
[2025/7/18 20:44:38]
[2025/7/18 20:44:38] 1. rockchip_defconfig
[2025/7/18 20:44:38] 2. rockchip_rk3588_evb1_lp4_v10_defconfig
[2025/7/18 20:44:38] 3. rockchip_rk3588_evb7_v11_defconfig
[2025/7/18 20:44:38] 4. rockchip_rk3588_ipc_evb1_v10_defconfig
[2025/7/18 20:44:38] 5. rockchip_rk3588_multi_ipc_evb1_v10_defconfig
[2025/7/18 20:44:38] 6. rockchip_rk3588s_evb1_lp4x_v10_defconfig
[2025/7/18 20:44:50] Which would you like? [1]: 3
[2025/7/18 20:44:50] Switching to defconfig: /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/device/rockchip/.chip/rockchip_rk3588_evb7_v11_defconfig
[2025/7/18 20:44:50] mkdir -p /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/lxdialog
[2025/7/18 20:44:50] make CC="gcc" HOSTCC="gcc" \
[2025/7/18 20:44:50] obj=/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf -C /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/device/rockchip/common/kconfig -f Makefile.br conf
[2025/7/18 20:44:50] make[1]: Entering directory '/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/device/rockchip/common/kconfig'
[2025/7/18 20:44:50] gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf -DCONFIG_=\"\" -MM *.c > /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/.depend 2>/dev/null || :
[2025/7/18 20:44:51] gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf -DCONFIG_=\"\" -c conf.c -o /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/conf.o
[2025/7/18 20:44:51] gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf -DCONFIG_=\"\" -I. -c /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/zconf.tab.c -o /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/zconf.tab.o
[2025/7/18 20:44:51] In file included from /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/zconf.tab.c:2518:
[2025/7/18 20:44:51] ./util.c: In function 'file_write_dep':
[2025/7/18 20:44:51] ./util.c:86:26: warning: '%s' directive writing 10 or more bytes into a region of size between 1 and 4097 [-Wformat-overflow=]
[2025/7/18 20:44:51] 86 | sprintf(buf2, "%s%s", dir, name);
[2025/7/18 20:44:51] | ^~
[2025/7/18 20:44:51] ./util.c:86:9: note: 'sprintf' output 11 or more bytes (assuming 4107) into a destination of size 4097
[2025/7/18 20:44:51] 86 | sprintf(buf2, "%s%s", dir, name);
[2025/7/18 20:44:51] | ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
[2025/7/18 20:44:51] gcc -D_DEFAULT_SOURCE -D_XOPEN_SOURCE=600 -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf -DCONFIG_=\"\" /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/conf.o /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/zconf.tab.o -o /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/conf
[2025/7/18 20:44:51] rm /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/kconf/zconf.tab.c
[2025/7/18 20:44:51] make[1]: Leaving directory '/home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/device/rockchip/common/kconfig'
[2025/7/18 20:44:51] #
[2025/7/18 20:44:51] # configuration written to /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/.config
[2025/7/18 20:44:51] #
[2025/7/18 20:44:51] Using current kernel version(6.1)
[2025/7/18 20:44:54] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$

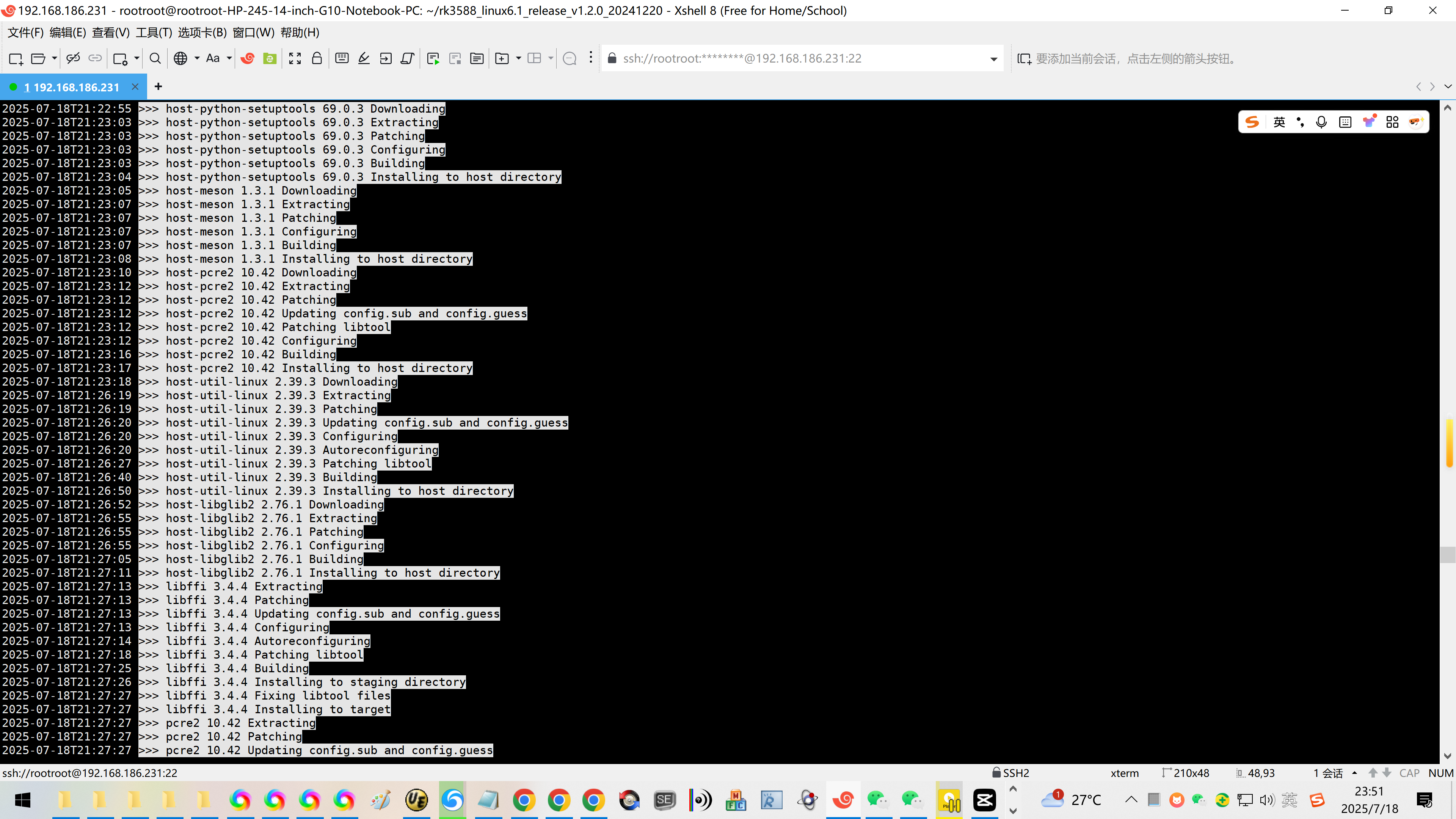

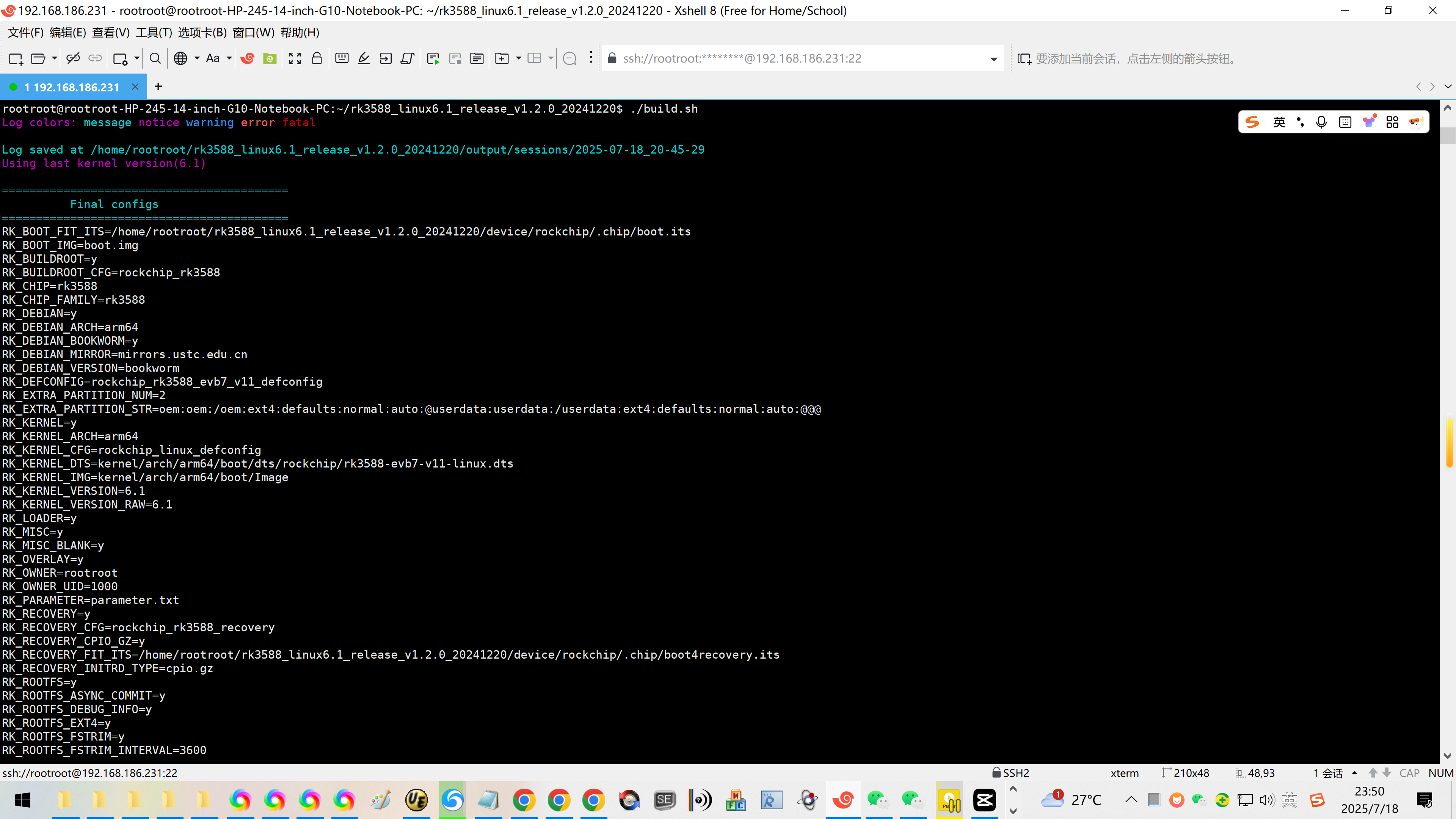

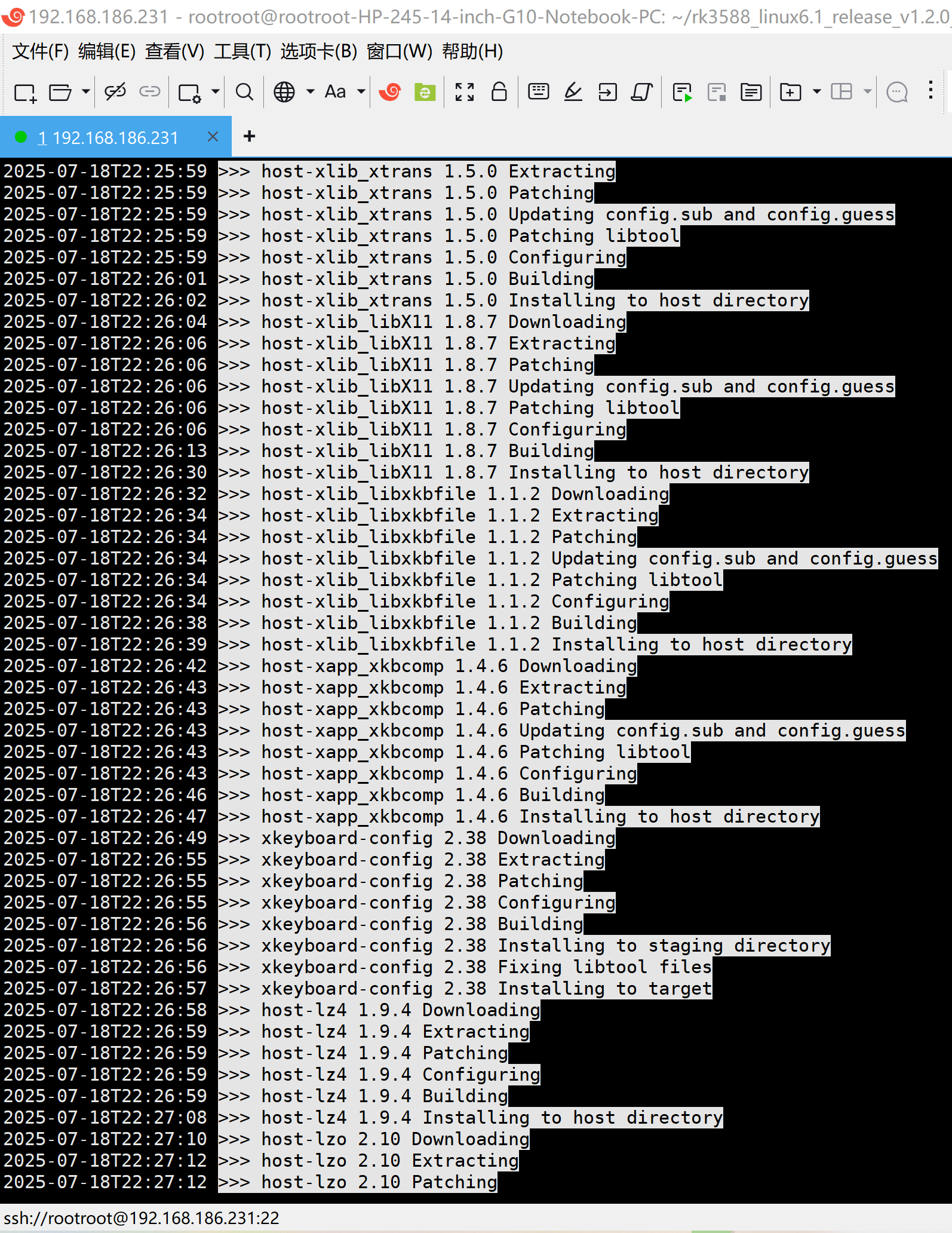

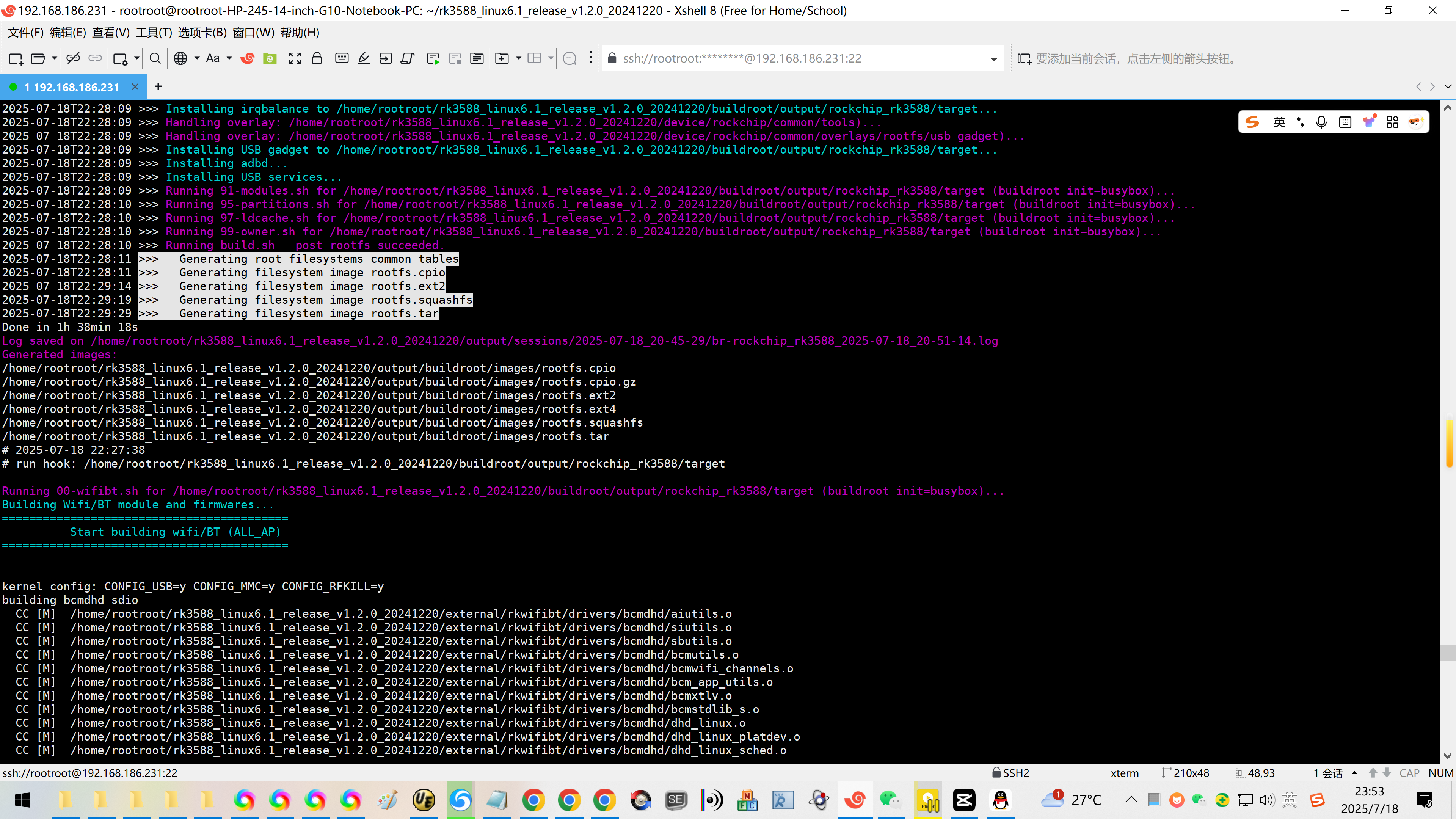

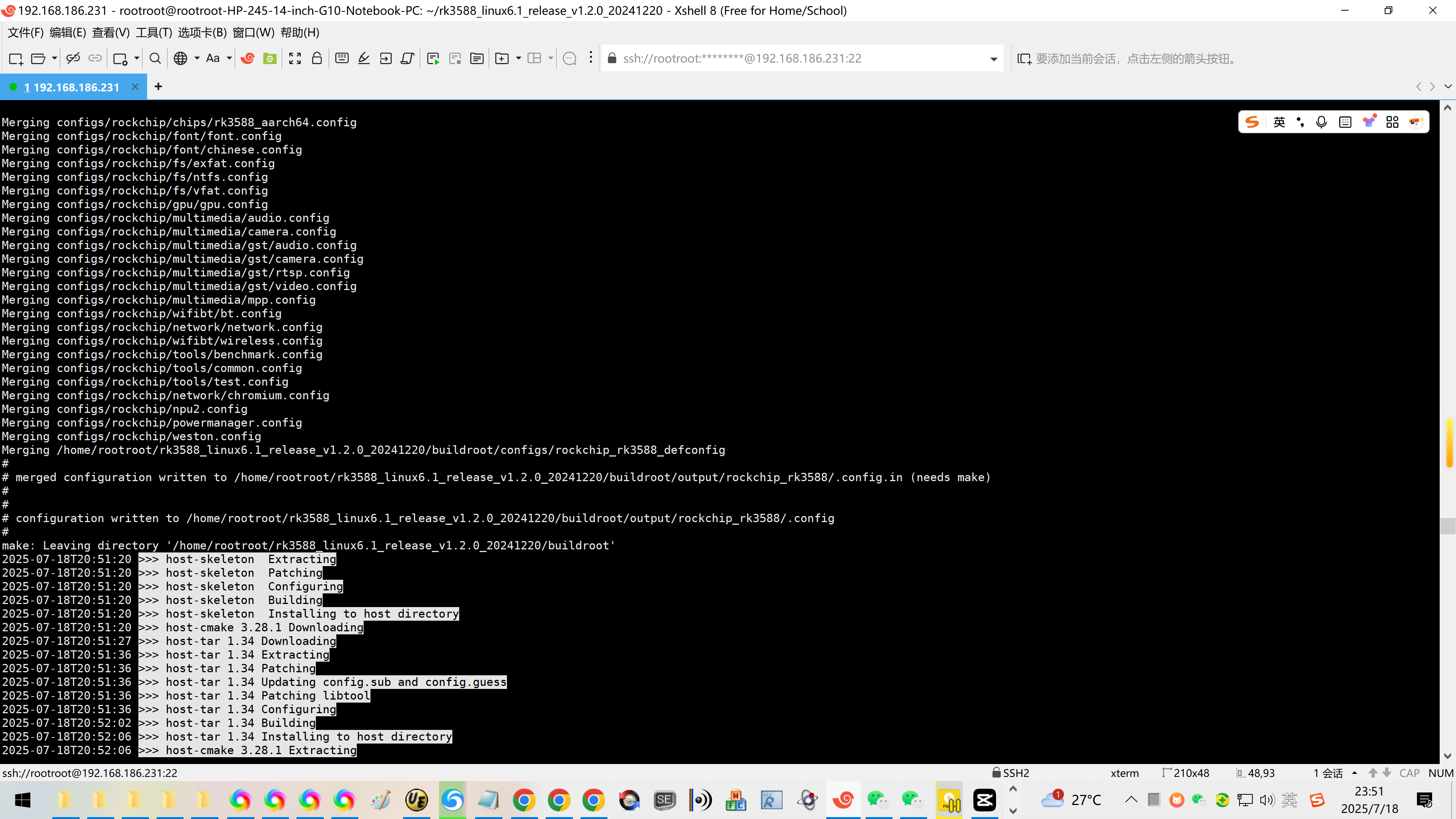

[2025/7/18 20:45:22] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ./build.sh
[2025/7/18 20:45:22] Log colors: message notice warning error fatal
[2025/7/18 20:45:22]
[2025/7/18 20:45:22] Log saved at /home/rootroot/rk3588_linux6.1_release_v1.2.0_20241220/output/sessions/2025-07-18_20-45-29
[2025/7/18 20:45:23] Using last kernel version(6.1)
[2025/7/18 23:00:18] Debian control file:
[2025/7/18 23:00:18] Package: linux-headers-6.1-arm64
[2025/7/18 23:00:18] Source: linux-rockchip (6.1)
[2025/7/18 23:00:18] Version: 6.1-rockchip
[2025/7/18 23:00:18] Architecture: aarch64
[2025/7/18 23:00:18] Section: kernel
[2025/7/18 23:00:18] Priority: optional
[2025/7/18 23:00:18] Multi-Arch: foreign
[2025/7/18 23:00:18] Maintainer: Tao Huang <huangtao@rock-chips.com>
[2025/7/18 23:00:18] Homepage: https://www.kernel.org/
[2025/7/18 23:00:18] Description: Kbuild and headers for Rockchip Linux 6.1 arm64 configuration
[2025/7/18 23:00:18] Packing linux-headers-6.1-arm64_aarch64.deb...
[2025/7/18 23:00:40] Running mk-kernel.sh - linux-headers-aarch64 succeeded.
[2025/7/18 23:00:40] Running mk-kernel.sh - linux-headers succeeded.
[2025/7/18 23:00:40] Running 99-all.sh - build_all succeeded.
[2025/7/18 23:09:31] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$

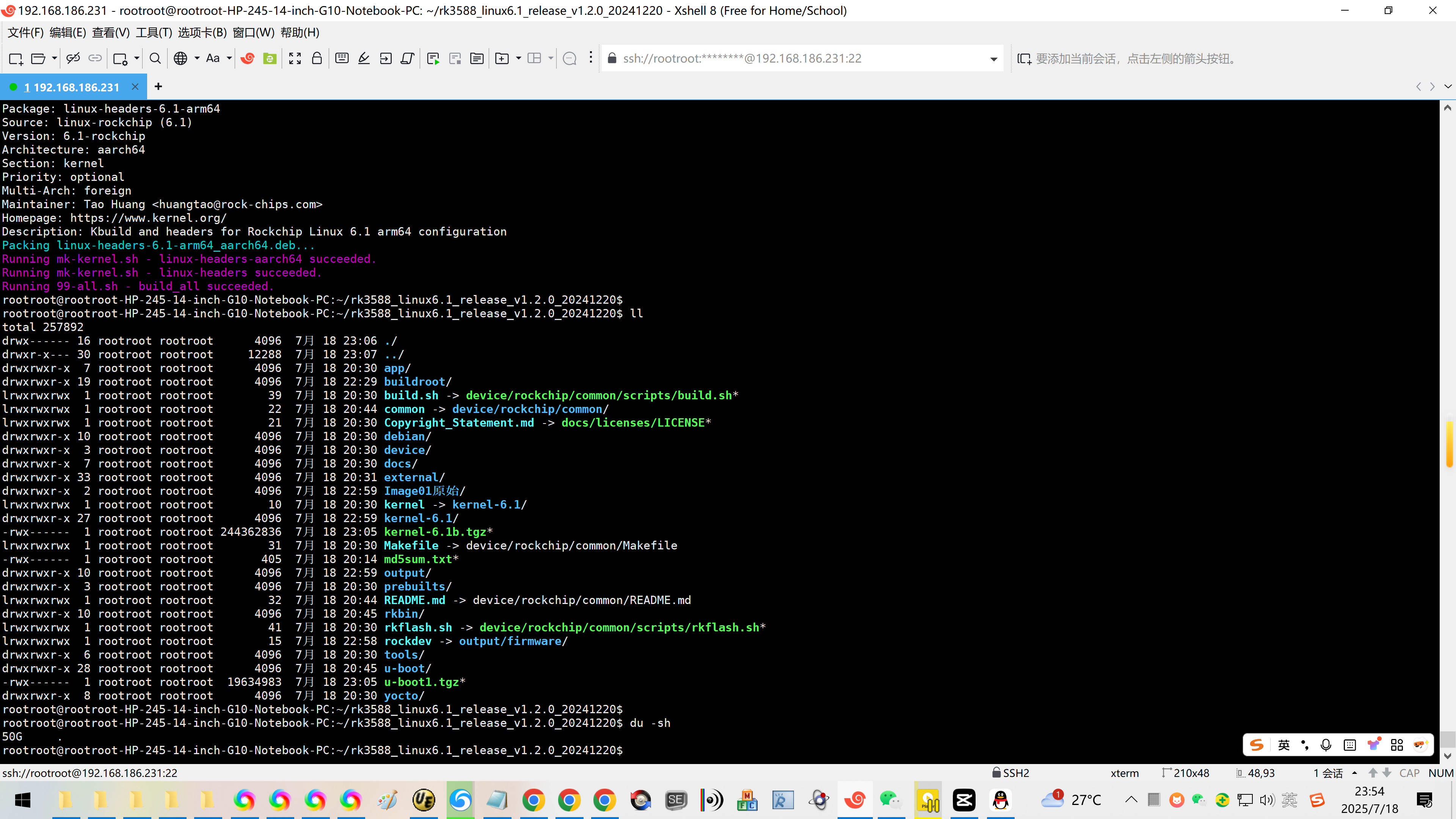

[2025/7/18 23:09:32] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ ll
[2025/7/18 23:09:33] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$
[2025/7/18 23:09:36] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$ du -sh
[2025/7/18 23:10:04] 50G .
[2025/7/18 23:11:34] rootroot@rootroot-HP-245-14-inch-G10-Notebook-PC:~/rk3588_linux6.1_release_v1.2.0_20241220$
