【深度学习】PyTorch从0到1——手写你的第一个卷积神经网络模型，AI模型开发全过程实战

发布于：2025-08-19 ⋅ 阅读:(10) ⋅ 点赞:(0)

引言

本次准备建立一个卷积神经网络模型，用于区分鸟和飞机，并从CIFAR-10数据集中选出所有鸟和飞机作为本次的数据集。

以此为例，介绍一个神经网络模型从数据集准备、数据归一化处理、模型网络函数定义、模型训练、结果验证、模型文件保存，端到端的模型全生命周期，方便大家深入了解AI模型开发的全过程。



一、网络场景定义与数据集准备

1.1 数据集准备

本次我准备使用CIFAR10数据集，它是一个简单有趣的数据集，由60000张小RGB图片构成(32像素*32像素)，每张图类别标签用1～10数字表示

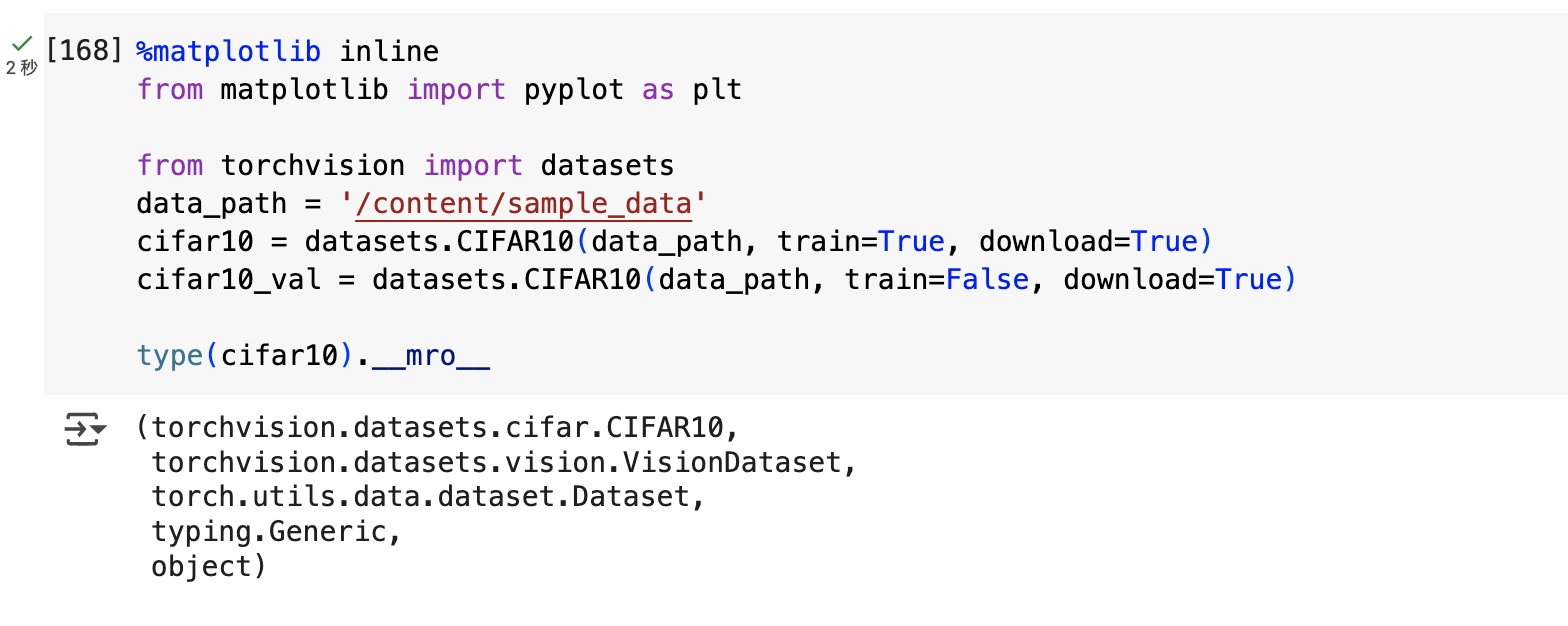

%matplotlib inline
from matplotlib import pyplot as plt

from torchvision import datasets
data_path = '/content/sample_data'
cifar10 = datasets.CIFAR10(data_path, train=True, download=True)
cifar10_val = datasets.CIFAR10(data_path, train=False, download=True)

type(cifar10).__mro__

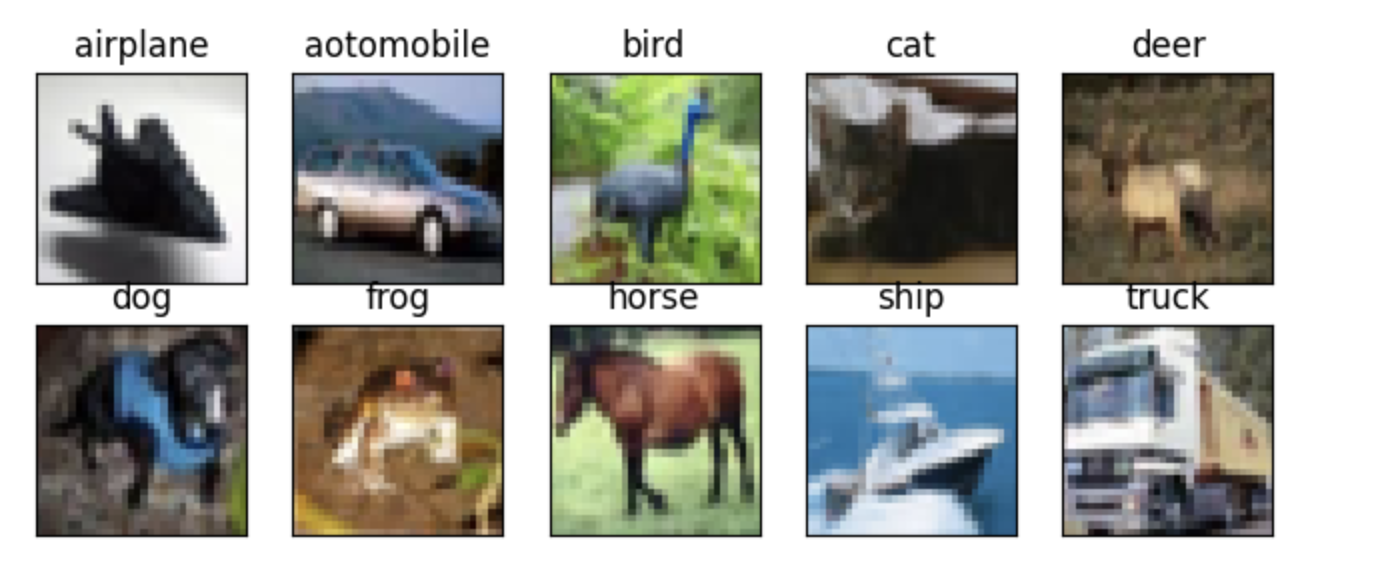

1.2 查看数据集类别示例

class_names = ['airplane', 'aotomobile', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']

fig = plt.figure(figsize=(8, 3))
num_classes = 10
for i in range(num_classes):
    ax = fig.add_subplot(2, 5 ,1 + i, xticks=[], yticks=[])
    ax.set_title(class_names[i])
    img = next(img for img, label in cifar10 if label == i)
    plt.imshow(img)
plt.show()

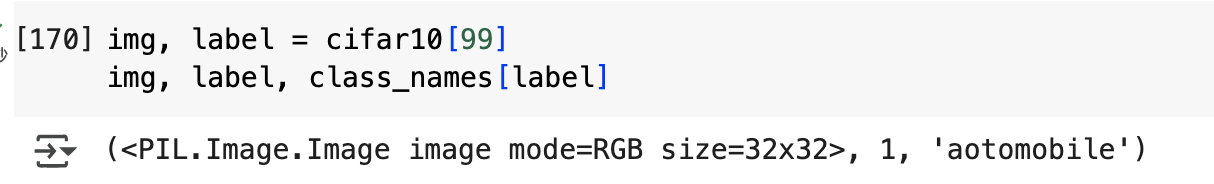

1.2.1 输出单张图像类别及展示图片

img, label = cifar10[99]
img, label, class_names[label]

plt.imshow(img)
plt.show()



1.3 数据集Dataset变换

使用torchvision.transforms模块，将PIL图像变换为PyTorch张量，用于图像分类

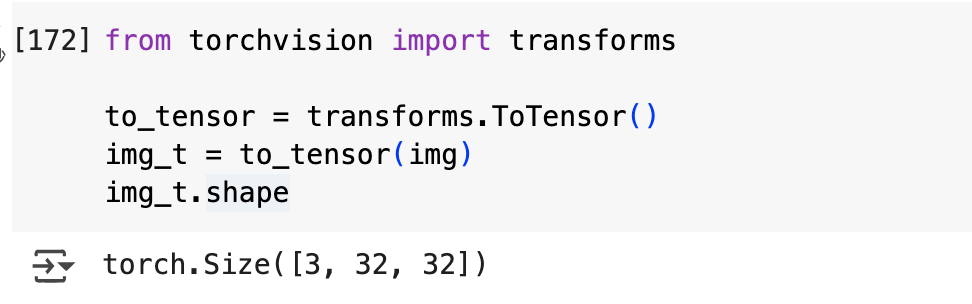

1.3.1 将单张图像转换为张量，输出张量大小

from torchvision import transforms

to_tensor = transforms.ToTensor()
img_t = to_tensor(img)
img_t.shape

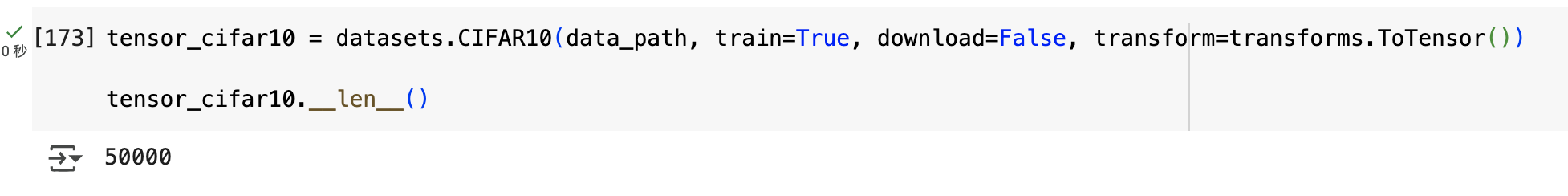

1.3.2 将CIFAR10数据集转换为张量

tensor_cifar10 = datasets.CIFAR10(data_path, train=True, download=False, transform=transforms.ToTensor())

tensor_cifar10.__len__()

1.4 数据归一化

使用transforms.Compose()将图像连接起来，在数据加载器中直接进行数据归一化和数据增强操作

使用transforms.Normalize()，计算数据集中每个通道的平均值和标准差，使每个通道的均值为0，标准差为1

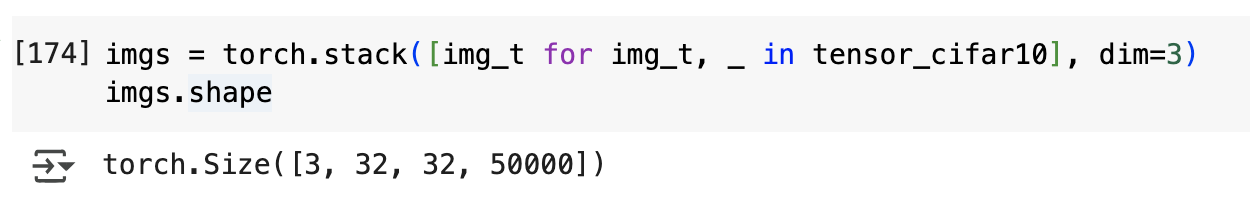

imgs = torch.stack([img_t for img_t, _ in tensor_cifar10], dim=3)
imgs.shape

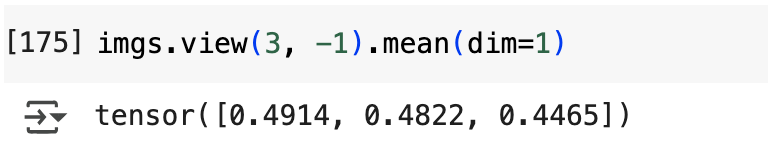

1.4.1 计算每个通道的平均值(mean)

imgs.view(3, -1).mean(dim=1)

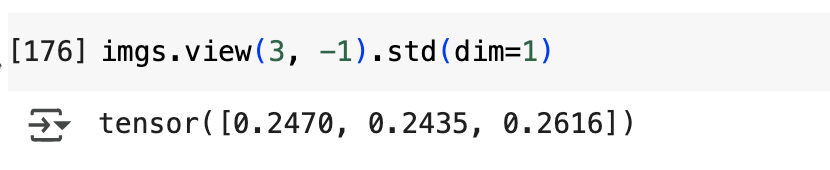

1.4.2 计算每个通道的标准差(stdev)

imgs.view(3, -1).std(dim=1)

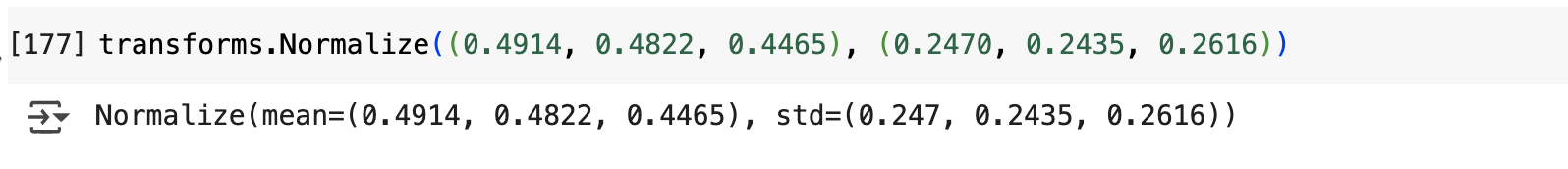

1.4.3 使用transforms.Normailze()对数据集归一化

使每个数据集的通道的均值为0，标准差为1

transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2470, 0.2435, 0.2616))

二、使用nn.Module编写第一个识别鸟与飞机的网络模型

2.1 构建鸟与飞机的训练集和验证集

2.1.1 准备CIFAR10数据集

cifar10 = datasets.CIFAR10(
    data_path, train=True, download=False,
    transform=transforms.Compose([
        transforms.ToTensor(),
        transforms.Normalize((0.4914, 0.4822, 0.4465),
                             (0.2470, 0.2435, 0.2616))
     ]))
cifar10_val = datasets.CIFAR10(
    data_path, train=True, download=False,
    transform=transforms.Compose([
        transforms.ToTensor(),
        transforms.Normalize((0.4914, 0.4822, 0.4465),
                             (0.2470, 0.2435, 0.2616))
     ]))

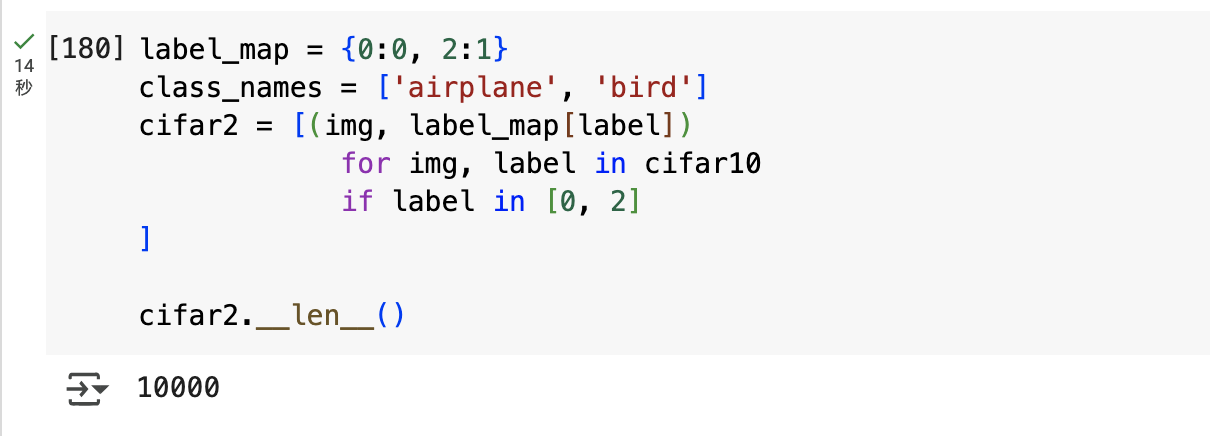

2.1.2 构建CIFAR2-数据集

label_map = {0:0, 2:1}
class_names = ['airplane', 'bird']
cifar2 = [(img, label_map[label])
            for img, label in cifar10
            if label in [0, 2]
]

cifar2.__len__()

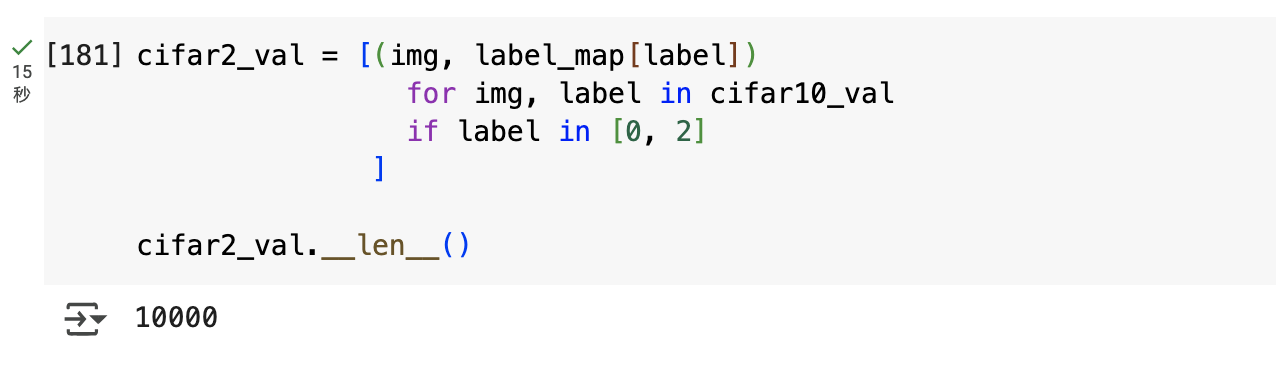

2.1.3 构建CIFAR2-验证集

cifar2_val = [(img, label_map[label])
                for img, label in cifar10_val
                if label in [0, 2]
              ]

cifar2_val.__len__()

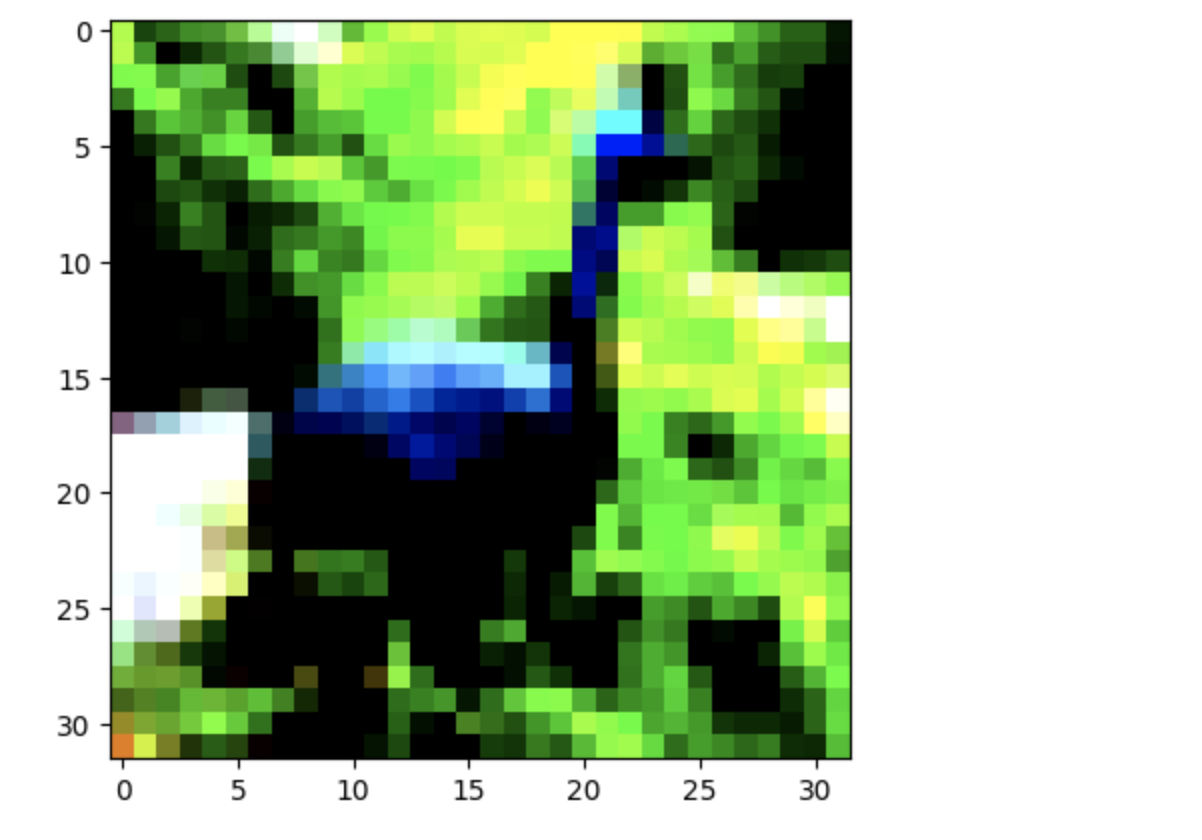

2.1.4 准备批处理图像

img, _ = cifar2[0]

plt.imshow(img.permute(1, 2, 0))
plt.show()

img.shape

2.2 编写第一个nn.Module子模块的网络定义

import torch
import torch.nn as nn
import torch.optim as optim

class Net(nn.Module):
  def __init__(self):
    super().__init__()
    self.conv1 = nn.Conv2d(3, 16, kernel_size=3, padding=1)
    self.act1 = nn.Tanh()
    self.pool1 = nn.MaxPool2d(2)
    self.conv2 = nn.Conv2d(16, 8, kernel_size=3, padding=1)
    self.act2 = nn.Tanh()
    self.pool2 = nn.MaxPool2d(2)
    self.fc1 = nn.Linear(8 * 8 * 8, 32)
    self.act3 = nn.Tanh()
    self.fc2 = nn.Linear(32, 2)

  def forward(self, x):
    out = self.pool1(self.act1(self.conv1(x)))
    out = self.pool2(self.act2(self.conv2(out)))
    out = out.view(-1, 8 * 8 * 8)
    out = self.act3(self.fc1(out))
    out = self.fc2(out)
    return out

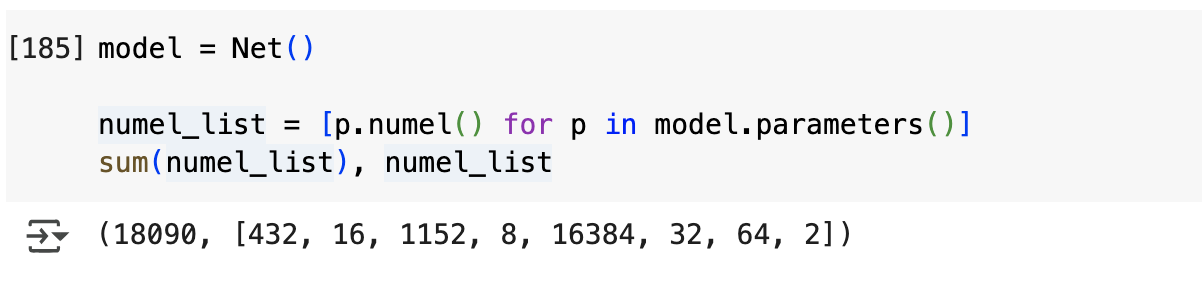

2.2.1 将网络模型实例化，并输出模型参数

model = Net()

numel_list = [p.numel() for p in model.parameters()]
sum(numel_list), numel_list

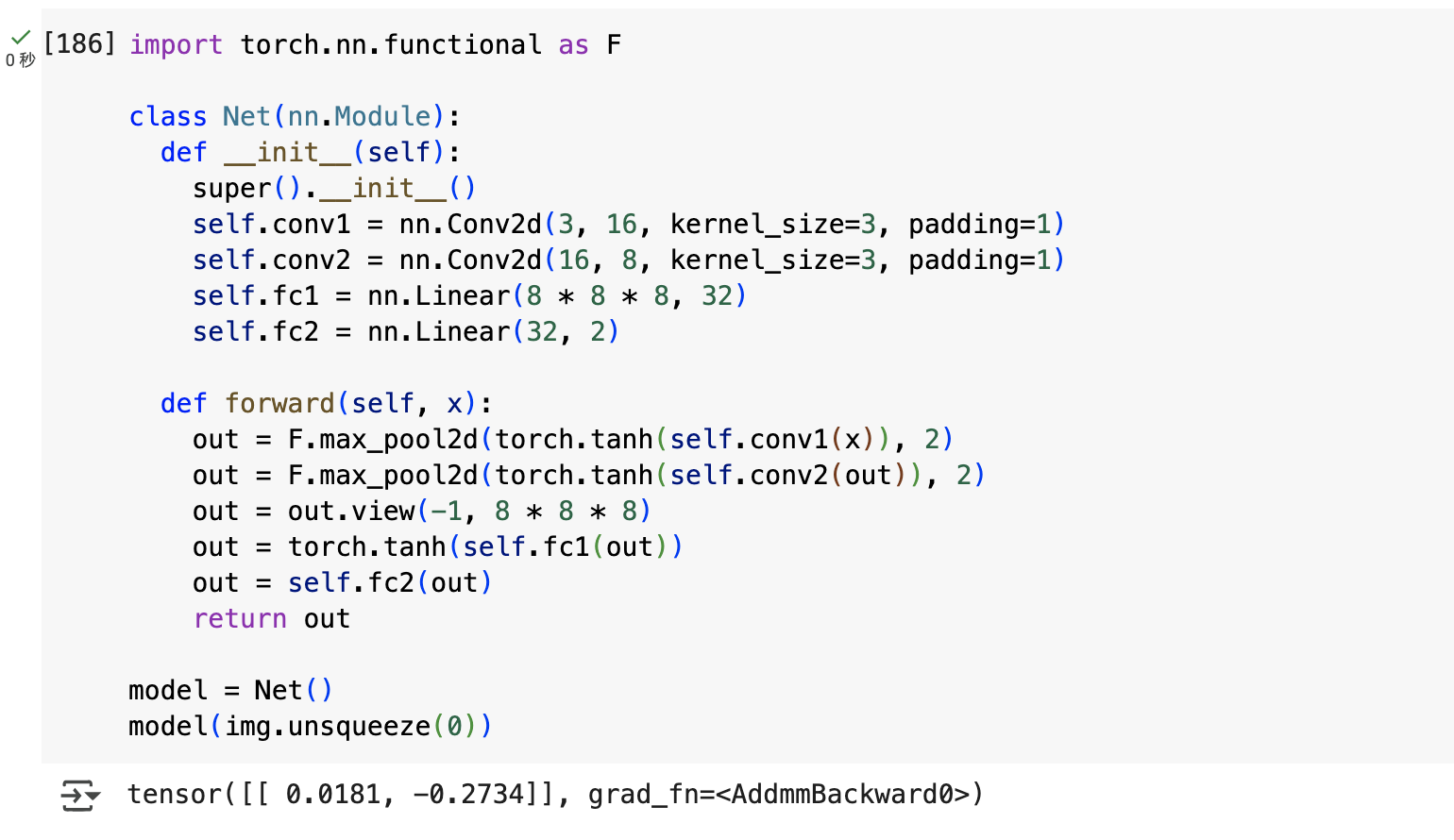

2.3 使用函数式API，优化nn.Module网络函数定义

import torch.nn.functional as F

class Net(nn.Module):
  def __init__(self):
    super().__init__()
    self.conv1 = nn.Conv2d(3, 16, kernel_size=3, padding=1)
    self.conv2 = nn.Conv2d(16, 8, kernel_size=3, padding=1)
    self.fc1 = nn.Linear(8 * 8 * 8, 32)
    self.fc2 = nn.Linear(32, 2)

  def forward(self, x):
    out = F.max_pool2d(torch.tanh(self.conv1(x)), 2)
    out = F.max_pool2d(torch.tanh(self.conv2(out)), 2)
    out = out.view(-1, 8 * 8 * 8)
    out = torch.tanh(self.fc1(out))
    out = self.fc2(out)
    return out

model = Net()
model(img.unsqueeze(0))

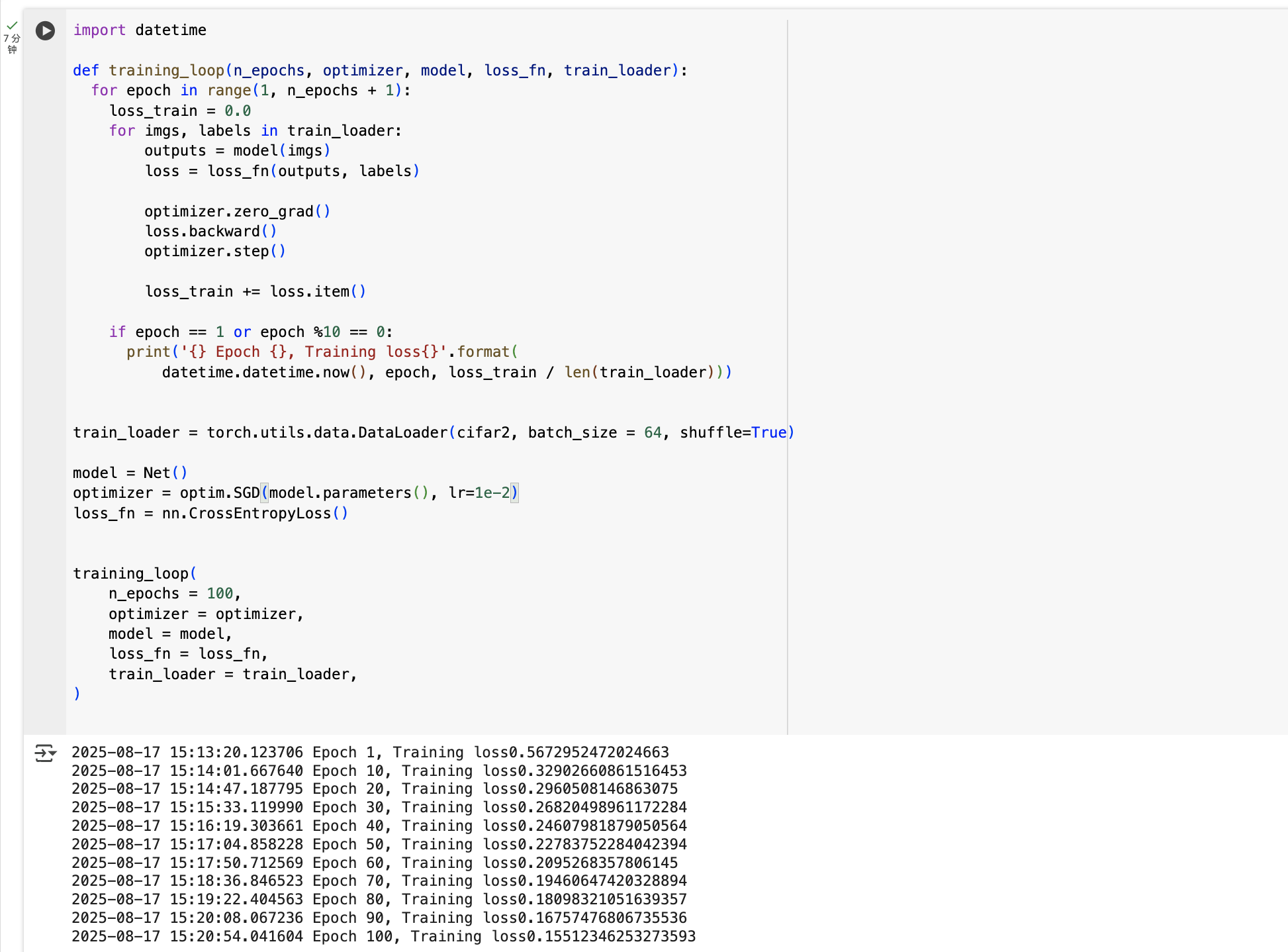

2.4 定义网络模型的训练循环函数，并执行训练

import datetime

def training_loop(n_epochs, optimizer, model, loss_fn, train_loader):
  for epoch in range(1, n_epochs + 1):
    loss_train = 0.0
    for imgs, labels in train_loader:
        outputs = model(imgs)
        loss = loss_fn(outputs, labels)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        loss_train += loss.item()

    if epoch == 1 or epoch %10 == 0:
      print('{} Epoch {}, Training loss{}'.format(
          datetime.datetime.now(), epoch, loss_train / len(train_loader)))

train_loader = torch.utils.data.DataLoader(cifar2, batch_size = 64, shuffle=True)

model = Net()
optimizer = optim.SGD(model.parameters(), lr=1e-2)
loss_fn = nn.CrossEntropyLoss()

training_loop(
    n_epochs = 100,
    optimizer = optimizer,
    model = model,
    loss_fn = loss_fn,
    train_loader = train_loader,



2.4.1 训练结果（耗时7分钟）

2025-08-17 15:13:20.123706 Epoch 1, Training loss0.5672952472024663
2025-08-17 15:14:01.667640 Epoch 10, Training loss0.32902660861516453
2025-08-17 15:14:47.187795 Epoch 20, Training loss0.2960508146863075
2025-08-17 15:15:33.119990 Epoch 30, Training loss0.26820498961172284
2025-08-17 15:16:19.303661 Epoch 40, Training loss0.24607981879050564
2025-08-17 15:17:04.858228 Epoch 50, Training loss0.22783752284042394
2025-08-17 15:17:50.712569 Epoch 60, Training loss0.2095268357806145
2025-08-17 15:18:36.846523 Epoch 70, Training loss0.19460647420328894
2025-08-17 15:19:22.404563 Epoch 80, Training loss0.18098321051639357
2025-08-17 15:20:08.067236 Epoch 90, Training loss0.16757476806735536
2025-08-17 15:20:54.041604 Epoch 100, Training loss0.15512346253273593

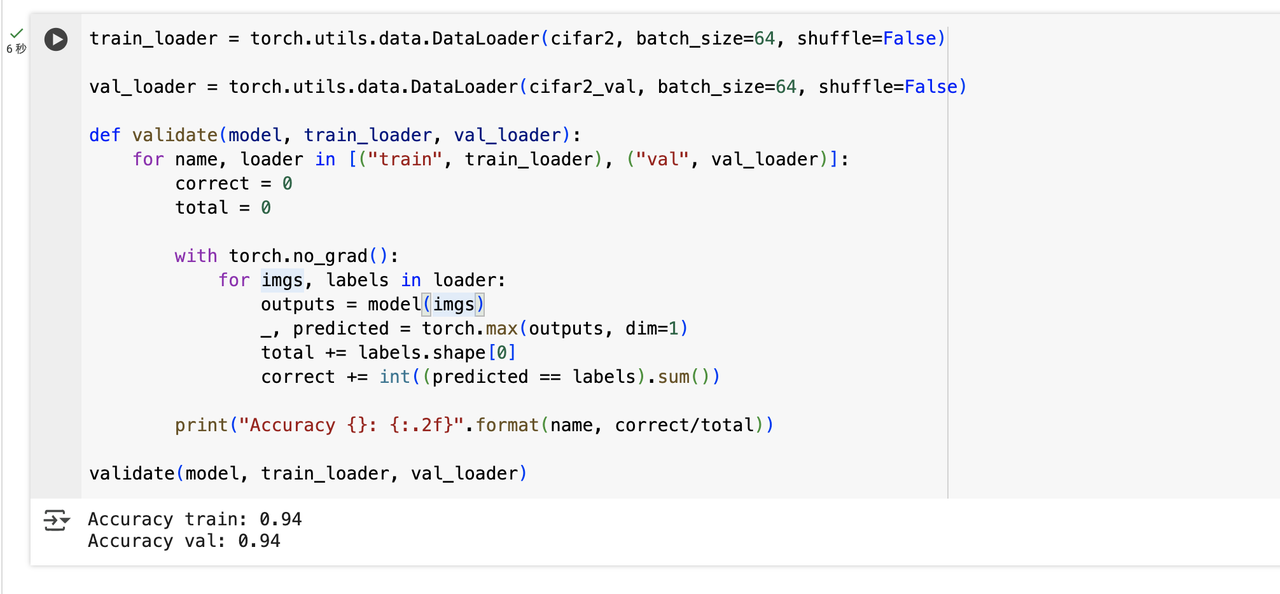

2.5 测量准确率（使用验证集）

train_loader = torch.utils.data.DataLoader(cifar2, batch_size=64, shuffle=False)

val_loader = torch.utils.data.DataLoader(cifar2_val, batch_size=64, shuffle=False)

def validate(model, train_loader, val_loader):
    for name, loader in [("train", train_loader), ("val", val_loader)]:
        correct = 0
        total = 0

        with torch.no_grad():
            for imgs, labels in loader:
                outputs = model(imgs)
                _, predicted = torch.max(outputs, dim=1)
                total += labels.shape[0]
                correct += int((predicted == labels).sum())

        print("Accuracy {}: {:.2f}".format(name, correct/total))

validate(model, train_loader, val_loader)

2.6 保存并加载我们的模型

2.6.1 保存模型

torch.save(model.state_dict(), data_path + 'birds_vs_airplanes.pt')

torch.save(model.state_dict(), data_path + 'birds_vs_airplanes.pt')

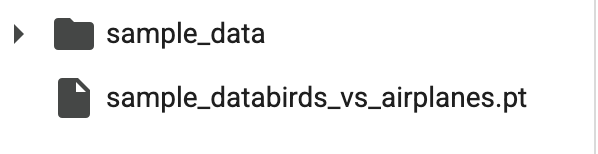

2.6.2 模型pt文件生成

包含模型的所有参数，即2个卷积模块和2个线性模块的权重和偏置

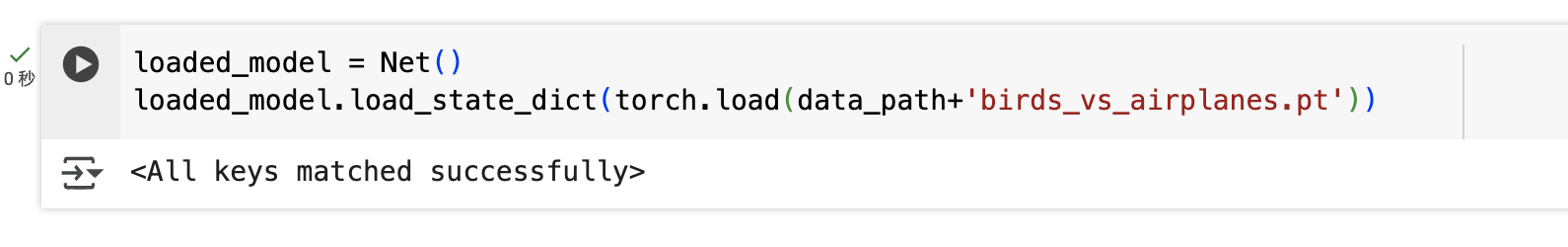

2.6.3 加载参数到模型实例

loaded_model = Net()
loaded_model.load_state_dict(torch.load(data_path+'birds_vs_airplanes.pt'))

三、小结

至此，我们完成一个卷积神经网络模型birds_vs_airplanes的构建，可用于图像分类识别，区分图片是鸟还是飞机，准确性高达94！

我们从数据集准备、数据集准备、数据归一化处理、模型网络函数定义、模型训练、结果验证、模型文件保存，并将模型参数加载到另一个新模型实例中，端到端完整串联一个神经网络模型全生命周期的过程，加深对AI模型开发的理解，这是个经典案例，快来试试吧～
