部署 HAProxy 高可用

回顾一下去年的项目：

1.题目

构建一个基于haproxy和Keepalived 的高可用负载均衡架构，在 haproxy 或节点发生故障时，能够自动进行故障转移。使用2台 DS服务器和3台RS服务器，Keepalived与haproxy相结合，通过Keepalived 的健康监测机制实现对 DS和 RS 的 HealthCheck，并且利用Keepalived 支持的 VRRP 协议来实现对两台 DS的主备。

2.主机规划

注意：默认所有软件都已经下载

3、配置NFS和chrony

[root@nfs ~]# mkdir /nfs/data     #创建挂载目录

[root@nfs ~]# cat /etc/exports
/nfs/data  192.168.111.40(rw)
[root@nfs ~]# exportfs -r             #刷新
[root@nfs ~]# cat /etc/chrony.conf

..............

# Allow NTP client access from local network.
allow 192.168.111.0/24

..................

[root@nfs ~]# systemctl restart  nfs-server.service
[root@nfs ~]# systemctl restart chronyd
[root@nfs ~]# showmount -e 192.168.111.40
Export list for 192.168.111.40:
/nfs/data 192.168.111.0/24

[root@nginx1 ~]# mount -t nfs 192.168.111.40:/nfs/data  /usr/share/nginx/html/

[root@nginx1 ~]# systemctl restart nginx

[root@nginx2 ~]# mount -t nfs 192.168.111.40:/nfs/data  /usr/share/nginx/html/
[root@nginx2 ~]# systemctl restart nginx

[root@nginx3 ~]# mount -t nfs 192.168.111.40:/nfs/data  /usr/share/nginx/html/
[root@nginx3 ~]# systemctl restart nginx

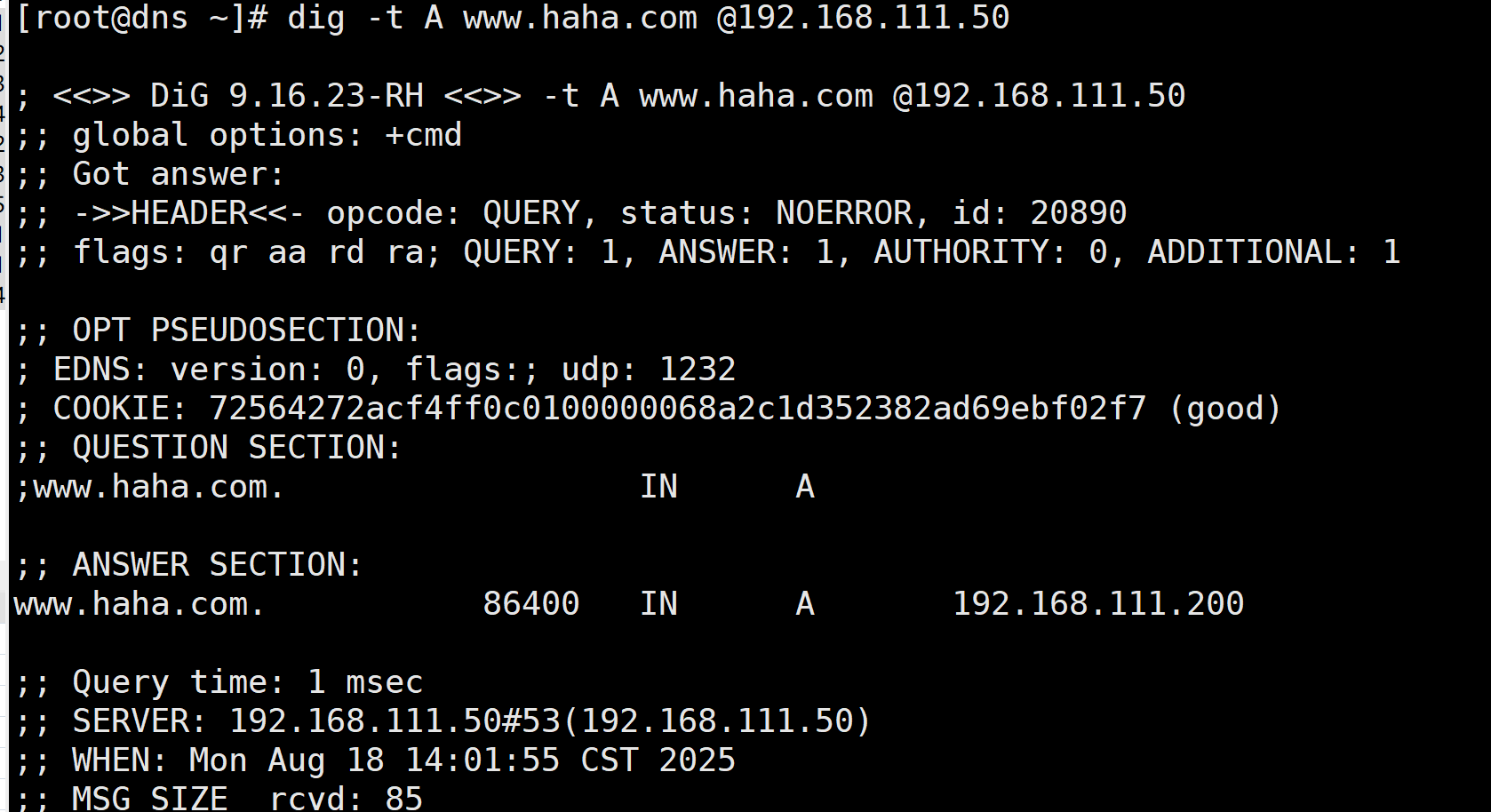

4、配置DNS

[root@dns ~]# cat /etc/named.conf
options {
    listen-on port 53 { 192.168.111.50; };
    directory     "/var/named";
};
zone "haha.com" IN {
    type master;
    file "haha.com";
[root@dns ~]# cat /var/named/haha.com
$TTL 1D
@       IN    SOA    @   ns.haha.com.  admin.haha.com. (0 1H 2W  2D 1D)
           IN    NS      ns
ns       IN     A       192.168.111.50
www   IN     A        192.168.111.200

5、配置keepalived

1.master

[root@haproxy ~]# cat /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS_MASTER
}

vrrp_instance VI_1 {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.111.200
    }
    track_script {
          check_haproxy
}
}
vrrp_script   check_haproxy{
     script "/etc/keepalived/check_haproxy.sh"
     interval  2
     weight    -20
     fall     3
     rise     2
}


2、backup

[root@haproxy2 ~]# cat /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS_BACKUP
}
vrrp_script check_haproxy {
      script "/etc/keepalived/check_haproxy.sh"
      interval  2
      weight    -20
      fall     3
      rise     2
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.111.200
    }
    track_script {
        check_haproxy
}
}

注：id需要相同，两边的shell脚本是一致的

#!/bin/bash
SERVICE="haproxy"
STATUS=$(systemctl is-active  --quiet  "$SERVICE";echo $?)
if [ $STATUS -eq 0 ]
then
        echo "haproxy is active"
else
        systemctl restart haproxy
        sleep 2
        systemctl is-active  --quiet  "$SERVICE"
        RESTART_STATUS=$?

        if [ $RESTART_STATUS -eq 0 ]
        then
                echo "haproxy 重启成功"
        else
                systemctl stop keepalived
                echo  "keepalived is stop"
        fi
fi


6、配置haproxy(两个DS的配置是一样的)

[root@haproxy ~]# cat /etc/haproxy/haproxy.cfg

..................................

frontend main
    bind *:80
    #acl url_static       path_beg       -i /static /images /javascript /stylesheets
    #acl url_static       path_end       -i .jpg .gif .png .css .js

    #use_backend static          if url_static
    default_backend             nginx

#---------------------------------------------------------------------
# static backend for serving up images, stylesheets and such
#---------------------------------------------------------------------
backend static
    balance     roundrobin
    server      static 127.0.0.1:4331 check

#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
backend nginx
    balance     roundrobin
    server  nginx1 192.168.111.10:80 check inter 2000 fall 3 rise 3 weight 1
    server  nginx2 192.168.111.20:80 check inter 2000 fall 3 rise 3 weight 1
    server  nginx3 192.168.111.30:80 check inter 2000 fall 3 rise 3 weight 1
启动服务

[root@haproxy ~]# systemctl restart keepalived.service
[root@haproxy ~]# systemctl restart  haproxy.service

7、测试服务是否是高可用

[root@haproxy ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:9c:b2:af brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.111.100/24 brd 192.168.111.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.111.200/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe9c:b2af/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

关闭haproxy,看看是否可以重新启动

[root@haproxy ~]# systemctl stop haproxy.service
[root@haproxy ~]# systemctl is-active haproxy.service
inactive
[root@haproxy ~]# systemctl is-active haproxy.service
active

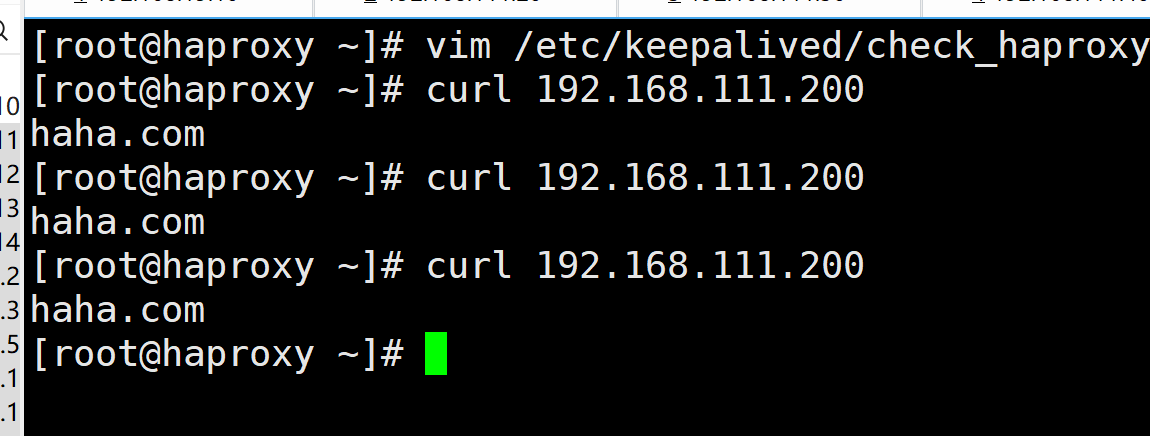

查看浏览器，会访问一样的结果
