搭建Gre Over IPsec隧道，使组播流量经过隧道传输到达分部

发布于：2022-11-10 ⋅ 阅读:(1180) ⋅ 点赞:(1)

目录

简介

拓扑图结构

地址分配

基础配置

VRRP配置

动态NAT

GRE over IPsec隧道

OSPF配置

组播配置

测试

简介

        基于OSPF的Gre Over IPsec隧道，实现公司总部与分部之间的数据流量访问走VPN隧道，以及组播流量同样走隧道到达分部。

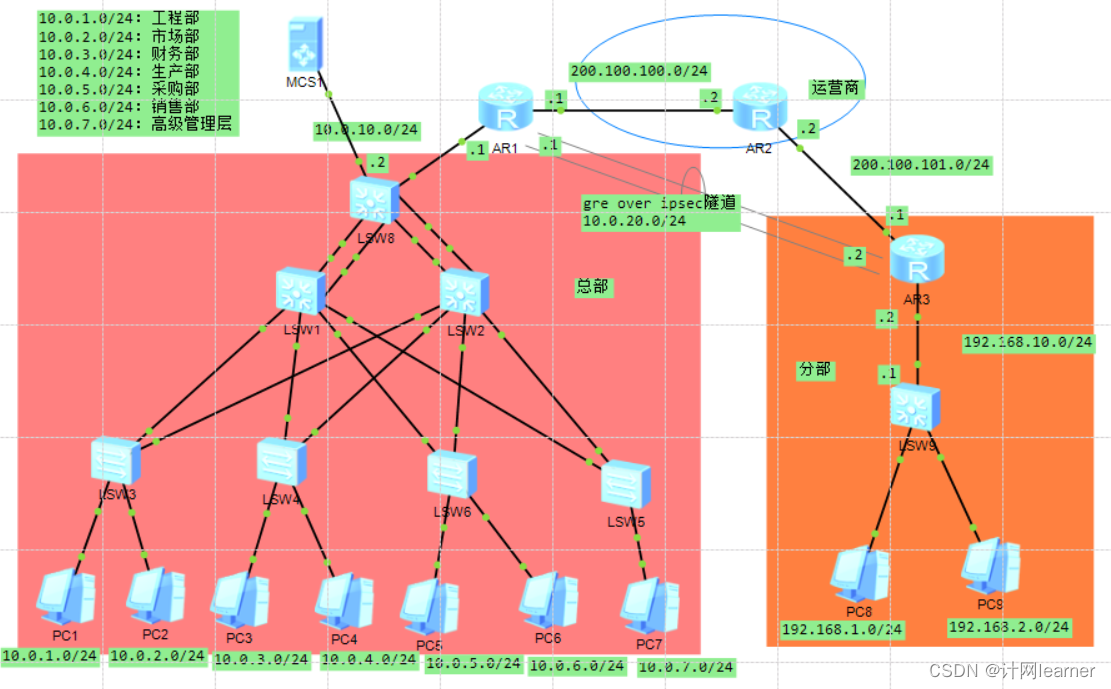

拓扑图结构

地址分配

总部
终端/服务器 IP地址 网关 组播组IP地址 组播组MAC地址
PC1 10.0.1.1 10.0.1.254
PC2 10.0.2.1 10.0.2.254
PC3 10.0.3.1 10.0.3.254
PC4 10.0.4.1 10.0.4.254
PC5 10.0.5.1 10.0.5.254
PC6 10.0.6.1 10.0.6.254
PC7 10.0.7.1 10.0.7.254
MCS1 172.16.1.1 172.16.1.2 239.1.1.1 01-00-5E-01-01-01
分部
PC8 192.168.1.1 192.168.1.254
PC9 192.168.2.1 192.168.2.254

基础配置

LSW3：

#
vlan batch 10 20
#
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 10
#
interface Ethernet0/0/4
 port link-type access
 port default vlan 20

 LSW4：

#
vlan batch 30 40
#
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 30 40
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 30 40
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 30
#
interface Ethernet0/0/4
 port link-type access
 port default vlan 40

LSW6：

#
vlan batch 50 60
#
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 50 60
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 50 60
interface Ethernet0/0/3
 port link-type access
 port default vlan 50
#
interface Ethernet0/0/4
 port link-type access
 port default vlan 60

LSW5：

#
vlan batch 70
#
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 70
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 70
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 70

LSW1：

#
vlan batch 10 20 30 40 50 60 70 102
#
interface Vlanif10
 ip address 10.0.1.10 255.255.255.0
#
interface Vlanif20
 ip address 10.0.2.10 255.255.255.0
#
interface Vlanif30
 ip address 10.0.3.10 255.255.255.0
#
interface Vlanif40
 ip address 10.0.4.10 255.255.255.0
#
interface Vlanif50
 ip address 10.0.5.11 255.255.255.0
#
interface Vlanif60
 ip address 10.0.6.11 255.255.255.0
#
interface Vlanif70
 ip address 10.0.7.11 255.255.255.0
#
interface Vlanif102
 ip address 10.0.102.2 255.255.255.0
#
interface Eth-Trunk1
 mode lacp-static
 trunkport g0/0/7
 trunkport g0/0/8
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 30 40
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 50 60
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 70

LSW2：

#
vlan batch 10 20 30 40 50 60 70 101
#
interface Vlanif10
 ip address 10.0.1.11 255.255.255.0
#
interface Vlanif20
 ip address 10.0.2.11 255.255.255.0
#
interface Vlanif30
 ip address 10.0.3.11 255.255.255.0
#
interface Vlanif40
 ip address 10.0.4.11 255.255.255.0
#
interface Vlanif50
 ip address 10.0.5.10 255.255.255.0
#
interface Vlanif60
 ip address 10.0.6.10 255.255.255.0
#
interface Vlanif70
 ip address 10.0.7.10 255.255.255.0
#
interface Vlanif101
 ip address 10.0.101.2 255.255.255.0
#
interface Eth-Trunk1
 mode lacp-static
 trunkport g0/0/7
 trunkport g0/0/8
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 30 40
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 50 60
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 70

LSW8:

#
vlan batch 100 to 103
#
interface Eth-Trunk1
 mode lacp-static
 trunkport g0/0/1
 trunkport g0/0/8
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface Eth-Trunk2
 mode lacp-static
 trunkport g0/0/2
 trunkport g0/0/4
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/5
 port link-type access
 port default vlan 103
#
interface Vlanif100
 ip address 10.0.10.2 255.255.255.0
#
interface Vlanif101
 ip address 10.0.101.1 255.255.255.0
#
interface Vlanif102
 ip address 10.0.102.1 255.255.255.0
#
interface Vlanif103
 ip address 172.16.1.2 255.255.255.0

AR1:

#
interface GigabitEthernet0/0/0
 ip address 10.0.10.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 200.100.100.1 255.255.255.0

AR3:

#
interface GigabitEthernet0/0/0
 ip address 192.168.10.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 200.100.101.1 255.255.255.0

AR2:

#
interface GigabitEthernet0/0/1
 ip address 200.100.100.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 200.100.101.2 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 200.100.101.1
ip route-static 0.0.0.0 0.0.0.0 200.100.100.1

LSW9:

#
vlan batch 10 20 100
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 20
#
interface Vlanif10
 ip address 192.168.1.254 255.255.255.0
#
interface Vlanif20
 ip address 192.168.2.254 255.255.255.0
#
interface Vlanif100
 ip address 192.168.10.1 255.255.255.0

VRRP配置

在公司总部内部部署VRRP实现网关冗余，在LSW1与LSW2上部署，使得PC1-PC4走LSW1，PC5-PC7走LSW2，并监视上行链路。

LSW1：

#
interface Vlanif10
 vrrp vrid 1 virtual-ip 10.0.1.254
 vrrp vrid 1 priority 105
 vrrp vrid 1 track interface Eth-Trunk1
#
interface Vlanif20
 vrrp vrid 2 virtual-ip 10.0.2.254
 vrrp vrid 2 priority 105
 vrrp vrid 2 track interface Eth-Trunk1
#
interface Vlanif30
 vrrp vrid 3 virtual-ip 10.0.3.254
 vrrp vrid 3 priority 105
 vrrp vrid 3 track interface Eth-Trunk1
#
interface Vlanif40
 vrrp vrid 4 virtual-ip 10.0.4.254
 vrrp vrid 4 priority 105
 vrrp vrid 4 track interface Eth-Trunk1
#
interface Vlanif50
 vrrp vrid 5 virtual-ip 10.0.5.254
 vrrp vrid 5 track interface Eth-Trunk1
#
interface Vlanif60
 vrrp vrid 6 virtual-ip 10.0.6.254
 vrrp vrid 6 track interface Eth-Trunk1
#
interface Vlanif70
 vrrp vrid 7 virtual-ip 10.0.7.254
 vrrp vrid 7 track interface Eth-Trunk1

LSW2：

#
interface Vlanif10
 vrrp vrid 1 virtual-ip 10.0.1.254
 vrrp vrid 1 track interface Eth-Trunk1
#
interface Vlanif20
 vrrp vrid 2 virtual-ip 10.0.2.254
 vrrp vrid 2 track interface Eth-Trunk1
#
interface Vlanif30
 vrrp vrid 3 virtual-ip 10.0.3.254
 vrrp vrid 3 track interface Eth-Trunk1
#
interface Vlanif40
 vrrp vrid 4 virtual-ip 10.0.4.254
 vrrp vrid 4 track interface Eth-Trunk1
#
interface Vlanif50
 vrrp vrid 5 virtual-ip 10.0.5.254
 vrrp vrid 5 priority 105
 vrrp vrid 5 track interface Eth-Trunk1
#
interface Vlanif60
 vrrp vrid 6 virtual-ip 10.0.6.254
 vrrp vrid 6 priority 105
 vrrp vrid 6 track interface Eth-Trunk1
#
interface Vlanif70
 vrrp vrid 7 virtual-ip 10.0.7.254
 vrrp vrid 7 priority 105
 vrrp vrid 7 track interface Eth-Trunk1

动态NAT

AR1：

#
acl number 2000
 rule 5 permit
#
 nat address-group 1 200.100.100.3 200.100.100.4
#
interface GigabitEthernet0/0/1
 nat outbound 2000 address-group 1

AR3：

#
acl number 2000
 rule 5 permit
#
 nat address-group 1 200.100.101.5 200.100.101.5
#
interface GigabitEthernet0/0/2
 nat outbound 2000 address-group 1

GRE over IPsec隧道

搭建隧道的两端需能ping通，在两端上部署默认路由。

AR1：//使用的ike提议以及ipsec提议都默认配置

#
ip route-static 0.0.0.0 0.0.0.0 200.100.100.2
#
ipsec proposal 1
#
ike proposal 1
#
ike peer to_fenbu v1
 pre-shared-key simple huawei@123
 ike-proposal 1
#
ipsec profile 1
 ike-peer to_fenbu
 proposal 1
#
interface Tunnel0/0/0
 ip address 10.0.20.1 255.255.255.0
 tunnel-protocol gre
 source 200.100.100.1
 destination 200.100.101.1
 ipsec profile 1

AR3：//使用的ike提议以及ipsec提议都默认配置

#
ip route-static 0.0.0.0 0.0.0.0 200.100.101.2
#
ipsec proposal 1
#
ike proposal 1
#
ike peer to_zongbu v1
 pre-shared-key simple huawei@123
 ike-proposal 1
#
ipsec profile 1
 ike-peer to_zongbu
 proposal 1
#
interface Tunnel0/0/0
 ip address 10.0.20.2 255.255.255.0
 tunnel-protocol gre
 source 200.100.101.1
 destination 200.100.100.1
 ipsec profile 1

OSPF配置

LSW1：

#
ospf 1 router-id 3.3.3.3
 import-route direct
 area 0.0.0.0
  network 10.0.102.2 0.0.0.0

LSW2：

#
ospf 1 router-id 4.4.4.4
 import-route direct
 area 0.0.0.0
  network 10.0.101.2 0.0.0.0

LSW8：

#
ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 10.0.10.0 0.0.0.255
  network 10.0.101.1 0.0.0.0
  network 10.0.102.1 0.0.0.0
  network 172.16.1.2 0.0.0.0

AR1:

#
ospf 1 router-id 1.1.1.1
 default-route-advertise
 area 0.0.0.0
  network 10.0.10.0 0.0.0.255
  network 10.0.20.0 0.0.0.255

AR3:

#
ospf 1 router-id 5.5.5.5
 default-route-advertise
 area 0.0.0.0
  network 10.0.20.2 0.0.0.0
  network 192.168.10.2 0.0.0.0

LSW9:

#
ospf 1 router-id 6.6.6.6
 area 0.0.0.0
  network 192.168.1.0 0.0.0.255
  network 192.168.2.0 0.0.0.255
  network 192.168.10.1 0.0.0.0

组播配置

这里只配置了使高级管理层和公司分部能收到组播服务器数据。

LSW8：

#
multicast routing-enable
#
interface Vlanif100
 pim dm
#
interface Vlanif101
 pim dm
#
interface Vlanif102
 pim dm
#
interface Vlanif103
 pim dm

LSW2：

#
multicast routing-enable
#
interface Vlanif70
 pim dm
 igmp enable
#
interface Vlanif101
 pim dm

LSW1：

#
multicast routing-enable
#
interface Vlanif70
 pim dm
 igmp enable
#
interface Vlanif102
 pim dm

AR1：

#
multicast routing-enable
#
interface GigabitEthernet0/0/0
 pim dm
#
interface Tunnel0/0/0
 pim dm

AR3：

#
multicast routing-enable
#
interface GigabitEthernet0/0/0
 pim dm
#
interface Tunnel0/0/0
 pim dm

LSW9：

#
multicast routing-enable
#
interface Vlanif10
 pim dm
 igmp enable
#
interface Vlanif20
 pim dm
 igmp enable
#
interface Vlanif100
 pim dm

测试

测试公司总舵内部连通性，在LSW1的G0/0/1端口抓包和在LSW2的G0/0/1端口抓包信息可看出PC1 ping PC7的请求包走的LSW1，回传包走的LSW2。

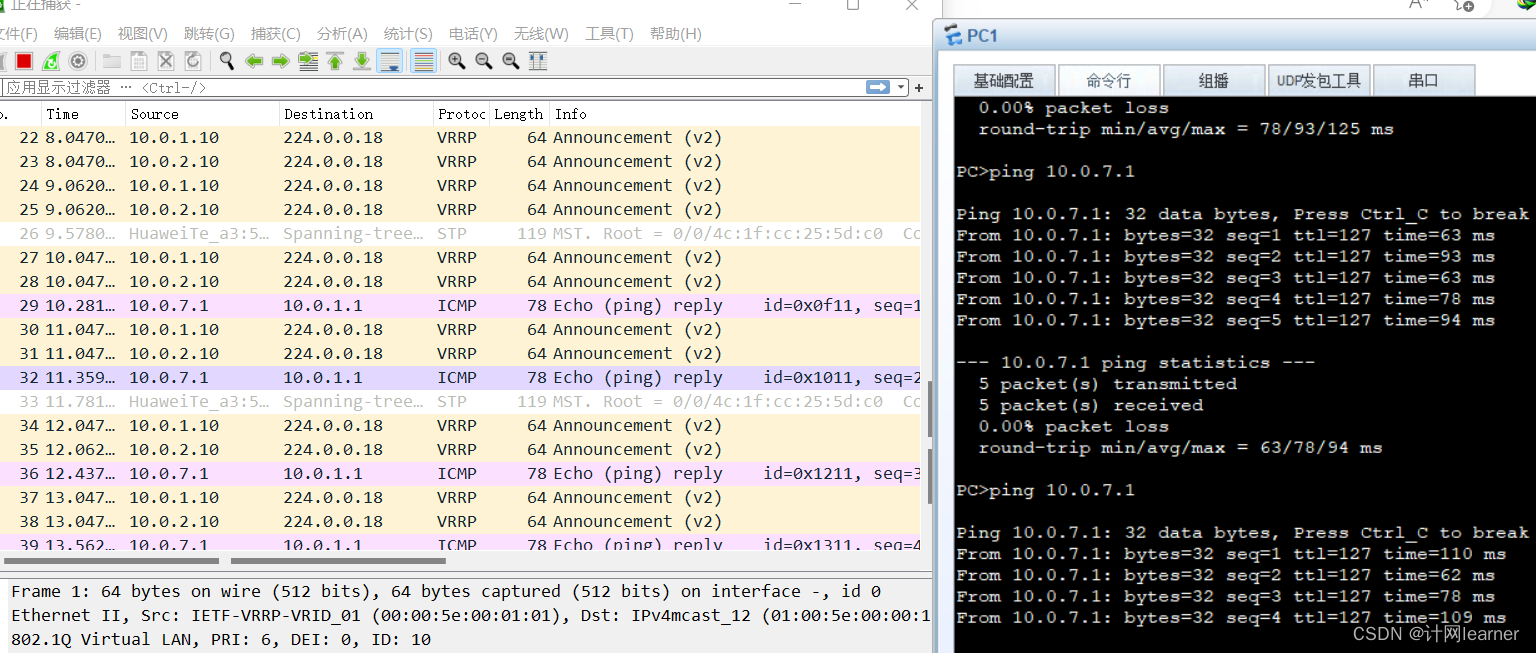

LSW1的G0/0/1端口抓包

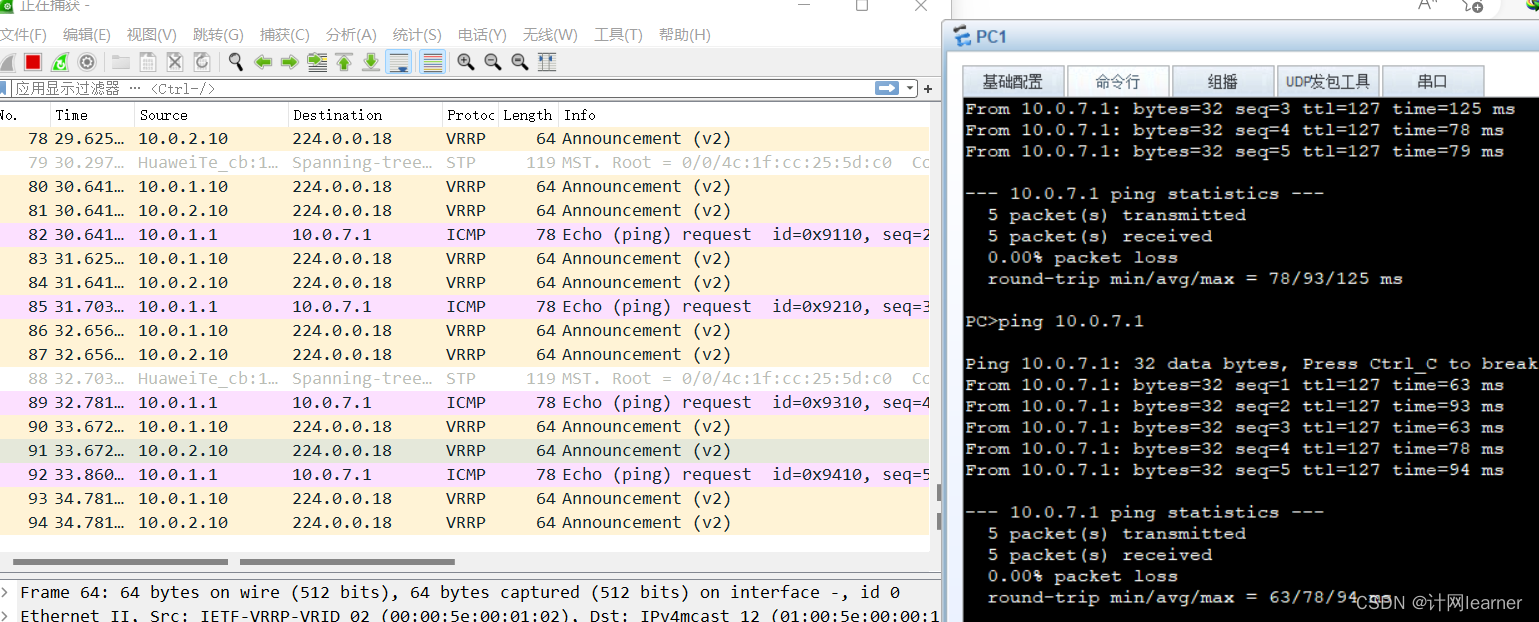

 LSW2的G0/0/1端口抓包

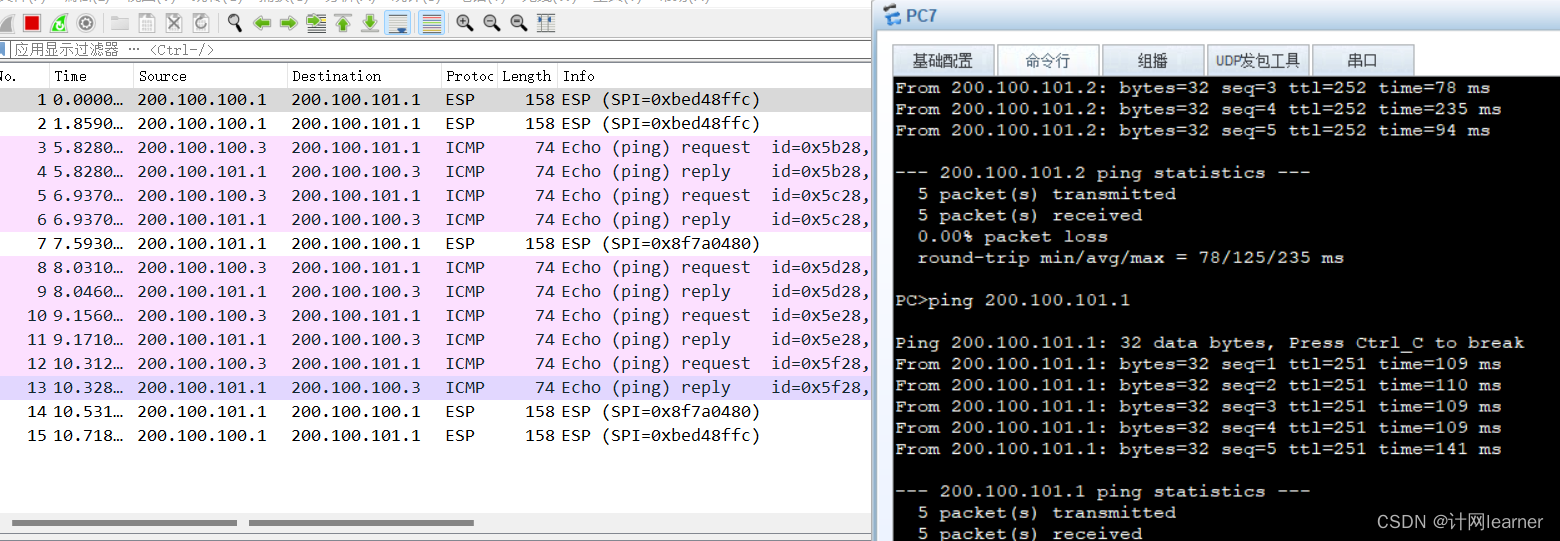

 测试nat，内部网络访问外部网络时，私有地址转换成nat地址池的200.100.100.3去访问。

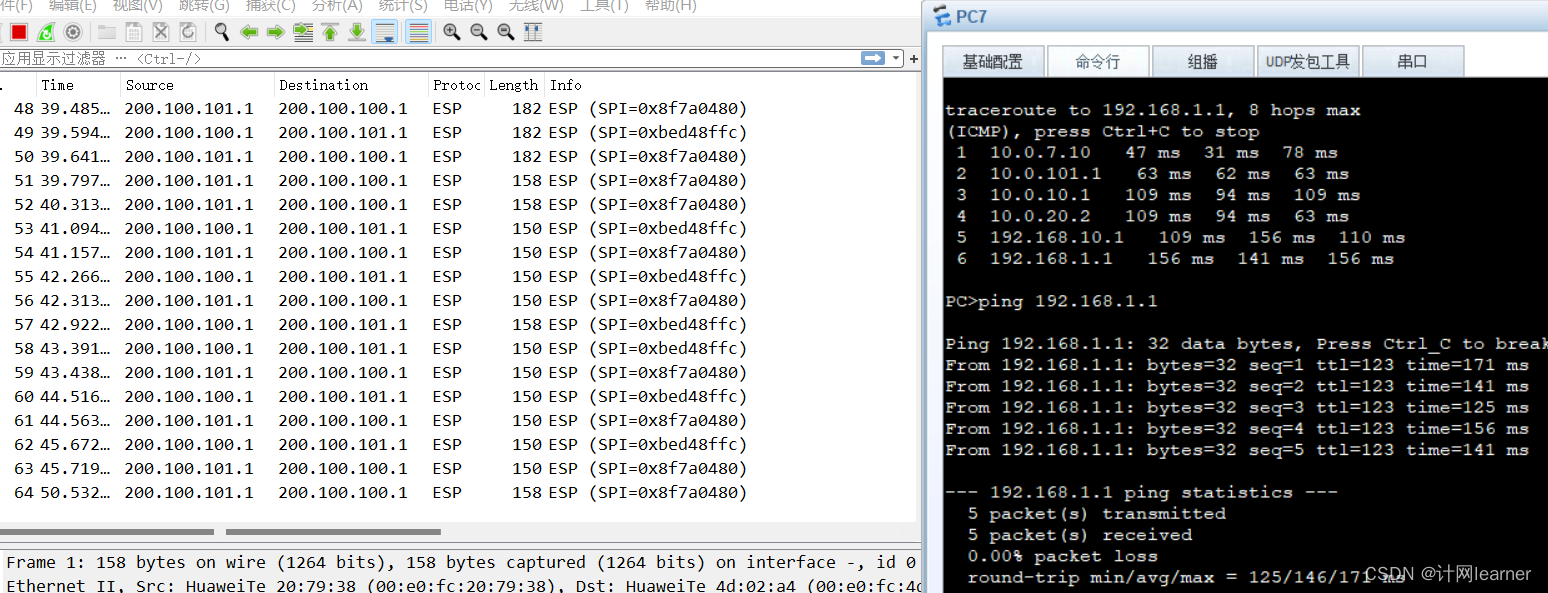

在测试公司总部网络访问公司分部网络，数据流走的是VPN隧道，且数据是被加密的。

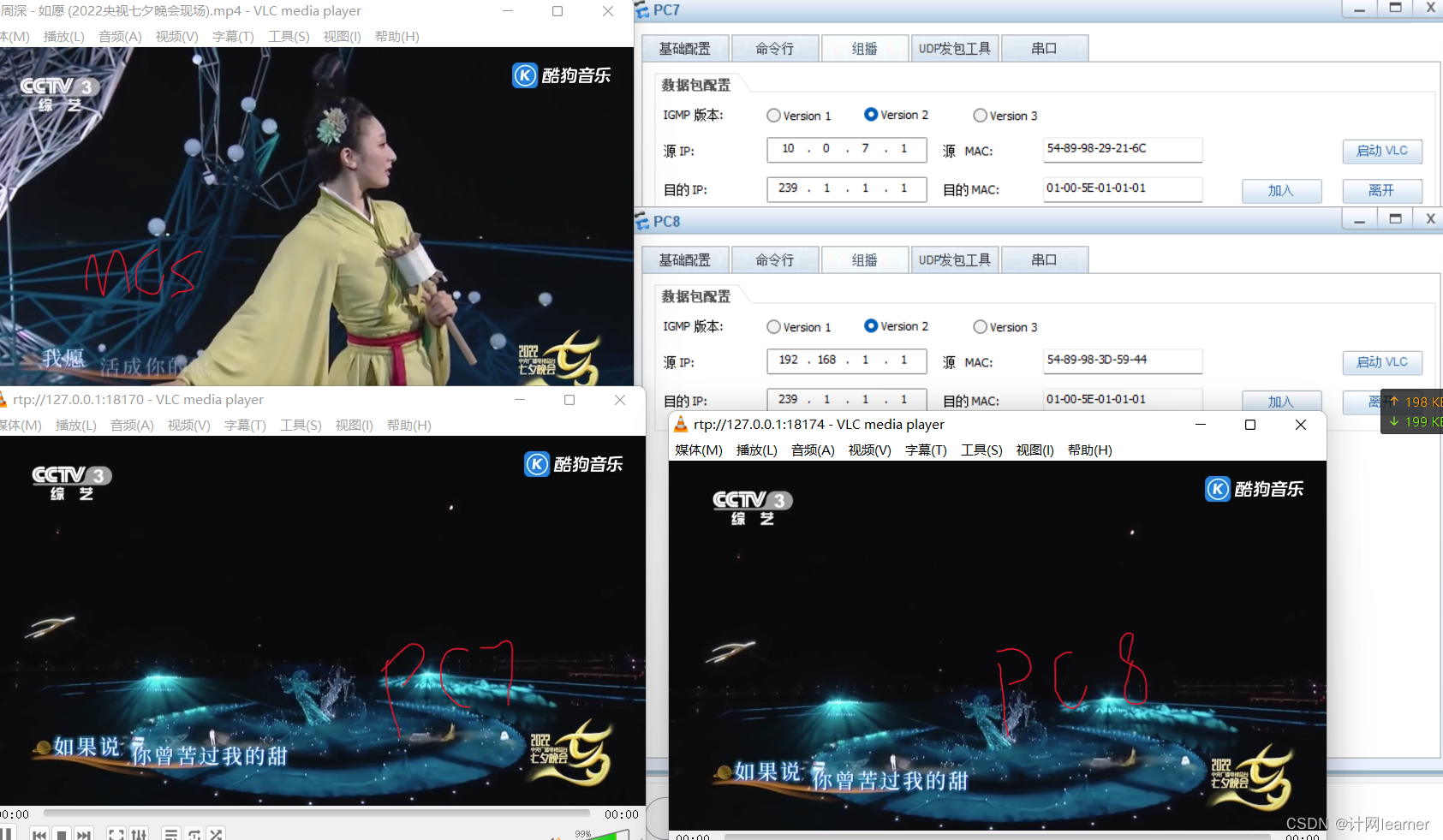

测试，运行组播服务器，在公司总部管理层PC7加入组播组，分公司PC8加入组播组，可以看到，组播数据通过隧道实现与分公司的视频实时传播。
