uniapp小程序实现地图标记,点击回到我的位置和目标位置

发布于:2023-10-25 ⋅ 阅读:(133) ⋅ 点赞:(0)

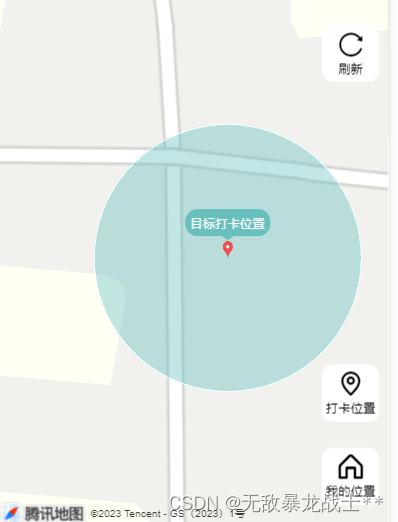

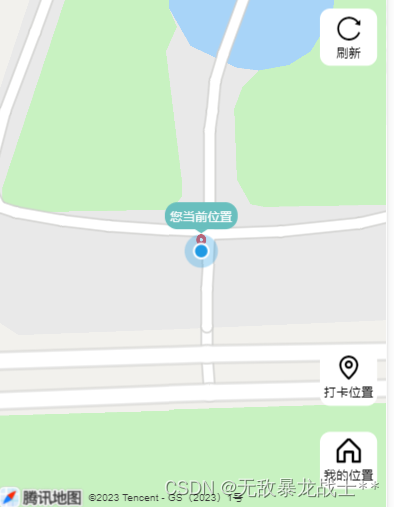

首先展示一下效果图:(文章末尾放置官网链接和api链接)

其次展示一下代码结构:

html:

<view class="box">
    <map id="map" show-location :scale="scale" style="width: 100%;height: 100%;" :latitude="latitude"
      :longitude="longitude" :circles="circles" :markers="markers"> </map>
    <view class="home-icon" @click="backMyLocation">
      <u-icon name="home" color="#000" size="28px"></u-icon>
      <text style="font-size: 12px;">我的位置</text>
    </view>
    <view class="targetIcon home-icon" @click="backTargetLocation">
      <u-icon name="map" color="#000" size="28px"></u-icon>
      <text style="font-size: 12px;">打卡位置</text>
    </view>
    <view class="refresh home-icon" @click="refresh">
      <u-icon name="reload" color="#000" size="28px"></u-icon>
      <text style="font-size: 12px;">刷新</text>
    </view>
</view>

 js:获取当前位置刷新(其中的markers就是小程序的标记属性)

      getLocation() {
        uni.showLoading({
          title: '定位中...',
          mask: true,
        })
        return new Promise((resolve, reject) => {
          const _locationChangeFn = (res) => {
            uni.hideLoading()
            this.markers[1].latitude = res.latitude
            this.markers[1].longitude = res.longitude
            this.myLatitude = res.latitude
            this.myLongitude = res.longitude
            resolve(res)
            wx.offLocationChange(_locationChangeFn)
            wx.stopLocationUpdate(_locationChangeFn);
          }
          wx.startLocationUpdate({
            success: (res) => {
              wx.onLocationChange(_locationChangeFn)
            },
            fail: (err) => {
              reject(err)
            },
          })
        })
      },

回到我当前的位置:

 backMyLocation() {
        // this.latitude = this.myLatitude
        // this.longitude = this.myLongitude
        const mapCtx = uni.createMapContext("map");
        mapCtx.moveToLocation({
          latitude: this.myLatitude,
          longitude: this.myLongitude,
          success: () => {
            const timer = setTimeout(() => {
              this.longitude = this.myLongitude,
                this.latitude = this.myLatitude,
                clearTimeout(timer);
              //进行缩放,设置为16
              this.scale = 16;
            }, 300);
          }
        })

      },

CSS:

  .box {
    position: relative;
    width: 100%;
    height: 70vh;
  }

  .home-icon {
    border-radius: 10px;
    position: absolute;
    bottom: 20px;
    left: 83%;
    color: black;
    background-color: #fff;
    display: flex;
    flex-direction: column;
    align-items: center;
    width: 55px;
    height: 55px;
  }

  .targetIcon {
    bottom: 100px;
  }

  .refresh {
    top: 25px;
  }

  .u-btn {
    width: 100% !important;
    height: 100% !important;
    border-radius: 50%;
  }

简要叙述:首先在触发小程序onShow()生命周期时,我们会调用获取用户当前位置的方法getLocation(),使用到了wx.offLocationChange()、wx.stopLocationUpdate()、wx.startLocationUpdate()、wx.onLocationChange()四个api,这是其中一个的地址,他们四个配合使用刷新当前获取用户位置:uni.onLocationChange(FUNCTION CALLBACK) | uni-app官网

在图中点击我的位置,将会回到用户当前位置并进行一个缩放,使用到了uni.createMapContext("map")、mapCtx.moveToLocation()等属性,官网地址是uni.createMapContext(mapId,this) | uni-app官网

有什么问题可以欢迎私信我
