使用Python seaborn/matplotlib结合pretty-print-confusion-matrix可以制作好看的confusion matrix了。
import numpy as np
import pandas as pd
from pretty_confusion_matrix import pp_matrix #调用pp_matrix
#pandas dataframe数据准备
array = np.array([[13, 0, 1, 0, 2, 0],
[0, 50, 2, 0, 10, 0],
[0, 13, 16, 0, 0, 3],
[0, 0, 0, 13, 1, 0],
[0, 40, 0, 1, 15, 0],
[0, 0, 0, 0, 0, 20]])
df_cm = pd.DataFrame(array, index=range(1, 7), columns=range(1, 7))

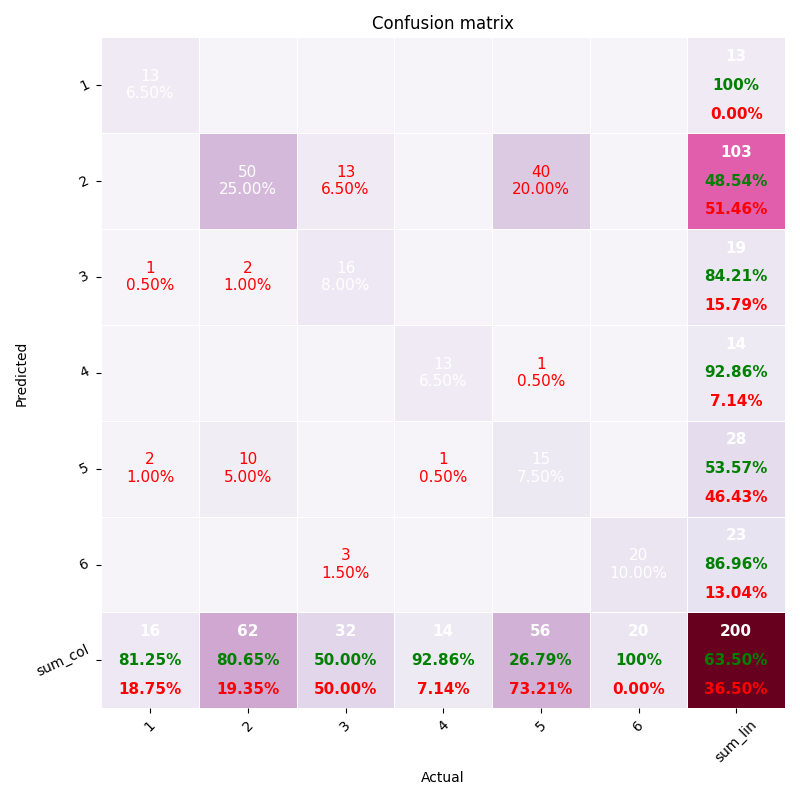

pp_matrix(df_cm, cmap='PuRd') #matrix plot
import numpy as np
from pretty_confusion_matrix import pp_matrix_from_data
#vector数据准备
y_test = np.array([1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2,
3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5])
predic = np.array([1, 2, 4, 3, 5, 1, 2, 4, 3, 5, 1, 2, 3, 4, 4, 1, 4, 3, 4, 5, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 3, 3, 5, 1, 2, 3, 3, 5, 1, 2,
3, 4, 4, 1, 2, 3, 4, 1, 1, 2, 3, 4, 1, 1, 2, 3, 4, 1, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 4, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5])
pp_matrix_from_data(y_test, predic)
pretty-print-confusion-matrix安装
pip install pretty-confusion-matrix
