Uniapp实现多选下拉框

前言

之前在使用Uniapp时，一直都是下拉框单选。今天某个项目需求需要使用Uniapp实现下拉框多选效果。由于Uniapp自身没有这个功能，因此只能在插件市场选择一个别人封装好的插件，我选择的是niceui-popup-select下拉选择器（支持多选）。可能是我下载的版本问题，实现效果不太满足我们的需求，因此对该插件源码进行修改调整。

一、效果展示

修改后支持动态配置下拉显示字段和选择完成后的显示列表效果

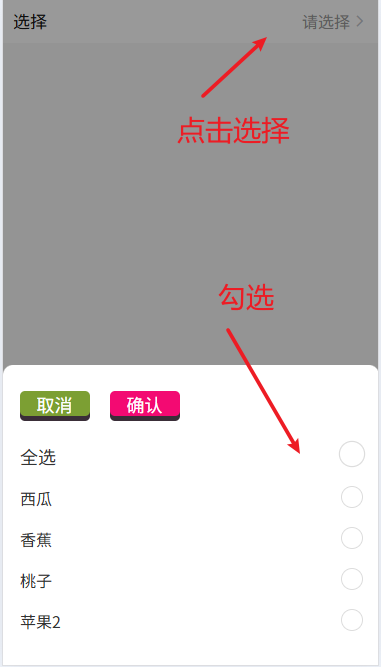

1.1 下拉效果图

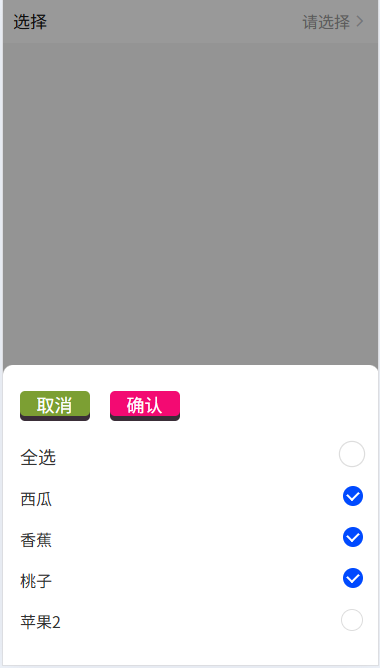

1.2 下拉选择效果图

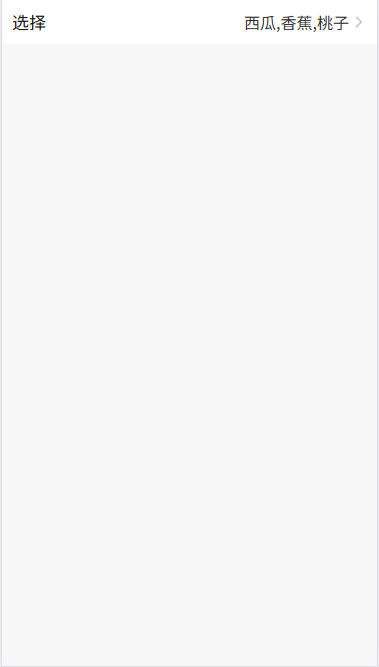

1.3 选择显示效果图

二、组件源码

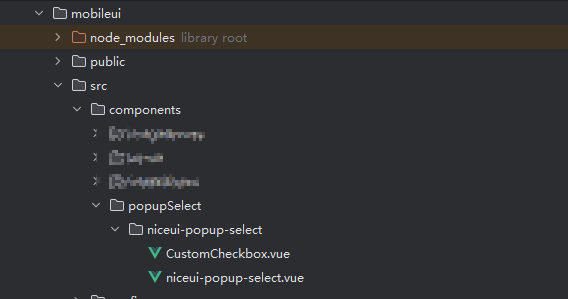

将核心组件代码CustomCheckbox.vue、niceui-popup-select.vue放到components文件下，如果没有components，可以按照图结构进行目录场景

2.1.CustomCheckbox.vue源码

<template>
  <view class="custom-checkbox" :class="[{'is-checked': isChecked}]" @click="toggle" :style="[labelStyle]">
    <input type="checkbox" :checked="isChecked" @change="onChange" />
    <text class="checkmark" :style="[circleStyle]"></text>
	<text class="serve-info">{{label}}</text>
  </view>
</template>

<script>
export default {
  props: {
    value: Boolean,
    disabled: {
      type: Boolean,
      default: false
    },
	label:{
		type:[String,Number],
		default:''
	},
	fontSize:{
		type:String,
		default:''
	},
	color:{
		type:String,
		default:''
	},
	circleSize:{
		type:String,
		default:''
	},
	circleColor:{
		type: String,
		default:""
	}
  },
  computed: {
    isChecked: {
      get() {
        return this.value;
      },
      set(val) {
        this.$emit('input', val);
      }
    },
	labelStyle() {
		let styles = {}
		if (this.fontSize) {
			styles.fontSize = this.fontSize
		}
		if (this.color) {
			styles.color = this.color
		}
		return styles;
	},
	circleStyle(){
		let styles = {}
		if (this.circleSize) {
			styles.transform = this.circleSize
		}
		if (this.circleColor) {
			if(this.isChecked){
				styles.backgroundColor = this.circleColor
			}
		}
		return styles;
	}
  },
  methods: {
    toggle() {

      if (!this.disabled) {
        this.isChecked = !this.isChecked;
		this.$emit('toggle', !this.isChecked);
      }
    },
    onChange(event) {

      this.$emit('change', event.target.checked);
    }
  }
};
</script>

<style scoped lang="scss">
.custom-checkbox {
  display: flex;
  align-items: center;
  position: relative;
  padding-left: 1rpx;
  margin-bottom: 0rpx;
  cursor: pointer;
  font-size: 32rpx;
  -webkit-user-select: none;
  -moz-user-select: none;
  -ms-user-select: none;
  user-select: none;
  margin: 35rpx 0;
}

.custom-checkbox input {
  position: absolute;
  opacity: 0;
  cursor: pointer;
  height: 0;
  width: 0;
}

.checkmark {
  position: absolute;
  top:1rpx;
  margin-bottom:0rpx;
  right: 0;
  height: 40rpx;
  width: 40rpx;
  /* background-color: #eee; */
  border:solid 1rpx #ddd;
  border-radius: 50%;
}

.custom-checkbox:hover input .checkmark {
  background-color: #ccc;
}

.custom-checkbox input:checked .checkmark {
  background-color: blue;
}

.checkmark:after {
  content: "";
  position: absolute;
  display: none;
}

.custom-checkbox input:checked .checkmark:after {
  display: block;
}

.custom-checkbox .checkmark:after {
  left: 13rpx;
  top: 6rpx;
  width: 12rpx;
  height: 19rpx;
  border: solid white;
  border-width: 0 5rpx 5rpx 0;
  -webkit-transform: rotate(45deg);
  -ms-transform: rotate(45deg);
  transform: rotate(45deg);
}

.is-checked .checkmark {
  background-color: blue;
  border:solid 0rpx #ddd;
}

.is-checked .checkmark:after {
  display: block;
}

.big-area{
	width: 160rpx;
	height: 220rpx;
	position: absolute;
	z-index:10;
	top: -155rpx;
	left: -85rpx;
}
.checkbox-all{
	margin-top: 160rpx;
    margin-left: 63rpx;
}
</style>

2.2.niceui-popup-select.vue源码

<template>
	<uni-popup ref="popup" :animation="false" :isMaskClick="1===0" :maskClick="1===0">
		<view class="popup-content">
			<view class="popup-content-main">
                <view class="picker__toolbar justify-between">
                    <view class="picker__cancel" @click="cancel">取消</view>
                    <view class="picker__confirm" @click="onConfirm">确认</view>
                </view>
                <scroll-view class="picker__content" scroll-y="true">
					<view class="uni-list" v-if="multiple">
					    <custom-checkbox v-model="checkedAll" label="全选" @toggle="toggleAll"
					    fontSize="36rpx" circleSize="scale(1.2)" :color="color" :circleColor="circleColor"/>
					</view>
					<view class="uni-list" v-if="multiple">
						<template v-if="columnsData.length>0">
							<custom-checkbox v-model="item.checked" :label="item[option.label]" @toggle="toggleIt($event,item,index)" v-for="(item,index) in columnsData" :key="item[option.value]"
							:fontSize="labelFontSize" :circleSize="circleSize" :color="color" :circleColor="circleColor"/>
						</template>
						<template v-else>
							<view class="no__data">{{noData}}</view>
						</template>
					</view>
					<view class="uni-list" v-else>
						<template v-if="columnsData.length>0">
							<custom-checkbox v-model="item.checked" :label="item[option.label]" @toggle="toggleIt($event,item,index)" v-for="(item,index) in columnsData" :key="item[option.value]"
							:fontSize="labelFontSize" :circleSize="circleSize" :color="color" :circleColor="circleColor"/>
						</template>
						<template v-else>
							<view class="no__data">{{noData}}</view>
						</template>
					</view>
                </scroll-view>
           </view>
        </view>
    </uni-popup>
</template>

<script>
import CustomCheckbox from './CustomCheckbox.vue'
export default {
	name: 'NiceuiPopupSelect',
	components:{
		CustomCheckbox
	},
	props: {
		columns: {
			type: Array,
			default: function () {
			  return []
			}
		},
		selectValue: {
			type: Array,
			default: function () {
				return []
			}
		},
		option: {
			type: Object,
			default: function () {
			  return { label: 'label', value: 'value'}
			}
		},
		multiple: {
			type: Boolean,
			default: true
		},
		labelFontSize:{
			type: String,
			default:"32rpx"
		},
		color:{
			type: String,
			default:"#333"
		},
		circleSize:{
			type: String,
			default:"scale(1)"
		},
		circleColor:{
			type: String,
			default:"#004aff"
		}
	},
	data () {
		return {
			searchKey: '',
			columnsData: [],
			checkedValue:[],
			checkedAll: false,
			resultValue:[],
			noData:'没有更多内容了',
			value:false
		}
	},
	methods: {
		getData (val) {
		  const res = this.columnsData?.filter(item => {
		    return val.indexOf(item[this.option.value]) > -1
		  })
		  return res
		},
		onConfirm () {
			const ck = this.columnsData.filter(d=>d.checked==true)
			const ids = ck.map(d=>d.id)
			this.$emit('confirm', ids, this.getData(ids))
		},

		cancel () {
			this.closePopup()
		},
		showPopup(){
			this.columnsData = JSON.parse(JSON.stringify(this.columns))
			this.columnsData.forEach(d=>d.checked=false)
			this.checkedValue = JSON.parse(JSON.stringify(this.selectValue))
			if(this.checkedValue&&this.checkedValue.length>0){
				this.columnsData.forEach(d=>{
					if(this.checkedValue.includes(d.id)){
						d.checked = true
					}
				})
				if(this.checkedValue.length!=this.columnsData.length){
					this.checkedAll = false
				}else{
					this.checkedAll = true
				}
			}else{
				this.checkedAll = false
			}
			this.$refs.popup.open('bottom')
		},
		closePopup(){
			this.$refs.popup.close()
		},
		toggleIt(v,item,index){
			if(this.multiple){
				item.checked= v
				this.$set(this.columnsData,index,item)
				if(!v){
					this.checkedAll = false
				}else{
					const ck = this.columnsData.filter(d=>d.checked===false)
					if(ck.length===0){
						this.checkedAll = true
					}
				}
			}else{
				this.columnsData.forEach(d=>d.checked=false)
				item.checked=true
				this.$set(this.columnsData,index,item)
			}
		},
		toggleAll (v) {
			this.checkedAll = v
			if(this.checkedAll){
				this.columnsData.forEach(d=>d.checked=true)
			}else{
				this.columnsData.forEach(d=>d.checked=false)
			}
		},
	}
}
</script>

<style lang="scss" scoped>
	//结果弹窗
	::v-deep .close-view{
		height: 130rpx;
		image{
			width: 100rpx;
			height: 100rpx;
		}
	}
	::v-deep .popup-content{
		border-top-left-radius: 20rpx;
		border-top-right-radius: 20rpx;
		background-color: #fff;
		padding: 1rpx;
		width: 100vw;
		// height: 70vh;
		// overflow-y: scroll;
		.popup-content-main{
			margin: 50rpx auto 30rpx;

			.picker__toolbar{
				box-sizing: border-box;
				margin:20rpx 32rpx;
				font-size:$uni-font-size-lg;
				display: flex;
				align-items: center;
				.picker__cancel{
          width: 70px;
          height: 25px;
          border: none;
          text-align: center;
          border-radius: 5px;
          color: #fff;
          font-size: 18px;
          background-color: #7c9f33;
          box-shadow: 0 5px 0 #3a2e38;
          cursor: pointer;
          outline: none;
				}
				.picker__confirm{
          margin-left: 20px;
          width: 70px;
          height: 25px;
          border: none;
          text-align: center;
          border-radius: 5px;
          color: #fff;
          font-size: 18px;
          background-color: #f30a72;
          box-shadow: 0 5px 0 #3a2e38;
          cursor: pointer;
          outline: none;
				}
				.picker__title{
					font-size: 38rpx;
					color:#6f6f6f;
				}
			}

			.picker__content{
				max-height:500rpx;
				overflow-y:auto;

				.keyword-input{
					font-size: 35rpx;
				}
				.check__all{
					box-sizing: border-box;
					margin:20rpx 23rpx 20rpx 32rpx;
					padding:20rpx 0rpx;
					border-bottom:solid 1rpx #f7f7f7;
					display: flex;
					justify-content: space-between;
					.check__all_left{
						color:#666;
						font-size: 32rpx;
					}
					.check__all_right{

					}
				}

				.uni-list{
					box-sizing: border-box;
					margin:20rpx 32rpx;
					label{
						padding:20rpx 0rpx;
						border-bottom:solid 1rpx #f7f7f7;
					}
					.uni-list-cell{
						.cell-label{
							font-size: 35rpx;
						}
						checkbox{
							//transform:scale(0.8,0.8)
						}
					}
					.no__data{
						color:#999;
						font-size: 30rpx;
						text-align: center;
						margin-top: 50rpx;
					}
				}
			}

		}
	}

	.bottom-line{
		border-bottom: solid 3rpx #eee;
		margin:20rpx 32rpx;
		height: 72rpx;
	}
</style>

三、demo.vue代码演示

demo代码演示了如何使用组件实现自己想要的下拉效果，直接复制运行即可实现章节一的展示效果

<template>
  <view class="content">
    <view class="uni-list-cell">
      <view class="uni-list-cell-left">选择</view>
      <view class="uni-list-cell-db">
        <view class="as-input" @click="openSelectPopup">
          <view class="placeholder" v-if="checkedDynamicComputed===undefined||checkedDynamicComputed===''">请选择</view>
          <view class="as-content" v-else>{{checkedDynamicComputed}}</view>
          <uni-icons type="forward" size="16" color="#c0c4cc" class="customer-icon"></uni-icons>
        </view>
      </view>
    </view>
    <niceui-popup-select ref="showFruit" :columns="selectList" :selectValue="checkedResult" :is-search="false" :option="{label:selectLabel, value:selectKey}" @confirm="confirmCheck"/>
  </view>
</template>

<script>
import NiceuiPopupSelect from '@/components/popupSelect/niceui-popup-select/niceui-popup-select.vue'
export default {
  components:{NiceuiPopupSelect},
  data() {
    return {
      selectLabel:"code",//下拉框选项显示时,显示指定字段的值
      selectKey:"id",//下拉框选择时，选中后获取的字段值
      selectList:[
        {
          id:1,
          code:'西瓜',
        },
        {
          id:2,
          code:'香蕉'
        },
        {
          id:3,
          code:'桃子'
        },
        {
          id:4,
          code:'苹果2'
        },
      ],
      checkedResult:[],
      checkedLabels:[],
    }
  },
  computed:{
    checkedDynamicComputed(){
      return this.checkedLabels.join(",");
    },
  },
  methods: {
    openSelectPopup(){
      this.$refs.showFruit.showPopup()
    },
    /**
     *
     * @param selectKeysValues 选中中的selectKey列的值集合
     * @param data  选中多行数据的集合
     */
    confirmCheck(selectKeysValues,data) {
      this.checkedResult = selectKeysValues
      this.checkedLabels=[];//清除原始内容
      data.map(item=>{
        //对显示内容进行处理，可以进行多个字段进行拼接
        // this.checkedLabels.push(item[this.selectLabel]+"_"+item[this.selectKey])
        //可以指定将某字段作为显示值
        this.checkedLabels.push(item[this.selectLabel])
      })
      this.$refs.showFruit.closePopup()
    },
  }
}
</script>

<style lang="scss" scoped>
.content{
  background-color: #f7f7f7;
  width: 100vw;
  height: 100vh;

}
.uni-title{
  font-size: 33rpx;
  font-weight: bold;
  padding: 20rpx 20rpx;
}
.uni-list-cell{
  background-color: #fff;
  display: flex;
  justify-content: space-between;
  align-items: center;
  padding: 20rpx 20rpx;
  .uni-list-cell-left{
    font-size: 35rpx;
  }
}
.uni-list-cell-db{
  flex:1
}
.as-input{
  width: 100%;
  display: flex;
  align-items: center;
  justify-content: flex-end;
  .customer-icon{
    padding: 0 0 0 5rpx;
  }
  .placeholder{
    font-size:33rpx;
    color:#999;
  }
  .as-content{
    color: #333;
    font-size: 33rpx;
    width: 370rpx;
    text-align: right;
  }
}
</style>
