【服务器与部署 20】云服务器部署实战：AWS、阿里云、腾讯云Python应用部署完全指南
关键词：云服务器部署、AWS部署、阿里云ECS、腾讯云CVM、Python应用部署、云计算、服务器运维、自动化部署、容器化部署、负载均衡
摘要：本文以费曼学习法为基础，从"为什么需要云服务器"这个根本问题出发，通过生动的类比和实际案例，深入浅出地讲解AWS、阿里云、腾讯云三大主流云平台的Python应用部署方法。涵盖从基础环境搭建到高级架构设计的完整流程，帮助开发者快速掌握云服务器部署的核心技能，实现从本地开发到生产环境的无缝迁移。
文章目录
引言：为什么云服务器是现代应用部署的必然选择？
想象一下，你是一个开了小餐厅的老板。刚开始，你可能在自己家里做饭，然后送到客户那里。但随着生意越来越好，你发现家里的厨房不够用了，而且客户分布在全国各地，从家里送餐成本太高。这时候，你会怎么办？
聪明的老板会选择在不同城市开设分店，或者加盟连锁餐厅。这样既能就近服务客户，又能根据生意好坏灵活调整店面大小。
云服务器就是这样的"分店"概念。传统的自建服务器就像在家里开餐厅，而云服务器让你可以在全世界"开分店"，随时根据需要扩大或缩小规模。
云服务器的核心优势
- 弹性扩展：就像餐厅可以根据客流量增减桌椅一样
- 全球覆盖：在世界各地都有"分店"服务用户
- 成本优化：按需付费，用多少付多少
- 高可用性：多个"分店"互相备份，一个出问题不影响整体服务
第一部分：云服务器基础概念与选型
1.1 什么是云服务器？
让我们用一个更贴切的比喻来理解云服务器。
想象云服务器就像是一个巨大的"共享办公空间"：
- 物理服务器 = 整栋办公楼
- 虚拟机 = 楼里的一个个办公室
- 容器 = 办公室里的工位
- Serverless = 按小时租用的会议室
不同的"租赁方式"适合不同的需求：

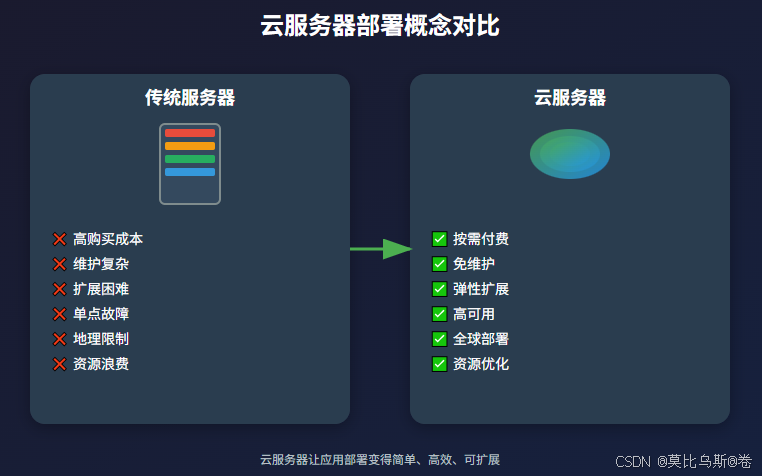

# 传统服务器 vs 云服务器的对比
traditional_server = {
"购买成本": "高（一次性投入）",
"维护成本": "高（需要专业运维）",
"扩展性": "差（硬件限制）",
"可用性": "低（单点故障）"
}
cloud_server = {
"购买成本": "低（按需付费）",
"维护成本": "低（云厂商负责）",
"扩展性": "强（弹性伸缩）",
"可用性": "高（多地域容灾）"
}

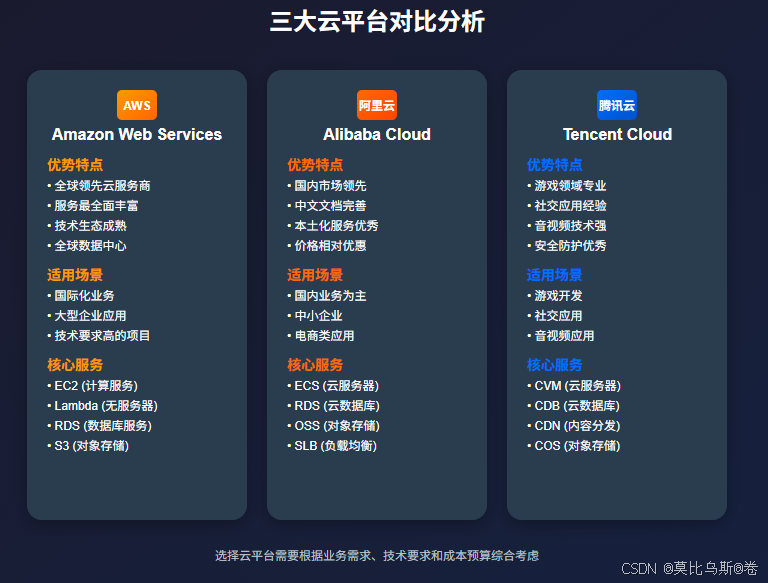

1.2 三大云平台特点对比
AWS（Amazon Web Services）
- 优势：全球领先，服务最全面
- 适合：国际化业务，技术要求高的项目
- 特色服务：Lambda、ECS、RDS
阿里云
- 优势：国内市场占有率第一，中文文档完善
- 适合：国内业务，中小企业
- 特色服务：ECS、RDS、OSS
腾讯云
- 优势：游戏和社交领域经验丰富
- 适合：游戏开发，社交应用
- 特色服务：CVM、CDB、CDN

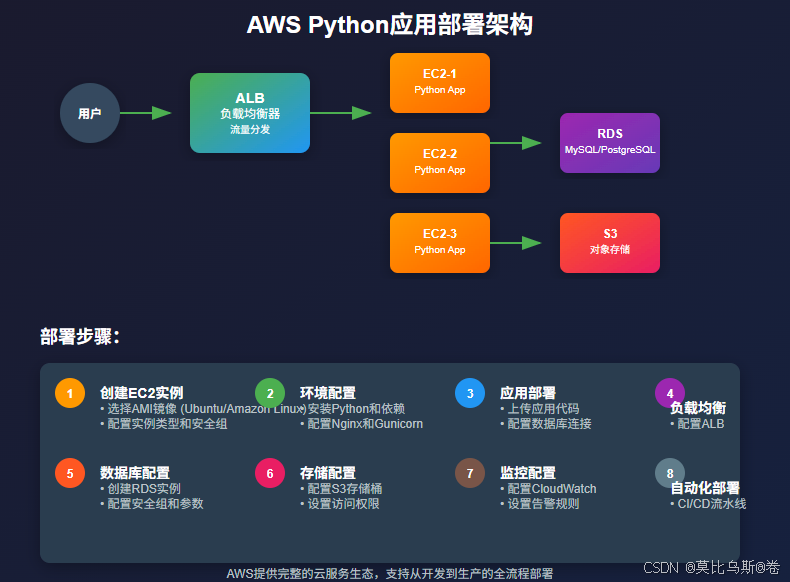

第二部分：AWS Python应用部署实战
2.1 EC2实例创建与配置
AWS EC2就像是在亚马逊的"办公楼"里租了一个办公室。让我们一步步来设置这个"办公室"。
步骤1：创建EC2实例
# 使用AWS CLI创建实例
aws ec2 run-instances \
--image-id ami-0abcdef1234567890 \
--count 1 \
--instance-type t2.micro \
--key-name my-key-pair \
--security-group-ids sg-903004f8 \
--subnet-id subnet-6e7f829e
步骤2：安全组配置
# 安全组配置示例
security_group_rules = {
"HTTP": {
"port": 80,
"source": "0.0.0.0/0",
"description": "允许HTTP访问"
},
"HTTPS": {
"port": 443,
"source": "0.0.0.0/0",
"description": "允许HTTPS访问"
},
"SSH": {
"port": 22,
"source": "你的IP/32",
"description": "SSH管理访问"
},
"Python App": {
"port": 8000,
"source": "0.0.0.0/0",
"description": "Python应用端口"
}
}
2.2 Python环境部署
环境准备脚本
#!/bin/bash
# aws_python_setup.sh - AWS Python环境自动化设置脚本
# 更新系统
sudo apt update && sudo apt upgrade -y
# 安装Python和必要工具
sudo apt install -y python3 python3-pip python3-venv nginx git
# 创建应用目录
sudo mkdir -p /var/www/myapp
sudo chown ubuntu:ubuntu /var/www/myapp
# 创建虚拟环境
cd /var/www/myapp
python3 -m venv venv
source venv/bin/activate
# 安装依赖
pip install flask gunicorn
Flask应用示例
# app.py - 简单的Flask应用
from flask import Flask, jsonify
import os
app = Flask(__name__)
@app.route('/')
def hello():
return jsonify({
"message": "Hello from AWS!",
"server": os.environ.get('SERVER_NAME', 'AWS-EC2'),
"version": "1.0.0"
})
@app.route('/health')
def health_check():
return jsonify({"status": "healthy"})
if __name__ == '__main__':
app.run(host='0.0.0.0', port=8000)
Gunicorn配置
# gunicorn_config.py
bind = "0.0.0.0:8000"
workers = 2
worker_class = "sync"
worker_connections = 1000
max_requests = 1000
max_requests_jitter = 100
timeout = 30
keepalive = 2
2.3 负载均衡与自动扩展
Application Load Balancer配置
# alb_config.py - ALB配置示例
import boto3
def create_load_balancer():
client = boto3.client('elbv2')
# 创建负载均衡器
response = client.create_load_balancer(
Name='my-python-app-alb',
Subnets=['subnet-12345', 'subnet-67890'],
SecurityGroups=['sg-abcdef'],
Scheme='internet-facing',
Type='application',
IpAddressType='ipv4'
)
return response['LoadBalancers'][0]['LoadBalancerArn']
def create_target_group():
client = boto3.client('elbv2')
response = client.create_target_group(
Name='my-python-app-targets',
Protocol='HTTP',
Port=8000,
VpcId='vpc-12345',
HealthCheckPath='/health',
HealthCheckIntervalSeconds=30,
HealthCheckTimeoutSeconds=5,
HealthyThresholdCount=2,
UnhealthyThresholdCount=3
)
return response['TargetGroups'][0]['TargetGroupArn']

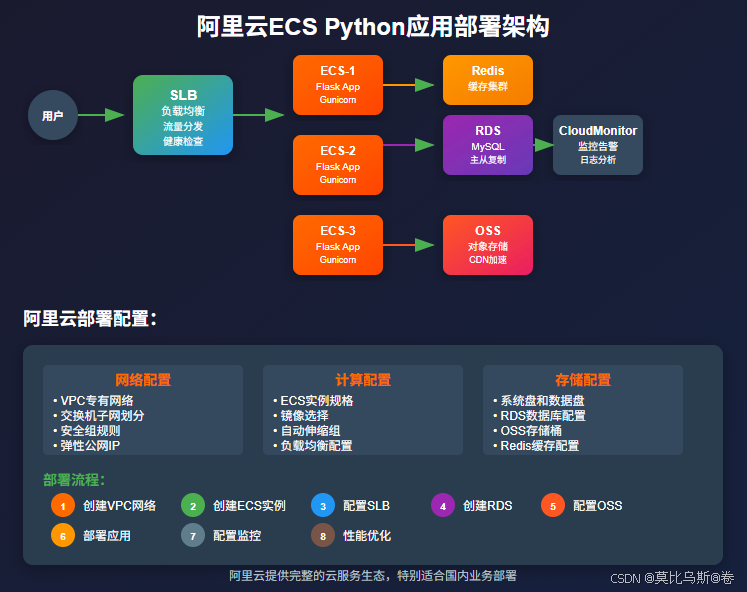

第三部分：阿里云ECS Python应用部署
3.1 ECS实例创建与配置
阿里云ECS就像是在阿里巴巴的"产业园"里租了一个工厂车间。让我们看看如何设置这个"车间"。
使用阿里云CLI创建ECS实例
# 创建ECS实例
aliyun ecs CreateInstance \
--RegionId cn-hangzhou \
--ImageId ubuntu_18_04_64_20G_alibase_20190624.vhd \
--InstanceType ecs.t5-lc1m1.small \
--SecurityGroupId sg-bp1fg655nh68xyz9* \
--VSwitchId vsw-bp1s5fnvk4gn2tws0**** \
--InstanceName my-python-app
Python环境自动化部署脚本
#!/bin/bash
# aliyun_setup.sh - 阿里云Python环境设置
# 更新软件源为阿里云镜像
sudo cp /etc/apt/sources.list /etc/apt/sources.list.bak
sudo sed -i 's/archive.ubuntu.com/mirrors.aliyun.com/g' /etc/apt/sources.list
# 安装Python环境
sudo apt update
sudo apt install -y python3 python3-pip python3-venv nginx
# 配置pip使用阿里云镜像
mkdir -p ~/.pip
cat > ~/.pip/pip.conf << EOF
[global]
index-url = https://mirrors.aliyun.com/pypi/simple/
trusted-host = mirrors.aliyun.com
EOF
# 创建应用目录
sudo mkdir -p /var/www/myapp
sudo chown $USER:$USER /var/www/myapp
cd /var/www/myapp
# 创建虚拟环境
python3 -m venv venv
source venv/bin/activate
pip install flask gunicorn redis
3.2 使用SLB实现负载均衡
# aliyun_slb_config.py - 阿里云SLB配置
from aliyunsdkcore.client import AcsClient
from aliyunsdkslb.request.v20140515 import CreateLoadBalancerRequest
from aliyunsdkslb.request.v20140515 import AddBackendServersRequest
def create_slb_instance():
client = AcsClient(
access_key_id='your_access_key',
access_key_secret='your_secret_key',
region_id='cn-hangzhou'
)
# 创建负载均衡实例
request = CreateLoadBalancerRequest.CreateLoadBalancerRequest()
request.set_LoadBalancerName('my-python-app-slb')
request.set_AddressType('internet')
request.set_InternetChargeType('paybytraffic')
response = client.do_action_with_exception(request)
return response
def add_backend_servers(slb_id, servers):
client = AcsClient(
access_key_id='your_access_key',
access_key_secret='your_secret_key',
region_id='cn-hangzhou'
)
request = AddBackendServersRequest.AddBackendServersRequest()
request.set_LoadBalancerId(slb_id)
request.set_BackendServers(servers)
response = client.do_action_with_exception(request)
return response
3.3 RDS数据库集成
# database_config.py - RDS数据库配置
import pymysql
from flask import Flask
from flask_sqlalchemy import SQLAlchemy
app = Flask(__name__)
# RDS连接配置
app.config['SQLALCHEMY_DATABASE_URI'] = (
'mysql+pymysql://username:password@'
'rm-bp1234567890.mysql.rds.aliyuncs.com:3306/myapp'
)
app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = False
db = SQLAlchemy(app)
class User(db.Model):
id = db.Column(db.Integer, primary_key=True)
username = db.Column(db.String(80), unique=True, nullable=False)
email = db.Column(db.String(120), unique=True, nullable=False)
def to_dict(self):
return {
'id': self.id,
'username': self.username,
'email': self.email
}
@app.route('/users')
def get_users():
users = User.query.all()
return {'users': [user.to_dict() for user in users]}
if __name__ == '__main__':
with app.app_context():
db.create_all()
app.run(host='0.0.0.0', port=8000)
第四部分：腾讯云CVM Python应用部署
4.1 CVM实例创建与配置
腾讯云CVM就像是在腾讯的"科技园"里租了一个实验室。让我们看看如何配置这个"实验室"。
使用腾讯云CLI创建CVM实例
# 创建CVM实例
tccli cvm RunInstances \
--Placement.Zone ap-beijing-1 \
--ImageId img-pi0ii46r \
--InstanceType S1.SMALL1 \
--SystemDisk.DiskType CLOUD_BASIC \
--SystemDisk.DiskSize 20 \
--InternetAccessible.InternetChargeType TRAFFIC_POSTPAID_BY_HOUR \
--InternetAccessible.InternetMaxBandwidthOut 1 \
--InstanceName my-python-app
Python环境配置脚本
#!/bin/bash
# tencent_setup.sh - 腾讯云Python环境设置
# 更新系统
sudo apt update && sudo apt upgrade -y
# 安装Python和必要工具
sudo apt install -y python3 python3-pip python3-venv nginx git
# 配置pip使用腾讯云镜像
mkdir -p ~/.pip
cat > ~/.pip/pip.conf << EOF
[global]
index-url = https://mirrors.cloud.tencent.com/pypi/simple
trusted-host = mirrors.cloud.tencent.com
EOF
# 创建应用目录
sudo mkdir -p /var/www/myapp
sudo chown ubuntu:ubuntu /var/www/myapp
cd /var/www/myapp
# 创建虚拟环境
python3 -m venv venv
source venv/bin/activate
pip install flask gunicorn redis mysql-connector-python
4.2 使用CLB实现负载均衡
# tencent_clb_config.py - 腾讯云CLB配置
from tencentcloud.common import credential
from tencentcloud.common.profile.client_profile import ClientProfile
from tencentcloud.clb.v20180317 import clb_client, models
def create_clb_instance():
cred = credential.Credential("your_secret_id", "your_secret_key")
client = clb_client.ClbClient(cred, "ap-beijing")
req = models.CreateLoadBalancerRequest()
req.LoadBalancerType = "OPEN"
req.LoadBalancerName = "my-python-app-clb"
req.VpcId = "vpc-12345"
req.SubnetId = "subnet-12345"
resp = client.CreateLoadBalancer(req)
return resp.LoadBalancerIds[0]
def create_listener(clb_id):
cred = credential.Credential("your_secret_id", "your_secret_key")
client = clb_client.ClbClient(cred, "ap-beijing")
req = models.CreateListenerRequest()
req.LoadBalancerId = clb_id
req.Ports = [80]
req.Protocol = "HTTP"
req.ListenerNames = ["my-python-app-listener"]
resp = client.CreateListener(req)
return resp.ListenerIds[0]
4.3 CDB数据库集成
# tencent_cdb_config.py - 腾讯云CDB配置
import mysql.connector
from flask import Flask, jsonify
import os
app = Flask(__name__)
# CDB连接配置
db_config = {
'host': 'cdb-12345.cd.tencentcdb.com',
'port': 10123,
'user': 'root',
'password': 'your_password',
'database': 'myapp',
'charset': 'utf8mb4'
}
def get_db_connection():
try:
conn = mysql.connector.connect(**db_config)
return conn
except mysql.connector.Error as err:
print(f"数据库连接错误: {err}")
return None
@app.route('/api/data')
def get_data():
conn = get_db_connection()
if not conn:
return jsonify({'error': '数据库连接失败'}), 500
try:
cursor = conn.cursor(dictionary=True)
cursor.execute("SELECT * FROM users LIMIT 10")
results = cursor.fetchall()
return jsonify({'data': results})
except Exception as e:
return jsonify({'error': str(e)}), 500
finally:
if conn:
conn.close()
if __name__ == '__main__':
app.run(host='0.0.0.0', port=8000)
第五部分：自动化部署与CI/CD
5.1 使用Docker容器化部署
容器化部署就像是把你的应用打包成一个"集装箱"，无论运到哪里都能正常运行。
# Dockerfile - 多阶段构建
FROM python:3.9-slim as builder
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
FROM python:3.9-slim
WORKDIR /app
# 复制依赖
COPY --from=builder /usr/local/lib/python3.9/site-packages /usr/local/lib/python3.9/site-packages
COPY --from=builder /usr/local/bin /usr/local/bin
# 复制应用代码
COPY . .
# 创建非root用户
RUN useradd -m -u 1000 appuser && chown -R appuser:appuser /app
USER appuser
EXPOSE 8000
CMD ["gunicorn", "--config", "gunicorn_config.py", "app:app"]
5.2 GitHub Actions自动化部署
# .github/workflows/deploy.yml
name: Deploy to Cloud
on:
push:
branches: [ main ]
jobs:
deploy:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v2
- name: Set up Python
uses: actions/setup-python@v2
with:
python-version: 3.9
- name: Install dependencies
run: |
python -m pip install --upgrade pip
pip install -r requirements.txt
- name: Run tests
run: |
python -m pytest tests/
- name: Build Docker image
run: |
docker build -t my-python-app:${{ github.sha }} .
- name: Deploy to AWS
if: github.ref == 'refs/heads/main'
run: |
# AWS部署脚本
aws configure set aws_access_key_id ${{ secrets.AWS_ACCESS_KEY_ID }}
aws configure set aws_secret_access_key ${{ secrets.AWS_SECRET_ACCESS_KEY }}
aws configure set default.region us-east-1
# 推送到ECR
aws ecr get-login-password | docker login --username AWS --password-stdin ${{ secrets.ECR_REGISTRY }}
docker tag my-python-app:${{ github.sha }} ${{ secrets.ECR_REGISTRY }}/my-python-app:${{ github.sha }}
docker push ${{ secrets.ECR_REGISTRY }}/my-python-app:${{ github.sha }}
# 更新ECS服务
aws ecs update-service --cluster my-cluster --service my-python-app --force-new-deployment
5.3 多云部署策略
# multi_cloud_deploy.py - 多云部署脚本
import boto3
from aliyunsdkcore.client import AcsClient
from tencentcloud.common import credential
class MultiCloudDeployer:
def __init__(self):
self.aws_client = boto3.client('ecs')
self.aliyun_client = AcsClient('key', 'secret', 'cn-hangzhou')
self.tencent_cred = credential.Credential('id', 'key')
def deploy_to_aws(self, image_uri):
"""部署到AWS ECS"""
try:
response = self.aws_client.update_service(
cluster='my-cluster',
service='my-python-app',
taskDefinition=self.create_task_definition(image_uri),
forceNewDeployment=True
)
return {'status': 'success', 'platform': 'AWS', 'response': response}
except Exception as e:
return {'status': 'error', 'platform': 'AWS', 'error': str(e)}
def deploy_to_aliyun(self, image_uri):
"""部署到阿里云ECS"""
# 阿里云部署逻辑
pass
def deploy_to_tencent(self, image_uri):
"""部署到腾讯云CVM"""
# 腾讯云部署逻辑
pass
def deploy_all(self, image_uri):
"""同时部署到所有云平台"""
results = []
results.append(self.deploy_to_aws(image_uri))
results.append(self.deploy_to_aliyun(image_uri))
results.append(self.deploy_to_tencent(image_uri))
return results
# 使用示例
deployer = MultiCloudDeployer()
results = deployer.deploy_all('my-python-app:latest')
for result in results:
print(f"{result['platform']}: {result['status']}")
第六部分：监控与运维
6.1 云监控配置
# cloud_monitoring.py - 云监控配置
import boto3
import json
from datetime import datetime, timedelta
class CloudMonitor:
def __init__(self):
self.cloudwatch = boto3.client('cloudwatch')
def create_custom_metric(self, metric_name, value, unit='Count'):
"""创建自定义监控指标"""
self.cloudwatch.put_metric_data(
Namespace='MyPythonApp',
MetricData=[
{
'MetricName': metric_name,
'Value': value,
'Unit': unit,
'Timestamp': datetime.utcnow()
}
]
)
def create_alarm(self, alarm_name, metric_name, threshold):
"""创建告警"""
self.cloudwatch.put_metric_alarm(
AlarmName=alarm_name,
ComparisonOperator='GreaterThanThreshold',
EvaluationPeriods=2,
MetricName=metric_name,
Namespace='MyPythonApp',
Period=300,
Statistic='Average',
Threshold=threshold,
ActionsEnabled=True,
AlarmActions=[
'arn:aws:sns:us-east-1:123456789012:my-topic'
],
AlarmDescription='Python应用性能告警'
)
def get_metrics(self, metric_name, start_time, end_time):
"""获取监控数据"""
response = self.cloudwatch.get_metric_statistics(
Namespace='MyPythonApp',
MetricName=metric_name,
StartTime=start_time,
EndTime=end_time,
Period=300,
Statistics=['Average', 'Maximum', 'Minimum']
)
return response['Datapoints']
# 在Flask应用中集成监控
from flask import Flask, request
import time
app = Flask(__name__)
monitor = CloudMonitor()
@app.before_request
def before_request():
request.start_time = time.time()
@app.after_request
def after_request(response):
# 记录响应时间
response_time = time.time() - request.start_time
monitor.create_custom_metric('ResponseTime', response_time * 1000, 'Milliseconds')
# 记录请求数
monitor.create_custom_metric('RequestCount', 1, 'Count')
# 记录错误数
if response.status_code >= 400:
monitor.create_custom_metric('ErrorCount', 1, 'Count')
return response
6.2 日志聚合与分析
# log_aggregation.py - 日志聚合配置
import logging
import json
from datetime import datetime
import boto3
class CloudLogger:
def __init__(self):
self.logs_client = boto3.client('logs')
self.log_group = '/aws/lambda/my-python-app'
self.log_stream = f"instance-{datetime.now().strftime('%Y-%m-%d')}"
def setup_logging(self):
"""配置日志格式"""
formatter = logging.Formatter(
'%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
# 控制台输出
console_handler = logging.StreamHandler()
console_handler.setFormatter(formatter)
# 文件输出
file_handler = logging.FileHandler('/var/log/myapp.log')
file_handler.setFormatter(formatter)
# 配置根日志器
logger = logging.getLogger()
logger.setLevel(logging.INFO)
logger.addHandler(console_handler)
logger.addHandler(file_handler)
return logger
def send_to_cloudwatch(self, message, level='INFO'):
"""发送日志到CloudWatch"""
log_event = {
'timestamp': int(datetime.now().timestamp() * 1000),
'message': json.dumps({
'level': level,
'message': message,
'timestamp': datetime.now().isoformat()
})
}
try:
self.logs_client.put_log_events(
logGroupName=self.log_group,
logStreamName=self.log_stream,
logEvents=[log_event]
)
except Exception as e:
print(f"发送日志到CloudWatch失败: {e}")
# 在Flask应用中使用
logger = CloudLogger().setup_logging()
cloud_logger = CloudLogger()
@app.route('/api/test')
def test_endpoint():
logger.info("测试接口被调用")
cloud_logger.send_to_cloudwatch("测试接口被调用", "INFO")
return {"message": "测试成功"}
第七部分：性能优化与最佳实践
7.1 缓存策略
# cache_strategy.py - 缓存策略实现
import redis
import json
from functools import wraps
from flask import Flask, request
app = Flask(__name__)
# Redis连接配置
redis_client = redis.Redis(
host='your-redis-host',
port=6379,
db=0,
decode_responses=True
)
def cache_result(expiration=3600):
"""缓存装饰器"""
def decorator(func):
@wraps(func)
def wrapper(*args, **kwargs):
# 生成缓存键
cache_key = f"{func.__name__}:{hash(str(args) + str(kwargs))}"
# 尝试从缓存获取
cached_result = redis_client.get(cache_key)
if cached_result:
return json.loads(cached_result)
# 执行函数并缓存结果
result = func(*args, **kwargs)
redis_client.setex(
cache_key,
expiration,
json.dumps(result, default=str)
)
return result
return wrapper
return decorator
@app.route('/api/expensive-operation')
@cache_result(expiration=1800) # 缓存30分钟
def expensive_operation():
# 模拟耗时操作
import time
time.sleep(2)
return {"result": "expensive computation result"}
7.2 数据库连接池
# db_pool.py - 数据库连接池
from sqlalchemy import create_engine
from sqlalchemy.pool import QueuePool
from contextlib import contextmanager
class DatabasePool:
def __init__(self, database_url):
self.engine = create_engine(
database_url,
poolclass=QueuePool,
pool_size=10,
max_overflow=20,
pool_pre_ping=True,
pool_recycle=3600
)
@contextmanager
def get_connection(self):
conn = self.engine.connect()
try:
yield conn
finally:
conn.close()
def execute_query(self, query, params=None):
with self.get_connection() as conn:
result = conn.execute(query, params or {})
return result.fetchall()
# 使用示例
db_pool = DatabasePool('mysql://user:pass@host/db')
@app.route('/api/users')
def get_users():
users = db_pool.execute_query(
"SELECT id, username, email FROM users WHERE active = :active",
{"active": True}
)
return {"users": [dict(user) for user in users]}
7.3 安全配置
# security_config.py - 安全配置
from flask import Flask, request, jsonify
from flask_limiter import Limiter
from flask_limiter.util import get_remote_address
import jwt
import os
from functools import wraps
app = Flask(__name__)
app.config['SECRET_KEY'] = os.environ.get('SECRET_KEY', 'your-secret-key')
# 限流配置
limiter = Limiter(
app,
key_func=get_remote_address,
default_limits=["200 per day", "50 per hour"]
)
def token_required(f):
"""JWT认证装饰器"""
@wraps(f)
def decorated(*args, **kwargs):
token = request.headers.get('Authorization')
if not token:
return jsonify({'message': 'Token缺失'}), 401
try:
if token.startswith('Bearer '):
token = token[7:]
data = jwt.decode(token, app.config['SECRET_KEY'], algorithms=['HS256'])
current_user = data['user_id']
except jwt.ExpiredSignatureError:
return jsonify({'message': 'Token已过期'}), 401
except jwt.InvalidTokenError:
return jsonify({'message': 'Token无效'}), 401
return f(current_user, *args, **kwargs)
return decorated
@app.route('/api/protected')
@token_required
@limiter.limit("10 per minute")
def protected_endpoint(current_user):
return jsonify({'message': f'Hello user {current_user}'})
# CORS配置
@app.after_request
def after_request(response):
response.headers.add('Access-Control-Allow-Origin', '*')
response.headers.add('Access-Control-Allow-Headers', 'Content-Type,Authorization')
response.headers.add('Access-Control-Allow-Methods', 'GET,PUT,POST,DELETE,OPTIONS')
return response
第八部分：故障排查与问题解决
8.1 常见问题诊断
# health_check.py - 健康检查系统
import psutil
import requests
import mysql.connector
from flask import Flask, jsonify
import redis
app = Flask(__name__)
class HealthChecker:
def __init__(self):
self.checks = {
'system': self.check_system_resources,
'database': self.check_database,
'redis': self.check_redis,
'external_api': self.check_external_api
}
def check_system_resources(self):
"""检查系统资源"""
try:
cpu_percent = psutil.cpu_percent(interval=1)
memory = psutil.virtual_memory()
disk = psutil.disk_usage('/')
return {
'status': 'healthy' if cpu_percent < 80 and memory.percent < 80 else 'warning',
'cpu_percent': cpu_percent,
'memory_percent': memory.percent,
'disk_percent': disk.percent,
'details': {
'cpu': f"CPU使用率: {cpu_percent}%",
'memory': f"内存使用率: {memory.percent}%",
'disk': f"磁盘使用率: {disk.percent}%"
}
}
except Exception as e:
return {'status': 'error', 'error': str(e)}
def check_database(self):
"""检查数据库连接"""
try:
conn = mysql.connector.connect(
host='your-db-host',
user='your-user',
password='your-password',
database='your-db'
)
cursor = conn.cursor()
cursor.execute("SELECT 1")
cursor.fetchone()
conn.close()
return {'status': 'healthy', 'message': '数据库连接正常'}
except Exception as e:
return {'status': 'error', 'error': str(e)}
def check_redis(self):
"""检查Redis连接"""
try:
r = redis.Redis(host='your-redis-host', port=6379, db=0)
r.ping()
return {'status': 'healthy', 'message': 'Redis连接正常'}
except Exception as e:
return {'status': 'error', 'error': str(e)}
def check_external_api(self):
"""检查外部API"""
try:
response = requests.get('https://api.example.com/health', timeout=5)
if response.status_code == 200:
return {'status': 'healthy', 'message': '外部API正常'}
else:
return {'status': 'warning', 'message': f'外部API返回状态码: {response.status_code}'}
except Exception as e:
return {'status': 'error', 'error': str(e)}
def run_all_checks(self):
"""运行所有健康检查"""
results = {}
overall_status = 'healthy'
for check_name, check_func in self.checks.items():
result = check_func()
results[check_name] = result
if result['status'] == 'error':
overall_status = 'error'
elif result['status'] == 'warning' and overall_status == 'healthy':
overall_status = 'warning'
return {
'overall_status': overall_status,
'timestamp': datetime.now().isoformat(),
'checks': results
}
health_checker = HealthChecker()
@app.route('/health')
def health_check():
return jsonify(health_checker.run_all_checks())
8.2 性能分析工具
# performance_profiler.py - 性能分析工具
import cProfile
import pstats
import io
from flask import Flask, request, jsonify
import time
import functools
app = Flask(__name__)
class PerformanceProfiler:
def __init__(self):
self.profiles = {}
def profile_function(self, func):
"""函数性能分析装饰器"""
@functools.wraps(func)
def wrapper(*args, **kwargs):
pr = cProfile.Profile()
pr.enable()
start_time = time.time()
result = func(*args, **kwargs)
end_time = time.time()
pr.disable()
# 保存分析结果
s = io.StringIO()
ps = pstats.Stats(pr, stream=s).sort_stats('cumulative')
ps.print_stats()
self.profiles[func.__name__] = {
'execution_time': end_time - start_time,
'profile_data': s.getvalue(),
'timestamp': time.time()
}
return result
return wrapper
def get_profile_report(self, func_name):
"""获取函数性能报告"""
return self.profiles.get(func_name, {})
profiler = PerformanceProfiler()
@app.route('/api/slow-operation')
@profiler.profile_function
def slow_operation():
# 模拟慢操作
time.sleep(1)
result = sum(i * i for i in range(100000))
return {'result': result}
@app.route('/api/profile/<func_name>')
def get_profile(func_name):
report = profiler.get_profile_report(func_name)
if report:
return jsonify({
'function': func_name,
'execution_time': report['execution_time'],
'timestamp': report['timestamp']
})
return jsonify({'error': 'Profile not found'}), 404
总结：云服务器部署的成功之路
通过这篇文章，我们像搭建积木一样，一步步构建了完整的云服务器部署知识体系：
核心要点回顾
- 云服务器选择：根据业务需求选择合适的云平台
- 环境配置：标准化的Python环境搭建流程
- 负载均衡：实现高可用和高性能的架构
- 自动化部署：CI/CD流水线提升开发效率
- 监控运维：完善的监控和告警体系
- 安全防护：多层次的安全防护措施
最佳实践建议
- 基础设施即代码：使用Terraform等工具管理云资源
- 容器化部署：Docker提供一致的运行环境
- 微服务架构：便于扩展和维护
- 监控驱动：建立完善的监控和告警体系
- 安全第一：从设计阶段就考虑安全问题
学习路径建议
- 入门阶段：掌握单个云平台的基本操作
- 进阶阶段：学习自动化部署和监控
- 高级阶段：多云架构和容器编排
- 专家阶段：性能优化和故障排查
云服务器部署不是一蹴而就的技能，需要在实践中不断积累经验。就像学会开车需要大量练习一样，只有通过实际项目的锻炼，才能真正掌握云服务器部署的精髓。
记住，最好的架构不是最复杂的，而是最适合你业务需求的。从简单开始，逐步优化，这就是云服务器部署的成功之路。
