# skimage feature 哈里斯角点检测
from matplotlib import pylab as pylab
from skimage.io import imread
from skimage.color import rgb2gray
from skimage.feature import corner_harris, corner_subpix, corner_peaks
from skimage.transform import warp, SimilarityTransform, AffineTransform,resize
import cv2
import numpy as np
from skimage import data ,io
from skimage.util import img_as_float
from skimage.exposure import rescale_intensity
from skimage.measure import ransac
# image = data.astronaut()
# # io.imshow(image)
# # image_gray = rgb2gray(image)
# # coordinates = corner_harris(image_gray, k =0.001)
# # image[coordinates>0.01*coordinates.max()]=[255,0,0]
# # pylab.figure(figsize=(20,10))
# # pylab.imshow(image), pylab.axis('off'), pylab.show()
# image_gray = rgb2gray(image)
# coordinates = corner_harris(image_gray, k =0.001)
# image[coordinates > 0.04*coordinates.max()] = [255,0,0] # threshold for an optimal value, depends on the image
# corner_coordinates = corner_peaks(coordinates)
# coordinates_subpix = corner_subpix(image_gray, corner_coordinates, window_size=11)
# pylab.figure(figsize=(20,20))
# pylab.subplot(211), pylab.imshow(image, cmap='inferno')
# pylab.plot(coordinates_subpix[:, 1], coordinates_subpix[:, 0], 'r.',
# markersize=5, label='subpixel')
# pylab.legend(prop={'size': 20}), pylab.axis('off')
# pylab.subplot(212), pylab.imshow(image, interpolation='nearest')
# pylab.plot(corner_coordinates[:, 1], corner_coordinates[:, 0], 'bo', markersize=5)
# pylab.plot(coordinates_subpix[:, 1], coordinates_subpix[:, 0], 'r+',
# markersize=10), pylab.axis('off')
# pylab.tight_layout(), pylab.show()
#基于 RANSAC 算法和哈里斯角点特征的鲁棒图像匹配
temple = rgb2gray(img_as_float(data.astronaut()))
image_original = np.zeros(shape=(temple.shape[0],temple.shape[1],3),dtype="float32")
image_original[..., 0] = temple
gradient_row, gradient_col = (np.mgrid[0:image_original.shape[0], 0:image_original.shape[1]] / float(image_original.shape[0]))
image_original[..., 1] = gradient_row
image_original[..., 2] = gradient_col
image_original = rescale_intensity(image_original)
image_original_gray = rgb2gray(image_original)
#仿射变换
affine_trans = AffineTransform(scale=(0.8, 0.9), rotation=0.1,translation=(120, -20))
image_warped = warp(image_original, affine_trans .inverse,output_shape=image_original.shape)
image_warped_gray = rgb2gray(image_warped)
#角点检测
coordinates = corner_harris(image_original_gray)
coordinates[coordinates > 0.01*coordinates.max()] = 1
coordinates_original = corner_peaks(coordinates, threshold_rel=0.0001,min_distance=5)
coordinates = corner_harris(image_warped_gray)
coordinates[coordinates > 0.01*coordinates.max()] = 1
coordinates_warped = corner_peaks(coordinates, threshold_rel=0.0001,min_distance=5)
coordinates_original_subpix = corner_subpix(image_original_gray,
coordinates_original, window_size=9)
coordinates_warped_subpix = corner_subpix(image_warped_gray, coordinates_warped, window_size=9)
#确定子像素角点位置
def gaussian_weights(window_ext, sigma=1):
y, x = np.mgrid[-window_ext:window_ext+1, -window_ext:window_ext+1]
g_w = np.zeros(y.shape, dtype = np.double)
g_w[:] = np.exp(-0.5 * (x**2 / sigma**2 + y**2 / sigma**2))
g_w /= 2 * np.pi * sigma * sigma
return g_w
def match_corner(coordinates, window_ext=3):
row, col = np.round(coordinates).astype(np.intp)
window_original = image_original[row-window_ext:row+window_ext+1, col-window_ext:col+window_ext+1, :]
weights = gaussian_weights(window_ext, 3)
weights = np.dstack((weights, weights, weights))
SSDs = []
for coord_row, coord_col in coordinates_warped:
window_warped = image_warped[coord_row-window_ext:coord_row+window_ext+1, coord_col-window_ext:coord_col+window_ext+1, :]
if window_original.shape == window_warped.shape:
SSD = np.sum(weights * (window_original - window_warped)**2)
SSDs.append(SSD)
min_idx = np.argmin(SSDs) if len(SSDs) > 0 else -1
return coordinates_warped_subpix[min_idx] if min_idx >= 0 else [None]
source, destination = [], []
for coordinates in coordinates_original_subpix:
coordinates1 = match_corner(coordinates)
if any(coordinates1) and len(coordinates1) > 0 and not all(np.isnan(coordinates1)):
source.append(coordinates)
destination.append(coordinates1)
source1 = np.array(source)
destination1 = np.array(destination)
model = AffineTransform()
model.estimate(source1, destination1)
model_robust, inliers = ransac((source1, destination1), AffineTransform, min_samples=3, residual_threshold=2, max_trials=100)
outliers = inliers == False
print(affine_trans.scale, affine_trans.translation, affine_trans.rotation)
# (0.8, 0.9) [ 120. -20.] 0.09999999999999999
print(model.scale, model.translation, model.rotation)
# (0.8982412101241938, 0.8072777593937368) [ -20.45123966 114.92297156]
-0.10225420334222493
print(model_robust.scale, model_robust.translation, model_robust.rotation)
# (0.9001524425730119, 0.8000362790749188) [ -19.87491292 119.83016533]
-0.09990858564132575

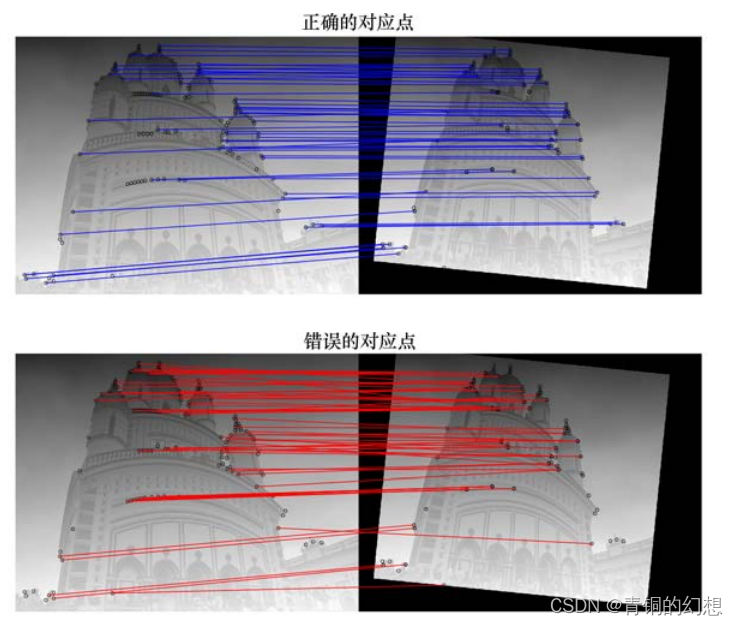

#k可视化对应点
fig, axes = pylab.subplots(nrows=2, ncols=1, figsize=(20,15))
pylab.gray()
inlier_idxs = np.nonzero(inliers)[0]
plot_matches(axes[0], image_original_gray, image_warped_gray, source, destination, np.column_stack((inlier_idxs, inlier_idxs)), matches_color='b')
axes[0].axis('off'), axes[0].set_title('Correct correspondences', size=20)
outlier_idxs = np.nonzero(outliers)[0]
plot_matches(axes[1], image_original_gray, image_warped_gray, source, destination, np.column_stack((outlier_idxs, outlier_idxs)), matches_color='row')
axes[1].axis('off'), axes[1].set_title('Faulty correspondences', size=20)
fig.tight_layout(), pylab.show()
