数据结构篇:基础数据结构认识及编码实现

发布于:2024-04-04 ⋅ 阅读:(121) ⋅ 点赞:(0)

        相信各位在大学数据结构课程便学习了栈、队列和链表的概念,在此我们从编码层面去理解其中的奥义。

        栈(Stack)是一种常见的数据结构,它是一种后入先出(Last In First Out, LIFO)的线性表。栈具有两个主要操作:入栈(push)和出栈(pop)。入栈是将元素放入栈顶,出栈是从栈顶删除元素。

        栈只允许在线性表的某一端(栈顶)进行添加和删除,另一端不允许操作。


public class ArrayStack {
    private int[] arr;
    private int top;

    public ArrayStack(int size){
        arr = new int[size];
        top=-1;
        System.out.println("栈创建成功");
    }
    /**
     * 入栈
     * @param value
     */
    public void push(int value){
         if(top==arr.length-1){
             throw new RuntimeException("栈已满,无法入栈");
         }
         arr[++top]=value;
     }
    /**
     *  出栈
     */
     public int pop(){
        if(top==-1){
            throw new RuntimeException("栈已空,无法出栈");
        }
        return arr[top--];
     }

    /**
     * 查看栈顶元素
     * @return
     */
     public int peek(){
         if(top==-1){
             throw new RuntimeException("栈已空,无法查看栈顶元素");
         }
         return arr[top];
     }

    /**
     * 判断栈是否为空
     * @return
     */
     public boolean isEmpty(){
         return top==-1;
     }

    /**
     *  判断栈是否已满
     * @return
     */
     public boolean isFull(){
         return top==arr.length-1;
     }

     public String toString(){
          return "ArrayStack{" +
                 "arr=" + java.util.Arrays.toString(arr) +
                 ", top=" + top +
                 '}';
     }
}



public static void testStack() {
        ArrayStack arrayStack = new ArrayStack(10);

        while (!arrayStack.isFull()) {
            int random = new Random().nextInt(100);
            System.out.println(String.format("入栈:%s", random));
            arrayStack.push(random);
        }
        System.out.println(arrayStack);
        while (!arrayStack.isEmpty()) {
            System.out.println(String.format("查看栈顶元素:%s", arrayStack.peek()));
            System.out.println(String.format("弹出栈顶元素:%s", arrayStack.pop()));
        }
    }

 队列

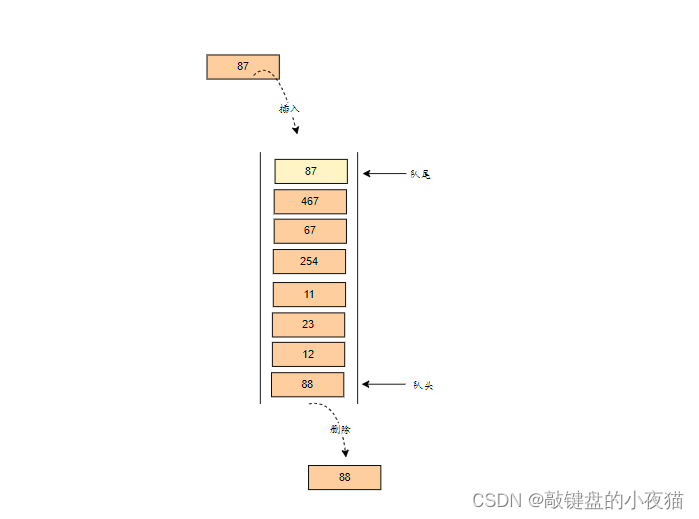

        队列(Queue)是一种受限制的线性数据结构,它遵循先进先出(First In First Out,FIFO)的原则。队列可以看作是一个具有两个端点的线性表,其中入队(enqueue)操作在队尾添加元素,出队(dequeue)操作则从队头移除元素。

        队列只允许在某一端(队尾)进行添加,在另一端(队头)进行删除。


public class MyQueue {

    /**
     * 存放数据的数组
     */
    public int[] array;

    public int length;

    public int head;

    public int tail;

    private int size;

    public MyQueue(int length) {
        this.array = new int[length];
        this.length = length;
        this.head = 0;
        this.tail = -1;
        this.size = 0;
    }


    /**
     * 入队
     * @param value
     * @return
     */
    public boolean enQueue(int value) {
        if (size == length){
            return false;
        }

        array[++tail]=value;
        size++;
        return true;
    }

    /**
     *  出队,先进先出
     * @return
     */
    public int deQueue() {
        if(size== 0){
            return -1;
        }
        int value = array[head++];
        size--;
        return value;
    }

    /**
     * 获取元素数量
     * @return
     */
    public int getQueueSize(){
        return size;
    }

    /**
     * 查看队列是否已满
     * @return
     */
    public boolean isFull(){
        return size == length;
    }

    /**
     * 查看队列是否空
     * @return
     */
    public boolean isEmpty() {
        return size == 0;
    }
    public String toString(){
        StringBuilder sb = new StringBuilder();
        sb.append("Queue: ");
        for (int i = head; i <= tail; i++) {
            sb.append(array[i]);
            if(i<tail){
                sb.append(", ");
            }
        }
        return sb.toString();
     }
}


public static void TestQueue() {
        MyQueue myQueue = new MyQueue(10);
        while (!myQueue.isFull()) {
            int random = new Random().nextInt(100);
            System.out.println(String.format("入队:%s", random));
            myQueue.enQueue(random);
        }
        System.out.println(myQueue);
        while (!myQueue.isEmpty()) {
            System.out.println(String.format("出队:%s", myQueue.deQueue()));
            System.out.println(String.format("查看队列元素数:%s", myQueue.getQueueSize()));
        }

    }

链表

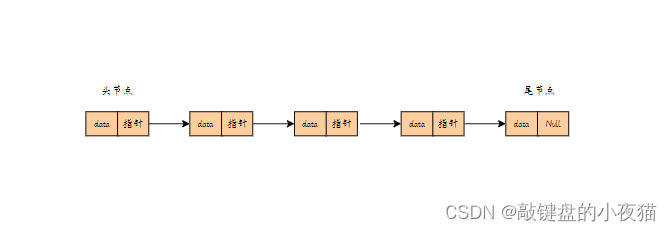

        链表(Linked List)是一种线性数据结构,它由节点(Node)组成,每个节点包含数据元素和指向下一个节点的指针(或引用)。链表中最后一个节点的指针指向空(null),表示链表的末尾。

        链表可以分为单向链表(Single Linked List)和双向链表(Double Linked List)两种形式。在单向链表中,每个节点只有一个指向下一个节点的指针;而在双向链表中,每个节点除了一个指向下一个节点的指针外,还有一个指向前一个节点的指针。

        每个元素可以记住他的下一个节点,通常从根节点遍历。


public class LinkList {
    Node head;

    public LinkList() {
        head = null;
    }

    //尾插法
    public void add(int value) {
        Node node = new Node(value);
        if (head == null) {
            head = node;
        } else {
            //遍历找到最后一个节点
            Node temp = head;
            while (temp.next != null) {
                temp = temp.next;
            }
            temp.next = node;
        }
    }

    //删除第一次出现关键字为value的节点
    public void remove(int value) {
        if (head == null) {
            return;
        }
        //第一个节点是查找的值,那么第二个节点就为新头节点
        if (head.value == value) {
            head = head.next;
            return;
        }
        //遍历查找
        Node temp = head;
        //持续遍历下个节点的value,直到找到匹配的
        while (temp.next != null && temp.next.value != value) {
            temp = temp.next;
        }
        //如果找到匹配的,删除,直接用下下节点引用替换下个节点的引用
        if (temp.next != null && temp.next.value == value) {
            temp.next = temp.next.next;
        }
    }

    /**
     * 打印链表
     */
    public void printList() {
        Node temp = head;
        while (temp != null) {
            System.out.print(temp.value+"  ");
            temp = temp.next;
        }
        System.out.println();

    }
}

class Node {
    int value;

    Node next;

    public Node(int value) {
        this.value = value;
    }
}
